VAUXHALL VIVARO 2019 Owner's Manual

Technical data209Vehicle dimensionsTypeVanCombiDouble cabPlatform cabWheelbaseL1L2L1L2L1L2L2Length [mm]4999539949995399499953995248Width without exterior mirrors [mm]1956195619561956195619561955Width with two exterior mirrors [mm]2283228322832283228322832283Height - unladen (without antenna) [mm]H1
1971196719701970197119671971
H224932493-----Wheelbase [mm]3098349830983498309834983498
Loadspace dimensions
VanL1L2Roof heightH1H2H1H2Maximum rear door aperture height [mm]1295181812951818Rear door aperture width (at floor) [mm]1391139113911391Maximum load area height [mm]1387191313871913Maximum load area width [mm]1662166216621662

210Technical dataVanL1L2Roof heightH1H2H1H2Width between wheel arches [mm]1268126812681268Maximum load floor length [mm]2537253729372937Maximum load floor length -
up to front passenger foot well (with load-through feature) [mm]3815381541504150Sliding side door aperture width [mm]1229122912291229Sliding side door aperture width - at 100 mm from floor [mm]1030103010301030Sliding side door aperture height [mm]1284128412841284CombiL1L2Maximum rear door aperture height [mm]12951295Rear door aperture width (at floor) [mm]13911391Maximum load area height [mm]13691369Maximum load area width [mm]16621662Width between wheel arches [mm]12681268Maximum load floor length - with tailgate [mm]736 / 1620 1)1136 / 2020 1)Maximum load floor length - with rear doors [mm]765 / 16791)1165 / 2079 1)

Technical data211CombiL1L2Sliding side door aperture width [mm]12291229Sliding side door aperture width - at 100 mm from floor [mm]10301030Sliding side door aperture height [mm]128412841)Depending on seat row.Double cabL1L2Maximum rear door aperture height [mm]13201320Rear door aperture width (at floor) [mm]13911391Maximum load area height [mm]13871387Maximum load area width [mm]16621662Width between wheel arches [mm]12681268Maximum load floor length [mm]20002400Maximum load floor length - behind rear seats [mm]13701770Sliding side door aperture width [mm]12291229Sliding side door aperture width - at 100 mm from floor [mm]10301030Sliding side door aperture height [mm]12841284

212Technical dataCapacities
Fuel tankFuel tank, nominal capacity [l]80
AdBlue tank
AdBlue, nominal capacity [l]22.5

Technical data213Tyre pressuresTyreFrontRear[kPa/bar] (psi)[kPa/bar] (psi)195/75 R16 C 107/105T,
205/65 R16 C 107/105T380/3.8 (55)420/4.2 (61)215/65 R16 C 106/104T,
215/65 R16 C 107/105T310/3.1 (45)340/3.4 (49)215/60 R17 C 109/107T350/3.5 (51) 2)390/3.9 (57)3)2)
Combi: 320/3.2 (46) for non-motorway driving.
3) Combi: 350/3.5 (51) for non-motorway driving.

214Customer informationCustomer
informationCustomer information ................214
Declaration of conformity .........214
REACH .................................... 218
Registered trademarks ............218
Vehicle data recording and pri‐
vacy ........................................... 218
Event data recorders ...............218
Radio Frequency Identification (RFID) ..................................... 221Customer information
Declaration of conformity
Radio transmission systems
This vehicle has systems that
transmit and / or receive radio waves
subject to Directive 2014/53/EU. The
manufacturers of the systems listed
below declare conformity with
Directive 2014/53/EU. The full text of
the EU declaration of conformity for each system is available at the
following internet address:
www.opel.com/conformity.
Importer is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Electronic key transmitter
Continental Automotive
1 Rue de Clairefontaine, 78120
Rambouillet, France
Operation frequency: 433 MHz
Maximum output: 10 mW ERPImmobiliser
Visteon Electronics
04 Rue Nelson Mandela, Zone
Industrielle Borj Cedria, 2055 Bir El
Bey, Tunisia
Operation frequency: 125 kHz
Maximum output:
42 dBµA/m @ 10 m
Immobiliser
Continental Automotive
1 Rue de Clairefontaine, 78120
Rambouillet, France
Operation frequency: 125 kHz
Maximum output:
42 dBµA/m @ 10 m
IntelliLink Touch
Continental Automotive
1 Rue de Clairefontaine, 78120
Rambouillet, France
Operation frequency: N/A
Maximum output: N/A
NAVI 50 IntelliLink / NAVI 80
IntelliLink
LG Electronics

Customer information215LG Electronics European Shared
Service Center B.V., Krijgsman 1,
1186 DM Amstelveen, The
Netherlands
Operation frequency: 2.4 GHz
Maximum output: 100 mW EIRP
Navigation module
TomTom Int'l BV
De Ruijterkade 154, 1011 AC
Amsterdam, The Netherlands
Operation frequency: 2.4 GHz
Maximum output: 100 mW EIRP
Parking heater remote control
receiver
Eberspaecher Climate Control
Systems GmbH & Co. KG
Eberspaecherstrasse 24, 73730
Esslingen, Germany
Operation frequency: N/A
Maximum output: N/A
Parking heater remote control
transmitter
Eberspaecher Climate Control
Systems GmbH & Co. KGEberspaecherstrasse 24, 73730
Esslingen, Germany
Operation frequency: 434.6 MHz
Maximum output: 10 dBm
Telematics control unit
Continental Automotive
1 Rue de Clairefontaine, 78120
Rambouillet, France
Operation frequency:
2400 – 2483,5 MHz
Maximum output: 100 mW EIRP
R16 / R16 BT USB / CD18 BT USB
Visteon Electronics
04 Rue Nelson Mandela, Zone
Industrielle Borj Cedria, 2055 Bir El
Bey, Tunisia
Operation frequency: 2.4 GHz
Maximum output: 100 mW EIRP
Radio remote control transmitter
Visteon Electronics
04 Rue Nelson Mandela, Zone
Industrielle Borj Cedria, 2055 Bir El
Bey, Tunisia
Operation frequency: 433 MHzMaximum output: 10 mW ERP
Radio remote control receiver
Visteon Electronics
04 Rue Nelson Mandela, Zone
Industrielle Borj Cedria, 2055 Bir El
Bey, Tunisia
Operation frequency: 433 MHz
Maximum output: 10 mW ERP
Rear view camera display
Ficosa International
Gran Via de Carles III, 98, 08028
Barcelona, SpainOperation
frequency (MHz)Maximum output
(dBm)824 - 89439880 - 960391710 - 1880361850 - 189033
Telematics module
Masternaut International
4 Rue Charles Cros, 27400 Louviers,
France

216Customer informationOperation
frequency (MHz)Maximum output
(dBm)90033180030
Tyre Pressure Monitoring
Schrader Electronics
Trooperslane Industrial Estate, 2
Meadowbank Rd, Carrickfergus
BT38 8YF, United Kingdom
Operation frequency: 433 MHz
Maximum output: 10 mW ERP

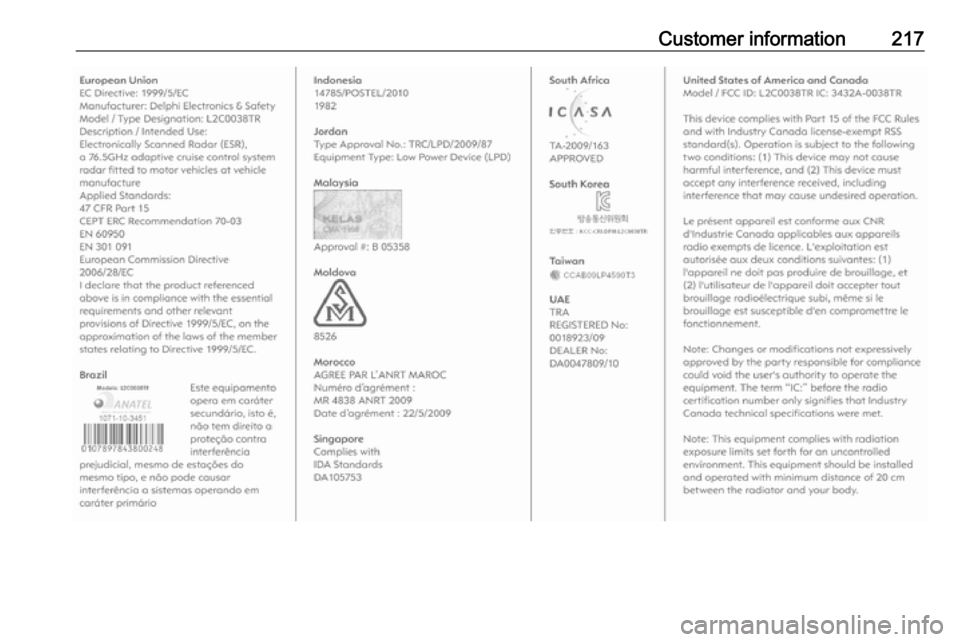

Radar systems
Country-specific Declarations of
Conformity for radar systems are
shown on the following page:

Customer information217

218Customer informationREACHRegistration, Evaluation,
Authorisation and Restriction of
Chemicals (REACH) is a European
Union regulation adopted to improve
the protection of human health and
the environment from the risks that
can be posed by chemicals. Visit
www.opel.com/reach for further
information and for access to the
Article 33 communication.
Registered trademarksApple Inc.
Apple CarPlay™ is a trademark of
Apple Inc.
App Store ®
and iTunes Store ®
are
registered trademarks of Apple Inc.
iPhone ®
, iPod ®
, iPod touch ®
, iPod
nano ®
, iPad ®
and Siri ®
are registered
trademarks of Apple Inc.Bluetooth SIG, Inc.
Bluetooth ®
is a registered trademark
of Bluetooth SIG, Inc.DivX, LLC
DivX ®
and DivX Certified ®
are
registered trademarks of DivX, LLC.EnGIS Technologies, Inc.
BringGo ®
is a registered trademark of
EnGIS Technologies, Inc.Google Inc.
Android™ and Google Play™ Store
are trademarks of Google Inc.Stitcher Inc.
Stitcher™ is a trademark of Stitcher,
Inc.Verband der Automobilindustrie e.V.
AdBlue ®
is a registered trademark of
the VDA.Vehicle data recording
and privacy
Event data recorders
Electronic control units are installed in
your vehicle. Control units process
data which is received by vehicle
sensors, for example, or which they
generate themselves or exchange
amongst themselves. Some control
units are necessary for the safe
functioning of your vehicle, others
assist you while you drive (driver
assistance systems), while others
provide comfort or infotainment
functions.
The following contains general
information about data processing in
the vehicle. You will find additional
information as to which specific data
is uploaded, stored and passed on to third parties and for what purpose in
your vehicle under the key word Data Protection closely linked to the
references for the affected functional
characteristics in the relevant owner's
manual or in the general terms of
sale. These are also available online.
