key VAUXHALL VIVARO 2019 Owner's Manual
[x] Cancel search | Manufacturer: VAUXHALL, Model Year: 2019, Model line: VIVARO, Model: VAUXHALL VIVARO 2019Pages: 231, PDF Size: 5.82 MB
Page 3 of 231
Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 44
Storage ........................................ 71
Instruments and controls .............82
Lighting ...................................... 108
Climate control ........................... 116
Driving and operating .................129
Vehicle care ............................... 164
Service and maintenance ..........203
Technical data ........................... 206
Customer information ................214
Index .......................................... 222Contents
Page 8 of 231
6In briefIn briefInitial drive informationVehicle unlockingUnlocking with remote control
Press c to unlock the driver's door.
Press again to unlock entire vehicle.
Open the doors by pulling the
handles.
Press G. Only the load
compartment is unlocked.
Radio remote control 3 20.
Central locking system 3 24.
Load compartment 3 33.
Unlocking with manual key 3 24.

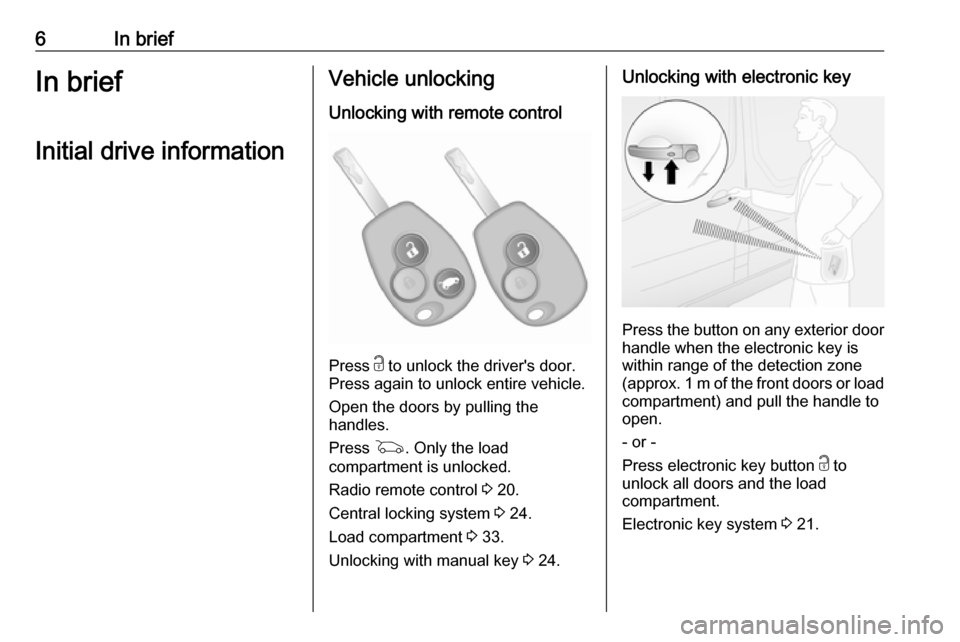

Unlocking with electronic key
Press the button on any exterior door
handle when the electronic key is
within range of the detection zone
(approx. 1 m of the front doors or load compartment) and pull the handle to
open.
- or -
Press electronic key button c to
unlock all doors and the load
compartment.
Electronic key system 3 21.
Page 13 of 231
In brief111Side air vents ...................... 127
2 Ashtray .................................. 88
Cupholder ............................ 73
3 Light switch ........................ 108
Rear fog light ....................... 112
Front fog lights ...................111
Exit lighting .......................... 114
Turn lights ........................... 111
Sidelights ............................ 108
Headlight flash, low beam
and high beam ....................109
4 Instruments .......................... 89
Driver Information Centre .... 101
Trip computer .....................104
5 Horn ...................................... 83
Driver airbag ......................... 61
6 Windscreen wiper,
windscreen washer system ..84
Rear window wiper, rear
window washer system ........85
Trip computer .....................1047Card reader for electronic
key system ............................ 21
8 Steering column controls ......83
9 Centre air vents ................... 127
10 Power outlet .......................... 87
Cigarette lighter ..................... 88
Coin tray, USB slot ................ 71
11 Info display .......................... 102
12 Front passenger airbag .........61
13 Glovebox .............................. 72
14 Heated exterior mirrors .........40
Heated rear window ..............43
Idle speed control ...............134
15 Power outlet .......................... 87
Cigarette lighter ..................... 88
16 Climate control system ........ 116
Electronic climate control
system ................................. 118
17 Ashtray .................................. 88
Cupholder ............................ 73
18 Hazard warning flashers .....111
Central locking system ..........2419Front parking assist ............ 154
20 Power button for electronic
key system .......................... 131
21 Eco button for fuel
economy mode ...................129
22 Stop-start system ................135
Cruise control ...................... 151
Speed limiter ....................... 153
23 Remote control on
steering wheel ......................83
Cruise control .....................151
24 Ignition switch with
steering wheel lock .............131
25 Steering wheel adjustment ...83
26 Bonnet release lever ...........166
27 Fuse box ............................. 182
28 Rear parking assist ............154
Electronic Stability Control ..149
Traction Control system ......148
Headlight range
adjustment ......................... 109
Instrument panel
illumination control ..............112
Page 19 of 231
In brief17Starting offCheck before starting off ● Tyre pressure 3 186 and
condition 3 213.
● Engine oil level and fluid levels 3 167.
● All windows, mirrors, exterior lighting and number plates are
free from dirt, snow and ice and
are operational.
● Proper position of mirrors 3 39,
seats 3 45 and seat belts
3 54.
● Brake function at low speed, particularly if the brakes are wet.Starting the engine with key
● Turn key to position 1.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake pedal. ● Do not operate accelerator pedal.
● Diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes in the instrument
cluster.
● Turn key to position 3 and
release.
Starting the engine 3 133.
Starting the engine with the power
button
Electronic key must be inside the
vehicle, either in the card reader or
the front passenger compartment.
● Move the steering wheel slightly to release the steering wheel
lock.
● Operate clutch and brake pedal.
● Do not operate accelerator pedal.
● Press START/STOP and
release.
● Engine starts after a short delay.
Power button 3 131.
Page 20 of 231
18In briefStop-start system
If the vehicle is at low speed or in
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
● Depress the clutch pedal.
● Move the selector lever to neutral.
● Release the clutch pedal.
An Autostop is indicated when Ï
illuminates in the instrument cluster
3 100.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 135.
Parking9 Warning
● Do not park the vehicle on an
easily ignitable surface. The
high temperature of the
exhaust system could ignite the
surface.
● Always apply parking brake without pressing release
button. Apply as firmly as
possible on a downhill slope or
uphill slope. Depress brake
pedal at the same time to
reduce operating force.
● Switch off the engine.
● If the vehicle is on a level surface or uphill slope, engage
first gear. On an uphill slope,
turn the front wheels away from
the kerb.
If the vehicle is on a downhill
slope, engage reverse gear.
Turn the front wheels towards the kerb.
● Close the windows.
● Remove the ignition key from the ignition switch. Turn the
steering wheel until the
steering wheel lock is felt to
engage.
● Lock the vehicle by pressing e on
the remote control 3 24.
Activate the anti-theft locking
system 3 35 and anti-theft
alarm system 3 36.
● The engine cooling fans may run
after the engine has been
switched off 3 166.
Caution
After running at high engine
speeds or with high engine loads,
operate the engine briefly at a low load or run in neutral for approx.30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 19.
Laying the vehicle up for a long period
of time 3 165.
Page 21 of 231
Keys, doors and windows19Keys, doors and
windowsKeys, locks ................................... 19
Keys .......................................... 19
Car Pass .................................... 20
Radio remote control .................20
Electronic key system ................21
Door locks ................................. 24
Central locking system ..............24
Automatic locking ......................30
Child locks ................................. 30
Doors ........................................... 31
Sliding door ............................... 31
Rear doors ................................. 31
Load compartment ....................33
Vehicle security ............................ 35
Anti-theft locking system ...........35
Anti-theft alarm system ..............36
Immobiliser ................................ 38
Exterior mirrors ............................ 39
Convex shape ........................... 39
Manual adjustment ....................39
Electric adjustment ....................39
Folding mirrors .......................... 39
Heated mirrors ........................... 40Interior mirrors............................. 40
Manual anti-dazzle ....................40
Automatic anti-dazzle ................41
Windows ...................................... 41
Windscreen ............................... 41
Power windows ......................... 42
Rear windows ............................ 42
Heated rear window ..................43
Sun visors .................................. 43Keys, locks
KeysCaution
Do not attach heavy or bulky items to the ignition key.
Replacement keys
The key number is specified on the
key or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
If the electronic key needs to be
replaced, the vehicle must be taken to a workshop.
Locks 3 200.
Radio remote control 3 20.
Electronic key system 3 21.
Central locking system 3 24.
Starting the engine 3 133.
Page 22 of 231
20Keys, doors and windowsLock cylinders
Designed to free-wheel if they are
forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.
When the vehicle is taken to a
workshop, this vehicle data is needed
in order to perform certain operations.Radio remote control
Used to operate:
● central locking system 3 24
● load compartment 3 33
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The remote control has a range of
approx. 5 m. It can be restricted by
external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.

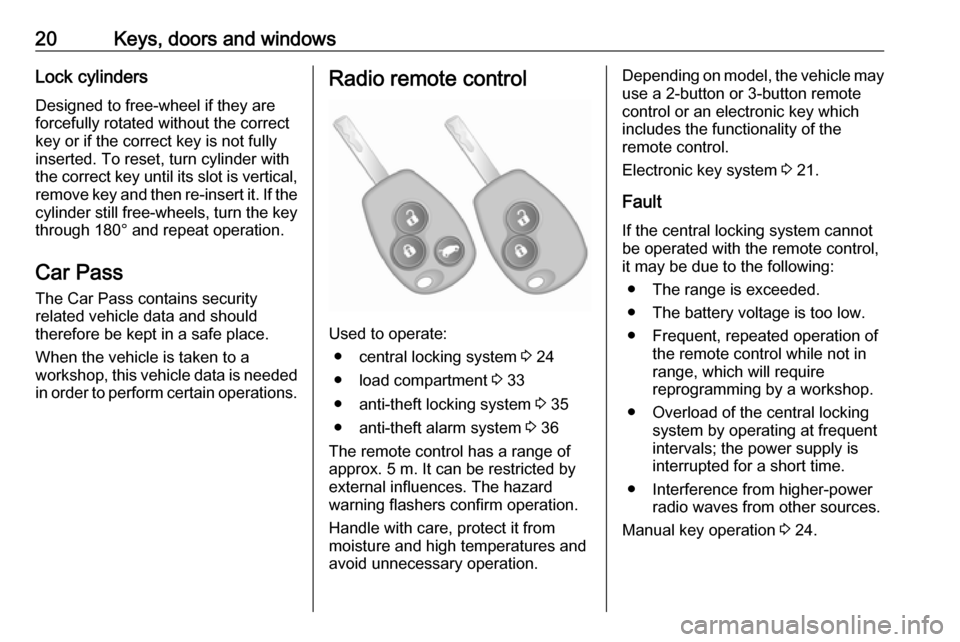

Depending on model, the vehicle may
use a 2-button or 3-button remote
control or an electronic key which
includes the functionality of the
remote control.
Electronic key system 3 21.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Overload of the central locking system by operating at frequent
intervals; the power supply is
interrupted for a short time.
● Interference from higher-power radio waves from other sources.
Manual key operation 3 24.
Page 23 of 231

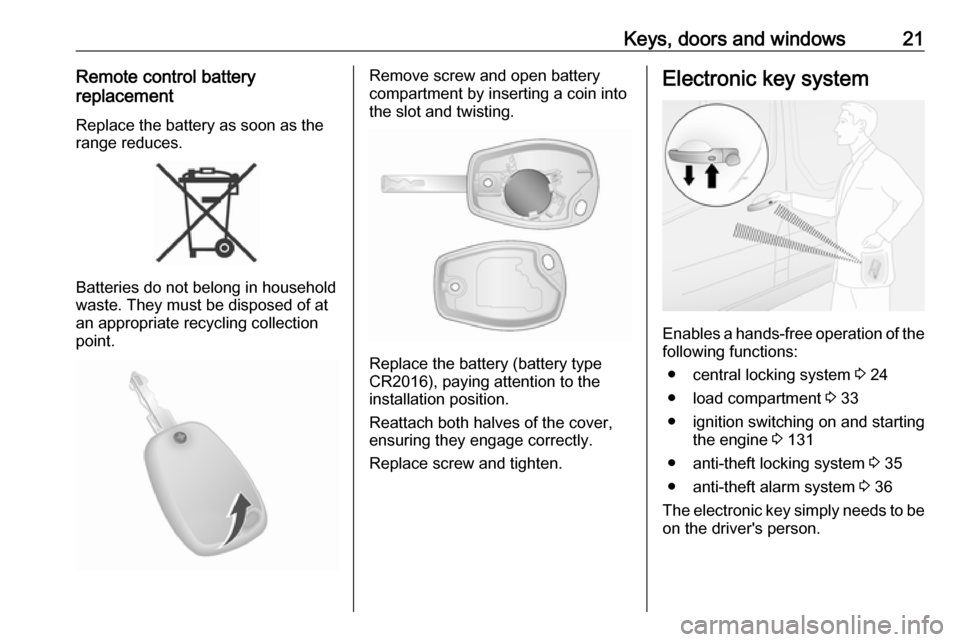

Keys, doors and windows21Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach both halves of the cover,
ensuring they engage correctly.
Replace screw and tighten.
Electronic key system
Enables a hands-free operation of the following functions:
● central locking system 3 24
● load compartment 3 33
● ignition switching on and starting the engine 3 131
● anti-theft locking system 3 35
● anti-theft alarm system 3 36
The electronic key simply needs to be on the driver's person.
Page 24 of 231
22Keys, doors and windowsNotice
Always take the electronic key with you when exiting the vehicle.
The electronic key being left in the
card reader is indicated by a warning chime 3 103 and a message in the
Driver Information Centre 3 102
when the driver's door is opened.
Additionally, the electronic key
includes the functionality of the
remote control 3 20 and an entry
lighting function 3 114.
For hands-free operation, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the front doors or load
compartment. The range of operation
for the electronic key buttons can be
restricted by external influences. The
hazard warning flashers confirm
operation.
Handle with care, protect from
moisture and high temperatures and
avoid unnecessary operation.
Notice
Do not put the electronic key in the
load compartment during driving, as
this is outside of the detection zone(indicated by a warning chime at low
speed 3 103 and a message in the
Driver Information Centre 3 102).
Notice
In the event the electronic key is kept in the front passenger compartment
and a message appears in the Driver
Information Centre (possibly
accompanied by a warning chime)
indicating that it is out of reception
range, we recommend inserting the
electronic key in the card reader.
Notice
If the electronic key is not detected
in the front passenger compartment
after opening and closing a door with
the engine running, a message appears in the Driver Information
Centre (accompanied by a warning
chime when a certain speed is
exceeded), indicating that it is out of reception range.
This helps you avoid, e.g., driving off
after dropping off a passenger who
has the electronic key.
The message disappears when the
electronic key is detected again.Hands-free operation is automatically
disabled when the electronic key
buttons have been operated or the
central locking switch e 3 24 is
pressed. To re-enable hands-free
operation, restart the engine.
Power button 3 131.
Electronic key battery
replacement
Replace the battery as soon as the
system no longer operates properly
or the range is reduced. The need for
battery replacement is indicated by a
message in the Driver Information
Centre 3 102.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Page 25 of 231
Keys, doors and windows23The need for battery replacement is
indicated by a message in the Driver Information Centre 3 102.
Notice
In an emergency, the vehicle can still
be locked / unlocked using the
emergency manual key in the
housing of the electronic key 3 21.

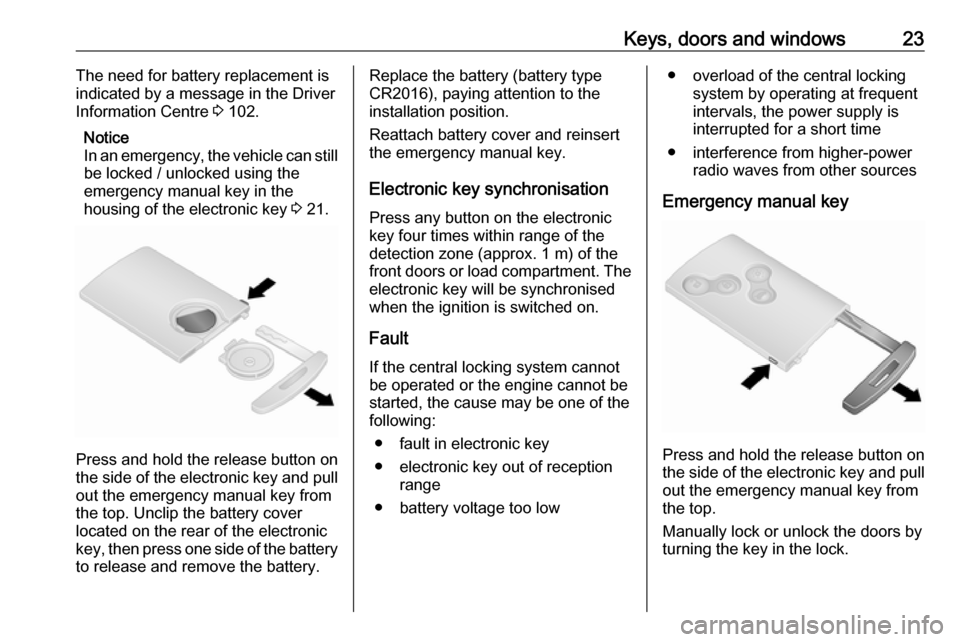

Press and hold the release button on
the side of the electronic key and pull out the emergency manual key from
the top. Unclip the battery cover
located on the rear of the electronic
key, then press one side of the battery
to release and remove the battery.
Replace the battery (battery type
CR2016), paying attention to the
installation position.
Reattach battery cover and reinsert
the emergency manual key.
Electronic key synchronisation
Press any button on the electronic
key four times within range of the
detection zone (approx. 1 m) of the front doors or load compartment. The electronic key will be synchronised
when the ignition is switched on.
Fault
If the central locking system cannot
be operated or the engine cannot be started, the cause may be one of the
following:
● fault in electronic key
● electronic key out of reception range
● battery voltage too low● overload of the central locking system by operating at frequent
intervals, the power supply is
interrupted for a short time
● interference from higher-power radio waves from other sources
Emergency manual key
Press and hold the release button on
the side of the electronic key and pull out the emergency manual key from
the top.
Manually lock or unlock the doors by turning the key in the lock.
