82Instruments and controlsInstruments and
controlsControls ....................................... 83
Steering wheel adjustment ........83
Steering wheel controls .............83
Horn ........................................... 83
Steering column controls ...........83
Windscreen wiper and washer ..84
Rear window wiper and washer ...................................... 85
Outside temperature ..................85
Clock ......................................... 86
Power outlets ............................. 87
Cigarette lighter ......................... 88
Ashtrays .................................... 88
Warning lights, gauges and indi‐ cators ........................................... 89
Instrument cluster ......................89
Speedometer ............................. 89
Odometer .................................. 90
Trip odometer ............................ 90
Tachometer ............................... 90
Fuel gauge ................................ 90
Fuel economy gauge .................91
Service display .......................... 92
Control indicators ......................92Turn lights.................................. 95
Seat belt reminder .....................96
Airbag and belt tensioners .........96
Airbag deactivation ....................96
Charging system .......................97
Malfunction indicator light ..........97
Service vehicle soon .................97
Stop engine ............................... 97
Brake system ............................. 97
Antilock brake system (ABS) .....98
Gear shifting .............................. 98
Electronic Stability Control ........98
Electronic Stability Control off ...98
Engine coolant temperature ......98
Preheating ................................. 99
AdBlue ....................................... 99
Tyre pressure monitoring system ...................................... 99
Engine oil pressure ....................99
Fuel economy mode ................100
Low fuel ................................... 100
Stop-start system ....................100
Exterior light ............................ 100
High beam ............................... 100
Front fog lights ......................... 101
Rear fog light ........................... 101
Cruise control .......................... 101
Speed limiter ........................... 101
Tachograph ............................. 101
Door open ................................ 101Displays..................................... 101
Driver Information Centre ........101
Info Display .............................. 102
Vehicle messages ......................102
Warning chimes .......................103
Engine oil level ........................ 104
Trip computer ............................. 104
Tachograph ................................ 106

92Instruments and controlsThe fuel economy gauge is enabled
by default.
Depending on version, the fuel
economy gauge (or 'driving style
indicator') can be disabled via the
Infotainment system. Refer to
Infotainment manual for further
information.
Service display When the ignition is switched on, theremaining distance before the next
service is due may be shown briefly in
the Driver Information Centre. Based
on driving conditions, the interval at
which a service will be indicated can
vary considerably.
The 'distance before service' display
can also be shown by pressing button on end of wiper lever for approx.
5 seconds.
When the remaining distance before
the next service is less than
1000 miles or one month , a message
appears in the Driver Information
Centre.When the distance reaches 0 miles or
the service date is due, control
indicator j illuminates in the
instrument cluster and the Driver
Information Centre respectively, and
a corresponding message appears in the Driver Information Centre.
The vehicle needs a service. Seek the
assistance of a workshop.
Resetting the service displayAfter a service, the service display
must be reset:
Select the 'distance before service'
display in the Driver Information
Centre by pressing button repeatedly
on the end of the wiper lever, then
press and hold button for approx.
10 seconds until the 'distance before
service' is displayed continuously, i.e. the display no longer flashes.
On some vehicles, it may be
necessary to press and hold the
button twice. In this event, proceed as
follows:
After selecting the 'distance before
service' display, press and hold
button for approx. 10 seconds until
the 'distance before service' flashes inthe display. Then press and hold
button again for approx. 10 seconds
to reset the service interval.
If control indicator j does not
extinguish from the instrument
cluster, drive a minimum of 10 miles 
then switch off ignition for at least
1 minute before repeating procedure.
Trip computer 3 104.
Driver Information Centre 3 101.
Service information 3 203.
Control indicators The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions.
Depending on the equipment the
position of the control indicators may
vary.
When the ignition is switched on,
most control indicators will illuminate
briefly as a functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activation

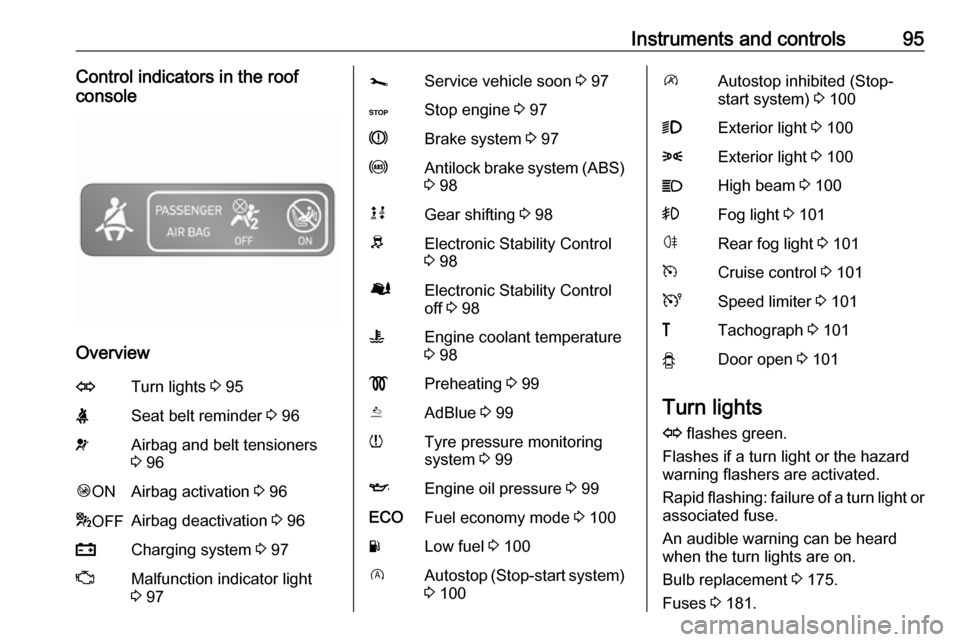

Instruments and controls95Control indicators in the roof
console
Overview
OTurn lights 3 95XSeat belt reminder 3 96vAirbag and belt tensioners
3 96Ó ONAirbag activation 3 96* OFFAirbag deactivation 3 96pCharging system 3 97ZMalfunction indicator light
3 97jService vehicle soon 3 97CStop engine 3 97RBrake system 3 97uAntilock brake system (ABS)
3 98kjGear shifting 3 98RElectronic Stability Control
3 98ØElectronic Stability Control
off 3 98WEngine coolant temperature
3 98!Preheating 3 99YAdBlue 3 99wTyre pressure monitoring
system 3 99IEngine oil pressure 3 99ECOFuel economy mode 3 100YLow fuel 3 100DAutostop (Stop-start system)
3 100\Autostop inhibited (Stop-
start system) 3 1009Exterior light 3 1008Exterior light 3 100CHigh beam 3 100>Fog light 3 101øRear fog light 3 101mCruise control 3 101USpeed limiter 3 101&Tachograph 3 101yDoor open 3 101
Turn lights
O flashes green.
Flashes if a turn light or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn light or associated fuse.
An audible warning can be heard
when the turn lights are on.
Bulb replacement 3 175.
Fuses 3 181.

Instruments and controls97Charging system
p illuminates red.
Illuminates briefly when the ignition is switched on.
Illuminates when the engine is
running
If control indicator p illuminates
when the engine is running (together
with control indicator C and a
warning chime): Stop, switch off
engine.
Vehicle battery is not charging.
Engine cooling may be interrupted.
Power to the brake servo unit may be
cut. Seek the assistance of a
workshop.
Malfunction indicator light Z illuminates or flashes yellow.
Illuminates briefly when the ignition is
switched on.Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon j illuminates yellow.
Illuminates briefly when the ignition is
switched on.
May illuminate together with other
control indicators and a
corresponding message in the Driver
Information Centre 3 101. Seek the
assistance of a workshop
immediately.Stop engine
C illuminates red.
Illuminates briefly when the ignition is
switched on.
Illuminates together with other control indicators (e.g., p, I and R),
accompanied by a warning chime and a corresponding message in theDriver Information Centre 3 101:
stop engine immediately and seek the
assistance of a workshop.
Brake system
R illuminates red.
Illuminates after the ignition is
switched on if the parking brake is
applied 3 147 and extinguishes
when the parking brake is released.
Illuminates when the parking brake is released if the brake fluid level is too
low 3 170.9 Warning
Stop. Do not continue your
journey. Consult a workshop.

Vehicle care189PunctureA puncture or severely under-inflated
tyre is indicated by illumination of
control indicator w together with C
3 97 and a corresponding message
appears in the Driver Information
Centre. Stop vehicle and switch off
engine.
Tyre pressure 3 213.
Tyre repair kit 3 191.
Spare wheel 3 195.
Wheel changing 3 194.
Relearn functionAfter a puncture has been repaired
and the driver has inflated the tyres to
the correct tyre pressure, the tyre
pressure monitoring system needs to recalculate.
Tyre pressure 3 213.
Tyre repair kit 3 191.
During driving, select the tyre
pressure menu in the Driver
Information Centre by pressing button
on end of wiper lever. Press and hold button for approx. 5 seconds to
initialise recalculation. A
corresponding message appears in
the Driver Information Centre.
Several minutes of driving at a speed above 25 mph may be required to
complete the relearn process. The system can only provide limited
information during this time.
If problems occur during the relearn
process, control indicator w remains
illuminated and a warning message is displayed in the Driver Information
Centre.
Driver Information Centre 3 101.
Vehicle messages 3 102.General information
The use of tyre chains or
commercially available liquid tyre
repair kits can impair the function of
the system. Factory-approved tyre
repair kits can be used.
Tyre repair kit 3 191.
Tyre chains 3 190.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced, the
tyre pressure monitoring system
sensors must be dismounted and
serviced by a workshop.
Tread depth Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2–3 mm
(4 mm for winter tyres).
For safety reasons it is recommended
that the tread depth of the tyres on
one axle should not vary by more than 2 mm.

223Child restraint installationlocations ................................... 66
Child restraints.............................. 64
Child restraint systems ................64
Cigarette lighter ........................... 88
Cleaning the vehicle ...................200
Climate control ............................. 15
Climate control systems .............116
Clock ............................................ 86
Coat hooks ................................... 73
Coin holder ................................... 71
Control indicators.......................... 92
Control of the vehicle .................130
Controls ........................................ 83
Controls in steering wheel ............83
Convex shape .............................. 39
Coolant ....................................... 169
Coolant and antifreeze ...............204
Coolant heater ............................ 122
Cooling (A/C) .............................. 117
Cornering lights .......................... 110
Cruise control ....................101, 151
Cupholders .................................. 73
Curtain airbag system .................. 62
D Danger, Warnings and Cautions ...4
Dashboard .................................... 10
Daytime running lights ........109, 110
Declaration of conformity ............214DEF............................................ 140
Demisting and defrosting ..............15
Diesel exhaust fluid ....................140
Diesel fuel ................................... 159
Diesel fuel filter .......................... 173
Diesel fuel system bleeding .......173
Diesel particle filter ....................139
Directional tyres ..................186, 195
Distance to service .......................92
Document tray .............................. 73
Door locks..................................... 24
Door open .................................. 101
Door panel storage .......................74
Doors ............................................ 31
Double cab ................................... 74
DPF (diesel particle filter) ...........139
Driver assistance systems ..........151
Driver Information Centre ...........101
Driving characteristics and towing tips .............................. 162
Driving economically................... 129
Driving hints ........................ 129, 130
Driving style indicator ...................91
E ECO mode .................................. 129
ecoScoring.................................. 104
Electric adjustment ......................39
Electrical accessories ...................87
Electrical system......................... 181Electronic climate control system 118
Electronic data recording ..............41
Electronic key system ...................21
Electronic Stability Control ..98, 149
Electronic Stability Control off....... 98
Electronic stability program 149, 163
End-of-life vehicle recovery .......166
Engine air filter............................ 168
Engine air flow indicator .............168
Engine coolant ........................... 169
Engine coolant temperature ........98
Engine drag torque control .........149
Engine exhaust .......................... 139
Engine identification ...................207
Engine oil ................... 167, 204, 208
Engine oil additives ....................204
Engine oil level .......................... 104
Engine oil pressure ......................99
Engine oil viscosity grades .........204
Enhanced traction function. 148, 149
Entry lighting .............................. 114
Event data recorders ..................218
Exhaust gases ....................139, 198
Exit lighting ................................ 114
Exterior care .............................. 200
Exterior light ............................... 100
Exterior lighting ....................12, 108
Exterior mirrors ............................. 39
