Power seat adjustment

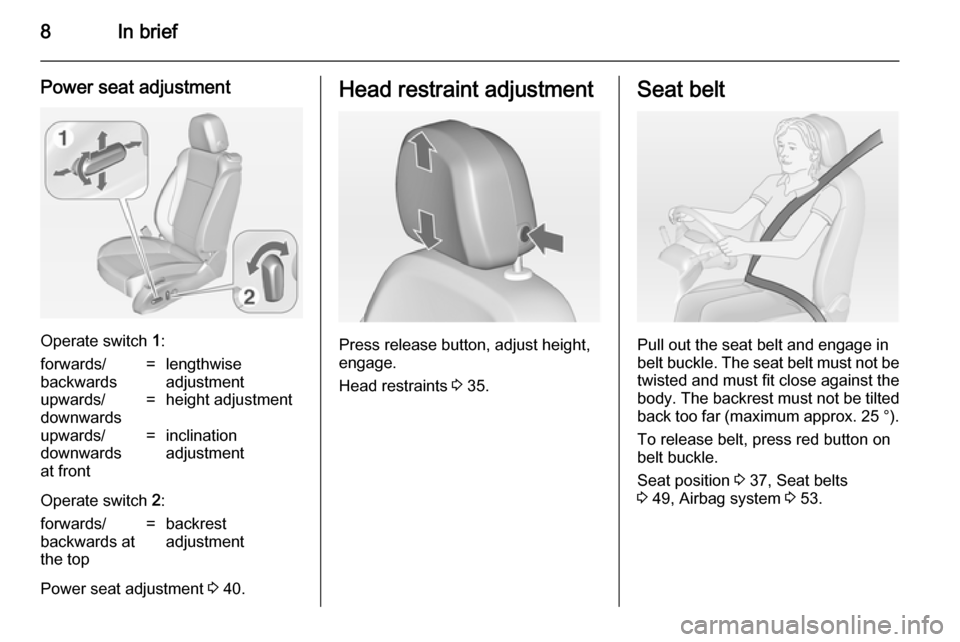

Operate switch 1:
forwards/
backwards=lengthwise
adjustmentupwards/
downwards=height adjustmentupwards/
downwards
at front=inclination
adjustment
Operate switch 2:
forwards/
backwards at
the top=backrest
adjustment
Power seat adjustment 3 40.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 35.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 ° ).
To release belt, press red button on belt buckle.
Seat position 3 37, Seat belts
3 49, Airbag system 3 53.

In brief11
1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................177
Speed limiter ....................... 179
Adaptive cruise control .......180
Forward collision alert .........187
4 Side air vents ...................... 154
5 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................96
6 Instruments ........................ 102
7 Steering wheel controls .......94
8 Driver Information Centre .... 115
9 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................143
Exit lighting ......................... 146
Parking lights ...................... 144
Buttons for Driver
Information Centre ..............11510Central locking system ..........21
Hazard warning flashers ....143
Sport mode ........................ 175
Tour mode .......................... 175
Fuel selector ....................... 103
Control indicator for airbag deactivation ........................ 109
Control indicator for front
passenger seat belt ...........108
11 Info-Display ........................ 119
12 Centre air vents .................. 154
13 Anti-theft alarm system
status LED ........................... 25
14 Glovebox .............................. 63
Fuse box ............................. 241
15 Climate control system ........ 148
16 AUX input, USB input, SD
card slot ................................ 10
Power outlet ........................ 10017Selector lever, manual
transmission ....................... 170
Automatic transmission ......167
18 Traction Control system .....174
Electronic Stability Control . 175
Lane departure warning .....205
19 Electric parking brake .........172
20 Parking assist ..................... 192
Advanced parking assist .....195
Stop-start button .................160
21 Ignition switch with
steering wheel lock ............158
22 Horn ..................................... 95
Driver airbag ........................ 53
23 Bonnet release lever ..........223
24 Storage compartment ..........65
25 Steering wheel adjustment ..94
26 Light switch ........................ 136
Headlight range
adjustment ......................... 138
Front fog lights ...................143

In brief17Starting offCheck before starting off ■ Tyre pressure and condition 3 245,
3 283.
■ Engine oil level and fluid levels 3 223.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats, and seat belts 3 28, 3 37,
3 50.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position 1
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ automatic transmission in P or N
■ do not operate accelerator pedal
■ diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes
■ turn key to position 3 and release
Starting the engine 3 158.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ shift the selector lever to N
■ release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 160.

Keys, doors and windows21
Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the installation position. Close the unit
and synchronise.
Radio remote control
synchronisation
After replacing the battery, unlock the
door with the key in the driver's door
lock. The radio remote control will be
synchronised when you switch on the
ignition.
Memorised settings Whenever the key is removed from
the ignition switch, the following
settings are automatically memorised by the key:
■ Lighting
■ Infotainment system
■ Central locking system
■ Sport mode settings
■ Comfort settingsThe saved settings are automatically
used the next time the memorised key
is inserted into the ignition switch and
turned to position 1 3 158.
A precondition is that Personalization
by driver is activated in the personal
settings of the Graphic-Info-Display.
This must be set for each key used.
On vehicles equipped with
Colour-Info-Display, the
personalisation is permanently
activated.
Vehicle personalisation 3 128.
Central locking system Unlocks and locks doors, load
compartment and fuel filler flap.
A pull on an interior door handle
unlocks the respective door. Pulling the handle once more opens the door.
Notice
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.
Unlocking
Press button c.
Two settings are selectable: ■ To unlock only the driver's door, load compartment and fuel filler
flap, press button c once. To unlock
all doors, press button c twice

Seats, restraints35Seats, restraintsHead restraints............................ 35
Front seats ................................... 37
Rear seats ................................... 43
Seat belts ..................................... 49
Airbag system .............................. 53
Child restraints ............................. 57Head restraints
Position9 Warning
Only drive with the head restraint
set to the proper position.

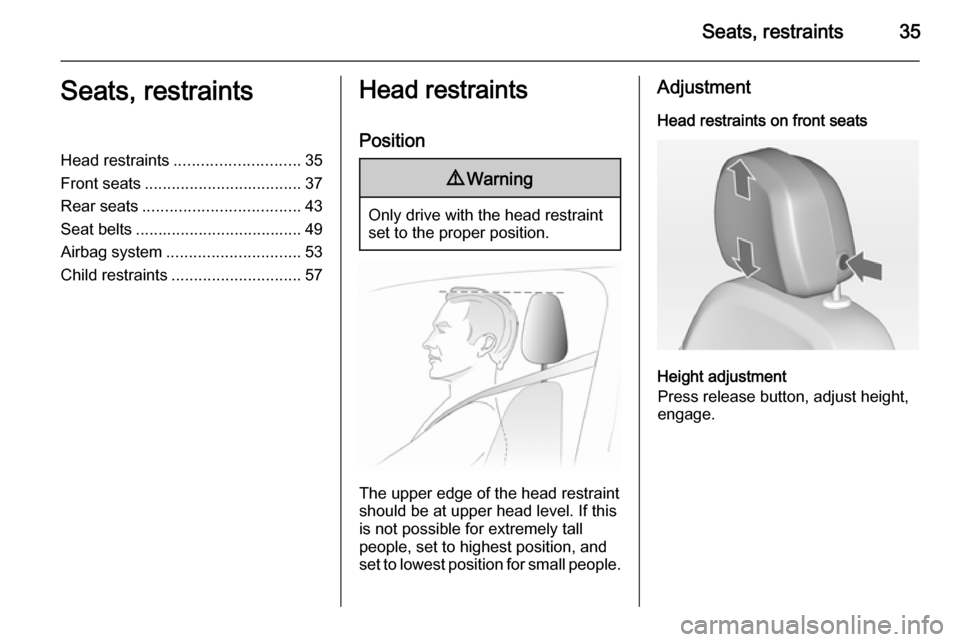

The upper edge of the head restraint
should be at upper head level. If this
is not possible for extremely tall
people, set to highest position, and
set to lowest position for small people.
Adjustment
Head restraints on front seats
Height adjustment
Press release button, adjust height,
engage.

Seats, restraints37Front seats
Seat position9 Warning
Only drive with the seat correctly
adjusted.

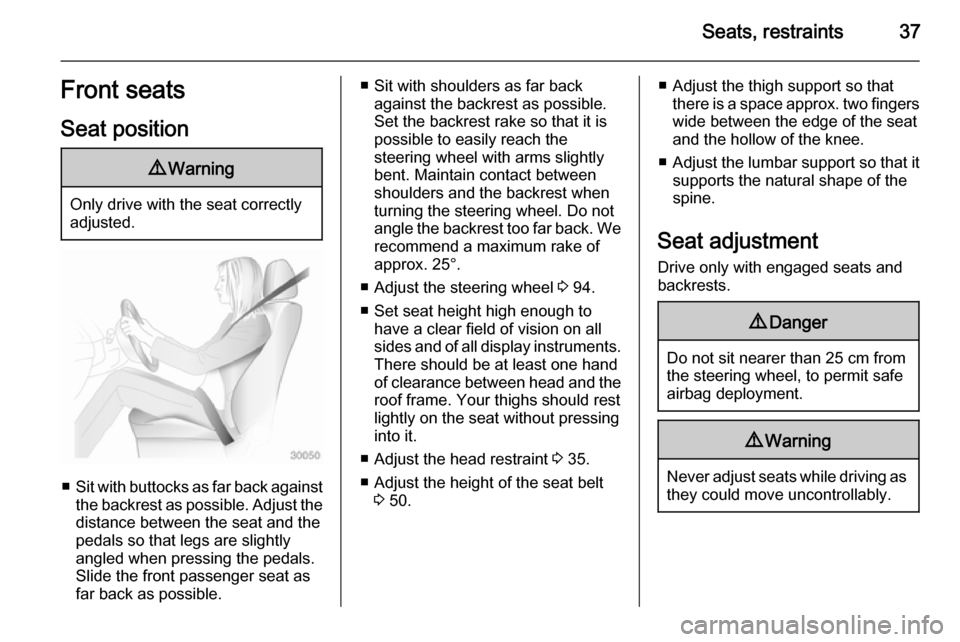

■ Sit with buttocks as far back against
the backrest as possible. Adjust the distance between the seat and the
pedals so that legs are slightly
angled when pressing the pedals.
Slide the front passenger seat as
far back as possible.
■ Sit with shoulders as far back against the backrest as possible.
Set the backrest rake so that it is possible to easily reach the
steering wheel with arms slightly bent. Maintain contact between
shoulders and the backrest when
turning the steering wheel. Do not
angle the backrest too far back. We recommend a maximum rake of
approx. 25°.
■ Adjust the steering wheel 3 94.
■ Set seat height high enough to have a clear field of vision on allsides and of all display instruments.
There should be at least one hand
of clearance between head and the
roof frame. Your thighs should rest
lightly on the seat without pressing
into it.
■ Adjust the head restraint 3 35.
■ Adjust the height of the seat belt 3 50.■ Adjust the thigh support so that
there is a space approx. two fingers
wide between the edge of the seat
and the hollow of the knee.
■ Adjust the lumbar support so that it
supports the natural shape of the
spine.
Seat adjustment
Drive only with engaged seats and
backrests.9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
9 Warning
Never adjust seats while driving as
they could move uncontrollably.

48Seats, restraintsNever adjust seats while driving asthey could move uncontrollably.
Drive only with engaged seats and
backrests.Caution

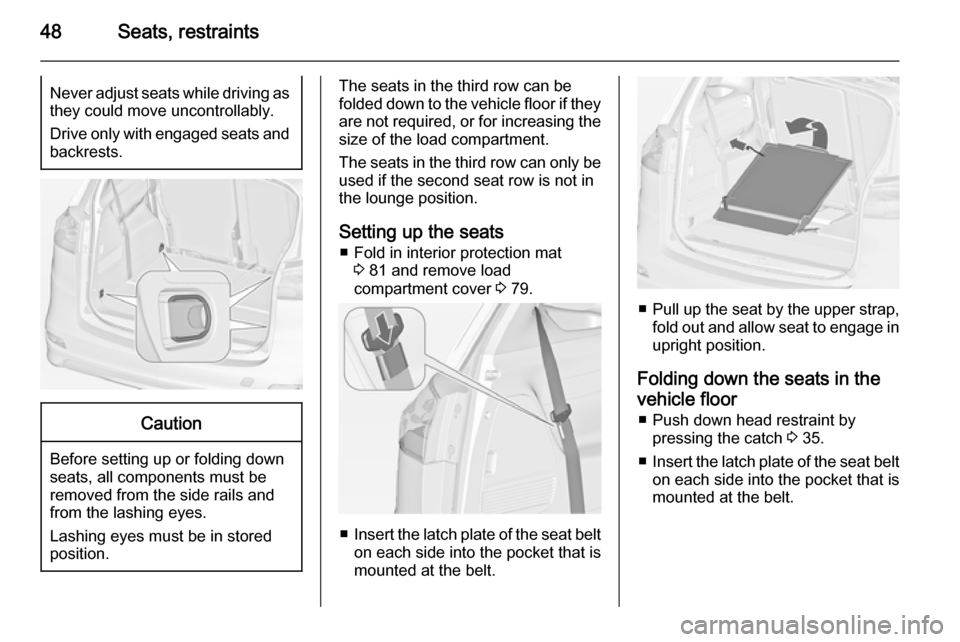

Before setting up or folding down
seats, all components must be
removed from the side rails and
from the lashing eyes.
Lashing eyes must be in stored
position.
The seats in the third row can be folded down to the vehicle floor if they are not required, or for increasing the
size of the load compartment.
The seats in the third row can only be
used if the second seat row is not in
the lounge position.
Setting up the seats ■ Fold in interior protection mat 3 81 and remove load
compartment cover 3 79.
■ Insert the latch plate of the seat belt
on each side into the pocket that is
mounted at the belt.

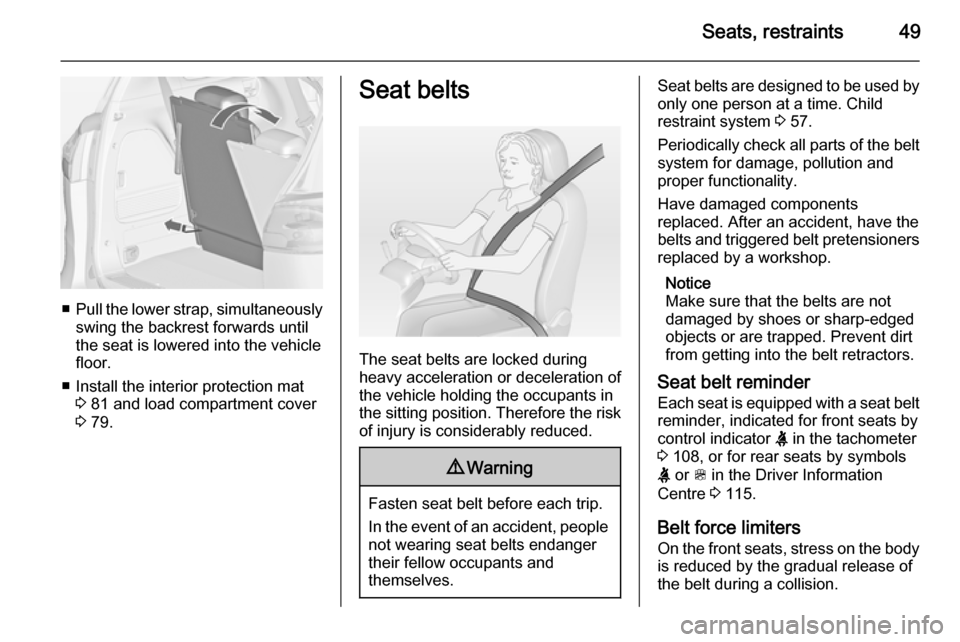

■ Pull up the seat by the upper strap,
fold out and allow seat to engage inupright position.
Folding down the seats in the
vehicle floor ■ Push down head restraint by pressing the catch 3 35.
■ Insert the latch plate of the seat belt
on each side into the pocket that is
mounted at the belt.

Seats, restraints49
■Pull the lower strap, simultaneously
swing the backrest forwards until
the seat is lowered into the vehicle
floor.
■ Install the interior protection mat 3 81 and load compartment cover
3 79.
Seat belts
The seat belts are locked during
heavy acceleration or deceleration of
the vehicle holding the occupants in
the sitting position. Therefore the risk
of injury is considerably reduced.

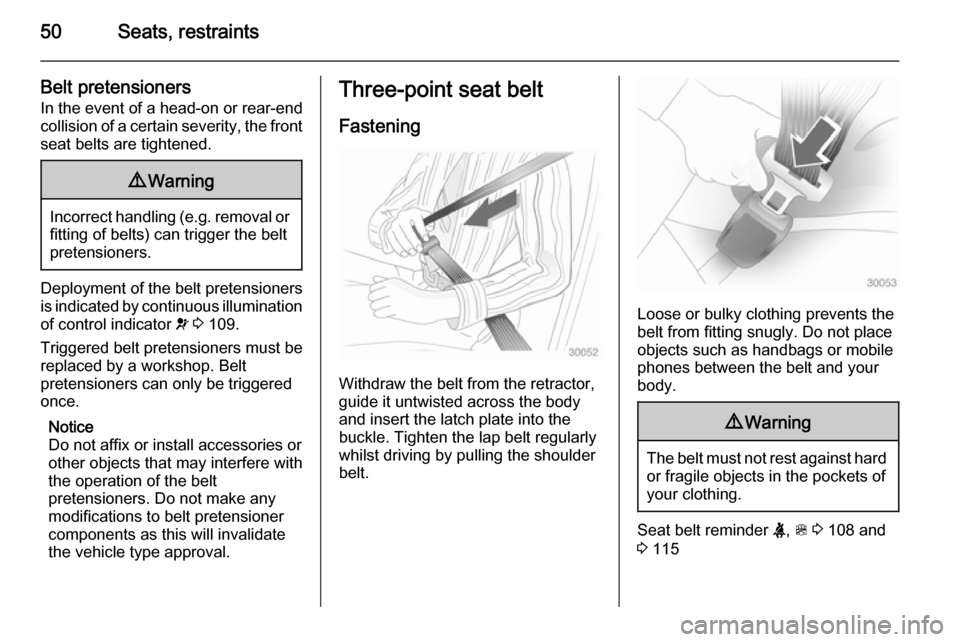

9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Seat belts are designed to be used by only one person at a time. Child
restraint system 3 57.

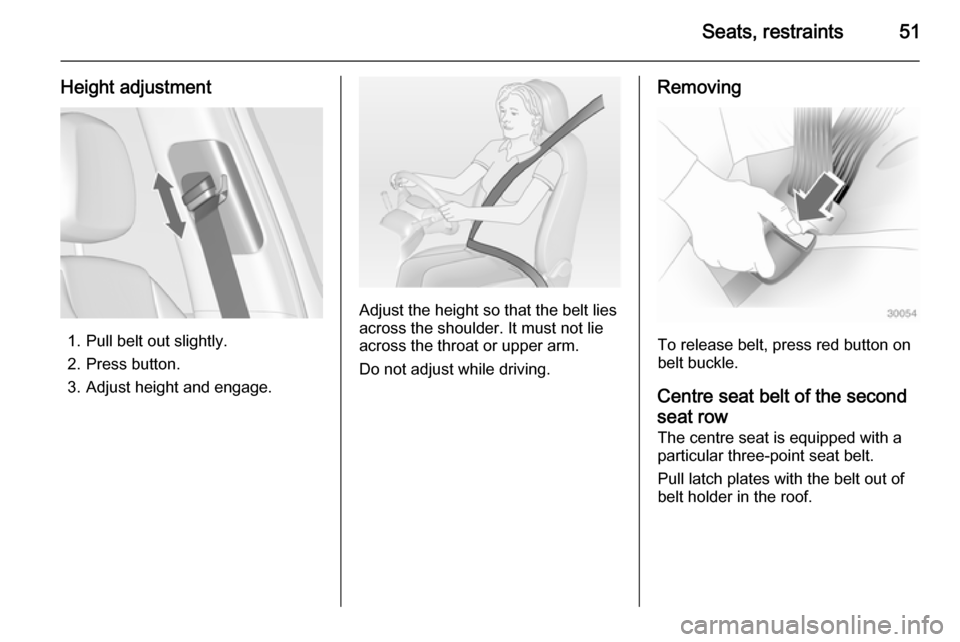

Periodically check all parts of the belt
system for damage, pollution and
proper functionality.
Have damaged components
replaced. After an accident, have the
belts and triggered belt pretensioners replaced by a workshop.
Notice
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or are trapped. Prevent dirt
from getting into the belt retractors.
Seat belt reminder Each seat is equipped with a seat beltreminder, indicated for front seats by
control indicator X in the tachometer
3 108, or for rear seats by symbols
X or > in the Driver Information
Centre 3 115.
Belt force limiters
On the front seats, stress on the body is reduced by the gradual release of
the belt during a collision.

50Seats, restraints
Belt pretensionersIn the event of a head-on or rear-end
collision of a certain severity, the front
seat belts are tightened.9 Warning
Incorrect handling (e.g. removal or
fitting of belts) can trigger the belt
pretensioners.
Deployment of the belt pretensioners
is indicated by continuous illumination
of control indicator v 3 109.
Triggered belt pretensioners must be replaced by a workshop. Belt
pretensioners can only be triggered
once.
Notice
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
Three-point seat belt
Fastening
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the shoulder
belt.
Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and your body.
9 Warning
The belt must not rest against hard
or fragile objects in the pockets of
your clothing.
Seat belt reminder X, > 3 108 and
3 115

Seats, restraints51
Height adjustment
1. Pull belt out slightly.
2. Press button.
3. Adjust height and engage.
Adjust the height so that the belt lies across the shoulder. It must not lie
across the throat or upper arm.
Do not adjust while driving.
Removing
To release belt, press red button on
belt buckle.
Centre seat belt of the second
seat row
The centre seat is equipped with a particular three-point seat belt.
Pull latch plates with the belt out of
belt holder in the roof.
