104Instruments and controls
Press button Y to switch between
petrol and natural gas operation. The LED 1 status shows the current
operating mode.1 off=natural gas
operation.1 illumi‐
nates=petrol operation.1 flashes=no switching is
possible, one type
of fuel is empty.
As soon as the natural gas tank is empty, petrol operation is
automatically engaged until the
ignition is switched off.
Fuel for natural gas operation 3 207.

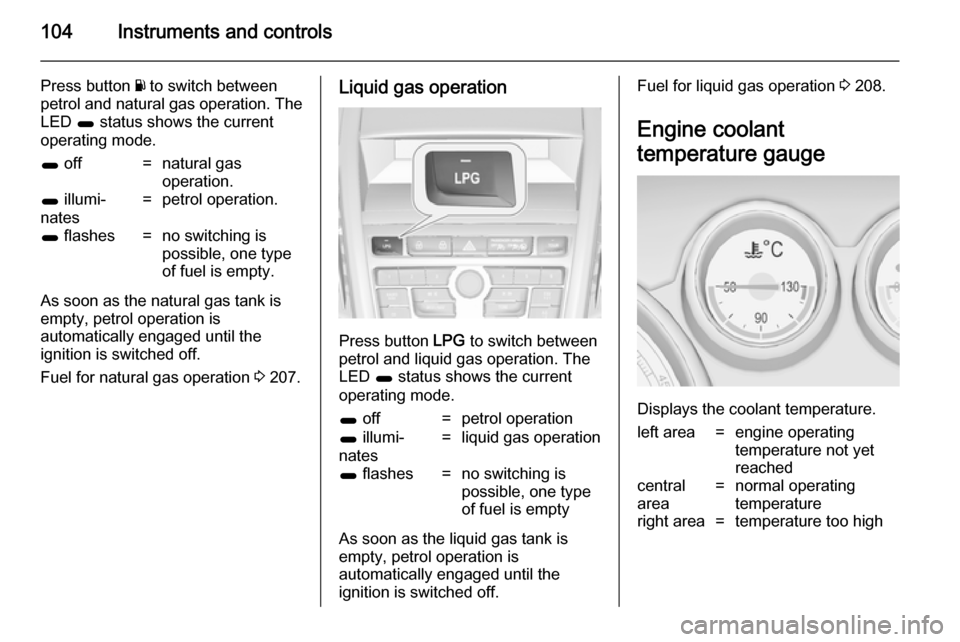

Liquid gas operation
Press button LPG to switch between
petrol and liquid gas operation. The
LED 1 status shows the current
operating mode.
1 off=petrol operation1 illumi‐
nates=liquid gas operation1 flashes=no switching is
possible, one type
of fuel is empty
As soon as the liquid gas tank is
empty, petrol operation is
automatically engaged until the
ignition is switched off.
Fuel for liquid gas operation 3 208.
Engine coolant
temperature gauge
Displays the coolant temperature.
left area=engine operating
temperature not yet
reachedcentral
area=normal operating
temperatureright area=temperature too high

Instruments and controls105Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service display
The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.
In the Uplevel-Display or Uplevel-
Combi-Display, the remaining oil life
duration is displayed in the Vehicle
Information Menu .
In the Midlevel-Display, the remaining
engine oil life duration is displayed by
the control indicator I, therefore the
ignition must be switched on, with the engine not running.
The menu and function can be
selected via the buttons on the turn signal lever.
To display the remaining engine oil
life duration:Press the MENU button to select the
Vehicle Information Menu .
Turn the adjuster wheel to select Remaining Oil Life .
The system must be reset every time
the engine oil is changed to allow proper functionality. Seek the
assistance of a workshop.
Press the SET/CLR button to reset.
Therefore the ignition must be
switched on, with the engine not
running.
When the system has calculated that
engine oil life has been diminished,
Change Engine Oil Soon or a warning
code appears in the Driver
Information Centre. Have engine oil
and filter changed by a workshop
within one week or 300 miles
(whichever occurs first).
Driver Information Centre 3 115.
Service information 3 266.
Control indicators The control indicators described are
not present in all vehicles. The
description applies to all instrument

Driving and operating161
■ The stop-start system is notmanually deactivated
■ the bonnet is fully closed
■ the driver's door is closed or the driver's seat belt is fastened
■ the vehicle battery is sufficiently charged and in good condition
■ the engine is warmed-up
■ the engine coolant temperature is not too high
■ the engine exhaust temperature is not too high, e.g. after driving with
high engine load
■ the ambient temperature is above -5° C
■ the climate control system allows an Autostop
■ the brake vacuum is sufficient
■ the self-cleaning function of the diesel particle filter is not active
■ the vehicle was driven at least at walking speed since the last
Autostop
Otherwise an Autostop will be
inhibited.Certain settings of the climate control
system may inhibit an Autostop. See
" Climate control " chapter for more
details 3 150.
Immediately after motorway driving
an Autostop may be inhibited.
New vehicle running-in 3 158.
Vehicle battery discharge protection
To ensure reliable engine restarts,
several battery discharge protection
features are implemented as part of
the stop-start system.
Power saving measures
During an Autostop, several electrical
features such as auxiliary electric
heater or rear window heating are
disabled or switched into a power-
saving mode. The fan speed of the
climate control system is reduced to
save power.
Restart of the engine by the
driver Depress the clutch pedal to restart the
engine.The engine start is indicated by the
needle at the idle speed position in
the tachometer.
If the selector lever is shifted out of
neutral before depressing the clutch
first, control indicator - illuminates
or is shown as a symbol in the Driver Information Centre.
Control indicator - 3 110.
Restart of the engine by the
stop-start system
The selector lever must be in neutral to enable an automatic restart.
If one of the following conditions occurs during an Autostop, the
engine will be restarted automatically
by the stop-start system.
■ The stop-start system is manually deactivated
■ the bonnet is opened
■ the driver's seat belt is unfastened and the driver's door is opened
■ the engine temperature is too low
■ the charge level of the vehicle battery is below a defined level

Driving and operating209Caution
The system works at an ambient
temperature of approx. -8 °C to
100 °C.
Full function of the LPG system can only be guaranteed with liquid gas
which complies with the minimum
requirements of DIN EN 589.
Fuel selector
Pressing the LPG button switches
between petrol and liquid gas
operation as soon as the required
parameters (coolant temperature,
gas temperature and minimum
engine speed) have been reached.
The requirements are usually fulfilled
after around 60 seconds (depending
on exterior temperature) and the first
firm press on the accelerator. The
LED status shows the current
operating mode.1 off=petrol operation1 illumi‐
nates=liquid gas operation1 flashes=no switching is
possible, one type
of fuel is empty
As soon as the liquid gas tank is
empty, petrol operation is
automatically engaged until the
ignition is switched off.
Every six months, run the petrol tank
down until control indicator i
illuminates, then refuel. This helps
maintain fuel quality and system
function for petrol operation.
Fill the tank completely at regular
intervals to prevent corrosion in the
tank.
Faults and remedies
If gas mode is not possible, check the following:
■ Is there enough liquid gas present?
■ Is there enough petrol present for starting?
Due to extreme temperatures in
combination with the gas
composition, it may take slightly
longer before the system switches
from petrol to gas mode.
In extreme situations, the system may
also switch back to petrol mode if the
minimum requirements are not
fulfilled.
Seek the assistance of a workshop in the event of all other faults.Caution
Repairs and adjustments may onlybe made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.

Vehicle care225Engine coolantThe coolant provides freeze
protection down to approx. -28 °C. In
northern countries with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37°C.Caution
Only use approved antifreeze.
Coolant level
Caution
Too low a coolant level can cause engine damage.
If the cooling system is cold, the
coolant level should be above the
filling line mark. Top up if the level is
low.
9 Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
To top up use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap water. Install the cap tightly.
Engine B16DTH: After starting the
engine, set the heating to warmest
temperature and the fan speed to at
least first level for approx. 5 minutes.
This will ensure that the air within the cooling system escapes.
Have the coolant concentration
checked and have the cause of the
coolant loss remedied by a workshop.
Washer fluid

268Service and maintenance
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 271.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of the oil.
Multigrade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates the
low temperature viscosity and the
second figure the high temperature viscosity.
Select the appropriate viscosity grade
depending on the minimum ambient
temperature 3 271.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.Coolant and antifreeze
Only use silicate-free long life coolant
(LLC) antifreeze.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -28 °C. In
northern countries with very low
temperatures the factory filled coolant
provides frost protection down to
approx. -37 °C. This concentration
should be maintained all year round.
The use of additional coolant
additives that intend to give additional
corrosion protection or seal against
minor leaks can cause function
problems. Liability for consequences
resulting from the use of additional
coolant additives will be rejected.
Brake and clutch fluid
Only use high-performance brake
fluid approved for the vehicle, consult a workshop.Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid should
therefore be replaced at the specified interval.
Brake fluid should be stored in a
sealed container to avoid water
absorption.
Ensure brake fluid does not become
contaminated.
AdBlue Only use AdBlue to reduce the
nitrogen oxides in the exhaust
emission 3 164.

291
Child restraint installationlocations ................................... 59
Child restraints.............................. 57
Child restraint systems ................57
Cigarette lighter .........................101
Climate control ............................. 15
Climate control systems .............148
Clock............................................. 99
Code ........................................... 121
Control indicators........................ 105
Control of the vehicle .................157
Controls ........................................ 94
Convex shape .............................. 28
Coolant and antifreeze ...............267
Cruise control ....................114, 177
Cupholders .................................. 64
Curtain airbag system .................. 55
Curve lighting.............................. 139
D Danger, Warnings and Cautions ...4
Daytime running lights ...............139
Declaration of conformity ............287
DEF ............................................ 164
Diesel exhaust fluid ....................164
Diesel fuel system bleeding .......228
Diesel particle filter .............112, 163
Door open .................................. 115
Door panel storage .......................65
Doors ............................................ 24Driver assistance systems..........177
Driver Information Centre ...........115
Driving characteristics and towing tips .............................. 216
Driving hints ................................ 157
E Electric adjustment ......................28
Electrical system......................... 238
Electric parking brake .................110
Electric parking brake fault .........110
Electronic climate control system 150
Electronic driving programmes ..169
Electronic Stability Control.......... 175
Electronic Stability Control and Traction Control system ..........112
Electronic Stability Control off..... 112
End-of-life vehicle recovery .......222
Engine compartment fuse box ...239
Engine coolant ........................... 225
Engine coolant temperature gauge ..................................... 104
Engine data ............................... 274
Engine exhaust .......................... 163
Engine identification ...................270
Engine oil ................... 223, 267, 271
Engine oil pressure ....................113
Entry lighting .............................. 146
Event data recorders ..................287
Exit lighting ................................ 146Exterior care .............................. 262
Exterior light ............................... 114
Exterior lighting ....................12, 136
Exterior mirrors ............................. 28
F
Fault ........................................... 169
First aid kit ................................... 90
Fixed air vents ........................... 155
Flex-Fix system ............................ 68
Fog light ..................................... 114
Fog lights ................................... 233
Folding mirrors ............................. 28
Folding tray .................................. 90
Following distance indication ......190
Forward collision alert................. 187
Front airbag system .....................53
Front fog lights ........................... 143
Front seats.................................... 37
Front storage ................................ 65
Fuel............................................. 207
Fuel consumption - CO 2-
Emissions ............................... 215
Fuel for diesel engines ..............207
Fuel for liquid gas operation .......208
Fuel for natural gas operation ...207
Fuel for petrol engines ...............207
Fuel gauge ................................. 103
Fuel selector .............................. 103
Fuses ......................................... 238
