82IntroductionIntroductionGeneral information.....................82
Theft-deterrent feature .................83
Control elements overview ..........84
Usage .......................................... 90
Basic operation ............................ 91
Tone settings ............................... 95
Volume settings ........................... 97General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
For the AM, FM and DAB wavebands the radio is equipped with twelve
automatically assignable channel presets. Furthermore, various
channels can be allocated manually
(waveband-independent).
The integrated audio player will
entertain you with audio CDs and MP3/WMA CDs.
Furthermore, you can connect
external data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable CD player to the
Infotainment system as further audio
sources.
The digital sound processor provides
you with several preset equalizer
modes for sound optimisation.
Optionally, the Infotainment system
can be operated using controls on the steering wheel or via the speech
recognition system.In addition the Infotainment system
can be equipped with a mobile phone portal.
The well-thought-out design of the
control elements, the clear displays
and a large multifunction knob enable
you to control the system easily and
intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Display The CD 400plus is available in two
variants; noticeable difference is the
display. The first variant has the
following display.

Introduction83
Important information onoperation and traffic safety
9 Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in
doubt, stop the vehicle and
operate the Infotainment system
while the vehicle is stationary.
Radio reception
Radio reception may be disrupted bystatic, noise, distortion or loss of
reception due to:
■ changes in distance from the transmitter
■ multi-path reception due to reflection
■ shadowing
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for the purpose of theft-deterrence.
The Infotainment system therefore functions only in your vehicle and is
worthless to a thief.

84IntroductionControl elements overview
CD 400 / CD 400plus

Introduction85
1 RADIO................................... 98
Activate radio or change
waveband .............................. 98
2 CD ....................................... 107
Start CD/MP3/WMA
playback .............................. 108
3 Search backward ..................98
Radio: search backward .......98
CD/MP3/WMA: skip track
backward ............................. 108
4 m........................................... 90
Press: switch on/off ..............90
Infotainment system .............90
Turn: adjust volume ..............90
5 Search forward ...................... 98
Radio: search forward ...........98
CD/MP3/WMA: skip track
forward ................................ 108
6 Radio station buttons 1...6 ....99
Long press: save station .......99
Short press: select station ....997 FAV (1/2/3) ............................ 99
Lists of favourites (preset
radio stations) ....................... 99
8 AS (1/2) ................................. 99
Automatic memory levels
(preset radio stations) ...........99
Short press: select
autostore list .......................... 99
Long press: save stations
automatically ......................... 99
9 TP ....................................... 103
Activate or deactivate
radio traffic service ..............103
If Infotainment system is
switched off: display time
and date .............................. 103
10 CD ejection ......................... 108
11 CONFIG ................................ 97
Open settings menu ..............9712 INFO ..................................... 84
Radio: information on the
currently played station .........98
CD/MP3/WMA:
information on the
currently inserted CD ..........108
13 CD slot ................................ 108
14 Multifunction knob .................91
Turn: mark menu options
or set numeric values ...........91
Press: select/activate the
marked option; confirm set
value; switch function on/off ..91
15 BACK .................................... 91
Menu: one level back ............91
Input: delete last character
or entire entry ........................ 91
16 TONE .................................... 95
Tone settings ........................ 95
17 7 / i ................................... 118
Open telephone main menu 124
Activate/deactivate mute .......90

86Introduction
18 AUX..................................... 110
Change to external audio
source ................................. 110

Introduction87

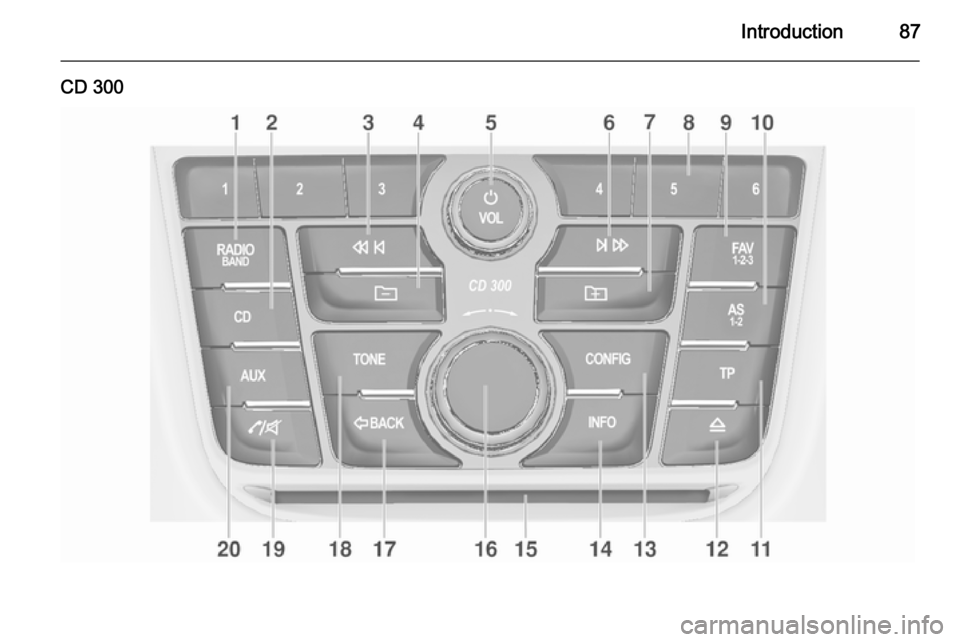

CD 300

88Introduction
1 RADIO................................... 98
Activate radio or change
waveband .............................. 98
2 CD ....................................... 107
Start CD/MP3/WMA
playback .............................. 108
3 Search backward ..................98
Radio: search backward .......98
CD/MP3/WMA: skip track
backward ............................. 108
4 MP3: folder level higher ......108
5 m........................................... 90
Press: switch on/off the Infotainment system ..............90
Turn: adjust volume ..............90
6 Search forward ...................... 98
Radio: search forward ...........98
CD/MP3/WMA: skip track
forward ................................ 108
7 MP3: folder level lower ........ 1088Radio station buttons 1...6 ....99
Long press: save station .......99
Short press: select station ....99
9 FAV 1/2/3 .............................. 99
Lists of favourites (preset
radio stations) ....................... 99
10 AS 1/2 ................................... 99
Automatic memory levels
(preset radio stations) ...........99
Short press: select
autostore list .......................... 99
Long press: save stations
automatically ......................... 99
11 TP ....................................... 103
Activate or deactivate
radio traffic service ..............103
If Infotainment system is
switched off: display time
and date .............................. 103
12 CD ejection ......................... 108
13 CONFIG ................................ 97
Open settings menu ..............9714 INFO ..................................... 84
Radio: information on the
currently played station .........98
CD/MP3/WMA:
information on the
currently inserted CD ..........108
15 CD slot ................................ 108
16 Multifunction knob .................91
Turn: mark menu options
or set numeric values ...........91
Press: select/activate the
marked option; confirm set
value; switch function on/off ..91
17 BACK .................................... 91
Menu: one level back ............91
Input: delete last character
or entire entry ........................ 91
18 TONE .................................... 95
Tone settings ........................ 95
19 7 / i ................................... 118
Open telephone main menu 124
Activate/deactivate mute .......90

Introduction89
20 AUX..................................... 110
Change to external audio
source ................................. 110Steering wheel audio controls
1qw
Short press: take phone call 118
or dial number in call list .....124
or activate speech
recognition (if available) ......113
Long press: show call list ....124
or deactivate speech
recognition (if available) ......113
2 SRC (Source) ........................ 90
Press: select audio source ....90
With radio active: turn
upwards/downwards to
select next/previous
preset radio station ...............98
With CD player active: turn
upwards/downwards to
select next/previous CD/
MP3/WMA track ..................108
With Phone portal active: turn upwards/downwards
to select next/previous
entry in call list ....................124
With Phone portal active
and calls waiting: turn
upwards/downwards to
switch between calls ...........124
3 w
Increase volume .................... 90
4 ─
Reduce volume .....................90
5 xn
Short press: end/decline
call ....................................... 124
or close call list .................... 124

90Introduction
or activate/deactivate mute...90
or deactivate speech
recognition (if available) ......113Usage
Control elements The Infotainment system is operated
via function buttons, multifunctional
knobs and menus that are shown on
the display.
Inputs are made optionally via: ■ the central control unit in the instrument panel 3 84
■ controls on the steering wheel 3 84
■ the speech recognition system 3 113
Switching the Infotainment
system on or off
Press X briefly. After switching on,
the last selected Infotainment source
is active.
Automatic switch-off
If the Infotainment system has been
switched on using X when the ignition
was switched off, it will switch off
again automatically after 30 minutes.Setting the volume
Turn X. The current setting is shown
on the display.
When the Infotainment system is
switched on, the last selected volume is set, provided that volume is lower
than the maximum start-up volume.
The following can be set separately: ■ the maximum start-up volume 3 97
■ the volume of the traffic announcements 3 97
Speed compensated volume
When speed compensated volume is
activated 3 97 the volume is
adapted automatically to make up for the road and wind noise as you drive.
Mute
Press 7 / i (if Phone portal is
available: press for a few seconds) to
mute the audio sources.
To cancel mute again: turn X or press
7 / i again (if Phone portal is
available: press for a few seconds).
