Storage79Caution
Before setting up or folding down
seats, all components must be
removed from the side rails and
from the lashing eyes.
Lashing eyes must be in stored
position.
Folding down the seats of the
third row ■ Push down head restraint by pressing the catch 3 35.
■ Insert the latch plate of the seat belt
on each side into the pocket that is
mounted at the belt.
■ Pull the lower strap and swing simultaneously the backrest
forwards until the seat is lowered
into the vehicle floor.
■ Install interior floor mat 3 83 and
load compartment cover 3 81 if
necessary.
Setting up the seats
Pull up the seat by the upper strap,
fold out and allow seat to engage in
upright position.
Folding the seat backrests of the second row ■ Remove the load compartment cover if necessary 3 81.
■ Push down head restraints by pressing the catch 3 35.
■ Move front passenger seat in a position that avoids contact with the
head restraints of the folded
backrests.

80Storage
■ Pull the strap and fold down thebackrest onto the seat cushion.
Caution
■ Do not fold the outer seatbackswhile the seats are in the loungeseat position 3 43.
■ Do not pull release lever of the easy entry function when the
backrest is folded down.
The seats could be damaged.
■ Alternatively pull the strap and adjust backrest in vertical position
as cargo position.
9 Warning
Use vertical position of the
backrest only for increased
luggage volume and not as
seating position.
Folding up backrest
Raise up backrest in vertical position.
Adjust inclination by pulling the strap.
Ensure that all positions are engaged
correctly.
9 Warning
Only drive the vehicle if the
backrests are securely locked into position. Otherwise there is a risk
of personal injury or damage to the
load or vehicle in the event of
heavy braking or a collision.

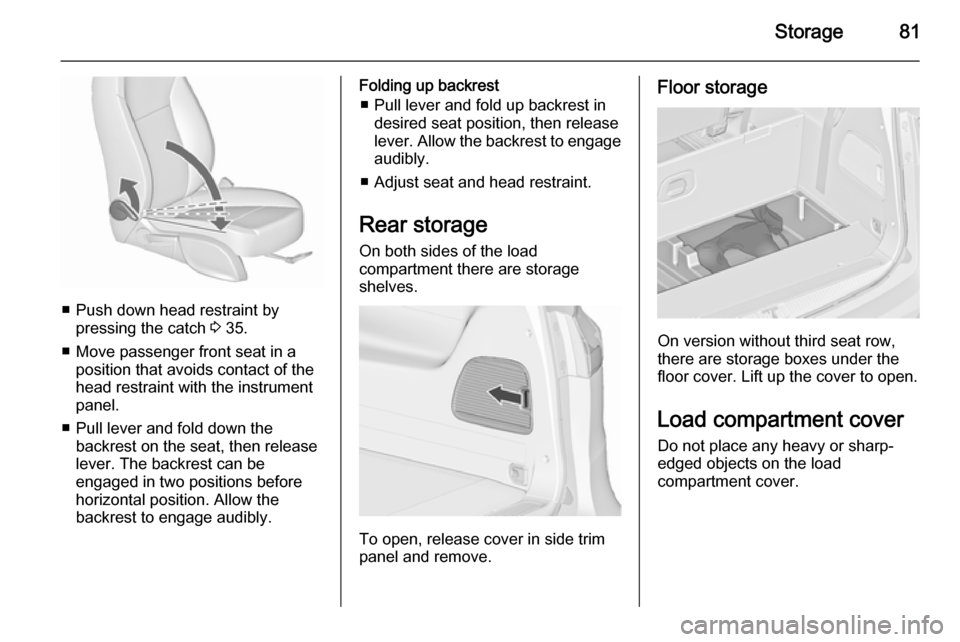

Folding backrest of front
passenger seat
If the vehicle is equipped on the front
passenger seat with a release
mechanism, the seat backrest can be
folded down to horizontal position,
e.g. for very long objects.

Storage81
■ Push down head restraint bypressing the catch 3 35.
■ Move passenger front seat in a position that avoids contact of the
head restraint with the instrument
panel.
■ Pull lever and fold down the backrest on the seat, then release
lever. The backrest can be
engaged in two positions before
horizontal position. Allow the
backrest to engage audibly.
Folding up backrest
■ Pull lever and fold up backrest in desired seat position, then releaselever. Allow the backrest to engage
audibly.
■ Adjust seat and head restraint.
Rear storage
On both sides of the load
compartment there are storage
shelves.
To open, release cover in side trim
panel and remove.
Floor storage
On version without third seat row,
there are storage boxes under the
floor cover. Lift up the cover to open.
Load compartment cover
Do not place any heavy or sharp-
edged objects on the load
compartment cover.

82Storage
Before operating the load
compartment cover, insert the latch
plate of the seat belt on each side into
the pocket that is mounted at the belt.
Closing
Pull the cover towards the rear using
the handle and engage it in the
retainers at the sides.
Opening
Remove load compartment cover
from side brackets. Hold the cover
and guide it until it is fully rolled up.

Storage83
Removing
Open the load compartment cover.
Pull the release lever up and hold. Lift cover on right side and remove from
retainers.
Stowing in the load
compartment If the load compartment cover is not
used, stow it in the storage in the
vehicle floor.
Open the cover of the storage in front of the tailgate.
Insert the cover with the top side
downwards and with the release lever
to the left into the adapter on the right side of the storage.
Fasten the load compartment cover in
the storage with the Velcro tape.
Installing
Insert the left side of the load
compartment cover in the recess, pull
the release lever up and hold, insert
the right side of the load compartment cover and engage.
Rear floor storage cover Floor cover

84Storage
On versions without third seat row,
there are storage boxes under the
floor cover. To open lift up the cover
and fold it upright behind rear seats.
Interior protection mat
Interior protection mat is a covering
and protection feature for the load
compartment, to be used when all or
single seats/backrests are folded
down.
By folding and expanding the mat
there are a range of individual
applications possible.
The interior protection mat is
available in two versions:
■ Standard protection mat covers the
area between tailgate and second
seat row, when third row is
complete or if one seat is folded
down.
■ Flex cover interior protection mat is
double size of standard protection mat, connected by a zipper. It
covers the load compartment fully,
when all or single seats of third and
second row are folded down.Protection mat is foldable
longitudinally in 4 parts (standard) or
8 parts (Flex cover) with a central
zipper and transversely foldable in
4 parts.
Following only a few examples of
using the mats are described.
Before folding and expanding the
mat, all components must be
removed from the side rails and from
the lashing eyes. Lashing eyes must
be in stored position.
Covering the load compartment
between tailgate and second seat row
possible with both Standard
protection mat or Flex cover interior
protection mat being folded at the
zipper to half size (double layer).
Mat is located fourfold flapped behind
the raised up seats of the third row.
■ Fold down third row seats.

Storage85
■Expand the parts of the folded mat,
so that first part is raised up at
second row backrest.
■ When folding down second row backrests, the mat expands
automatically and covers the space between both seat rows.
■ To allow one seat in the third row to
be raised up, fold mat in half
lengthways.■ Pull out the mat a little to protect load compartment sill when loadingheavy objects. Raise up the
overlaying part of the mat before
closing the tailgate.
Covering the load compartment up to
the backrests of the front seats
Only possible with Flex cover interior
protection mat being folded at the
zipper to half size (double layer).
Mat is expanded up to the second row seats, as described previously.■ Fold down second row backrests.
■ Expand the upper parts of the double layer mat, so that the load
compartment is fully covered. The
first part of the mat is now raised up
at the backrests of front seats.

86Storage
■ Fold the overlaying rear part underthe mat before closing the tailgate.
Covering the load compartment
partially
Only possible with Flex cover interior
protection mat being folded at the
zipper to half size (double layer).
e.g. left outer backrest is not folded
down
Mat is expanded up to the second row
seats, as described in first section.
■ Fold down the backrests that shall be covered.
■ Open the zipper behind the raised up backrest.
■ Pull out the mat until the first part is
flat on the load compartment floor.
■ Raise up lengthways the part that is
opened by the zipper, and fold it to
the centre.■ Expand the upper part of double layer mat over the folded backrests.
■ Fold the overlaying rear part under the mat before closing the tailgate.
Proceed in the same way when one
outer backrest and the centre
backrest are not folded down.
e.g. only centre backrest is folded
down
Mat is expanded up to the second row seats, as described in first section.
■ Fold down centre backrest to be covered.

Storage87
■ Open the zipper from both sidesbehind the left and right backrest.
■ Pull out the mat until the first part is
flat on the load compartment floor.
■ Raise up lengthways both parts that are opened by the zipper, and
fold them to the centre.■ Then expand the small upper part of double layer mat over the centre
backrest.
■ Fold the overlaying rear part under the mat before closing the tailgate.
The following illustrations show some further examples.Example for long small objects, e.g.
skis.
Example for side cover protection.

88Storage
Example for covering folded backreston second row and one folded seat on
third row.
Load rails and hooks
Install the hooks in the desired
position in the rails: insert the hook in the upper groove on the rail and pressin the lower groove.
Lashing eyes
The lashing eyes are designed to
secure items against slippage, e.g.
using lashing straps or luggage net.
Cargo management
system
The FlexOrganizer is a flexible
system for dividing up the load
compartment.
The system consists of: ■ adapters
■ mesh pockets
