In brief9Mirror adjustment

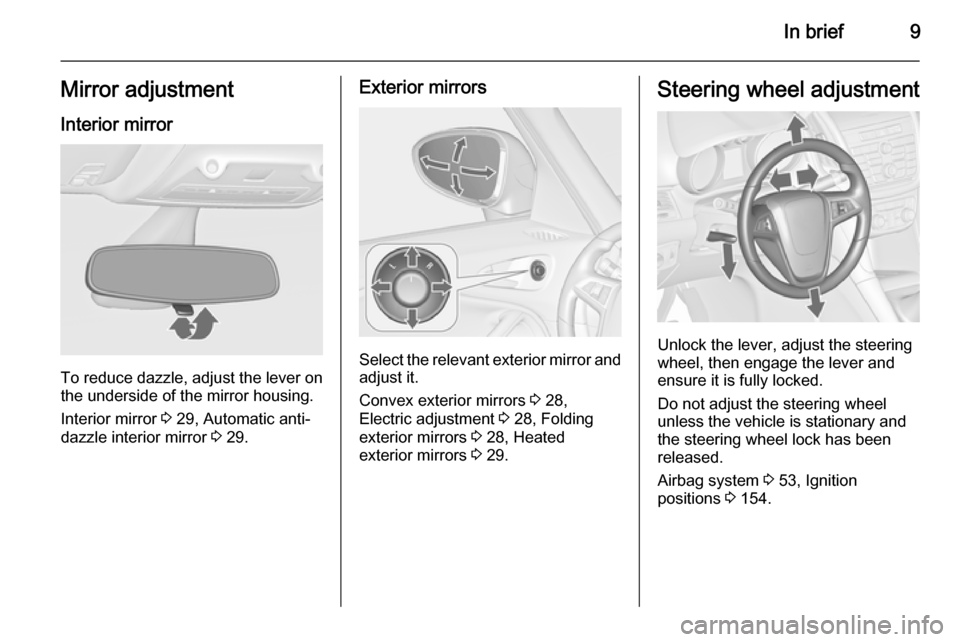

Interior mirror
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Interior mirror 3 29, Automatic anti-
dazzle interior mirror 3 29.
Exterior mirrors
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 28,
Electric adjustment 3 28, Folding
exterior mirrors 3 28, Heated
exterior mirrors 3 29.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 53, Ignition
positions 3 154.

10In briefInstrument panel overview

In brief11

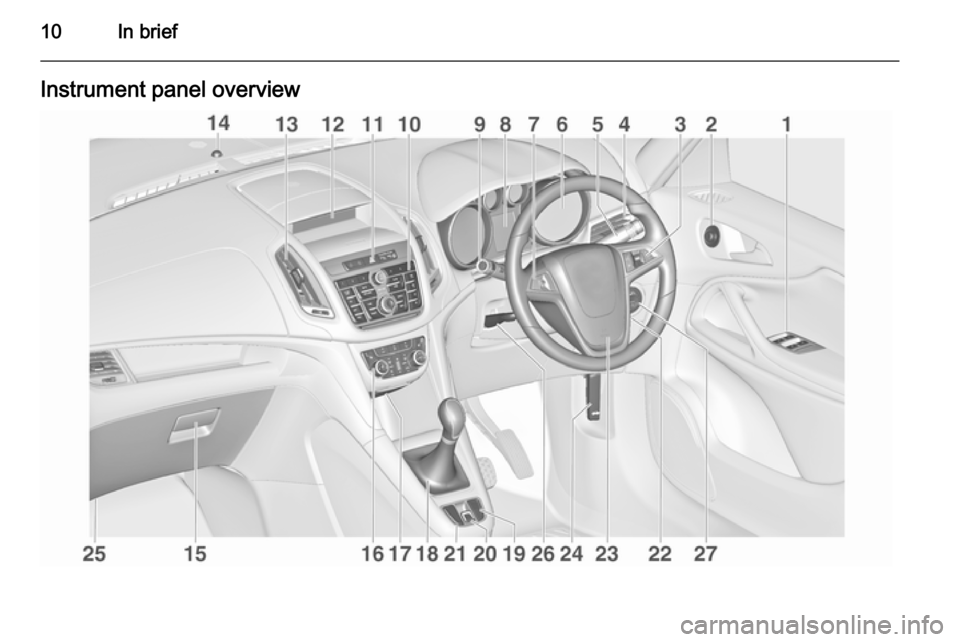

1Power windows .....................30
2 Exterior mirrors .....................28
3 Cruise control .....................173
Speed limiter ....................... 175
Adaptive cruise control .......176
Forward collision alert .........183
4 Side air vents ...................... 150
5 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................95
6 Instruments ........................ 101
7 Steering wheel controls .......93
8 Driver Information Centre .... 114
9 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................139
Exit lighting ......................... 142
Parking lights ...................... 140
Buttons for Driver
Information Centre ..............11410Central locking system ..........21
Hazard warning flashers ....139
Sport mode ........................ 171
Tour mode .......................... 171
Fuel selector ....................... 102
Control indicator for airbag deactivation ........................ 108
Control indicator for front
passenger seat belt ...........107
11 Info-Display ........................ 118
12 Centre air vents .................. 150
13 Anti-theft alarm system
status LED ........................... 25
14 Glovebox .............................. 62
Fuse box ............................. 238
15 Climate control system ........ 144
16 AUX input, USB input, SD
card slot ................................ 10
Power outlet .......................... 9917Selector lever, manual
transmission ....................... 166
Automatic transmission ......163
18 Traction Control system .....170
Electronic Stability Control . 171
Lane departure warning .....201
19 Electric parking brake .........168
20 Parking assist systems .......189
Stop-start button .................156
21 Ignition switch with
steering wheel lock ............154
22 Horn ..................................... 94
Driver airbag ........................ 53
23 Bonnet release lever ..........219
24 Storage compartment ..........64
25 Steering wheel adjustment ..93
26 Light switch ........................ 132
Headlight range
adjustment ......................... 134
Front fog lights ...................139

12In brief
Rear fog light ...................... 140
Instrument illumination .......141Exterior lighting
Turn light switch:
7=lights off8=sidelights9=low beam
Automatic light control
AUTO=automatic light control:
exterior lighting is switched
on and off automaticallym=activation or deactivation of
the automatic light control8=sidelights9=low beam
Fog lights
Press light switch:
>=front fog lightsr=rear fog light
Lighting 3 132.

In brief13

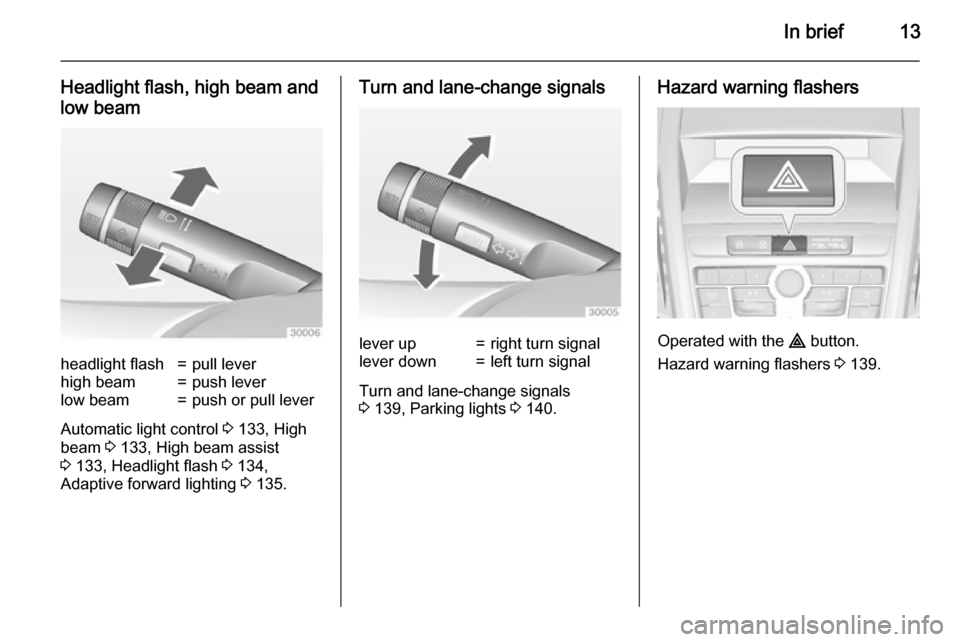

Headlight flash, high beam and
low beamheadlight flash=pull leverhigh beam=push leverlow beam=push or pull lever
Automatic light control 3 133, High
beam 3 133, High beam assist
3 133, Headlight flash 3 134,
Adaptive forward lighting 3 135.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 139, Parking lights 3 140.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 139.

14In briefHorn
Press j.
Washer and wiper systems
Windscreen wiperHI=fastLO=slowINT=interval wiping or automatic
wiping with rain sensorOFF=off
For a single wipe when the
windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper 3 95, Wiper
blade replacement 3 225.
Windscreen and headlight
washer
Pull lever.
Windscreen and headlight washer
system 3 95, Washer fluid 3 222.

In brief15

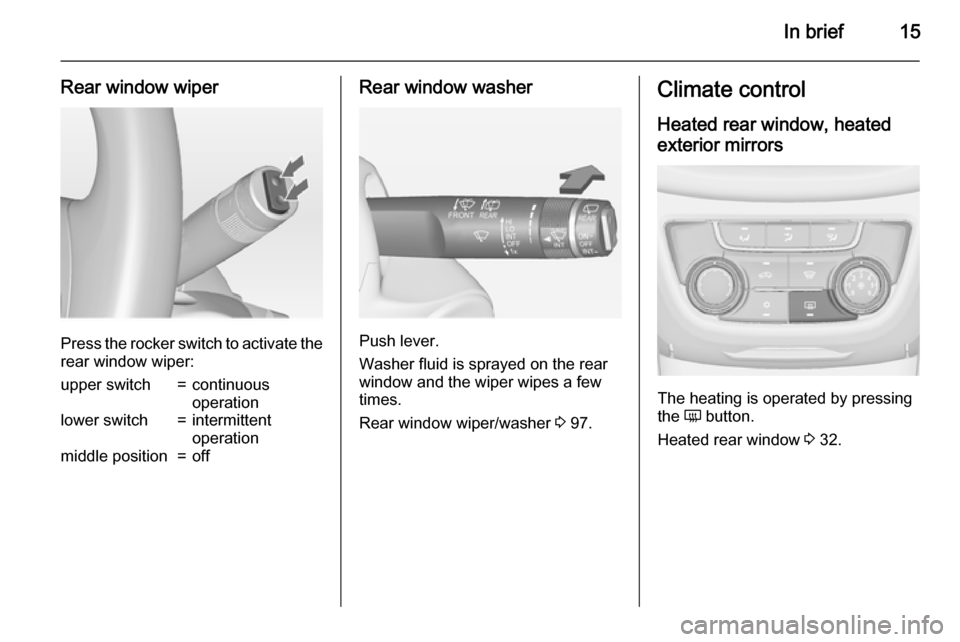

Rear window wiper
Press the rocker switch to activate the
rear window wiper:
upper switch=continuous
operationlower switch=intermittent
operationmiddle position=offRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer 3 97.
Climate control
Heated rear window, heatedexterior mirrors
The heating is operated by pressing
the Ü button.
Heated rear window 3 32.

16In brief
Demisting and defrosting the
windows
Press button V.
Set the temperature control to the
highest level.
Heated rear window Ü on.
Climate control system 3 144.
Transmission

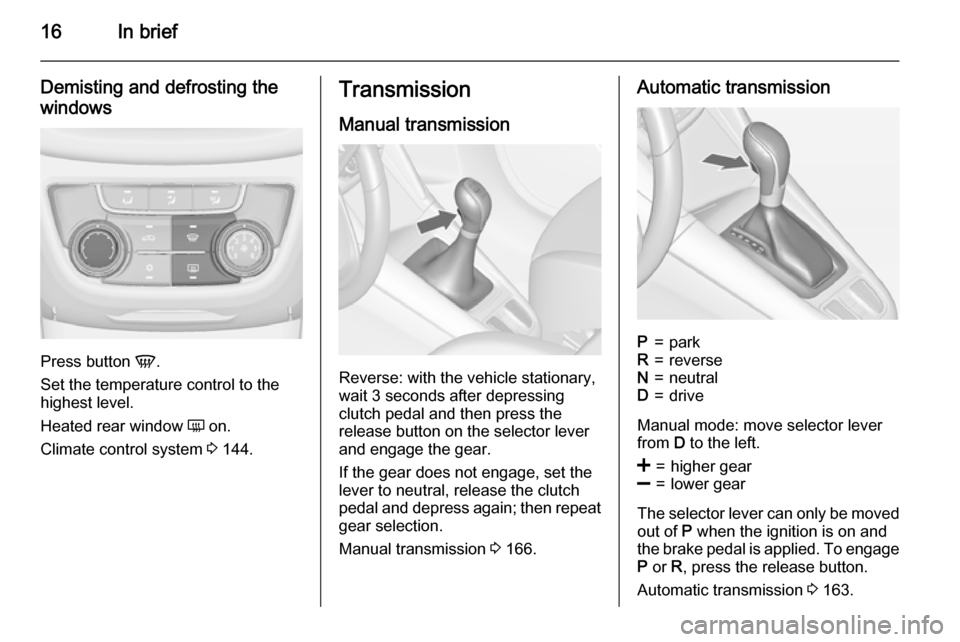

Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then press the
release button on the selector lever
and engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 166.
Automatic transmissionP=parkR=reverseN=neutralD=drive
Manual mode: move selector lever
from D to the left.
<=higher gear]=lower gear
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 163.

In brief17Starting offCheck before starting off ■ Tyre pressure and condition 3 242,
3 282.
■ Engine oil level and fluid levels 3 219.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats, and seat belts 3 28, 3 37,
3 50.
■ Brake function at low speed, particularly if the brakes are wet.Starting the engine
■ Turn key to position 1
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ automatic transmission in P or N
■ do not operate accelerator pedal
■ diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes
■ turn key to position 3 and release
Starting the engine 3 154.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ shift the selector lever to N
■ release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 156.

18In briefParking9Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust system could ignite the surface.
■ Always apply the parking brake.
Activate the manual parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress foot
brake at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 109.
■ Switch off the engine. ■ If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector lever
to position P before removing
the ignition key. On an uphill
slope, turn the front wheels
away from the kerb.
If the vehicle is on a downhill
slope, engage reverse gear or
set the selector lever to position P before removing the ignition
key. Turn the front wheels
towards the kerb.
■ Close the windows.
■ Remove the ignition key. Turn the steering wheel until the
steering wheel lock is felt to
engage.
For vehicles with automatic
transmission, the key can only
be removed when the selector
lever is in position P.
■
Lock the vehicle with button e on
the radio remote control.
Activate the anti-theft alarm system
3 25.
■ The engine cooling fans may run after the engine has been switched
off 3 218.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for
approx. 30 seconds before
switching off, in order to protect the turbocharger.
Keys, locks 3 19, Laying the vehicle
up for a long period of time 3 217.
