Introduction81doubt, stop the vehicle and
operate the Infotainment system while the vehicle is stationary.
Radio reception
Radio reception may be disrupted by static, noise, distortion or loss of
reception due to:
● changes in distance from the transmitter
● multi-path reception due to reflection
● shadowing
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft-deterrence.
The Infotainment system therefore
functions only in your vehicle and is
worthless to a thief.

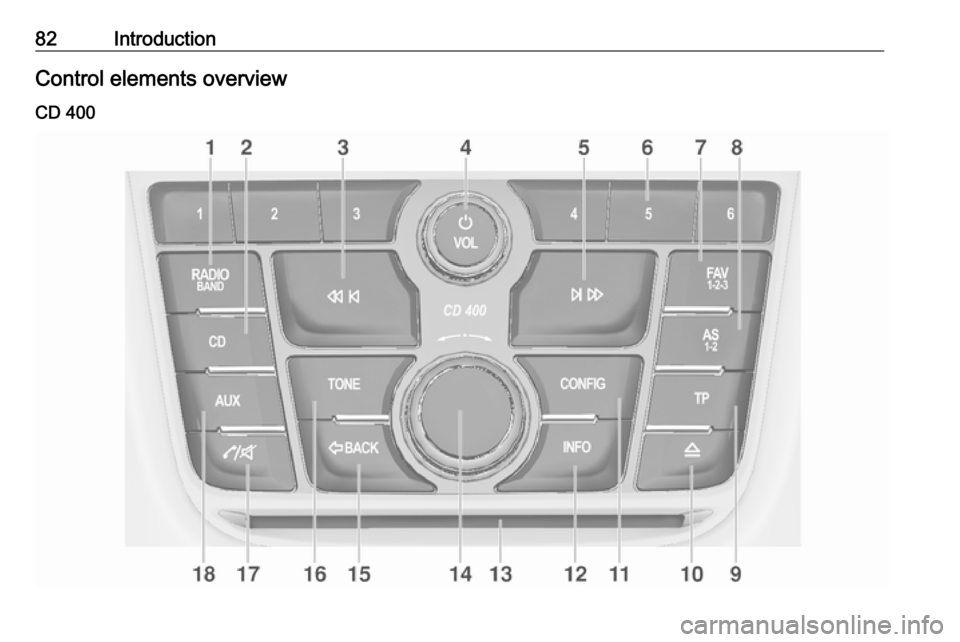

82IntroductionControl elements overviewCD 400

Introduction831 RADIO................................... 96
Activate radio or change
waveband .............................. 96
2 CD ....................................... 105
Start CD/MP3/WMA
playback .............................. 106
3 Search backward ..................96
Radio: search backward .......96
CD/MP3/WMA: skip track
backward ............................. 106
4 m........................................... 88
Press: switch on/off ..............88
Infotainment system .............88
Turn: adjust volume ..............88
5 Search forward ...................... 96
Radio: search forward ...........96
CD/MP3/WMA: skip track
forward ................................ 106
6 Radio station buttons 1...6 ....97
Long press: save station .......97
Short press: select station ....977 FAV (1/2/3) ............................ 97
Lists of favourites (preset
radio stations) ....................... 97
8 AS (1/2) ................................. 97
Automatic memory levels
(preset radio stations) ...........97
Short press: select
autostore list .......................... 97
Long press: save stations
automatically ......................... 97
9 TP ....................................... 101
Activate or deactivate
radio traffic service ..............101
If Infotainment system is
switched off: display time
and date .............................. 101
10 CD ejection ......................... 106
11 CONFIG ................................ 95
Open settings menu ..............9512 INFO ..................................... 82
Radio: information on the
currently played station .........96
CD/MP3/WMA:
information on the
currently inserted CD ..........106
13 CD slot ................................ 106
14 Multifunction knob .................89
Turn: mark menu options or set numeric values ...........89
Press: select/activate the
marked option; confirm set
value; switch function on/off ..89
15 BACK .................................... 89
Menu: one level back ............89
Input: delete last character
or entire entry ........................ 89
16 TONE .................................... 93
Tone settings ........................ 93
17 7 / i ................................... 116
Open telephone main menu 122
Activate/deactivate mute .......88

84Introduction18 AUX..................................... 108
Change to external audio
source ................................. 108

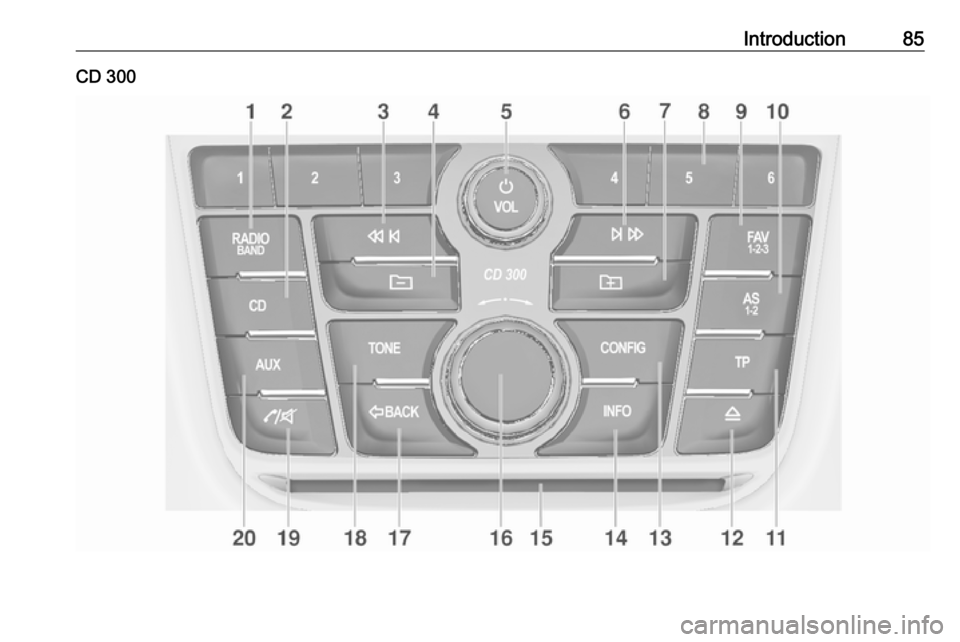

Introduction85CD 300

86Introduction1 RADIO................................... 96
Activate radio or change
waveband .............................. 96
2 CD ....................................... 105
Start CD/MP3/WMA
playback .............................. 106
3 Search backward ..................96
Radio: search backward .......96
CD/MP3/WMA: skip track
backward ............................. 106
4 MP3: folder level higher ......106
5 m........................................... 88
Press: switch on/off the Infotainment system ..............88
Turn: adjust volume ..............88
6 Search forward ...................... 96
Radio: search forward ...........96
CD/MP3/WMA: skip track
forward ................................ 106
7 MP3: folder level lower ........ 1068Radio station buttons 1...6 ....97
Long press: save station .......97
Short press: select station ....97
9 FAV 1/2/3 .............................. 97
Lists of favourites (preset
radio stations) ....................... 97
10 AS 1/2 ................................... 97
Automatic memory levels
(preset radio stations) ...........97
Short press: select
autostore list .......................... 97
Long press: save stations
automatically ......................... 97
11 TP ....................................... 101
Activate or deactivate
radio traffic service ..............101
If Infotainment system is
switched off: display time
and date .............................. 101
12 CD ejection ......................... 106
13 CONFIG ................................ 95
Open settings menu ..............9514 INFO ..................................... 82
Radio: information on the
currently played station .........96
CD/MP3/WMA:
information on the
currently inserted CD ..........106
15 CD slot ................................ 106
16 Multifunction knob .................89
Turn: mark menu options
or set numeric values ...........89
Press: select/activate the
marked option; confirm set
value; switch function on/off ..89
17 BACK .................................... 89
Menu: one level back ............89
Input: delete last character
or entire entry ........................ 89
18 TONE .................................... 93
Tone settings ........................ 93
19 7 / i ................................... 116
Open telephone main menu 122
Activate/deactivate mute .......88

Introduction8720 AUX..................................... 108
Change to external audio
source ................................. 108Steering wheel audio controls
1qw
Short press: take phone call 116
or dial number in call list .....122
or activate speech
recognition (if available) ......111
Long press: show call list ....122
or deactivate speech
recognition (if available) ......111
2 SRC (Source) ........................ 88
Press: select audio source ....88
With radio active: turn
upwards/downwards to
select next/previous
preset radio station ...............96
With CD player active: turn
upwards/downwards to
select next/previous CD/
MP3/WMA track ..................106
With Phone portal active: turn upwards/downwards
to select next/previous
entry in call list ....................122
With Phone portal active
and calls waiting: turn
upwards/downwards to
switch between calls ...........122
3 w
Increase volume .................... 88
4 ─
Reduce volume .....................88
5 xn
Short press: end/decline
call ....................................... 122
or close call list .................... 122

88Introductionor activate/deactivate mute...88
or deactivate speech
recognition (if available) ......111Usage
Control elements
The Infotainment system is operated
via function buttons, multifunctional
knobs and menus that are shown on
the display.
Inputs are made optionally via: ● the central control unit in the instrument panel 3 82
● controls on the steering wheel 3 82
● the speech recognition system 3 111
Switching the Infotainment
system on or off
Press X briefly. After switching on,
the last selected Infotainment source
is active.
Automatic switch-off
If the Infotainment system has been switched on using X when the ignition
was switched off, it will switch off
again automatically after 10 minutes.Setting the volume
Turn X. The current setting is shown
on the display.
When the Infotainment system is
switched on, the last selected volume
is set, provided that volume is lower
than the maximum start-up volume.
The following can be set separately: ● the maximum start-up volume 3 95
● the volume of the traffic announcements 3 95
Speed compensated volume
When speed compensated volume is activated 3 95 the volume is
adapted automatically to make up for
the road and wind noise as you drive.
Mute
Press 7 / i (if Phone portal is
available: press for a few seconds) to
mute the audio sources.
To cancel mute again: turn X or press
7 / i again (if Phone portal is
available: press for a few seconds).

Introduction89Volume limitation at high
temperatures
At very high temperatures inside the vehicle the Infotainment system limits
the maximum adjustable volume. If
necessary the volume is decreased
automatically.
Modes of operation
Radio
Press RADIO to open the radio main
menu or to change between the
different wavebands.
Press the multifunction knob to open
a submenu with options for station
selection.
Detailed description of the radio
functions 3 96.
Audio players
Press CD or AUX to open the CD,
USB , iPod or AUX menus or to switch
between these menus.
Press the multifunction knob to open
a submenu with options for track
selection.Detailed description of:
● CD player functions 3 106
● AUX input functions 3 108
● USB port functions 3 109
Phone
Press 7 / i to open the telephone
menu.
Press the multifunction knob to open
a submenu with options for the input
or selection of numbers.
Detailed description of the mobile
phone portal functions 3 116.
Basic operation Multifunction knob The multifunction knob is the central
control element for the menus.
Turn the multifunction knob: ● CD 400: to mark a menu option
● CD 300: to display a menu option
● to set a numeric valuePress the multifunction knob: ● CD 400: to select or activate the marked option
● CD 300: to select or activate the option displayed
● to confirm a set value
● to switch a system function on/off
BACK button Press BACK briefly:
● to exit a menu
● to return from a submenu to the next higher menu level
● to delete the last character in a character sequence
Press and hold BACK for a few
seconds to delete the entire entry.

90IntroductionExamples of menu operationCD 400Selecting an option

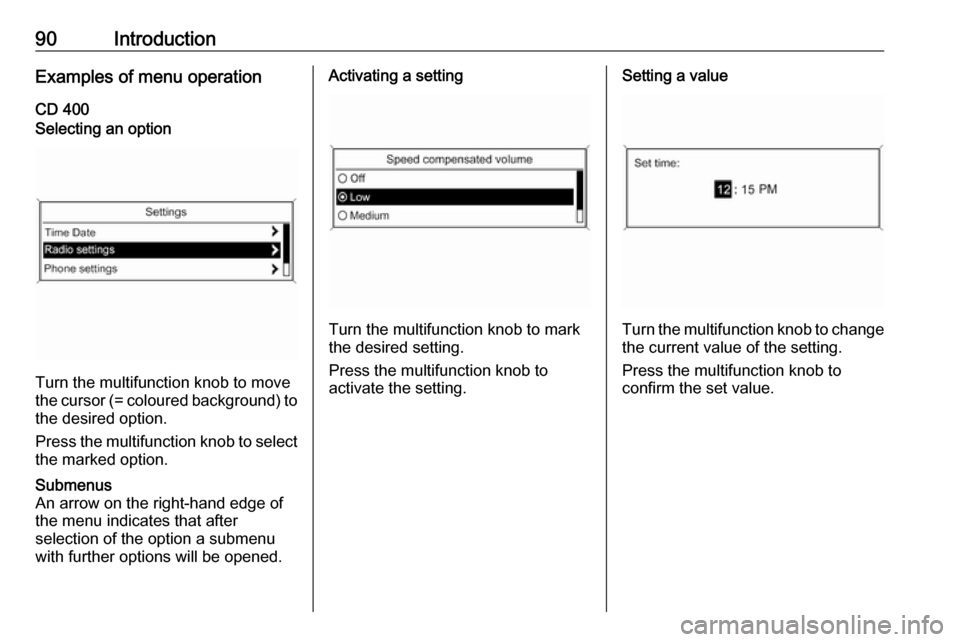

Turn the multifunction knob to move
the cursor (= coloured background) to the desired option.
Press the multifunction knob to select
the marked option.
Submenus
An arrow on the right-hand edge of
the menu indicates that after
selection of the option a submenu
with further options will be opened.Activating a setting
Turn the multifunction knob to mark
the desired setting.
Press the multifunction knob to
activate the setting.
Setting a value
Turn the multifunction knob to change the current value of the setting.
Press the multifunction knob to
confirm the set value.
