technical data VAUXHALL ZAFIRA TOURER 2016.5 Owner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............19
Seats, restraints ........................... 36
Storage ........................................ 66
Instruments and controls .............96
Lighting ...................................... 138
Climate control ........................... 150
Driving and operating .................158
Vehicle care ............................... 223
Service and maintenance ..........269
Technical data ........................... 272
Customer information ................292
Index .......................................... 300Contents

Introduction3Vehicle specific dataPlease enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service and
maintenance" and "Technical data"
as well as on the identification plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.
Disregarding the description given in
this manual may affect your warranty.When this Owner's Manual refers to a
workshop visit, we recommend your
Vauxhall Authorised Repairer. For
gas vehicles, we recommend a
Vauxhall Authorised Repairer
licensed to service gas vehicles.
All Vauxhall Authorised Repairers
provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this manual ● This manual describes all options
and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model
variant, country specifications,
special equipment or
accessories.
● The "In brief" section will give you
an initial overview.● The table of contents at the beginning of this manual and
within each section shows where the information is located.
● The index will enable you to search for specific information.
● This Owner's Manual depicts left-
hand drive vehicles. Operation is similar for right-hand drive
vehicles.
● The Owner's Manual uses the engine identifier code. The
corresponding sales designation
and engineering code can be
found in the section "Technical
data".
● Directional data, e.g. left or right, or front or back, always relate to
the direction of travel.
● Displays may not support your specific language.
● Display messages and interior labelling are written in bold
letters.

272Technical dataTechnical dataVehicle identification..................272
Vehicle Identification Number ..272
Identification plate ...................272
Engine identification ................273
Vehicle data ............................... 274
Recommended fluids and lubricants ................................ 274
Engine data ............................. 277
Performance ............................ 281
Vehicle weight ......................... 283
Vehicle dimensions .................285
Capacities ................................ 286
Tyre pressures ........................ 288Vehicle identification
Vehicle IdentificationNumber

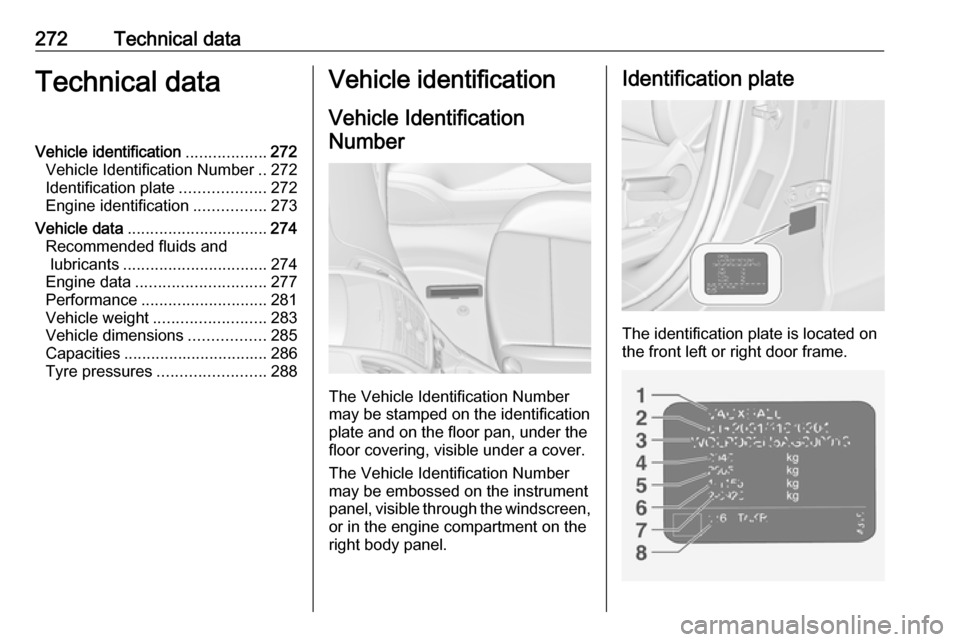

The Vehicle Identification Number
may be stamped on the identification plate and on the floor pan, under thefloor covering, visible under a cover.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the windscreen,
or in the engine compartment on the
right body panel.
Identification plate
The identification plate is located on
the front left or right door frame.

Technical data273Information on identification label:1:manufacturer2:type approval number3:vehicle identification number4:permissible gross vehicle weightrating in kg5:permissible gross train weight
in kg6:maximum permissible front axle
load in kg7:maximum permissible rear axle
load in kg8:vehicle-specific or country-
specific data
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 277.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

274Technical dataVehicle dataRecommended fluids and lubricantsEuropean service schedule Required engine oil qualityAll European countries with European service interval 3 269Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1––dexos 2✔✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
Engine oil viscosity grades
All European countries with European service interval 3 269Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

Technical data275International service scheduleRequired engine oil qualityAll countries with international service interval 3 269Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesdexos 1 (if available)✔–dexos 2✔✔
In case dexos quality is unavailable you may use the oil qualities listed below:
All countries with international service interval 3 269Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesGM-LL-A-025✔–GM-LL-B-025–✔All countries with international service interval 3 269Engine oil qualityPetrol engines
(including CNG, LPG, E85)Diesel enginesACEA A3/B3✔–ACEA A3/B4✔✔

276Technical dataAll countries with international service interval 3 269ACEA C3✔✔API SM✔–API SN resource conserving✔–
Engine oil viscosity grades
All countries with international service interval 3 269Ambient temperaturePetrol and diesel enginesdown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40down to -20 °CSAE 10W-30 1)
or SAE 10W-40 1)1)
Permitted, but usage of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.

Technical data277Engine dataEngine identifier codeB14NELB14NETB14NETB16XNTSales designation1.41.41.4 LPG1.6 CNGEngineering codeB14NETB14NETB14NETB16XNTPiston displacement [cm3
]1364136413641598Engine power [kW]88103103110at rpm4200-60004900-600049005000Torque [Nm]200200200210at rpm1850-42001850-49001850-49002300Fuel typePetrolPetrolLiquid gas/PetrolNatural gas/PetrolOctane rating RON 2)recommended95959595possible98989898possible91919191Additional fuel type––Liquid gas (LPG)Natural gas (CNG)2)
A country specific label at the fuel filler flap can supersede the engine specific requirement.

278Technical dataEngine identifier codeB16SHTB16SHLA18XELA18XERSales designation1.61.61.81.8Engineering codeB16SHTB16SHTA18XERA18XERPiston displacement [cm3
]1598159817961796Engine power [kW]14712585103at rpm55004750-600056006300Torque [Nm]280260175175at rpm1650-50001650-450038003800Fuel typePetrolPetrolPetrolPetrolOctane rating RON 2)recommended98989595possible95959898possible91919191Additional fuel type––––2)
A country specific label at the fuel filler flap can supersede the engine specific requirement.

Technical data279Engine identifier codeB16DTHB16DTJA20DTLA20DTSales designation1.6 Turbo1.6 Turbo2.0 Turbo2.0 TurboEngineering codeB16DTHB16DTHA20DTLA20DTPiston displacement [cm3
]1598159819561956Engine power [kW]100888196at rpm3500-4000400040004000Torque [Nm]320320260300at rpm200020001750-25001750-2500Fuel typeDieselDieselDieselDieselEngine identifier codeA20DTHA20DTHB20DTJB20DTHA20DTRSales designation2.0 Turbo2.0 Turbo2.0 Turbo2.0 Turbo2.0 BiTurboEngineering codeA20DTHA20DTHB20DTHB20DTHA20DTRPiston displacement [cm 3
]19561956195619561956Engine power [kW]1219696125143at rpm40004000375037504000
