VAUXHALL ZAFIRA TOURER 2017.5 Owner's Manual

Technical data269PerformanceEngineB14NELB14NET
B14NET
LPGB16XNT
CNG
B16SHLB16SHT
Maximum speed 3)
[mph]Manual transmission
with Stop-start system118
119124
126121
–124
––
––
137Automatic transmission–122––129–3) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce
the specified maximum speed of the vehicle.EngineB16DTJB16DTHB20DTJB20DTHMaximum speed 3)
[mph]Manual transmission
with Stop-start system–
116–
119–
–129
129Automatic transmission––1261193) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce
the specified maximum speed of the vehicle.

270Technical dataVehicle weight
Kerb weight, basic model without any optional equipmentEngineManual transmissionAutomatic transmission5-seats/7-seats
[kg]B14NEL1613/1640–B14NET1613/16401613/1640B14NET LPG1664/1691–B16XNT CNG1701/1728–B16SHL–1701/1728B16SHT1664/1691–B16DTJ1701/1728–B16DTH1701/1728–B20DTJ–1788/1815B20DTH1733/17601788/1815
Optional equipment and accessories increase the kerb weight.
Loading information 3 93.

Technical data271Vehicle dimensionsLength [mm]4666Width with folded exterior mirrors [mm]1928Width with two exterior mirrors [mm]2100Height (without antenna) [mm]1620 - 1710Length of load compartment floor with folded third row [mm]1094Length of load compartment with folded second and third row [mm]1842Load compartment width [mm]1057Load compartment height at tailgate [mm]840Wheelbase [mm]2760Turning circle diameter [m]11.9

272Technical dataCapacities
Engine oilEngineB14NELB14NET,
B14NET LPGB16XNT CNGB16SHL,
B16SHTincluding Filter [l]4.04.04.55.5between MIN and MAX [l]1.01.01.01.0EngineB16DTJ,
B16DTHB20DTJB20DTHincluding Filter [l]5.05.255.25between MIN and MAX [l]1.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity [l]25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15 °C.

Technical data273AdBlue tankAdBlue, refilling quantity [l]7.5

274Technical dataTyre pressuresComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B14NEL,
B14NET215/60 R16,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19B14NET LPG225/50 R17,220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)300/3.0
(43)235/45 R18,235/40 R19B16XNT CNG225/50 R17220/2.2 (32)220/2.2 (32)260/2.6 (38)260/2.6 (38)230/2.3
(33)280/2.8
(41)

Technical data275Comfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B16SHL,
B16SHT225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)270/2.7
(39)320/3.2
(46)235/45 R18,235/40 R19B16DTJ,
B16DTH215/60 R16,240/2.4 (35)240/2.4 (35)280/2.8 (41)
5)280/2.8 (41)
5)260/2.6
(38)300/3.0
(43)225/50 R17,235/45 R18,235/40 R19

276Technical dataComfort with up to
3 peopleECO with up to 3 peopleWith full loadEngineTyresfrontrearfrontrearfrontrear[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])[kPa/bar]
([psi])B20DTJ,
B20DTH225/50 R17,260/2.6 (38)240/2.4 (35)280/2.8 (41)280/2.8 (41)280/2.8
(41)320/3.2
(46)235/45 R18,235/40 R19AllTemporary spare
wheel
125/70 R17420/4.2 (61)420/4.2 (61)––420/4.2
(61)420/4.2
(61)5) In combination with ultra low rolling resistance tyres: 300/3.0 (43).

Customer information277Customer
informationCustomer information ................277
Declaration of conformity .........277
Collision damage repair ...........280
Software acknowledgement ....280
Registered trademarks ............282
Vehicle data recording and pri‐
vacy ........................................... 282
Event data recorders ...............282
Radio Frequency Identification (RFID) ..................................... 283Customer information
Declaration of conformity
Transmission systems
This vehicle has systems that
transmit and/or receive radio waves
subject to Directive 1999/5/EC or 2014/53/EU. These systems are incompliance with the essential
requirements and other relevant
provisions of Directive 1999/5/EC or 2014/53/EU. Copies of the original
Declarations of Conformity can be
obtained on our website.

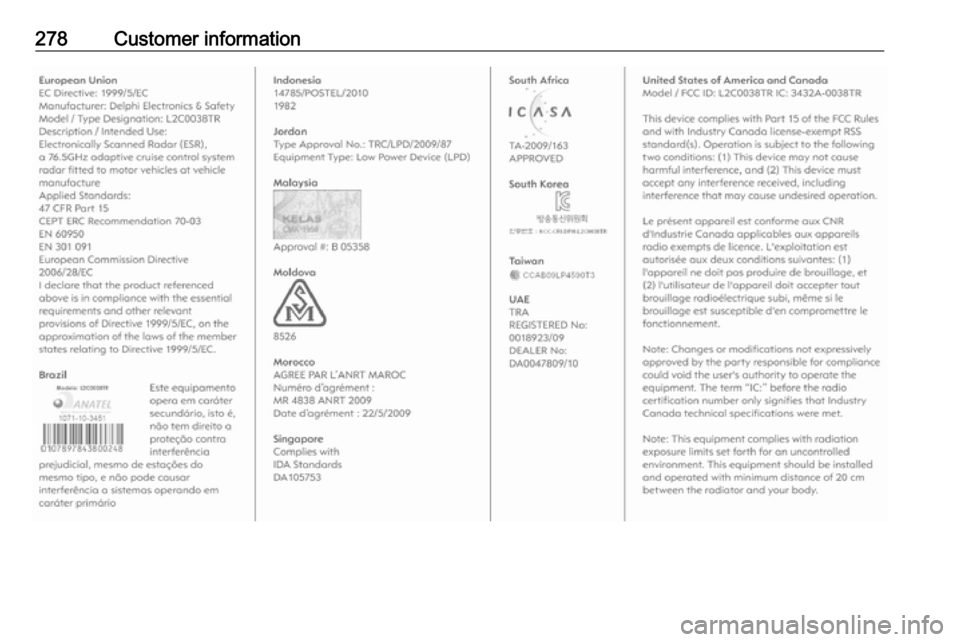

Radar systems
Country-specific Declarations of
Conformity for radar systems are
shown on the following page:
