Instruments and controls111Airbag deactivation
ONV illuminates yellow.
Illuminates for approx. 60 seconds
after the ignition is switched on. The
front passenger airbag is activated.
OFF * illuminates yellow.
The front passenger airbag is
deactivated 3 58.
9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
Flashes when the engine is
running
Fault that could lead to catalytic converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too low, when manual parking brake is
not applied 3 219.

Instruments and controls1159Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking the
assistance of a workshop 3 216.
Low fuel
Y illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the tank dry.
Refuelling 3 202.
Catalytic converter 3 157.
Bleeding the diesel fuel system
3 221.
Immobiliser d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Exterior light 8 illuminates green.
The exterior lights are on 3 131.
High beam
C illuminates blue.
Illuminates when high beam is on,
during headlight flash 3 132 , or when
high beam is on with high beam assist
3 132.
High beam assist f illuminates green.
The high beam assist is activated
3 135.LED headlights
f illuminates or flashes yellow.
Illuminates
Fault in the system.
Seek the assistance of a workshop.
Flashes
System is switched to symmetrical
low beam.
Control indicator f flashes for approx.
four seconds after the ignition is
switched on as a reminder for
symmetrical headlight 3 134.
Fog light > illuminates green.
The front fog lights are on 3 136.
Rear fog light
r illuminates yellow.
The rear fog light is on 3 137.
Cruise control m illuminates white or green.

Driving and operating149Driving and
operatingDriving hints ............................... 150
Control of the vehicle ...............150
Steering ................................... 150
Starting and operating ...............150
New vehicle running-in ............150
Ignition switch positions ...........150
Retained power off ..................151
Starting the engine ..................151
Overrun cut-off ........................ 152
Stop-start system ....................153
Parking .................................... 155
Engine exhaust .......................... 156
Diesel particle filter ..................156
Catalytic converter ...................157
AdBlue ..................................... 158
Automatic transmission ..............161
Transmission display ...............161
Selector lever .......................... 161
Manual mode ........................... 162
Electronic driving programmes 162
Fault ........................................ 163
Interruption of power supply ....163
Manual transmission ..................164Brakes........................................ 165
Antilock brake system .............165
Parking brake .......................... 165
Brake assist ............................. 167
Hill start assist ......................... 167
Ride control systems .................168
Traction Control system ..........168
Electronic Stability Control ......169
Interactive driving system ........170
Driver assistance systems .........172
Cruise control .......................... 172
Speed limiter ........................... 173
Adaptive cruise control ............175
Forward collision alert .............181
Following distance indication ...184
Active Emergency Braking ......185
Parking assist .......................... 187
Side blind spot alert .................189
Rear view camera ...................191
Traffic sign assistant ................193
Lane departure warning ..........196
Fuel ............................................ 197
Fuel for petrol engines .............197
Fuel for diesel engines ............198
Fuel for natural gas operation . 199
Fuel for liquid gas operation ....200
Refuelling ................................ 202
Fuel consumption - CO 2-
Emissions .............................. 207Trailer hitch................................ 208
General information .................208
Driving characteristics and towing tips .............................. 208
Trailer towing ........................... 208
Towing equipment ...................209
Trailer stability assist ...............211

Driving and operating157indicated by illumination of % and a
warning message in the Driver
Information Centre.
% illuminates along with a warning
message when diesel particle filter is
full. Start cleaning process as soon as
possible.
% flashes along with a warning
message when diesel particle filter
has reached the maximum filling
level. Start cleaning process
immediately to avoid damage to the
engine.
Activate self-cleaning process
To activate cleaning process,
continue driving, keep engine speed
above 2000 rpm. Shift down if
necessary. Diesel particle filter
cleaning is then started.
Cleaning process is completed more
quickly at high engine speeds and loads.
Control indicator % extinguishes as
soon as the self-cleaning operation is complete. Keep on driving until self-
cleaning operation is complete.Caution
If possible, do not interrupt
cleaning process. Drive until
cleaning is completed to avoid the need for service or repair by a
workshop.
Cleaning process not possible
If cleaning is not possible for anyreasons, control indicator Z
illuminates and a warning message
appears in the Driver Information
Centre. Engine power may be
reduced. Seek the assistance of a
workshop immediately.
Catalytic converter
The catalytic converter reduces the
amount of harmful substances in the
exhaust gases.
Caution
Fuel grades other than those listed on pages 3 197, 3 267 could
damage the catalytic converter or
electronic components.
Unburnt petrol will overheat and
damage the catalytic converter.
Therefore avoid excessive use of the starter, running the fuel tank
dry and starting the engine by
pushing or towing.
In the event of misfiring, uneven
engine running, a reduction in engine performance or other unusual
problems, have the cause of the fault
rectified by a workshop as soon as
possible. In an emergency, driving
can be continued for a short period,
keeping vehicle speed and engine
speed low.

162Driving and operatingThe engine can only be started with
the lever in position P or N. When
position N is selected, press the brake
pedal or apply the parking brake
before starting.
Do not accelerate while engaging a
gear. Never depress the accelerator
pedal and brake pedal at the same
time.
When a gear is engaged, the vehicle
slowly begins to creep when the
brake is released.
Engine braking To utilise the engine braking effect,select a lower gear in good time when
driving downhill, see manual mode.
Rocking the vehicle
Rocking the vehicle is only
permissible if the vehicle is stuck in
sand, mud or snow. Move the selector
lever between D and R in a repeat
pattern. Do not race the engine and
avoid sudden acceleration.Parking
Apply the parking brake and engage
P .
The ignition key can only be removed
when the selector lever is in position
P .
Manual mode
Move selector lever out of position D
towards the left in position M.
Tap selector lever upwards + to shift
to a higher gear.
Tap the selector lever downwards - to
shift to a lower gear.
If a higher gear is selected when
vehicle speed is too low, or a lower
gear when vehicle speed is too high,
the shift is not executed. This can
cause a message in the Driver
Information Centre.
In manual mode, no automatic
shifting to a higher gear takes place
at high engine revolutions.
Gear shift indication
The symbol R with a number beside
it is indicated when gearshifting is
recommended for fuel saving
reasons.
Shift indication appears only in
manual mode.
Electronic driving programmes
● Following a cold start, the operating temperature
programme increases engine
speed to quickly bring the
catalytic converter to the required
temperature.

Driving and operating199Caution
Frequent usage of diesel fuelcontaining more than 15 ppm
sulphur will cause severe engine
damage.
Caution
Use of fuel that does not comply to EN 590 or similar can lead to
engine powerloss, increased wear
or engine damage and may affect
your warranty.
Do not use marine diesel oils, heating
oils, Aquazole and similar diesel-
water emulsions. Diesel fuels must
not be diluted with fuels for petrol
engines.
Fuel for natural gas operation
Use natural gas with a methane
content of approx. 78 - 99%. L-gas
(low) has approx. 78 - 87% and H-gas (high) has approx. 87 - 99%. Biogas
with the same methane content can
also be used if it has been chemically
prepared and desulphurised.
Only use natural gas or biogas that complies with DIN 51624.
Liquid gas or LPG must not be used.

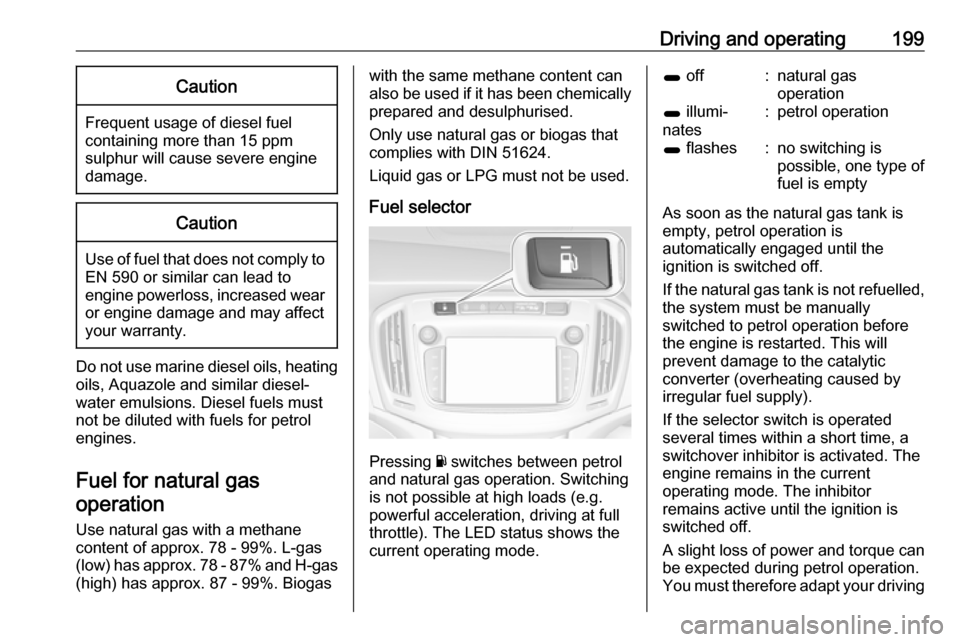

Fuel selector
Pressing Y switches between petrol
and natural gas operation. Switching
is not possible at high loads (e.g.
powerful acceleration, driving at full
throttle). The LED status shows the
current operating mode.
1 off:natural gas
operation1 illumi‐
nates:petrol operation1 flashes:no switching is
possible, one type of
fuel is empty
As soon as the natural gas tank is empty, petrol operation is
automatically engaged until the
ignition is switched off.
If the natural gas tank is not refuelled, the system must be manually
switched to petrol operation before
the engine is restarted. This will
prevent damage to the catalytic
converter (overheating caused by
irregular fuel supply).
If the selector switch is operated
several times within a short time, a
switchover inhibitor is activated. The
engine remains in the current
operating mode. The inhibitor
remains active until the ignition is
switched off.
A slight loss of power and torque can
be expected during petrol operation.
You must therefore adapt your driving

284IndexAAccessories and vehicle modifications .......................... 214
Active Emergency Braking .........185
Active head restraints ...................36
Adaptive cruise control .......116, 175
AdBlue ........................ 114, 158, 259
Adjustable air vents ...................147
Airbag and belt tensioners .........110
Airbag deactivation ..............58, 111
Airbag label................................... 53
Airbag system .............................. 53
Air conditioning regular operation ................................ 148
Air conditioning system .............. 142
Air intake .................................... 148
Air vents...................................... 147
Antilock brake system ................ 165
Antilock brake system (ABS) .....112
Anti-theft alarm system ................26
Anti-theft locking system .............. 25
Appearance care ........................254
Armrest ......................................... 41
Armrest storage ........................... 68
Ashtrays ..................................... 102
Automatic anti-dazzle ..................30
Automatic light control ...............132
Automatic locking ........................24
Automatic transmission .............161Autostop..................................... 153
Auxiliary heater ........................... 147
B Battery discharge protection ......140
Battery voltage ........................... 123
Bicycle rack .................................. 69
BlueInjection ............................... 158
Bonnet ....................................... 215
Brake and clutch fluid .................259
Brake and clutch system ...........111
Brake assist ............................... 167
Brake fluid .................................. 219 Brakes ............................... 165, 219
Breakdown.................................. 252
Bulb replacement ....................... 222
C Capacities .................................. 272
Cargo management system ........87
Car Pass ...................................... 20
Catalytic converter .....................157
Central locking system ................22
Centre console lighting ..............139
Centre console storage ...............68
Changing tyre and wheel size ...242
Charging system ........................ 111
Child locks ................................... 24
Child restraint installation locations ................................... 62
Child restraints.............................. 59
