VAUXHALL ZAFIRA TOURER 2017  Owners Manual In brief111Power windows .....................31
2 Exterior mirrors .....................28
3 Cruise control  .....................172
Speed limiter ....................... 173
Adaptive cruise control

Page 214 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual 212Vehicle careVehicle careGeneral Information...................213
Accessories and vehicle modifications .......................... 213
Vehicle storage ........................213
End-of-life vehicl

Page 221 of 289

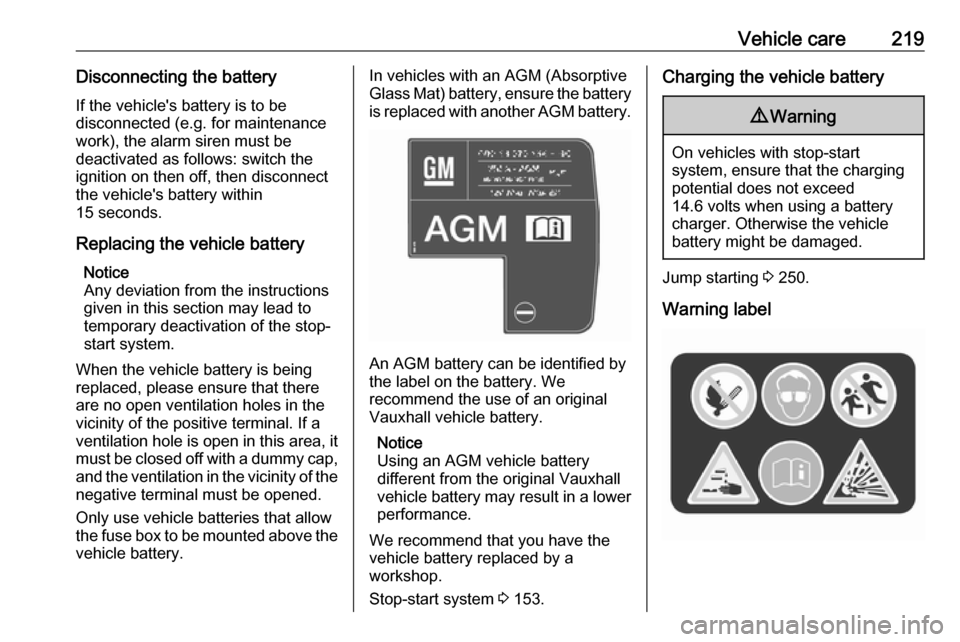

VAUXHALL ZAFIRA TOURER 2017  Owners Manual Vehicle care219Disconnecting the batteryIf the vehicles battery is to be
disconnected (e.g. for maintenance work), the alarm siren must be
deactivated as follows: switch the
ignition on then off, the

Page 230 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual 228Vehicle careInstrument panel
illumination
Have bulbs replaced by a workshop.Electrical system
Fuses
Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxe

Page 231 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual Vehicle care229Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by

Page 233 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual Vehicle care231No.Circuit33Adaptive forward lighting/Auto‐
matic light control34Exhaust gas recirculation35Exterior mirror/Rain sensor36Climate control37Canister vent solenoid38Vacuum pump39Central

Page 234 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual 232Vehicle care
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.
No.Circuit1Cruise control/Speed limiter/

Page 235 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual Vehicle care233
Remove the cover.
If equipped with tyre repair kit,
remove the complete box.
Fuse assignmentsNo.Circuit1–2Trailer outlet3Parking assist4Selective catalytic reduction
system5–6–7P

Page 285 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual 283Child restraint systems ................59
Cigarette lighter  .........................102
Climate control ............................. 15
Climate control systems .............141
Clock...........

Page 286 of 289

VAUXHALL ZAFIRA TOURER 2017  Owners Manual 284GGauges ....................................... 103
Gear shifting ............................... 113
General information  ...................207
Glass panel .................................. 33
G
