Seats, restraints59
If the control indicator ONV
illuminates for approx. 60 seconds
after the ignition is switched on, the
front passenger airbag system will
inflate in the event of a collision.
If both control indicators are
illuminated at the same time, there is
a system failure. The status of the
system is not discernible, therefore
no person is allowed to occupy the
front passenger seat. Contact a
workshop immediately.
Change status only when the vehicle
is stopped with the ignition off.
Status remains until the next change.

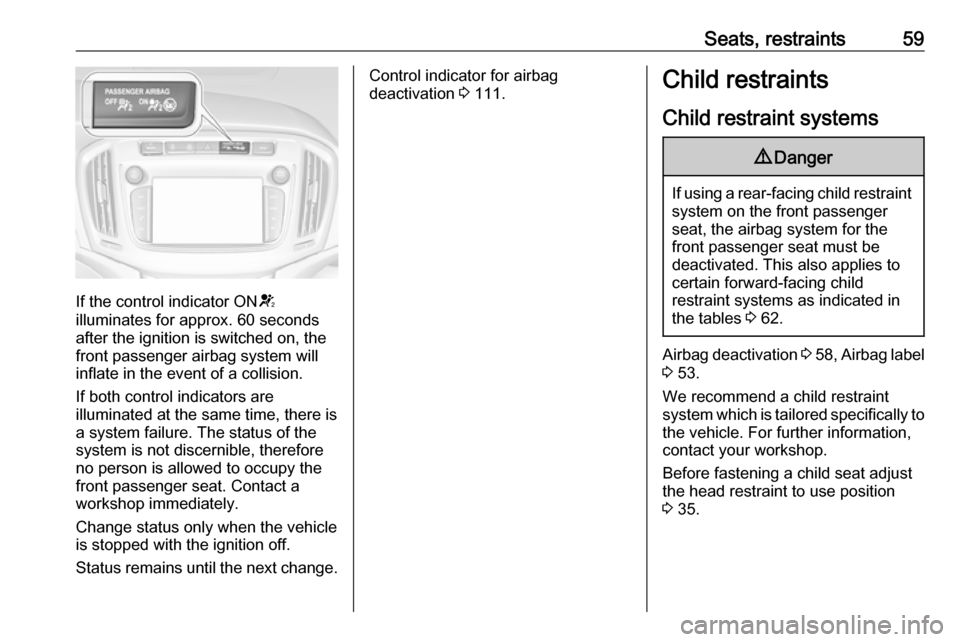

Control indicator for airbag
deactivation 3 111.Child restraints
Child restraint systems9 Danger
If using a rear-facing child restraint
system on the front passenger
seat, the airbag system for the
front passenger seat must be
deactivated. This also applies to certain forward-facing child
restraint systems as indicated in
the tables 3 62.
Airbag deactivation 3 58 , Airbag label
3 53.
We recommend a child restraint
system which is tailored specifically to
the vehicle. For further information,
contact your workshop.
Before fastening a child seat adjust
the head restraint to use position 3 35.

60Seats, restraintsWhen a child restraint system is beingused, pay attention to the following
usage and installation instructions and also those supplied with the child
restraint system.
Always comply with local or national
regulations. In some countries, the
use of child restraint systems is
forbidden on certain seats.
Child restraint systems can be
fastened with:
● Three-point seat belt
● ISOFIX brackets
● Top-tether
Three-point seat belt
Child restraint systems can be
fastened by using a three-point seat
belt. Depending on the size of the
used child restraint systems, up to
two child restraint systems can be
attached to the outboard seats in the
second row and on the seats in the
third row. After fastening the child
restraint system the seat belt has to
be tightened 3 62.ISOFIX brackets
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
brackets. Specific vehicle ISOFIX
child restraint system positions are
marked in the ISOFIX table 3 62.

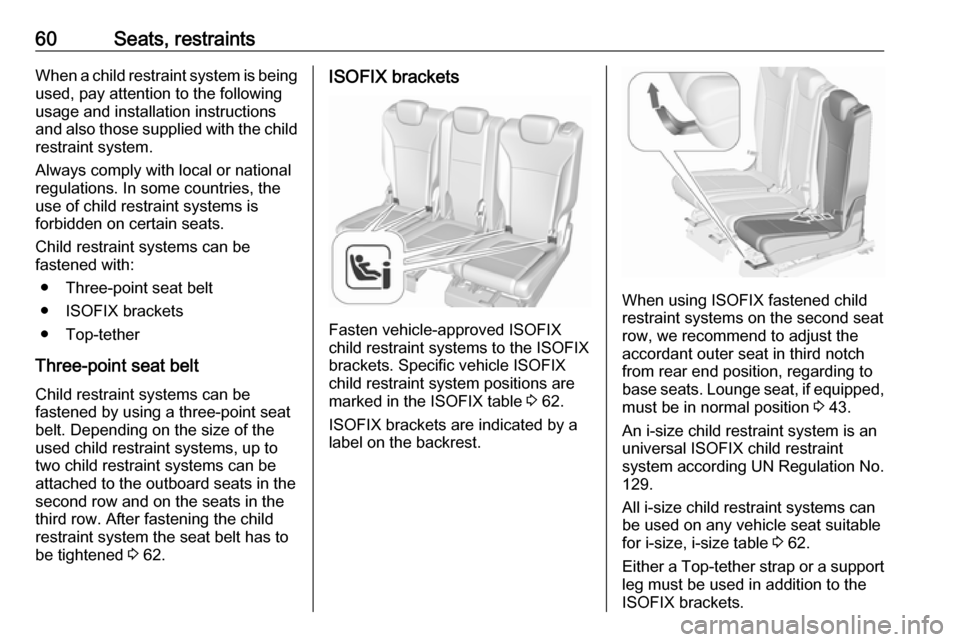

ISOFIX brackets are indicated by a
label on the backrest.
When using ISOFIX fastened child
restraint systems on the second seat
row, we recommend to adjust the
accordant outer seat in third notch
from rear end position, regarding to
base seats. Lounge seat, if equipped, must be in normal position 3 43.
An i-size child restraint system is an universal ISOFIX child restraint
system according UN Regulation No.
129.
All i-size child restraint systems can
be used on any vehicle seat suitable
for i-size, i-size table 3 62.
Either a Top-tether strap or a support
leg must be used in addition to the
ISOFIX brackets.

Seats, restraints61

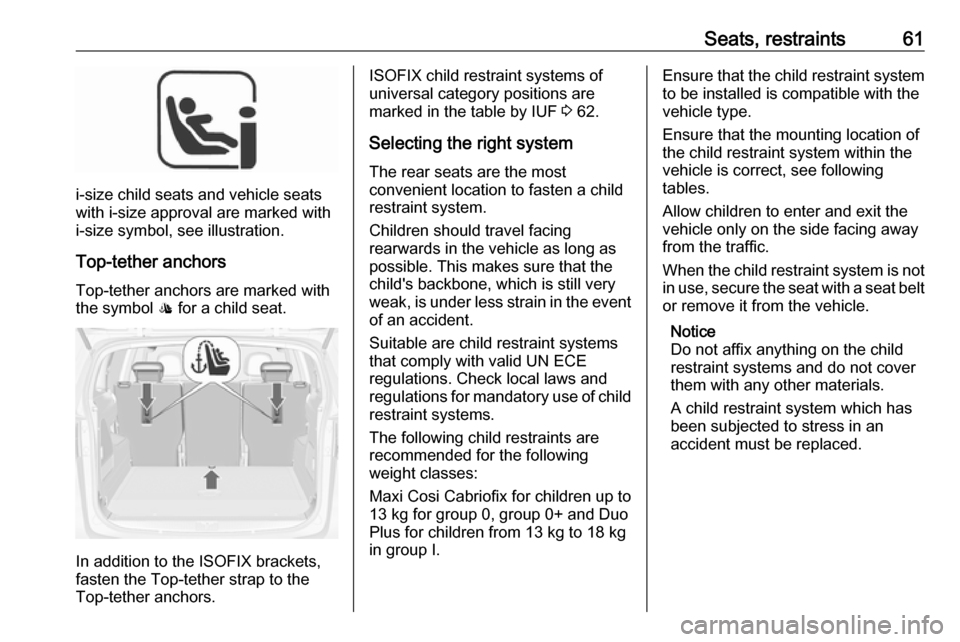

i-size child seats and vehicle seats
with i-size approval are marked with
i-size symbol, see illustration.
Top-tether anchors Top-tether anchors are marked with
the symbol : for a child seat.
In addition to the ISOFIX brackets,
fasten the Top-tether strap to the
Top-tether anchors.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF 3 62.
Selecting the right system The rear seats are the most
convenient location to fasten a child
restraint system.
Children should travel facing
rearwards in the vehicle as long as
possible. This makes sure that the child's backbone, which is still very
weak, is under less strain in the event of an accident.
Suitable are child restraint systems
that comply with valid UN ECE
regulations. Check local laws and
regulations for mandatory use of child
restraint systems.
The following child restraints are recommended for the following
weight classes:
Maxi Cosi Cabriofix for children up to
13 kg for group 0, group 0+ and Duo
Plus for children from 13 kg to 18 kg
in group I.Ensure that the child restraint system to be installed is compatible with the
vehicle type.
Ensure that the mounting location of
the child restraint system within the
vehicle is correct, see following
tables.
Allow children to enter and exit the
vehicle only on the side facing away
from the traffic.
When the child restraint system is not in use, secure the seat with a seat beltor remove it from the vehicle.
Notice
Do not affix anything on the child
restraint systems and do not cover
them with any other materials.
A child restraint system which has
been subjected to stress in an
accident must be replaced.

62Seats, restraintsChild restraint installation locations
Permissible options for fastening a child restraint system with a three-point seat belt
Weight class
On front passenger seatOn outboard seats in
the second rowOn centre seat
in the second
rowOn seats in the
third rowactivated airbagdeactivated airbagGroup 0: up to 10 kgXU 1,2U/L 3XU/L3Group 0+: up to 13 kgXU1,2U/L 3XU/L 3Group I: 9 to 18 kgXU1,2U/L 3,4XU/L 3,4Group II: 15 to 25 kgXXU/L3,4XU/L 3,4Group III: 22 to 36 kgXXU/L3,4XU/L 3,4U:universal suitability in conjunction with three-point seat beltL:suitable for particular child restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
child restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint
system)X:no child restraint system permitted in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensurethat the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if required

Seats, restraints63Permissible options for fitting an ISOFIX child restraint system with ISOFIX bracketsThis table relates to all ISOFIX child restraint systemsWeight classSize classFixtureOn front passenger
seatOn outboard seats
in the second rowOn centre seat in
the second rowOn the seats in
the third rowGroup 0: up to 10 kgG
F
EISO/L2
ISO/L1
ISO/R1X
X
XX
X
IL 3X
X
XX
X
XGroup 0+: up to 13 kgEISO/R1XIL 3XXDISO/R2XIL3XXCISO/R3XIL3XXGroup I: 9 to 18 kgDISO/R2XIL3,4XXCISO/R3XIL3,4XXBISO/F2XIL, IUF 3,4XXB1ISO/F2XXIL, IUF3,4XXAISO/F3XIL, IUF 3,4XXGroup II: 15 to 25 kgXIL3,4XXGroup III: 22 to 36 kgXIL3,4XX

64Seats, restraintsIL:suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.
The ISOFIX restraint system must be approved for the specific vehicle type (refer to the vehicle type list of the child restraint system)IUF:suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight classX:no ISOFIX child restraint system approved in this weight class1:move seat forwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure
that the belt runs forwards from the upper anchorage point2:move seat upwards as far as necessary and adjust seat backrest as far as necessary to a vertical position to ensure that the belt is tight on the buckle side3:move the respective front seat ahead of the child restraint system forwards as far as necessary4:adjust the respective headrest as necessary or remove if requiredA – ISO//F3:forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO//F2:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO//F2X:forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO//R3:rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO//R2:rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO//R1:rear-facing child restraint system for young children in the weight class up to 13 kg.
Permissible options for fitting an i-Size child restraint system with ISOFIX brackets
On front passenger seatOn outboard seats in
the second rowOn centre seat in the
second rowOn the seats in the
third rowactivated airbagdeactivated airbagi-Size child
restraint
systemsXXi - UXXi - U:suitable for i-Size 'universal' forward and rearward facing child restraint systemsX:seating position not suitable for i-Size 'universal' child restraint systems

Storage65StorageStorage compartments................65
Glovebox ................................... 65
Cupholders ................................ 65
Front storage ............................. 67
Door panel storage ....................67
Overhead console .....................67
Underseat storage .....................67
Armrest storage .........................68
Centre console storage .............68
Rear carrier system ...................69
Load compartment .......................78
Rear storage .............................. 80
Load compartment cover ...........80
Rear floor storage cover ............82
Load rails and hooks .................87
Lashing eyes ............................. 87
Cargo management system ......87
Safety net .................................. 89
Folding tray ................................ 91
Warning triangle ........................91
First aid kit ................................. 91
Roof rack system .........................92
Roof rack ................................... 92
Loading information .....................93Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
To open the glovebox pull the handle.
The glovebox features an adapter for the locking wheel nuts.
The glovebox should be closed whilst
driving.
Cupholders
Front cupholder
Cupholders are located in the centre
console between the front seats.

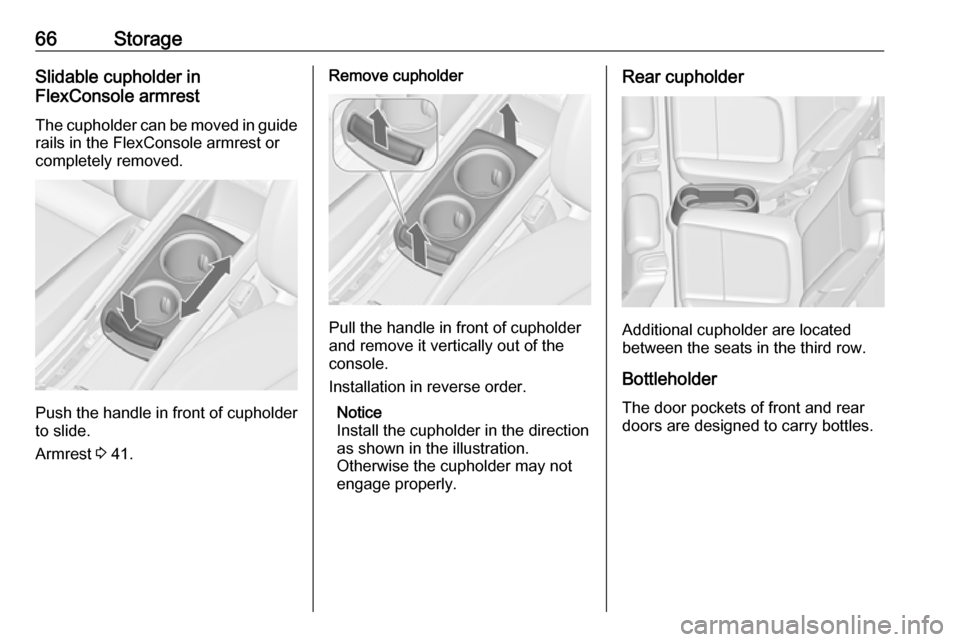

66StorageSlidable cupholder in
FlexConsole armrest
The cupholder can be moved in guide
rails in the FlexConsole armrest or
completely removed.
Push the handle in front of cupholder
to slide.
Armrest 3 41.
Remove cupholder
Pull the handle in front of cupholder
and remove it vertically out of the
console.
Installation in reverse order.
Notice
Install the cupholder in the direction as shown in the illustration.
Otherwise the cupholder may not engage properly.
Rear cupholder
Additional cupholder are located
between the seats in the third row.
Bottleholder
The door pockets of front and rear
doors are designed to carry bottles.

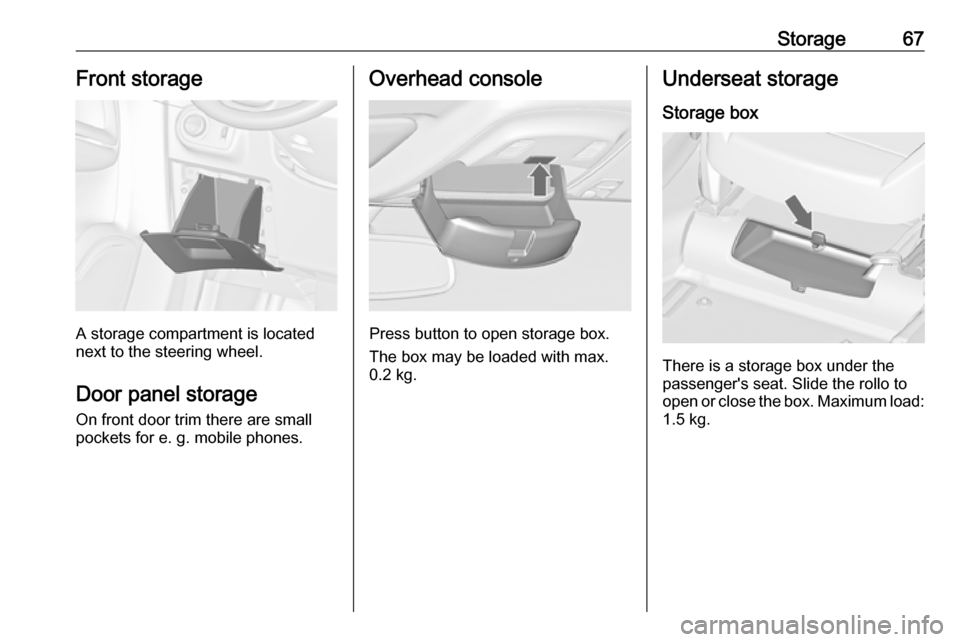

Storage67Front storage
A storage compartment is located
next to the steering wheel.
Door panel storage On front door trim there are small
pockets for e. g. mobile phones.
Overhead console
Press button to open storage box.
The box may be loaded with max.
0.2 kg.
Underseat storage
Storage box
There is a storage box under the
passenger's seat. Slide the rollo to
open or close the box. Maximum load: 1.5 kg.

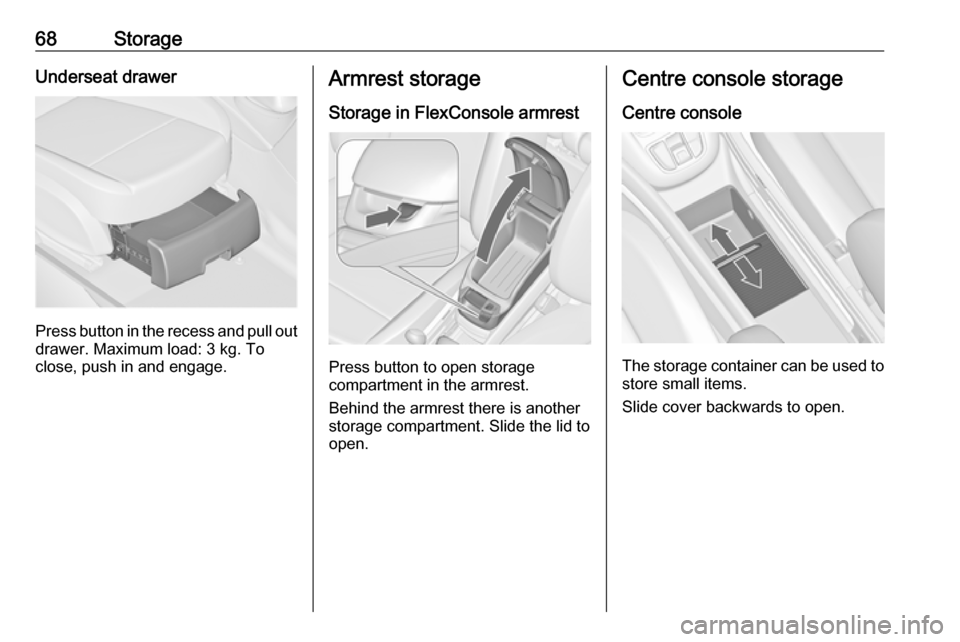

68StorageUnderseat drawer
Press button in the recess and pull out
drawer. Maximum load: 3 kg. To
close, push in and engage.
Armrest storage
Storage in FlexConsole armrest
Press button to open storage
compartment in the armrest.
Behind the armrest there is another
storage compartment. Slide the lid to
open.
Centre console storage
Centre console
The storage container can be used to
store small items.
Slide cover backwards to open.
