fuse box VAUXHALL ZAFIRA TOURER 2018.5 Owner's Manual

In brief111Power windows .....................31
2 Exterior mirrors .....................28
3 Cruise control .....................218
Speed limiter ....................... 220
Adaptive cruise control .......221
Forward collision alert .........228
4 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist ................134
Exit lighting ......................... 137
Parking lights ...................... 135
Buttons for Driver
Information Centre ..............116
5 Instruments ........................ 102
6 Driver Information Centre .... 116
7 Steering wheel controls .......96
8 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................97
9 Info-Display ........................ 12110Central locking system ..........21
Hazard warning flashers ....134
Sport mode ........................ 217
Tour mode .......................... 217
Fuel selector ....................... 104
Control indicator for airbag deactivation ........................ 111
11 Anti-theft alarm system
status LED ........................... 26
12 Centre air vents .................. 194
13 Side air vents ...................... 194
14 Glovebox .............................. 65
15 Climate control system ........ 188
16 USB input .............................. 10
Power outlet ........................ 100
17 Selector lever, manual
transmission ....................... 211
Automatic transmission ......208
18 Traction Control system .....215
Electronic Stability Control . 216
Lane departure warning .....243
19 Electric parking brake .........21220Manual parking brake .........212
21 Parking assist systems .......233
Eco button for stop-start
system ................................. 200
22 Ignition switch with
steering wheel lock ............197
23 Horn ..................................... 97
Driver airbag ........................ 56
24 Bonnet release lever ..........259
25 Fuse box ............................ 277
Storage compartment ...........67
26 Light switch ........................ 129
Headlight range
adjustment ......................... 131
Front fog lights ...................134
Rear fog light ...................... 135
Instrument illumination .......136
27 Steering wheel adjustment ..96

Vehicle care257Vehicle careGeneral Information...................258
Accessories and vehicle modifications .......................... 258
Vehicle storage ........................258
End-of-life vehicle recovery .....259
Vehicle checks ........................... 259
Performing work ......................259
Bonnet ..................................... 259
Engine oil ................................. 260
Engine coolant ......................... 261
Power steering fluid .................262
Washer fluid ............................ 263
Brakes ..................................... 263
Brake fluid ............................... 263
Vehicle battery ......................... 263
Diesel fuel system bleeding .....265
Wiper blade replacement ........265
Bulb replacement .......................266
Halogen headlights ..................266
LED headlights ........................ 268
Fog lights ................................. 268
Tail lights ................................. 269
Side turn lights ......................... 272
Number plate light ...................272Interior lights ............................ 273
Instrument panel illumination ...273
Electrical system ........................273
Fuses ....................................... 273
Engine compartment fuse box . 275
Instrument panel fuse box .......277
Load compartment fuse box ....278
Vehicle tools .............................. 280
Tools ........................................ 280
Wheels and tyres .......................280
Winter tyres ............................. 280
Tyre designations ....................280
Tyre pressure .......................... 281
Tyre pressure monitoring system .................................... 282
Tread depth ............................. 285
Changing tyre and wheel size . 286
Wheel covers ........................... 286
Tyre chains .............................. 286
Tyre repair kit .......................... 286
Wheel changing .......................289
Spare wheel ............................ 292
Jump starting ............................. 295
Towing ....................................... 297
Towing the vehicle ...................297
Towing another vehicle ...........298Appearance care .......................299
Exterior care ............................ 299
Interior care ............................. 301

264Vehicle care
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Laying up the vehicle for more than
four weeks can lead to battery
discharge. Disconnect the clamp from the negative terminal of the vehicle
battery.
Ensure the ignition is switched off
before connecting or disconnecting
the vehicle battery.
The anti-theft alarm siren must be
deactivated as follows: Switch the
ignition on then off, disconnect the
vehicle's battery within 15 seconds.
Vehicle battery discharge protection
3 138.
Disconnecting the battery
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.
Replacing the vehicle battery Notice
Any deviation from the instructions
given in this section may lead to
temporary deactivation or
disturbance of the stop-start system.
When the vehicle battery is being
replaced, please ensure that there
are no open ventilation holes in the
vicinity of the positive terminal. If a
ventilation hole is open in this area, it
must be closed off with a dummy cap, and the ventilation in the vicinity of the
negative terminal must be opened.
Only use vehicle batteries that allow the fuse box to be mounted above the
vehicle battery.
Ensure that the battery is always replaced by the same type of battery.We recommend that you have the
vehicle battery replaced by a
workshop.
Stop-start system 3 200.
Charging the vehicle battery9 Warning
On vehicles with stop-start
system, ensure that the charging potential does not exceed
14.6 volts when using a battery
charger. Otherwise the vehicle
battery might be damaged.
Jump starting 3 295.

Vehicle care273

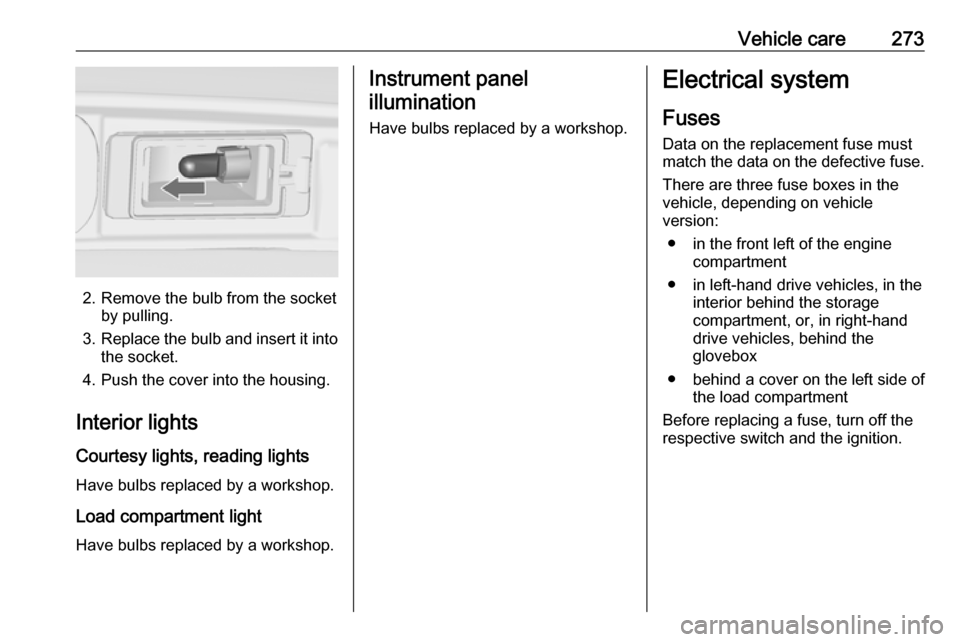

2. Remove the bulb from the socketby pulling.
3. Replace the bulb and insert it into
the socket.
4. Push the cover into the housing.
Interior lights
Courtesy lights, reading lights Have bulbs replaced by a workshop.
Load compartment light
Have bulbs replaced by a workshop.
Instrument panel illumination
Have bulbs replaced by a workshop.Electrical system
Fuses Data on the replacement fuse must
match the data on the defective fuse.
There are three fuse boxes in the
vehicle, depending on vehicle
version:
● in the front left of the engine compartment
● in left-hand drive vehicles, in the interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox
● behind a cover on the left side of the load compartment
Before replacing a fuse, turn off the
respective switch and the ignition.

274Vehicle care

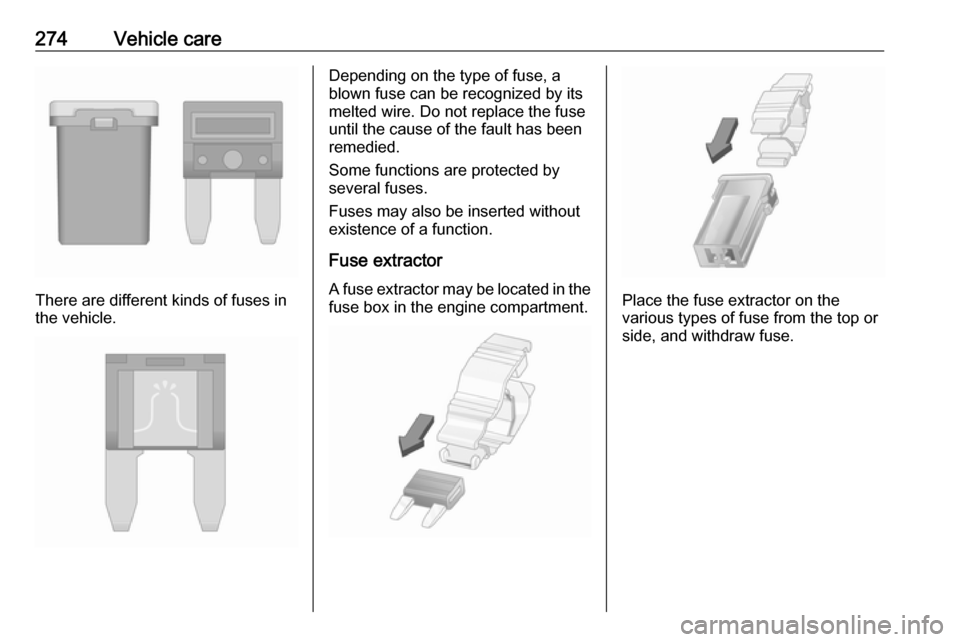

There are different kinds of fuses in
the vehicle.
Depending on the type of fuse, a
blown fuse can be recognized by its
melted wire. Do not replace the fuse until the cause of the fault has been
remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without existence of a function.
Fuse extractorA fuse extractor may be located in the
fuse box in the engine compartment.
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.

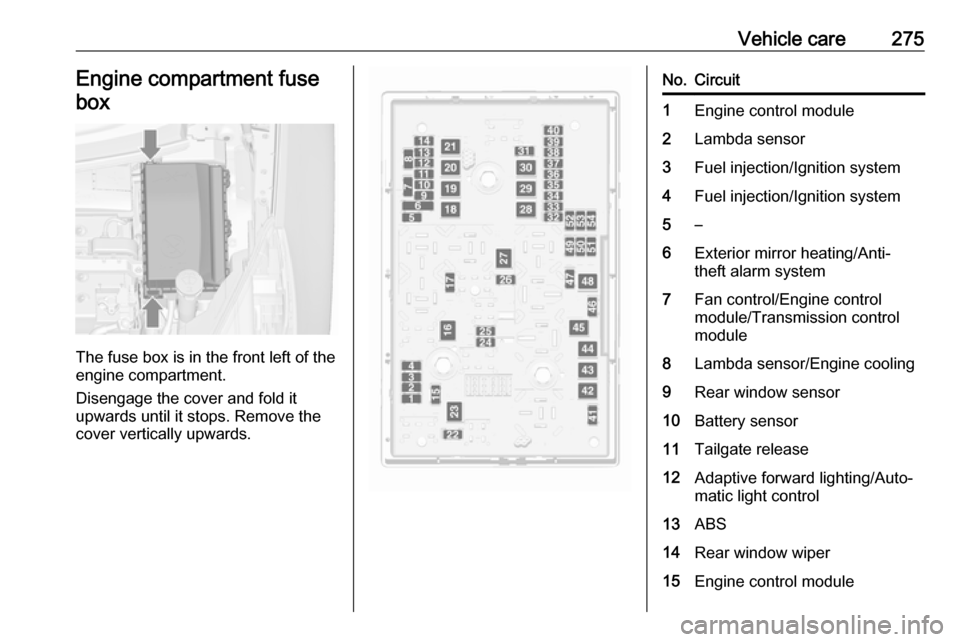

Vehicle care275Engine compartment fusebox
The fuse box is in the front left of the
engine compartment.
Disengage the cover and fold it
upwards until it stops. Remove the
cover vertically upwards.
No.Circuit1Engine control module2Lambda sensor3Fuel injection/Ignition system4Fuel injection/Ignition system5–6Exterior mirror heating/Anti-
theft alarm system7Fan control/Engine control
module/Transmission control
module8Lambda sensor/Engine cooling9Rear window sensor10Battery sensor11Tailgate release12Adaptive forward lighting/Auto‐
matic light control13ABS14Rear window wiper15Engine control module

276Vehicle careNo.Circuit16Starter17Transmission control module18Heated rear window19Front power windows20Rear power windows21Rear electrical centre (with fusebox in the load compartment)
Heated front seats (without fuse box in the load compartment)22Left high beam (Halogen)23–24Right headlight (LED)25Left headlight (LED)26Front fog lights27Diesel fuel heating28Stop-start system29Electric parking brake30ABSNo.Circuit31Adaptive cruise control32Airbag33Adaptive forward lighting/Auto‐
matic light control34Exhaust gas recirculation35Exterior mirror/Rain sensor36Climate control37Canister vent solenoid38Vacuum pump39Central control module40Windscreen washer/Rear
window washer system41Right high beam (Halogen)42Radiator fan43Windscreen wiper44Windscreen wiper45Radiator fan46–No.Circuit47Horn48Radiator fan49Fuel pump50Headlamp levelling/Adaptive
forward lighting51Air shutter52Auxiliary heater/Diesel engine53Transmission control module/
Engine control module54Vacuum pump/Instrument
panel cluster/Heating ventila‐
tion/Air conditioning system
After having changed defective fuses,
close the fuse box cover and press
until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.

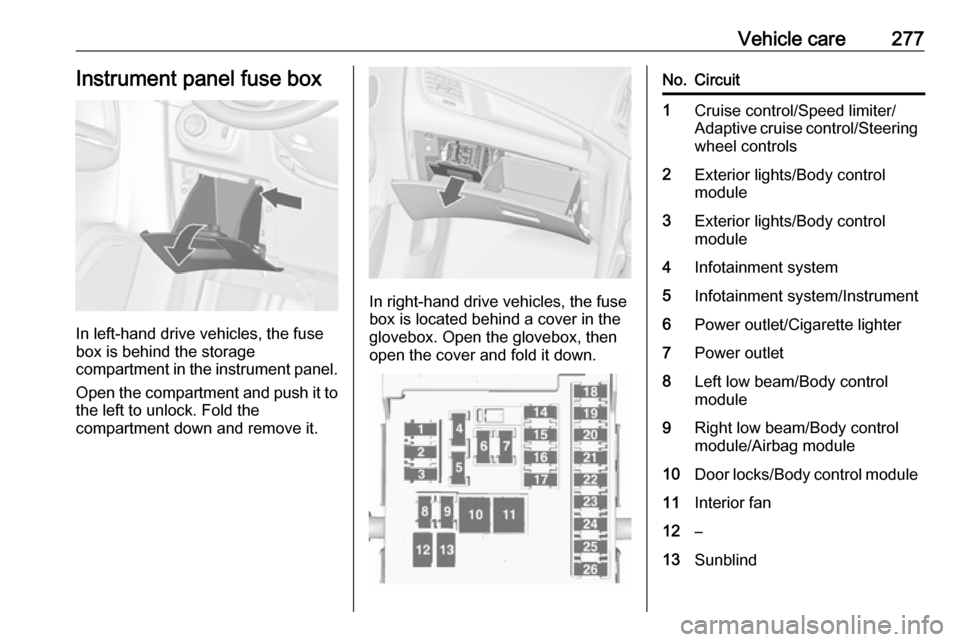

Vehicle care277Instrument panel fuse box
In left-hand drive vehicles, the fuse
box is behind the storage
compartment in the instrument panel.
Open the compartment and push it to the left to unlock. Fold the
compartment down and remove it.
In right-hand drive vehicles, the fuse
box is located behind a cover in the
glovebox. Open the glovebox, then
open the cover and fold it down.
No.Circuit1Cruise control/Speed limiter/
Adaptive cruise control/Steering wheel controls2Exterior lights/Body control
module3Exterior lights/Body control
module4Infotainment system5Infotainment system/Instrument6Power outlet/Cigarette lighter7Power outlet8Left low beam/Body control
module9Right low beam/Body control
module/Airbag module10Door locks/Body control module11Interior fan12–13Sunblind

278Vehicle careNo.Circuit14Diagnostic connector15Airbag16Power outlet17Air conditioning system18Logistics19Body control module20Body control module21Instrument panel cluster/Anti-
theft alarm system22Ignition sensor23Body control module24Body control module25Steering wheel heating26–

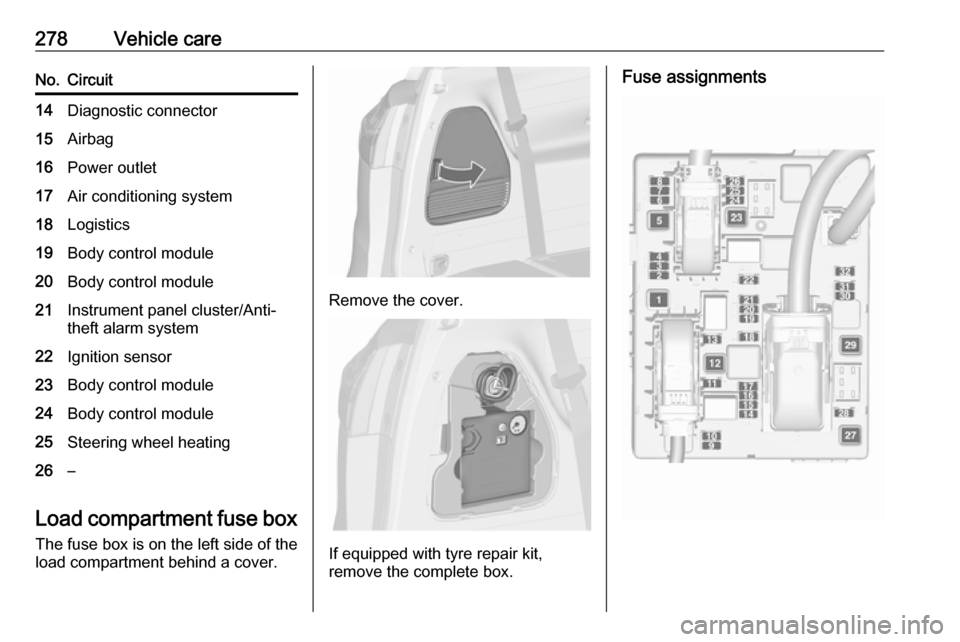

Load compartment fuse box
The fuse box is on the left side of the
load compartment behind a cover.
Remove the cover.
If equipped with tyre repair kit,
remove the complete box.
Fuse assignments

331Brakes ............................... 212, 263
Breakdown.................................. 297
BringGo ...................................... 163
Bulb replacement ....................... 266
C
Call Functions during a call ............183
Incoming call ........................... 183
Initiating a phone call ..............183
Ring tone ................................. 183
Call history .................................. 183
Capacities .................................. 315
Cargo management system ........87
Car Pass ...................................... 20
Catalytic converter .....................204
Central locking system ................21
Centre console lighting ..............137
Centre console storage ...............68
Changing tyre and wheel size ...286
Charging system ........................ 111
Child locks ................................... 24
Child restraint installation locations ................................... 62
Child restraints.............................. 59
Child restraint systems ................59
Cigarette lighter .........................101
Climate control ............................. 15
Climate control systems .............188
Clock............................................. 99CNG.................................... 104, 246
Code ........................................... 122
Contacts ..................................... 170
Control elements Infotainment system ................141
Steering wheel ........................ 141
Control elements overview .........141
Control indicators........................ 107
Control of the vehicle .................197
Controls ........................................ 96
Convex shape .............................. 28
Coolant and antifreeze ...............303
Cruise control ....................115, 218
Cupholders .................................. 65
Curtain airbag system .................. 57
Curve lighting.............................. 133
D
DAB ............................................ 156
Danger, Warnings and Cautions ...4
Daytime running lights ...............132
Declaration of conformity ............320
DEF ............................................ 205
Destination input ........................170
Diesel exhaust fluid ....................205
Diesel fuel system bleeding .......265
Digital audio broadcasting ..........156
Displaying pictures .....................161
Display settings ..................161, 162
Door open .................................. 116Door panel storage.......................67
Doors ............................................ 24
Driver assistance systems ..........218
Driver Information Centre ...........116
Driving characteristics and towing tips .............................. 252
Driving hints ................................ 197
E Electric adjustment ......................28
Electrical system......................... 273
Electric parking brake .........112, 212
Electric parking brake fault .........112
Electronic climate control system 190
Electronic driving programmes ..209
Electronic Stability Control.......... 216
Electronic Stability Control and Traction Control system ..........113
Electronic Stability Control off..... 113
Emergency call ........................... 182
End-of-life vehicle recovery .......259
Engine compartment fuse box ...275
Engine coolant ........................... 261
Engine coolant temperature gauge ..................................... 106
Engine data ............................... 310
Engine exhaust .......................... 203
Engine identification ...................306
Engine oil ................... 260, 303, 307
Engine oil pressure ....................114
