Page 97 of 341
Instruments and controls95Instruments and
controlsControls ....................................... 96
Steering wheel adjustment ........96
Steering wheel controls .............96
Heated steering wheel ...............96
Horn ........................................... 97
Windscreen wiper/washer .........97
Rear window wiper/washer .......98
Outside temperature ..................99
Clock ......................................... 99
Power outlets ........................... 100
Cigarette lighter .......................101
Ashtrays .................................. 101
Warning lights, gauges and indi‐ cators ......................................... 102
Instrument cluster ....................102
Speedometer ........................... 102
Odometer ................................ 102
Trip odometer .......................... 102
Tachometer ............................. 103
Fuel gauge .............................. 103
Fuel selector ............................ 104
Engine coolant temperature gauge ..................................... 106
Service display ........................ 106Control indicators ....................107
Turn signal ............................... 109
Seat belt reminder ...................110
Airbag and belt tensioners .......110
Airbag deactivation ..................111
Charging system .....................111
Malfunction indicator light ........111
Brake and clutch system .........111
Operate pedal .......................... 112
Electric parking brake ..............112
Electric parking brake fault ......112
Antilock brake system (ABS) ...112
Gear shifting ............................ 113
Power steering ........................ 113
Following distance ...................113
Lane departure warning ..........113
Electronic Stability Control off . 113
Electronic Stability Control and Traction Control system .........113
Traction Control system off .....113
Preheating ............................... 114
Diesel particle filter ..................114
AdBlue ..................................... 114
Tyre pressure monitoring system .................................... 114
Engine oil pressure ..................114
Low fuel ................................... 115
Immobiliser .............................. 115
Exterior light ............................ 115
High beam ............................... 115High beam assist.....................115
LED headlights ........................ 115
Fog light ................................... 115
Rear fog light ........................... 115
Cruise control .......................... 115
Adaptive cruise control ............116
Vehicle detected ahead ...........116
Speed limiter ........................... 116
Traffic sign assistant ................116
Door open ................................ 116
Information displays ...................116
Driver Information Centre ........116
Info display .............................. 121
Vehicle messages ......................122
Warning chimes .......................122
Battery voltage ........................ 122
Vehicle personalisation ..............123
Telematics service .....................125
OnStar ..................................... 125
Page 108 of 341
106Instruments and controlsSeek the assistance of a workshop in
the event of all other faults.Caution
Repairs and adjustments may only be made by trained specialists in
order to maintain the safety and
warranty on the LPG system.
Liquid gas is given a particular odour
(odorised) so that any leaks can be
detected easily.
9 Warning
If you smell gas in the vehicle or in
the immediate vicinity, switch to petrol mode immediately. No
smoking. No naked flames or
ignition sources.
If the gas odour persists, do not start
the engine. Have the cause of the
fault remedied by a workshop.
When using underground car parks,
follow the instructions of the operator
and local laws.
Notice
In the event of an accident, switch off
the ignition and lights.
Fuel for liquid gas operation 3 247.
Engine coolant temperature gauge
Number of LEDs displayed shows the coolant temperature.
up to 3 LEDs:engine operating
temperature not
yet reached4 to 6 LEDs:normal operating
temperaturemore than 6
LEDs:temperature too
highCaution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service display
The engine oil life system informs
when to change the engine oil and
filter. Based on driving conditions, the interval at which an engine oil and
filter change will be indicated can vary
considerably.
Page 111 of 341
Instruments and controls109OverviewOTurn signal 3 109XSeat belt reminder 3 110vAirbag and belt tensioners
3 110VAirbag deactivation 3 111pCharging system 3 111ZMalfunction indicator light
3 111RBrake and clutch system 3 111mElectric parking brake 3 112jElectric parking brake fault
3 112-Operate pedal 3 112uAntilock brake system (ABS)
3 112RGear shifting 3 113EFollowing distance 3 113cPower steering 3 113)Lane departure warning 3 113nElectronic Stability Control off
3 113bElectronic Stability Control and
Traction Control system 3 113kTraction Control system off
3 113!Preheating 3 114%Diesel particle filter 3 114YAdBlue 3 114wTyre pressure monitoring
system 3 114IEngine oil pressure 3 114YLow fuel 3 115dImmobiliser 3 1158Exterior light 3 115CHigh beam 3 115fHigh beam assist 3 115fLED headlights 3 133>Fog light 3 115rRear fog light 3 115mCruise control 3 115 / Adaptive
cruise control 3 116CAdaptive cruise control 3 116AVehicle detected ahead 3 116LSpeed limiter 3 116LTraffic sign assistant 3 116hDoor open 3 116
Turn signal
O illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
A turn signal or the hazard warning flashers are activated.
Rapid flashing: failure of a turn signal light or associated fuse, failure of turn
signal light on trailer.
Bulb replacement 3 267, Fuses
3 274.
Turn signals 3 134.
Page 122 of 341
120Instruments and controlsRemaining oil life
Indicates an estimate of the oil's
useful life. The number in percentage means the current remaining oil life
and indicates when to change the
engine oil and filter 3 106.
Tyre pressure
Tyre pressures of all wheels are
displayed on this page during driving
3 283.
Tyre load
The tyre pressure category according
to the actual tyre inflation pressure
can be selected 3 283.
Following distance
Displays the distance in seconds to a preceding moving vehicle 3 232. If
Adaptive cruise control is active this
page shows the following distance
setting instead.
Traffic sign assistant
Displays the detected traffic signs for
the current route section 3 240.Economy information menu @
Possible pages are: ● economy trend
● economy index
● top consumers

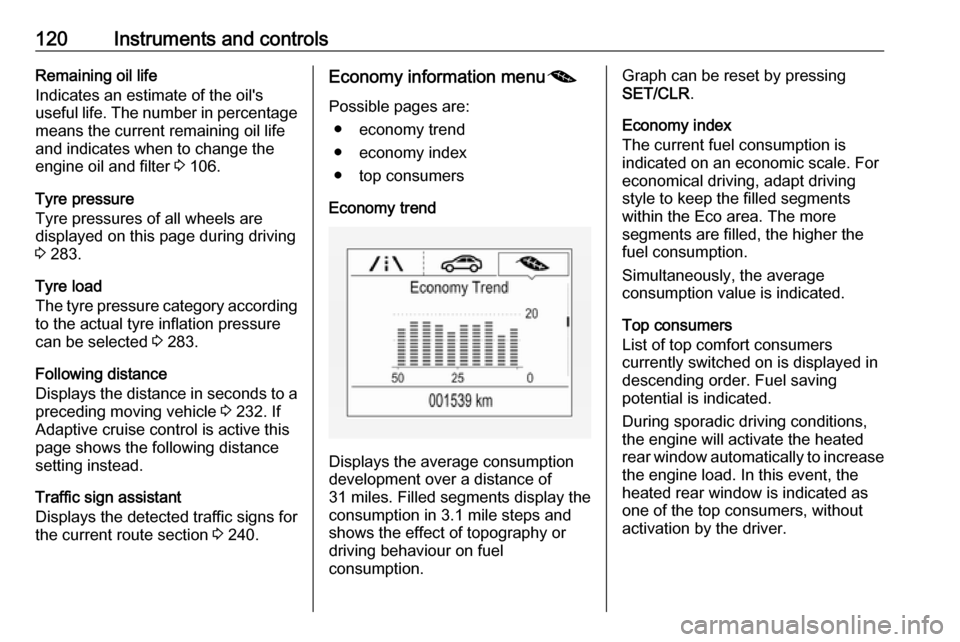

Economy trend
Displays the average consumption
development over a distance of
31 miles. Filled segments display the
consumption in 3.1 mile steps and
shows the effect of topography or
driving behaviour on fuel
consumption.
Graph can be reset by pressing
SET/CLR .
Economy index
The current fuel consumption is
indicated on an economic scale. For
economical driving, adapt driving
style to keep the filled segments
within the Eco area. The more
segments are filled, the higher the
fuel consumption.
Simultaneously, the average
consumption value is indicated.
Top consumers
List of top comfort consumers
currently switched on is displayed in descending order. Fuel saving
potential is indicated.
During sporadic driving conditions,
the engine will activate the heated
rear window automatically to increase
the engine load. In this event, the
heated rear window is indicated as
one of the top consumers, without
activation by the driver.
Page 199 of 341
Driving and operating197Driving and
operatingDriving hints ............................... 198
Control of the vehicle ...............198
Steering ................................... 198
Starting and operating ...............198
New vehicle running-in ............198
Ignition switch positions ...........198
Retained power off ..................199
Starting the engine ..................199
Overrun cut-off ........................ 200
Stop-start system ....................201
Parking .................................... 203
Engine exhaust .......................... 204
Diesel particle filter ..................204
Catalytic converter ...................205
AdBlue ..................................... 206
Automatic transmission ..............209
Transmission display ...............209
Selector lever .......................... 209
Manual mode ........................... 210
Electronic driving programmes 210
Fault ........................................ 211
Interruption of power supply ....211
Manual transmission ..................212Brakes........................................ 213
Antilock brake system .............213
Parking brake .......................... 213
Brake assist ............................. 215
Hill start assist ......................... 215
Ride control systems .................216
Traction Control system ..........216
Electronic Stability Control ......217
Interactive driving system ........218
Driver assistance systems .........219
Cruise control .......................... 219
Speed limiter ........................... 221
Adaptive cruise control ............222
Forward collision alert .............229
Following distance indication ...232
Active Emergency Braking ......233
Parking assist .......................... 234
Side blind spot alert .................237
Rear view camera ...................239
Traffic sign assistant ................240
Lane departure warning ..........244
Fuel ............................................ 245
Fuel for petrol engines .............245
Fuel for diesel engines ............246
Fuel for natural gas operation . 247
Fuel for liquid gas operation ....247
Refuelling ................................ 247
Fuel consumption - CO 2-
Emissions .............................. 252Trailer hitch................................ 253
General information .................253
Driving characteristics and towing tips .............................. 254
Trailer towing ........................... 254
Towing equipment ...................255
Trailer stability assist ...............257
Page 200 of 341
198Driving and operatingDriving hints
Control of the vehicle
Never coast with engine not
running
Many systems will not function in this situation ( e.g. brake servo unit, power
steering). Driving in this manner is a
danger to yourself and others. All
systems function during an Autostop.
Stop-start system 3 201.
Idle boost
If charging of the vehicle battery is
required due to battery condition, the
power output of the generator must be increased. This will be achieved by an idle boost which may be audible.
A message appears in the Driver
Information Centre.
Pedals
To ensure the pedal travel is
uninhibited, there must be no mats in
the area of the pedals.Use only floor mats which fit properly
and are fixed by the retainers on the
driver's side.
Steering
If power steering assist is lost
because the engine stops or due to a system malfunction, the vehicle can
be steered but may require increased
effort.
Control indicator c 3 113.Starting and operating
New vehicle running-in Do not brake unnecessarily hard for
the first few journeys.
During the first drive, smoke may
occur because of wax and oil
evaporating off the exhaust system.
Park the vehicle in the open for a
while after the first drive and avoid
inhaling the fumes.
During the running-in period, fuel and engine oil consumption may be
higher and the cleaning process of
the diesel particle filter may take
place more often. Autostop may be
inhibited to allow for charging of the
vehicle battery.
Diesel particle filter 3 204.
Ignition switch positions
Turn key:
Page 206 of 341
204Driving and operatingNotice
In the event of an accident with
airbag deployment, the engine is
turned off automatically if the vehicle
comes to a standstill within a certain time.Engine exhaust9 Danger
Engine exhaust gases contain
poisonous carbon monoxide,
which is colourless and odourless and could be fatal if inhaled.
If exhaust gases enter the interior
of the vehicle, open the windows.
Have the cause of the fault
rectified by a workshop.
Avoid driving with an open load
compartment, otherwise exhaust
gases could enter the vehicle.
Diesel particle filter
Automatic cleaning process
The diesel particle filter system filters
harmful soot particles out of the
exhaust gases. The system includes
a self-cleaning function that runs
automatically during driving without
any notification. The filter is cleaned
by periodically burning off the soot
particles at high temperature. This
process takes place automatically
under set driving conditions and may take up to 25 minutes. Typically it
needs between seven and twelve
minutes. Autostop is not available
and fuel consumption may be higher
during this period. The emission of
smells and smoke during this process is normal.
System requires cleaning
Under certain conditions, e.g. driving
short distances, the system cannot
clean itself automatically.
If cleaning of the filter is required and if previous driving conditions did not
enable automatic cleaning, it will be
Page 207 of 341
Driving and operating205indicated by illumination of % and a
warning message in the Driver
Information Centre.
% illuminates along with a warning
message when diesel particle filter is
full. Start cleaning process as soon as
possible.
% flashes along with a warning
message when diesel particle filter
has reached the maximum filling
level. Start cleaning process
immediately to avoid damage to the
engine.
Activate self-cleaning process
To activate cleaning process,
continue driving, keep engine speed
above 2000 rpm. Shift down if
necessary. Diesel particle filter
cleaning is then started.
Cleaning process is completed more
quickly at high engine speeds and loads.
Control indicator % extinguishes as
soon as the self-cleaning operation is complete. Keep on driving until self-
cleaning operation is complete.Caution
If possible, do not interrupt
cleaning process. Drive until
cleaning is completed to avoid the need for service or repair by a
workshop.
Cleaning process not possible
If cleaning is not possible for anyreasons, control indicator Z
illuminates and a warning message
appears in the Driver Information
Centre. Engine power may be
reduced. Seek the assistance of a
workshop immediately.
Catalytic converter
The catalytic converter reduces the
amount of harmful substances in the
exhaust gases.
Caution
Fuel grades other than those listed on pages 3 245, 3 312 could
damage the catalytic converter or
electronic components.
Unburnt petrol will overheat and
damage the catalytic converter.
Therefore avoid excessive use of the starter, running the fuel tank
dry and starting the engine by
pushing or towing.
In the event of misfiring, uneven
engine running, a reduction in engine performance or other unusual
problems, have the cause of the fault
rectified by a workshop as soon as
possible. In an emergency, driving
can be continued for a short period,
keeping vehicle speed and engine
speed low.
Page 319 of 341
Technical data317Capacities
Engine oilEngineB14NELB14NET,
B14NET LPGB16XNT CNGB16SHL,
B16SHTincluding Filter [l]4.04.04.55.5between MIN and MAX [l]1.01.01.01.0EngineB16DTJ,
B16DTHB20DTJB20DTHincluding Filter [l]5.05.255.25between MIN and MAX [l]1.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity [l]25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15 °C.
Page 335 of 341
333Brakes ............................... 213, 264
Breakdown.................................. 297
BringGo ...................................... 163
Bulb replacement ....................... 267
C
Call Functions during a call ............183
Incoming call ........................... 183
Initiating a phone call ..............183
Ring tone ................................. 183
Call history .................................. 183
Capacities .................................. 317
Cargo management system ........87
Car Pass ...................................... 20
Catalytic converter .....................205
Central locking system ................21
Centre console lighting ..............137
Centre console storage ...............68
Changing tyre and wheel size ...287
Charging system ........................ 111
Child locks ................................... 24
Child restraint installation locations ................................... 62
Child restraints.............................. 59
Child restraint systems ................59
Cigarette lighter .........................101
Climate control ............................. 15
Climate control systems .............189
Clock............................................. 99CNG.................................... 104, 247
Code ........................................... 122
Collision damage repair ..............327
Contacts ..................................... 170
Control elements Infotainment system ................141
Steering wheel ........................ 141
Control elements overview .........141
Control indicators........................ 107
Control of the vehicle .................198
Controls ........................................ 96
Convex shape .............................. 28
Coolant and antifreeze ...............304
Cruise control ....................115, 219
Cupholders .................................. 65
Curtain airbag system .................. 57
Curve lighting.............................. 133
D DAB ............................................ 157
Danger, Warnings and Cautions ...4
Daytime running lights ...............132
Declaration of conformity ............322
DEF ............................................ 206
Destination input ........................170
Diesel exhaust fluid ....................206
Diesel fuel system bleeding .......266
Diesel particle filter .............114, 204
Digital audio broadcasting ..........157
Displaying pictures .....................161Display settings ..................161, 162
Door open .................................. 116
Door panel storage .......................67
Doors ............................................ 24
Driver assistance systems ..........219
Driver Information Centre ...........116
Driving characteristics and towing tips .............................. 254
Driving hints ................................ 198
E Electric adjustment ......................28
Electrical system......................... 274
Electric parking brake .........112, 213
Electric parking brake fault .........112
Electronic climate control system 191
Electronic driving programmes ..210
Electronic Stability Control.......... 217
Electronic Stability Control and Traction Control system ..........113
Electronic Stability Control off..... 113
Emergency call ........................... 182
End-of-life vehicle recovery .......260
Engine compartment fuse box ...276
Engine coolant ........................... 262
Engine coolant temperature gauge ..................................... 106
Engine data ............................... 312
Engine exhaust .......................... 204
Engine identification ...................308
