Page 13 of 341
In brief111Power windows .....................31
2 Exterior mirrors .....................28
3 Cruise control .....................219
Speed limiter ....................... 221
Adaptive cruise control .......222
Forward collision alert .........229
4 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist ................134
Exit lighting ......................... 137
Parking lights ...................... 135
Buttons for Driver
Information Centre ..............116
5 Instruments ........................ 102
6 Driver Information Centre .... 116
7 Steering wheel controls .......96
8 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ......................97
9 Info-Display ........................ 12110Central locking system ..........21
Hazard warning flashers ....134
Sport mode ........................ 218
Tour mode .......................... 218
Fuel selector ....................... 104
Control indicator for airbag deactivation ........................ 111
11 Anti-theft alarm system
status LED ........................... 26
12 Centre air vents .................. 195
13 Side air vents ...................... 195
14 Glovebox .............................. 65
15 Climate control system ........ 189
16 USB input .............................. 10
Power outlet ........................ 100
17 Selector lever, manual
transmission ....................... 212
Automatic transmission ......209
18 Traction Control system .....216
Electronic Stability Control . 217
Lane departure warning .....244
19 Electric parking brake .........21320Manual parking brake .........213
21 Parking assist systems .......234
Eco button for stop-start
system ................................. 201
22 Ignition switch with
steering wheel lock ............198
23 Horn ..................................... 97
Driver airbag ........................ 56
24 Bonnet release lever ..........260
25 Fuse box ............................ 278
Storage compartment ...........67
26 Light switch ........................ 129
Headlight range
adjustment ......................... 131
Front fog lights ...................134
Rear fog light ...................... 135
Instrument illumination .......136
27 Steering wheel adjustment ..96
Page 14 of 341
12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 130.
Fog lights
Press light switch:
>:front fog lightsr:rear fog light
Lighting 3 129.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 130.
Headlight flash 3 131.
LED headlights 3 133.
High beam assist 3 133.
Turn and lane-change signalslever up:right turn signallever down:left turn signal
Turn and lane-change signals
3 134, Parking lights 3 135.
Page 97 of 341
Instruments and controls95Instruments and
controlsControls ....................................... 96
Steering wheel adjustment ........96
Steering wheel controls .............96
Heated steering wheel ...............96
Horn ........................................... 97
Windscreen wiper/washer .........97
Rear window wiper/washer .......98
Outside temperature ..................99
Clock ......................................... 99
Power outlets ........................... 100
Cigarette lighter .......................101
Ashtrays .................................. 101
Warning lights, gauges and indi‐ cators ......................................... 102
Instrument cluster ....................102
Speedometer ........................... 102
Odometer ................................ 102
Trip odometer .......................... 102
Tachometer ............................. 103
Fuel gauge .............................. 103
Fuel selector ............................ 104
Engine coolant temperature gauge ..................................... 106
Service display ........................ 106Control indicators ....................107
Turn signal ............................... 109
Seat belt reminder ...................110
Airbag and belt tensioners .......110
Airbag deactivation ..................111
Charging system .....................111
Malfunction indicator light ........111
Brake and clutch system .........111
Operate pedal .......................... 112
Electric parking brake ..............112
Electric parking brake fault ......112
Antilock brake system (ABS) ...112
Gear shifting ............................ 113
Power steering ........................ 113
Following distance ...................113
Lane departure warning ..........113
Electronic Stability Control off . 113
Electronic Stability Control and Traction Control system .........113
Traction Control system off .....113
Preheating ............................... 114
Diesel particle filter ..................114
AdBlue ..................................... 114
Tyre pressure monitoring system .................................... 114
Engine oil pressure ..................114
Low fuel ................................... 115
Immobiliser .............................. 115
Exterior light ............................ 115
High beam ............................... 115High beam assist.....................115
LED headlights ........................ 115
Fog light ................................... 115
Rear fog light ........................... 115
Cruise control .......................... 115
Adaptive cruise control ............116
Vehicle detected ahead ...........116
Speed limiter ........................... 116
Traffic sign assistant ................116
Door open ................................ 116
Information displays ...................116
Driver Information Centre ........116
Info display .............................. 121
Vehicle messages ......................122
Warning chimes .......................122
Battery voltage ........................ 122
Vehicle personalisation ..............123
Telematics service .....................125
OnStar ..................................... 125
Page 111 of 341
Instruments and controls109OverviewOTurn signal 3 109XSeat belt reminder 3 110vAirbag and belt tensioners
3 110VAirbag deactivation 3 111pCharging system 3 111ZMalfunction indicator light
3 111RBrake and clutch system 3 111mElectric parking brake 3 112jElectric parking brake fault
3 112-Operate pedal 3 112uAntilock brake system (ABS)
3 112RGear shifting 3 113EFollowing distance 3 113cPower steering 3 113)Lane departure warning 3 113nElectronic Stability Control off
3 113bElectronic Stability Control and
Traction Control system 3 113kTraction Control system off
3 113!Preheating 3 114%Diesel particle filter 3 114YAdBlue 3 114wTyre pressure monitoring
system 3 114IEngine oil pressure 3 114YLow fuel 3 115dImmobiliser 3 1158Exterior light 3 115CHigh beam 3 115fHigh beam assist 3 115fLED headlights 3 133>Fog light 3 115rRear fog light 3 115mCruise control 3 115 / Adaptive
cruise control 3 116CAdaptive cruise control 3 116AVehicle detected ahead 3 116LSpeed limiter 3 116LTraffic sign assistant 3 116hDoor open 3 116
Turn signal
O illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
A turn signal or the hazard warning flashers are activated.
Rapid flashing: failure of a turn signal light or associated fuse, failure of turn
signal light on trailer.
Bulb replacement 3 267, Fuses
3 274.
Turn signals 3 134.
Page 117 of 341
Instruments and controls1159Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle is stationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking the
assistance of a workshop 3 261.
Low fuel
Y illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the tank dry.
Refuelling 3 247.
Catalytic converter 3 205.
Bleeding the diesel fuel system
3 266.
Immobiliser d flashes yellow.
Fault in the immobiliser system. The
engine cannot be started.
Exterior light 8 illuminates green.
The exterior lights are on 3 129.
High beam
C illuminates blue.
Illuminates when high beam is on,
during headlight flash 3 130 , or when
high beam is on with high beam assist
3 130.
High beam assist f illuminates green.
The high beam assist is activated
3 133.LED headlights
f illuminates or flashes yellow.
Illuminates
Fault in the system.
Seek the assistance of a workshop.
Flashes
System is switched to symmetrical
low beam.
Control indicator f flashes for approx.
four seconds after the ignition is
switched on as a reminder for
symmetrical headlight 3 132.
Fog light > illuminates green.
The front fog lights are on 3 134.
Rear fog light
r illuminates yellow.
The rear fog light is on 3 135.
Cruise control m illuminates white or green.
Page 131 of 341
Lighting129LightingExterior lighting.......................... 129
Light switch .............................. 129
Automatic light control .............130
High beam ............................... 130
High beam assist .....................130
Headlight flash ......................... 131
Headlight range adjustment ....131
Headlights when driving abroad .................................... 132
Daytime running lights .............132
LED headlights ........................ 133
Hazard warning flashers ..........134
Turn and lane-change signals . 134
Front fog lights ......................... 134
Rear fog light ........................... 135
Parking lights ........................... 135
Reversing lights .......................135
Misted light covers ...................135
Interior lighting ........................... 136
Instrument panel illumination control ..................................... 136
Interior lights ............................ 136
Reading lights .......................... 137
Sunvisor lights ......................... 137Lighting features ........................137
Centre console lighting ............137
Entry lighting ............................ 137
Exit lighting .............................. 137
Battery discharge protection ....138Exterior lighting

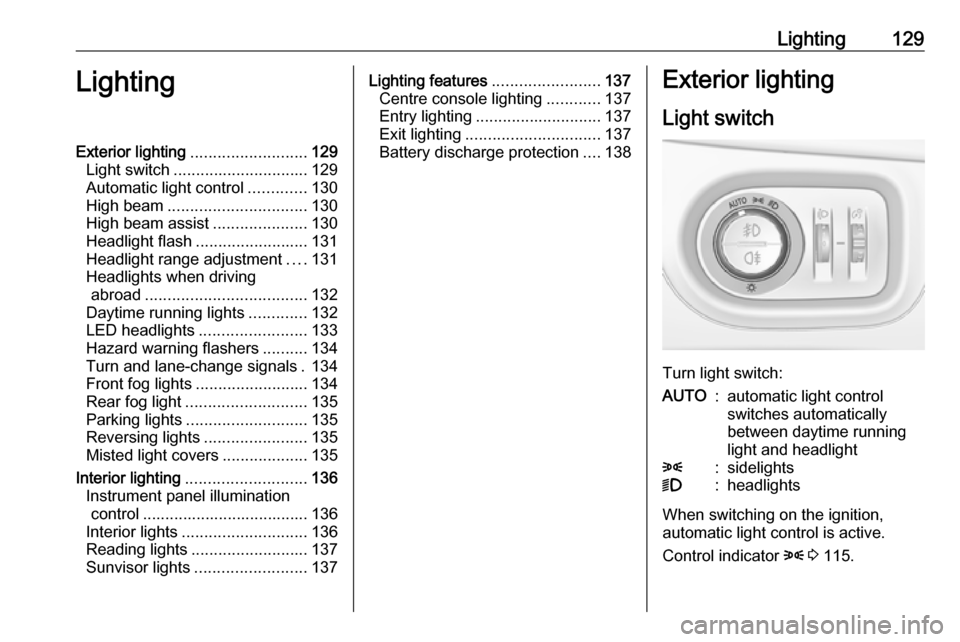

Light switch
Turn light switch:
AUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
When switching on the ignition,
automatic light control is active.
Control indicator 8 3 115.
Page 132 of 341
130LightingTail lightsTail lights are illuminated together
with low/high beam and sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights and headlights automatically
depending on the external lighting
conditions and information given by
the rain sensor system.
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights and headlights automatically
depending on the external lighting
conditions.
Daytime running light 3 132.
Automatic headlight activation During poor lighting conditions the
headlights are switched on.
The headlights are also switched on
if the windscreen wipers have been
activated for several wipes.
Tunnel detection
When a tunnel is entered headlights
are switched on immediately.High beam
Push lever to switch from low to high
beam.
Pull lever to deactivate high beam.
High beam assist 3 133.
High beam assist This feature allows high beam to
function as the main driving light at
night and when vehicle speed
exceeds 25 mph.
Page 133 of 341
Lighting131It switches automatically to low beam
when:
● The camera or a sensor in the windscreen detects the lights of
oncoming or preceding vehicles.
● The vehicle speed drops below 12 mph.
● It is foggy or snowy.
● Driving in urban areas.
If there are no restrictions detected, the system switches back to high
beam.
ActivationThe high beam assist is activated by
pushing the indicator lever twice with
a speed above 25 mph.
The green control indicator f
illuminates continuously when the
assist is activated, the blue one 7
illuminates when high beam is on.
Control indicator f 3 115.
Deactivation
Push indicator lever once. It is also
deactivated when front fog lights are
switched on.
If a headlight flash is activated when the high beam is on, the high beam
assist will be deactivated.
If a headlight flash is activated when
the high beam is off, the high beam
assist will remain activated.
The latest setting of the high beam
assist will remain after the ignition is
switched on again.
Headlight flash
To activate the headlight flash, pull
lever.
Pulling lever deactivates high beam.LED headlights 3 133.
Headlight range adjustment Manual headlight range
adjustment
To adapt headlight range to the
vehicle load to prevent dazzling: turn
thumb wheel ? to required position.
0:front seats occupied1:all seats occupied2:all seats occupied and load
compartment laden3:driver's seat occupied and load
compartment laden
Page 135 of 341
Lighting133LED headlightsLED lighting system includes: ● LED headlights for low and high beam
● cornering lights
● town light
● high beam assist
● reverse parking function
● eco mode
● dynamic automatic headlight levelling
LED headlights for low and
highbeam
LED headlights for low and high beam
ensure better visibility under all
conditions.
Operation is the same as for halogen headlights.
Light switch 3 129 , high beam 3 130,
headlight flash 3 131, headlights
when driving abroad 3 132.
Automatic light control 3 130.Cornering lights
On tight bends or when turning off,
depending on the steering angle or
the indicator light signal, an additional left or right reflector is switched on
which illuminates the road in the
direction of travel. It is activated up to
a speed of 43 mph.
Town light
Activated automatically at a speed up to approx. 34 mph. In situations with
exterior ambient light both cornering
lights are switched on with reduced
intensity. The light is wide and
symmetrical.
High beam assist
3 130
Reverse parking function
To assist driver's orientation when
parking, both corner lights and
reversing light illuminate when
headlights are on and reverse gear is
engaged. They remain illuminated for a short time after disengaging reverse
gear or until driving faster than
4 mph in a forward gear.
Eco mode If the vehicle stops, e. g. due to traffic lights, an energy saving mode for
headlights is activated.
Dynamic automatic headlight
levelling
To prevent oncoming traffic frombeing dazzled, headlight levelling is
automatically adjusted based on
vehicle inclination information.
Headlights when driving abroad3 132.
Page 269 of 341
Vehicle care267Wiper blade on the rear window
Lift wiper arm. Disengage wiper bladeas shown in illustration and remove.
Attach the wiper blade slightly angled
to the wiper arm and push until it
engages.
Lower wiper arm carefully.
Bulb replacement
Switch off the ignition and switch off
the relevant switch or close the doors.
Only hold a new bulb at the base. Do not touch the bulb glass with bare
hands.
Use only the same bulb type for
replacement.
Replace headlight bulbs from within
the engine compartment.
Bulb check
After a bulb replacement switch on
the ignition, operate and check the
lights.
Halogen headlights Halogen headlights with separate
bulbs for low beam and high beam.
Sidelights and daytime running lights
are designed as LEDs and can not be changed.
Low beam ( 1) outer bulb.
High beam ( 2) inner bulb.
Front turn signal light ( 3)
