service indicator VOLKSWAGEN BEETLE 2008 Owners Manual

Downloaded from www.Manualslib.com manuals search engine 0 ~ ,..._ 0 (.9
CD

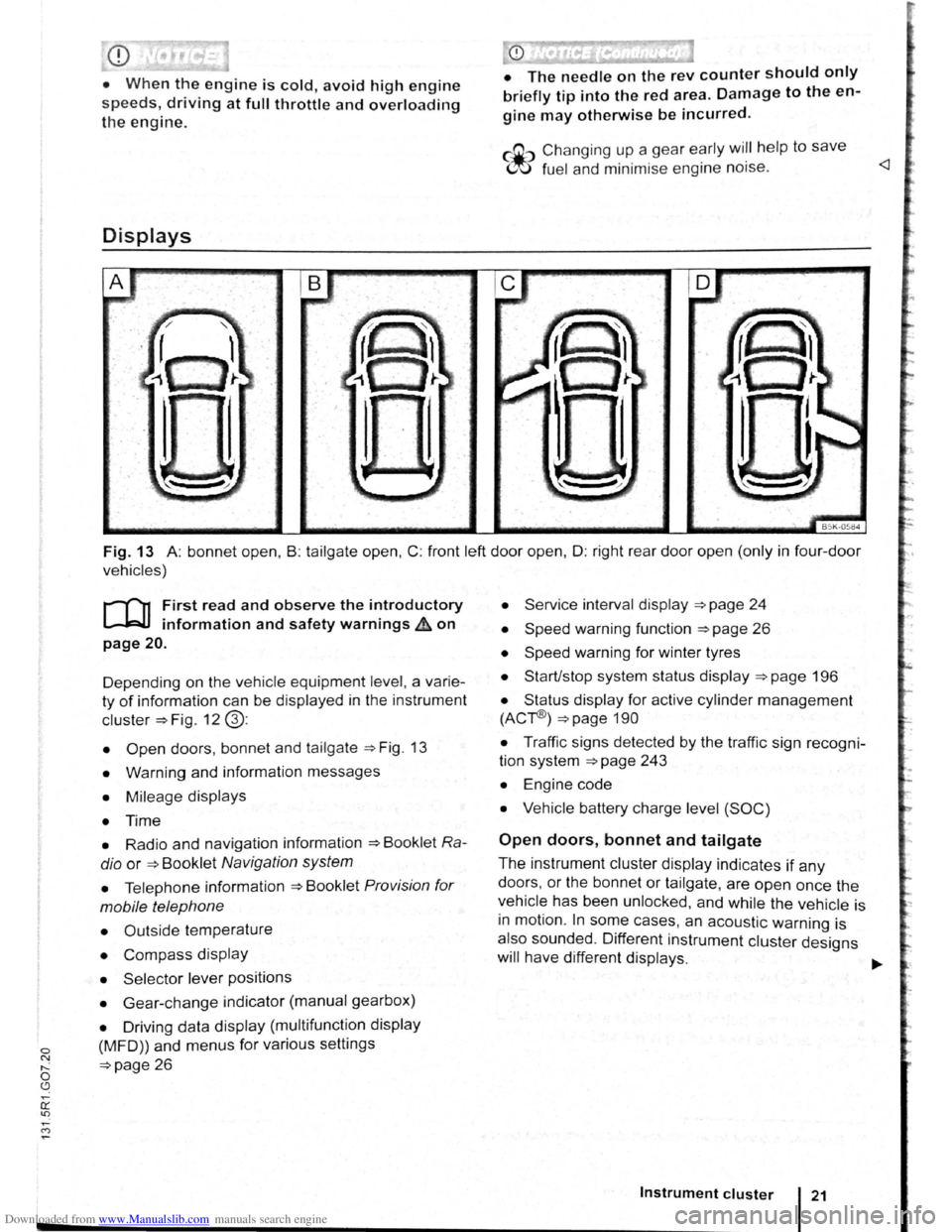

• When the engine is cold, avoid high engine
speeds, driving at full throttle and overloading
the engine.
Displays
• The needle on the rev counter should only
briefly tip into the red area. Damage to the en­
gine may otherwise be incurred.
&"" Changing up a gear early wi~l help to save
W fuel a nd minimise engine no1se. B SK ·O!'i8 4
Fig. 13 A: bonnet open , B : tailgate open, C: front left door open, D: right rear door open (only in four-door
vehicles)
r-('n First read and observe the introductory
L-W.I information and safety warnings A on
page 20.
Depending on the vehicle equipment level, a varie­
ty of information can be displayed in the instrument
cluster =>Fig. 12 @:
• Open doors, bonnet and tailgate =>Fig. 13
• Warning and information messages
• Mileage displays
• Time
• Radio and navigation information =>Booklet Ra­
dio
or =>Booklet Navigation system
• Telephone information =>Booklet Provision for
mobile telephone
• Outside temperature
• Compass display
• Selector lever positions
• Gear-change indicator (manual gearbox)
• Driving data display (multifunction display
(MFD)) and menus for various settings
=>page 26
• Service interval dis play =>page 24
• Speed warning function =>page 26
• Speed warning for winter tyres
• Start/stop system status display =>page 196
• Status display for active cylinder management
(ACr®) =>page 190
• Traffic signs detected by the traffic sign recogni­
tion system =>page 243
• Engine code
• Vehicle battery charge level (SOC)
Open doors, bonnet and tailgate
The instrument cluster display indicates if any
doors, or the bonnet or tailgate, are open once the
vehicle has been unlocked, and while the vehicle is
in motion .
In some cases, an acoustic warning is
also sounded . Different instrument cluster designs
will have different displays.
Instrument cluster

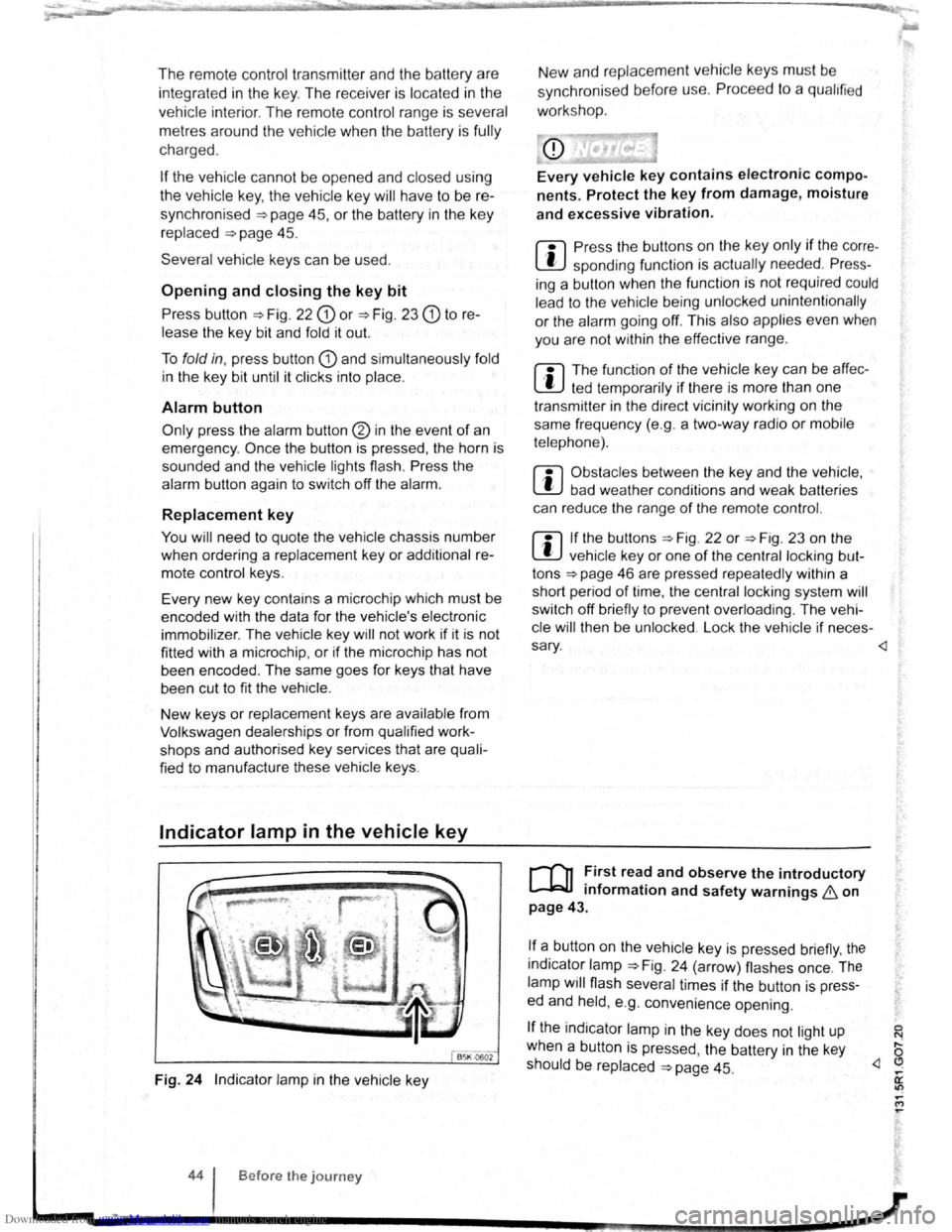

Downloaded from www.Manualslib.com manuals search engine The remote control transmitte r and the battery are
integrated in the key. Th e receiver is located
in the
vehicl e int erio r. The remote control range is several
metres around the vehicle when the battery is
fully
charged.
If the vehicle cannot be opened and closed using
the vehicle key, the vehi cle key
will have to be re­
synchro
nise d ~page 45 , or the battery in the key
r ep laced
~page 45 .
Several vehicle keys can be used .
Opening and closing the key bit
Press button ~Fig. 22 G) or ~Fig. 23 G) to re­
lease the key bit and
fold it out.
To fold in, press button G) and simultaneously fold
in the key bit until it clicks into place .
Alarm button
Only press the alarm button 0 in the event of an
emergency .
Once the button is pressed , the horn is
sounded and the vehicle lights flash.
Press the
alarm button again to switch off the alarm.
Replacement key
You will need to quote the vehicle chassis number
when ordering a replacement key or additional re­
mote control keys.
Every new key contains a microchip which must be
encoded with the data for the
vehicle 's electronic
immobilizer . The vehicle key will not work if it is not
fitted with a micro chip, or if the microchip has not
been encoded. The same goes for keys that have
been cut to fit the
vehicle .
New keys or replacement keys are available from
Volkswagen dealerships or from qualifi
ed work­
shops and authorised key services that are quali­
fied to manufacture these
vehicle keys.
Indicator lamp in the vehicle key
B5K 0602
Fig. 24 Indicator lamp in the vehicle key
44 Before the journey
New and replace ment veh icle keys must be
sync hron ise d before use.
Proce ed to a qu alified
work sho p.
Every vehicle key contains electronic compo­
nents. Protect the key from damage, moisture
and excessive vibration.
m Press the buttons on the ke y only if the corre­
L!J spending function is actually needed. Press­
ing a button when the functio n is not required could
lead to the vehicle be ing unlocked unintentionally
or the alarm going off. Thi s also applies even when
you are not wi
thin the effective range.
m The functio n of the vehicle ke y can be affec­
W ted temporarily if there is more than one
transmitte r in the direct vicinity working on the
same frequency (e.g . a two -way radio
or mobile
telephone).
m Obstacles between the ke y and the vehicle ,
W bad weather conditions and weak batteries
can reduce the range
of the remote control.
m If the buttons ~Fig. 22 or ~Fig. 23 on the
W vehicle key or one of the central lock ing but­
tons
~page 46 are pressed repeated ly within a
short period
of time, the central locking system will
switch off briefly to prevent overloading . The vehi­
cle
will then be unlo cked . Lo ck the vehicle if neces -
sary .
ro ~irst rea~ and observe the introductory
mformat1on and safety warnings 8 on
page 43.
!f a_ button on the vehicle key is pressed briefly, the
1nd1cator lamp ~Fig. 24 (arrow) flashes once. The
lamp will flash several times if the button is press­
ed and held, e .
g. convenience opening.
If the indicator lamp in the key does not light up
when a button is pressed , the battery
in the key
should be replaced
~page 45. ,... a: "? ,... M ,...

Downloaded from www.Manualslib.com manuals search engine -

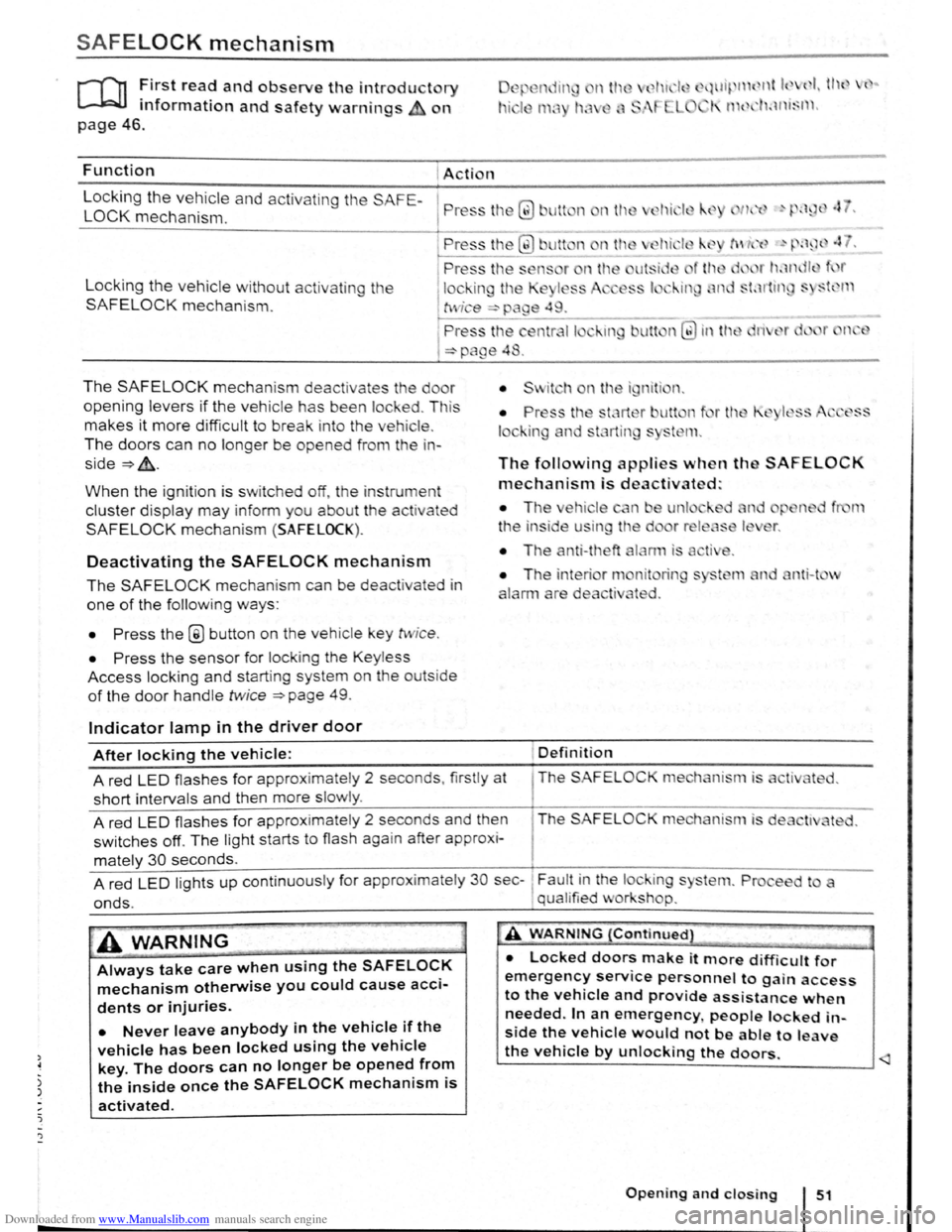

SAFELOCK mechanism
ro ~irst rea? and observe the introductory
mformat1on and safety warnings on
~.wl~ 11 { nt k ( I I tl l { ..
I' 1 t 1'klnt~l l .
page 46.
Function Action
L
ocking the vehicle and activating the SAFE-
LOCK mechanism. P ress tl1 Q) Jlt n nth
Locking the vehicle without activat in g the
SAFELOCK mechanis m .
The SAFELOCK mechanis m deactivates the do r
opening levers if the v e hic le has been lock ed . Th is
makes it more d ifficult to break in to the vehicle .
The doors can no longer be opened from th e in ­
side~&..
When the ignition is switched off, th e instrum ent
cluster display may inform you about t he activated
SAFELOCK mechani sm (SAFELOCK).
Deactivating the SAFELOCK mechanism
The SAFELOCK mechanis m can be deactivated in
one of the following ways:
• Press the @ button on the veh icle key twic e .
• Press the sensor fo r lock ing the Keyless
Access locking and s tarting system on the outs ide
of the door handle twice ~page 49.
Indicator lamp in the driver door
The following applies when th SAFELOCK
mechanism is deactivated:
• The ehi le n e unl
t
he in side u in the d
• The anti-theft
nit rin
ted .
nti-t v
After locking the vehicle: Definition
A red LED flash es for approximately 2 seconds , firstly at The SAFELOC
short intervals and then more slowly .
A red
LED flashes for approximate ly 2 seconds and then The SAFELOCK me hanism is de
switches off. The light starts to flash again after approx i-
mately 30 seconds.
A red
LED lights up cont inuous ly for approx imate ly 30 sec-~ Fault in the lock ing s
onds. , qual ified v or shop.
A WARNING
Always take care when using the SAFELOCK
mechanism otherwise you could cause acci­
dents or injuries.
• Never leave anybody in the vehicle if the
vehicle has been locked using the vehicle
key. The doors can no longer be opened from
the inside once the SAFELOCK mechanism is
activated.
A WARNING {Continued}
• Locked doors make it more difficult for
emergency service personnel to gain access
to the vehicle and provide assistance when
needed. In an emergency people locked in­
side the vehicle would not be able to leave
the vehicle by unlocking the doors. Opening and closing 51

Downloaded from www.Manualslib.com manuals search engine ..,

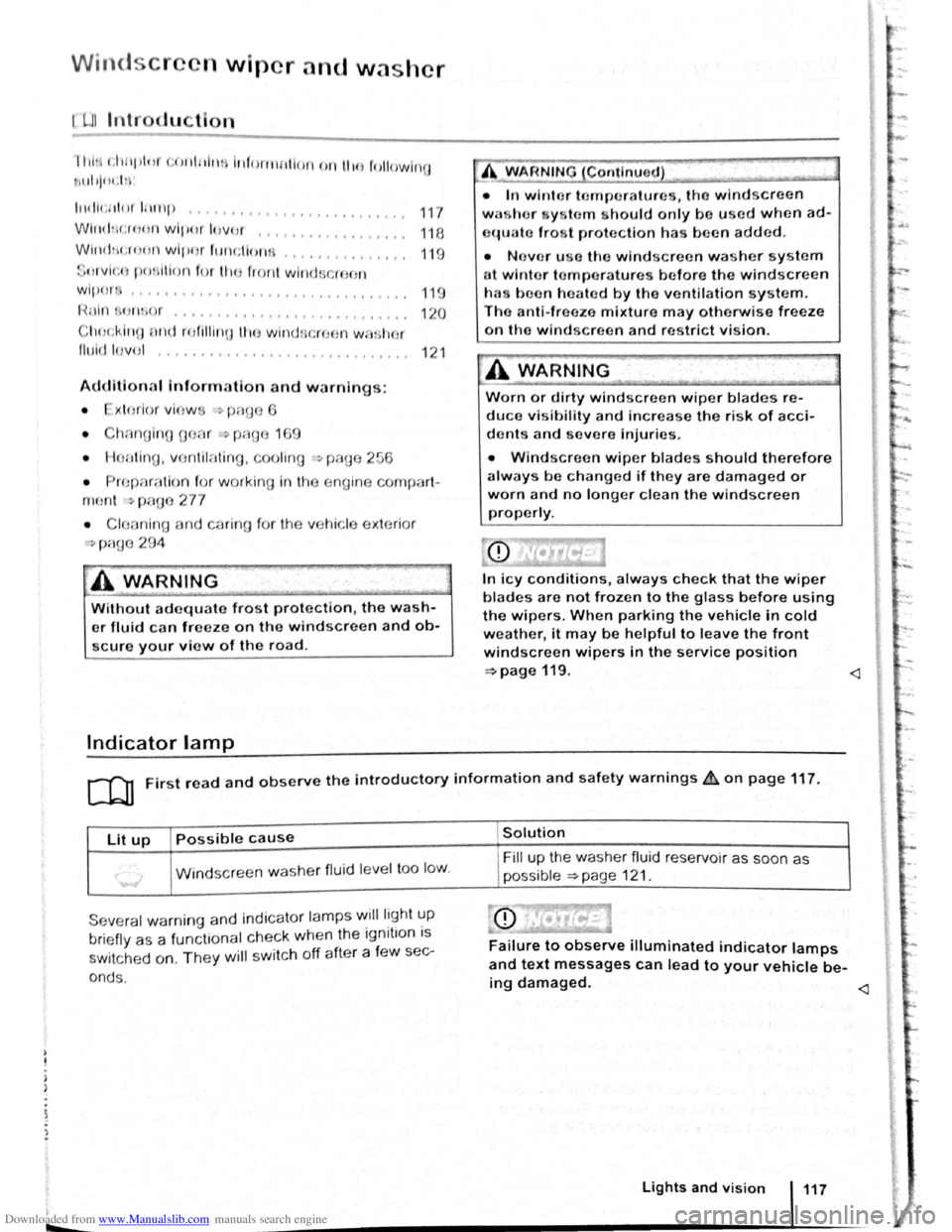

Windscr n wiper and washer
illlr t,lt 1pl11t t;OIII tlt H il.f orrn tllon nn ll tfl followln~J
\Id !jOt .I :
l t
Hih;r tl n t ltntp ... o o •• ,,,.,,, 0,,., 0
0,,... 117
Wll t(h <:r, W lt H in <;t l n n wlpnr ftm c; tlo n, .... , , ......... 119
fltVI<;Il ponltlon fm l!H l front wind · ,ro n
wl1 )()I~ I I I I I I f I I I f f I I I I I I I f t o 1 1 1 1 1 1 1 o 1 o o 119
Hnln 1 lltuo r ... , , • , •. , .... , • . • . . . • . . . . . . 120
Cl10c:klng ntKJ r()fllll nn lllc wlnd scroc n wa her
fllt ld lo vo l ........ , .... , ................ 12 1
Additio na l Information and w arnings:
• xto rlor vlo w ~~ p:-~ge 6
• Chnnoino o or ~ pnf:Jo 1 9
• Hoo ting , v ntil n ting , O()ling ~page 256
• ropr:m1tlon fo r w orkin g In th e e ng in e compart -
m ont -, p ago 2 77
• C l anl ng a nd carin g fo r th e ve hi cle ex te rio r
~ Pi1QO 29 4
A WARNING
Without adequate frost protection, the wash­
er fluid c a n freeze on the windscreen and ob­
scure your view of the road.
Indicator lamp
A W AR NIN G (Co ntinue d) 7 ~--· -cc . I
·~
• In winte r t emperatures, the windscree n
w as h er yste m s
hould only be used when ad­
equate fro, t protection has been adde d .
• N evo r use the windscreen wash er system
a t winter t emperatures b efore the windscreen
has boo n h eate d by the ventilation s y ste m .
T he
anti-free ze mixture may otherwis e freeze
on tho windscree n and restrict vision.
A WARNING
.. · ._,
Worn or dirty windscreen wiper blades re­
duce visibility and increas e the ris k of acci­
d ents and severe Injuries.
-
• Windscreen wiper blades should therefore
always be changed if they are damaged or
worn and no longer clean the windscreen
properly.
In icy conditions, always check that the wiper
blades are not frozen to the glass before using
the wipers. When parking the vehicle in cold
weather, it may be helpful to leave the front
windscreen wipers in the service position
~page119. [D First read and observe the introductory information and safety warnings & on page 117 .
Lit up Possible cause
Windscreen washe r fluid le ve l too lo w .
Seve ra l w arn in g and indica to r lamps ~ill lig ht ~ p
brie fly a s a fun cttonal c heck when th e 1gnttto n IS
s wi tched on. The y will sw it c h off afte r a fe w sec-
o nd s.
Solution
F ill up t he washe r fluid r ese rvoi r as soon a s
p oss ible
~page 12 1.
Failure to observe illuminated indicator lamps
and text messages can lead to your vehicle be-
ing damaged. Lights and vision 111
