Page 141 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
The design of the wheel bolts is matched to the factory-installed wheels. If different wheels are in-stalled, wheel bolts with the right length and bolt head shape must be used. This helps to ensure

Page 142 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
�x Install only radial tires of the same make, the same dimensions (tread circumference), and similar tread profile on all 4 wheels.
�x The tread depth of new tires can differ between tire models a

Page 143 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
Tire inflation pressure

Fig. 93 On the driver door jamb: Location of the tire inflation pressure label.
�

Page 144 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
  WARNING
Incorrect tire pressure can cause a sudden tire failure or blowout, loss of control, collision, serious personal injury, and even death.
�x Always inflate tires to the recommended and co

Page 145 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
Engine   Tire size   Tire pressure
psi   kPa   bar
2.0L/210 hp (155 kW)
215/55 R17 94H   31   220   2.2
235/45 R18 94H   31   220   2.2
235/40 R19 92H   33   230   2.3
2.0L/150 hp (110 k

Page 146 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
Tread depth
Most driving situations require as much tread depth as possible and similar tread depth for the tires on the front and rear wheels. This is especially true when driving in winter weathe

Page 147 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
Tire wear
Tire wear depends on several factors, including:
�x Driving style.
�x Unbalanced wheels.
�x Wheel alignment.
Driving style – Fast cornering, hard acceleration and braking increase t

Page 148 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
�x If necessary, remove the vehicle tool kit from the center of the spare wheel ⇒  Vehicle tool kit.
�x Completely unscrew the handwheel in the center of the compact spare wheel ⇒ fig. 95 c

Page 149 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual
  WARNING
Improper use of a compact spare wheel can cause loss of vehicle control, a crash or other accident, and serious personal injury.
�x Never use a compact spare wheel if it is damaged or wo

Page 150 of 370

VOLKSWAGEN BEETLE 2015 3.G Owners Manual

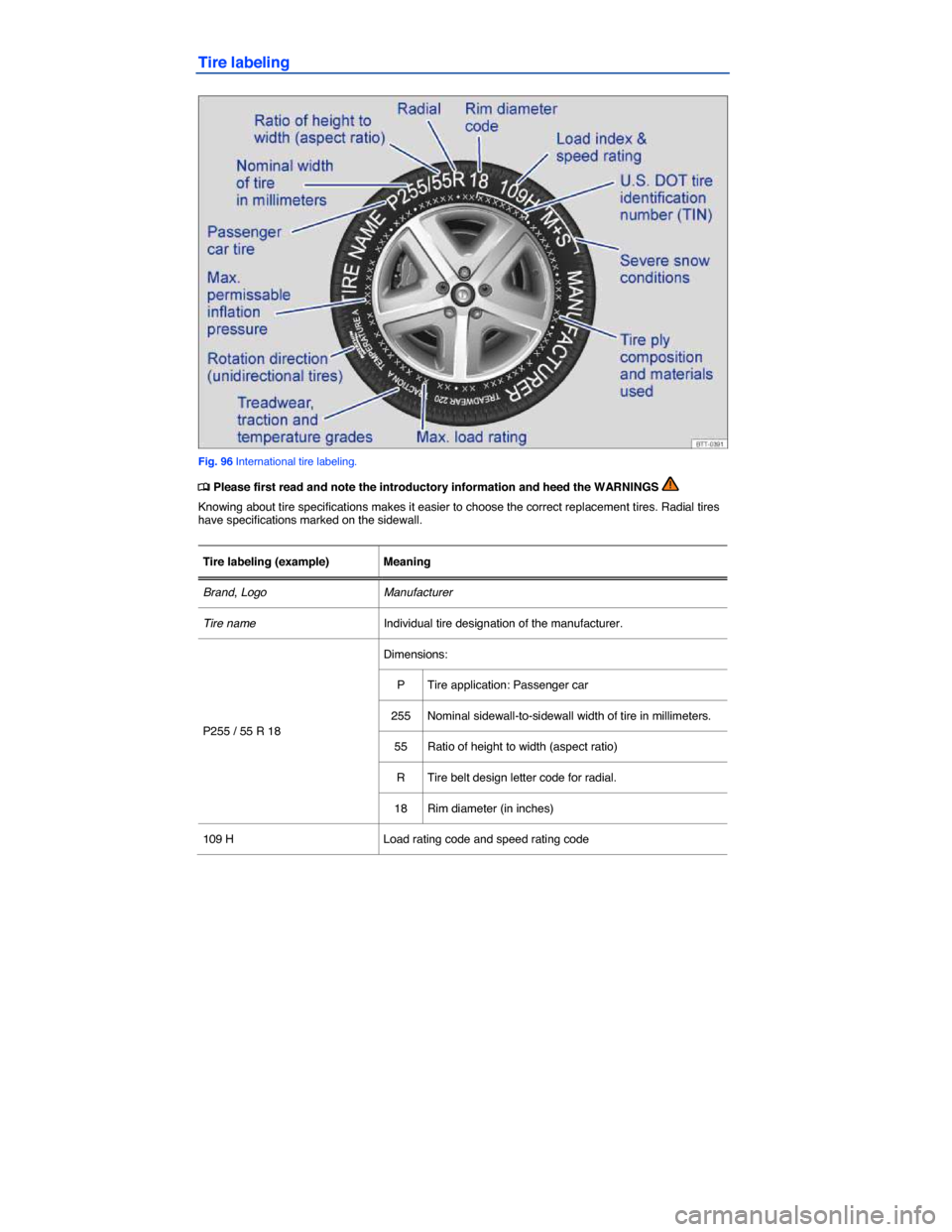

Tire labeling

Fig. 96 International tire labeling.
�
