x Do not place any objects on the rear spoiler. The rear spoiler could be damaged.
x If the vehicle must be pushed, do not push against the rear spoiler. The rear spoiler and the luggage compartment lid could be damaged.
NOTICE
Never use the gas strut to hold or clamp a load in place. This can damage the luggage compartment lid and make it impossible to close.
Display

Fig. 30 Opening luggage compartment lid from the outside.

Closing the luggage compartment lid

Fig. 31 Opened luggage compartment lid: Recessed grip for closing.

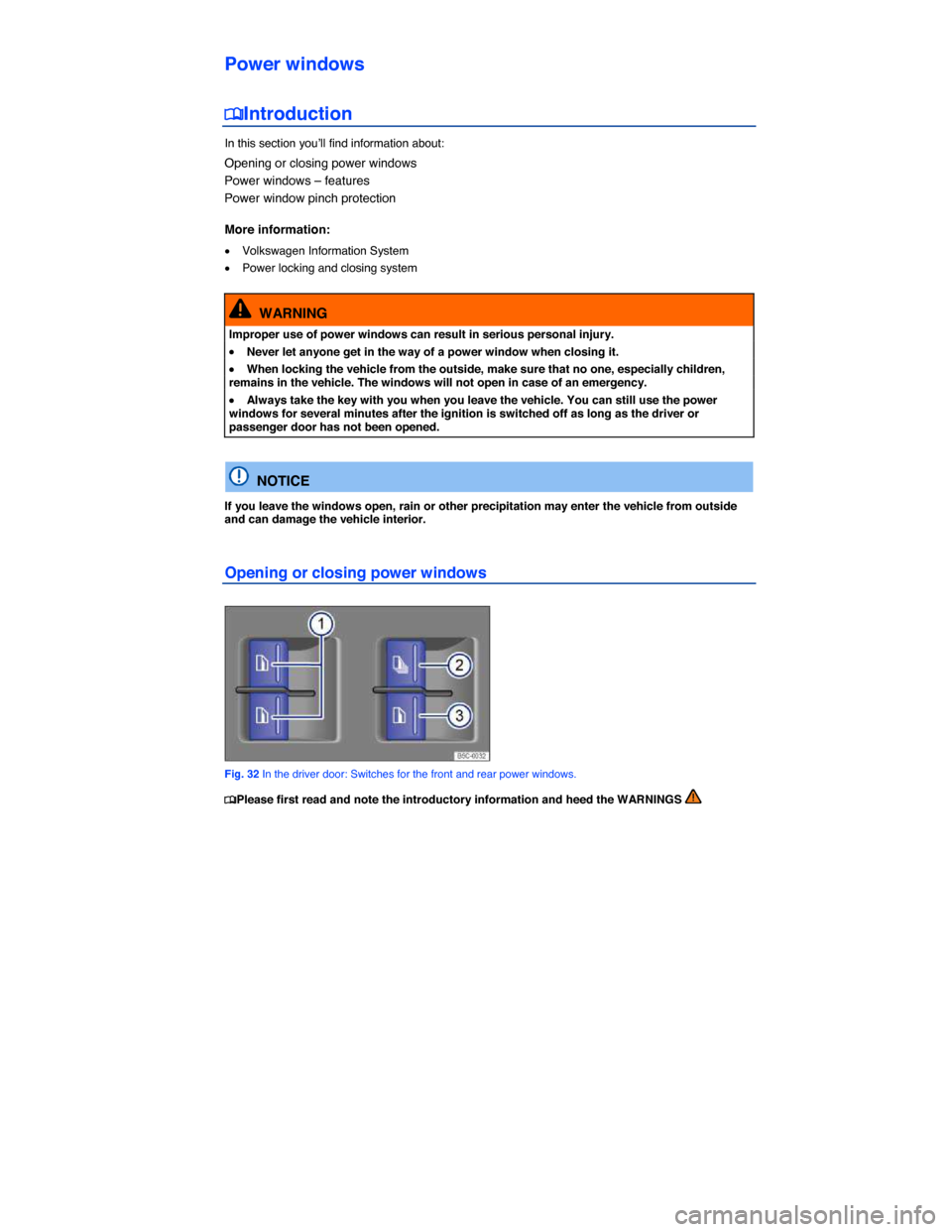

Power windows

Switches in the driver door
Key to fig. 32:
(1) For the rear side windows.
(2) For the window in the driver door and to open or close all other windows at the same time.
(3) For the window in the passenger door.
Opening or closing windows

Function Action
Opening: Press the switch.
Closing: Pull the switch.
Opening the driver door window: Press the -switch.
Closing the driver door window: Pull the - switch.
Opening all windows: Press and hold the -switch until all windows open.
Closing all windows: Pull and hold the - switch until all windows close.
Stopping automatic movement: Press/pull the respective switch again.

You can still use the power windows for several minutes after the ignition is switched off as long as the driver or passenger door has not been opened. When the vehicle key has been removed from the ignition and the driver door has been opened, the power windows cannot be opened or closed.
Power windows – features

One-touch opening and closing
The one-touch feature automatically opens/closes a power window all the way. The window switch does not have to be held down/up.
For one-touch opening: Press the switch for the window down briefly as far as it goes.
For one-touch closing: Pull the switch for the window up briefly as far as it goes.
Stopping automatic movement: Pull/press the switch again.
Reactivating the one-touch feature
If the vehicle battery is disconnected or dead and the windows are not completely closed, the one-touch feature will not work and must be reactivated:
x Switch on the ignition.
x Close all windows and doors.
x Pull the - switch up and hold it for at least 2 seconds in this position.
x Release the-switch, pull up and hold again. The one-touch feature is now reactivated.
The one-touch feature can be reactivated for one or more windows at the same time.
WARNING
Improper use of power windows can result in serious personal injury.
x Never let anyone get in the way of a power window when closing it.
x When locking the vehicle from the outside, make sure that no one, especially children, remains in the vehicle. The windows will not open in case of an emergency.
x Always take the key with you when you leave the vehicle. You can still use the power windows for several minutes after the ignition is switched off as long as the driver or passenger door has not been opened.
NOTICE
The windows must go down slightly when you unlock the vehicle. Otherwise the windows and seals could be damaged when opening the doors.
If the power windows malfunction, the one-touch feature, as well as pinch protection may not work properly. See an authorized Volkswagen dealer or authorized Volkswagen Service Facility right away.
Power window pinch protection

x If you pull the power window button up all the way and hold it during this 10 second interval, the
window will close without pinch protection ⇒ .
Closing the window without pinch protection
x Try to close the window again within 10 seconds by holding the switch. Pinch protection is turned off for a short distance in the window track!
x If closing takes longer than about 10 seconds, pinch protection is turned on again. The window stops again if there is resistance.
x If the window still will not close, please see an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
WARNING
Without pinch protection, power windows will close with enough force to cause serious personal injury.
x Always be careful when closing power windows.
x Always make sure that no one is in the way when overriding pinch protection to close power windows!
x Pinch protection cannot prevent fingers or other parts of the body from being pressed against the window frame; injuries may result.

Convertible top
Introduction
The convertible top opens automatically at the press of a button. When open, the convertible top is stored in a compartment.
The multi-layer construction of the convertible top helps to insulate the vehicle interior from temperature and vibration and is also wind- and waterproof under normal operating conditions. Some water could enter between the convertible top and body under extreme conditions such as torrential rain or washing the vehicle in a car wash. This is normal and no cause for concern.
Supplementary information and warnings:
x Vehicle overview
x Volkswagen Information System
x Technical data
x Power locking and closing system
x Airbag system
x Climate control system
x Exterior care and cleaning
x Emergency closing and opening
x Jump-starting
x Towing
WARNING
Accidents and serious injury may result while driving when the convertible top is not securely latched or when the opening or closing process is incomplete. Even at low speeds, air resistance can twist or deform the convertible top or tear it off completely, endangering vehicle occupants and others.
x Even though it is possible, it is not recommended to drive when the convertible top is not completely open or not completely closed and securely latched.
x If you must move the vehicle to another location for safety reasons and the top is not completely open or not completely closed and securely latched, we recommend that you do not drive any faster than a slow walk.
x When opening and closing the convertible top, always make sure no one will be injured by the supports and other moving parts.
NOTICE
x To help prevent damage, remove ice and snow from the convertible top before opening it in winter weather.
NOTICE
Objects with sharp edges or that cause scratches or dirty components can damage the convertible top or the rear window.
x Never remove snow and ice with sharp objects or objects that can cause scratches.

x Only open and close the convertible top when it is clean.
NOTICE
If the convertible top is opened frequently when it is damp or it is left open for several weeks at a time, it may develop creases and pressure marks and could be damaged.
x Do not leave the convertible top open for long periods of time.
x Only open the convertible top when it is completely dry.
When parking the vehicle with the convertible top open, the vehicle interior is not protected against unauthorized access.
x Always close the convertible top and lock the doors and luggage compartment before leaving the vehicle.
x Always store objects left in the vehicle in the locked luggage compartment.
The convertible top will only open or close when the luggage compartment lid is completely closed. Do not open the luggage compartment lid when the convertible top is opening or closing.
Indicator light

Lights up Possible cause Proper response
Convertible top is opening or closing. Wait until the convertible top has fully opened or fully closed.

Flashes Possible cause Proper response

The convertible top opening or closing process is not finished or there is a convertible top malfunction.
Check if the opening or closing process has finished. If necessary, end the process using the convertible top button
Check if all technical requirements are met. If not, take the necessary steps to meet the technical requirements
Check if there is a convertible top malfunction. If necessary, correct the malfunction or have the system checked by your authorized Volkswagen dealer or authorized Volkswagen Service Facility
Messages in the instrument cluster display
When the ignition is switched on, the indicator lights come on briefly for a function check. They go out after a few seconds.

Display text Proper response
Speed too high!
Reduce your speed. You can only operate the convertible top at speeds up to about 30 mph (50 km/h). If the convertible top has already begun opening or closing, it will stop if you drive faster. You can only continue opening or closing the convertible top once the vehicle speed drops below about 30 mph (50 km/h).
Decrease speed! Reduce your speed. At 28 mph (45 km/h), the system warns the driver not to exceed the maximum speed for opening or closing. If the opening or closing process has already started, it will not stop.
Convert. top: Release cover! Convertible top cover (boot) is still installed. Roof operation is not possible. Remove the convertible top cover.
Error: Convertible top Service!
See an authorized Volkswagen dealer or authorized Volkswagen Service Facility. You cannot operate the convertible top if a system component malfunctions. Use the emergency procedure to close the open convertible top if necessary
Error: Open convertible top!
Open the convertible top
Error: Close convertible top!
Have the system checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. There is a malfunction in a control module. It is not possible to open or close the convertible top. Use the emergency procedure to close the convertible top
Low voltage: Please start engine!
The vehicle battery is drained to the point that it cannot provide the power needed to completely open or close the convertible top. Start the engine by jump-starting if necessary. Open or close the convertible top while the engine is running. Volkswagen recommends taking a longer drive afterward to help recharge the vehicle battery.
Convertible top open This message and a chime confirm that the convertible top is completely open or closed.
Convertible top closed
Convertible top not functional. Owner's manual!
Outside temperature too low. You can still close the convertible top, if necessary.
Have the system checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. There is a malfunction in a control module. It is not possible to open or close the convertible top. Use the emergency procedure to close an open convertible top if necessary
Continue convertible top operation
The opening or closing process was interrupted. Press the button
⇒ fig. 33 (A) again until the opening or closing process has finished.
Convertible top operation
This text message indicates the convertible top is currently opening or
closing. Press and hold the button ⇒ fig. 33 (A) again until the opening or closing process has finished.
The instrument cluster displays and their arrangement may vary depending on the vehicle model and engine. For displays without warning and information messages, malfunctions are only signaled with indicator lights.
