sensor VOLKSWAGEN BORA 1998 User Guide

Downloaded from www.Manualslib.com manuals search engine 01-41


V.A.G 1551
print-out Possible cause
Repair
00285
Right front ABS
wheel speed
sensor -G45-
Signal outside
tolerances
1)
Open circuit, short to positive or
Ground, or loose contact in
connections between right front ABS
wheel speed sensor -G45- and ABS
Control Module (w/EDL) -J104- - Check wiring and
connections using wiring
diagram
- Perform electrical checks
from Page 01
-102

Electrical interference from other
sources (high frequency radiation e.g.
non-insulated ignition cable) - Read measured value block
Page 01
-61 Display group
number 001

Damaged rotor or right front ABS
wheel speed sensor -G45-


Excessive air gap between right front
ABS wheel speed sensor-G45- and
rotor (signal not OK)
Repair Manual, Brake
System, Repair Group 45;
Removing and installing parts
of ABS system on front and
rear axles - Check right front ABS wheel
speed sensor -G45- and rotor
for damage
- Replace rotor/speed sensor
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 21из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-42


V.A.G 1551 print-
out Possible cause
Repair
00285
Right front ABS
wheel speed
sensor -G45-
Mechanical
malfunction
1)
Excessive air gap
between right front ABS
wheel speed sensor-
G45- and rotor (signal
not OK.) Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ABS system on front and rear axles - Check installation of right front ABS
wheel speed sensor -G45- and rotor
- Read measured value block Page 01-
61 Display group number 002
- Perform output Diagnostic Test Mode
(DTM) Page 01
-74
If the malfunction occurs again:

Outlet valve in ABS
hydraulic unit -N55-
faulty Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit - Replace ABS hydraulic unit -N55-
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 22из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

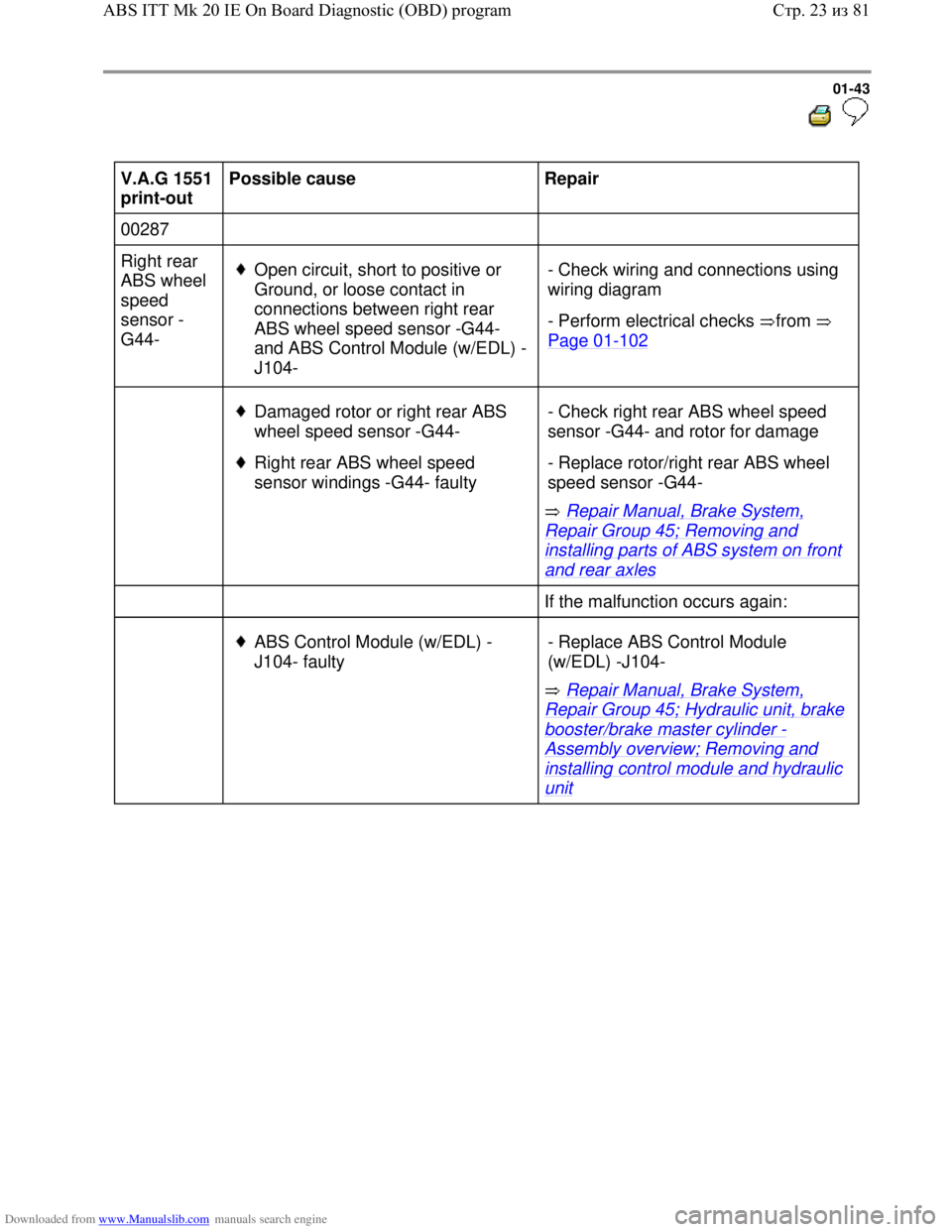

Downloaded from www.Manualslib.com manuals search engine 01-43


V.A.G 1551
print-out Possible cause
Repair
00287
Right rear
ABS wheel
speed
sensor -
G44-
Open circuit, short to positive or
Ground, or loose contact in
connections between right rear
ABS wheel speed sensor -G44-
and ABS Control Module (w/EDL) -
J104- - Check wiring and connections using
wiring diagram
- Perform electrical checks from
Page 01
-102

Damaged rotor or right rear ABS
wheel speed sensor -G44-

Right rear ABS wheel speed
sensor windings -G44- faulty
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on front
and rear axles - Check right rear ABS wheel speed
sensor -G44- and rotor for damage
- Replace rotor/right rear ABS wheel
speed sensor -G44-
If the malfunction occurs again:


ABS Control Module (w/EDL) -
J104- faulty
Repair Manual, Brake System,
Repair Group 45; Hydraulic unit, brake
booster/brake master cylinder -
Assembly overview; Removing and
installing control module and hydraulic
unit - Replace ABS Control Module
(w/EDL) -J104-
Стр. 23из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

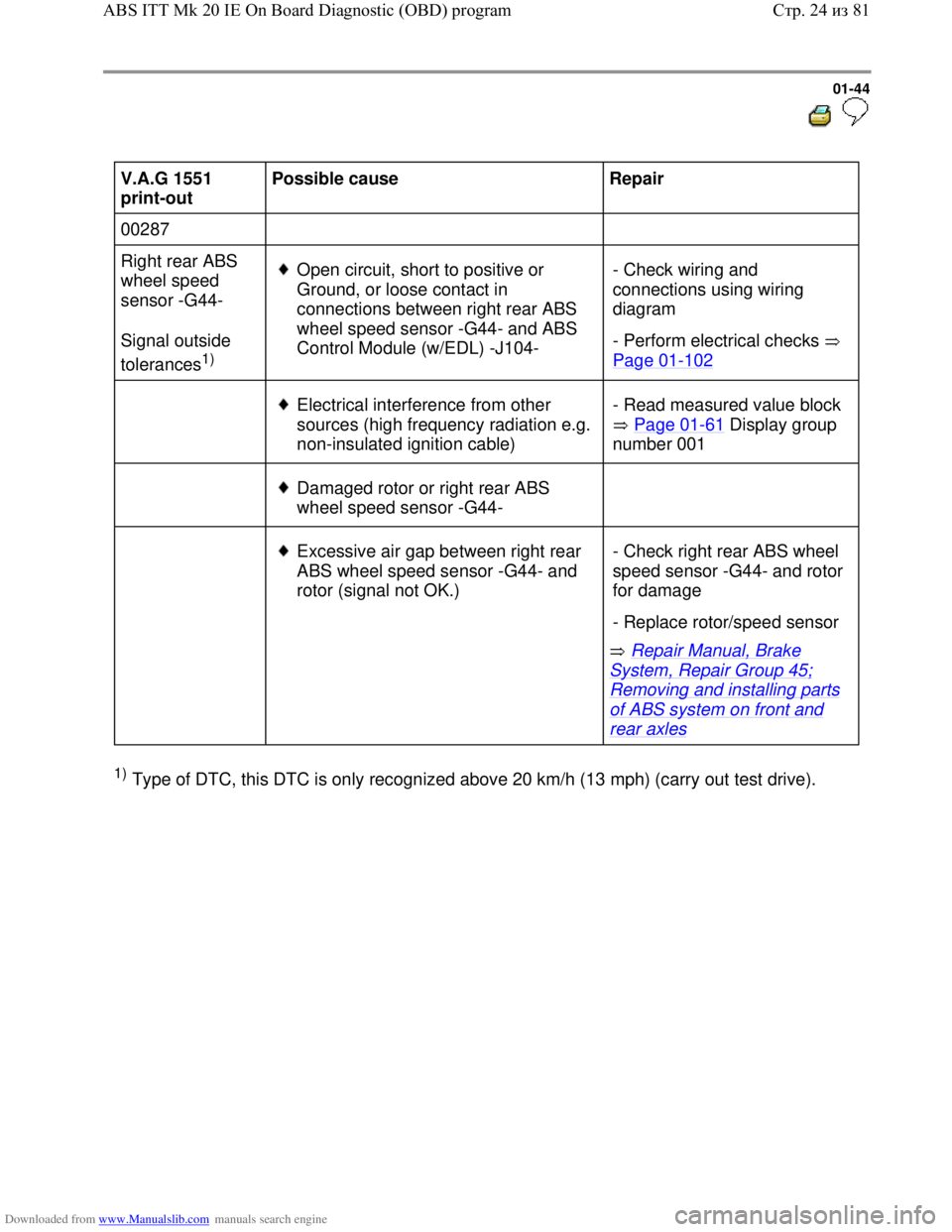

Downloaded from www.Manualslib.com manuals search engine 01-44


V.A.G 1551
print-out Possible cause
Repair
00287
Right rear ABS
wheel speed
sensor -G44-
Signal outside
tolerances
1)
Open circuit, short to positive or
Ground, or loose contact in
connections between right rear ABS
wheel speed sensor -G44- and ABS
Control Module (w/EDL) -J104- - Check wiring and
connections using wiring
diagram
- Perform electrical checks
Page 01
-102

Electrical interference from other
sources (high frequency radiation e.g.
non-insulated ignition cable) - Read measured value block
Page 01
-61 Display group
number 001

Damaged rotor or right rear ABS
wheel speed sensor -G44-


Excessive air gap between right rear
ABS wheel speed sensor -G44- and
rotor (signal not OK.)
Repair Manual, Brake
System, Repair Group 45;
Removing and installing parts
of ABS system on front and
rear axles - Check right rear ABS wheel
speed sensor -G44- and rotor
for damage
- Replace rotor/speed sensor
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 24из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

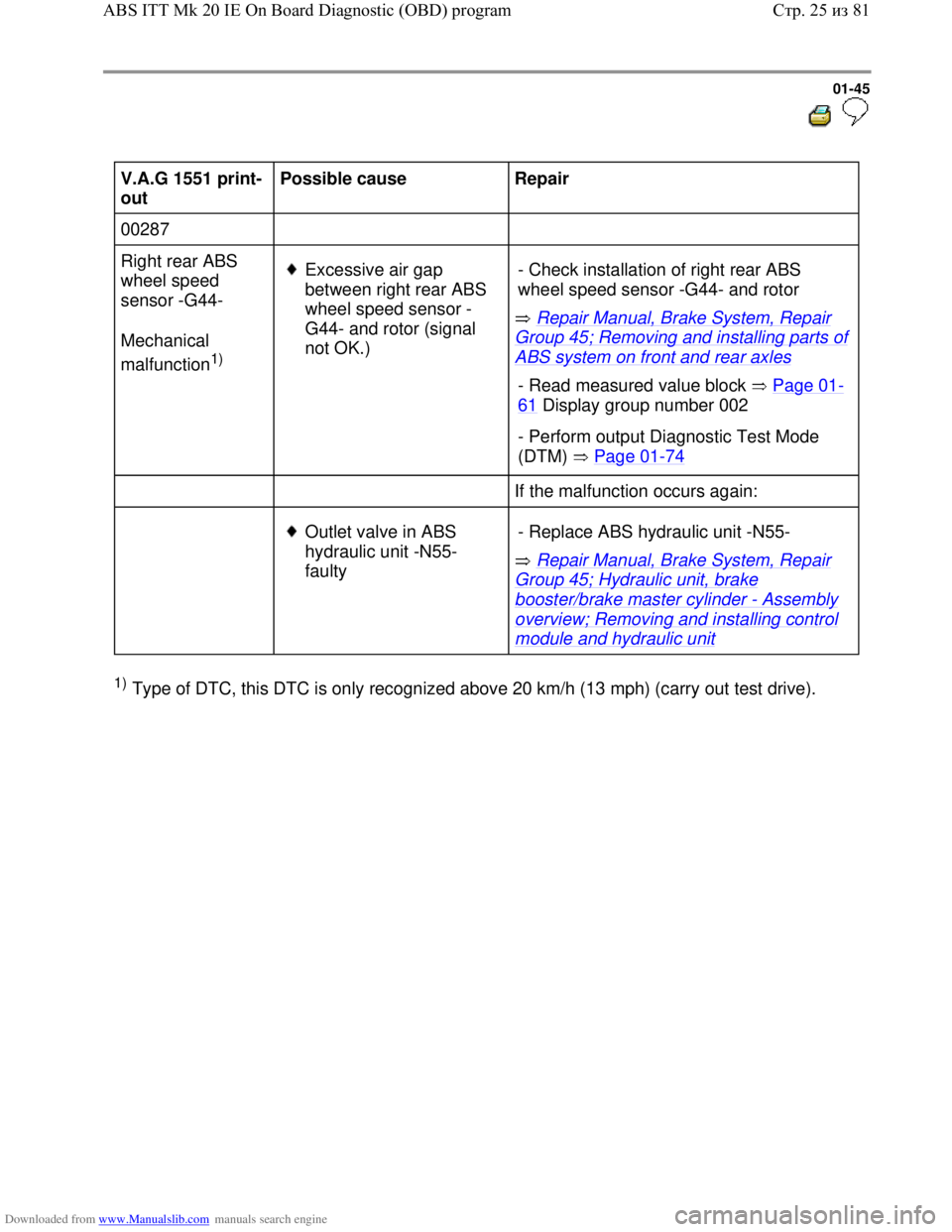

Downloaded from www.Manualslib.com manuals search engine 01-45


V.A.G 1551 print-
out Possible cause
Repair
00287
Right rear ABS
wheel speed
sensor -G44-
Mechanical
malfunction
1)
Excessive air gap
between right rear ABS
wheel speed sensor -
G44- and rotor (signal
not OK.) Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ABS system on front and rear axles - Check installation of right rear ABS
wheel speed sensor -G44- and rotor
- Read measured value block Page 01-
61 Display group number 002
- Perform output Diagnostic Test Mode
(DTM) Page 01
-74
If the malfunction occurs again:

Outlet valve in ABS
hydraulic unit -N55-
faulty Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit - Replace ABS hydraulic unit -N55-
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 25из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

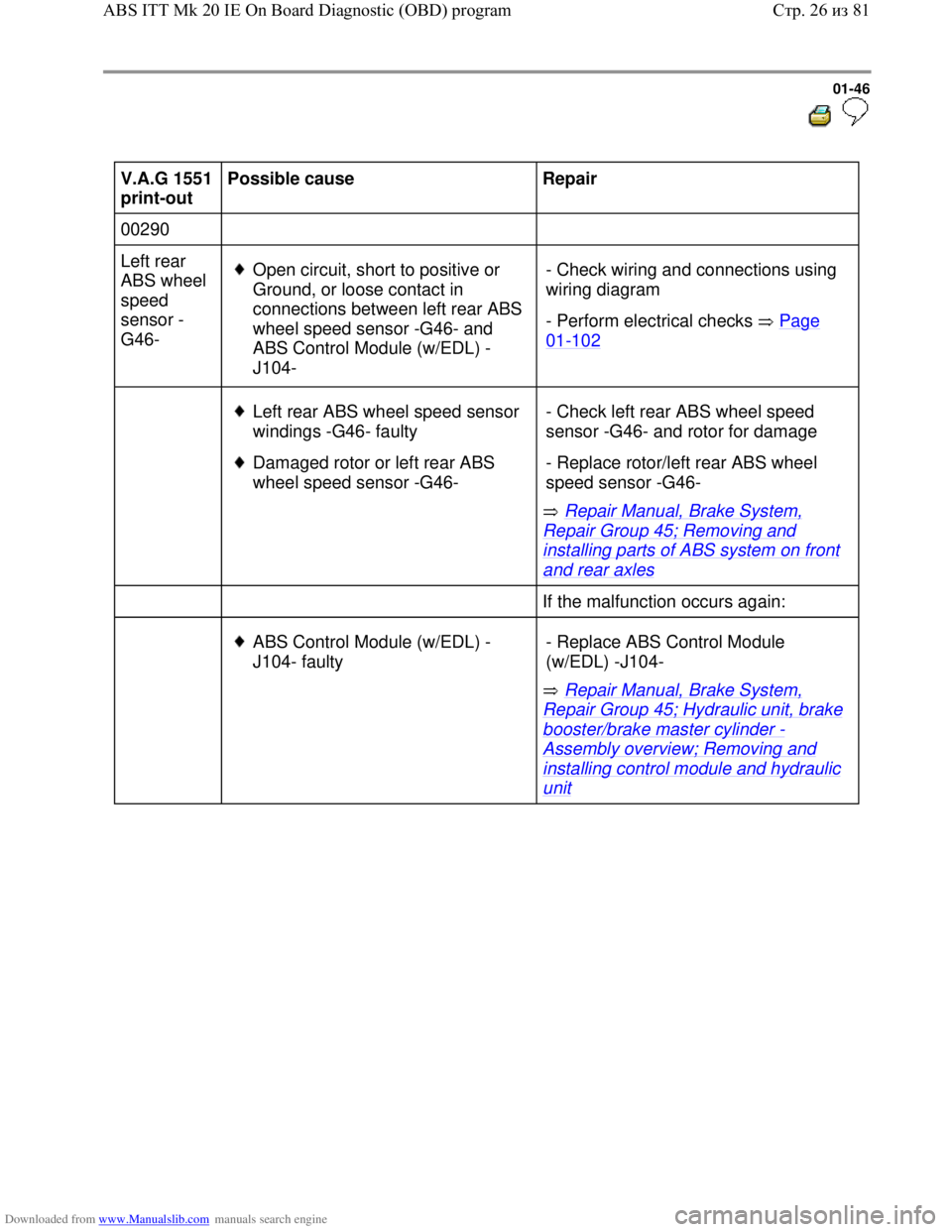

Downloaded from www.Manualslib.com manuals search engine 01-46


V.A.G 1551
print-out Possible cause
Repair
00290
Left rear
ABS wheel
speed
sensor -
G46-
Open circuit, short to positive or
Ground, or loose contact in
connections between left rear ABS
wheel speed sensor -G46- and
ABS Control Module (w/EDL) -
J104- - Check wiring and connections using
wiring diagram
- Perform electrical checks Page
01-102

Left rear ABS wheel speed sensor
windings -G46- faulty

Damaged rotor or left rear ABS
wheel speed sensor -G46-
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on front
and rear axles - Check left rear ABS wheel speed
sensor -G46- and rotor for damage
- Replace rotor/left rear ABS wheel
speed sensor -G46-
If the malfunction occurs again:


ABS Control Module (w/EDL) -
J104- faulty
Repair Manual, Brake System,
Repair Group 45; Hydraulic unit, brake
booster/brake master cylinder -
Assembly overview; Removing and
installing control module and hydraulic
unit - Replace ABS Control Module
(w/EDL) -J104-
Стр. 26из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-47


V.A.G 1551
print-out Possible cause
Repair
00290
Left rear ABS
wheel speed
Sensor -G46-
Signal outside
tolerances
1)
Open circuit, short to positive or
Ground, or loose contact in
connections between left rear ABS
wheel speed sensor -G46- and ABS
Control Module (w/EDL) -J104- - Check wiring and
connections using wiring
diagram
- Perform electrical checks
Page 01
-102

Electrical interference from other
sources (high frequency radiation e.g.
non-insulated ignition cable) - Read measured value block
Page 01
-61 Display group
number 001

Damaged rotor or left rear ABS wheel
speed sensor -G46-


Excessive air gap between left rear
ABS wheel speed sensor -G46- and
rotor (signal not OK.)
Repair Manual, Brake
System, Repair Group 45;
Removing and installing parts
of ABS system on front and
rear axles - Check left rear ABS wheel
speed sensor -G46- and rotor
for damage
- Replace rotor/speed sensor
1) Type of DTC; this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 27из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-48


V.A.G 1551 print-
out Possible cause
Repair
00290
Left rear ABS
wheel speed
sensor -G46-
Mechanical
malfunction
1)
Excessive air gap
between left rear ABS
wheel speed sensor -
G46- and rotor (signal
not OK.) Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ABS system on front and rear axles - Check installation of left rear ABS wheel
speed sensor -G46- and rotor
- Read measured value block Page 01-
61 Display group number 002
- Perform output Diagnostic Test Mode
(DTM) Page 01
-74
If the malfunction occurs again:

Outlet valve in ABS
hydraulic unit -N55-
faulty Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit - Replace ABS hydraulic unit -N55-
1) Type of DTC; this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 28из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

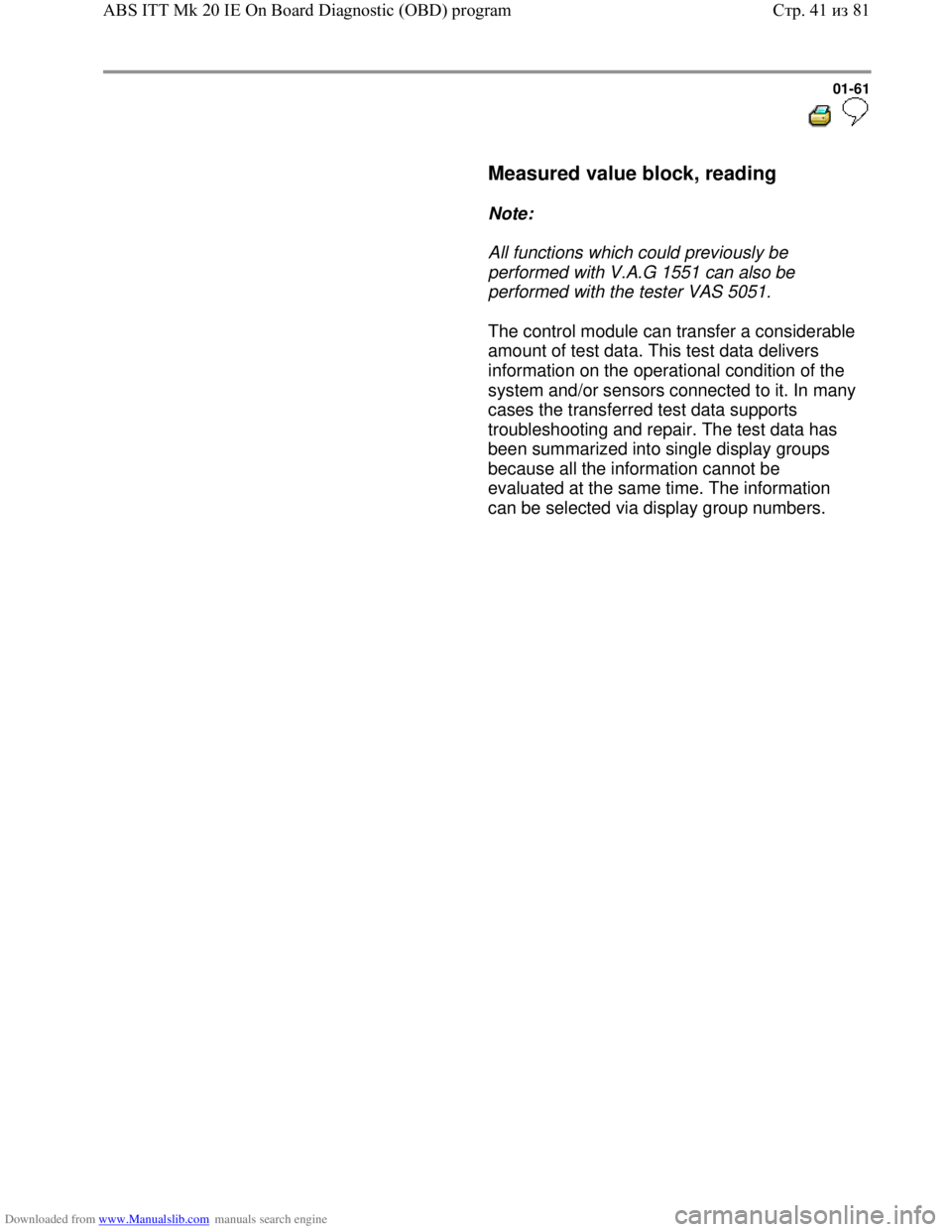

Downloaded from www.Manualslib.com manuals search engine 01-61


Measured value block, reading

Note:
All functions which could previously be
performed with V.A.G 1551 can also be
performed with the tester VAS 5051.
The control module can transfer a considerable
amount of test data. This test data delivers
information on the operational condition of the
system and/or sensors connected to it. In many
cases the transferred test data supports
troubleshooting and repair. The test data has
been summarized into single display groups
because all the information cannot be
evaluated at the same time. The information
can be selected via display group numbers.
Стр. 41из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

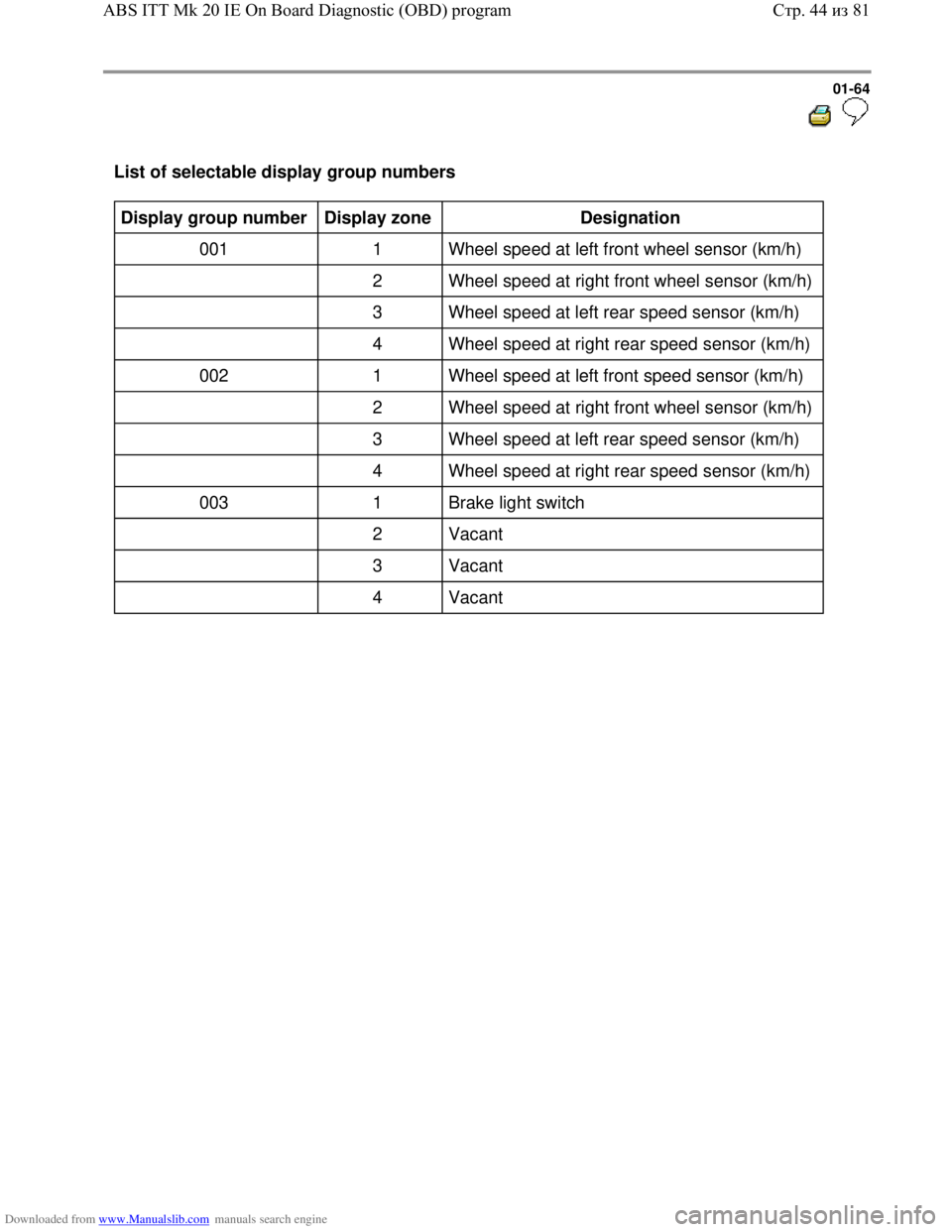

Downloaded from www.Manualslib.com manuals search engine 01-64


List of selectable display group numbers
Display group number
Display zone
Designation
001 1 Wheel speed at left front wheel sensor (km/h)
2 Wheel speed at right front wheel sensor (km/h)
3 Wheel speed at left rear speed sensor (km/h)
4 Wheel speed at right rear speed sensor (km/h)
002 1 Wheel speed at left front speed sensor (km/h)
2 Wheel speed at right front wheel sensor (km/h)
3 Wheel speed at left rear speed sensor (km/h)
4 Wheel speed at right rear speed sensor (km/h)
003 1 Brake light switch
2 Vacant
3 Vacant
4 Vacant
Стр. 44из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program
