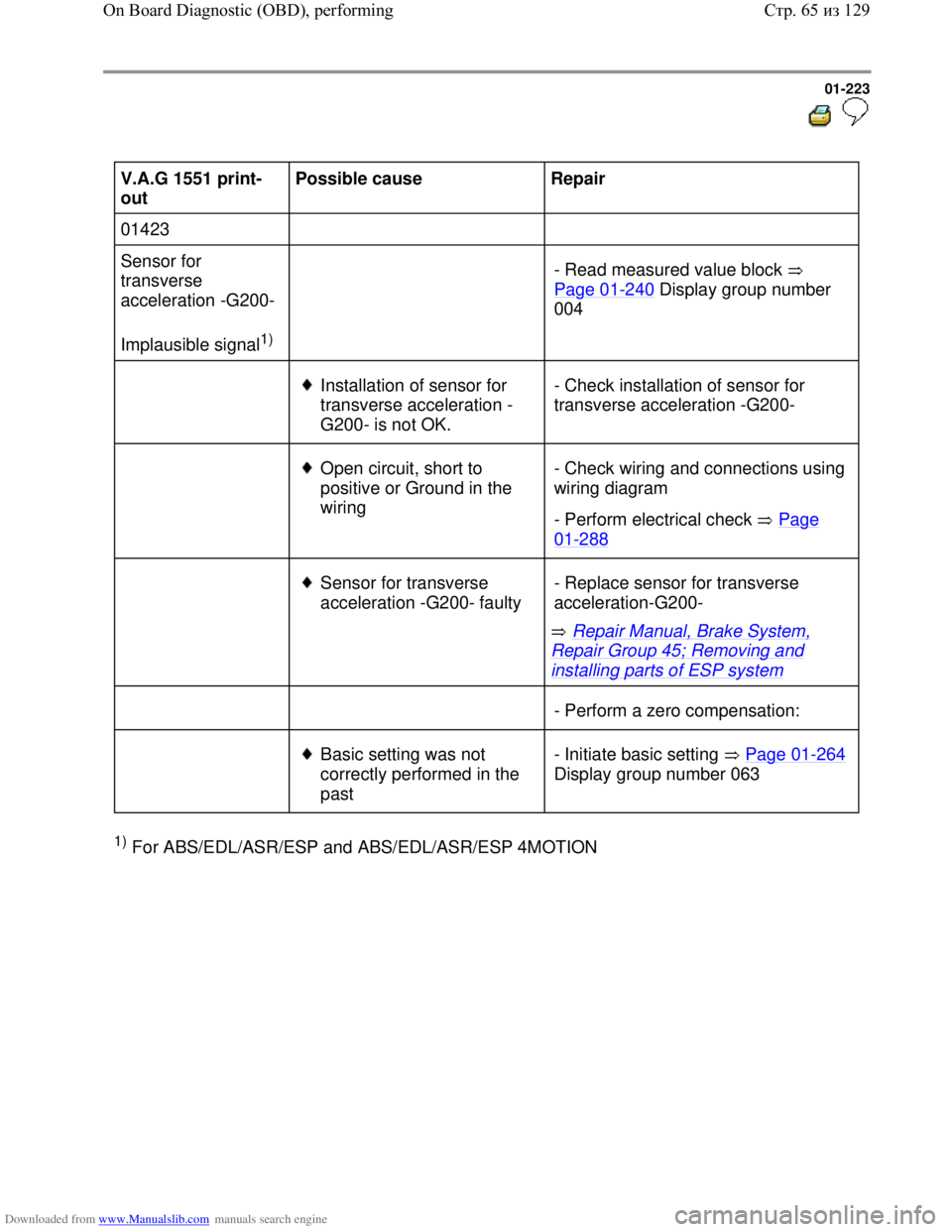

VOLKSWAGEN BORA 1998 Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-223


V.A.G 1551 print-
out Possible cause
Repair
01423
Sensor for
transverse
acceleration -G200-
Implausible signal
1)
- Read measured value block
Page 01
-240 Display group number
004

Installation of sensor for
transverse acceleration -
G200- is not OK. - Check installation of sensor for
transverse acceleration -G200-


Open circuit, short to
positive or Ground in the
wiring - Check wiring and connections using
wiring diagram
- Perform electrical check Page
01-288

Sensor for transverse
acceleration -G200- faulty
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ESP system - Replace sensor for transverse
acceleration-G200-

- Perform a zero compensation:


Basic setting was not
correctly performed in the
past - Initiate basic setting Page 01-264
Display group number 063
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 65из 129 On Board Diagnostic (OBD), performing

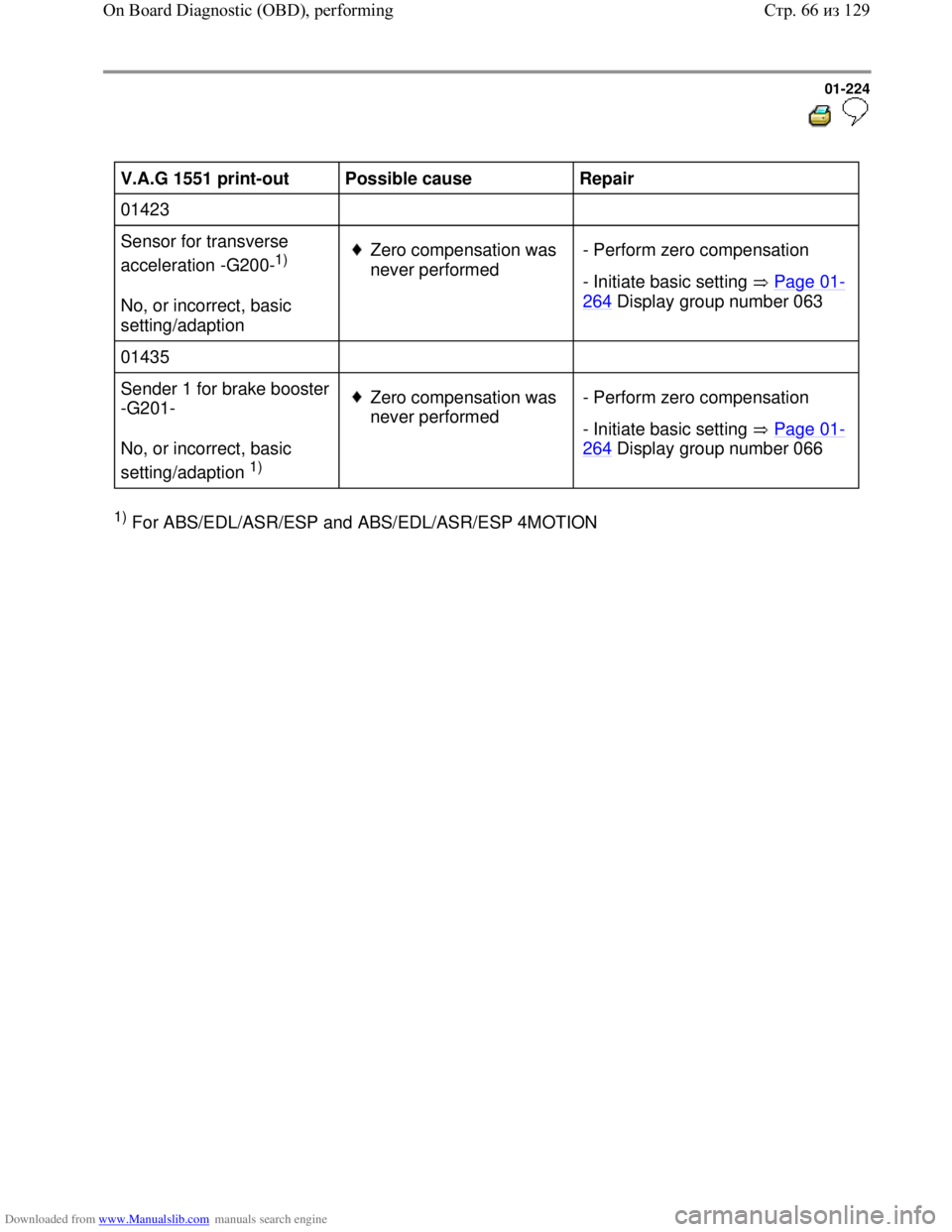

Downloaded from www.Manualslib.com manuals search engine 01-224


V.A.G 1551 print-out
Possible cause
Repair
01423
Sensor for transverse
acceleration -G200-
1)
No, or incorrect, basic
setting/adaption
Zero compensation was
never performed - Perform zero compensation
- Initiate basic setting Page 01
-
264 Display group number 063
01435
Sender 1 for brake booster
-G201-
No, or incorrect, basic
setting/adaption
1)
Zero compensation was
never performed - Perform zero compensation
- Initiate basic setting Page 01
-
264 Display group number 066
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 66из 129 On Board Diagnostic (OBD), performing

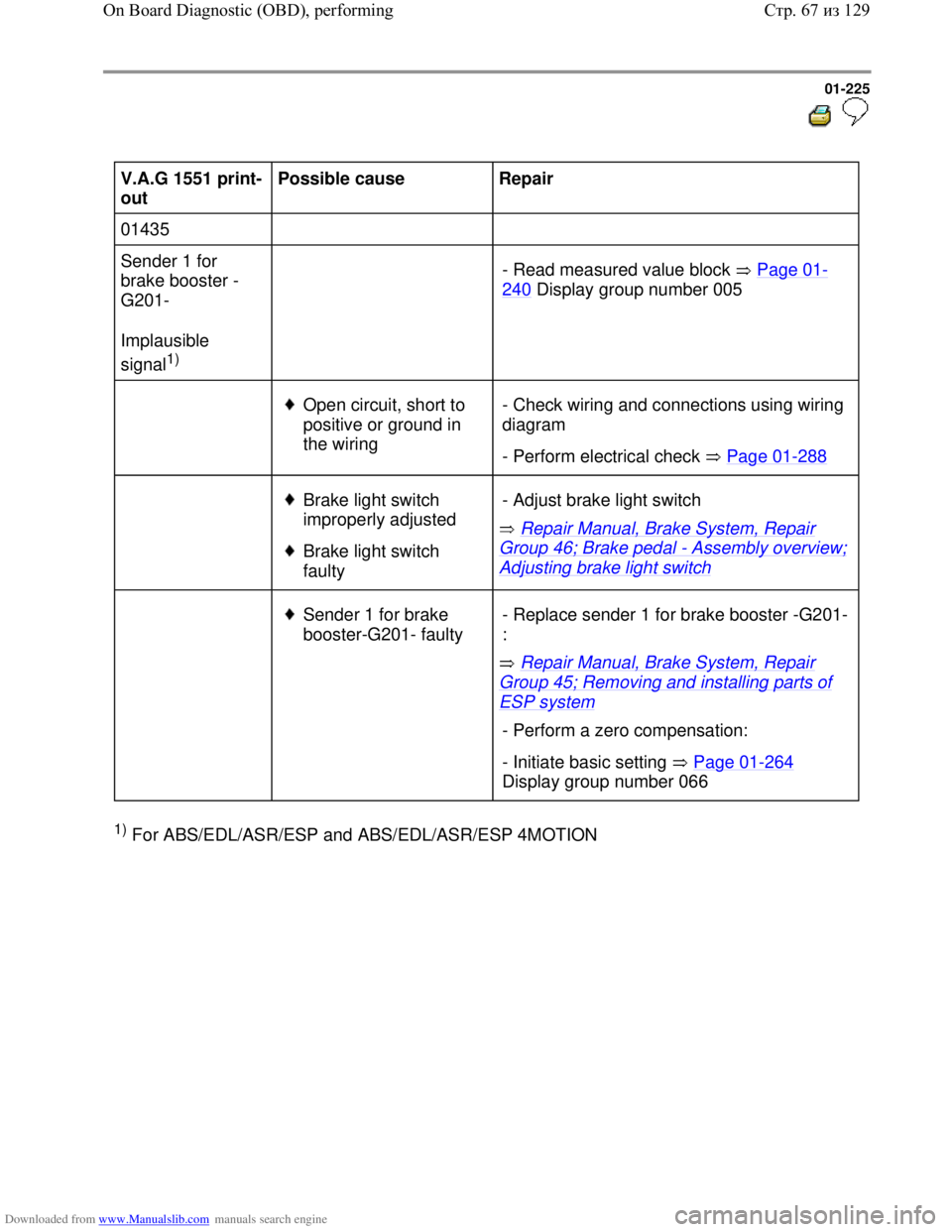

Downloaded from www.Manualslib.com manuals search engine 01-225


V.A.G 1551 print-
out Possible cause
Repair
01435
Sender 1 for
brake booster -
G201-
Implausible
signal
1)
- Read measured value block Page 01
-
240 Display group number 005
Open circuit, short to
positive or ground in
the wiring - Check wiring and connections using wiring
diagram
- Perform electrical check Page 01
-288
Brake light switch
improperly adjusted
Brake light switch
faulty Repair Manual, Brake System, Repair Group 46; Brake pedal - Assembly overview;
Adjusting brake light switch - Adjust brake light switch
Sender 1 for brake
booster-G201- faulty
Repair Manual, Brake System, Repair
Group 45; Removing and installing parts of
ESP system - Replace sender 1 for brake booster -G201-
:
- Perform a zero compensation:
- Initiate basic setting Page 01
-264
Display group number 066
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 67из 129 On Board Diagnostic (OBD), performing

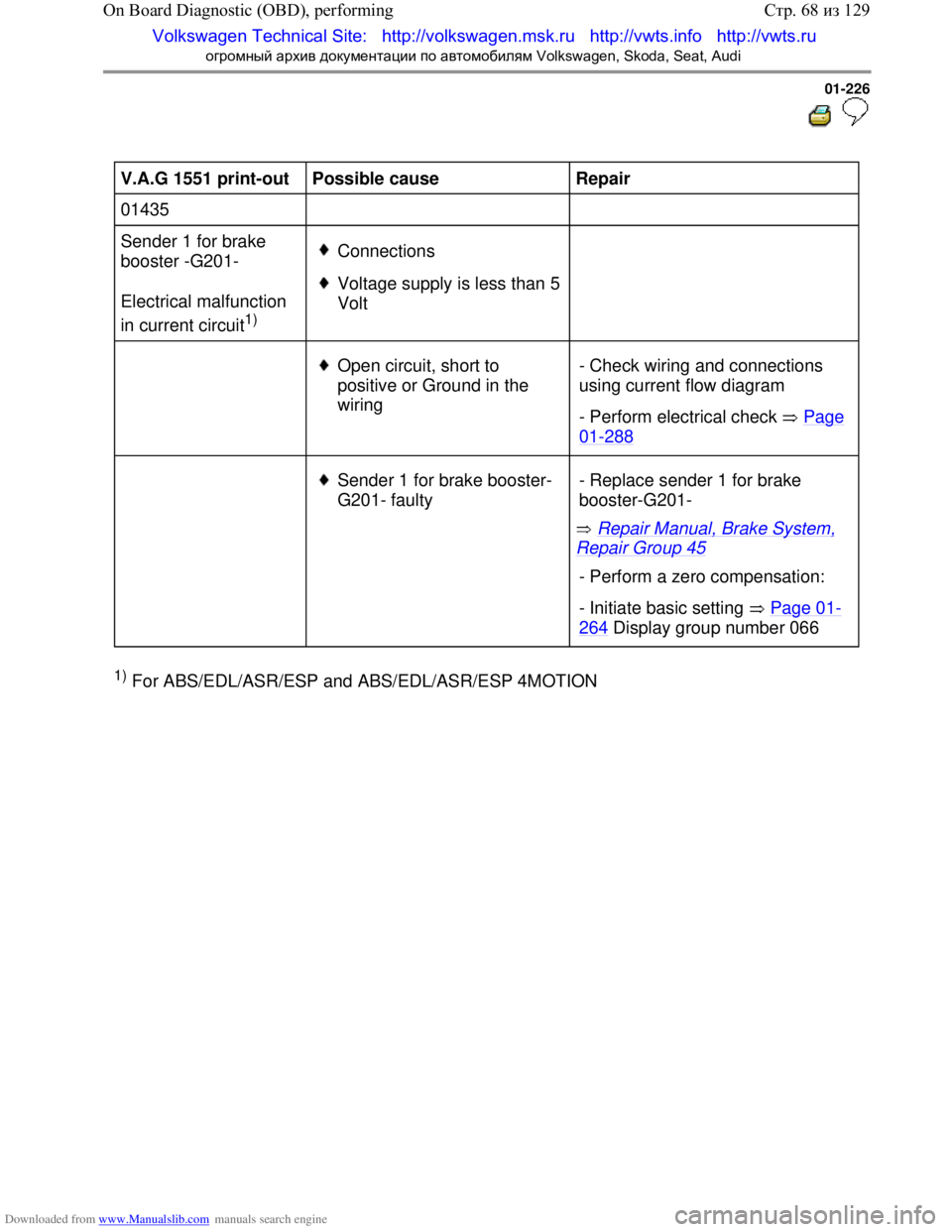

Downloaded from www.Manualslib.com manuals search engine
01-226


V.A.G 1551 print-out
Possible cause
Repair
01435
Sender 1 for brake
booster -G201-
Electrical malfunction
in current circuit
1)
Connections

Voltage supply is less than 5
Volt

Open circuit, short to
positive or Ground in the
wiring - Check wiring and connections
using current
flow diagram
- Perform electrical check Page
01-288

Sender 1 for brake booster-
G201- faulty
Repair Manual, Brake System,
Repair Group 45
- Replace sender 1 for brake
booster-G201-
- Perform a zero compensation:
- Initiate basic setting
Page 01
-
264 Display group number 066
1) For ABS/EDL/ASR/ESP an d ABS/EDL/ASR/ESP 4MOTION
Стр. 68
из 129
On Board Diagnostic (OBD), performing
Volkswagen Technical Site: http://v olkswagen.msk.ru http://vwts.info http://vwts.ru
огромный архив документации по автомобилям Volkswagen, Skoda, Seat, Audi

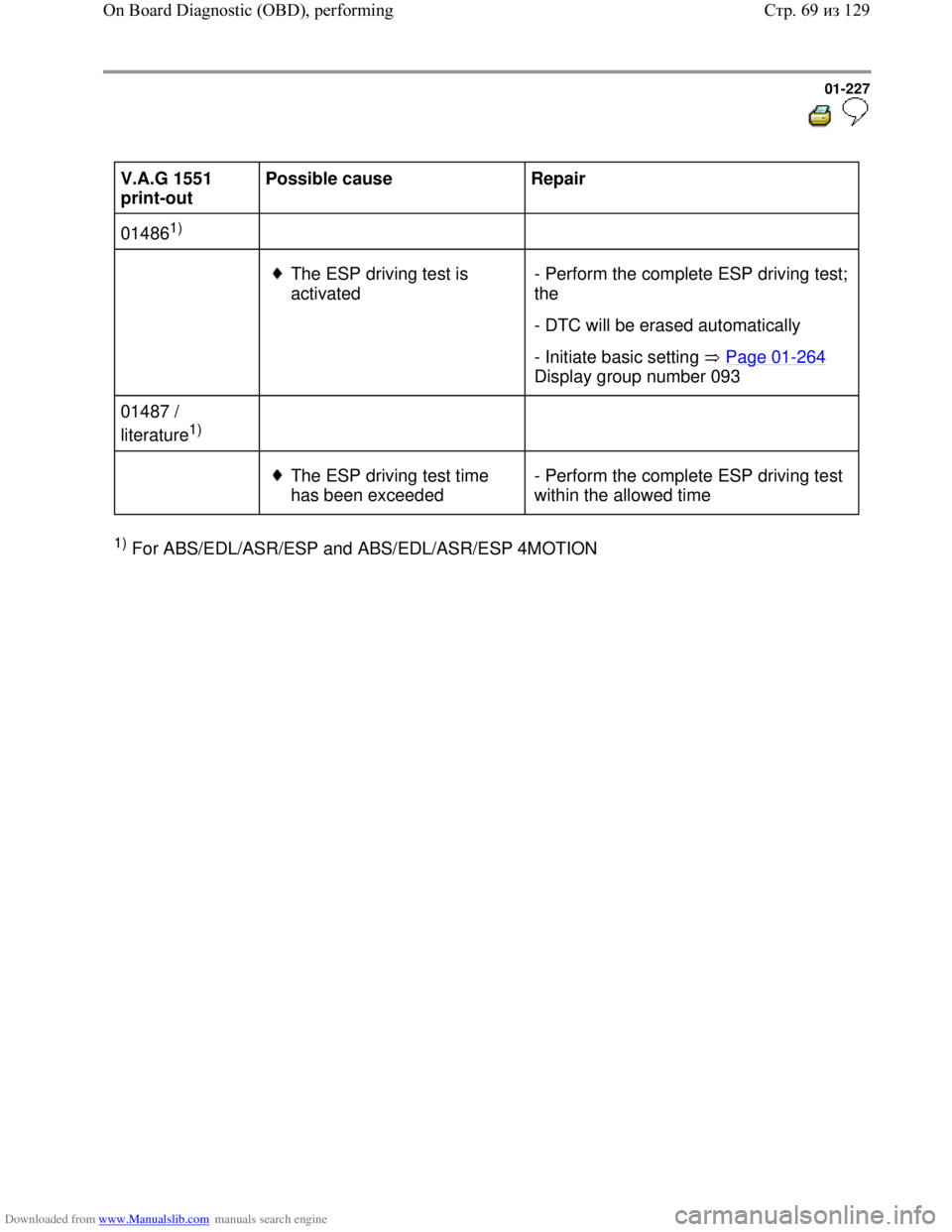

Downloaded from www.Manualslib.com manuals search engine 01-227


V.A.G 1551
print-out Possible cause
Repair
01486
1)



The ESP driving test is
activated - Perform the complete ESP driving test;
the
- DTC will be erased automatically
- Initiate basic setting Page 01
-264
Display group number 093
01487 /
literature
1)


The ESP driving test time
has been exceeded - Perform the complete ESP driving test
within the allowed time
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 69из 129 On Board Diagnostic (OBD), performing

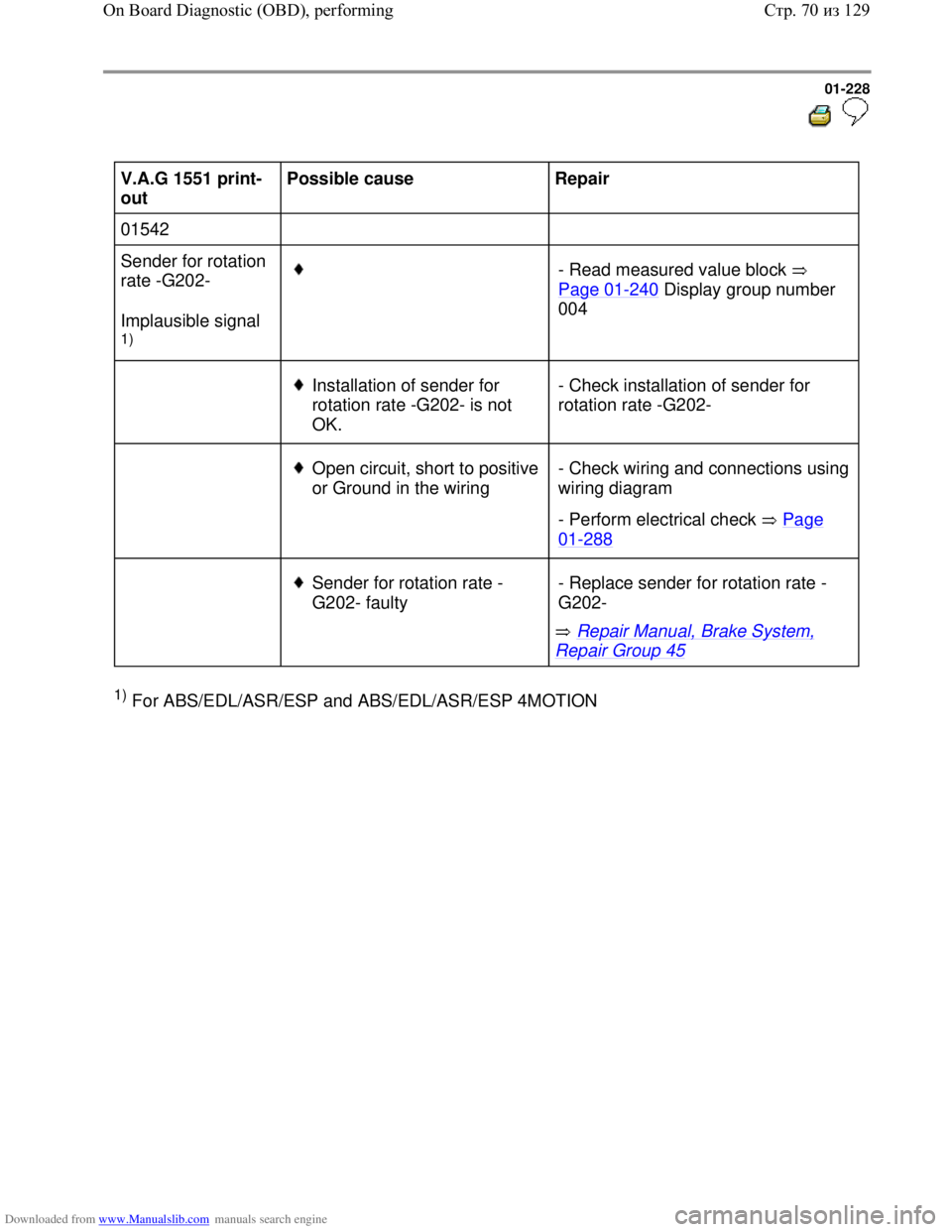

Downloaded from www.Manualslib.com manuals search engine 01-228


V.A.G 1551 print-
out Possible cause
Repair
01542
Sender for rotation
rate -G202-
Implausible signal
1)
- Read measured value block
Page 01
-240 Display group number
004
Installation of sender for
rotation rate -G202- is not
OK. - Check installation of sender for
rotation rate -G202-

Open circuit, short to positive
or Ground in the wiring - Check wiring and connections using
wiring diagram
- Perform electrical check Page
01-288
Sender for rotation rate -
G202- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace sender for rotation rate -
G202-
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 70из 129 On Board Diagnostic (OBD), performing

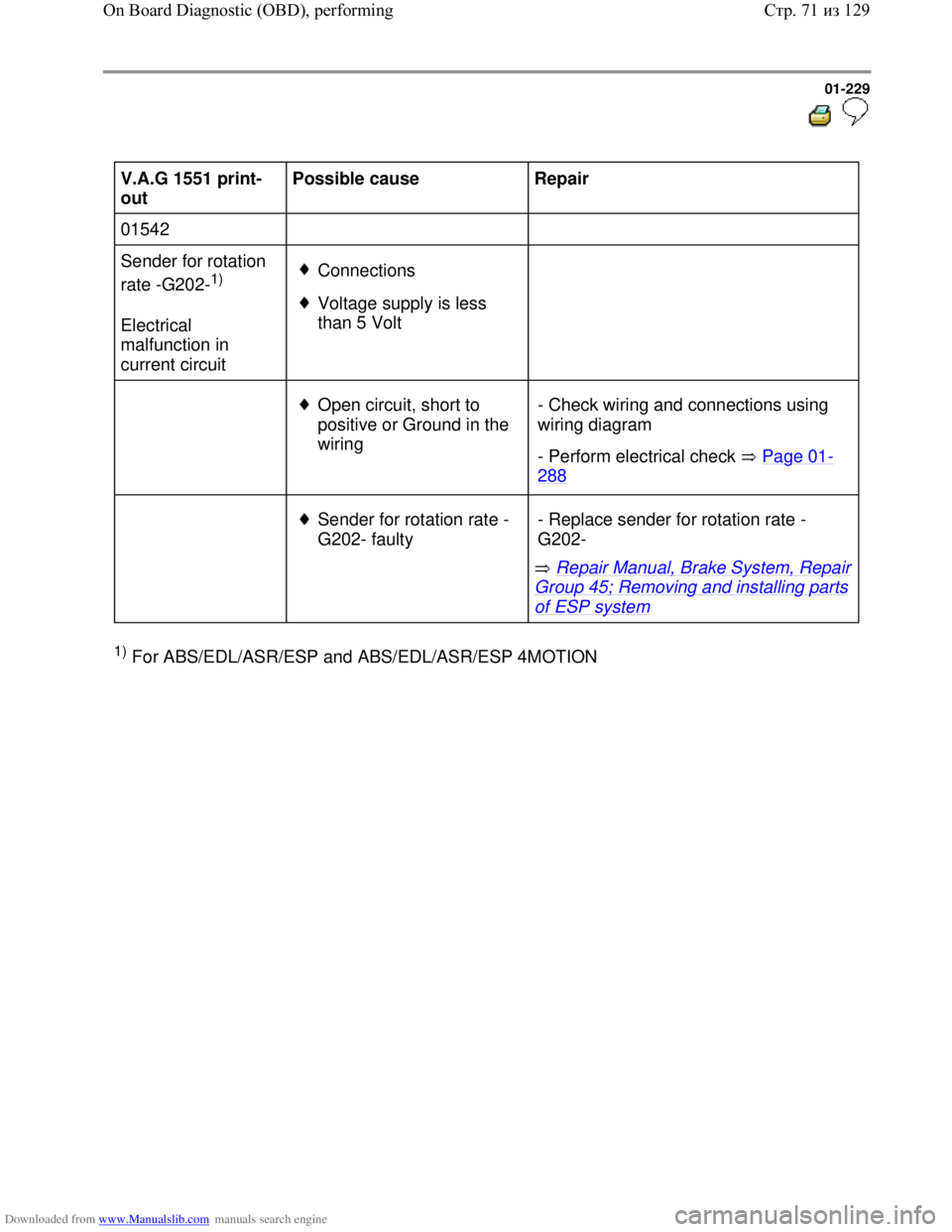

Downloaded from www.Manualslib.com manuals search engine 01-229


V.A.G 1551 print-
out Possible cause
Repair
01542
Sender for rotation
rate -G202-
1)
Electrical
malfunction in
current circuit Connections

Voltage supply is less
than 5 Volt


Open circuit, short to
positive or Ground in the
wiring - Check wiring and connections using
wiring diagram
- Perform electrical check Page 01
-
288

Sender for rotation rate -
G202- faulty
Repair Manual, Brake System, Repair
Group 45; Removing and installing parts
of ESP system - Replace sender for rotation rate -
G202-
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 71из 129 On Board Diagnostic (OBD), performing

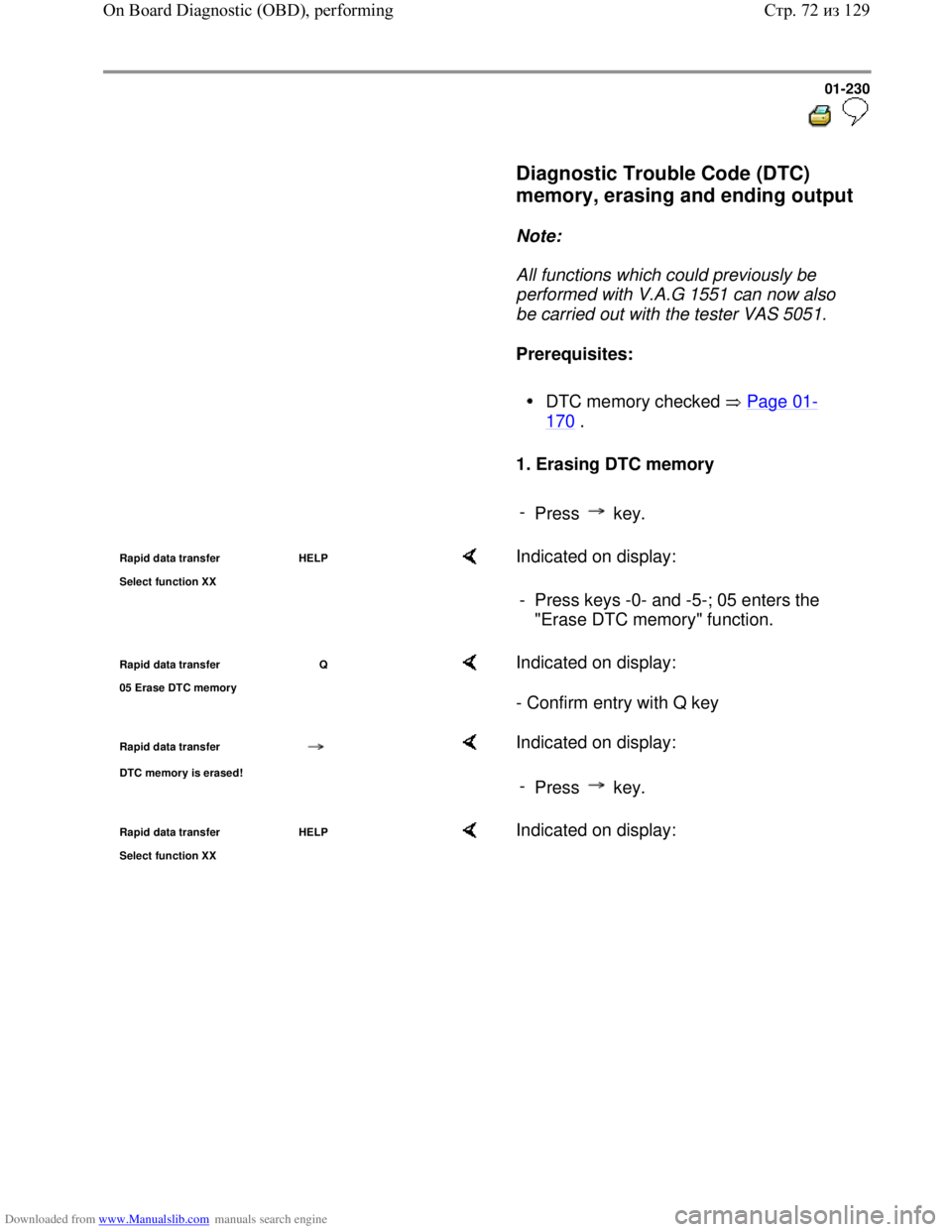

Downloaded from www.Manualslib.com manuals search engine 01-230


Diagnostic Trouble Code (DTC)
memory, erasing and ending output


Note:
All functions which could previously be
performed with V.A.G 1551 can now also
be carried out with the tester VAS 5051.

Prerequisites:

DTC memory checked Page 01-
170 .

1. Erasing DTC memory

-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display:
- Press keys -0- and -5-; 05 enters the
"Erase DTC memory" function.
Rapid data transfer Q
05 Erase DTC memor
y
Indicated on display:
- Confirm entry with Q key
Rapid data transfer
DTC memory is erased!
Indicated on display:
-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display:
Стр. 72из 129 On Board Diagnostic (OBD), performing

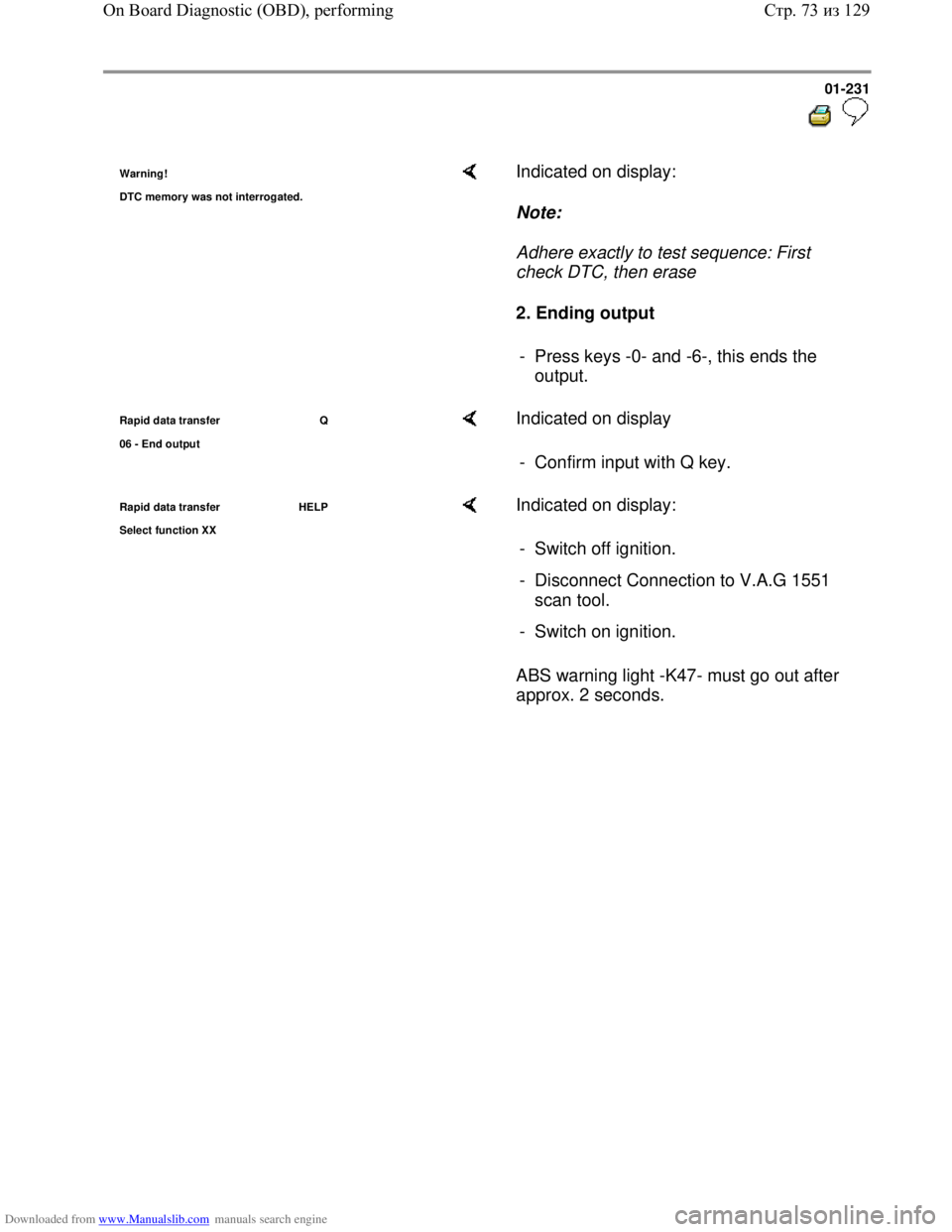

Downloaded from www.Manualslib.com manuals search engine 01-231


Warning!
DTC memor
y was not interrogated.
Indicated on display:
Note:
Adhere exactly to test sequence: First
check DTC, then erase
2. Ending output
- Press keys -0- and -6-, this ends the
output.
Rapid data transfer Q
06 - End out
put
Indicated on display
- Confirm input with Q key.
Rapid data transfer HELP
Select function XX Indicated on display:
ABS warning light -K47- must go out after
approx. 2 seconds. - Switch off ignition.
- Disconnect Connection to V.A.G 1551
scan tool.
- Switch on ignition.
Стр. 73из 129 On Board Diagnostic (OBD), performing

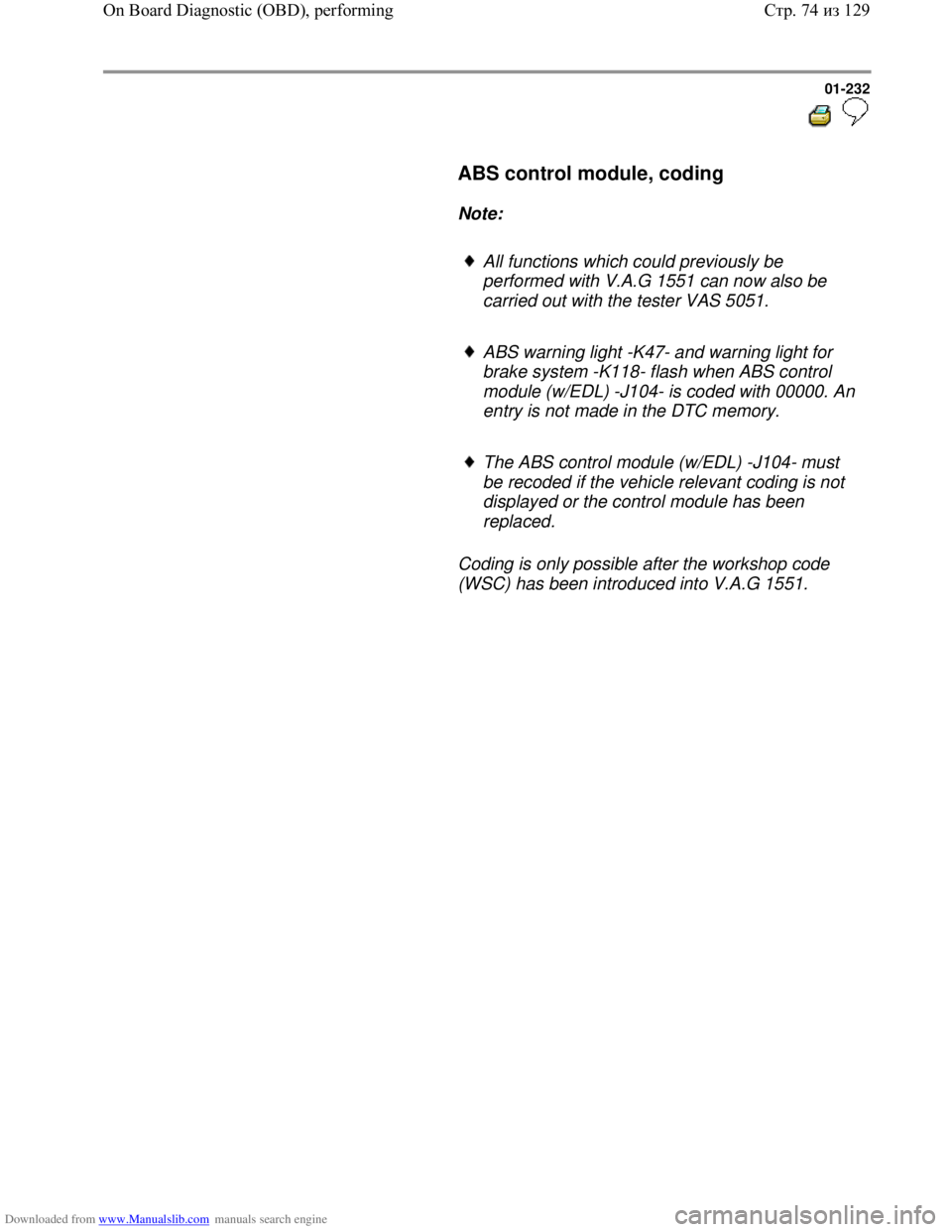

Downloaded from www.Manualslib.com manuals search engine 01-232


ABS control module, coding

Note:

All functions which could previously be
performed with V.A.G 1551 can now also be
carried out with the tester VAS 5051.

ABS warning light -K47- and warning light for
brake system -K118- flash when ABS control
module (w/EDL) -J104- is coded with 00000. An
entry is not made in the DTC memory.

The ABS control module (w/EDL) -J104- must
be recoded if the vehicle relevant coding is not
displayed or the control module has been
replaced.
Coding is only possible after the workshop code
(WSC) has been introduced into V.A.G 1551.
Стр. 74из 129 On Board Diagnostic (OBD), performing
