Press key.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: VBAT Wheel FL free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 58из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-79



-
Press key.
ABS hydraulic pump -V64- no longer
runs.
Output Diagnostic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL free
Indicated on display
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
Brake pedal must give perceptibly
Output Diagnostic Test Mode
-
IFL: 0V OFL: 0V Wheel FL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 59из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

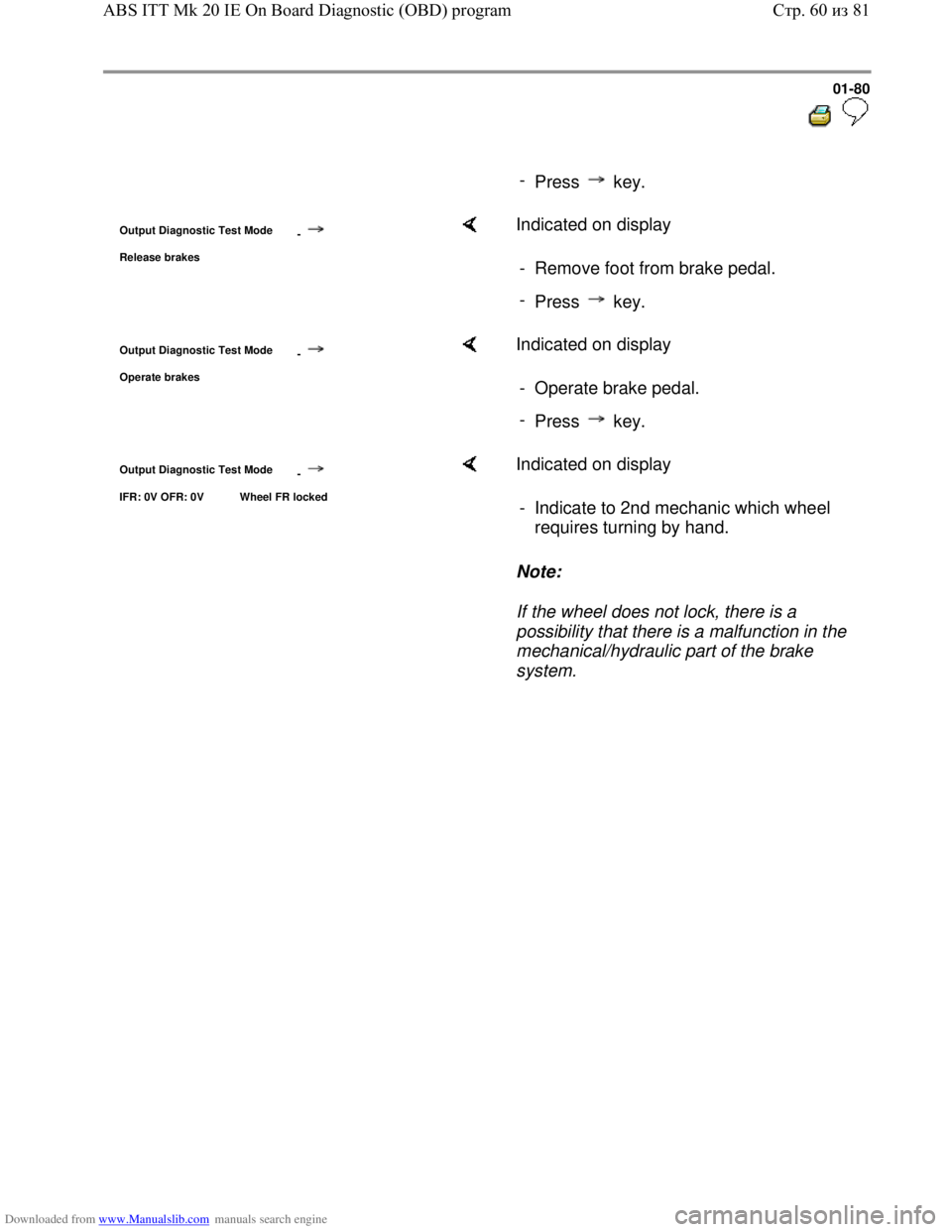

Downloaded from www.Manualslib.com manuals search engine 01-80



-
Press key.
Output Diagnostic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
IFR: 0V OFR: 0V Wheel FR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 60из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-81



-
Press key.
Output Diagnostic Test Mode
-
IFR: VBAT OFR: 0V Wheel FR locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give
Output Diagnostic Test Mode
-
IFR: VBAT OFR: VBAT Wheel FR free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 61из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

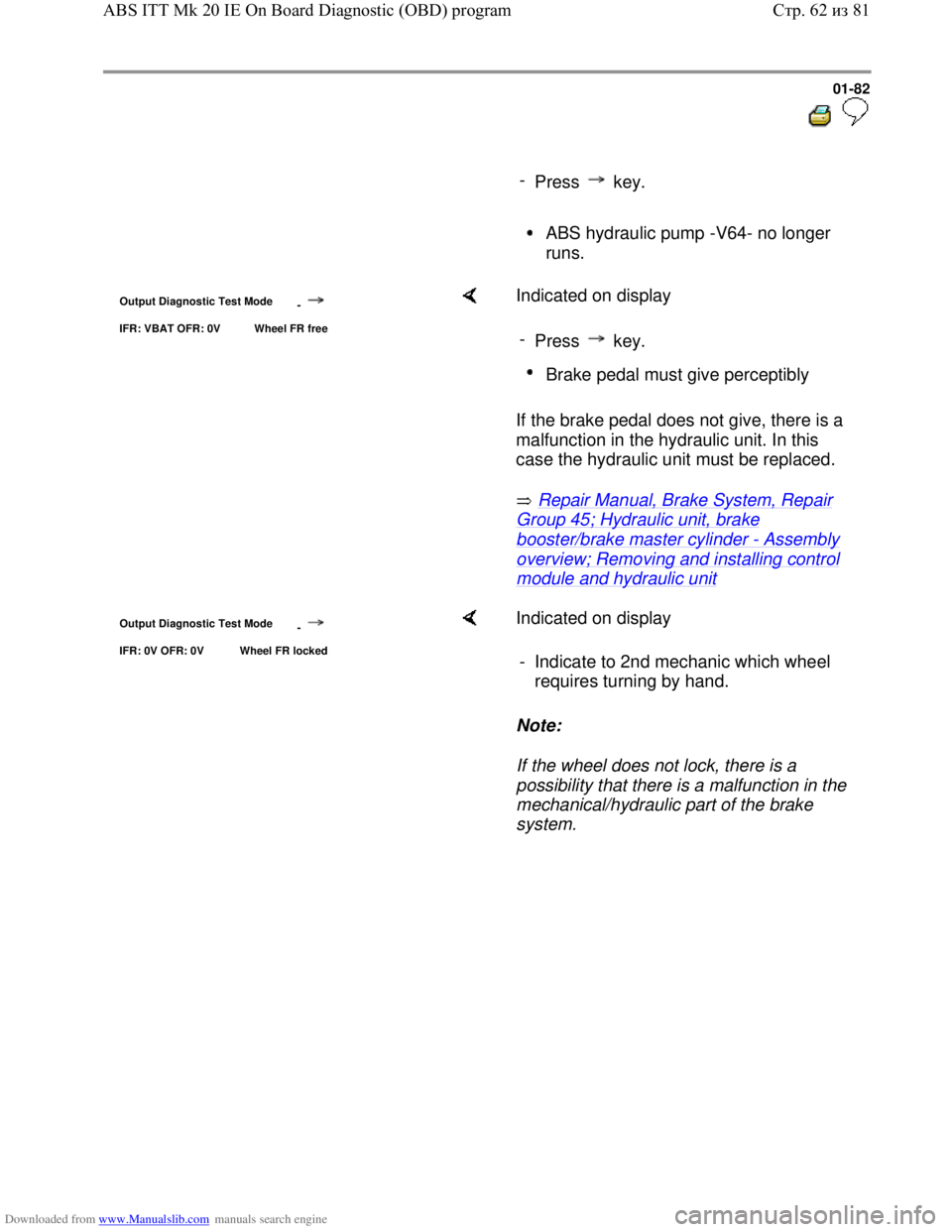

Downloaded from www.Manualslib.com manuals search engine 01-82



-
Press key.
ABS hydraulic pump -V64- no longer
runs.
Output Diagnostic Test Mode
-
IFR: VBAT OFR: 0V Wheel FR free
Indicated on display
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
Brake pedal must give perceptibly
Output Diagnostic Test Mode
-
IFR: 0V OFR: 0V Wheel FR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 62из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-83



-
Press key.
Output Diagnostic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
IRL: 0V ORL: 0V Wheel RL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 63из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-84



-
Press key.
Output Diagnostic Test Mode
-
IRL: VBAT ORL: 0V Wheel RL locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give
Output Diagnostic Test Mode
-
IRL: VBAT ORL: VBAT Wheel RL free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 64из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-85



-
Press key.
ABS hydraulic pump -V64 no longer
runs.
Output Diagnostic Test Mode
-
IRL: VBAT ORL: 0V Wheel RL free
Indicated on display
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
Brake pedal must give perceptibly
Output Diagnostic Test Mode
-
IRL: 0V ORL: 0V Wheel RL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 65из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

Downloaded from www.Manualslib.com manuals search engine 01-86



-
Press key.
Output Diagnostic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnostic Test Mode
-
IRR: 0V ORR: 0V Wheel RR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 66из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program

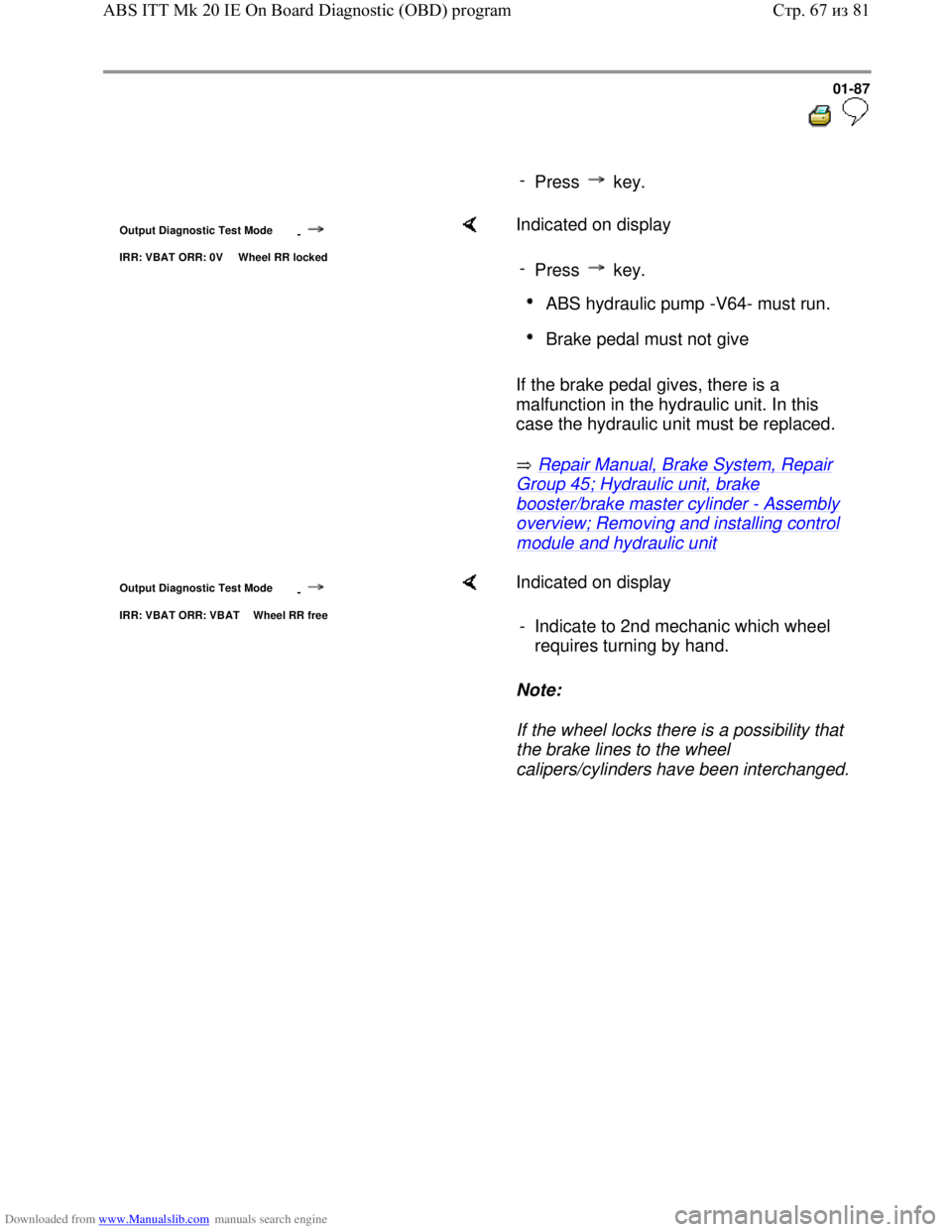

Downloaded from www.Manualslib.com manuals search engine 01-87



-
Press key.
Output Diagnostic Test Mode
-
IRR: VBAT ORR: 0V Wheel RR locked
Indicated on display
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45; Hydraulic unit, brake
booster/brake master cylinder - Assembly
overview; Removing and installing control
module and hydraulic unit -
Press key.
ABS hydraulic pump -V64- must run.
Brake pedal must not give
Output Diagnostic Test Mode
-
IRR: VBAT ORR: VBAT Wheel RR free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 67из 81 ABS ITT Mk 20 IE On Board Diagnostic (OBD) program
