Fig. 191 Removing or inserting a fuse using the plastic tweezers 1.

Replacing light bulbs

WARNING
Improper replacement of burned out headlights and other light bulbs can cause serious personal injury.
x Stop! Always read and heed the WARNINGS before doing any work in the engine compartment, Working in the engine compartment. The engine compartment of any motor vehicle is a potentially dangerous area, and work in this area can lead to serious personal injury.
x HID – High Intensity Discharge (Xenon) headlights get power from a high voltage source that can cause severe personal injury and even death if handled improperly.
x H7 bulbs and HID – High Intensity Discharge (Xenon) headlights are under high pressure and can explode if handled improperly.
x Always let a burned out light bulb cool down before replacing it.
x Never replace a light bulb unless you are familiar with all of the necessary procedures. In particular, never remove a headlight unless you know exactly how to carry out the job and have the correct tools and light bulbs.
x If you are uncertain about what to do, have the work performed by an authorized Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID – High Intensity Discharge (Xenon) headlights and H7 bulbs replaced by a qualified technician.
x Do not touch the glass of light bulbs with your bare hands. Fingerprints left on the bulb evaporate due to the heat when the bulb is switched on and cause the reflector to “cloud.”
x There are sharp edges on and around the headlight housing in the engine compartment and the rear light housing. Wear hand protection if you replace bulbs.
NOTICE
After replacing a headlight bulb or other light bulb, always make sure that the rubber covers or plastic caps have been properly and securely reinstalled to help prevent water from getting into the electrical connections and headlight housing and damaging the electrical system.
Indicator light

WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Failure of a single LED within a taillight is not indicated. However, the = indicator light will come on if all LEDs fail.
Information on light bulb replacement

WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.
NOTICE
Always insert and remove lamps carefully to help prevent damage to the vehicle paint or to other parts of the vehicle.
Replacing headlight bulbs

Fig. 192 In the engine compartment: Covers in the left headlight assembly. 1 Low beam, 2 Turn signal indicator, 3 High beam and parking light as well as daytime running light.

Please carry out each step only in the order specified:
fig. 192 (1) (2) (3) (3)
Low beam Front turn signal indicator High beam/ daytime running light
Parking light (small bulb holder)
4. Turn the bulb holder counterclockwise as far as it will go and pull it out towards the rear together with the light bulb.
Pull the bulb holder out towards the rear along with the light bulb.
5. Pull the light bulb straight out of the bulb holder. If necessary, press the lock on the bulb holder.
6. Replace the burned out light bulb with a new bulb of the same type.
7. Insert the bulb holder into the headlight assembly and turn clockwise as far as it goes. Insert the bulb holder into the headlight and slide it in completely.
8. Attach the rubber or plastic cover. If applicable slide the securing clip rearward.
The illustrations show the left headlight assembly from the rear. The right headlight assembly is the mirror image of the left headlight assembly.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
You cannot replace the LEDs in LED daytime running lights. Contact your authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance.

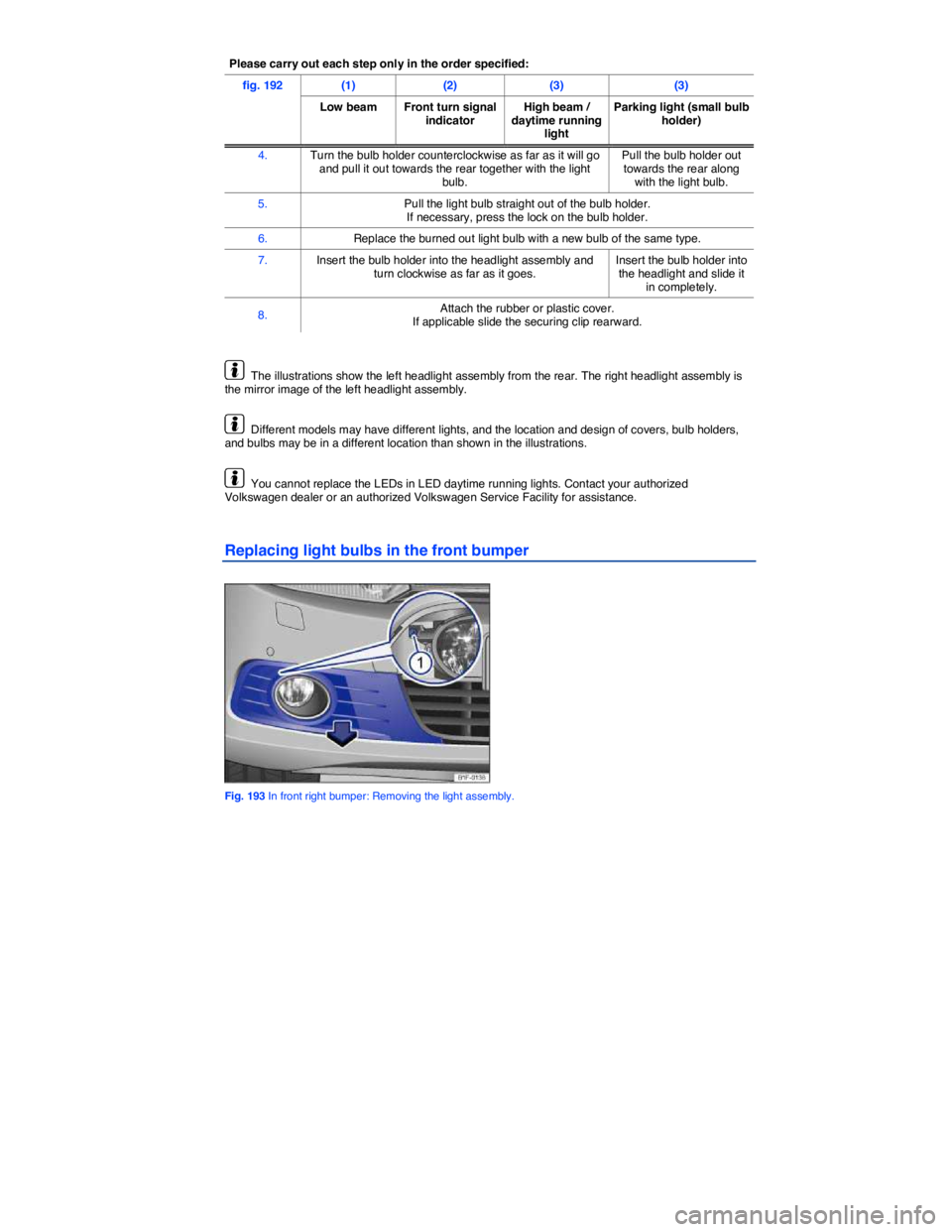

Replacing light bulbs in the front bumper

Fig. 193 In front right bumper: Removing the light assembly.

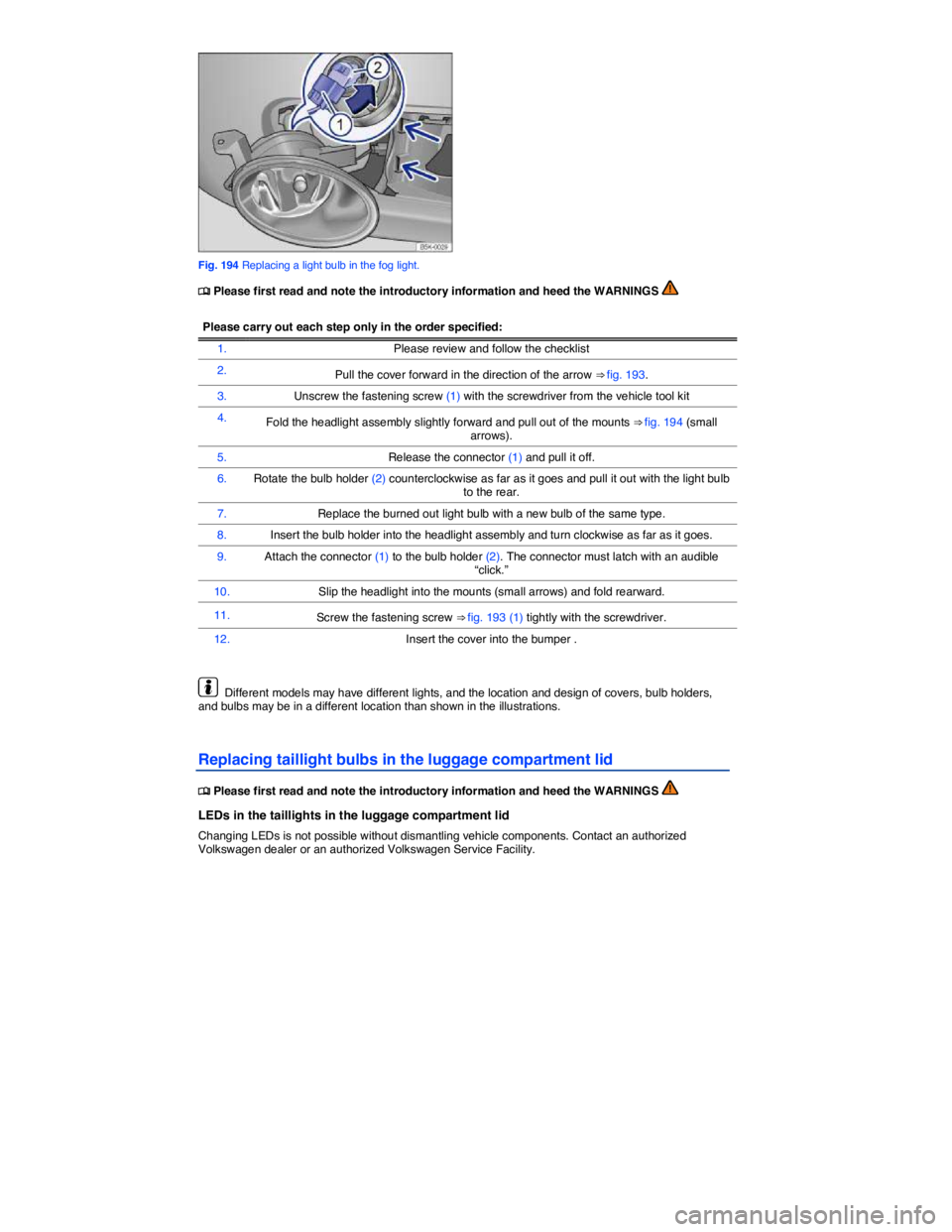

Fig. 194 Replacing a light bulb in the fog light.

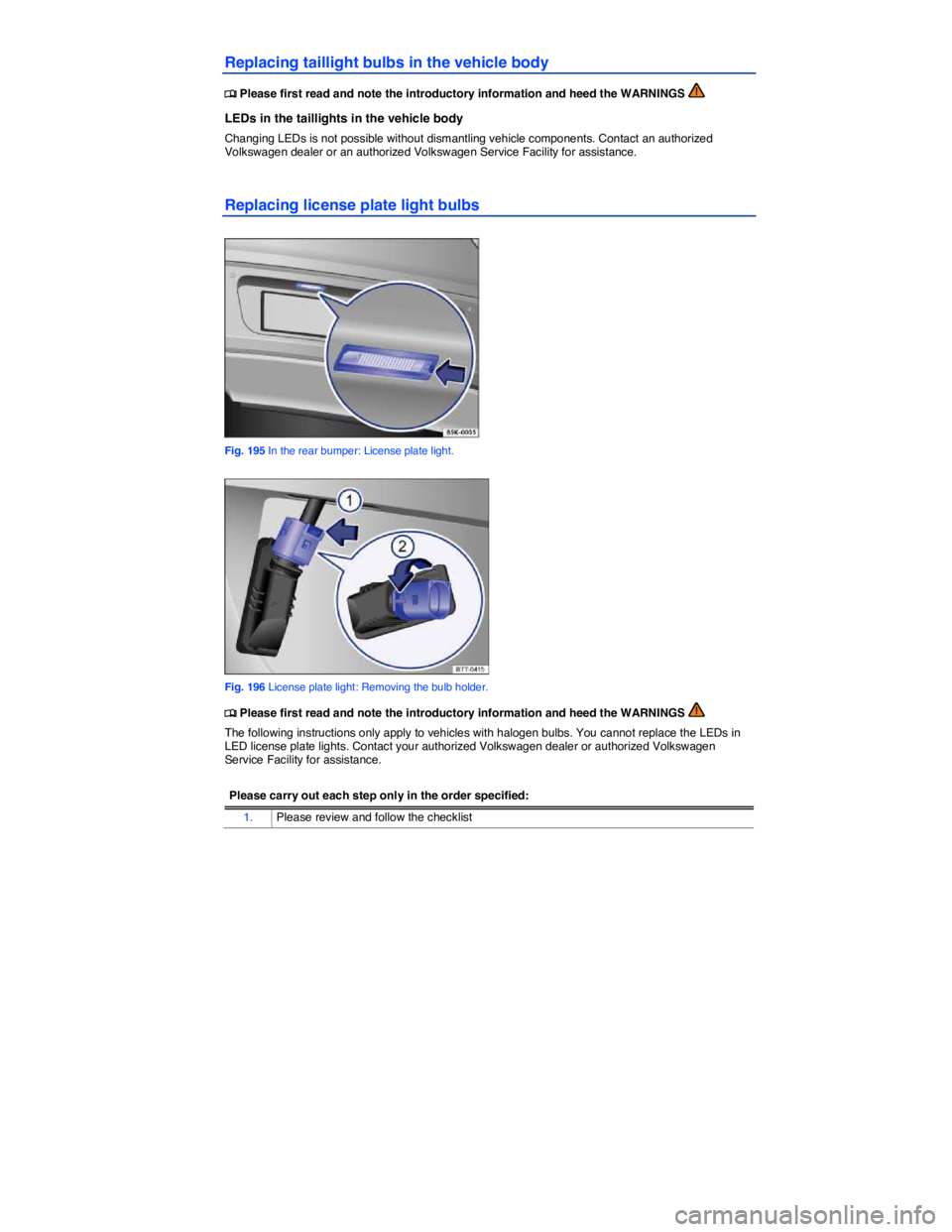

Replacing taillight bulbs in the vehicle body

Please carry out each step only in the order specified:
2. Carefully insert the flat blade of the screwdriver from the vehicle tool kit in the direction of
the arrow into the slot in the license plate light ⇒ fig. 195.
3. Pull the license plate light out slightly.
4. Press the lock on the connector plug in the direction of the arrow ⇒ fig. 196 (1) and pull the connector plug off.
5. Turn the bulb holder in the direction of the arrow (2) and remove it with the bulb.
6. Replace the burned out light bulb with a new bulb of the same type.
7. Insert the bulb holder in the license plate light assembly and turn it counterclockwise in the direction of the arrow (2) until it stops.
8. Plug the connector plug back into the bulb holder.
9. Carefully Insert the license plate light back into the opening in the bumper. Make sure the license plate light is installed in the correct direction.
10. Press the license plate light assembly into the bumper until it latches with an audible “click.”
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
You cannot replace the LEDs in LED license plate lights. Contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility for assistance.
