VOLKSWAGEN ID.4 2020 Owner´s Manual

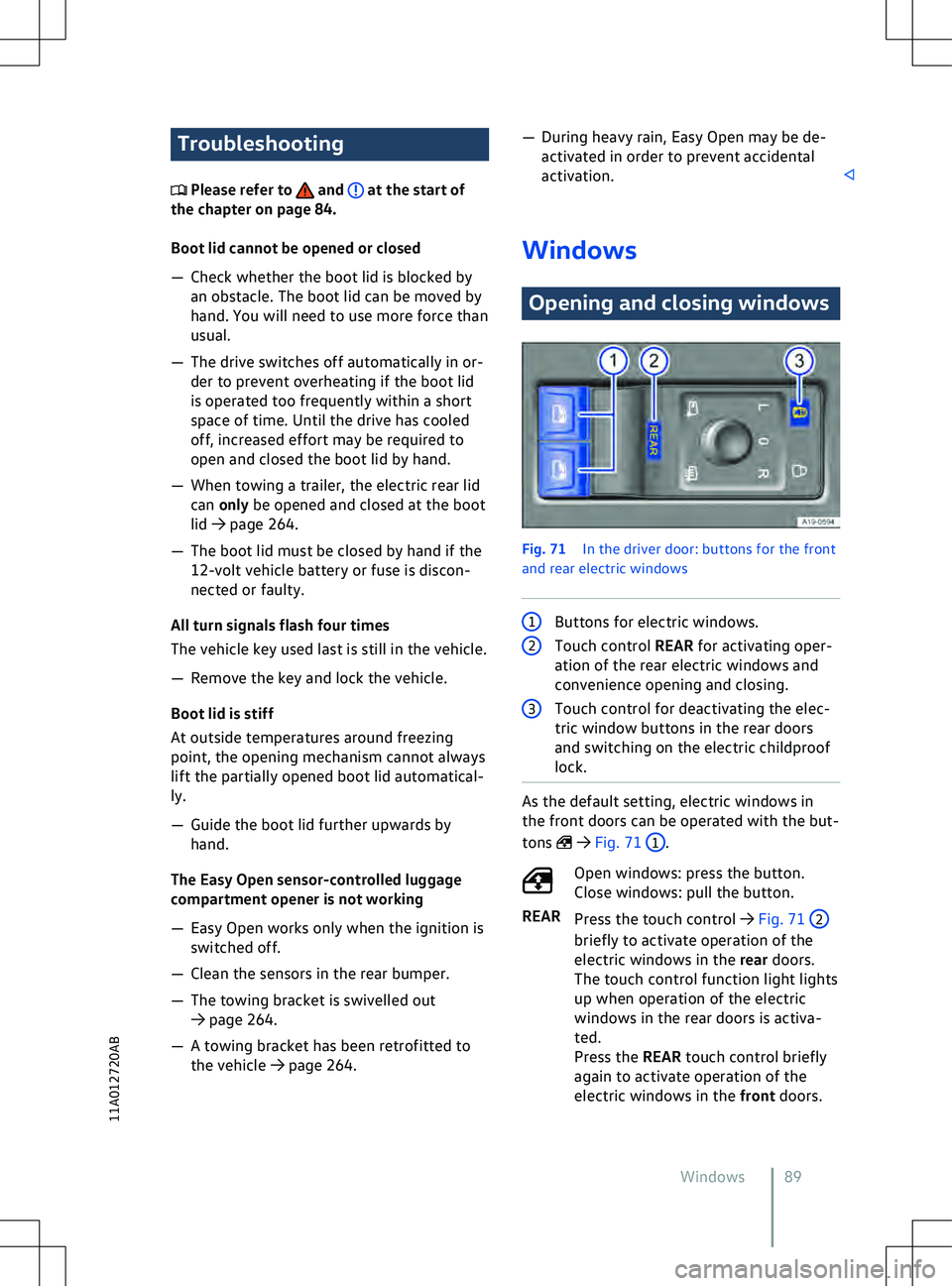

Troubleshooting
Please refer to and at the start of
the chapter on page 84.
Boot lid cannot be opened or closed

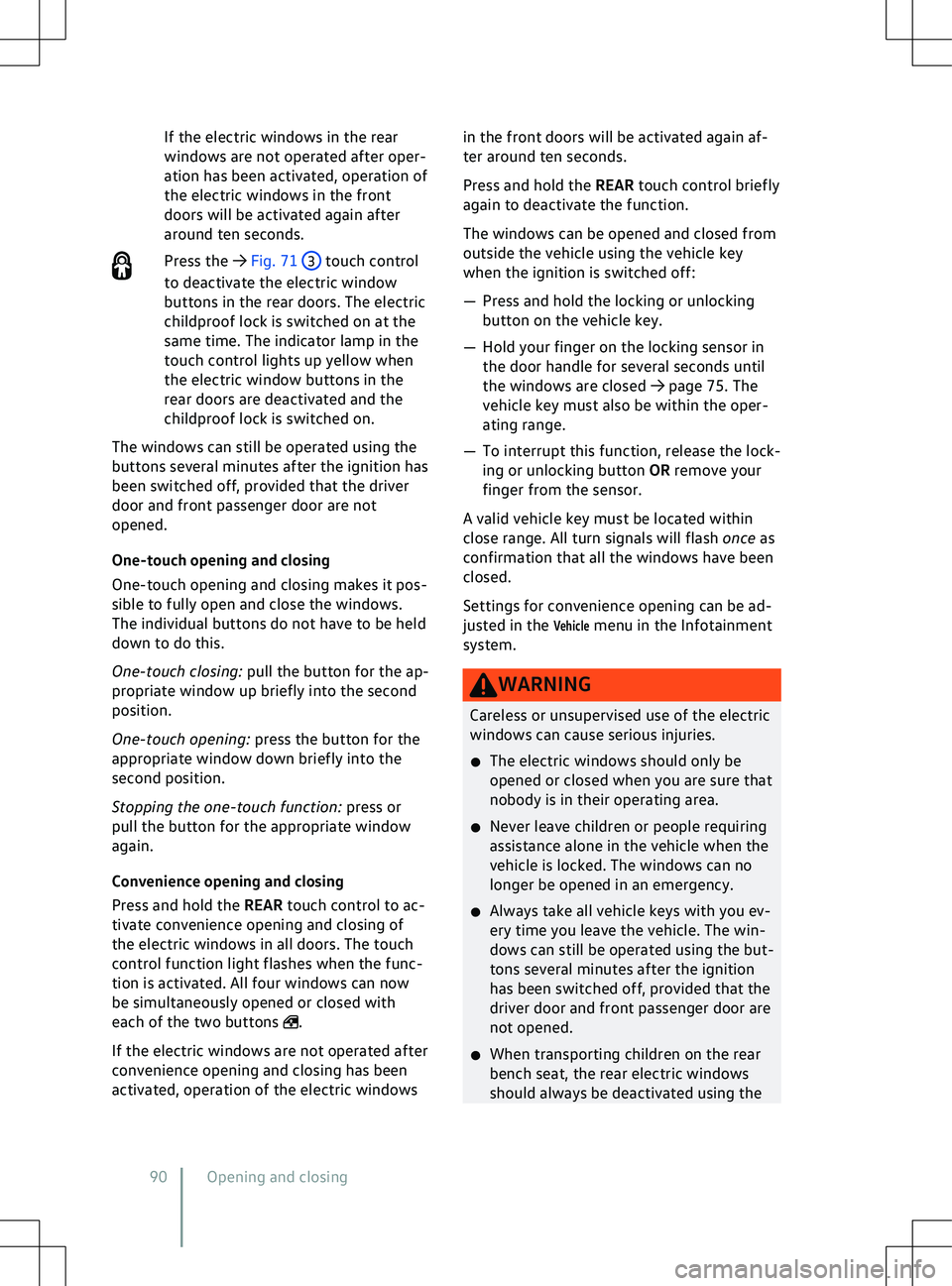

If the electric windows in the rear
windows are not operated after oper-
ation has been activ
ated, operation of
the electric windows in the front
doors will be activated again after
around ten seconds.
Press the

safety button so that they cannot be
opened or closed.

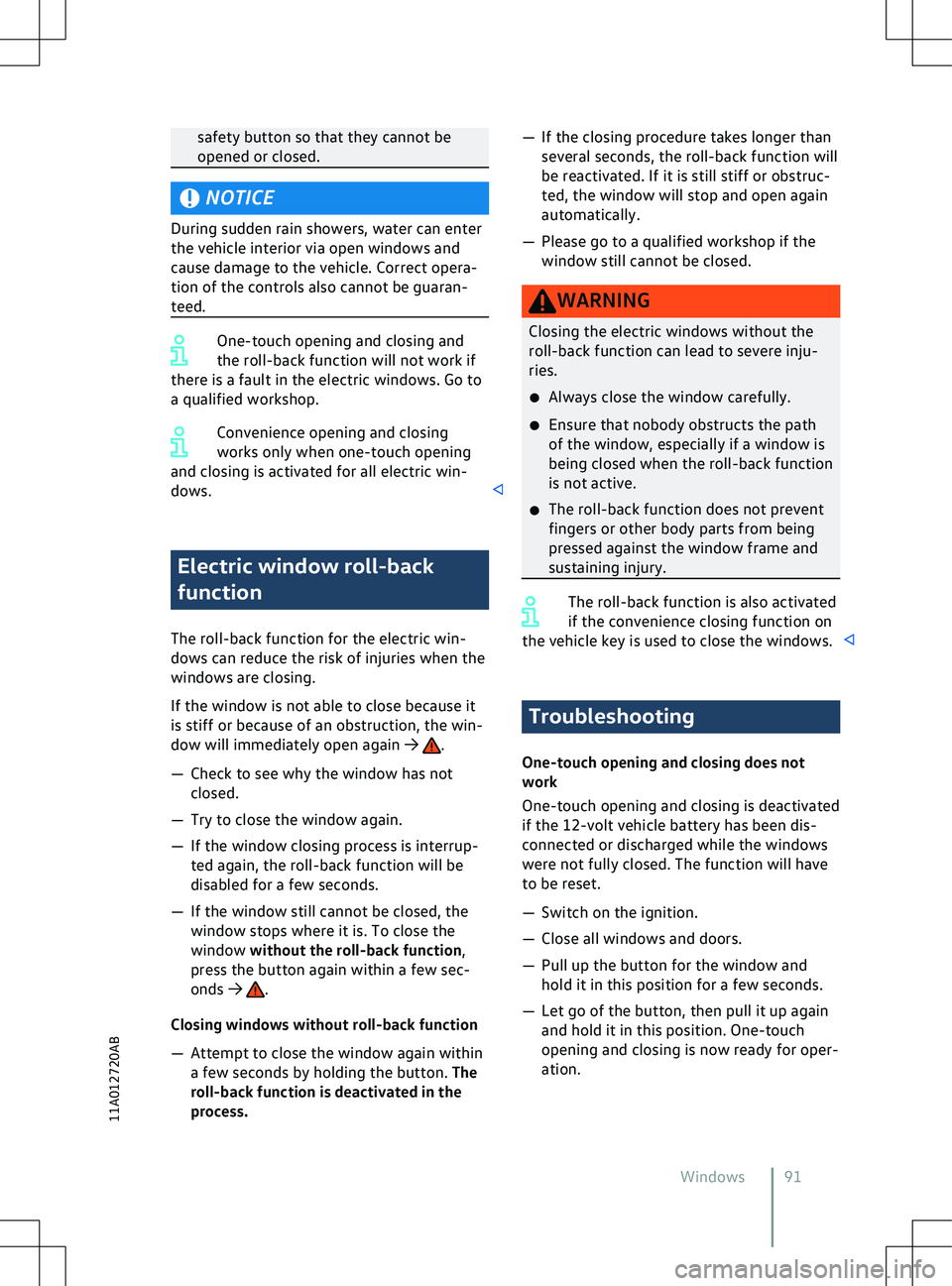

NOTICE
During sudden rain showers, water can enter
the v ehicle interior via open windows and
cause damage to the vehicle. Correct opera-
tion of the controls also cannot be guaran-
teed. One-touch opening and closing and
the roll-back function will not work if
there is a fault in the electric windows. Go to
a qualified workshop.
Con

venience opening and closing
works only when one-touch opening
and closing is activated for all electric win-
dows. Electric window roll-back
function
The roll-back function f

or the electric win-
dows can reduce the risk of injuries when the
windows are closing.
If the window is not able to close because it
is stiff or because of an obstruction, the win-
dow will immediately open again

The one-touch function can be restored for
individual windows or f
or several windows at
the same time.
Touch panels do not react as expected
Moisture, dirt, grease etc. can restrict func-
tioning of the touch panel. Make sure that
the touch panels are always clean and dry. Steering wheel
Adjusting the steering
wheel position Fig. 72
Below the steering wheel in the steer-
ing column trim: le
ver for mechanical adjustment
of the steering wheel position. Fig. 73

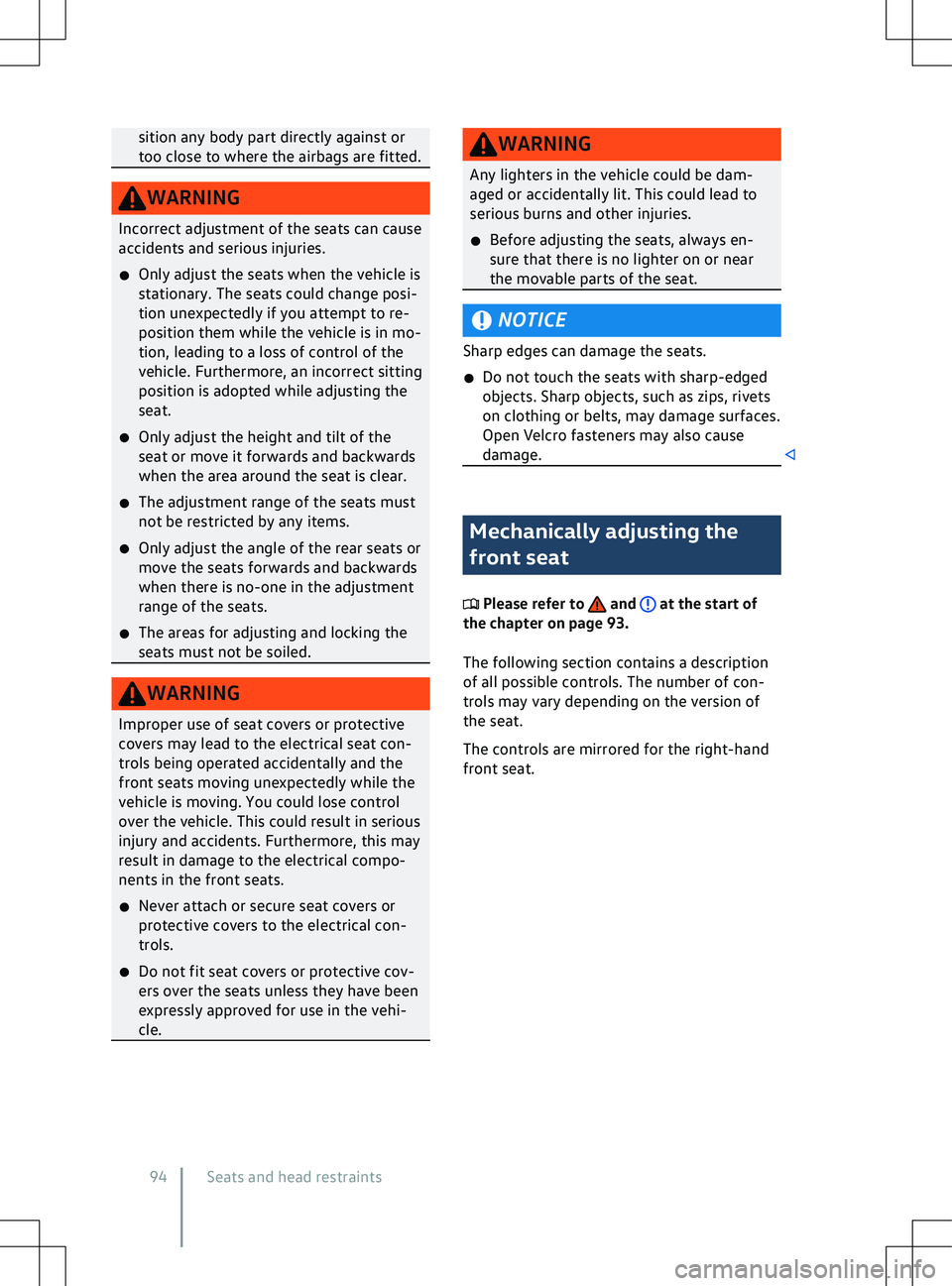

On the steering wheel: 9 o

sition any body part directly against or
too close to where the airbags are fitted.
WARNING
Incorrect adjustment of the seats can cause
accidents and serious injuries.
x Only adjust the seats when the v
ehicle is
stationary. The seats could change posi-
tion unexpectedly if you attempt to re-
position them while the vehicle is in mo-
tion, leading to a loss of control of the
vehicle. Furthermore, an incorrect sitting
position is adopted while adjusting the
seat.
x Only adjust the height and tilt of the
seat or move it forwards and backwards
when the area around the seat is clear.
x The adjustment range of the seats must
not be restricted by any items.
x Only adjust the angle of the rear seats or
move the seats forwards and backwards
when there is no-one in the adjustment
range of the seats.
x The areas for adjusting and locking the
seats must not be soiled. WARNING
Improper use of seat covers or protective
co
vers may lead to the electrical seat con-
trols being operated accidentally and the
front seats moving unexpectedly while the
vehicle is moving. You could lose control
over the vehicle. This could result in serious
injury and accidents. Furthermore, this may
result in damage to the electrical compo-
nents in the front seats.
x Never attach or secure seat covers or
protective covers to the electrical con-
trols.
x Do not fit seat covers or protective cov-
ers over the seats unless they have been
expressly approved for use in the vehi-
cle. WARNING
Any lighters in the vehicle could be dam-
aged or accidentally lit. This could lead to
serious burns and other injuries.
x Bef

ore adjusting the seats, always en-
sure that there is no lighter on or near
the movable parts of the seat. NOTICE
Sharp edges can damage the seats.
x Do not touch the seats with sharp-edged
objects. Sharp objects, such as zips, riv

ets
on clothing or belts, may damage surfaces.
Open Velcro fasteners may also cause
damage. Mechanically adjusting the
front seat
Please refer to and at the start of
the chapter on page 93.
The f

ollowing section contains a description
of all possible controls. The number of con-
trols may vary depending on the version of
the seat.
The controls are mirrored for the right-hand
front seat.
94 Seats and head restraints

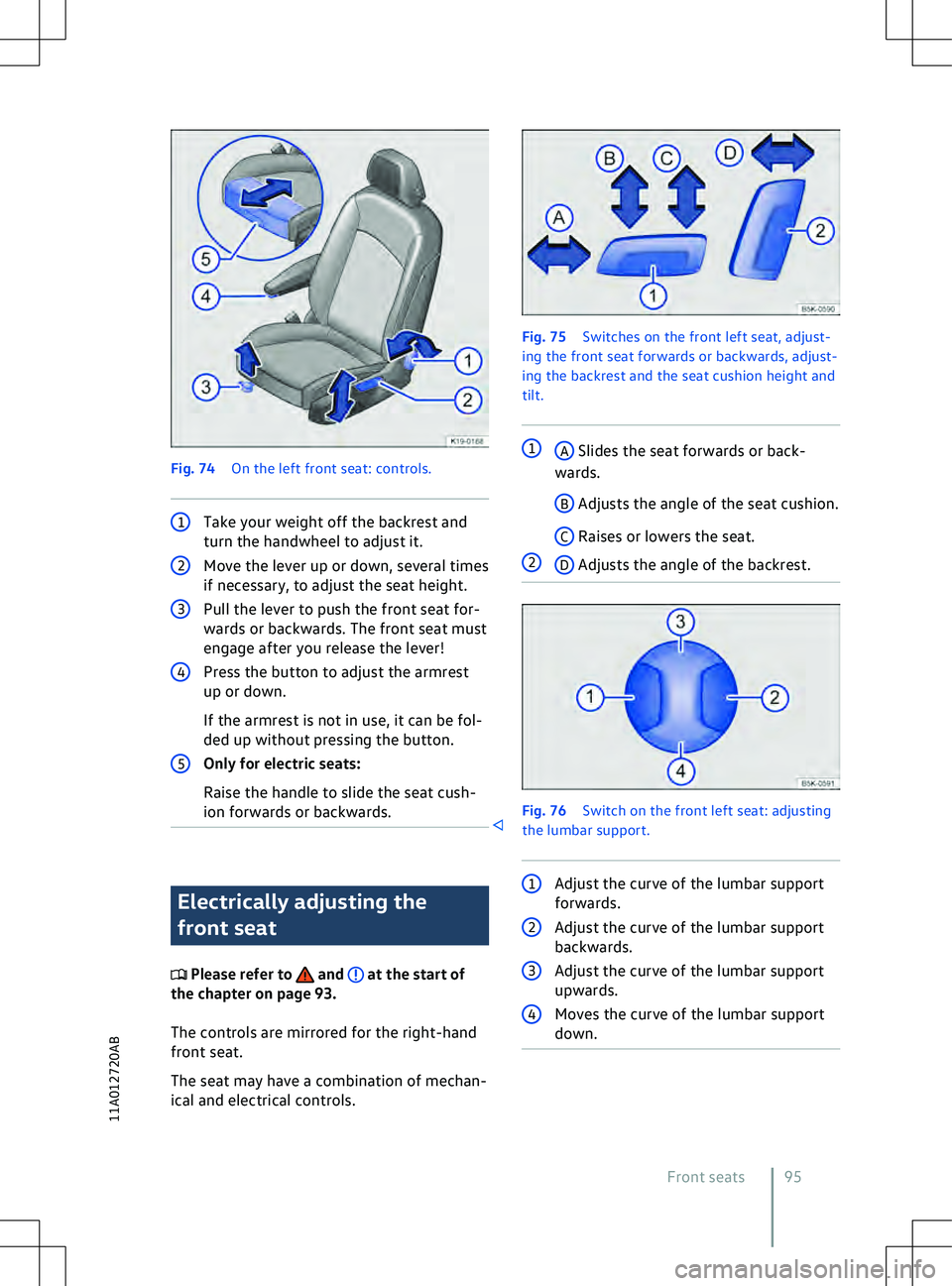

Fig. 74
On the left front seat: controls. 1
Take your weight off the backrest and
turn the handwheel to adjust it. 2
Move the lever up or down, several times
if necessary, to adjust the seat height. 3
Pull the lever to push the front seat for-
wards or backwards. The front seat must
engage after you release the le
ver!4
Press the button to adjust the armrest
up or down.
If the armrest is not in use, it can be f

ol-
ded up without pressing the button. 5
Only for electric seats:
Raise the handle to slide the seat cush-
ion f

orwards or backwards. Electrically adjusting the
front seat
Please refer to and at the start of
the chapter on page 93.
The controls are mirrored f

or the right-hand
front seat.
The seat may have a combination of mechan-
ical and electrical controls. Fig. 75
Switches on the front left seat, adjust-
ing the front seat f
orwards or backwards, adjust-
ing the backrest and the seat cushion height and
tilt. 1
A
Slides the seat forwards or back-
wards. B
Adjusts the angle of the seat cushion. C
Raises or lowers the seat. 2
D
Adjusts the angle of the backrest. Fig. 76
Switch on the front left seat: adjusting
the lumbar support. 1
Adjust the curve of the lumbar support
f

orwards. 2
Adjust the curve of the lumbar support
backwards. 3
Adjust the curve of the lumbar support
upwards. 4
Moves the curve of the lumbar support
down. Front seats 95
11A012720AB

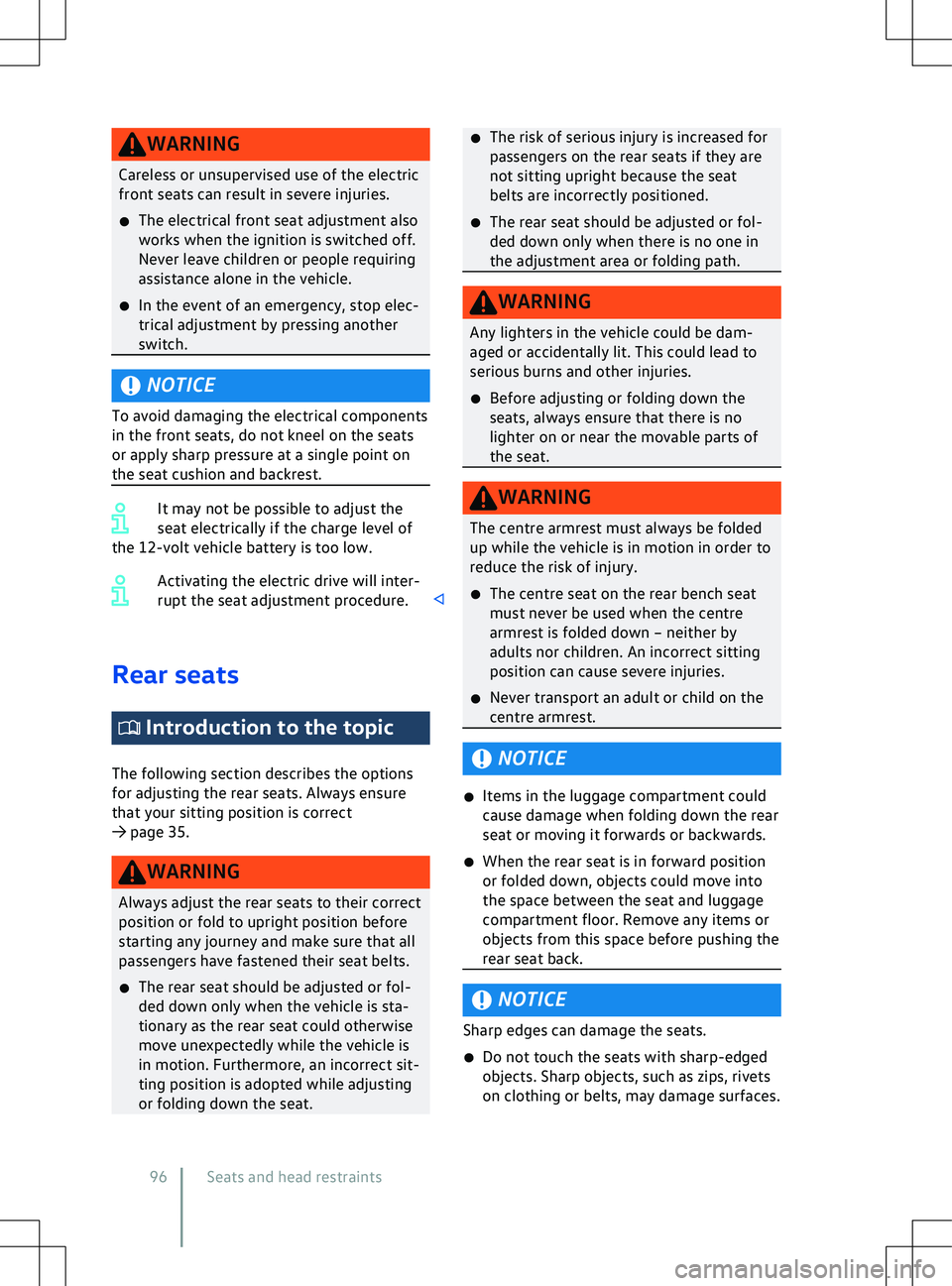

WARNING
Careless or unsupervised use of the electric
front seats can result in se vere injuries.
x The electrical front seat adjustment also
works when the ignition is switched off.
Never leave children or people requiring
assistance alone in the vehicle.
x In the event of an emergency, stop elec-
trical adjustment by pressing another
switch. NOTICE
To avoid damaging the electrical components
in the front seats, do not kneel on the seats
or apply sharp pressure at a single point on
the seat cushion and backrest. It may not be possible to adjust the
seat electrically if the charge le

vel of
the 12-volt vehicle battery is too low.
Activating the electric drive will inter-
rupt the seat adjustment procedure.Rear seats
Introduction to the topic
The f
ollowing section describes the options
for adjusting the rear seats. Always ensure
that your sitting position is correct

Open Velcro fasteners may also cause
damage.

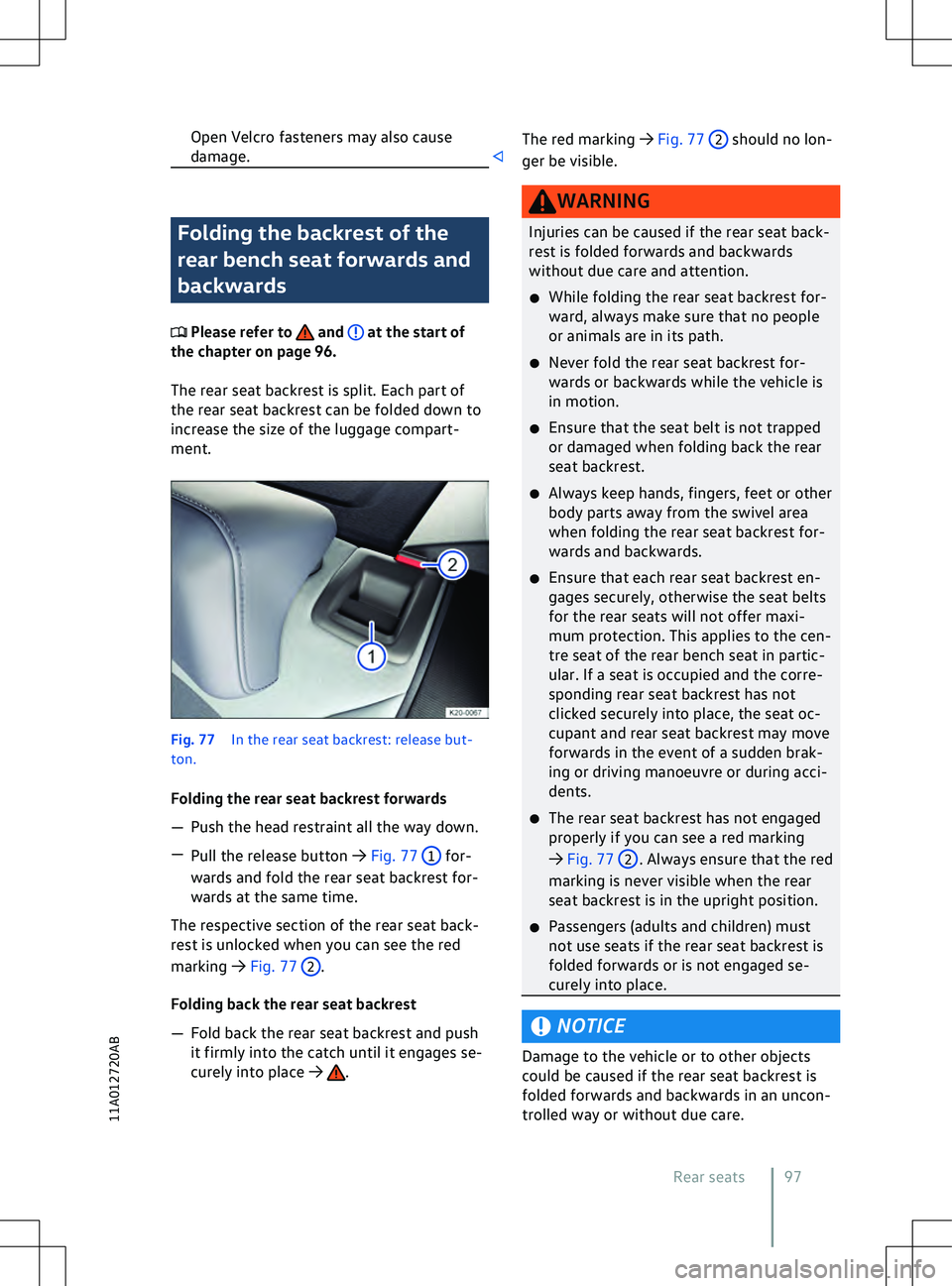

Folding the backrest of the
rear bench seat f
orwards and
backwards Please refer to and at the start of
the chapter on page 96.
The rear seat backrest is split. Each part of
the rear seat backrest can be f

olded down to
increase the size of the luggage compart-
ment. Fig. 77
In the rear seat backrest: release but-
ton.
F

olding the rear seat backrest forwards

x
Bef ore folding the rear seat backrest for-
wards, always adjust the front seats so
that the rear head restraints or rear seat
cushions do impact the front seats.
x Before folding down the rear seat back-
rest, always make sure that there are no

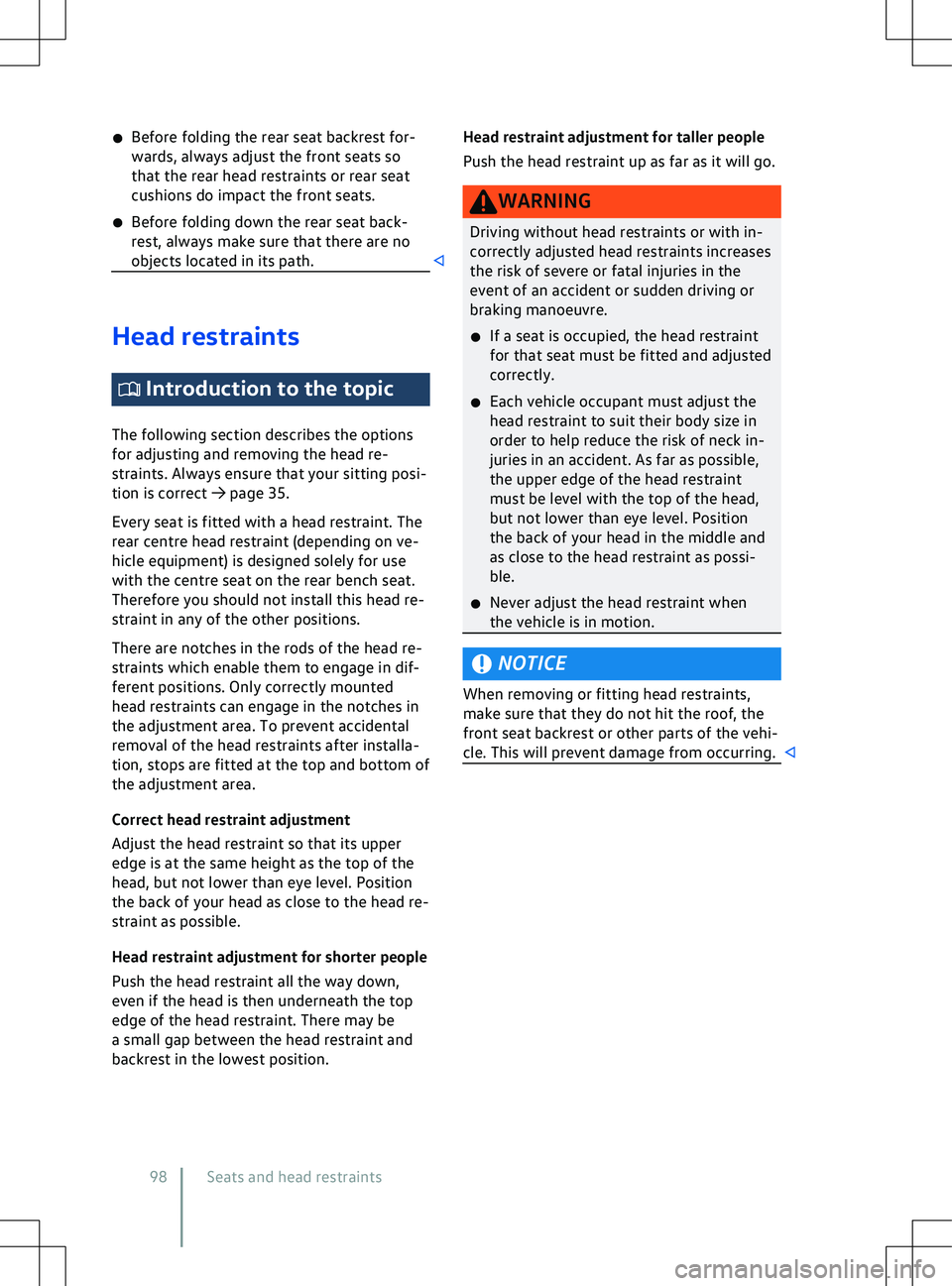

objects located in its path. Head restraints
Introduction to the topic
The f
ollowing section describes the options
for adjusting and removing the head re-
straints. Always ensure that your sitting posi-
tion is correct
