VOLKSWAGEN JETTA 2018 User Guide

Symbols on the roof console and sun visor

Symbol Meaning
* / s   Interior and reading lights
g c Power sunroof

/ a 3-button module for vehicles without Car-NetTM ⇒ Booklet Mobile
Phone Package.
> 3-button module for vehicles with Car-NetTM
1 2 3 HomeLink® Universal Transmitter

Instrument cluster

Fig. 12 Instrument cluster in the instrument panel (version 2).

Displays

Fig. 13 In the instrument cluster display (depending on vehicle equipment): A: Open luggage compartment lid, B: Open front driver side door, C: Open rear passenger side door.

the instrument cluster display (Warning and indicator lights). In some cases, they may also be signaled acoustically. The display can vary depending on the instrument cluster model.

Type of notifica-tion Symbol color Explanation
Priority 1 warning message Red Symbol flashing or lit – sometimes with acoustic warnings.

WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
x Park the vehicle at a safe distance from moving traffic and where no part of the hot cata-lytic converter and exhaust system can come into contact with flammable materials under the vehicle, such as dry grass, brush, spilled fuel, etc.
x A broken down vehicle presents a high accident risk for itself and others. Switch on emergency flashers and set up a warning triangle to warn oncoming traffic.
WARNING
Roads and bridges may be dangerously icy even if the outside air temperature is above freez-ing.
x If you use the outside temperature display to tell you about frost conditions, remember that roads can even ice over at temperatures above +39 °F (+4 °C). Always remember: even if the “snowflake symbol” is not displayed, there could still be black ice on the road.
x Never rely exclusively on the outside temperature display.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
The instrument cluster displays and their arrangement may vary depending on the vehicle model and engine. For displays without warning and information messages, malfunctions are only signaled with indicator lights.
If there are multiple warning messages, the symbols are displayed for several seconds in order of importance. The symbols are displayed until the cause has been corrected.

Volkswagen Information System

Emergency starting and starting the engine with a very weak vehicle battery or after the vehicle battery has been replaced may change or delete system settings (including time, date, and program-ming). Check the settings and correct as necessary once the vehicle battery has built up a sufficient charge.
Menu structure – overview (Basic version)

▪ Front Assist
Vehicle status
Settings
▪ Assistants
– AFS
– Blind Spot
– Front Assist
– Back
▪ Language
▪ MFI data
– Travel time
– Curr. consum. (current fuel consumption)
– Av. consum. (average fuel consumption)
– Route
– Av. speed
– Digit. speed (digital speed display)
– Oil temp. (Oil temperature)
– Speed warn. (speed warning)
– Back
▪ Lights & Vision
– Coming Home
– Leaving Home
– Back
▪ Time
– Hours
– Minutes
– 24 hr. mode
– Daylight save
– Back
▪ Snow tires (winter tires)
– On
– + 5 mph
– - 5 mph
– Back
▪ Units
– Temperature
– Consump./dist.
– Back
▪ Service
– Info
– Back
▪ Factory setting

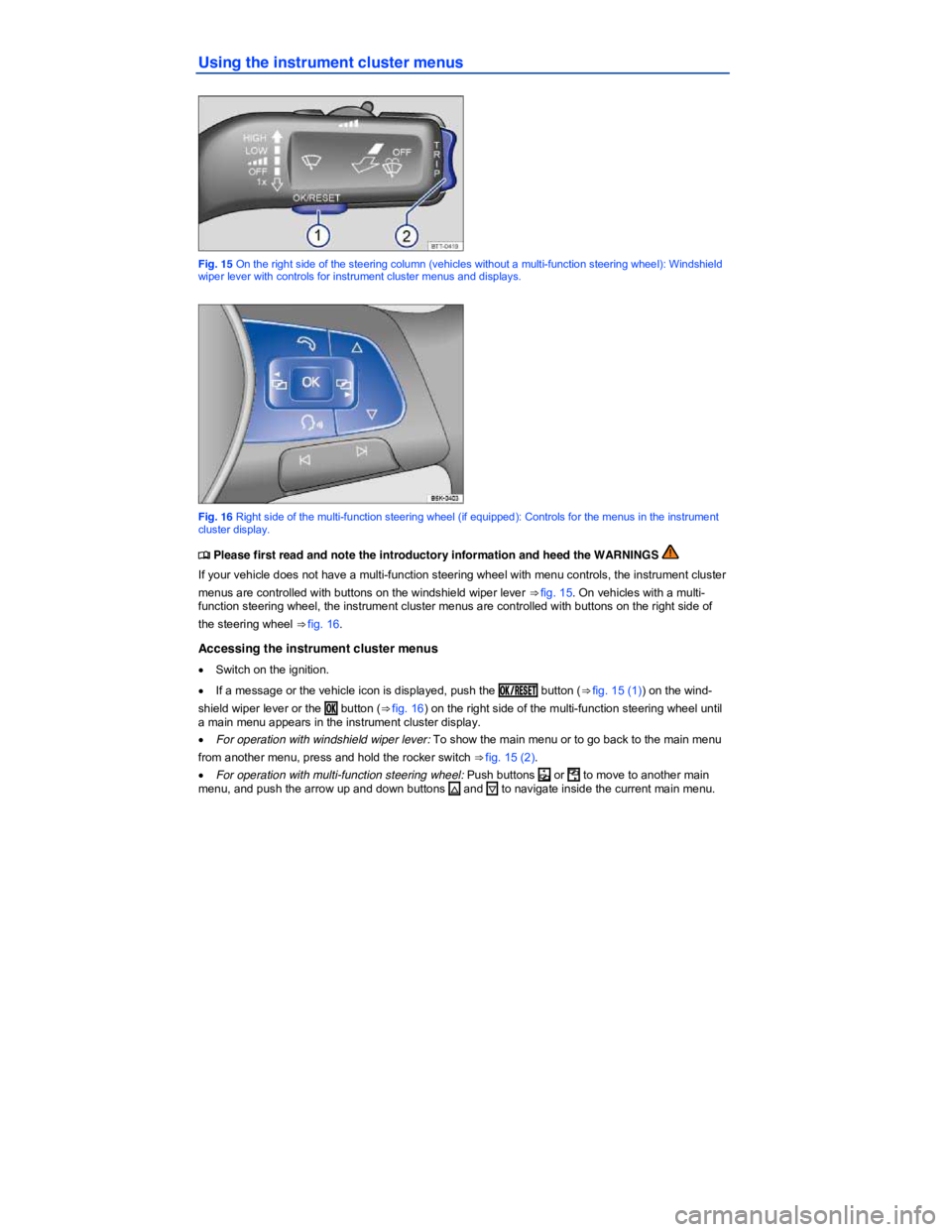

Using the instrument cluster menus

Fig. 15 On the right side of the steering column (vehicles without a multi-function steering wheel): Windshield wiper lever with controls for instrument cluster menus and displays.

Fig. 16 Right side of the multi-function steering wheel (if equipped): Controls for the menus in the instrument cluster display.
