VOLKSWAGEN JETTA SPORTWAGEN 2013 1B / 6.G Owners Manual

NOTICE
Always make sure that the pedals are able to move freely and that nothing can interfere with
them. If a brake circuit fails, more brake pedal travel will be needed to bring the vehicle to a
stop. The brake pedal must be pressed farther and harder than normal.

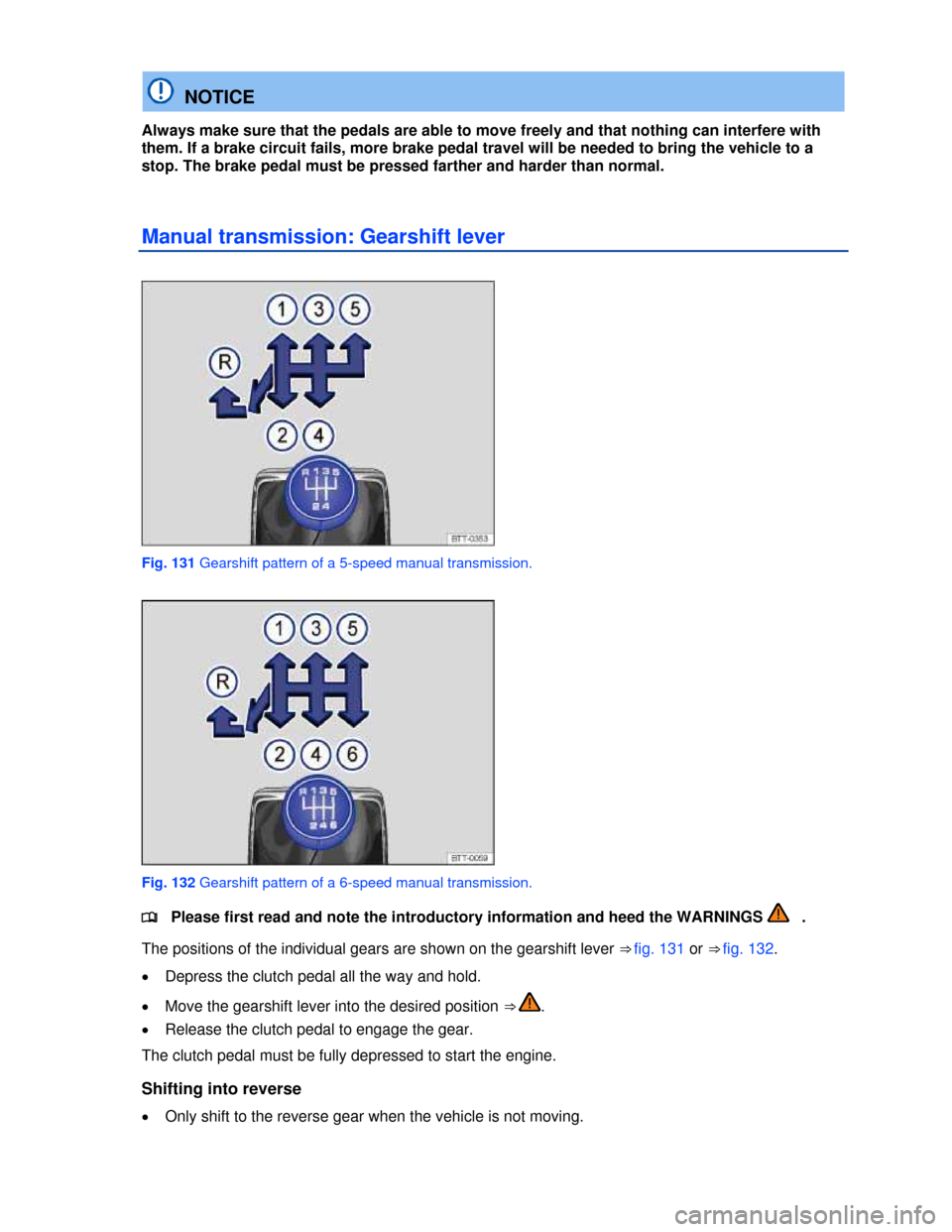

Manual transmission: Gearshift lever

Fig. 131 Gearshift pattern of a 5-speed manual transmission.

Fig. 132 Gearshift pattern of a 6-speed manual transmission.

x Depress the clutch pedal fully and hold ⇒ .
x Move the gearshift lever to neutral and press down.
x Move the shift lever to the left and then push forward into the reverse gear position ⇒ fig. 131 (R)
or ⇒ fig. 132 (R).
x Release the clutch pedal to engage the gear.
Downshifting
You should always downshift gear by gear when driving, meaning always into the next lowest gear. Do
not downshift when the engine rpm (revolutions per minute) is too high ⇒ . At fast speeds or high
engine rpm, skipping over one or more gears when downshifting can cause damage to the clutch and
transmission, even if a gear is not engaged ⇒ .
WARNING
Downshifting to a lower gear incorrectly can result in loss of vehicle control and can cause
accidents and serious personal injuries.
WARNING
When the engine is running and a gear is engaged, the vehicle will start to move as soon as
the clutch pedal is released, even when the parking brake is applied. This also applies when
the parking brake is engaged.
x Never shift into reverse when the vehicle is moving.
NOTICE
Shifting down to a gear that is too low when driving at fast speeds or high engine rpm can
cause extensive damage to the clutch and transmission. That is true even if the clutch pedal is
pressed so that the clutch is not engaged.
NOTICE
To help prevent damage and premature wear:
x Do not rest your hand on the gearshift lever while driving. Over time, the pressure will
cause premature wear in the transmission.
x Make sure that the vehicle has come to a complete stop before shifting into reverse.
x Always depress the clutch pedal all the way when changing gears.
x Do not hold the vehicle on a hill using engine power with the clutch pedal partially engaged
and the engine running.

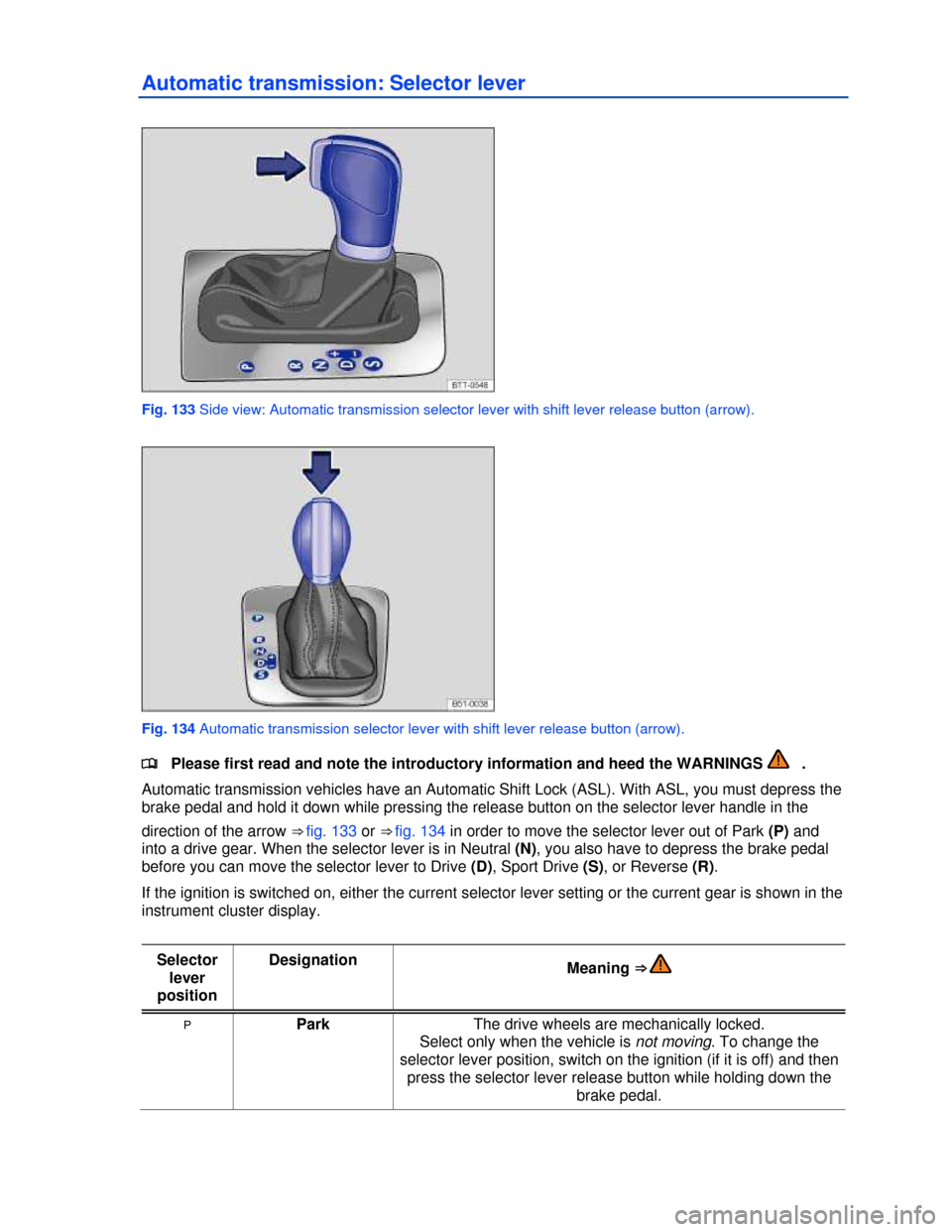

Automatic transmission: Selector lever

Fig. 133 Side view: Automatic transmission selector lever with shift lever release button (arrow).

Fig. 134 Automatic transmission selector lever with shift lever release button (arrow).

Selector
lever
position
Designation Meaning ⇒ 
R Reverse The reverse gear is engaged.
Shift into Reverse only when the vehicle is not moving.
N Neutral Transmission is in Neutral position. No power is transmitted to
the wheels and no engine braking is available.
D Drive (standard
driving position)
All forward gears shift up and down automatically. The
transmission shifts as needed depending on engine load,
individual driving style, and vehicle speed.
S Sport Drive (Sport
driving position)
All forward gears automatically upshift later and downshift
earlier than in the D (Drive) position, to take full advantage of
the engine's power reserves. The transmission shifts as needed
depending on engine load, individual driving style, and vehicle
speed.

Automatic Shift Lock (ASL)
The Automatic Shift Lock (ASL) in Park (P) and Neutral (N) prevents drive positions from being
engaged inadvertently, which would cause the vehicle to move.
To release the ASL, depress and hold the brake pedal with the ignition switched on. Press the release
button on the selector lever at the same time.
The ASL is not engaged if the selector lever is moved quickly through Neutral (N) (e.g., when shifting
from Reverse (R) to Drive (D)). This makes it possible to “rock” the vehicle backwards and forwards if
it is stuck in snow or mud. The ASL engages automatically if the brake pedal is not depressed and the
lever is in Neutral (N) for more than about 1 second and the vehicle is traveling no faster than about
3 mph (5 km/h).
In rare cases, the ASL may not engage on vehicles with DSG® Direct Shift Gearbox. If this happens,
power to the drive wheels will be interrupted to prevent the vehicle from moving unexpectedly. The
green indicator light k will blink and a text message will be displayed. To engage the Automatic Shift
Lock (ASL):
x Depress and then release the brake pedal. Try to engage the ASL again.
WARNING
Moving the selector lever to the wrong position can cause loss of vehicle control, a collision,
and serious personal injury.
x Never accelerate when moving the selector lever.
x When the engine is running and a drive position is engaged, the vehicle will start to move
as soon as the brake pedal is released.
x Never shift into Reverse or Park when the vehicle is moving.

WARNING
Unintended vehicle movement can cause serious personal injury.
x Never get out of the driver's seat while the engine is running, especially when the
transmission is in a drive gear. If you must leave your vehicle while the engine is running,
always set the parking brake and shift the transmission into Park (P).
x Never leave the vehicle in Neutral (N). It will roll down hills, whether the engine is running
or not.
x When the engine is running and a drive gear - Drive (D), Sport Drive (S), or Reverse (R) -
has been selected, press and hold the brake pedal to keep the vehicle from moving. The
vehicle may “creep” and move forward or backward even if the engine is idling slowly.
x Never shift into Reverse (R) or Park (P) when the vehicle is moving.
NOTICE
Even though the transmission is in Park (P), the vehicle may move a couple of inches (a few
centimeters) forwards or backwards if you take your foot off the brake pedal after stopping the
vehicle without first setting the parking brake.
If the selector lever is moved into Neutral (N) by mistake when the vehicle is moving, take your
foot off the accelerator pedal. Wait until the engine speed has dropped to idle speed before moving
the selector lever into a drive gear.
Leaving the selector lever for a long period of time in any position other than Park (P) when the
ignition is switched off can drain the vehicle battery.

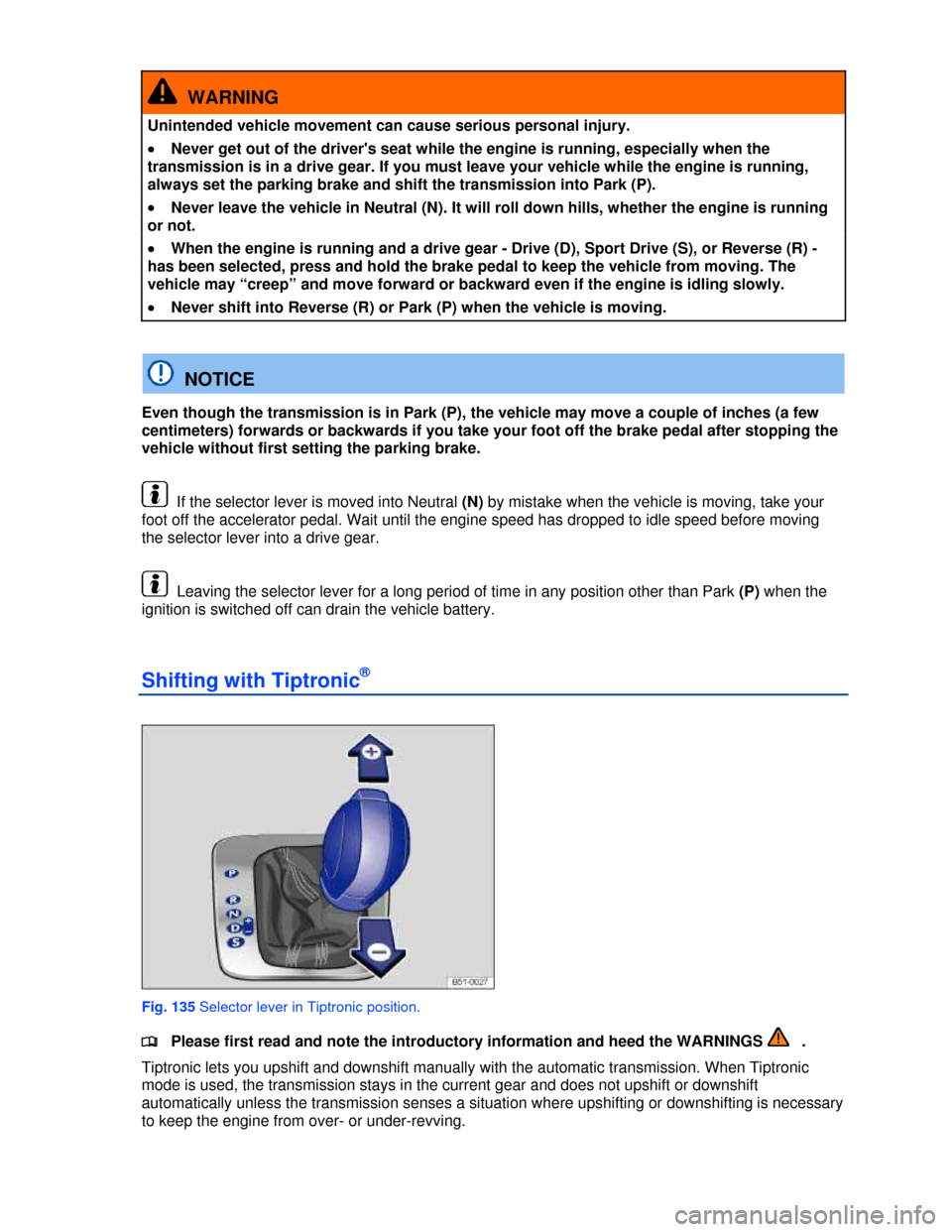

Shifting with Tiptronic®

Fig. 135 Selector lever in Tiptronic position.

Using Tiptronic with the selector lever
x Push the selector lever sideways to the right from Drive (D) position into the Tiptronic position
⇒  in Automatic transmission: Selector lever .
x Briefly push the selector lever forward (+) to upshift into a higher gear or backward (–) to downshift
into a lower gear ⇒ fig. 135.
NOTICE
x During acceleration, the transmission will shift automatically into the next higher gear
before reaching maximum engine speed (rpm).
x If you use Tiptronic to shift into a lower gear, the transmission will downshift only when
doing so will not over-rev the engine.
Driving with automatic transmission

WARNING
Rapid acceleration can cause skidding and loss of traction, especially on slippery roads,
resulting in a loss of vehicle control, collisions, and serious personal injury.
x Only use the kick-down feature or fast acceleration if visibility, weather, road, and traffic
conditions permit and other drivers will not be endangered by your driving and the vehicle's
acceleration.
x Always adapt your driving to the traffic flow.
x Note that the drive wheels can spin and the vehicle can swerve when ASR is switched off,
especially when the road is slippery.
x Once you have accelerated, switch ASR back on again.
NOTICE
x When stopping on hills with the transmission in a drive gear, do not use the accelerator to
help prevent the vehicle from rolling backwards. This can cause the automatic transmission to
overheat and be damaged.
x Never let the vehicle coast or roll down a hill in Neutral (N), especially when the engine is
not running. The transmission will not be lubricated and will be damaged.
Automatic transmission malfunction

NOTICE
x As soon as you get any of these warnings about transmission overheating, you must either
park the vehicle in a safe place or drive faster than 12 mph (20 km/h).
x If the text message and acoustic warning repeat themselves every 10 seconds or so, you
must park the vehicle in a safe place as soon as you can safely do so and stop the engine. Let
the transmission cool down.
x To help prevent damage to the transmission, do not drive the vehicle again until the
acoustic warning has stopped. As long as the engine is overheated, avoid stop and start
driving and avoid low speeds (“walking pace”).

Braking, stopping, and parking

WARNING
Parking improperly can cause serious personal injury.
x Never remove the key from the ignition switch while the vehicle is moving or rolling to a
stop. The steering wheel will lock and you will not be able to steer or control the vehicle.
x Never park the vehicle where the hot exhaust system or catalytic converter could ignite
flammable materials, such as brush, leaves, dry grass, spilled fuel, etc.
x Always apply the parking brake when parking your vehicle.
x Improper use of the parking brake can seriously injure you and your passengers.
x Never use the parking brake to slow down the vehicle when it is moving, except in an
emergency. The stopping distance is much longer because only the rear wheels are braked.
Always use the foot brake to stop the vehicle.
x Never activate the throttle manually from the engine compartment when the engine is
running and the automatic transmission is in gear. The vehicle will start to move as soon as
the engine speed increases even if the parking brake is on.
x Never leave children or anyone who cannot help themselves behind in the vehicle. They
could release the parking brake and move the gear selector lever or gear shift, which could
cause the vehicle to start moving. This can lead to a crash and serious personal injuries.
x Always take the key with you when you leave the vehicle. The engine can be started and
vehicle systems such as the power windows can be operated, leading to serious personal
injury.
x Never leave children, disabled persons, or anyone who cannot help themselves in the
vehicle. The doors can be locked with the remote control vehicle key, trapping passengers in
the vehicle in an emergency. For example, depending on the time of year, people trapped in
the vehicle can be exposed to very high or very low temperatures.
x Heat build-up in the passenger and luggage compartment of a parked vehicle can result in
temperatures in the vehicle that are much higher than the outside temperatures, particularly
in summer. Temperatures can quickly reach levels that can cause unconsciousness and
death, particularly to small children.
NOTICE
x Always be careful when you park in areas with parking barriers or high curbs. These vary in
height and could damage your bumper and related parts if the front of your vehicle hits a
barrier or curb that is too high while you are getting into or out of a parking spot. To help
prevent damage, stop before the tires of your vehicle touch a parking barrier or curb.
x Always be careful when you enter a driveway or drive up or down steep ramps or over
curbs or other obstacles. Parts of the vehicle close to the ground may be damaged (such as
bumper covers, spoilers, and parts of the engine, suspension, and exhaust systems).
Warning and indicator lights
