sensor VOLKSWAGEN PASSAT 1995 B3, B4 / 3.G Service Owner's Manual

Downloaded from www.Manualslib.com manuals search engine 46-16

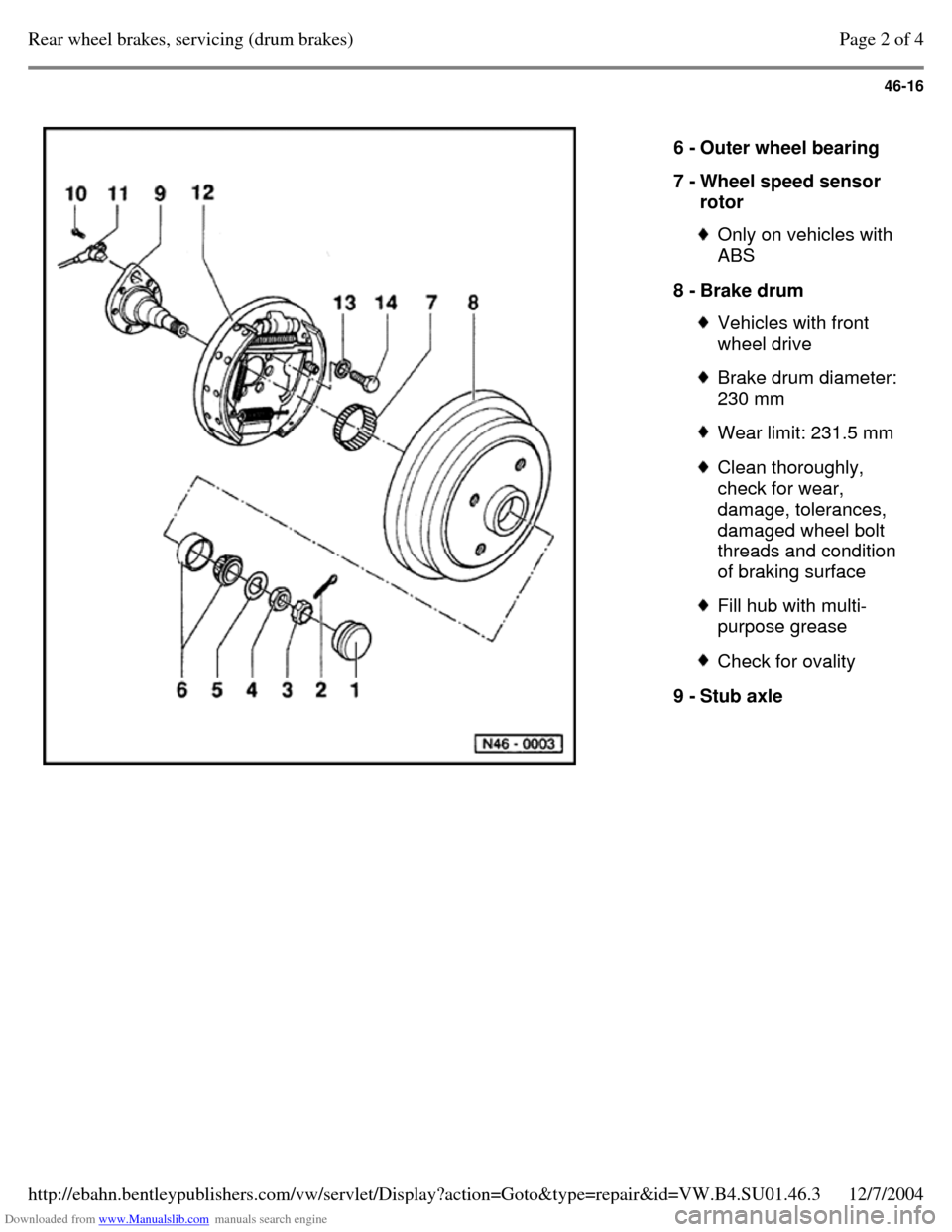

6 - Outer wheel bearing
7 - Wheel speed sensor
rotor Only on vehicles with
ABS
8 - Brake drum Vehicles with front
wheel drive Brake drum diameter:
230 mm Wear limit: 231.5 mm Clean thoroughly,
check for wear,
damage, tolerances,
damaged wheel bolt
threads and condition
of braking surface Fill hub with multi-
purpose grease Check for ovality 9 - Stub axle Page 2 of 4Rear wheel brakes, servicing (drum brakes)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.3

Downloaded from www.Manualslib.com manuals search engine 46-17

10 - Hex socket head bolt,
10 Nm (7 ft lb)
11 - Wheel speed sensor Only on vehicles with
ABS Insert with lubricating
paste, G 000 650
12 - Backing plate with
brake shoes Release adjustment
before removing brake
drum Page 46-18 13 - Dished washer Large contact surface
faces back plate
14 - Hex bolt, 60 Nm (44 ft
lb) Page 3 of 4Rear wheel brakes, servicing (drum brakes)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.3

Downloaded from www.Manualslib.com manuals search engine 46-20

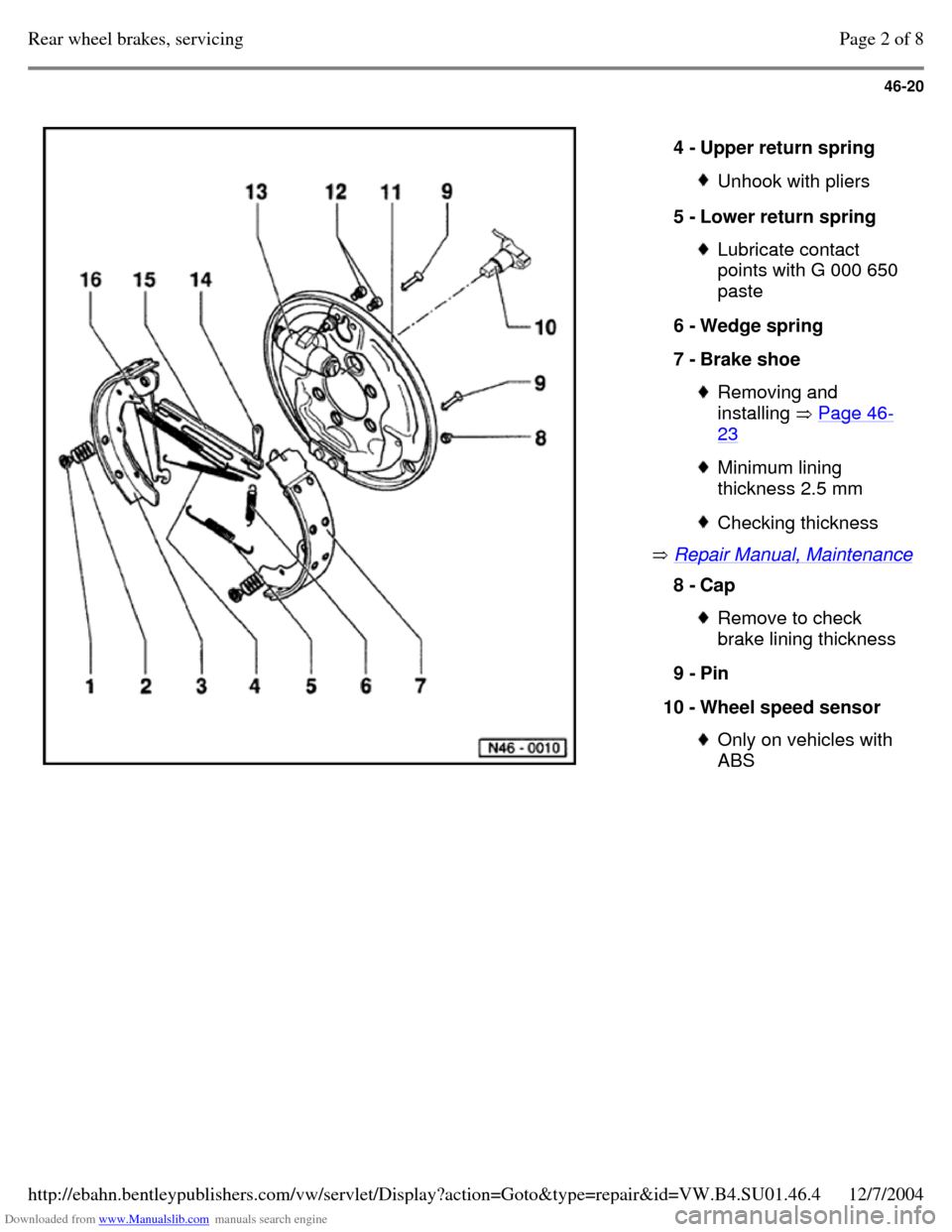

Repair Manual, Maintenance 4 - Upper return spring Unhook with pliers 5 - Lower return spring Lubricate contact
points with G 000 650
paste
6 - Wedge spring
7 - Brake shoe Removing and
installing Page 46-23 Minimum lining
thickness 2.5 mm Checking thickness 8 - Cap Remove to check
brake lining thickness
9 - Pin
10 - Wheel speed sensor Only on vehicles with
ABS Page 2 of 8Rear wheel brakes, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.4

Downloaded from www.Manualslib.com manuals search engine 46-27

Rear wheel brakes,
servicing (disc
brakes)

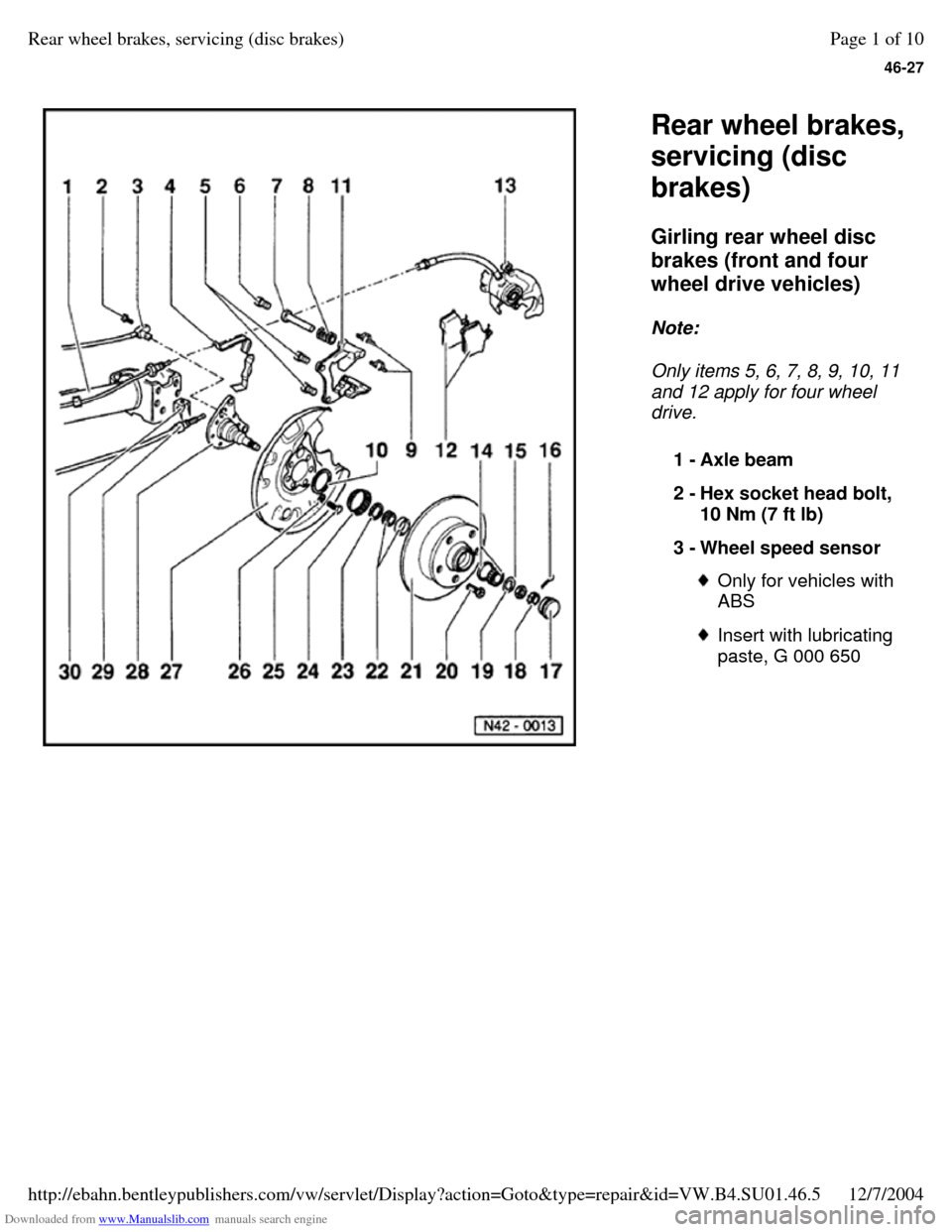

Girling rear wheel disc
brakes (front and four
wheel drive vehicles)
Note:
Only items 5, 6, 7, 8, 9, 10, 11
and 12 apply for four wheel
drive.
1 - Axle beam
2 - Hex socket head bolt,
10 Nm (7 ft lb)
3 - Wheel speed sensor Only for vehicles with
ABS Insert with lubricating
paste, G 000 650 Page 1 of 10Rear wheel brakes, servicing (disc brakes)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.5

Downloaded from www.Manualslib.com manuals search engine 46-32

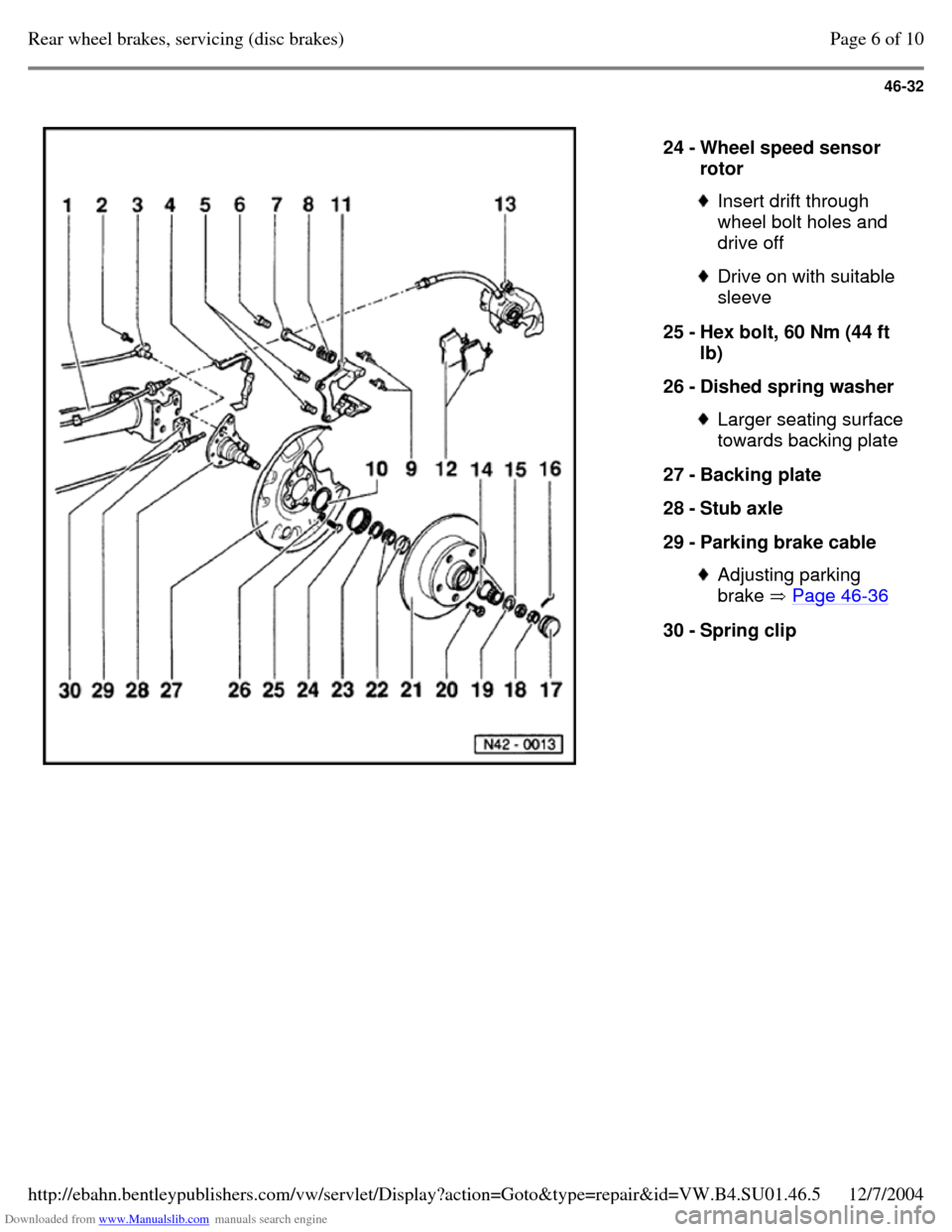

24 - Wheel speed sensor
rotor Insert drift through
wheel bolt holes and
drive off Drive on with suitable
sleeve
25 - Hex bolt, 60 Nm (44 ft
lb)
26 - Dished spring washer Larger seating surface
towards backing plate
27 - Backing plate
28 - Stub axle
29 - Parking brake cable Adjusting parking
brake Page 46-36 30 - Spring clip Page 6 of 10Rear wheel brakes, servicing (disc brakes)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.46.5
