Downloaded from www.Manualslib.com manuals search engine Rear axle, servicing (four wheel drive vehicles)
Rear drive shafts, servicing
Reworking cap nut in side member (four wheel drive vehicles)
Suspension strut, disassembling and assembling (four wheel drive
vehicles)
Wheel bearings, servicing - disc brakes (four wheel drive vehicles)
44 - Wheels, Tires, Wheel alignment
Vehicle alignment
Test requirements:
Vehicle alignment specifications (front wheel drive vehicles)
Vehicle alignment specifications (four wheel drive vehicles)
Front wheel camber, adjusting
Calculating the direction of travel:
45 - Anti-lock brake system
Anti-locking Brake System (ABS) and Anti-locking Brake System with
Electronic Differential Lock (ABS/EDL) Teves 04
Notes for repair work on ABS, ABS/EDL
Control module, removing and installing
Wheel speed sensor and rotor for speed sensor, removing and installing
Anti-lock Brake System (ABS) and ABS with Electronic Differential Lock
(ABS/EDL), Teves 20 GI
Safety precautions
ABS, ABS/EDL hydraulic unit, vacuum brake booster and brake master
cylinder (Teves 20 GI), servicing
ABS hydraulic unit and ABS control module (Teves 20 GI), removing and
installing
Brake hydraulic system, bleeding and filling
Assembly overview - hydraulic unit, brake servo/brake master cylinder
Hydraulic unit, removing and installing
Brake Pedal Position Sensor, removing and installing
46 - Brakes - Mechanical components
Front brakes, servicing (Girling caliper)
Brake pads, removing and installing

Page 30 of 369

Downloaded from www.Manualslib.com manuals search engine 40-16

6 - Speed sensor rotor  Only on vehicles with
ABS
7 - Hex bolt, 10 Nm (7 ft lb) 8 - Splash plate
9 - Circlip  Ensure correctly
seated
10 - Wheel bearing  Pressing out  Fig. 6  Replace, as it is
destroyed during
pressing out  Pressing in  Fig. 7 11 - Self-locking hex nut, 35 Nm (26 ft lb)
12 - Wheel bearing housing 13 - Self-locking hex nut, 50 Nm (37 ft lb)
14 - Hex bolt  Clamping bolt for ball
joint Page 16 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

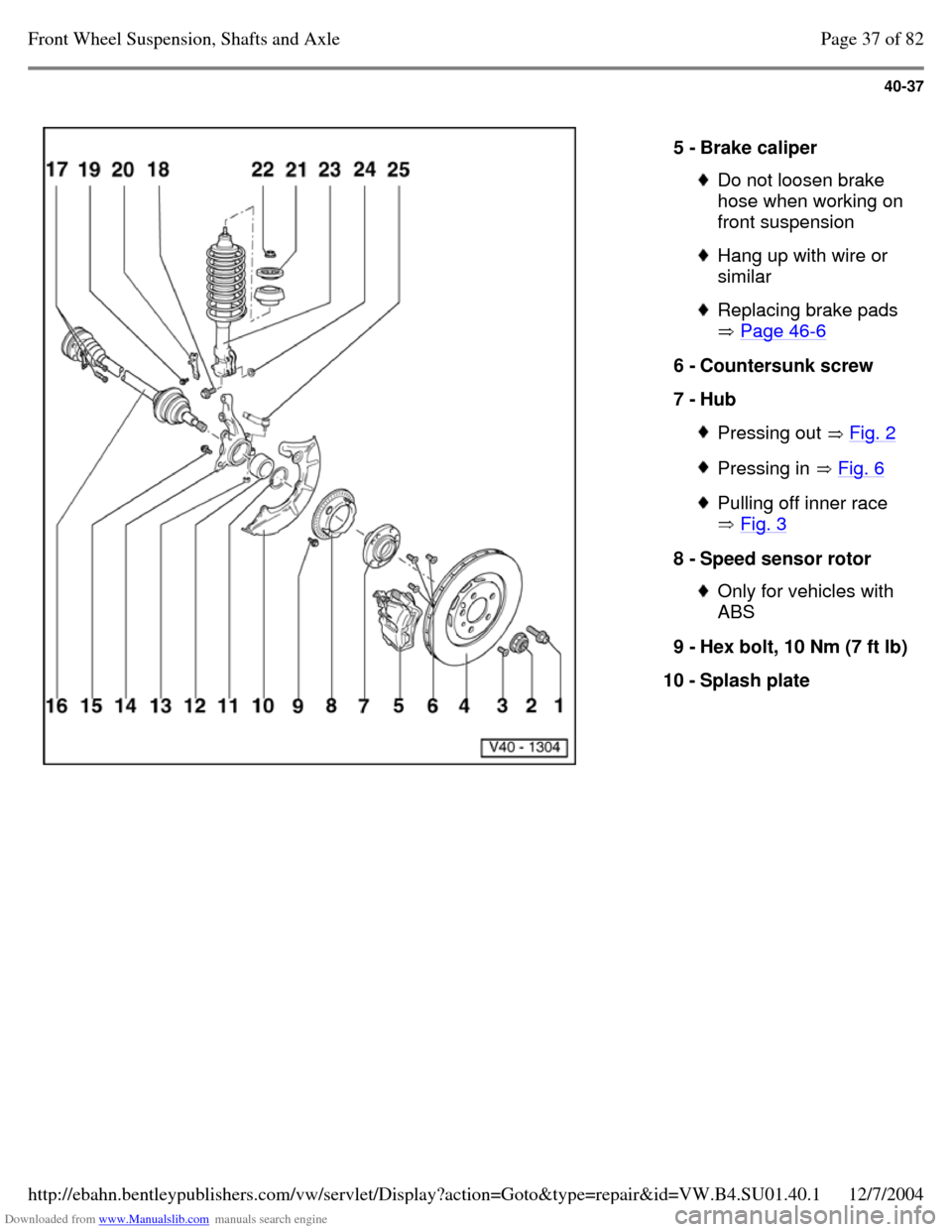

Page 51 of 369

Downloaded from www.Manualslib.com manuals search engine 40-37

5 - Brake caliper  Do not loosen brake
hose when working on
front suspension  Hang up with wire or
similar  Replacing brake pads
 Page 46-6 6 - Countersunk screw
7 - Hub  Pressing out  Fig. 2  Pressing in  Fig. 6  Pulling off inner race
 Fig. 3 8 - Speed sensor rotor  Only for vehicles with
ABS
9 - Hex bolt, 10 Nm (7 ft lb) 10 - Splash plate Page 37 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1
Page 112 of 369

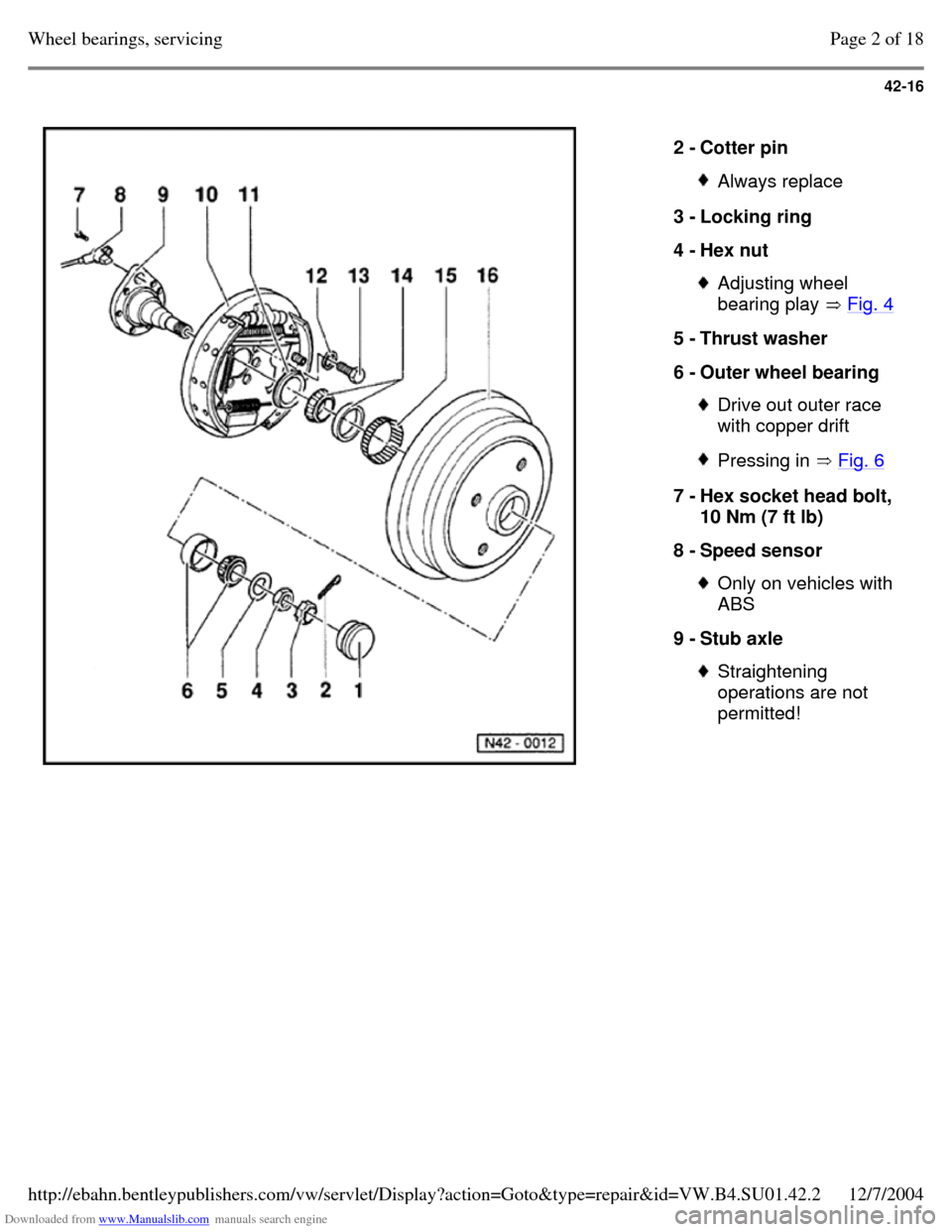

Downloaded from www.Manualslib.com manuals search engine 42-16

2 - Cotter pin  Always replace 3 - Locking ring
4 - Hex nut  Adjusting wheel
bearing play  Fig. 4 5 - Thrust washer
6 - Outer wheel bearing  Drive out outer race
with copper drift  Pressing in  Fig. 6 7 - Hex socket head bolt,
10 Nm (7 ft lb)
8 - Speed sensor  Only on vehicles with
ABS
9 - Stub axle  Straightening
operations are not
permitted! Page 2 of 18Wheel bearings, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.42.2

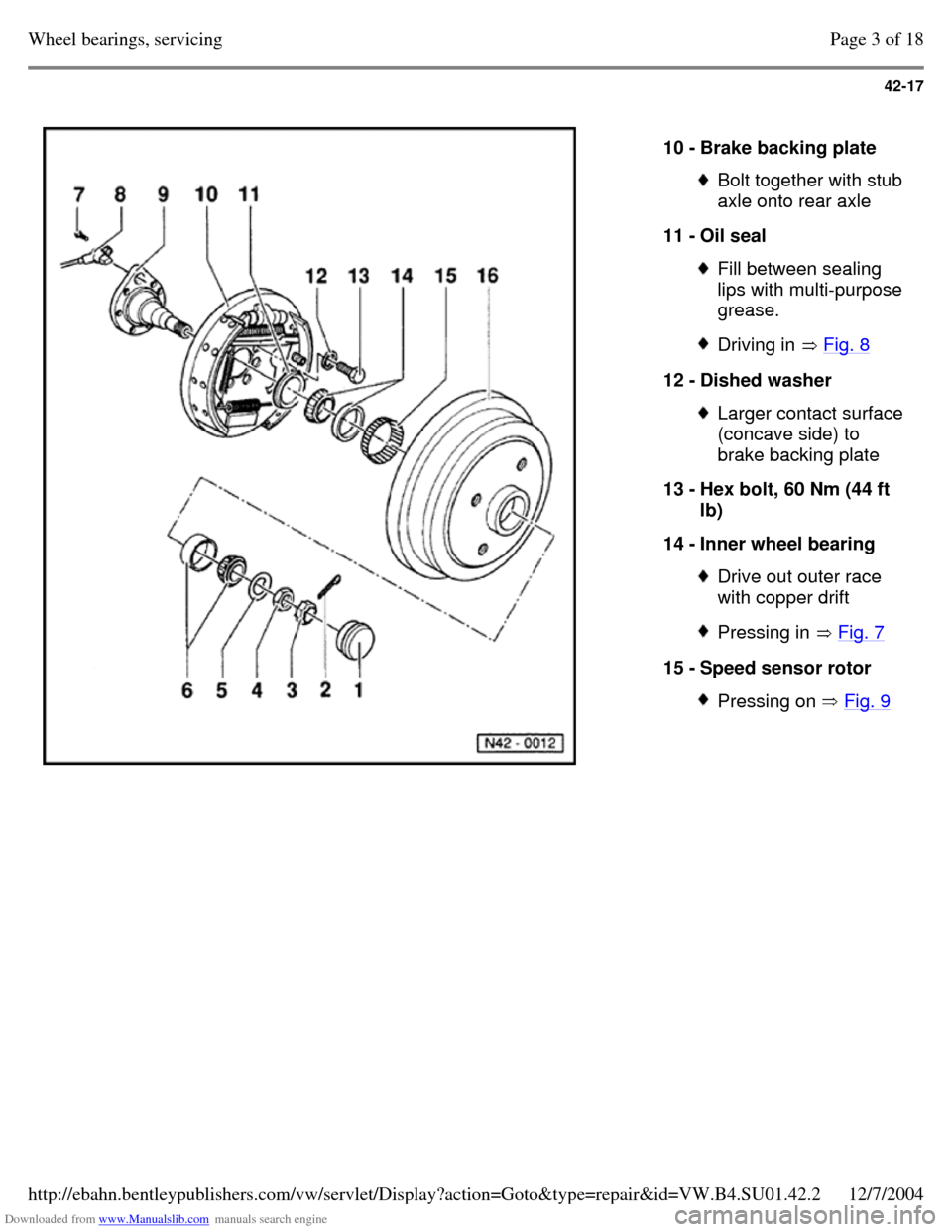

Page 113 of 369

Downloaded from www.Manualslib.com manuals search engine 42-17

10 - Brake backing plate  Bolt together with stub
axle onto rear axle
11 - Oil seal  Fill between sealing
lips with multi-purpose
grease.  Driving in  Fig. 8 12 - Dished washer  Larger contact surface
(concave side) to
brake backing plate
13 - Hex bolt, 60 Nm (44 ft
lb)
14 - Inner wheel bearing  Drive out outer race
with copper drift  Pressing in  Fig. 7 15 - Speed sensor rotor  Pressing on  Fig. 9 Page 3 of 18Wheel bearings, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.42.2

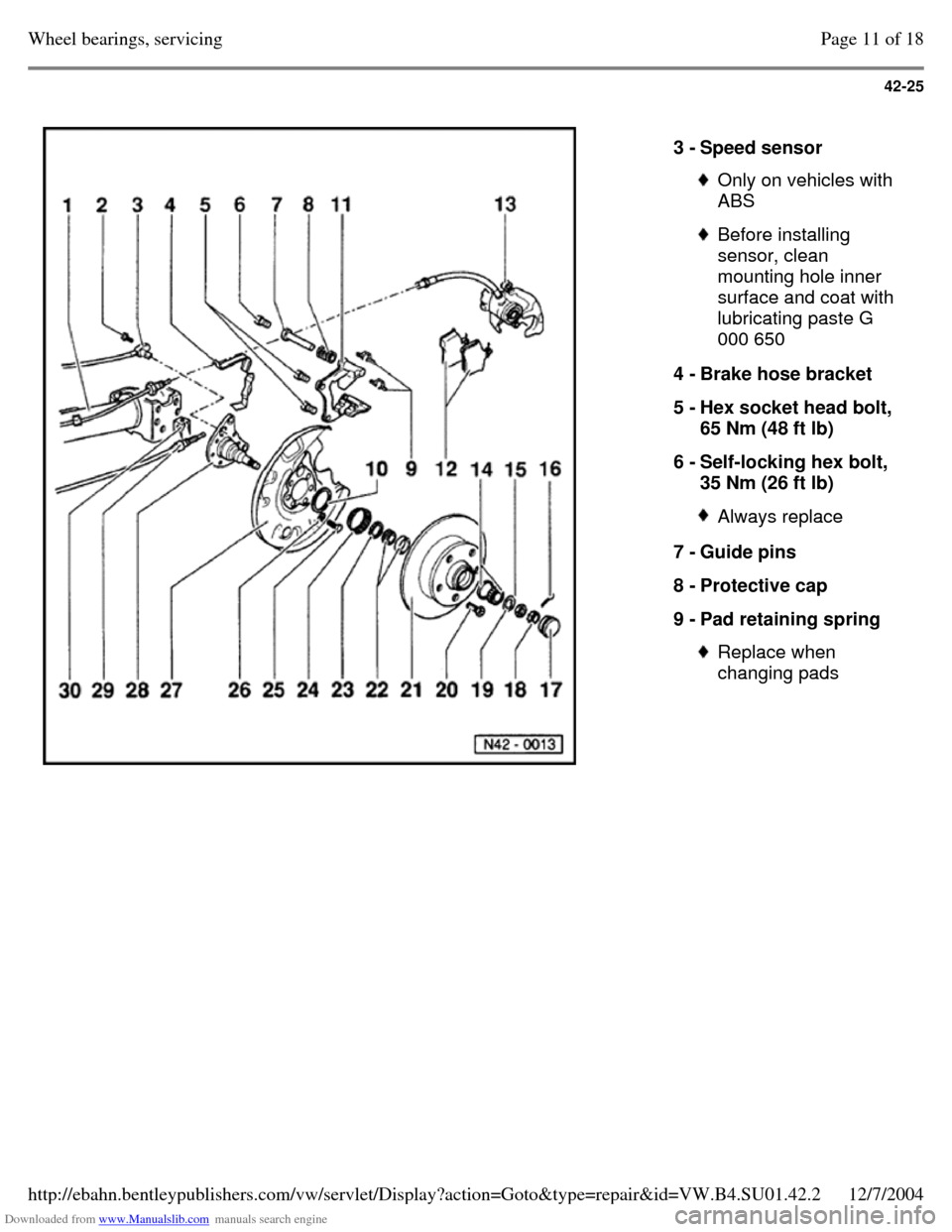

Page 121 of 369

Downloaded from www.Manualslib.com manuals search engine 42-25

3 - Speed sensor  Only on vehicles with
ABS  Before installing
sensor, clean
mounting hole inner
surface and coat with
lubricating paste G
000 650
4 - Brake hose bracket
5 - Hex socket head bolt,
65 Nm (48 ft lb)
6 - Self-locking hex bolt,
35 Nm (26 ft lb)  Always replace 7 - Guide pins
8 - Protective cap
9 - Pad retaining spring  Replace when
changing pads Page 11 of 18Wheel bearings, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.42.2
Page 123 of 369

Downloaded from www.Manualslib.com manuals search engine 42-27

17 - Grease cap  Pressing off  Fig. 1
and  Fig. 2  Driving on  Fig. 3 18 - Locking ring
19 - Thrust washer
20 - Wheel bolt, 110 Nm (81
ft lb)
21 - Brake disc  Before installing fill
hub with multi-purpose grease
22 - Inner wheel bearing  Drive out outer race
with copper drift  Pressing in  Fig. 7 23 - Oil seal  Fill between sealing
lips with multi-purpose
grease  Driving in  Fig. 8 24 - Speed sensor rotor  Only on vehicles with
ABS
25 - Hex bolt, 60 Nm (44 ft
lb) Page 13 of 18Wheel bearings, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.42.2
Page 129 of 369

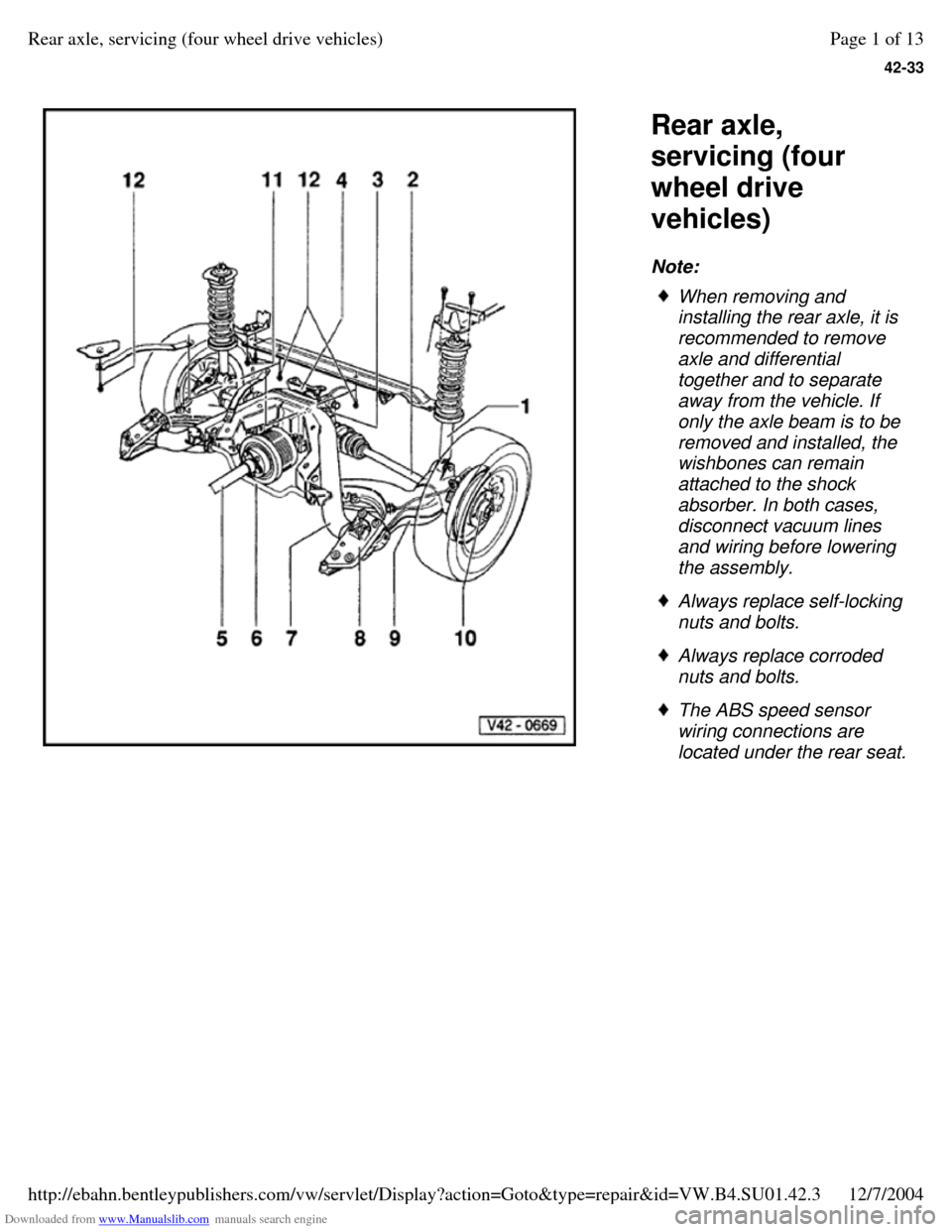

Downloaded from www.Manualslib.com manuals search engine 42-33

Rear axle,
servicing (four
wheel drive
vehicles)
Note:  When removing and
installing the rear axle, it is
recommended to remove
axle and differential
together and to separate
away from the vehicle. If
only the axle beam is to be
removed and installed, the
wishbones can remain
attached to the shock
absorber. In both cases,
disconnect vacuum lines
and wiring before lowering
the assembly.  Always replace self-locking
nuts and bolts.  Always replace corroded
nuts and bolts.  The ABS speed sensor
wiring connections are
located under the rear seat. Page 1 of 13Rear axle, servicing (four wheel drive vehicles)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.42.3

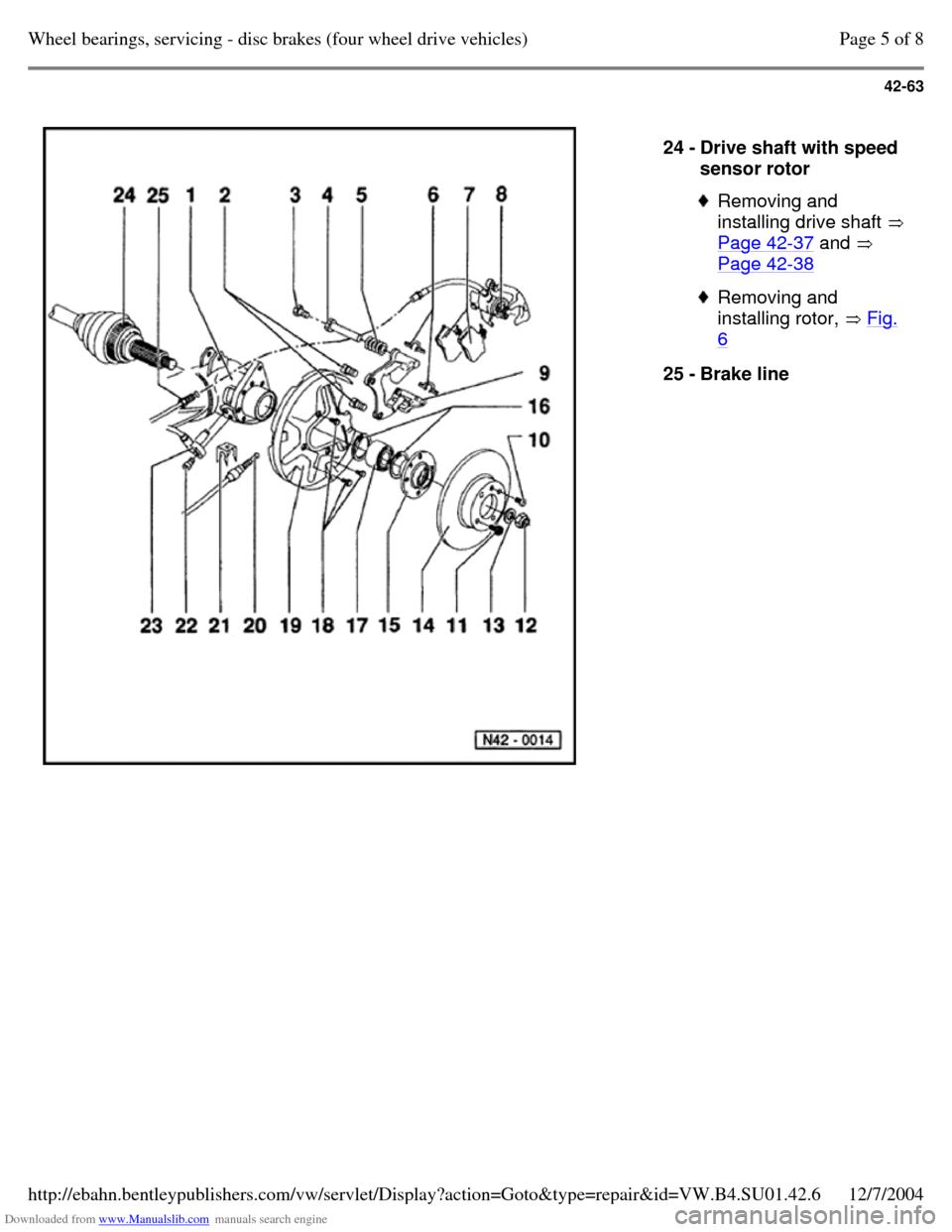

Page 158 of 369
