VOLKSWAGEN PASSAT 2006 Owners Manual

363
Loosening the wheel bolts
x Push the lug wrench over the wheel bolt all the way ⇒ fig. 208.
x Holding the lug wrench at the end, loosen the wheel bolt by turning it counterclockwise about 1
complete turn (360°) ⇒ .
Loosening the anti-theft wheel bolt (where applicable)
x Take the adapter for the anti-theft wheel bolt out of the vehicle tool kit.
x Push the adapter all the way over the anti-theft wheel bolt.
x Slide the lug wrench onto the adapter until it stops.
x Holding the lug wrench at the end, loosen the wheel bolt by turning it counterclockwise about 1
complete turn (360°) ⇒ .
Important information regarding wheel bolts
The design of rims and wheel bolts is matched to the factory-installed wheels. If different wheels are installed, wheel bolts with the right length and bolt head shape must be used. The attachment of the wheels and function of the brake system depend on this.
It may not be possible to use wheel bolts from different vehicles of the same model.
Where applicable: On a wheel with a wheel cover, the anti-theft wheel bolt must be installed at points
⇒ fig. 209 (2) or (3) in relation to the position of the tire valve (1). Otherwise, the wheel cover cannot be installed.
Wheel bolt tightening torque
Correctly tightened bolts for steel and alloy wheel rims should have a torque of 103 ft-lbs. (140 Nm). After changing a wheel, have the wheel bolt tightening torque checked right away with an accurate torque wrench.
Before you check the tightening torque, replace corroded and difficult-to-turn wheel bolts and clean the threads in the wheel hub.
Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque.
WARNING
Improperly tightened wheel bolts can come loose while driving and cause you to lose control over the vehicle, resulting in accidents and serious injuries.
x Only use wheel bolts that belong your vehicle and to the wheel being installed.
x Never use different wheel bolts.
x Wheel bolts and wheel hub threads must always be clean, easy-to-turn and free of oil and grease.
x Only use the lug wrench that is supplied with the vehicle to loosen the wheel bolts.
x Loosen the wheel bolts only about 1 turn before lifting the vehicle with the jack.
x Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque.
x Never loosen bolted connections on wheel rims with bolted rim rings.
x If the wheel bolts are not tightened to the proper torque, the wheel can come off the vehicle when it is moving. Extremely high torque can damage the wheel bolts and/or their threads.

Lifting the vehicle with the vehicle jack

Fig. 210 Lift points for the jack.

Fig. 211 Jack in position at the left rear lift point.

365
8. Crank up the jack so that it still just fits underneath the lift point.
9. Position the jack so that its base is directly underneath the lift point ⇒ fig. 211, making sure that the entire base of the jack rests securely on the ground.
10. Align the jack and wind up the jack claw at the same time, until the claw cradles the vertical rib underneath the vehicle (arrow).
11. Continue cranking up the jack until the wheel is just a little off the ground.
WARNING
Improper use of your vehicle jack can cause the vehicle to fall off the jack leading to serious personal injury. To help reduce the risk of serious personal injury:
x Use only jacks approved by Volkswagen for the vehicle. Other jacks might slip, even those approved for other Volkswagen models, but not for your vehicle.
x Always set up the jack on firm and level ground. The vehicle may slip off the jack if the jack is resting on soft or sloping ground. If necessary, place a sturdy board under the jack.
x On a hard, slippery surface (such as a tiled floor), use an anti-skid rubber mat or something similar to prevent the jack from slipping.
x Position the jack only at the described vehicle lift points. Before you raise your vehicle, always make sure the jack claw properly grips the vertical rib under the sill so that the jack does not slip off when you are raising the vehicle .
x Never have any part of your body (such as your arm or leg) under the vehicle when it is supported by the jack. Never let other persons have any part of their body under the vehicle, either!
x If you must work under a vehicle raised on a floor jack, always make sure that the vehicle is safely supported on safety stands intended for that purpose that are strong enough to support the weight of the vehicle.
x Never lift the vehicle when it is tilted or inclined to one side or the engine is running.
x Never lift the vehicle when more than 1 tire is flat or damaged.
x Do not start the engine while the vehicle is supported by a jack. Engine vibrations may cause the vehicle to slip off the jack.
WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.

Changing a wheel

Fig. 212 Changing a wheel: remove previously loosened wheel bolts using the screwdriver handle.

367
WARNING
Improper use of a compact spare wheel can cause loss of vehicle control, a crash or other accident, and serious personal injury.
x Never use a compact spare wheel if it is damaged or worn down to the wear indicators.
x Never drive faster than 50 mph (80 km/h) with a compact spare wheel. Avoid full-throttle acceleration, heavy braking, and fast cornering!
x Never drive more than 125 miles (200 km) with a compact spare wheel that is installed on the front axle (drive axle).
x Replace the compact spare with a normal wheel and tire as soon as possible. Compact spare tires are designed for brief use only.
After changing a wheel

Fuses

369
A single load (a single electrical component) may be protected by several fuses.
One fuse may protect several loads (several electrical components).

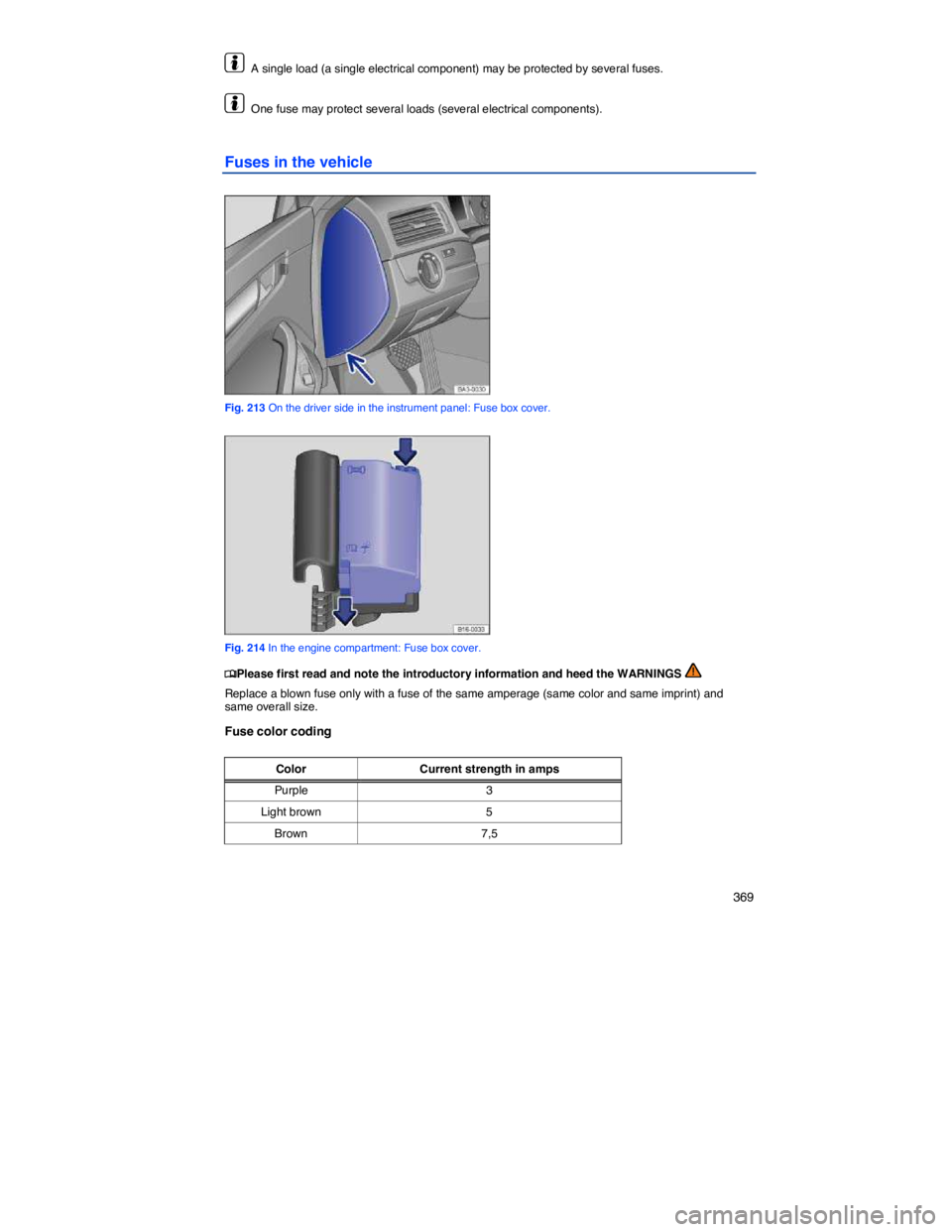

Fuses in the vehicle

Fig. 213 On the driver side in the instrument panel: Fuse box cover.

Fig. 214 In the engine compartment: Fuse box cover.

Color Current strength in amps
Red 10
Blue 15
Yellow 20
White or clear 25
Green 30
Orange 40
Opening the fuse box in the instrument panel
x Pull the lower part of the cover in the direction of the arrow ⇒ fig. 213 and remove the cover from the bottom.
x On the inside of the cover there are plastic tweezers for removing and inserting fuses.
x To install, guide the cover from the bottom into the instrument panel and push in the direction opposite to the arrow until you can hear it latch into place.
Opening the fuse box in the engine compartment
x Open the engine hood ⇒ 
x Move the release tabs in the direction of the arrows ⇒ fig. 214 to unlock the fuse box cover.
x Remove the cover upward.
x To install push the cover onto the fuse box. The locking tabs must latch with an audible “click”.
Vehicles with battery located in the luggage compartment
There are additional fuses above the vehicle battery behind the panel on the left side of the luggage compartment. Have these fuses replaced by an authorized Volkswagen dealer or authorized Volkswagen Service Facility.
NOTICE
x To help prevent vehicle damage, be careful when removing fuse box covers and be sure to reinstall them properly.
x Open fuse boxes must be protected from dirt and moisture. Dirt and moisture in fuse boxes can cause damage to the electrical system.
The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.

371

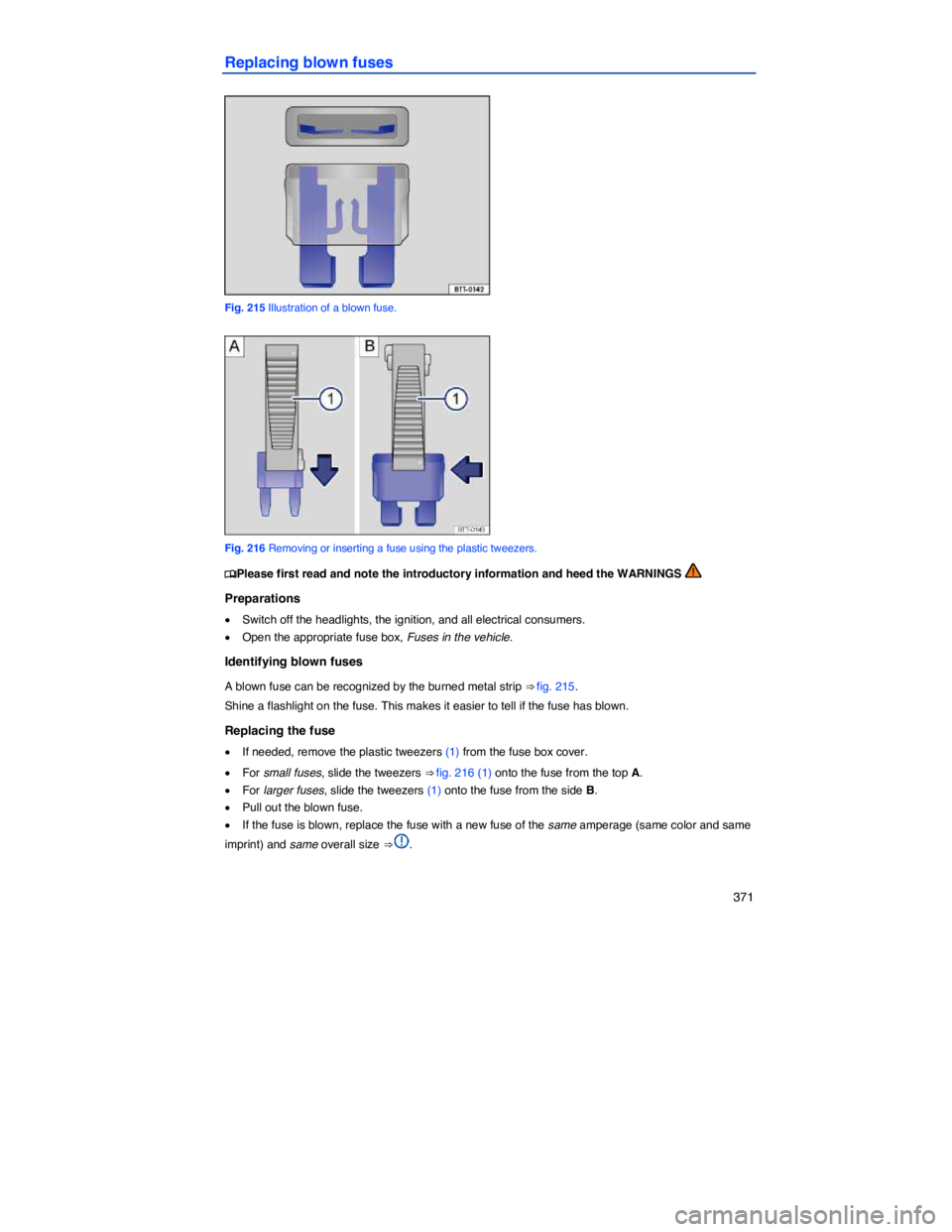

Replacing blown fuses

Fig. 215 Illustration of a blown fuse.

Fig. 216 Removing or inserting a fuse using the plastic tweezers.

x If necessary, replace the plastic tweezers in the fuse box cover.
x Replace the cover.
NOTICE
If a fuse is replaced with a fuse with higher amperage, then damage can occur at various places in the electrical system.
