WARNING
New tires or tires that are old, worn or damaged cannot provide maximum control and
braking performance.
x Improper care and handling of tires and wheels can reduce driving safety and cause
accidents and severe injuries.
x Install only radial tires of the same make, the same dimensions (tread circumference), and
similar tread profile on all 4 wheels.
x New tires tend to be slippery and must be broken in. Always drive with special care for the
first 350 miles (560 km) to help reduce the risk of losing control, a collision, and serious
personal injuries.
x Check tire inflation pressure regularly when the tires are cold and always maintain the
prescribed tire pressure. Low tire pressure can cause tires to get too hot, resulting in tread
separation, sudden loss of pressure, and blowouts. Tires with excessively low pressure flex
(bend) more, which can cause the tire to overheat and fail suddenly without warning.
x Check tires regularly for wear and damage.
x Never drive with worn or damaged tires (for example, tires with punctures, cuts, cracks,
blisters, or bumps). Driving with worn or damaged tires can lead to loss of vehicle control,
sudden tire failure including blowouts and sudden deflation, crashes, and serious personal
injuries.
x Have worn or damaged tires replaced immediately.
x Never exceed the maximum speed rating or the maximum load rating of the tires on your
vehicle.
x The effectiveness of the driver assistance systems and the braking support systems
depends on the tire traction.
x If you notice unusual vibration or if the vehicle pulls to one side when driving, always stop
as soon as it is safe to do so and check the wheels and tires for damage.
x To reduce the risk of losing control, crashes, and serious personal injuries, never loosen
the bolts on wheels with bolted rim rings.
x Never mount used tires on your vehicle if you are not sure of their past use. Old, used
tires and wheels may have damage that cannot be seen that can lead to sudden tire failure
and loss of vehicle control.
x Tires age even if they are not being used and can fail suddenly, especially at high speeds,
causing loss of vehicle control, accidents, and severe personal injuries. Tires that are more
than 6 years old can be used only in an emergency and even then only with special care and
at low speed.
For technical reasons it is usually not possible to use wheel rims from other vehicles. Even wheel
rims from the same model may not fit properly. Check with an authorized Volkswagen dealer or
authorized Volkswagen Service Facility if necessary.

Applicable only in the United States and Canada
Tire and wheel handling

Fig. 176 Tire rotation diagram.

Rotating tires
To help ensure even wear on all tires, regular tire rotation according to the diagram ⇒ fig. 176 is
recommended. In this way all tires can have about the same service life.
Volkswagen recommends that you have your tires rotated by an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
Tires more than 6 years old
Tires age even if they are not being used. Physical and chemical processes reduce tire strength and
performance and cause them to harden and become brittle. Old tires can fail suddenly and without
warning.
Volkswagen recommends replacing tires that are 6 years and older. This also applies to tires that look
new (including the tire on the compact spare wheel) or that seem to still be usable with tread depth
that has not yet reached the legal minimum depth ⇒ .
The age of each tire can be determined with the manufacturing date that is part of the U.S DOT tire
identification number (TIN).
Tire storage
Mark tires before removing them to help make sure that the previous location (left, right, front, rear)
and rolling direction can be maintained when remounting them. Store tires in a cool, dry and preferably
dark place. Do not store tires mounted on wheels standing up.
Tires not mounted on wheels should be covered to help protect them from dirt and stored vertically
(sitting on the tread).
WARNING
Aggressive fluids and materials can cause visible and invisible tire damage that can cause
tire blowouts.
x Always keep chemicals, oils, grease, fuels, braking fluids and other aggressive
substances away from tires.
WARNING
Tires age even if they are not being used and can fail suddenly, especially at high speeds,
causing loss of vehicle control, accidents, and severe personal injuries.
x Tires that are more than 6 years old can be used only in an emergency and even then only
with special care and at low speed.
Always dispose of old tires in accordance with legal requirements.

Applicable only in Mexico, the AGCC, and South Korea
Tire and wheel handling

Fig. 177 Tire rotation diagram.

Rotating tires
To help ensure even wear on all tires, regular tire rotation according to the diagram ⇒ fig. 177 is
recommended. In this way all tires can have about the same service life.
Volkswagen recommends that you have your tires rotated by an authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
Tires more than 6 years old
Tires age even if they are not being used. Physical and chemical processes reduce tire strength and
performance and cause them to harden and become brittle. Old tires can fail suddenly and without
warning.
Volkswagen recommends replacing tires that are 6 years and older. This also applies to tires that look
new (including the tire on the compact spare wheel) or that seem to still be usable with tread depth
that has not yet reached the legal minimum depth ⇒ .
The age of each tire can be determined with the manufacturing date that is part of the U.S DOT tire
identification number (TIN).
Tire storage
Mark tires before removing them to help make sure that the previous location (left, right, front, rear)
and rolling direction can be maintained when remounting them. Store tires in a cool, dry and preferably
dark place. Do not store tires mounted on wheels standing up.
Tires not mounted on wheels should be covered to help protect them from dirt and stored vertically
(sitting on the tread).
WARNING
Aggressive fluids and materials can cause visible and invisible tire damage that can cause
tire blowouts.
x Always keep chemicals, oils, grease, fuels, braking fluids and other aggressive
substances away from tires.
WARNING
Tires age even if they are not being used and can fail suddenly, especially at high speeds,
causing loss of vehicle control, accidents, and severe personal injuries.
x Tires that are more than 6 years old can be used only in an emergency and even then only
with special care and at low speed.
Always dispose of old tires in accordance with legal requirements.
Applicable only in the United States and Canada
Wheel rims

Tires and wheel rims approved by Volkswagen have been matched precisely to your vehicle model
and contribute considerably to good handling and safe vehicle performance.
Tightening Torque
Wheel bolts must always be installed with the correct tightening torque ⇒ page 423. The required
tightening torque for your vehicle's wheel bolts is 103 ft-lbs (140 Nm). After changing a wheel, the bolt
torque must be checked as soon as possible with an accurate torque wrench. See an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
Wheel rims with bolted rim rings
Wheel rims with bolted rim rings have several parts. The parts are bolted together with special screws
in a special process. This helps to ensure that they will work properly, prevent leaks, run true and
safely. Damaged wheel rims must be replaced, and you must never take them apart or try to repair
them yourself. Have an authorized Volkswagen dealer or an authorized Volkswagen Service Facility
repair them for you ⇒ .
Wheel rims with bolted decorative covers
Light-alloy wheels may have interchangeable decorative covers attached to the rim with self-locking
screws. If you want to replace damaged wheel covers, contact your authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
WARNING
Using improper or damaged wheel rims can affect driving safety, cause accidents and severe
personal injury.
x Use only wheel rims approved for the vehicle.
x Regularly check wheel rims for damage and replace them if necessary.
WARNING
Improper loosening and tightening of the bolts on wheel rims with bolted rim rings can cause
accidents and severe personal injury.
x Never loosen bolted connections on wheel rims with bolted rim rings.
x Have all work on wheel rims with bolted rim rings performed by an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.
Applicable only in Mexico, the AGCC, and South Korea
Wheel rims

Tightening Torque
Wheel bolts must always be installed with the correct tightening torque ⇒ page 423. The required
tightening torque for your vehicle's wheel bolts is 103 ft-lbs (140 Nm). After changing a wheel, the bolt
torque must be checked as soon as possible with an accurate torque wrench. See an authorized
Volkswagen dealer or authorized Volkswagen Service Facility.
Wheel rims with bolted rim rings
Wheel rims with bolted rim rings have several parts. The parts are bolted together with special screws
in a special process. This helps to ensure that they will work properly, prevent leaks, run true and
safely. Damaged wheel rims must be replaced, and you must never take them apart or try to repair
them yourself. Have an authorized Volkswagen dealer or an authorized Volkswagen Service Facility
repair them for you ⇒ .
Wheel rims with bolted decorative covers
Light-alloy wheels may have interchangeable decorative covers attached to the rim with self-locking
screws. If you want to replace damaged wheel covers, contact your authorized Volkswagen dealer or
authorized Volkswagen Service Facility.
WARNING
Using improper or damaged wheel rims can affect driving safety, cause accidents and severe
personal injury.
x Use only wheel rims approved for the vehicle.
x Regularly check wheel rims for damage and replace them if necessary.
WARNING
Improper loosening and tightening of the bolts on wheel rims with bolted rim rings can cause
accidents and severe personal injury.
x Never loosen bolted connections on wheel rims with bolted rim rings.
x Have all work on wheel rims with bolted rim rings performed by an authorized Volkswagen
dealer or authorized Volkswagen Service Facility.
Applicable only in the United States and Canada
Tire inflation pressure

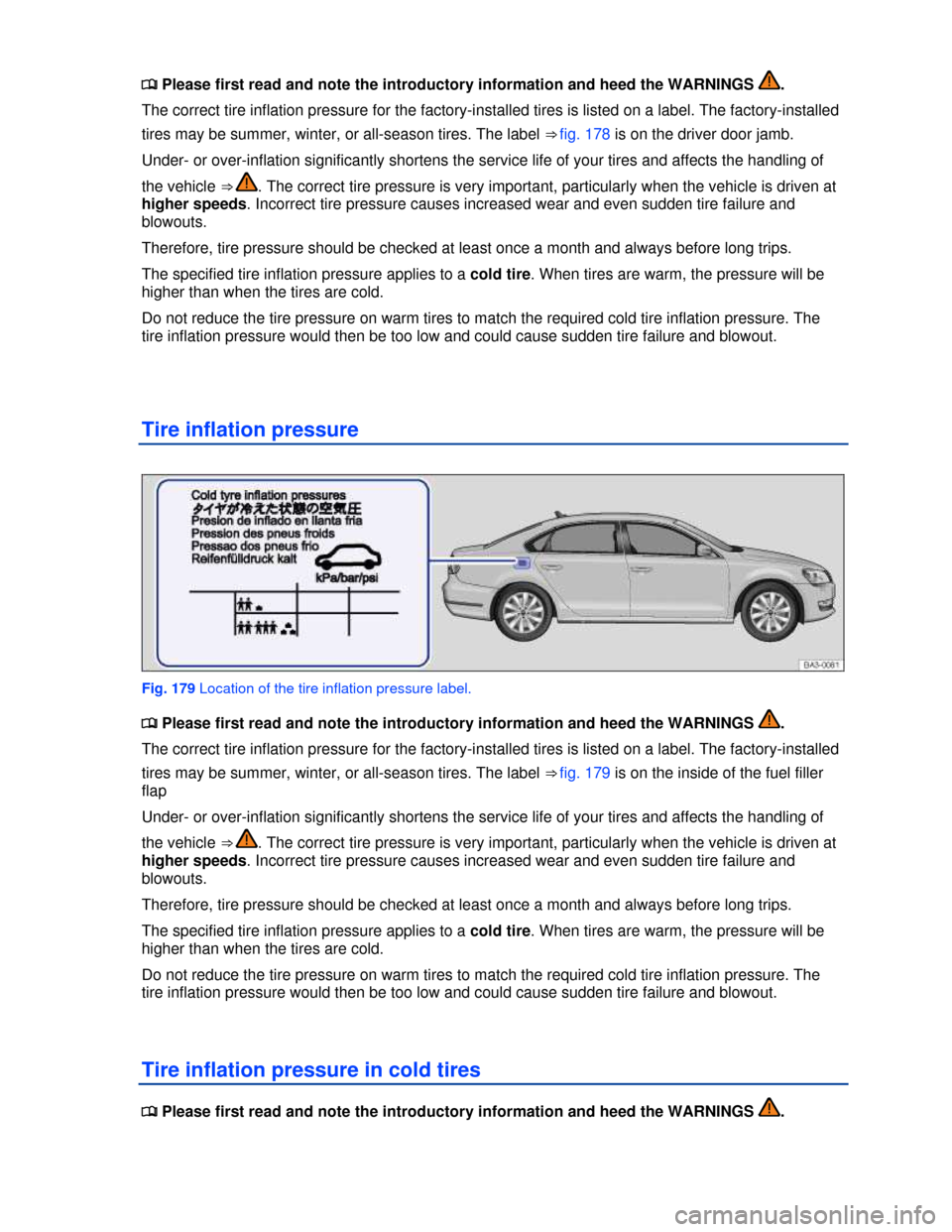

Fig. 178 Location of the tire inflation pressure label.

Model Engine Tire dimensions Tire
pressure
PSI / kPa
Passat
2.0 l / 140 hp (103 kW)
215/60 R 16 30 / 210
215/55 R 17 32 / 220
235/45 R 18 33 / 230
2.5 l / 170 hp (125 kW)
215/60 R 16 29 / 200
215/55 R 17 30 / 210
235/45 R 18 30 / 210
3.6 l / 280 hp (206 kW) 215/55 R 17 33 / 230
235/45 R 18 35 / 240
Compact spare wheel135/90 R 16 60 / 420
The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation
pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation
pressure is listed on the tire inflation pressure label on the driver door jamb. The tire inflation
pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as
specified on the tire pressure label or on a separate label for the compact spare, if there is one. In
the event of a discrepancy between the above figures and the tire pressures listed on the tire
inflation pressure label, the pressures listed on the label are the ones you should use. The listed
pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using
the SET button whenever you remove and remount or change any wheel or tire on the vehicle, even
if the reinstalled or replacement wheels and tires are identical to those that were removed and even
if the tire pressure does not change.

Applicable only in the United States and Canada
Tread depth and tread wear indicators

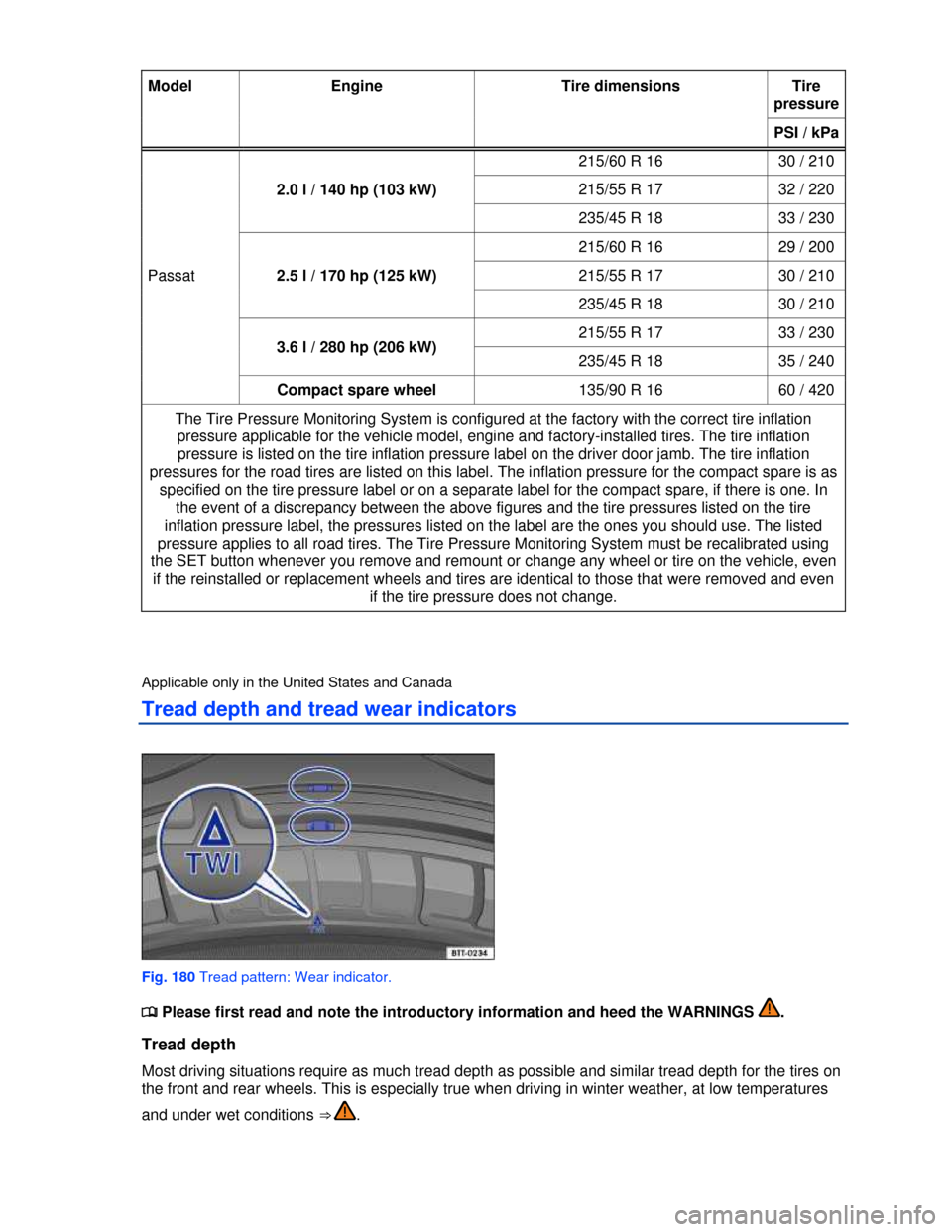

Fig. 180 Tread pattern: Wear indicator.

In most countries the legally permissible minimum tread depth is 1/16 in (1.6 mm), as measured in
tread grooves next to the wear indicators. Please be sure to obey country-specific legal requirements.
Winter tires are no longer suitable for winter operation once the tread pattern is worn down to a depth
of 3/16 in (4.8 mm)
The tread depth of new tires can differ between tire models and manufacturers because of the
different design features and tread patterns.
Tread wear indicator (TWI) in the tire
The 1/16 in (1.6 mm) high wear indicators are molded into the bottom of the tread grooves of the
original tires running across the treads ⇒ fig. 180. Several wear indicators are evenly spaced around
the tire. Markings on the sides of the tires (for example “TWI” or symbols) show the position of the
wear indicators.
Wear indicators show when the tires are worn down. The tires must be replaced no later than when
the tread pattern is worn down to the wear indicators.
WARNING
Worn tires are dangerous and can cause loss of vehicle control including serious personal
injuries.
x Never drive a vehicle when the tread on any tire is worn down to the wear indicators,
replace them sooner.
x Worn tires do not grip the road properly, especially on wet roads, increasing your risk of
“hydroplaning” and loss of control.
x Worn tires reduce the ability of your vehicle to handle well in normal and difficult driving
situations and increase braking distances and the risk of skidding.
Applicable only in Mexico, the AGCC, and South Korea
Tread depth and tread wear indicators

Fig. 181 Tread pattern: Wear indicator.
