6. Have all passengers exit and go to a safe place, such as behind a guard rail.
7. Block the diagonally opposite wheel with chocks from vehicle tool kit or other suitable things.
8. If towing a trailer: Unhitch the trailer from the vehicle and park the trailer properly.
9. If the luggage compartment is loaded: Remove the luggage.
10. Raise and secure the luggage compartment floor.
11. If applicable: Remove the Fender Premium Audio subwoofer ⇒  Removing Fender Premium Audio subwoofer.
12. Unscrew the fastening screw with washer counterclockwise and remove.
13. Take the compact spare wheel out of the luggage compartment.
14. If applicable: Take off the wheel covers ⇒  Wheel trim.
WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.
Wheel bolts

Fig. 195 Changing a wheel: Loosening wheel bolts.

Important information regarding wheel bolts
The design of rims and wheel bolts is matched to the factory-installed wheels. If different wheels are installed, wheel bolts with the right length and bolt head shape must be used. The attachment of the wheels and function of the brake system depend on this.
It may not be possible to use wheel bolts from different vehicles of the same model.
Wheel bolt tightening torque
Correctly tightened bolts for steel and alloy wheel rims should have a torque of 103 ft lbs (140 Nm) for front-wheel drive vehicles and 88 ft lbs (120 Nm) for vehicles with four-wheel drive (4MOTION). After changing a wheel, have the wheel bolt tightening torque checked right away with an accurate torque wrench.
Before you check the tightening torque, replace corroded and difficult-to-turn wheel bolts and clean the threads in the wheel hub.
Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque.
WARNING
Improperly tightened wheel bolts can come loose while driving and cause you to lose control over the vehicle, resulting in accidents and serious injuries.
x Only use wheel bolts that belong your vehicle and to the wheel being installed.
x Never use different wheel bolts.
x Wheel bolts and wheel hub threads must always be clean, easy-to-turn and free of oil and grease.
x Only use the lug wrench that is supplied with the vehicle to loosen the wheel bolts.
x Loosen the wheel bolts only about one turn before lifting the vehicle with the jack.
x Never grease or oil the wheel bolts and the threads in the wheel hubs. The bolts can come loose while driving if greased or oiled, even if tightened to the required torque.
x Never loosen bolted connections on wheel rims with bolted rim rings.
x If the wheel bolts are not tightened to the proper torque, the wheel can come off the vehicle when it is moving. Extremely high torque can damage the wheel bolts and/or their threads.
Lifting the vehicle with the vehicle jack

Fig. 196 Lift points for the jack.

Fig. 197 Jack in position at the left rear lift point.

WARNING
Improper use of your vehicle jack can cause the vehicle to fall off the jack leading to serious personal injury. To help reduce the risk of serious personal injury:
x Use only jacks approved by Volkswagen for the vehicle. Other jacks might slip, even those approved for other Volkswagen models, but not for your vehicle.
x Always set up the jack on firm and level ground. The vehicle may slip off the jack if the jack is resting on soft or sloping ground. If necessary place a sturdy board under the jack.
x On a hard, slippery surface (such as a tiled floor), use an anti-skid rubber mat or something similar to prevent the jack from slipping.
x Position the jack only at the described vehicle lift points. Before you raise your vehicle, always make sure the jack claw properly grips the vertical rib under the sill so that the jack
does not slip off when you are raising the vehicle ⇒ fig. 197.
x Never have any part of your body (such as your arm or leg) under the vehicle when it is supported by the jack. Never let other persons have any part of their body under the vehicle, either!
x If you must work under a vehicle raised on a floor jack, always make sure that the vehicle is safely supported on safety stands intended for that purpose that are strong enough to support the weight of the vehicle.
x Never lift the vehicle when it is tilted or inclined to one side or the engine is running.
x Never lift the vehicle when more than one tire is flat or damaged.
x Do not start the engine while the vehicle is supported by a jack. Engine vibrations may cause the vehicle to slip off the jack.
WARNING
Disregarding the safety-related checklist may lead to accidents and serious personal injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.
Changing a wheel

Fig. 198 Changing a wheel: Remove previously loosened wheel bolts using the screwdriver handle.

Removing the wheel
x Review the checklist ⇒  Preparations for changing a wheel.
x Loosen the wheel bolts ⇒  Wheel bolts.
x Lift the vehicle ⇒  Lifting the vehicle with the vehicle jack.
x Completely unscrew and remove the previously loosened wheel bolts using the hexagonal socket
in the screwdriver handle ⇒ fig. 198. Place the wheel bolts on a clean surface.
x Remove the wheel.
Installing a spare tire or a compact spare wheel
If the tire is a unidirectional tire, be sure to install it in the proper rolling direction ⇒  Unidirectional tires.
x Place the spare tire or compact spare into place on the vehicle.
x Screw in all wheel bolts clockwise and tighten them slightly using the hexagonal socket in the screwdriver handle.
x Lower the vehicle with the jack.
x Use the lug wrench to firmly tighten all wheel bolts (turn clockwise) ⇒ . Do not tighten them in sequence! Tighten any wheel bolt to begin, then tighten the wheel bolt diagonally opposite the first bolt, and so forth.
x Install the wheel bolt caps, center wheel hubcap, or wheel cover, if any ⇒  Wheel trim.
WARNING
Wheel bolts that are tightened or installed improperly can come loose, causing loss of vehicle control, a crash, and serious personal injury.
x Always keep wheel bolts and threads in the wheel hub clean and free of oil and grease. The wheel bolts must turn easily and must be tightened with the right torque.
x Use the hexagonal socket in the screwdriver handle only to turn the wheel bolts when they are loose, never to loosen them or tighten them firmly.
WARNING
Improper use of a compact spare wheel can cause loss of vehicle control, a crash or other accident, and serious personal injury.
x Never use a compact spare tire if it is damaged or worn down to the wear indicators.
x Never drive faster than 50 mph (80 km/h) with a compact spare wheel. Avoid full-throttle acceleration, heavy braking, and fast cornering!
x Never drive more than 125 miles (200 km) with a compact spare wheel that is installed on the front axle (drive axle).
x Replace the compact spare with a normal wheel and tire as soon as possible. compact spare wheels are designed for brief use only.
After changing a wheel

x Securely store the compact spare wheel or the wheel you took off the vehicle in the luggage compartment.
x Have the wheel bolt tightening torque immediately checked with a torque wrench ⇒  Wheel bolts.
x Have the damaged wheel replaced as soon as possible.
The Tire Pressure Monitoring System (TPMS) must be “recalibrated” after each tire change ⇒  Tire Pressure Monitoring System (TPMS).
Removing Fender Premium Audio subwoofer

Fig. 199 Under the luggage compartment floor: Fender Premium Audio subwoofer.

Fuses

Fuses in the vehicle

Fig. 200 On the driver side in the instrument panel: Fuse box cover.

Fig. 201 In the engine compartment: Fuse box cover.

Color Current strength in amps
Yellow 20
White or clear 25
Green 30
Orange 40

Opening the fuse box in the instrument panel
x Open storage compartment and pull back firmly in the direction of the arrow ⇒ fig. 200.
Opening the fuse box in the engine compartment
x Open the engine hood

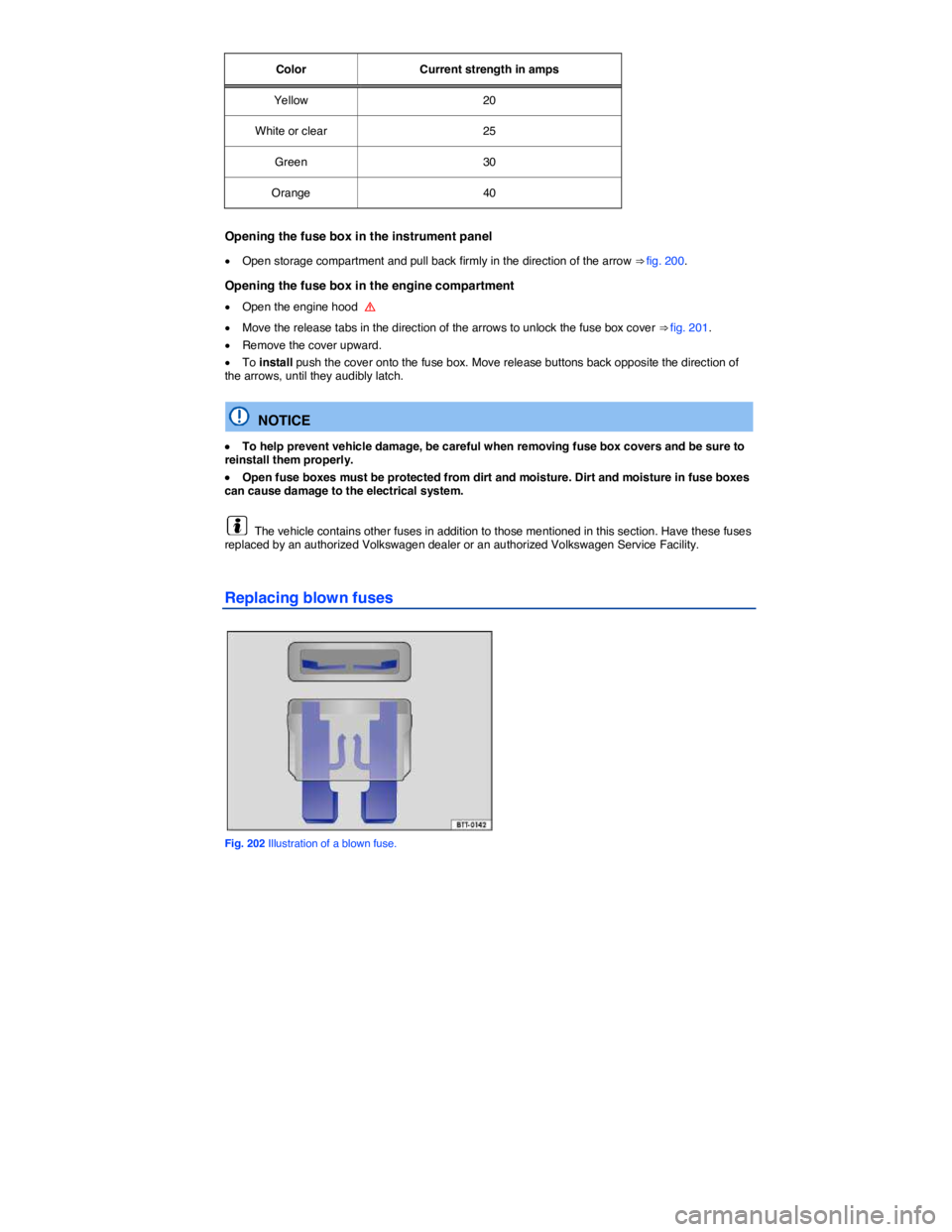

Fig. 203 Removing or inserting a fuse using the plastic tweezers.
