VOLKSWAGEN TIGUAN 2013 1.G Owners Manual

met while the vehicle is stopped, Hill Hold disengages and the brakes are automatically released and
will no longer hold the vehicle.
Hill Hold is activated automatically when the following conditions are all met at the same
time.

Points 1 to 3 must all be met at the same time:
Manual transmission Automatic transmission
1. Hold the stopped vehicle on an incline with the foot or parking brake.
2. The engine must be running “smoothly.”
3. A manual transmission vehicle must be in 1st
gear (1) if headed up a hill or in Reverse (R) if
backing up a hill; you must hold the clutch
down and the foot brake must be depressed to
keep the vehicle from moving.
An automatic transmission vehicle must be in
Reverse (R), Drive (D), or Sport Drive (S) and
the foot brake must be depressed to keep the
vehicle from moving.
4. To drive off, take your foot off the brake pedal
as you let the clutch out and gently depress
the accelerator within 2 seconds.
To drive off, take your foot off the brake pedal
and gently depress the accelerator within
2 seconds.
Release the brake as you let the clutch out
and gently depress the accelerator.
Release the brake as you gently depress
the accelerator.

Hill Hold is immediately deactivated:
x If any requirement listed in the table above is no longer met (see , Hill Hold is activated
automatically when the following conditions are all met at the same time.).
x If the engine is not running smoothly or the engine malfunctions.
x If the engine stalls or is switched off.
x Automatic transmission vehicles: If the transmission is in Neutral (N).
x Automatic transmission vehicles: If a tire does not have enough road contact (such as when the
vehicle is tipped or at an angle).
WARNING
The intelligent technology of Hill Hold cannot overcome the laws of physics. Never let the
increased convenience provided by Hill Hold tempt you into taking risks.
x The Hill Hold feature cannot hold the vehicle in all hill start situations (for example, if the
surface is icy or slippery).
x Hill Hold can only help keep the vehicle from moving for less than 2 seconds. After that,
the brakes will be released and the vehicle can roll down the hill.

Park Distance Control

NOTICE
x Things like trailer draw bars, thin rods, fences, trees, narrow painted vertical poles, posts,
or a rear hatch that is opening may not be detected by the Park Distance Control sensors and
could damage the vehicle.
x If you continue driving closer to an object that the Park Distance Control has already
detected and reported, the object may disappear from the sensor range and may no longer be
detected. This is especially true for low or high objects. The system will no longer sound
warnings about these objects. Ignoring signals from the Park Distance Control system could
result in serious damage to the vehicle.
x The sensors in the bumper can be damaged or become misaligned in low speed impacts
and parking maneuvers. Damaged or misaligned sensors cannot accurately detect or report
objects that might be within range of the PDC system.
x To help make sure that the system works properly, always keep the sensors in the bumpers
clean, free of snow and ice; do not cover the sensors with stickers or other objects.
x When cleaning the sensors with power washers or steam cleaners, only spray the sensors
directly for a very short time, and always keep the washer nozzle at least 4 inches (10 cm) from
the sensors.
x Noise from rough roads, cobblestones, other vehicles and the surrounding area, for
example, can prevent the Park Distance Control system from accurately detecting and
reporting people and objects that may be within range of the system sensors.
Volkswagen recommends practicing with the Park Distance Control system in a location or
parking space with no traffic in order to become familiar with the system and how it works.
Park Distance Control (PDC)

Fig. Park Distance Control system sensors.

If there is a malfunction in the Park Distance Control, a brief continuous warning tone will sound. Have
it immediately checked by an authorized Volkswagen dealer or an authorized Volkswagen Service
Facility.
Special considerations when using Park Distance Control
x In some cases, the Park Distance Control interprets water and ice on the sensors as an obstacle.
x If the distance remains the same, the warning tone volume decreases after a few seconds. If a
continuous tone sounds, its volume remains the same.
x If the vehicle moves away from the obstacle, the beeping sound stops automatically. The beep
turns on again automatically if the vehicle approaches the obstacle again.
x For vehicles with automatic transmissions, there is no beeping when the transmission is in Park
(P).
x The volume of the audible signals can be adjusted by an authorized Volkswagen dealership or an
authorized Volkswagen Service Facility.
WARNING
Never rely completely on the PDC for information about people and objects that might be in
the way of the vehicle and could be struck by the vehicle causing serious personal injury.
x The PDC sensors have blind spots where they cannot detect people or objects.
x Always watch for people, especially small children and animals, because the sensors may
not always be able to detect them.
If you hear a long beep lasting about 3 seconds when you first turn PDC on, this means there is a
malfunction in the Park Distance Control system. Have it immediately checked by an authorized
Volkswagen dealer or an authorized Volkswagen Service Facility.

Rear Assist with dynamic orientation lines

WARNING
Rear Assist technology cannot overcome the laws of physics and the limits of the system.
Careless or unintentional use of Rear Assist may result in accidents and severe injuries.
x Always adjust your speed and driving style to road, traffic, weather, and visibility
conditions.
x Always keep an eye on the parking direction and the vehicle surroundings. The front of
the vehicle swings out more than the rear of the vehicle.
x Never pay so much attention to the graphics shown on the screen that you fail to notice
what is going on around you.
x Always watch for people, especially small children, animals and objects, because the
camera may not always be able to detect them.
x The system may not be able to clearly show everything behind the vehicle.
x Use Rear Assist only when the rear hatch is completely closed.
NOTICE
x The camera shows only two-dimensional images on the screen. Due to the lack of depth of
field, it may be difficult or impossible to identify protruding objects or recesses in the road, for
example.
x Things like thin rods, fences, posts and trees may not be detected by the camera and could
damage the vehicle.
Operation

Fig. In the rear hatch: Location of the Rear Assist camera.

Fig. Display of the Rear Assist: Mode 1 activated.

1) Do not use Rear Assist in the following situations:
– If the position or angle of the camera was changed, such as after a rear-end collision, have the
system checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.


2.) Examples of optical deception by the camera: (examples)
– The Rear Assist camera provides only two-dimensional images. Recesses and protruding objects
on the ground or protruding parts on other vehicles are difficult or impossible to identify due to the
lack of depth of field.
– Objects or another vehicle may seem closer or farther away on the screen than they really are.
– When driving from a level surface onto an upward or downward slope.
– When driving up or down a slope onto a level surface.
– If the rear of the vehicle is heavily loaded.
– When approaching protruding objects. These objects can disappear from the field of view when
backing up.

Cleaning the camera lens
Keep camera lens clean and free of snow and ice.
x Engage the parking brake.
x Switch on the ignition.
x Select the reverse gear.
x Wet the camera lens with a commercially available alcohol-based glass cleaner and clean with a
dry cloth ⇒ .
x Remove snow with a brush.
x Remove ice with deicer spray ⇒ .
NOTICE
x Never use abrasive cleaning agents to clean the camera lens.
x Never remove snow or ice on the camera lens with warm or hot water. This can damage the
camera lens.
Volkswagen recommends practicing parking with Rear Assist in a safe place with little or no
traffic or in a parking lot under good visibility and weather conditions in order to familiarize yourself
with the system, the orientation lines and the way they work.
Rear Assist cannot be activated when the factory-installed trailer hitch is electrically connected to
the trailer or the rear hatch is open.

Parking perpendicular to the road (Mode 1)

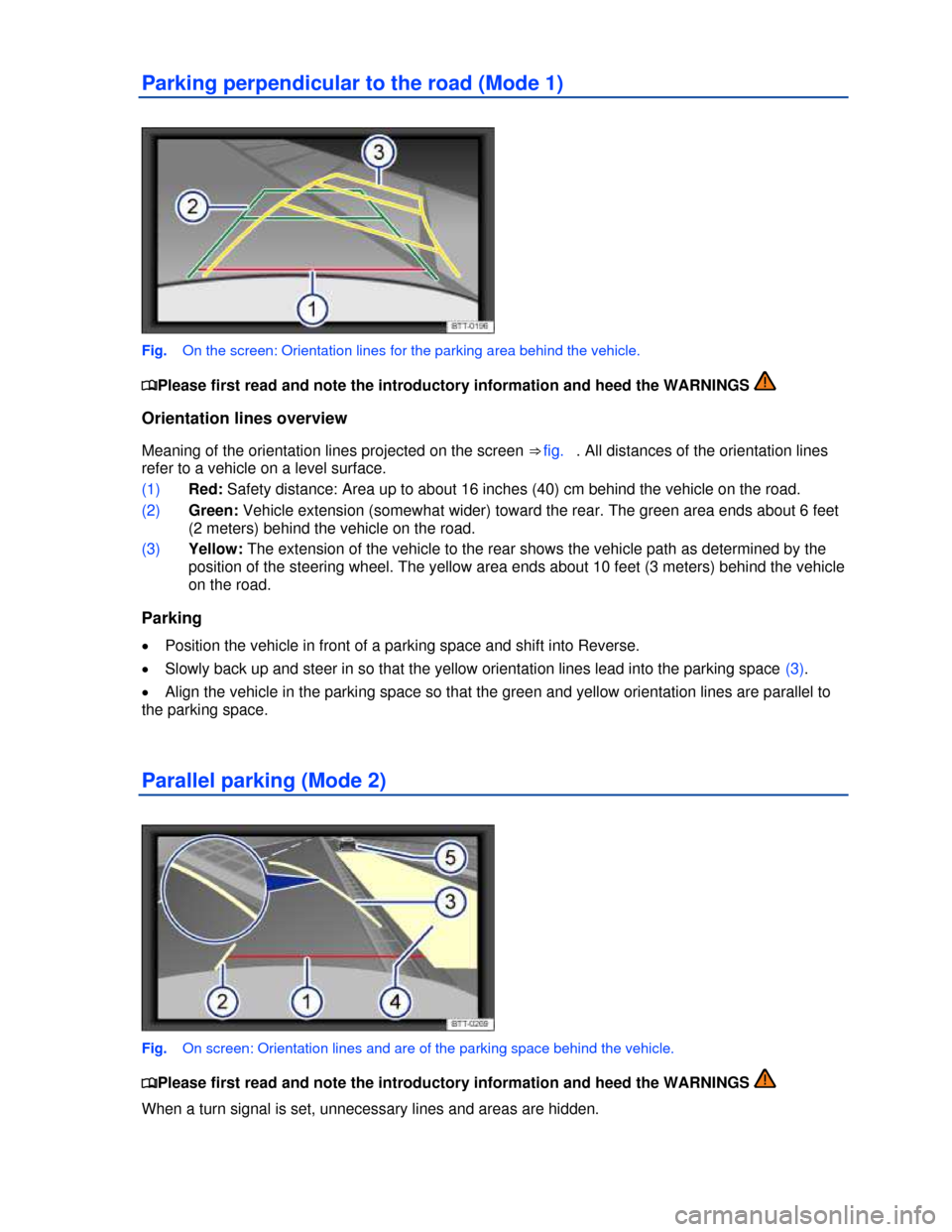

Fig. On the screen: Orientation lines for the parking area behind the vehicle.

Orientation lines overview
Meaning of the orientation lines and areas projected on screen ⇒ fig. . All distances of the orientation
lines refer to a vehicle on a level surface.
(1) Safety distance: Area up to about 16 inches (40 cm) behind the vehicle on the road.
(2) Vehicle's width limits.
(3) Point to change steering angle.
When the yellow line touches the curb or any other parking space boundary, the steering wheel
must be turned in the opposite direction (close-up view).
(4) The parking area parallel to the vehicle which is needed for parking. The area shown must fit
completely into the parking space.
(5) Parked vehicle at the curb.
Parking
x Position the vehicle about 3 feet (1 meter) away from and parallel to the parking space and shift
into reverse.
x On the screen of the navigation system, activate Mode 2 for parallel parking.
x Back up slowly and steer the vehicle so that the yellow surface on the screen is flush with the side
boundary of the parking space (such as the curb) and stops short of any obstacle (5), such as another
vehicle.
x Turn the steering wheel as far as it will go into the direction of the parking space and slowly back
up.
x Once the yellow line (3) touches the side boundary of the parking space, such as a painted line or
a curb (close-up view), turn the steering wheel as far as it will go in the opposite direction.
x Continue backing up until the vehicles is positioned in the parking space parallel to the roadway. If
necessary, correct the parking position.
It may take up to 5 seconds for the area detected by the sensors to be displayed on the factory-
installed radio or navigation system screen.
