Symbols on the roof console

Symbol Meaning
*  s  Interior and reading lights
> ≅ ? Power sunroof


Instrument Cluster

The red zone at the end of the scale indicates maximum permissible engine rpm (revolutions
per minute) for all gears after the break-in period. Before reaching this region, select the next
higher selector level position .(D), or ease your foot off the accelerator⇒ .
(3) Displays
(4) Speedometer
(5) Reset button for the trip odometer display (trip) and button to display the engine code.
– Push and hold the 0.0 .button about 1 second in order to reset to zero.
– Push the 0.0 .button again and hold it for about 3 seconds to display the previous value.
– Push and hold the 0.0 .button for more than 10 seconds to display the vehicle's engine
code. You must do this when the ignition is on, but the engine is not running.
(6) Fuel gauge
.NOTICE
x To help prevent engine damage, always avoid high engine speeds, full throttle acceleration
and heavy engine loads when the engine is cold.
x To help prevent engine damage, the tachometer needle should only enter the red zone
(warning zone) briefly.
.Up-shifting early into the next higher gear saves fuel and reduces engine noise.
Applicable only in Canada
Instrument overview

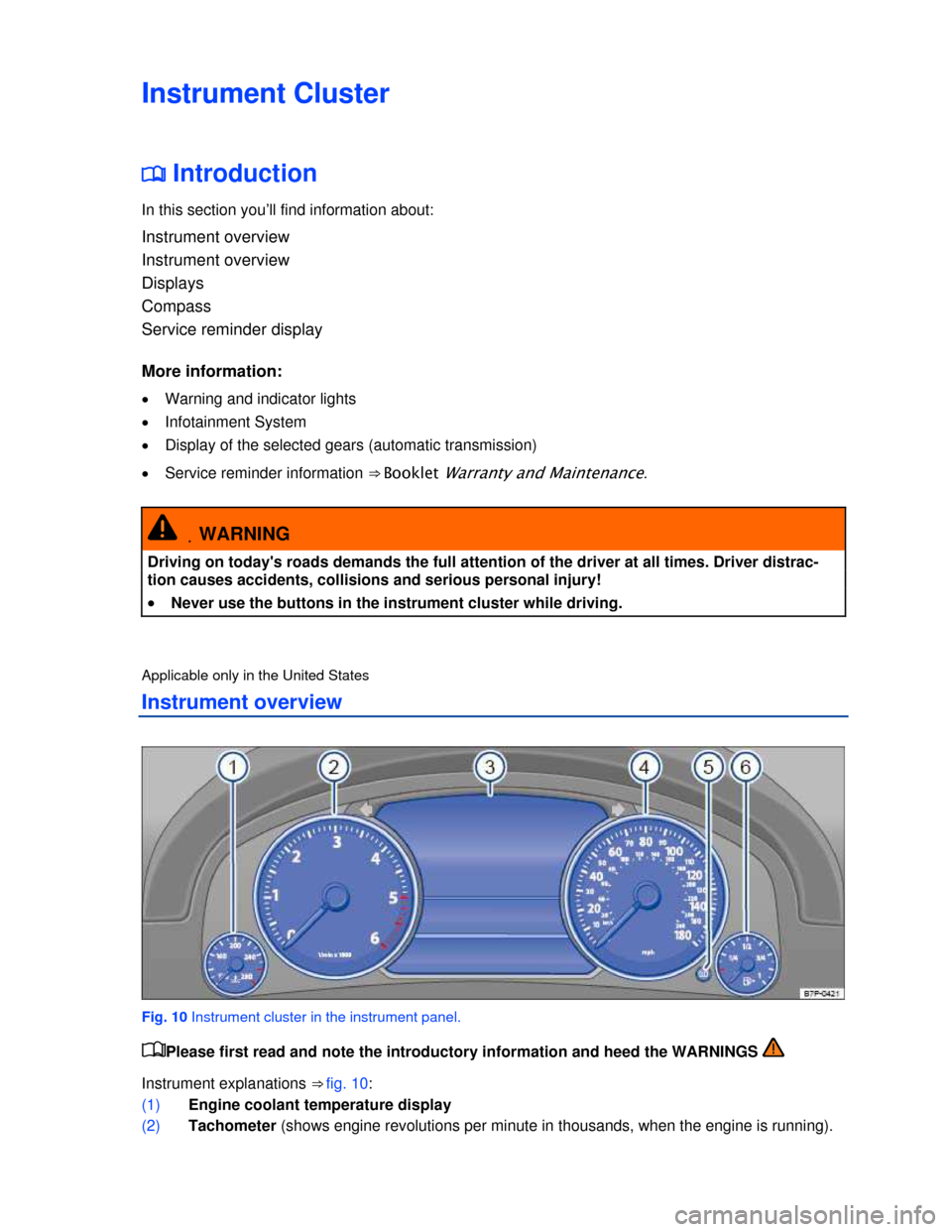

Fig. 11 Instrument cluster in the instrument panel.

(5) Reset button for the trip odometer display (trip) and button to display the engine code.
– Push and hold the 0.0 .button about 1 second in order to reset to zero.
– Push the 0.0 .button again and hold it for about 3 seconds to display the previous value.
– Push and hold the 0.0 .button for more than 10 seconds to display the vehicle's engine
code. You must do this when the ignition is on, but the engine is not running.
(6) Fuel gauge
.NOTICE
x To help prevent engine damage, always avoid high engine speeds, full throttle acceleration
and heavy engine loads when the engine is cold.
x To help prevent engine damage, the tachometer needle should only enter the red zone
(warning zone) briefly.
.Up-shifting early into the next higher gear saves fuel and reduces engine noise.
Displays

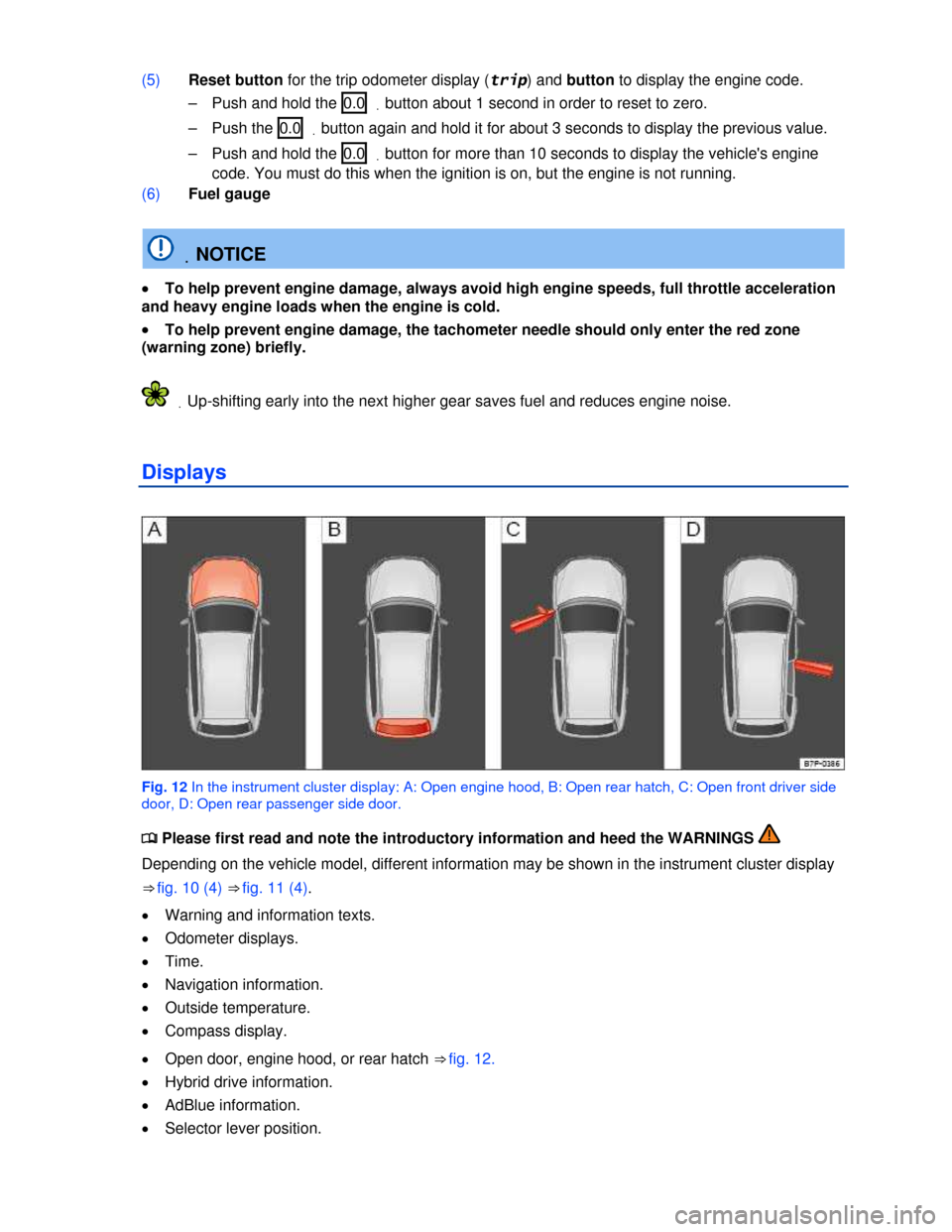

Fig. 12 In the instrument cluster display: A: Open engine hood, B: Open rear hatch, C: Open front driver side
door, D: Open rear passenger side door.

x Multi-Function Indictor (MFI) and menus for different settings.
x Service reminder display.
x Alternative speed display,Settings menu.
x Speed warning.
Compass

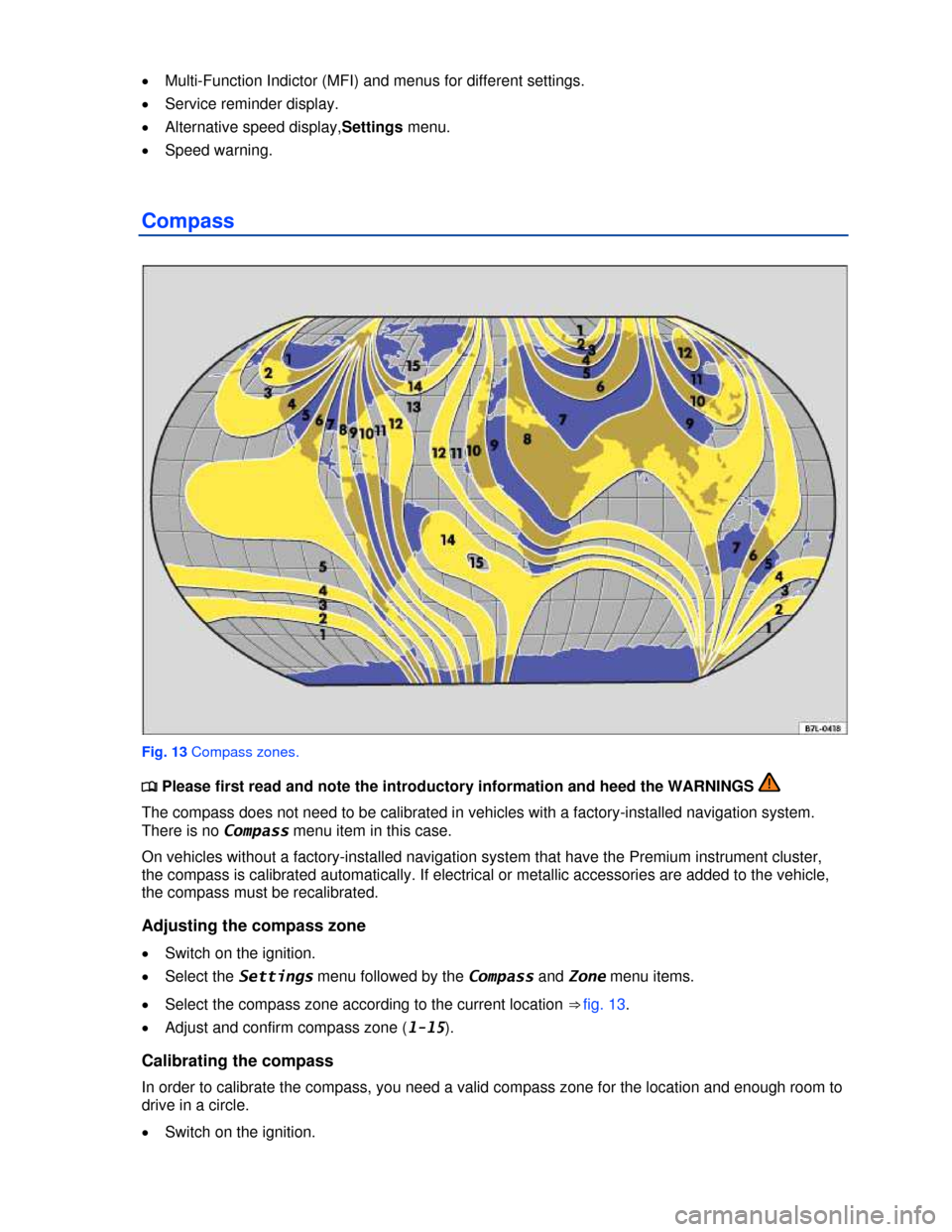

Fig. 13 Compass zones.

x Select the Settings menu followed by the Compass and Calibration menu items.
x Confirm the A complete circle must be driven for calibration message with OK and
then drive in a complete circle at about 6 mph (10 km/h).
During calibration, CAL is shown in the instrument cluster display. The calibration is complete when
the compass direction is displayed.
Service reminder display

.Do not reset the service reminder between service intervals; otherwise, incorrect information
will be displayed.
.The service reminder disappears after a few seconds when the engine is running or the
OK button on the multi-function steering wheel has been pushed.

Volkswagen Information System

▪ Display since start
▪ Display since refuel
▪ Display long-term
▪ Digital speed (digital speed display).
▪ Alt. speed display (alternative speed display On/Off)
Navigation
Audio
▪ Source list
– DAB
– FM
– AM
– Radio memory
– HDD
– SD
– DVD
– USB
– Bluetooth
– TV tuner
– TV station memory
– External AV source
Telephone
▪ Directory
▪ Dialed numbers
▪ Missed calls
▪ Received calls
Using the instrument cluster menus

Fig. 14 Right side of the multi-function steering wheel: Controls for the menus in the instrument cluster.

x To access a menu item, press the OKbutton.
Displaying a sub-menu
x Press the ' button on the multi-function steering wheel to access a submenu.
x Press the *or +buttons until the menu item you want is highlighted. The highlighted menu item is
between the two horizontal lines.
x Highlight or confirm the selection with the OK button.
If you make no selection within about 10 seconds, the screen switches back to the previous menu.
Returning to the main menu
