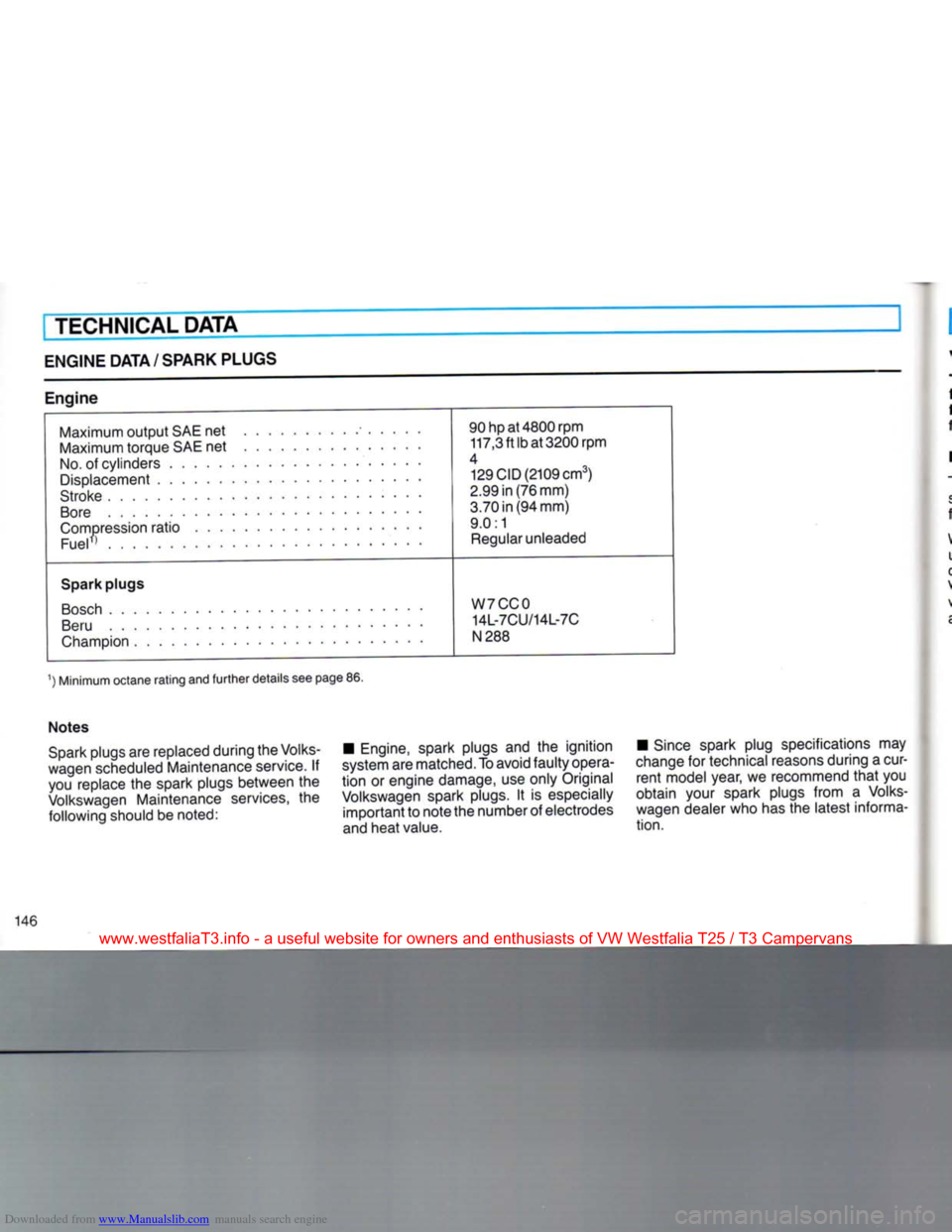

TECHNICAL DATA
ENGINE
DATA/SPARK PLUGS
Engine Maximum
output
SAE net 90 hp at 4800 rpm
Maximum torque SAE net 117,3 ft lb at 3200 rpm
No.
of cylinders 4
Displacement 129 CID (2109 cm3)
Stroke 2.99 in (76 mm)
Bore
3.70 in (94 mm)
Compression
ratio
Fuelf)
9.0:1
Compression
ratio
Fuelf)
Regular
unleaded
Sparkplugs
Bosch
W7CC0
Beru
14L-7CU/14L-7C
Champion
N288
1) Minimum octane rating and
further
details see page 86.
Notes
Spark
plugs are replaced during the Volks
wagen scheduled Maintenance service. If
you replace the spark plugs between the
Volkswagen
Maintenance services, the
following should be noted: • Engine, spark plugs and the ignition
system are matched. To avoid faulty opera
tion
or engine damage, use only Original
Volkswagen
spark plugs. It is especially important to note the number of electrodes
and heat value. • Since spark plug specifications may
change
for technical reasons during a cur
rent
model year, we recommend
that
you
obtain your spark plugs from a Volks
wagen dealer who has the latest informa
tion.
146
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 152 of 165
Downloaded from www.Manualslib.com manuals search engine

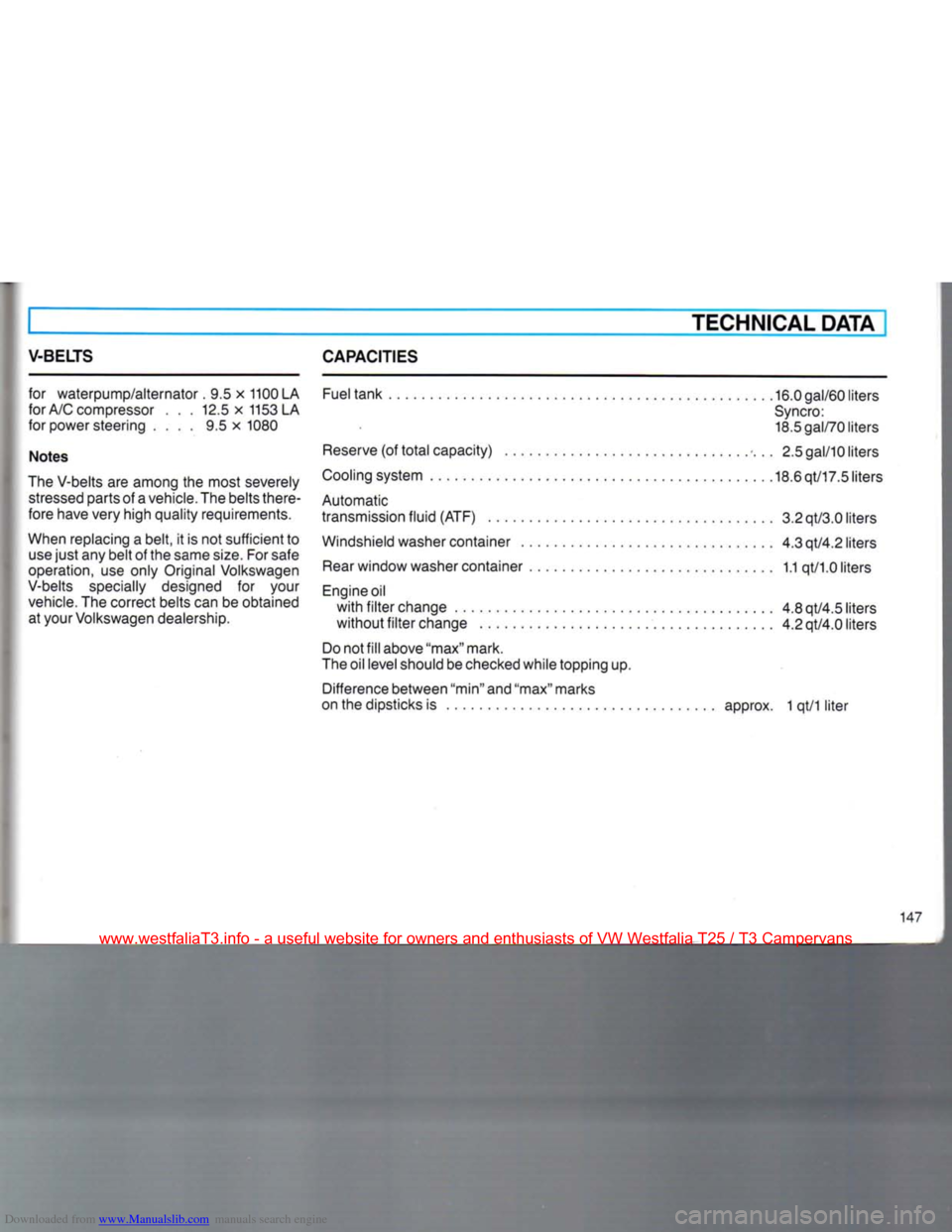

TECHNICAL DATA
V-BELTS
CAPACITIES
for waterpump/alternator. 9.5 x 1100 LA
Fuel
tank 16.0 gal/60 liters
for A/C compressor . . . 12.5x1153 LA Syncro:
for power steering .... 9.5 x 1080 18.5 gal/70 liters Noteg
Reserve
(of
total
capacity) >. .. 2.5 gal/10 liters
The V-belts are among the most severely Coolin3
sVstem186
^t/17-5 ll,ers
stressed
parts of a vehicle. The belts there- Automatic
fore have very high quality requirements. transmission fluid (ATF) 3.2 qt/3.0 liters
When replacing a belt, it is not sufficient to Windshield washer container 4.3 qt/4.2 liters
use
just
any belt of the same
size.
For safe
operation, use only Original Volkswagen
Rear
window washer container 1.1 qt/1.0 liters
V-belts
specially designed for your Engine oil
vehicle.
The correct belts can be obtained
with
filter
change 4.8 qt/4.5 liters at your Volkswagen dealership.
without
filter
change 4.2 qt/4.0 liters
Do
not
fill
above "max" mark.
The oil level should be checked while topping up.
Difference between "min" and "max" marks
on the dipsticks is approx. 1 qt/1 liter
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 153 of 165
Downloaded from www.Manualslib.com manuals search engine

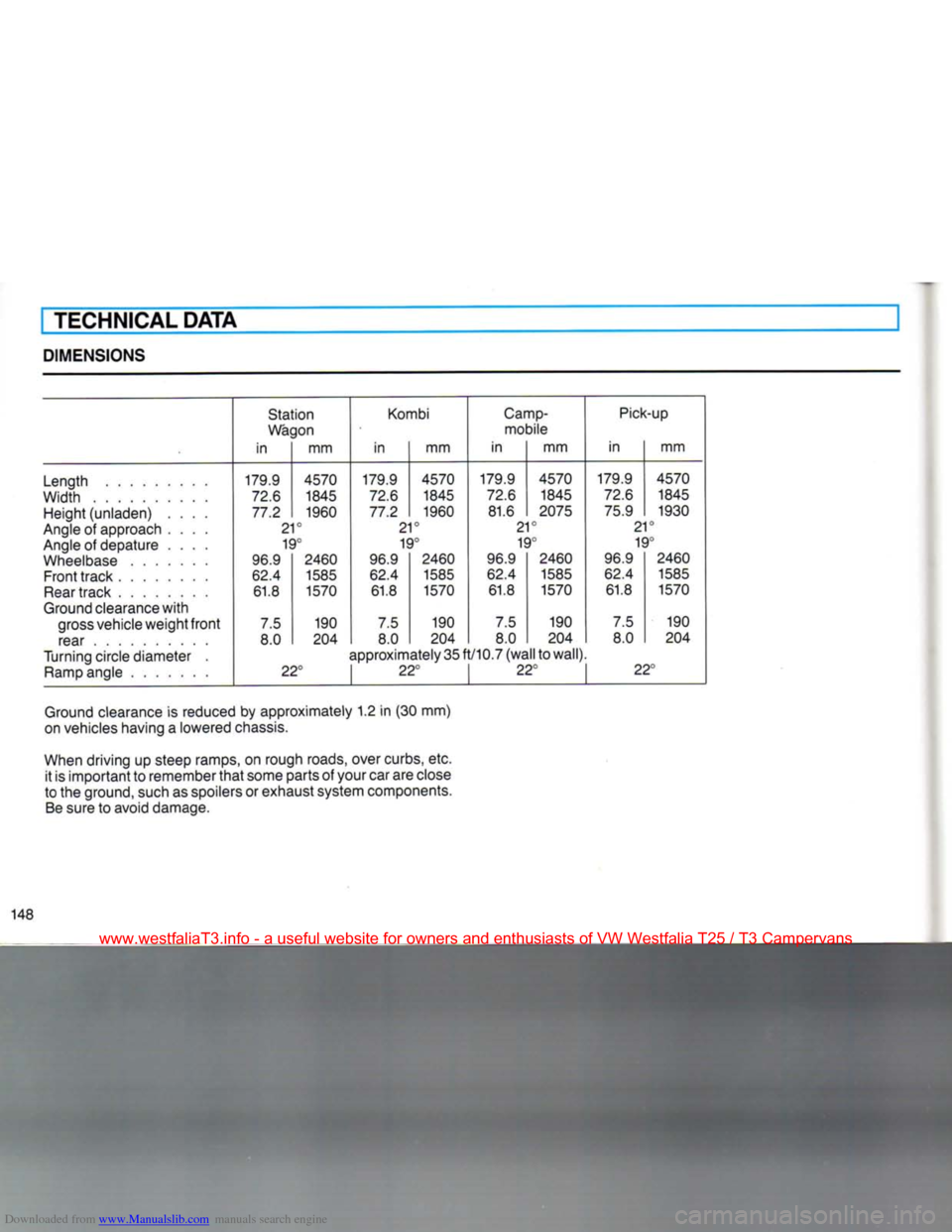

I TECHNICAL DATA
DIMENSIONS
Station
Kombi
Camp-
Pick-up
Wagon
mobile
in mm in mm in mm in mm
Length 179.9 4570
179.9 4570 179.9
4570 179.9
4570
Width 72.6 1845
72.6 1845 72.6
1845 72.6 1845
Height (unladen) .... 77.2
1960 77.2
1960 81.6 2075 75.9 1930
Angle
of approach .... 21° 21° 21° 21°
Angle
of depature .... 19° 19° 19° 19°
Wheelbase
96.9 2460 96.9 2460 96.9 2460 96.9 2460
Front track 62.4
1585 62.4
1585 62.4 1585 62.4 1585
Rear
track 61.8 1570
61.8 1570
61.8 1570 61.8 1570
Ground
clearance
with
gross
vehicle weight
front
7.5
190 7.5 190
7.5 190 7.5 190
rear 8.0
204 8.0 204 8.0 204 8.0 204
Turning circle diameter . approximately 35
ft/10.7
(wall
to wall)
Ramp
angle 22° 22° 22° 22°
Ground
clearance is reduced by approximately 1.2 in (30 mm)
on vehicles having a lowered
chassis.
When driving up steep ramps, on rough roads, over curbs, etc. it is
important
to remember
that
some parts of your car are close
to the ground, such as spoilers or exhaust system components.
Be
sure to avoid damage.
148
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 154 of 165
Downloaded from www.Manualslib.com manuals search engine

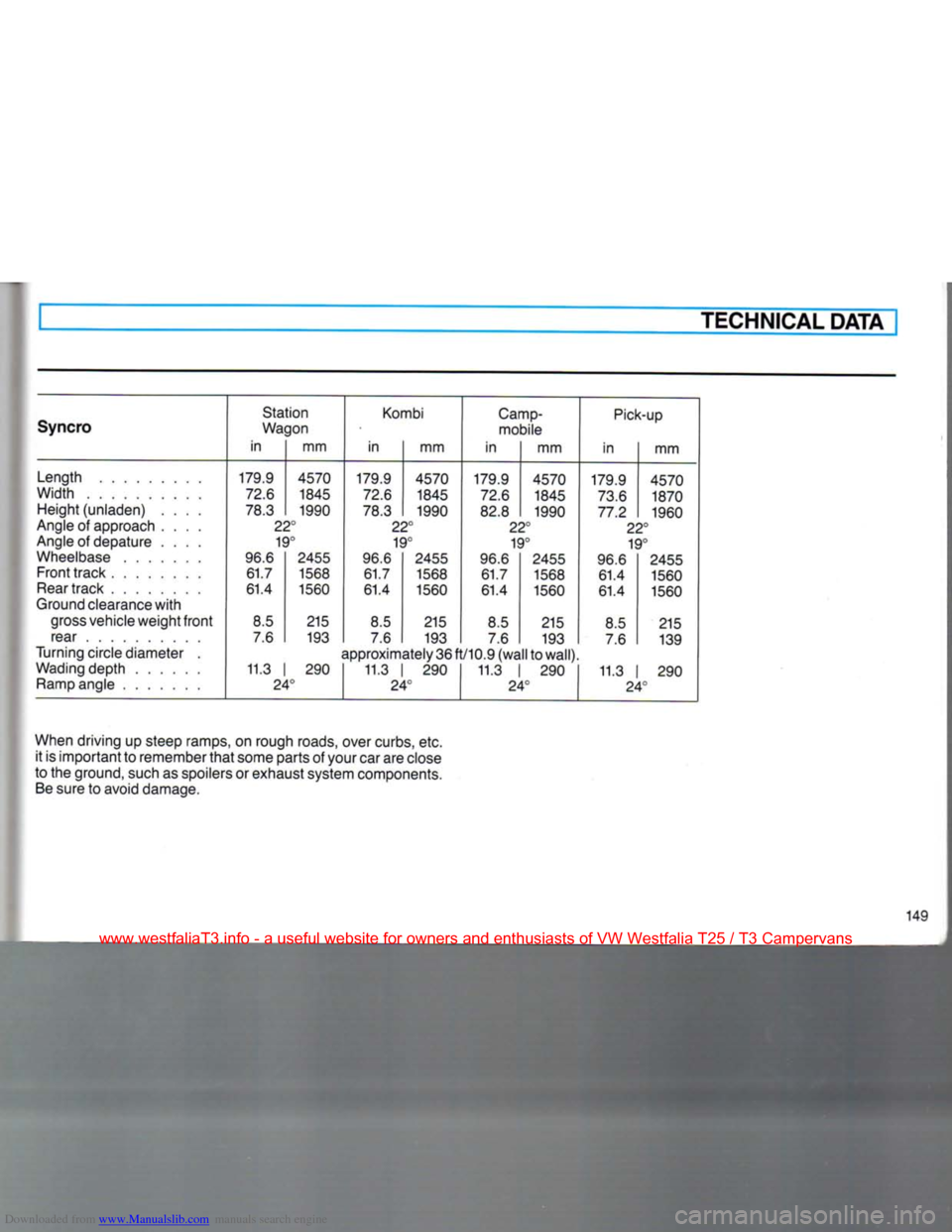

TECHNICAL DATA
Syncro Station
Kombi Camp-
Pick-up
Syncro Wagon
mobile
in mm in mm in
mm in mm
Length 179.9 4570 179.9 4570 179.9
4570 179.9 4570
Width 72.6 1845
72.6 1845 72.6
1845 73.6 1870
Height (unladen) .... 78.3
1990 78.3 1990 82.8
1990 77.2
1960
Angle of approach .... 22°
22° 22°
22°
Angle of depature .... 19°
19° 19°
19°
Wheelbase 96.6
2455 96.6 2455 96.6
2455 96.6
2455
Front track 61.7
1568 61.7 1568 61.7
1568 61.4
1560
Rear track 61.4 1560 61.4
1560 61.4
1560 61.4
1560
Ground clearance with
gross vehicle weight front 8.5
215 8.5 215
8.5 215 8.5
215
rear 7.6 193
7.6 193
7.6 193
7.6 139
Turning circle diameter . approximately 36 ft/10.9 (wall to wall)
Wading depth 11.3 290 11.3 290
11.3 290 11.3
290
Ramp angle 24°
24° 24°
24°
When driving up steep ramps, on rough roads, over curbs, etc. it is important to remember that some parts of your car are close
to the ground, such as spoilers or exhaust system components. Be sure to avoid damage.
149
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 155 of 165
Downloaded from www.Manualslib.com manuals search engine
TECHNICAL DATA
WEIGHTS
The vehicle capacity weight (max. load), the
Gross
Vehicle Weight Rating
(GVWR),
and
the
Gross
Axle Weight Ratings
(GAWR)
for
front
and rear, are listed on the
Safety
Compliance Sticker on the
left
door-
jamb.
The gross vehicle weight rating includes the weight
of the
basic
vehicle plus
full
fuel tank,
oil and
coolant, plus max. load which combines passenger (150 pounds/
68 kg per designated seating position) and luggage weight. Luggage weight
is not
increased
by the use of a
roof rack,
unless
passenger capacity
is
reduced
accordingly.
The gross axle weight rating
is the
maxi mum load
that
can be applied
at
each axle
of the vehicle.
Syncro
When driving off-road,
the
Gross
Vehicle
Weight
(GVWR)
must
be
reduced
by 440
lbs (200 kg).
WARNING
•
The actual
gross
axle
weight
rating
at the
front
and rear axles should not
exceed the permissible weights, and
their
combination must not exceed the
Gross
Vehicle Weight Rating.
•
Exceeding permissible
weight
ratings can result in vehicle damage,
accidents and personal injury.
Note
The vehicle capacity weight figures apply when
the
load
is
distributed evenly
in the
vehicle (passengers
and
luggage). When
transporting
a
heavy load
in the
luggage
compartment,
the
load should be carried
as
near
to
the rear axle as possible so
that
the
vehicle's
handling
is not
impaired.
On no
account should
you
exceed
the
maximum
permissible axle loads
or the
maximum
gross
vehicle weight. Always remember
that
the vehicle's handing
will
be
affected by
the
extra
load,
and
adjust your speed accordingly.
Roof
weights
The maximum permissible roof weight
on
the station wagon
and
kombi
is 220 lb,
100
kg. The
roof luggage rack
on the
campmobile
with
pop-up roof allows only 110 lb/50 kg.
For
more details see page 68.
Maximum permissible
trailer
weights
Braked
trailer 900 kg (2,000 lb.) Unbraked trailer 600 kg (1,3201b.)
Tongue load 75 kg
(
1651b.)
Do not exceed the
weight
limitations of
your
trailer
hitch.
150
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 156 of 165
Downloaded from www.Manualslib.com manuals search engine
TECHNICAL
DATA

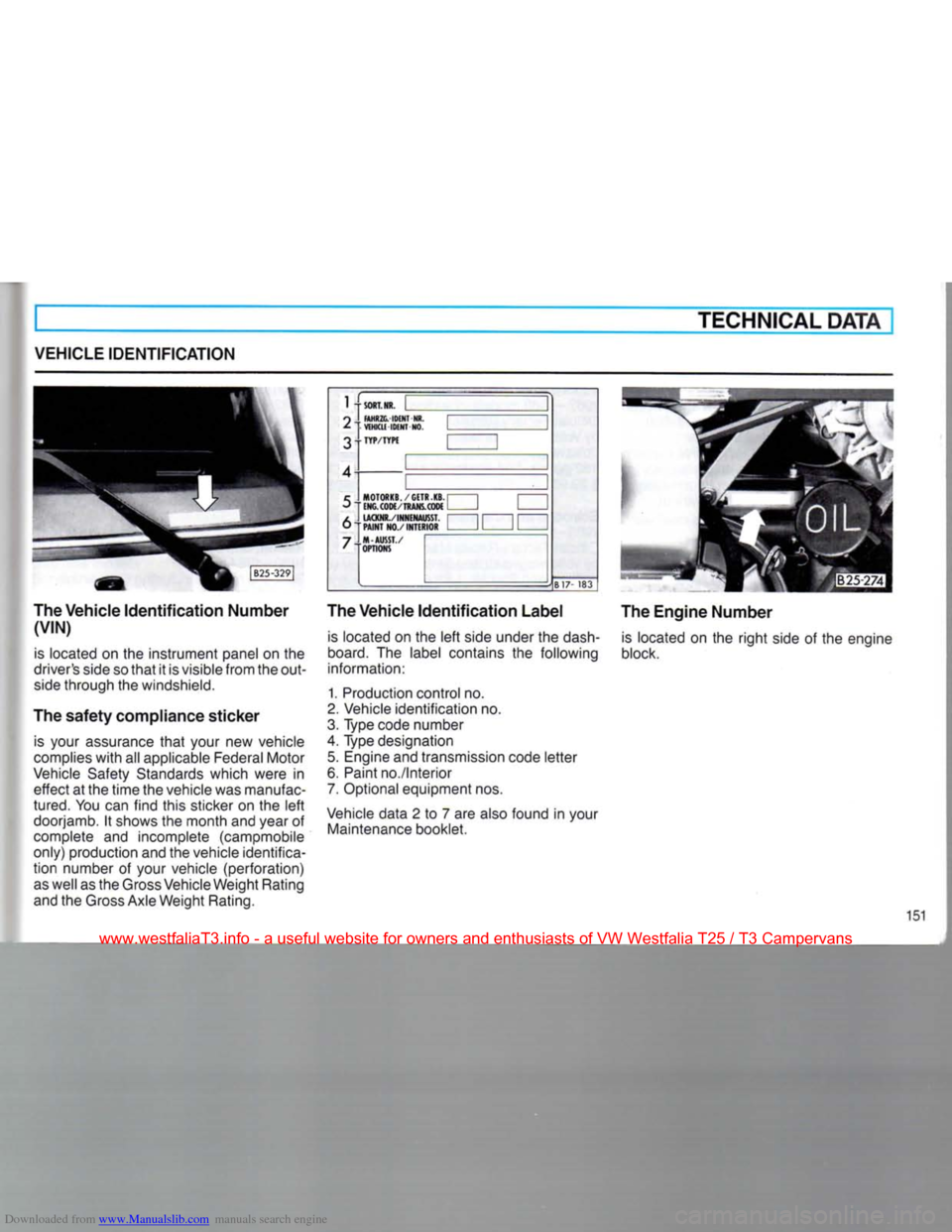

VEHICLE
IDENTIFICATION
The
Vehicle
Identification
Number
(VIN)
is
located on the instrument panel on the
driver's side so
that
it is visible
from
the
out
side
through the windshield.
The
safety
compliance
sticker
is
your assurance
that
your new vehicle
complies
with
all applicable Federal Motor
Vehicle
Safety Standards which were in effect at the
time
the vehicle was manufac
tured. You can
find
this sticker on the
left
doorjamb. It shows the month and year of
complete and incomplete (campmobile
only) production and the vehicle identifica
tion
number of your vehicle
(perforation)
as
well as the
Gross
Vehicle
Weight Rating
and the
Gross
Axle Weight Rating. The
Vehicle
Identification
Label
is
located on the
left
side under the
dash
board.
The label contains the following information:
1. Production control no.
2.
Vehicle identification no.
3.
Type code number
4.
Type designation
5.
Engine and transmission code
letter
6. Paint
no./Interior
7. Optional equipment nos.
Vehicle
data 2 to 7 are also found in your
Maintenance
booklet. The
Engine
Number
is
located on the
right
side of the engine
block.
151
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 157 of 165
Downloaded from www.Manualslib.com manuals search engine

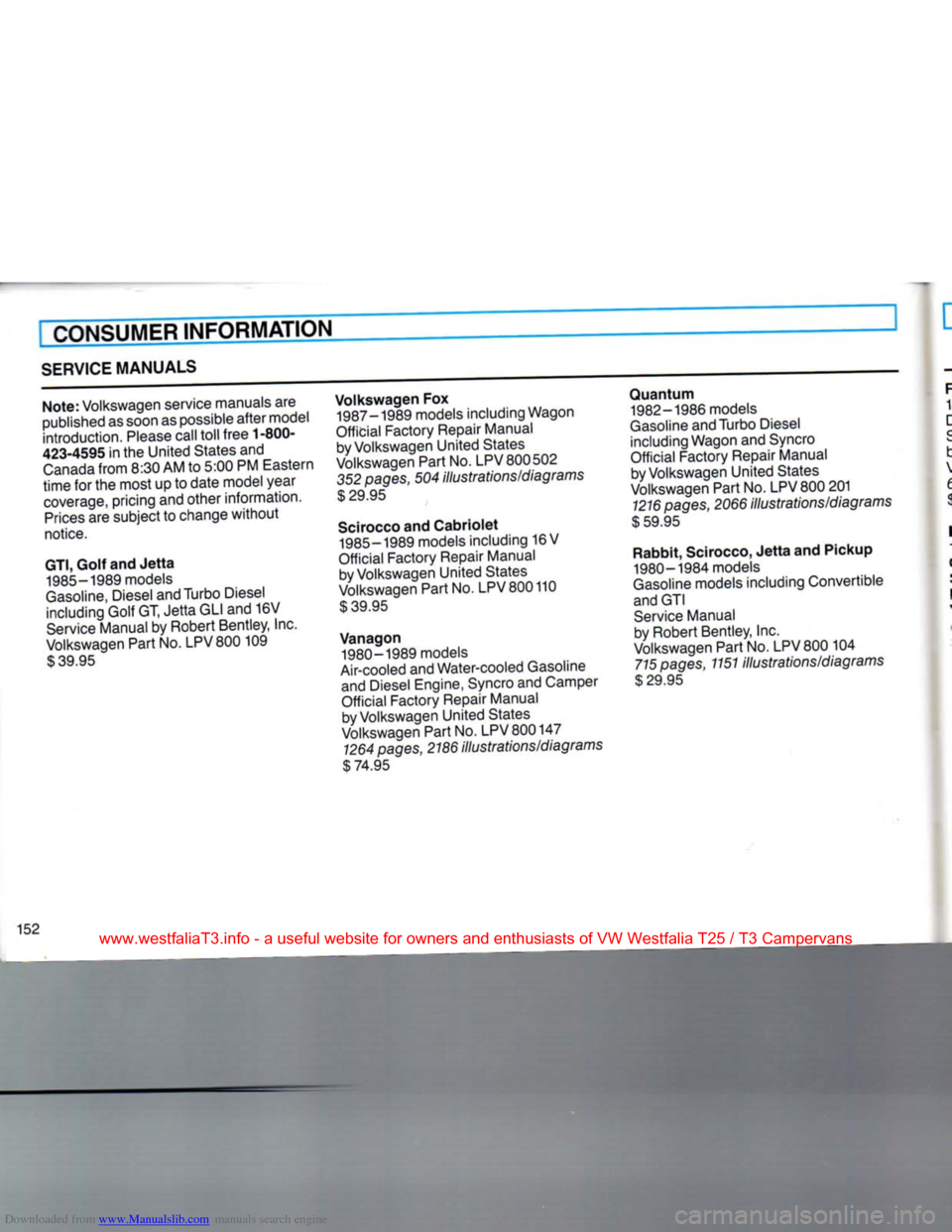

CONSUMER
INFORMATION
SERVICE MANUALS
Note:
Volkswagen service manuals are
published as soon as possible
after
model
introduction.
Please
call
toll
free 1-800-
423-4595
in the United States and
Canada
from
8:30 AM to 5:00 PM Eastern
time
for the most up to date model year
coverage,
pricing and other information.
Prices
are subject to change
without
notice.
GTI,
Golf
and
Jetta
1985-1989 models
Gasoline,
Diesel and Turbo Diesel
including Golf GT, Jetta GLI and 16V
Service
Manual by Robert Bentley, Inc.
Volkswagen Part No. LPV 800 109 $39.95
Volkswagen
Fox
1987-1989 models including Wagon
Official Factory Repair Manual by Volkswagen United States
Volkswagen Part No. LPV800502 352 pages, 504 illustrations/diagrams
$29.95
Scirocco and
Cabriolet
1985-1989 models including 16 V
Official Factory Repair Manual
by Volkswagen United States
Volkswagen Part No. LPV 800110 $39.95
Vanagon
1980-1989 models
Air-cooled and Water-cooled Gasoline and Diesel Engine, Syncro and Camper
Official Factory Repair Manual by Volkswagen United States
Volkswagen Part No. LPV 800147 1264 pages, 2186 illustrations/diagrams
$
74.95
Quantum
1982-1986 models
Gasoline
and Turbo Diesel
including Wagon and Syncro
Official Factory Repair Manual
by Volkswagen United States
Volkswagen Part No. LPV 800 201 7276 pages,
2066
illustrations/diagrams
$59.95
Rabbit,
Scirocco,
Jetta
and
Pickup
1980-1984 models
Gasoline
models including Convertible
and GTI
Service
Manual
by Robert Bentley, Inc.
Volkswagen Part No. LPV 800 104 775 pages, 1151 illustrations/diagrams
$29.95
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 158 of 165
Downloaded from www.Manualslib.com manuals search engine

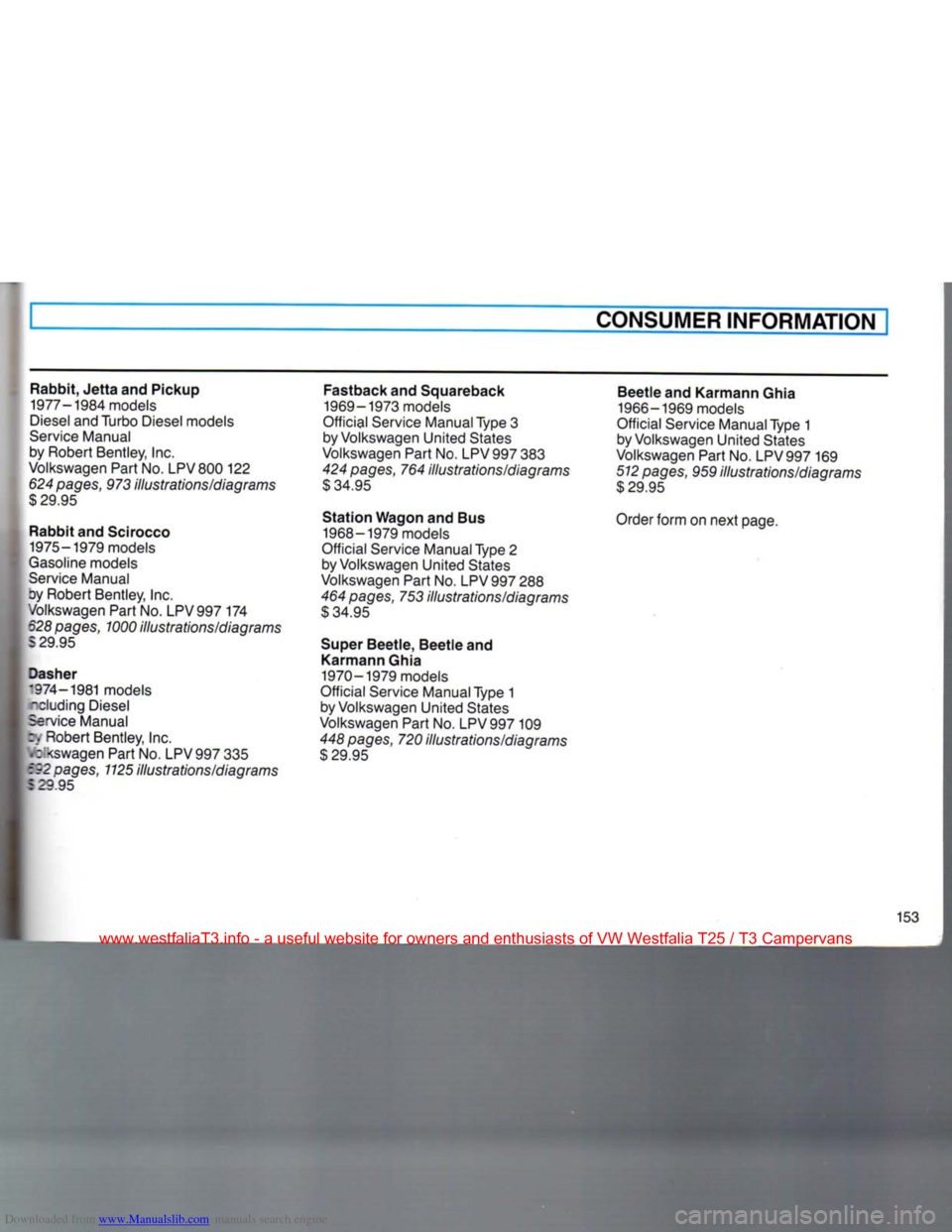

CONSUMER
INFORMATION
Rabbit,
Jetta
and Pickup
1977-1984
models
Diesel
and Turbo Diesel models
Service
Manual
by Robert Bentley, Inc.
Volkswagen
Part No.
LPV800
122 624 pages, 973 illustrations/diagrams
$29.95
Rabbit
and Scirocco 1975-1979 models
Gasoline
models
Service
Manual oy Robert Bentley, Inc.
Volkswagen
Part No.
LPV997
174
528
pages, 1000 illustrations/diagrams 5
29.95
Dasher
'974-1981 models -eluding Diesel
Service
Manual
:. Robert Bentley, Inc. • :
335
f
r2
Dages, 1125 illustrations/diagrams
i
29.95
Fastback
and
Squareback
1969-
1973 models
Official Service Manual Type
3
by Volkswagen United States
Volkswagen
Part No.
LPV997
383 424 pages, 764 illustrations/diagrams
$34.95
Station
Wagon
and Bus 1968-1979 models
Official Service Manual Type
2
by Volkswagen United States
Volkswagen
Part No.
LPV997
288
464 pages, 753 illustrations/diagrams
$
34.95
Super
Beetle,
Beetle
and
Karmann
Ghia
1970-
1979 models
Official Service Manual Type
1
by Volkswagen United States
Volkswagen
Part No.
LPV997
109
448 pages, 720 illustrations/diagrams $29.95
Beetle
and
Karmann
Ghia
1966-1969 models
Official Service Manual Type
1
by Volkswagen United States
Volkswagen
Part No.
LPV997
169
572 pages, 959 illustrations/diagrams
$29.95
Order
form
on next page.
153
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 159 of 165
Downloaded from www.Manualslib.com manuals search engine

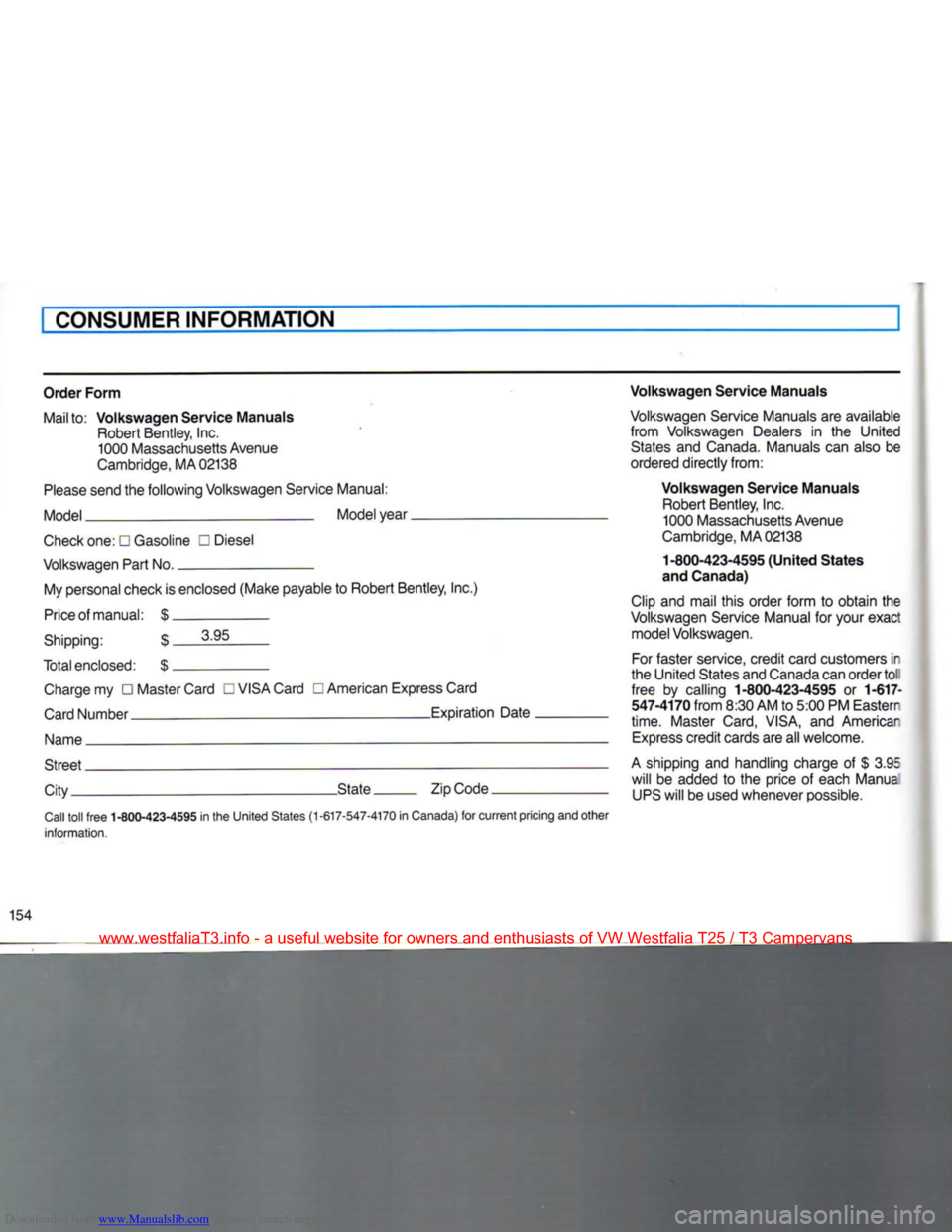

CONSUMER INFORMATION
Order Form Mail to: Volkswagen Service Manuals Robert Bentley, Inc. 1000 Massachusetts Avenue
Cambridge, MA 02138
Please send the following Volkswagen Service Manual:
Model Model year.
Check one: • Gasoline • Diesel
Volkswagen Part No My personal check is enclosed (Make payable to Robert Bentley, Inc.)
Price of manual: $
Shipping:
$ 5^95
Total enclosed: $ Charge my • Master Card • VISA Card • American Express Card
Card Number Expiration Date
Name.
Street.
City _State
_
Zip Code. Volkswagen Service Manuals
Volkswagen Service Manuals are available
from Volkswagen Dealers in the United States and Canada. Manuals can also be
ordered directly from:
Volkswagen Service Manuals Robert Bentley, Inc.
1000 Massachusetts Avenue
Cambridge, MA 02138
1-800-423-4595 (United States
and Canada)
Clip and mail this order form to obtain the
Volkswagen Service Manual for your exact model Volkswagen.
For faster service, credit card customers ir
the United States and Canada can order tol
free by calling 1-800-423-4595 or
1-617-
547-4170 from 8:30 AM to 5:00 PM Easterr
time.
Master Card, VISA, and American Express credit cards are all welcome.
A shipping and handling charge of $ 3.95 will be added to the price of each Manua UPS will be used whenever possible.
Call toll free 1-800-423-4595 in the United States
(1
-617-547-4170 in Canada) for current pricing and other
information.
154
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
Page 160 of 165
Downloaded from www.Manualslib.com manuals search engine
1

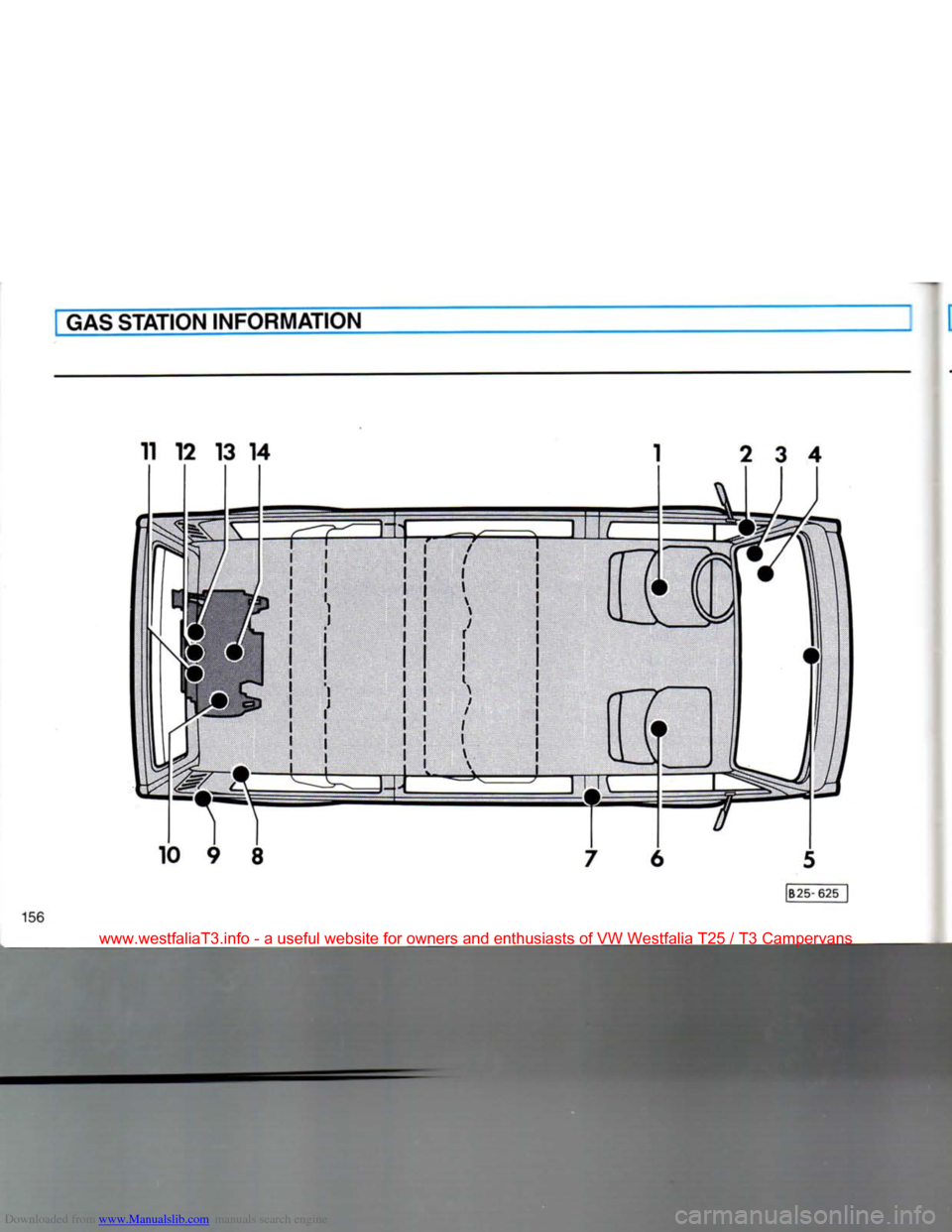

GAS
STATION
INFORMATION
www.westfaliaT3.info - a useful website for owners and enthusiasts of VW Westfalia T25 / T3 Campervans
