VEHICLE CARE

K >i

|B43-155|

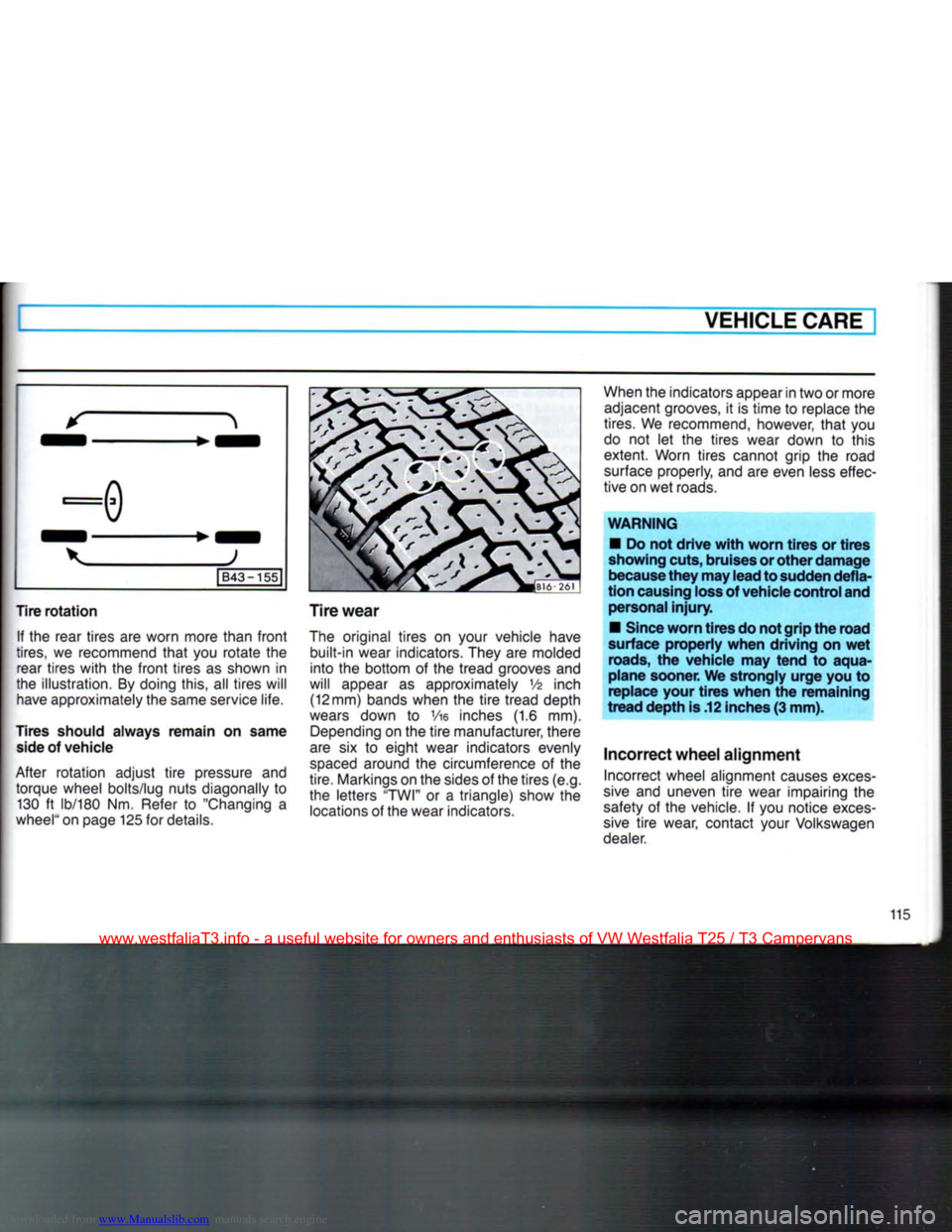

Tire rotation If the
rear tires
are
worn more than
front

tires,
we
recommend
that
you
rotate
the
rear tires
with
the
front
tires
as
shown
in

the illustration.
By
doing this,
all
tires will
have
approximately the same service life.

Tires
should always remain on same
side
of vehicle

After rotation adjust
tire
pressure
and
torque wheel bolts/lug nuts diagonally
to
130
ft
lb/180
Nm.
Refer
to
"Changing
a

wheel"
on page 125
for
details.
Tire
wear

The
original tires
on
your vehicle have
built-in wear indicators. They
are
molded
into
the
bottom
of the
tread grooves
and

will appear
as
approximately
V6
inch (12 mm) bands when
the
tire
tread depth

wears
down
to Vie
inches
(1.6 mm).
Depending
on the
tire
manufacturer, there
are
six to
eight wear indicators evenly

spaced
around
the
circumference
of the

tire. Markings on the sides
of
the tires (e.g.
the letters "TWI"
or a
triangle) show
the
locations
of
the wear indicators.
When
the indicators appear in two
or
more
adjacent grooves,
it is
time
to
replace
the

tires.
We
recommend, however,
that
you

do
not let the
tires wear down
to
this
extent. Worn tires cannot grip
the
road

surface
properly, and are even
less
effec­
tive on wet roads.

WARNING
•
Do not drive
with
worn tires or tires

showing
cuts,
bruises
or other damage
because
they may lead to
sudden
defla­
tion
causing
loss
of
vehicle
control
and
personal
injury.

•
Since
worn tires do not grip the road

surface
properly when driving on wet
roads,
the vehicle may tend to aqua­
plane sooner. We strongly urge you to
replace your tires when the remaining
tread depth is .12
inches
(3 mm).

Incorrect
wheel
alignment
Incorrect wheel alignment
causes
exces­

sive
and
uneven
tire
wear impairing
the

safety
of the
vehicle.
If
you notice
exces­

sive
tire
wear, contact your Volkswagen

dealer.

115
