reading light VOLKSWAGEN TRANSPORTER 2018 Owners Manual

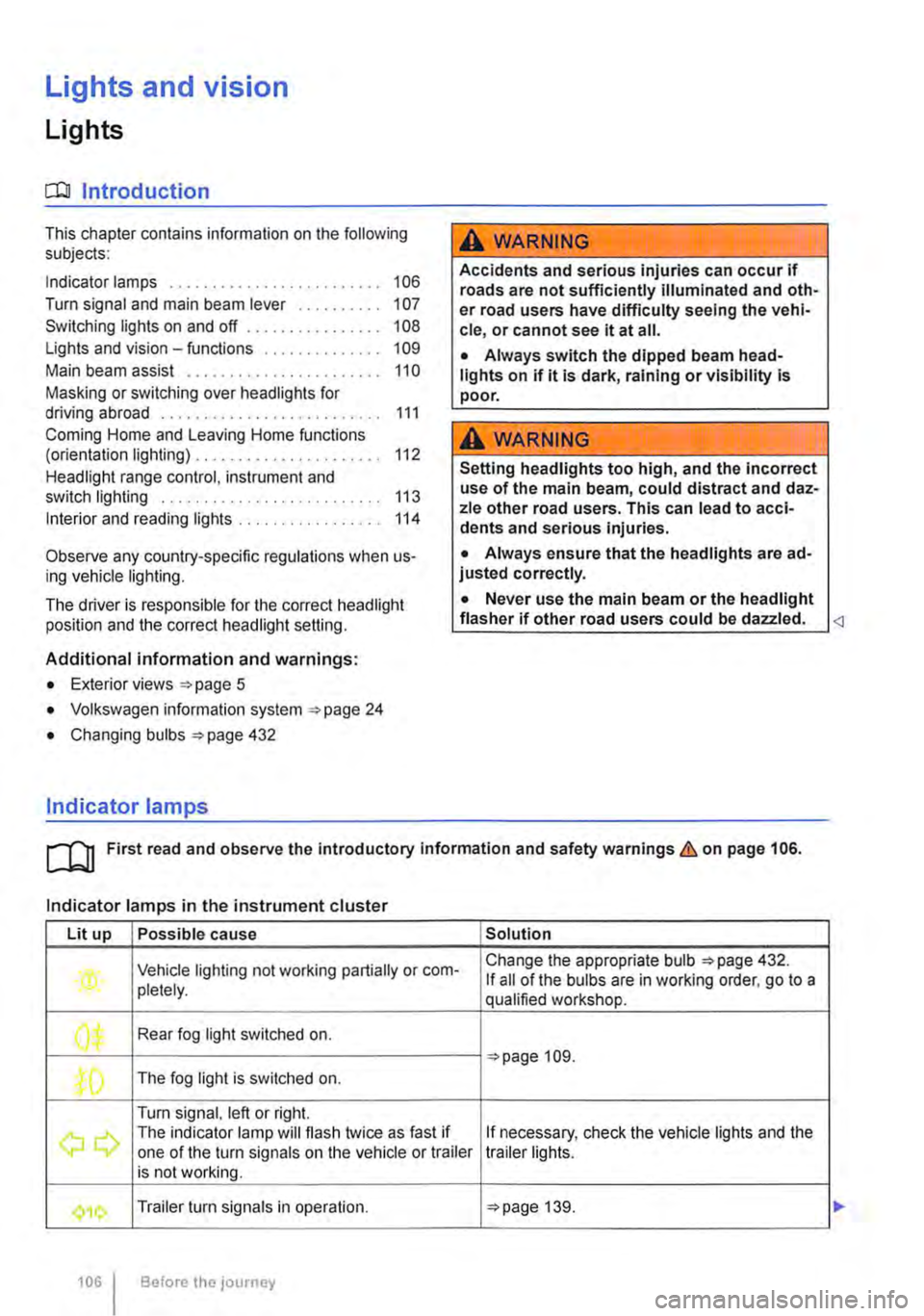

Lights and vision
Lights
0::0 Introduction
This chapter contains information on the following subjects:
Indicator lamps . . . . . . . . . . . . . . . . . 106
Turn signal and main beam lever . . 107 Switching lights on and off . . . . . . . . 108
Lights and vision -functions . . . . . . . . . . . . . . 109
Main beam assist ....................... 110
Masking or switching over headlights for driving abroad . . . . . . . . . 111
Coming Home and Leaving Home functions (orientation lighting).............. 112
Headlight range control, instrument and switch lighting . . . . . 113 Interior and reading lights . . . . . . . . . 114
Observe any country-specific regulations when us-ing vehicle lighting.
The driver is responsible for the correct headlight position and the correct headlight setting.
Additional information and warnings:
• Exterior views ""page 5
• Volkswagen information system =oo page 24
• Changing bulbs =oo page 432
Indicator lamps
A WARNING
Accidents and serious injuries can occur if roads are not sufficiently Illuminated and oth-er road users have difficulty seeing the vehi-cle, or cannot see it at all.
• Always switch the dipped beam head-lights on if it is dark, raining or visibility is poor.
A WARNING
Setting headlights too high, and the incorrect use of the main beam, could distract and daz-zle other road users. This can lead to acci-dents and serious injuries.
• Always ensure that the headlights are ad-j usted correctly.
• Never use the main beam or the headlight flasher if other road users could be dazzled.
[Qj First read and observe the introductory information and safety warnings & on page 106.
Indicator lamps in the instrument cluster
Lit up Possible cause Solution
Vehicle lighting not working partially or corn-Change the appropriate bulb 432. If all of the bulbs are in working order. go to a pletely. qualified workshop.
' Rear fog light switched on. J", =oopage 109.
,( The fog light is switched on.
Turn signal, left or right.
r The indicator lamp will flash twice as fast if If necessary, check the vehicle lights and the one of the turn signals on the vehicle or trailer trailer lights. is not working.
'111 Trailer turn signals in operation. 139.
106 Before the journey
...

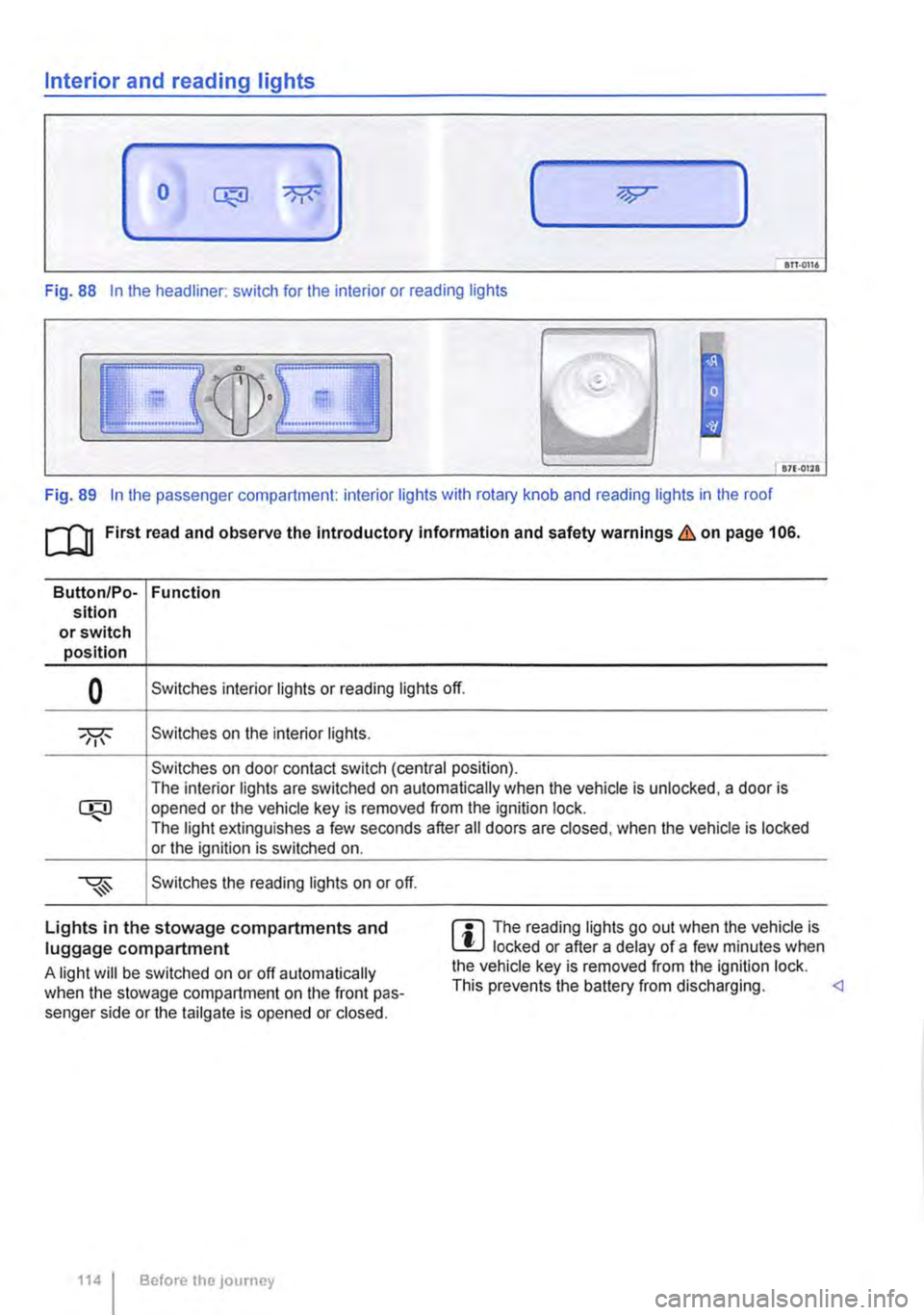

Interior and reading lights
0 ( )
ITT·0116
Fig. 88 In the headliner: switch for the interior or reading lights
871·01ll
Fig. 89 In the passenger compartment: interior lights with rotary knob and reading lights in the roof
[Q] First read and observe the Introductory information and safety warnings&. on page 106.
Button/Po-Function sition or switch position
0 Switches interior lights or reading lights off.
Switches on the interior lights.
Switches on door contact switch (central position). The interior lights are switched on automatically when the vehicle is unlocked, a door is opened or the vehicle key is removed from the ignition lock. The light extinguishes a few seconds after all doors are closed, when the vehicle is locked or the ignition is switched on.
Switches the reading lights on or off.
Lights in the stowage compartments and luggage compartment
A light will be switched on or off automatically when the stowage compartment on the front pas-senger side or the tailgate is opened or closed.
1141 Before the journey
m The reading lights go out when the vehicle is W locked or after a delay of a few minutes when the vehicle key is removed from the ignition lock. This prevents the battery from discharging.

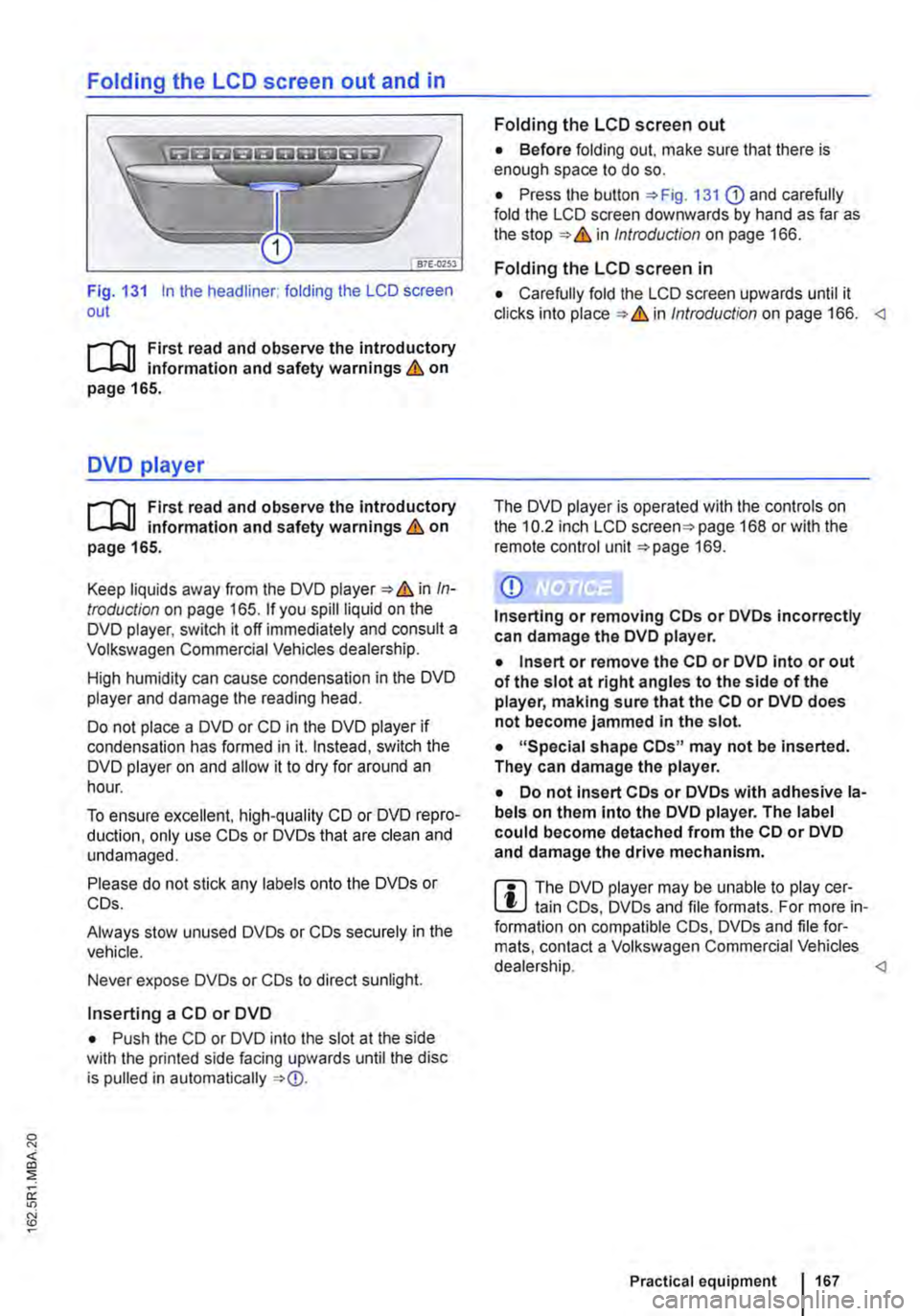

Folding the LCD screen out and in
Fig. 131 In the headliner: folding the LCD screen out
r-111 First read and observe the introductory L-b.U information and safety warnings & on page 165.
DVD player
r-111 First read and observe the introductory L-b.U information and safety warnings & on page 165.
Keep liquids away from the DVD player & in In-troduction on page 165. If you spill liquid on the DVD player, switch it off immediately and consult a Volkswagen Commercial Vehicles dealership.
High humidity can cause condensation in the DVD player and damage the reading head.
Do not place a DVD or CD in the DVD player if condensation has formed in it. Instead, switch the DVD player on and allow it to dry for around an hour.
To ensure excellent, high-quality CD or DVD repro-duction, only use COs or DVDs that are clean and undamaged.
Please do not stick any labels onto the DVDs or COs.
Always stow unused DVDs or COs securely in the vehicle.
Never expose DVDs or COs to direct sunlight.
Inserting a CD or DVD
• Push the CD or DVD into the slot at the side with the printed side facing upwards until the disc is pulled in automatically
Folding the LCD screen out
• Before folding out. make sure that there is enough space to do so.
• Press the button 131 G) and carefully fold the LCD screen downwards by hand as far as the in Introduction on page 166.
Folding the LCD screen in
• Carefully fold the LCD screen upwards until it clicks into in Introduction on page 166. The DVD player is operated with the controls on the 10.2 inch LCD page 168 or with the remote control unit 169.
CD
Inserting or removing COs or DVDs incorrectly can damage the DVD player.
• Insert or remove the CD or DVD into or out of the slot at right angles to the side of the player, making sure that the CD or DVD does not become jammed in the slot.
• "Special shape COs" may not be inserted. They can damage the player.
• Do not insert COs or DVDs with adhesive la-bels on them Into the DVD player. The label could become detached from the CD or DVD and damage the drive mechanism.
m The DVD player may be unable to play cer-L!J tain COs, DVDs and file formats. For more in-formation on compatible COs, DVDs and file for-mats, contact a Volkswagen Commercial Vehicles dealership. Practical equipment 167

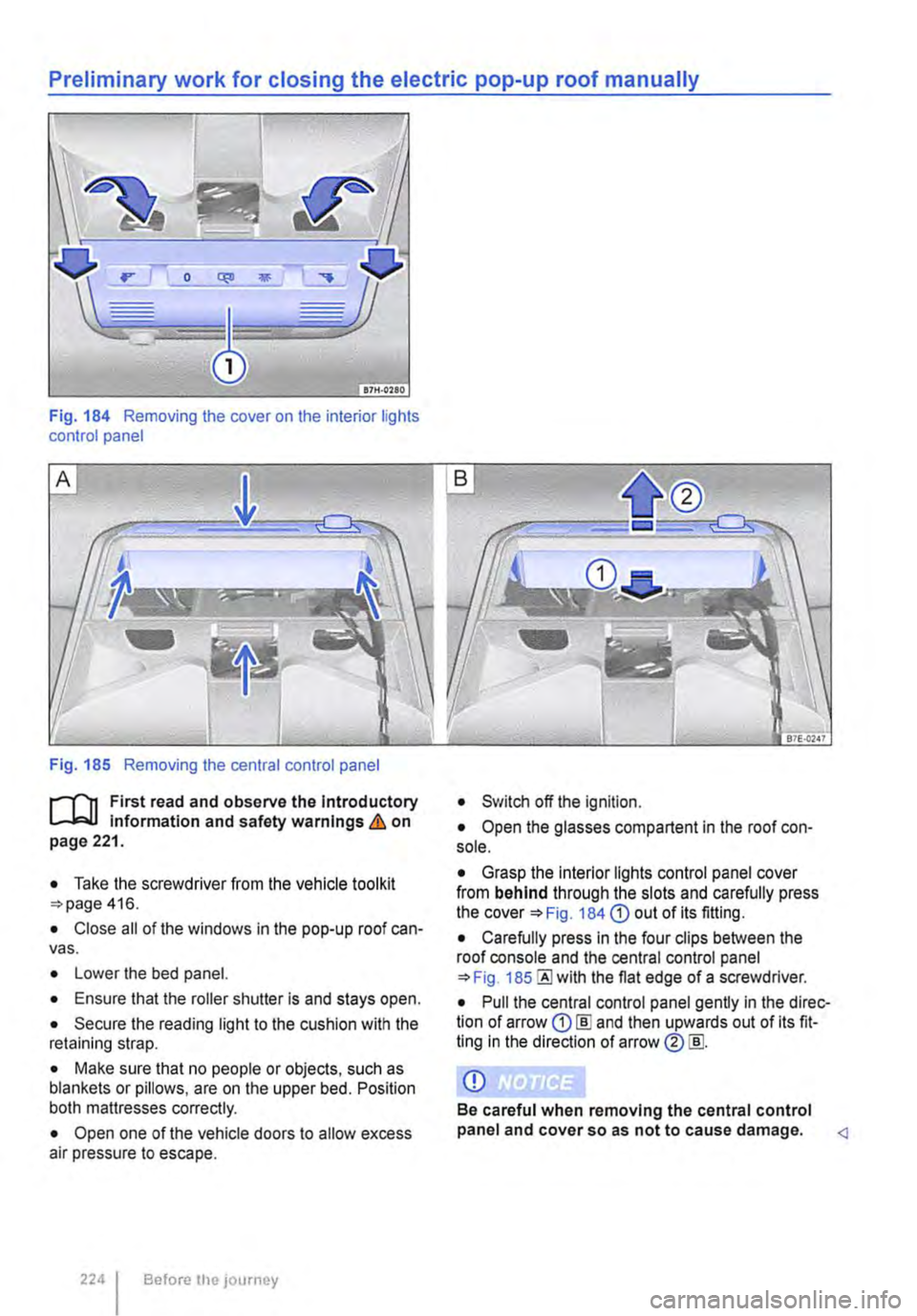

Preliminary work for closing the electric pop-up roof manually
Fig. 184 Removing the cover on the interior lights control panel
Fig. 185 Removing the central control panel
r-T'n First read and observe the Introductory L-W.l Information and safety warnings & on page 221.
• Take the screwdriver from the vehicle tool kit 416.
• Close all of the windows in the pop-up roof can-vas.
• Lower the bed panel.
• Ensure that the roller shutter is and stays open.
• Secure the reading light to the cushion with the retaining strap.
• Make sure that no people or objects, such as blankets or pillows, are on the upper bed. Position both mattresses correctly.
• Open one of the vehicle doors to allow excess air pressure to escape.
224 I Before the journey
• Switch off the ignition.
• Open the glasses compartent in the roof con-sole.
• Grasp the interior lights control panel cover from behind through the slots and carefully press the Fig. 184 CD out of its fitting.
• Carefully press in the four clips between the roof console and the central control panel 185 the flat edge of a screwdriver.
• Pull the central control panel gently in the direc-tion of arrow CD [ID and then upwards out of its fit-ting in the direction of arrow ®[ID.
CD
Be careful when removing the central control panel and cover so as not to cause damage.

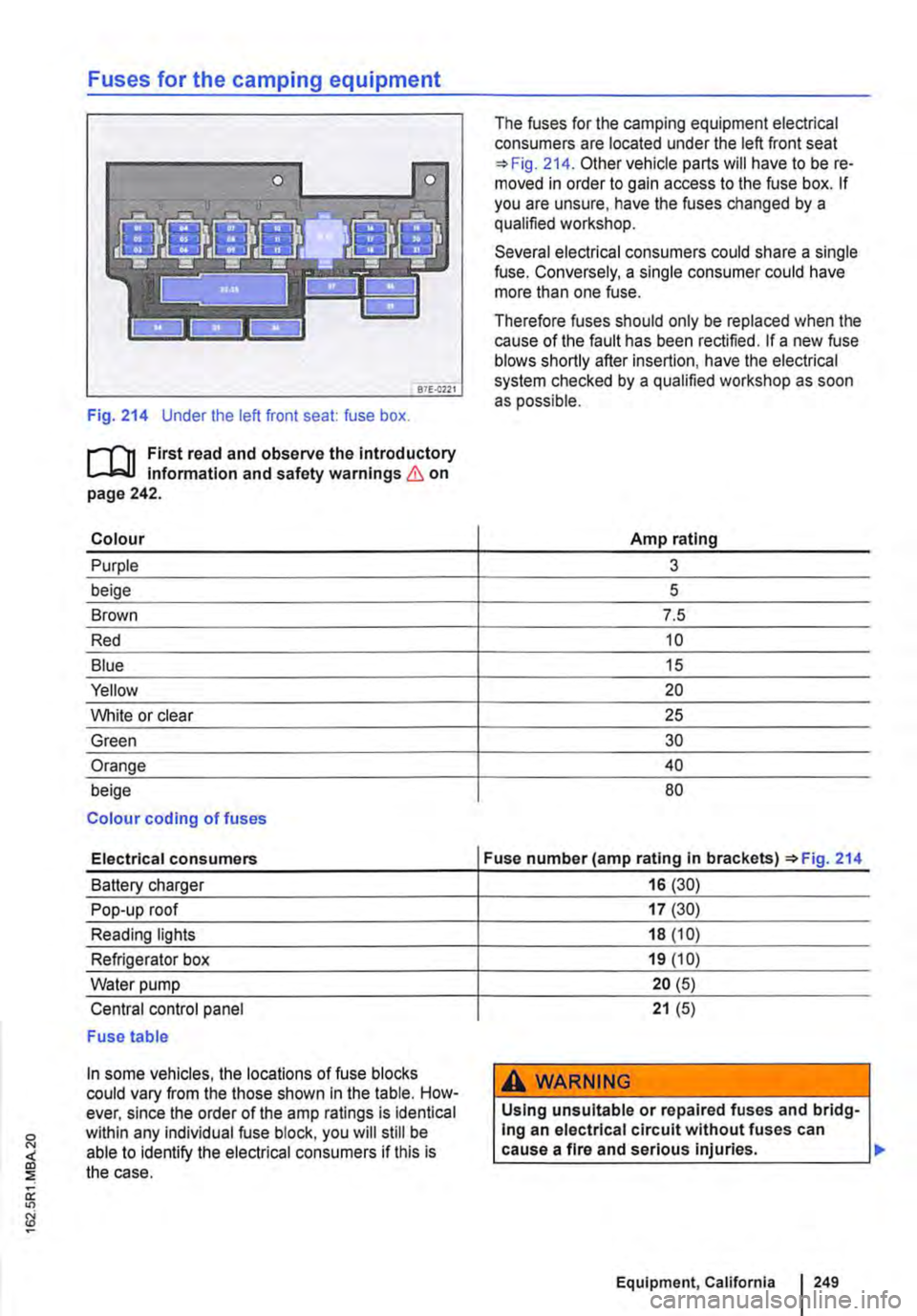

Fuses for the camping equipment
87E-0221
Fig. 214 Under the left front seat: fuse box.
l"""'('n First read and observe the introductory L-Jr:,.U information and safety warnings & on page 242.
Colour
Purple
beige
Brown
Red
Blue
Yellow
White or clear
Green
Orange
beige
Colour coding of fuses
Electrical consumers
Battery charger
Pop-up roof
Reading lights
Refrigerator box
Water pump
Central control panel
Fuse table
In some vehicles, the locations of fuse blocks could vary from the those shown In the table. How-ever, since the order of the amp ratings is identical within any individual fuse block, you will still be able to identify the electrical consumers if this is the case.
The fuses for the camping equipment electrical consumers are located under the left front seat 214. Other vehicle parts will have to be re-moved in order to gain access to the fuse box. If you are unsure, have the fuses changed by a qualified workshop.
Several electrical consumers could share a single fuse. Conversely, a single consumer could have more than one fuse.
Therefore fuses should only be replaced when the cause of the fault has been rectified. If a new fuse blows shortly after insertion, have the electrical system checked by a qualified workshop as soon as possible.
Amp rating
3
5
7.5
10
15
20
25
30
40
80
Fuse number (amp rating in Fig. 214
16 (30)
17 (30)
18 (10)
19 (10)
20 (5)
21 (5)
A WARNING
Using unsuitable or repaired fuses and bridg-Ing an electrical circuit without fuses can cause a fire and serious injuries.
Equipment, California 249

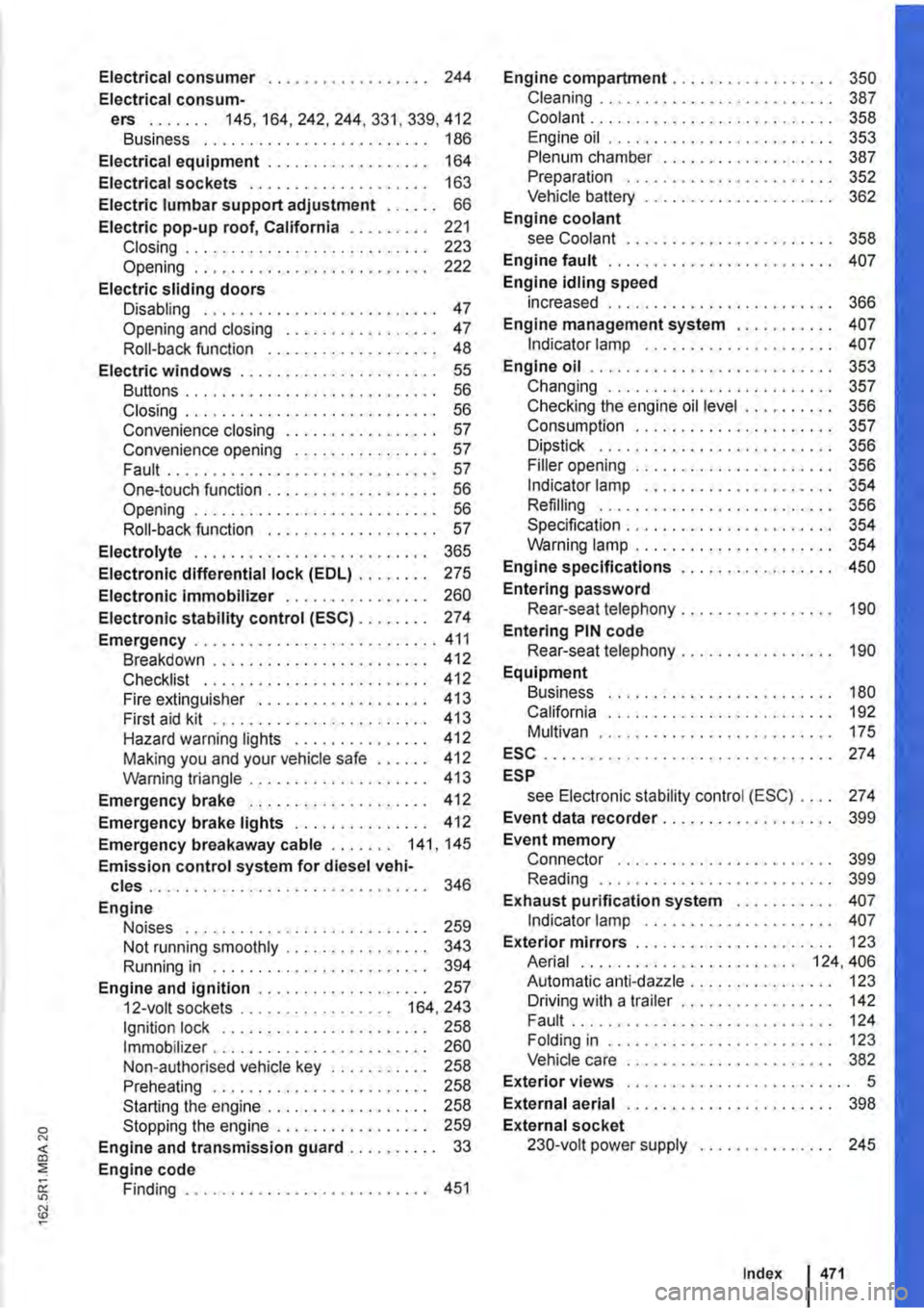

Electrical consumer . . . . . . . . . . . . . . . . . . 244
Electrical consum-ers ....... 145,164,242,244,331,339,412 Business . . . . . . . . . . . . . . . . . . . . 186
Electrical equipment . . . . . . . . . . . . . . . . . . 164
Electrical sockets . . . . . . . . . . . . . . . . . . . . 163
Electric lumbar support adjustment . . . . . . 66
Electric pop-up roof, California . . . . . . . . . 221 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . 223 Opening . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Electric sliding doors Disabling . . . . . . . . . . . . . . . . . . . . . . . . . . 47 Opening and closing . . . . . . . . . . . . . . . . . 47 Roll-back function . . . . . . . . . . . . . . . . . . . 48 Electric windows . . . . . . . . . . . . . . . . . . . . . . 55 Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Convenience closing . . . . . . . . . . . . . . . . . 57 Convenience opening . . . . . . . . . . . . . . . . 57 Fault .........................•.... 57 One-touch function . . . . . . . . . . . . . . . . . . . 56 Opening ........................... 56 Roll-back function . . . . . . . . . . . . . . • . . . . 57
Electrolyte . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Electronic differential lock (EDL) . . . . . . . . 275
Electronic Immobilizer . . . . . . . . . . . . . . . . 260
Electronic stability control (ESC) . . . . . . . . 274
Emergency ........................... 411 Breakdown . . . . . . . . . . . . . . . . . . . . • . . . 412 Checklist . . . . . . . . . . . . . . . . . . . . . . . . . 412 Fire extinguisher . . . . . . . . . . . . . . . . . . . 413 First aid kit . . . . . . . . . . . . . . . . . . . . . . . . 413 Hazard warning lights . . . . . . . . . . . . . . . 412 Making you and your vehicle safe 412 Warning triangle . . . . . . . . . . . . . . 413
Emergency brake . . . . . . . . . . . . . . . . . . . . 412
Emergency brake lights . . . . . . . . . . . 412 Emergency breakaway cable . . . . . . . 141, 145
Emission control system for diesel vehi-cles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Engine Noises . . . . . . . . . . . . . . . . . . . . . . . • . . . 259 Not running smoothly . . . . . . . . . . . . • . . . 343 Running in . . . . . . . . . . . . . . . . . . . . 394
Engine and ignition . . . . . . . . . . . . . . . . . . . 257 12-volt sockets . . . . . . • . . . . . . . . . . 164, 243 Ignition lock . . . . . . . . . . . . . . . . . . . . . . . 258 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 260 Non-authorised vehicle key . . . . . . . . . . . 258 Preheating . . . . . . . . . . . . . . . . . . . 258 Starting the engine . . . . . . . . . . . . . . . . . . 258 Stopping the engine . . . . . . . . . . . . . . . . 259 Engine and transmission guard . . . . . . . . . . 33
Engine code Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . 451
Engine compartment ................. . Cleaning ........................ . Coolant .......................... . Engine oil ........................ . Plenum chamber .................. . Preparation ...................... . Vehicle battery .................... . Engine coolant see Coolant ................. .
Engine fault ................... .
Engine idling speed increased ........................ . Engine management system .....•..... Indicator lamp .................... .
Engine oil .....................•..... Changing ........................ . Checking the engine oil level ......... . Consumption ................•..... Dipstick ......................... . Filler opening ..................... . Indicator lamp .................... . Refilling ......................... . Specification ...................... . Warning lamp ..................... .
Engine specifications ................ . Entering password Rear-seat telephony ......... .
Entering PIN code Rear-seat telephony ................ . Equipment Business ........................ . California ........................ . Multivan ... .
ESC ....... . ESP
350 387 358 353 387 352 362
358
407
366 407 407
353 357 356 357 356 356 354 356 354 354
450
190
190
180 192 175
274
see Electronic stability control (ESC) . . . . 274 Event data recorder . . . . . . . . . . . . . . . . . . . 399
Event memory Connector . . . . . . . . . . . . . . . . . . . . . . . 399 Reading . . . . . . . . . . . . . . . . . . . . . . . . . . 399 Exhaust purification system . . . . . . . . . . . 407 Indicator lamp . . . . . . . . . . . . . . . . . . . . . 407 Exterior mirrors . . . . . . . . . . . . . . . . . . . . 123 Aerial . . . . . . . . . . . . . . . . . . . . . . . . 124,406 Automatic anti-dazzle . . . . . . . . . . . . . . 123 Driving with a trailer . . . . . . . . . . . . . . . . 142 .............. ·····•········ Folding in . . . . . . . . . . . . . . . . . . . . . . . . . 123 Vehicle care . . . . . . . . . . . . . . . . . . . . . . . 382
Exterior views . . . . . . . . . . . . . . . . . • . . . . . . . 5
External aerial . . . . . . . . . . . . . . . . . . . . . . . 398 External socket 230-volt power supply 245
Index 471

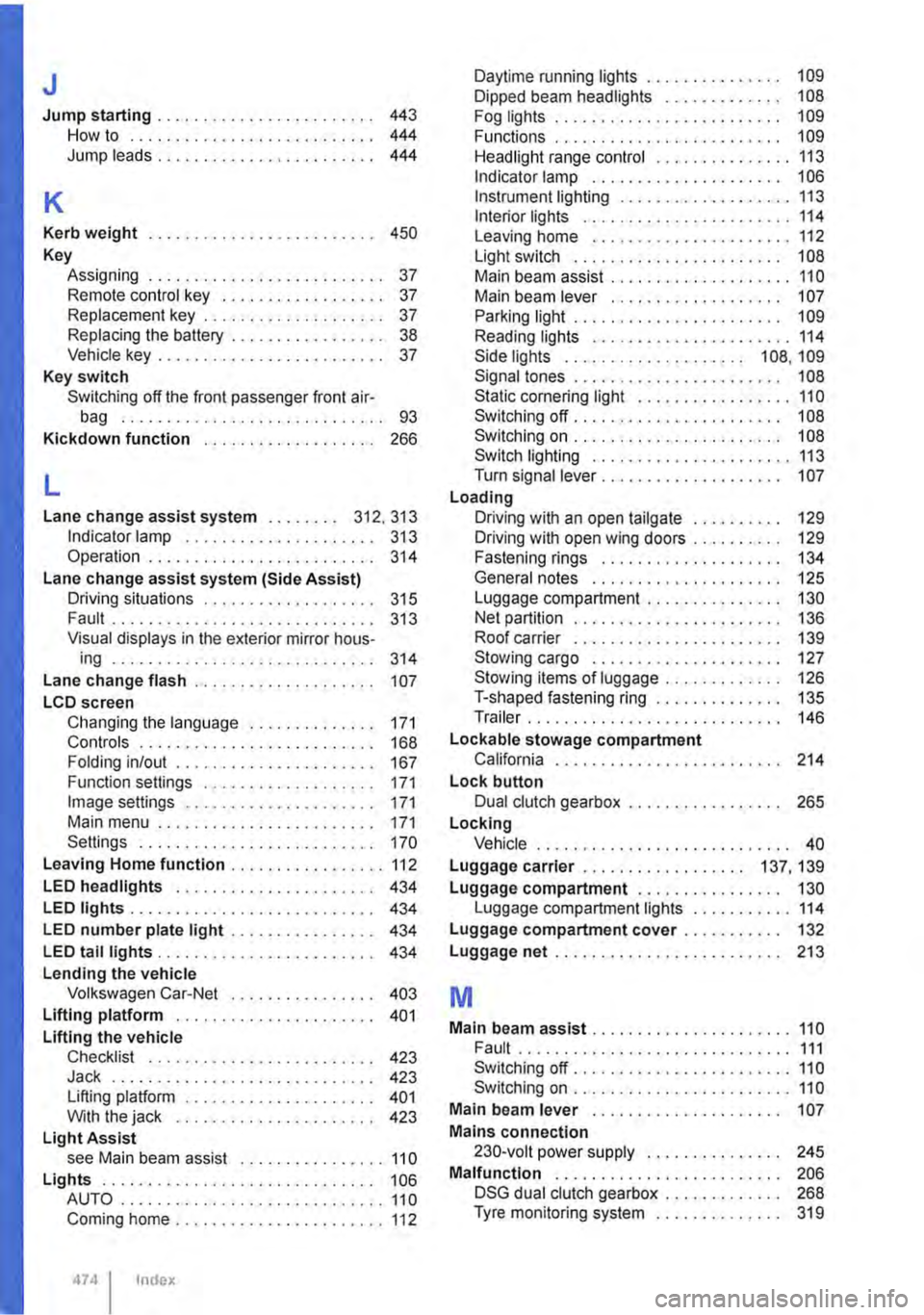

J
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . 443 How to .......•................ 444 Jump leads . . . . . . . . . . . . . . . . . . . . . . . . 444
K
Kerb weight . . . . . . . . . . . . . . . . . . . . . 450
Key Assigning . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Remote control key . . . . . . . . . . . . . . . . . . 37 Replacement key . . . . . . . . • . . . . . . . . . . . 37 Replacing the battery . . . . . . . . . . . . . . . . . 38 Vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . 37 Key switch Switching off the front passenger front air-bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Kickdown function . . . . . . . . . . . . . . . . . . . 266
L
Lane change assist system . . . . . . . . 312. 313 Indicator lamp . . . . . . . . . . . . . . . . . . . . . 313 Operation . . . . . . . . . . . . . . . . . . . . . . . . . 314
Lane change assist system (Side Assist) Driving situations . . . . . . . . . . . . . . . . . . . 315 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313 Visual displays in the exterior mirror hous-ing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Lane change flash . . . . . . . . . . . . . . . . . . . . 107 LCD screen Changing the language . . . . . . . . . . . . . . 171 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 168 Folding in/out . . . . . . . . . . . . . . . . . . . . . . 167 Function settings . . . . . . . . . . . . . . . . . . . 171 Image settings . . . . . . . . . . . . . . . . . . . . . 171 Main menu . . . . . . . . . . . . . . . . • . . . . . . . 171 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Leaving Home function ................. 112
LED headlights . . . . . . . . . . . . . . . . . . . . . . 434 LED lights . . . . . . . . . . . . . . . . . . . • . . . . . . . 434 LED number plate light . . . . . . . . • . . . . . . . 434
LED tail lights . . . . . . . . . . . . . . . . . . . . . . . . 434 Lending the vehicle Volkswagen Car-Net . . . . . . . . • . . . . . . . 403 Lifting platform . . . . . . . 401
Lifting the vehicle Checklist . . . . . . . . • . . . . . . . . 423 Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 423 Lifting platform . . . . . . . . . . . . . . . . . . . . . 401 With the jack . . . . . . . . . . . . . . • . . . . . . . 423 Light Assist see Main beam assist ................ 11 0 Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 AUTO .................•..•........ 110 Coming home ....................... 112
474 I Index
Daytime running lights . . . . . . . . . . . . . . . 109 Dipped beam headlights . . . . . . . . . • . . . 108 Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . 109 Functions . . . . . . . . . . . . . . . . . . . . . • . . . 109 Headlight range control ............... 113 Indicator lamp . . . . . . . . . . . . . . . . . . . . . 106 lnstrumentlighting . . . . • . . • . . . . . . . . . . . 113 Interior lights ....................... 114 Leaving home ...................... 112 Light switch . . . . . . . . . . . . . . . . . . . . . . . 108 Main beam assist . . . . . . . . . . . . . . . . . . . . 11 0 Main beam lever . . . . . . . . . . . . . . . . . . . 107 Parking light . . . . . . . . . . . . . . . . . . . . . . . 109 Reading lights . . . . • . . • . . . . . . . . . . . . . . 114 Side lights . . . . . . . . . . . . . . . . . . . . 108, 109 Signal tones . . . . . . . . . . . . . . . . . . . . . . . 108 Static cornering light ................. 110 Switching off . . . . . . . . . . . . . . . . . . . . . . . 108 Switching on . . . . . . . . . . . . . . . . . . . . . . . 108 Switch lighting ...................... 113 Turn signal lever . . . . . . . . . . . . . . . . . . . . 107 Loading Driving with an open tailgate . . . . . . . . . . 129 Driving with open wing doors . . . . . . . . . . 129 Fastening rings . . . . . . . . . . . . . . . . . . . . 134 General notes . . . . . . . . . . . . . . . . . . . . . 125 Luggage compartment . . . . . . . . . . . . . . . 130 Net partition . . . . . . . . . . . . . . . . . . . . . . . 136 Roof carrier . . . . . . . . . . . . . . . . . . . . . . . 139 Stowing cargo . . . . . . . . . . . . . . . . . • . . . 127 Stowing items of luggage . . . . . . . . . . . . . 126 T-shaped fastening ring . . . . . . . . . . . . . . 135 Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Lockable stowage compartment California . . . . . . . . . . . . . . . . . . . . . . . . . 214
Lock button Dual clutch gearbox . . . . . . . . . . . . . . . . . 265 Locking Vehicle ............................ 40
Luggage carrier . . . . . . . . . . . . . . . . . . 137, 139
Luggage compartment . . . . . . . . . . . . . . . . 130 Luggage compartment lights ........... 114
Luggage compartment cover . . . . . . . . . . . 132 Luggage net . . . . . . . . . . . . . . . . . . . . . . . . . 213
M
Main beam assist............... 110 Fault ............•.....•........... 111 Switching off ......•.....•.....•..... 110 Switching on ........................ 110 Main beam lever . . . . . . . . . . . . . . . . . . . . . 107
Mains connection 230-volt power supply . . . . . . . . . . . . . . . 245 Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 206 DSG dual clutch gearbox . . . . . . . . . . . . . 268 Tyre monitoring system . . . . . . • . . . . . . . 319

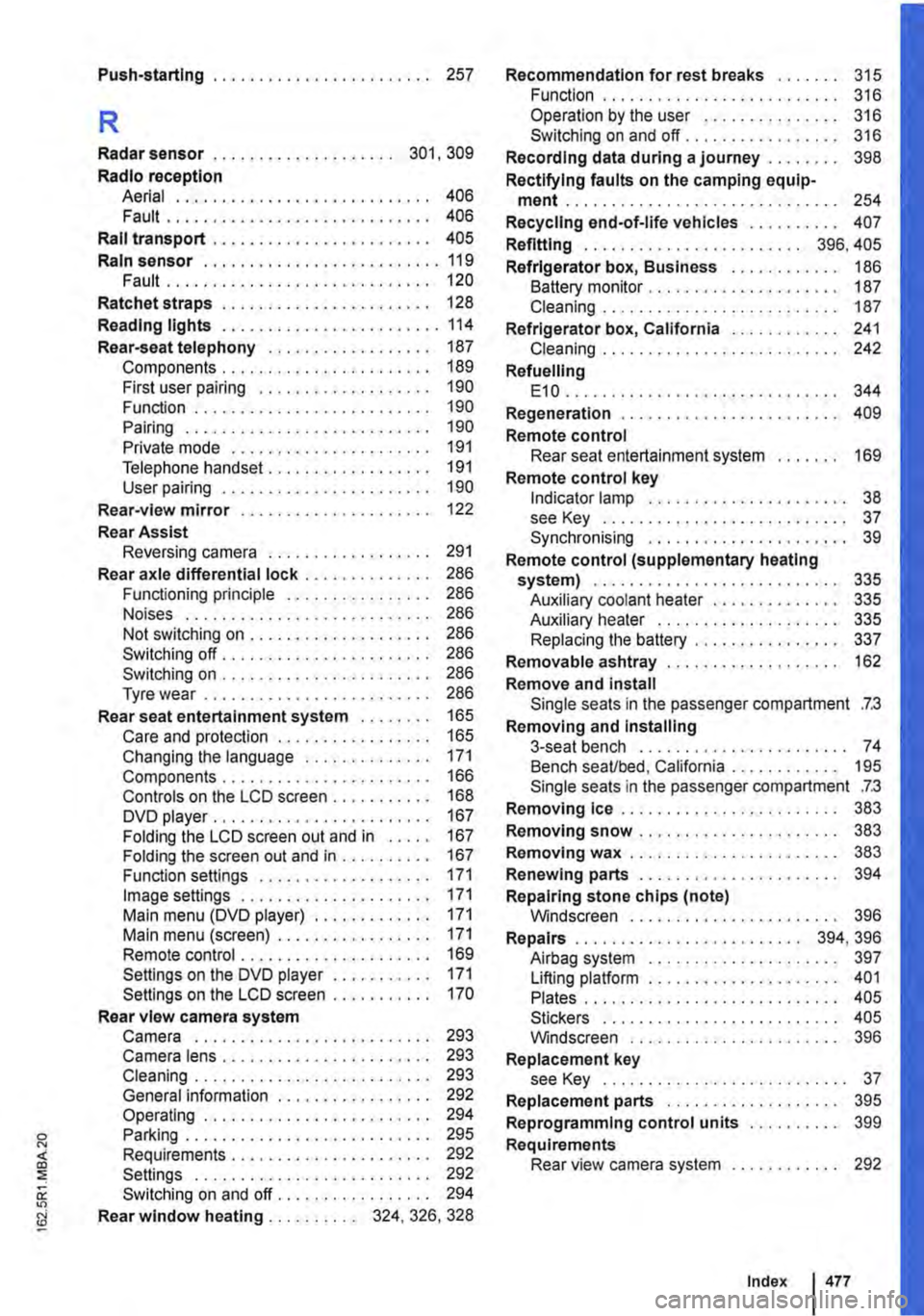

Push-starting . . . . . . . . . . . . . . . . . . . . . . . . 257
R
Radar sensor . . . . . . . . • . . . . . . . . . . . 301, 309
Radio reception Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406 Fault .........•...........•....... 406
Rail transport . . . . . . . . . . . . . . . . . . . . . . . . 405
Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Ratchet straps . . . . . . . . . . . . . . . . . . . . . . . 128
Reading lights ...............•........ 114
Rear-seat telephony . . . . . . . . . . . . . . . . . . 187 Components . . . . . . . . . . . . . . . . . . . . . . . 189 First user pairing . . . . . . . . . . . • . . . . . . . 190 Function . . . . . . . . . . . . . . . . . . . . . . . . . . 190 Pairing . . . . . . . . . . . . . . . . . . . • . . . . . . . 190 Private mode . . . . . . . . . . . . . . . . . . . . . . 191 Telephone handset . . . . . . . . . . • . . . . . . . 191 User pairing . . . . . . . . . . . . . . . . . . . . . . . 190
Rear-view mirror . . . . . . . • . . . . . . . . . . . . . 122
Rear Assist Reversing camera . . . . . . . . . . . . . . . . . . 291
Rear axle differential lock . . . • . . . . . . . . . . 286 Functioning principle . . . . . . . . . . . . . . . . 286 Noises ........................... 286 Not switching on . . . . . . . . . . . . . . . . . . . . 286 Switching off . . . . . . . . . . . . . . . . . . . . . . . 286 Switching on . . . . . . . . . . . . . . . . . . . . . . . 286 Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . 286
Rear seat entertainment system . . . . . . . . 165 Care and protection . . . . . . . . . . . . . . . . . 165 Changing the language . . . . . . • . . 171 Components . . . . . . . . . . . . . . . . . . . . . . . 166 Controls on the LCD screen . . . . . . . . . . . 168 DVD player. . . . . . . . . . . . . . . . . . . . . . . . 167 Folding the LCD screen out and in . . . . . 167 Folding the screen out and in . . . . . . . . . . 167 Function settings . . . . . . . . . . . . . . . . . . . 171 Image settings . . . . . . . . . . .. . . . . . . . . . . 171 Main menu (DVD player) . . . . . • . . . . . . . 171 Main menu (screen) . . . . . . . . . . . . . . . . . 171 Remote control . . . . . . . . . . . . . . . . . . . . . 169 Settings on the DVD player . . . . . . . . . . . 171 Settings on the LCD screen . . . . . . . . . . . 170
Rear view camera system Camera .......................... 293 Camera lens . . . . . . . . . • . . . . . . . . . . . . . 293 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 293 General information . . . • . . . . . . . . . . . . . 292 Operating . . . . . . . . . . . . . . . . . . . . . . . . . 294 Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . 295 Requirements . . . . . . . . • . . . . . . . . . . . . . 292 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 292 Switching on and off . . . . . . . . . . . . . . . . . 294 Rear window heating . . . . . . . . . . 324, 326, 328
Recommendation for rest breaks . . . . . . . 315 Function . . . . . . . . . . . . . . . . . . . . . • . . . . 316 Operation by the user . . . . . . . . . . . . . . . 316 Switching on and off................. 316
Recording data during a journey . . . . . . . . 398
Rectifying faults on the camping equip-ment .............................. 254
Recycling end-of-life vehicles . . . . . . . . . . 407 Refitting . . . . . . . . . . . . . . . . . . . . . . . . 396, 405
Refrigerator box, Business . . . . . . . . . . . . 186 Battery monitor . . . . . . . . . . . . . . . . . . . . . 187 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 187 Refrigerator box, California . . . . . . . . . . . . 241 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 242
Refuelling E10 . . . . . . . . . . . • . . . . . . . . • . . . . . . . . . 344
Regeneration . . . . . . . . . . . . . . . . . . . . . . . . 409
Remote control Rear seat entertainment system . . . . . . . 169
Remote control key Indicator lamp . . . . . . . . . . . • . . . . . . . . . . 38 see Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Synchronising . . . . . . . . . . . . . . . . . . . . . . 39
Remote control (supplementary heating system) . . . . . . . . . . . . . . . . . . . . . . . . . . . 335 Auxiliary coolant heater . . . . . . . . . . . . . . 335 Auxiliary heater . . . . . . . . . . . . . . . . . . . . 335 Replacing the battery . . . . . . . . . . . . . . . . 337
Removable ashtray . . . . . . . . . . . . . . . . . . . 162
Remove and Install Single seats in the passenger compartment .7.3
Removing and Installing 3-seat bench . . . . . . . . . . . . . . . . . . . . . . . 74 Bench seaUbed, California . . . . . . . . . . . . 195 Single seats in the passenger compartment .7.3
Removing Ice . . . . . . . . . . . . . . . . . . . . . . . . 383
Removing snow . . . . . . . . . . . . . . . . . . . . . . 383 Removing wax . . . . . . . . . . . . . . . . . . . . . . . 383 Renewing parts . . . . . . . . . . . . . . . . . . . . . . 394
Repairing stone chips (note) Windscreen . . . . . . . . . . . . . . . . . . . . . . . 396
Repairs . . . . . . . . . . • . . . . . . . . . . . . . . 394, 396 Airbag system . . . . . . . . . . . . . . . . . . . . . 397 Lifting platform . . . . . . . • . . . . . . . . . . 401 Plates . . . . . . . . . . . . . . • . . . . . . . . . . . . . 405 Stickers . . . . . . . . . . . . . . . . . . . . . . . . . 405 Windscreen . . . . . . . . . . . . . . . . . . . . . . . 396 Replacement key see Key . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Replacement parts . . . . . . . . . . . . . . . . . . . 395
Reprogramming control units . . . . . . . . . . 399
Requirements Rear view camera system . . . . . • . . . . . . 292
Index 477
