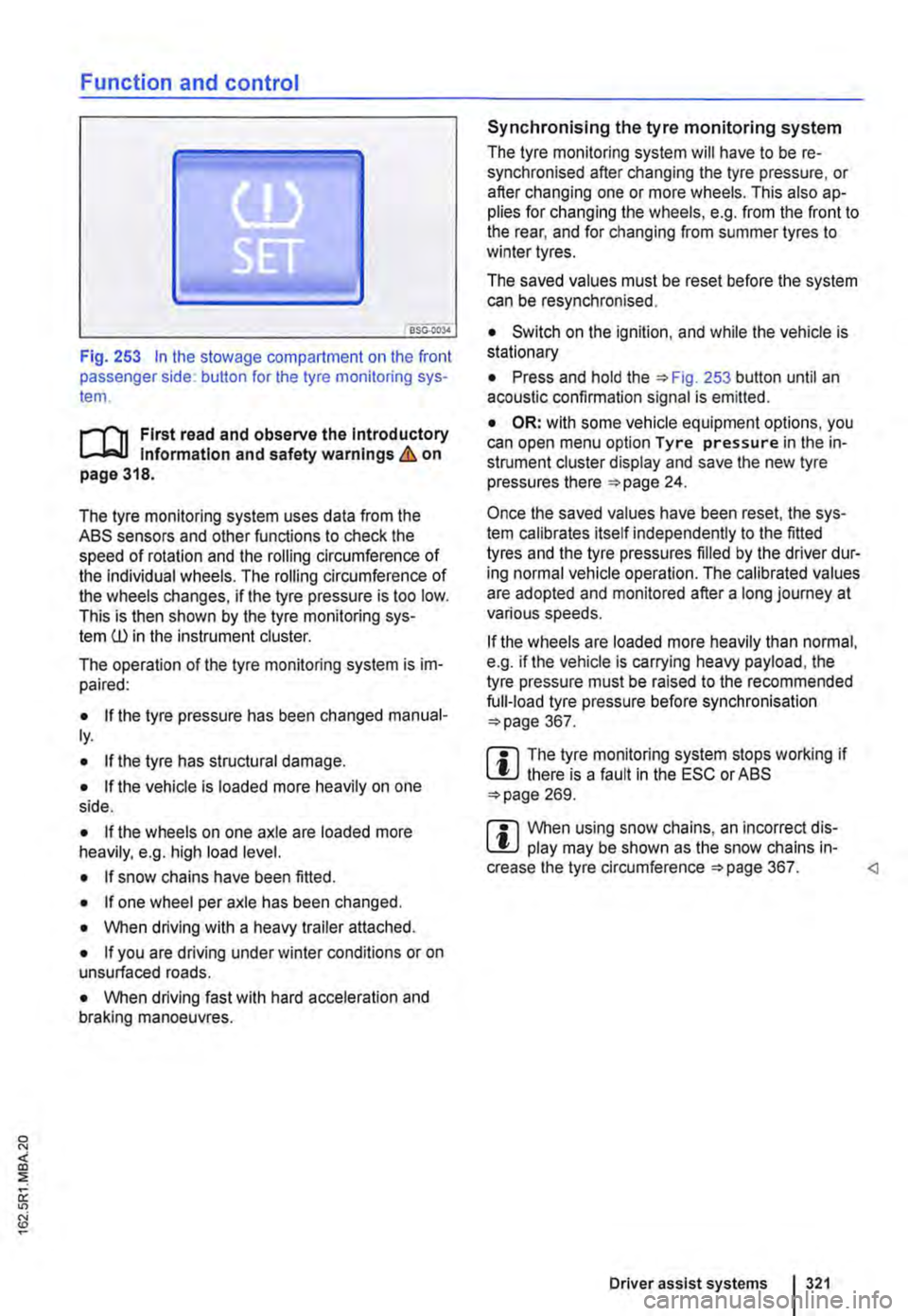

Function and control
Fig. 253 In the stowage compartment on the front passenger side: button for the tyre monitoring sys-tem.
l"'"""f'n First read and observe the Introductory l.-J,.:,LL Information and safety warnings & on page 318.
The tyre monitoring system uses data from the ASS sensors and other functions to check the speed of rotation and the rolling circumference of the individual wheels. The rolling circumference of the wheels changes, if the tyre pressure is too low. This is then shown by the tyre monitoring sys-tem ill in the instrument cluster.
The operation of the tyre monitoring system is im-paired:
• If the tyre pressure has been changed manual-ly.
• If the tyre has structural damage.
• If the vehicle Is loaded more heavily on one side.
• If the wheels on one axle are loaded more heavily, e.g. high load level.
• If snow chains have been fitted.
• If one wheel per axle has been changed.
• When driving with a heavy trailer attached.
• If you are driving under winter conditions or on unsurfaced roads.
• When driving fast with hard acceleration and braking manoeuvres.
Synchronising the tyre monitoring system
The tyre monitoring system will have to be re-synchronised after changing the tyre pressure, or after changing one or more wheels. This also ap-plies for changing the wheels, e.g. from the front to the rear, and for changing from summer tyres to winter tyres.
The saved values must be reset before the system can be resynchronised.
• Switch on the ignition, and while the vehicle is stationary
• Press and hold the =>Fig. 253 button until an acoustic confirmation signal is emitted.
• OR: with some vehicle equipment options, you can open menu option Tyre pressure in the in-strument cluster display and save the new tyre pressures there =>page 24.
Once the saved values have been reset, the sys-tem calibrates itself independently to the fitted tyres and the tyre pressures filled by the driver dur-ing normal vehicle operation. The calibrated values are adopted and monitored after a long journey at various speeds.
If the wheels are loaded more heavily than normal, e.g. if the vehicle is carrying heavy payload, the tyre pressure must be raised to the recommended full-load tyre pressure before synchronisation =>page 367.
m The tyre monitoring system stops working if l!.J there is a fault in the ESC or ASS =>page 269.
m When using snow chains, an incorrect dis-l!.J play may be shown as the snow chains in-crease the tyre circumference =>page 367. Driver assist systems I 321

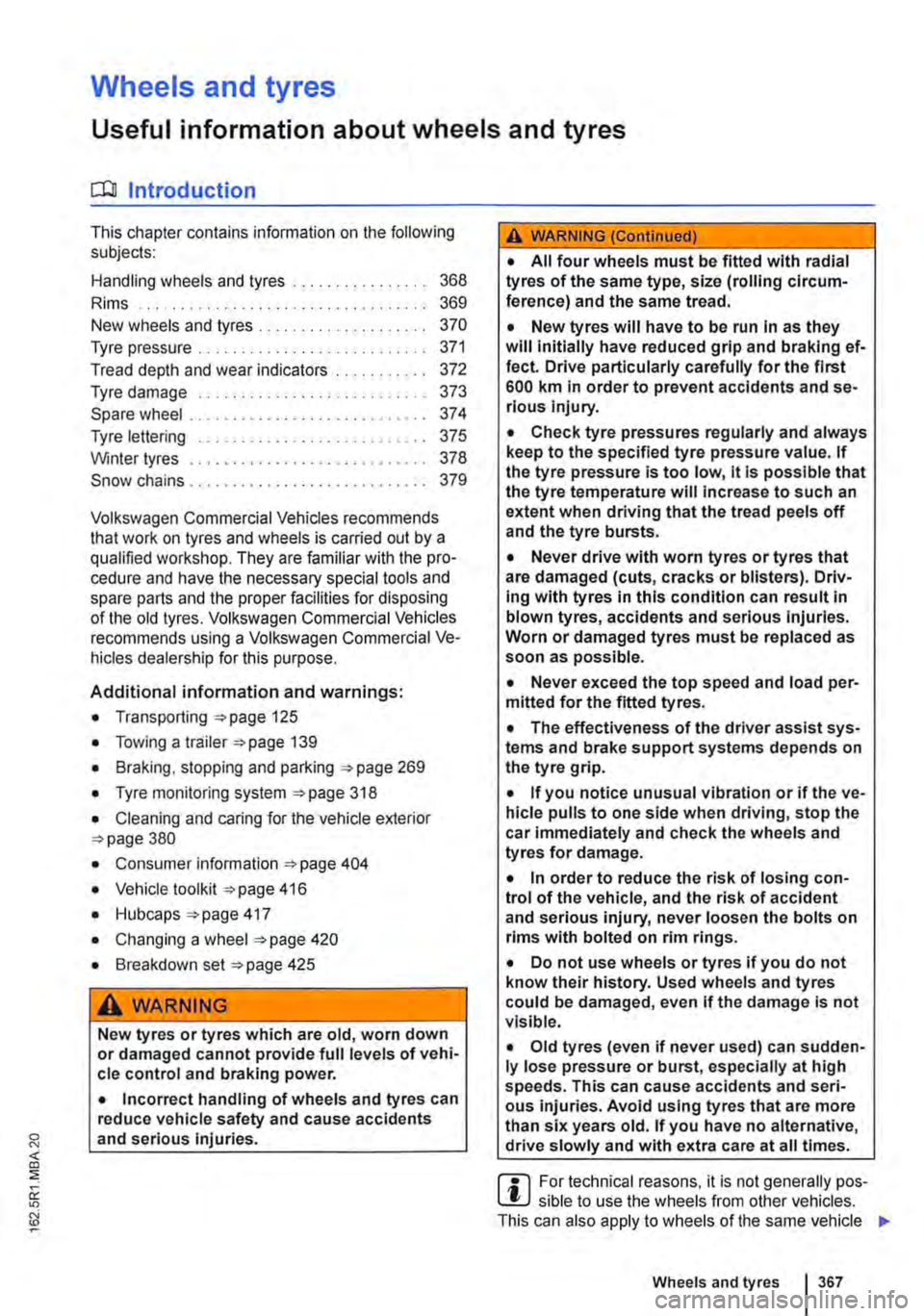

Wheels and tyres
Useful information about wheels and tyres
o:::n Introduction
This chapter contains information on the following subjects:
Handling wheels and tyres .............. .
Rims
368
369
New wheels and tyres . . . . . . . . . . . . . . . . . . . 370 Tyre pressure . . . . . . . . . . . . . . . . 371
Tread depth and wear indicators 372 Tyre damage 373
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 374
Tyre lettering . . . . . . . . . . . . . . . . . . . . . . . . . . . 375
Winter tyres . . . . . . . . . . • . • • . . . . . . . . . . . . 378 Snow chains . . . . . . . . . . . . . . . . . 379
Volkswagen Commercial Vehicles recommends that work on tyres and wheels is carried out by a qualified workshop. They are familiar with the pro-cedure and have the necessary special tools and spare parts and the proper facilities for disposing of the old tyres. Volkswagen Commercial Vehicles recommends using a Volkswagen Commercial Ve-hicles dealership for this purpose.
Additional information and warnings:
• Transporting 125
• Towing a trailer 139
• Braking, stopping and parking 269
• Tyre monitoring system 318
• Cleaning and caring for the vehicle exterior 380
• Consumer information 404
• Vehicle tool kit 416
• Hubcaps 417
• Changing a wheel 420
• Breakdown set 425
A WARNING
New tyres or tyres which are old, worn down or damaged cannot provide full levels of vehi-cle control and braking power.
• Incorrect handling of wheels and tyres can reduce vehicle safety and cause accidents and serious injuries.
A WARNING (Continued)
• All four wheels must be fitted with radial tyres of the same type, size (rolling circum-ference) and the same tread.
• New tyres will have to be run In as they will initially have reduced grip and braking ef-fect. Drive particularly carefully for the first 600 km in order to prevent accidents and se-rious injury.
• Check tyre pressures regularly and always keep to the specified tyre pressure value. If the tyre pressure is too low, it Is possible that the tyre temperature will Increase to such an extent when driving that the tread peels off and the tyre bursts.
• Never drive with worn tyres or tyres that are damaged (cuts, cracks or blisters). Driv-Ing with tyres in this condition can result in blown tyres, accidents and serious Injuries. Worn or damaged tyres must be replaced as soon as possible.
• Never exceed the top speed and load per-mitted for the fitted tyres.
• The effectiveness of the driver assist sys-tems and brake support systems depends on the tyre grip.
• If you notice unusual vibration or if the ve-hicle pulls to one side when driving, stop the car immediately and check the wheels and tyres for damage.
• In order to reduce the risk of losing con-trol of the vehicle, and the risk of accident and serious injury, never loosen the bolts on rims with bolted on rim rings.
• Do not use wheels or tyres if you do not know their history. Used wheels and tyres could be damaged, even If the damage is not visible.
• Old tyres (even if never used) can sudden-ly Jose pressure or burst, especially at high speeds. This can cause accidents and seri-ous injuries. Avoid using tyres that are more than six years old. If you have no alternative, drive slowly and with extra care at all times.
m For technical reasons, it is not generally pos-L!.J sible to use the wheels from other vehicles. This can also apply to wheels of the same vehicle .,.
Wheels and tyres I 367

z
w y
over 240 km/h (149 mph)
max. 270 kmlh (168 mph)
max. 300 kmlh (186 mph)

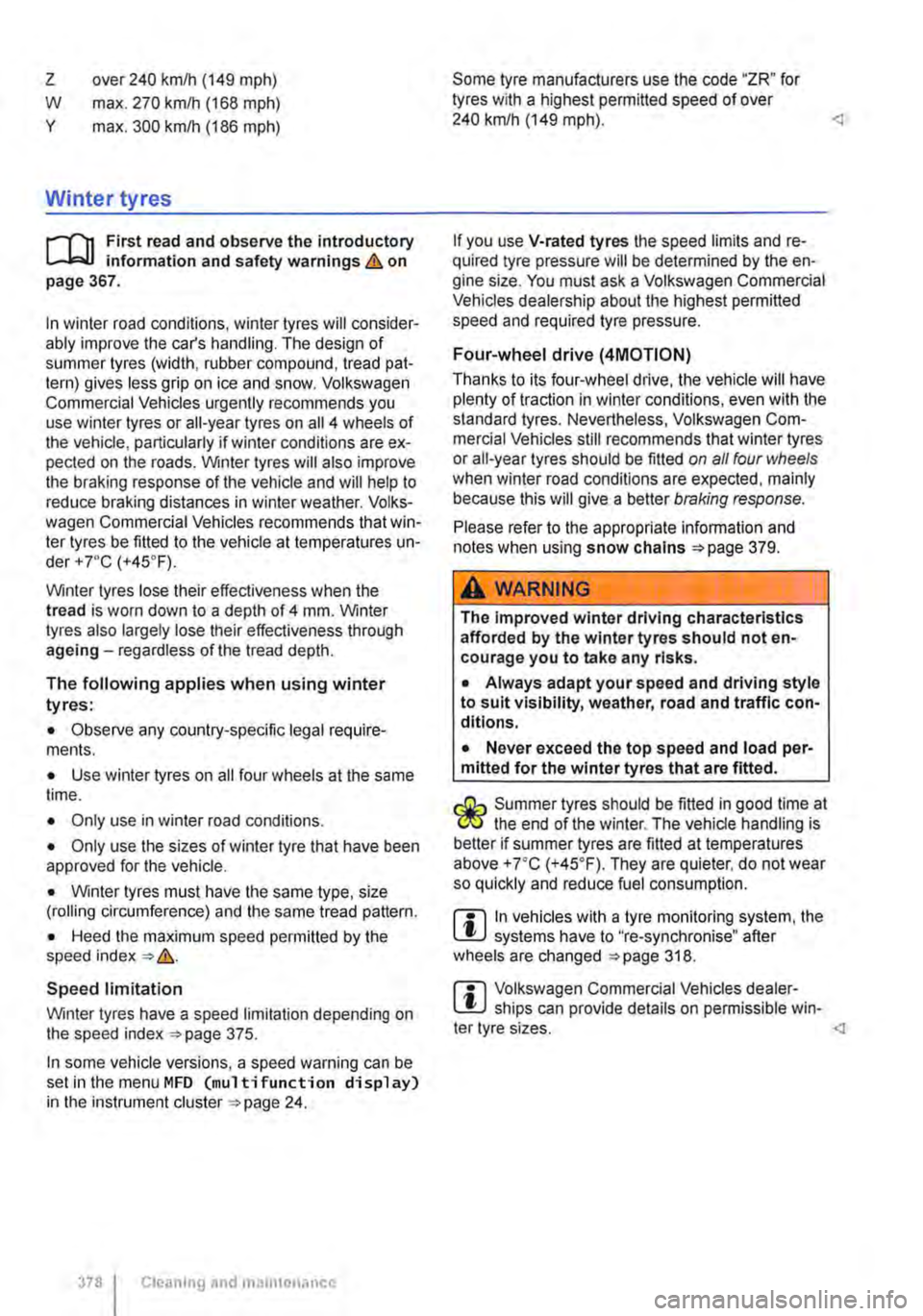

Winter tyres
r-f'n First read and observe the introductory L-J,::JJ information and safety warnings & on page 367.
In winter road conditions, winter tyres will consider-ably improve the car's handling. The design of summer tyres (width, rubber compound, tread pat-tern) gives less grip on ice and snow. Volkswagen Commercial Vehicles urgently recommends you use winter tyres or all-year tyres on all 4 wheels of the vehicle, particularly if winter conditions are ex-pected on the roads. Winter tyres will also improve the braking response of the vehicle and will help to reduce braking distances in winter weather. Volks-wagen Commercial Vehicles recommends that win-ter tyres be fitted to the vehicle at temperatures un-der+ 7•c (+45°F).
Winter tyres lose their effectiveness when the tread is worn down to a depth of 4 mm. Winter tyres also largely lose their effectiveness through ageing-regardless of the tread depth.
The following applies when using winter tyres:
• Observe any country-specific legal require-ments.
• Use winter tyres on all four wheels at the same time.
• Only use in winter road conditions.
• Only use the sizes of winter tyre that have been approved for the vehicle.
• Winter tyres must have the same type, size (rolling circumference) and the same tread pattern.
• Heed the maximum speed permitted by the speed index => &.
Speed limitation
Winter tyres have a speed limitation depending on the speed index =>page 375.
In some vehicle versions, a speed warning can be set in the menu MFD (multi function display) in the instrument cluster =>page 24.
378 I Cleaning and maintenance
Some tyre manufacturers use the code "ZR" for tyres with a highest permitted speed of over 240 km/h (149 mph).
If you use V-rated tyres the speed limits and re-quired tyre pressure will be determined by the en-gine size. You must ask a Volkswagen Commercial Vehicles dealership about the highest permitted speed and required tyre pressure.
Four-wheel drive (4MOTION)
Thanks to its four-wheel drive, the vehicle will have plenty of traction in winter conditions, even with the standard tyres. Nevertheless, Volkswagen Com-mercial Vehicles still recommends that winter tyres or all-year tyres should be fitted on all four wheels when winter road conditions are expected, mainly because this will give a better braking response.
Please refer to the appropriate information and notes when using snow chains =>page 379.
A WARNING
The Improved winter driving characteristics afforded by the winter tyres should not en-courage you to take any risks.
• Always adapt your speed and driving style to suit visibility, weather, road and traffic con-ditions.
• Never exceed the top speed and load per-mitted for the winter tyres that are fitted.
r:Q;-.. Summer tyres should be fitted in good time at the end of the winter. The vehicle handling is better if summer tyres are fitted at temperatures above +7•c (+45.F). They are quieter, do not wear so quickly and reduce fuel consumption.
m In vehicles with a tyre monitoring system, the l!.J systems have to "re-synchronise" after wheels are changed =>page 318.
m Volkswagen Commercial Vehicles dealer-l!.J ships can provide details on permissible win-
ter tyre sizes.

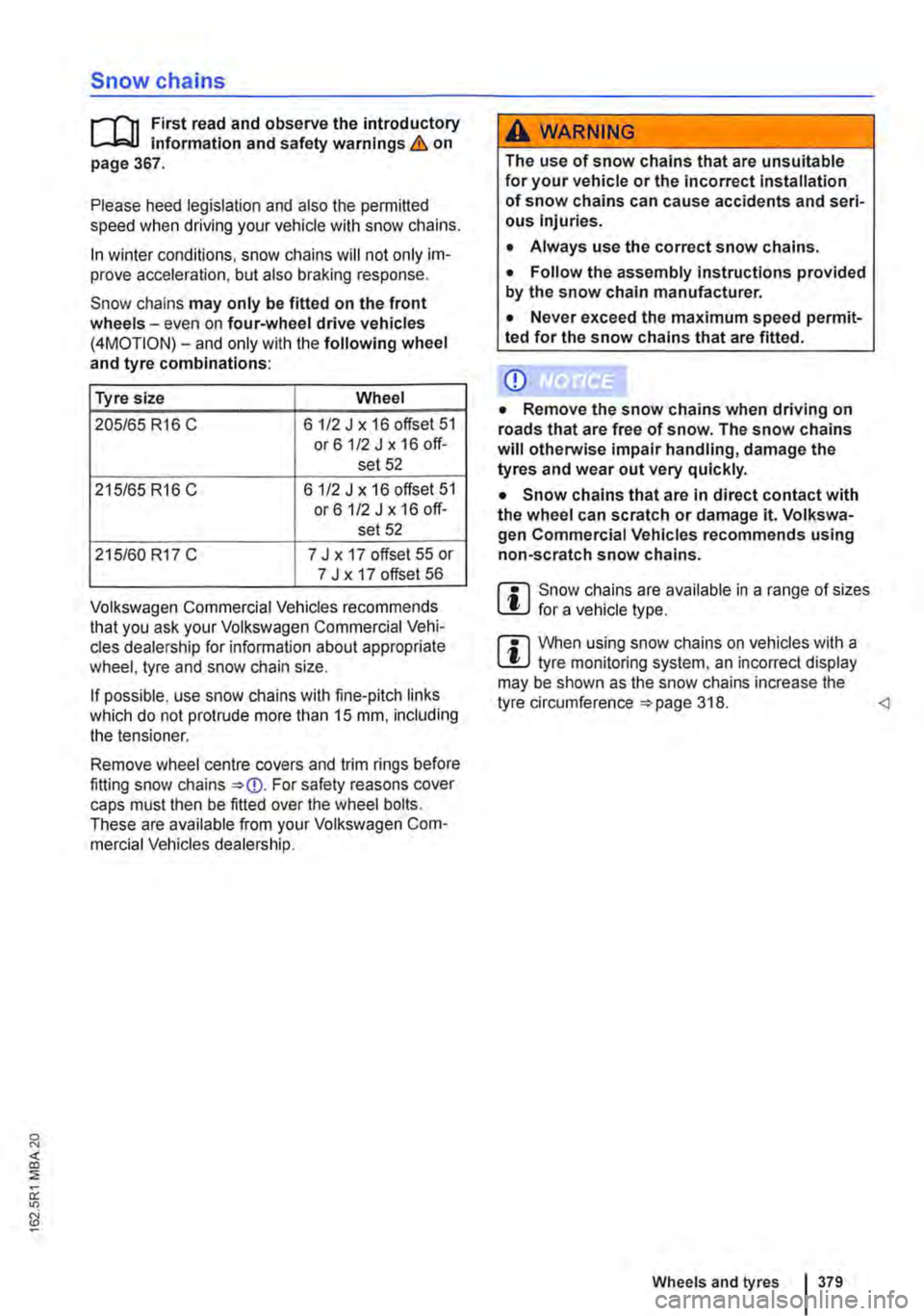

Snow chains
r-"f"'n First read and observe the introductory L-J=.IJ information and safety warnings & on page 367.
Please heed legislation and also the permitted speed when driving your vehicle with snow chains.
In winter conditions, snow chains will not only im-prove acceleration, but also braking response.
Snow chains may only be fitted on the front wheels-even on four-wheel drive vehicles (4MOTION)-and only with the following wheel and tyre combinations:
Tyre size Wheel
205/65 R16 C 6 1/2 J x 16 offset 51 or61/2Jx16off-set 52
215/65 R16 C 6 112 J x 16 offset 51 or61/2 J x 16 off-set 52
215/60 R17 C 7 J x 17 offset 55 or 7 J x 17 offset 56
Volkswagen Commercial Vehicles recommends that you ask your Volkswagen Commercial Vehi-cles dealership for information about appropriate wheel, tyre and snow chain size.
If possible, use snow chains with fine-pitch links which do not protrude more than 15 mm, including the tensioner.
Remove wheel centre covers and trim rings before fitting snow chains For safety reasons cover caps must then be fitted over the wheel bolts. These are available from your Volkswagen Com-mercial Vehicles dealership.
A WARNING
The use of snow chains that are unsuitable for your vehicle or the incorrect installation of snow chains can cause accidents and seri-ous Injuries.
• Always use the correct snow chains.
• Follow the assembly instructions provided by the snow chain manufacturer.
• Never exceed the maximum speed permit-ted for the snow chains that are fitted.
Q)
• Remove the snow chains when driving on roads that are free of snow. The snow chains will otherwise impair handling, damage the tyres and wear out very quickly.
• Snow chains that are in direct contact with the wheel can scratch or damage it. Volkswa-gen Commercial Vehicles recommends using non-scratch snow chains.
m Snow chains are available in a range of sizes l!:.J for a vehicle type.
m When using snow chains on vehicles with a l!:.J tyre monitoring system, an incorrect display may be shown as the snow chains increase the tyre circumference 318. Wheels and tyres 379

F
Factory plate . . . . . . . . . . . . . . . . . . . . . . . . 451
FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410
Fastening rings . . . . . . . . . . . . . . . . . . • . . . 134
Fault 230-volt Euro socket . . . . . . . . . . . . . . . . 246 Adaptive chassis control . . . . . . . . . 317, 318 Adaptive cruise control (ACC) . . . . . . . . . 299 Air conditioning system . . . . . . . . . . . . . . 328 Area monitoring system . . . . . . . . . . • . . . 308 Catalytic converter . . . . . . . . . . . . . . . . . . 408 Diesel particulate filter . . . . . . . . . . . . . . . 408 Driver Alert System .. .. .. .. .. . .. . .. . 316 DSG dual clutch gearbox . . . . . . . . . . . . . 267 Electric exterior mirrors . . . . . . . . . . . . . . 124 Electric windows . . . . . . . . . . . . . . . . . . . . 57 Front Assist .. .. .. .. .. .. .. .. .. .. .. . 308 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . 257 Lane change assist system (Side Assist) 313 Main beam assist . . . . . . . . . . . . . . . . . . . . 111 ParkPilot . . . . . . . . . . . . . . . . . . . . . . 288, 289 Radio reception . . . . . . . . . . . . . . . . . . . . 406 Rain sensor . . . . . . . . . . . . . . . . . . . • . . . 120 Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 59 Towing bracket . . . . . . . . . . . . . . . . . • . . . 145
Fault finding . . . . . . . • . . • . . • . . . . . . . . . . . 410
Fault memory . . . . . . . . . . . . . . . . . . . . . . . . 399
Filling the tank . . . . . . . . . . . . . . . . . . . . . . . 340 At the filling station . . . . . . . . . . . . . . . . . . 340 Checks when filling the tank . . . . . . . . . . 343 Diesel ............................ 342 Fuel ...........•................. 342 Fuel gauge . . . . . . . . . . . . • . . . . . . . . . . . 341 Indicator lamp ......... , . . . . . . . . . . . 341 Petrol . . . . . . . . . . . . . • . . . . . . . . • . . . . . 342
Filling up Incorrect fuel . . . . . . . • . . . . . . . . • . . . . . 341
Filter preheater .......... , . . . . . . . . . . . 345
Fire extinguisher . . . . . . . . . • . . • . . • . . • . . 413 Trailer . . . . . . . . . . . . . . . . • . . . . . . . . . . . 142
First aid kit . . . . . . . . . . . • . . . . . . . . . . . . . . 413 Stowage location . . . . . . . . . . . . . • . . • . . 413
First user pairing Rear-seat telephony.. . . . . . . . . . . . . . . . 190
Flyscreen element Sliding window . . . . . . . . . . • . . . . . . . . . . 232
Fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Folding out the table 3-seat bench . . . . . . . . . . . . . . . . . . . . . . . 74 Single seats in the passenger compartment .7.3
Folding table in the side panel . . . . . . . . . . 155 Assembling . . . . . . . . . . . . . . . . . . . . . . . 156 Stowed ........................... 156 Stowing . . . . . . . . . . . . . . . • . . . . . . . . . . 156
4721 tnllex
Folding table in the sliding door . . . . . . . . 229 Assembling . . . . . . . . . . . . . . . . . . . . . . . 229
Foot mats . . . . . . . . . • . . • . . . . . . . . . . . . . . 262
Footwelllight . . . . . . . . . . . . . . . . . . . . . . . . . 31
Four-wheel drive Snow chains . . . . . . . . . . . . . . . . . . . . . . . 379 Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . 447 Winter tyres . . . . . . . . . . . . . . . . . . . . . . . 378
Frequently asked questions . . . . . . . . . . . . 410
Fresh water system . . . . . . . . . . . . . . . . . . . 238 Cleaning . . . . . . . . . . . . . . . . . . . . . . . • . . 239
Front airbags see Alrbag system . . . . . . . . . . . . . . . . . . . 92
Frontal collisions and the laws of physics . 81
Front Assist City Emergency Brake function ......... 311 Displays . . . . . . . . . . . . . . . . . . . . . . . . . . 308 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308 Radar sensor . . . . . . . . . . . . . . . . . . . . . . 309 see Area monitoring system (Front Assist) .307 System limits . . . . . . . . . . . . . . . . . . . . . . 312
Front passenger front airbag see Airbag system . . . . . . . . . . . . . . . • . . . 87 Switching off with the key switch . . . . . . . . 93
Front scan system Swnching off temporarily . . . . • . . . • . • . . 310
Front seats Turning . . . . . . • . . . . . . . . . . . . . . . . . . . . . 71
Fuel . . . . . . . . . . . . . . . . . . . . • . . • . . . . . • . . 343 Diesel ............................ 345 Petrol . . . . . . . . . . . . . . . . . . . . . . . . . • . . 344
Fuel consumption Driving economically . . . . . . . . . . . . . . . . 278 What increases it? . . . . . . . . . . . . . . . . . . 408
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 341 Indicator lamp . . . . . . . . . . . . . . . . . . . . . 341
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 429
G
Camping equipment . . . . . . . . . . . . . . . . . 249 Changing . . . . . . . . . . . . . . . . . . . . . . . . . 431 Detecting a blown fuse . . . . . . . . . . . . . . . 432 Fuse box in engine compartment . . . . . . . 431 Fuse box in the dash panel . . . . . . . . . . . 430 Preparation for changing . . . . . . . . . . . . . 431
G 12 plus . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
G 12 plus-plus . . . . . . . . . . . . . . . . . . . . . . . 360
G 13 ................................ 360 Gas bottle Changing . . . . . • . . . . . • . . . . . . . . . . . . . 235 Connecting . . . . . . . . . . . . . . . . . . . . . . . . 235
Gas cooker Cleaning . . . . . . • . . . . . • . . . . . . . . . . . . . 253 Turning off . . . . . . . . . . . . . . . . . . . . . . . . 236 Turning on . . . . . . . . . . . . . . . . . . . . . . . . 236

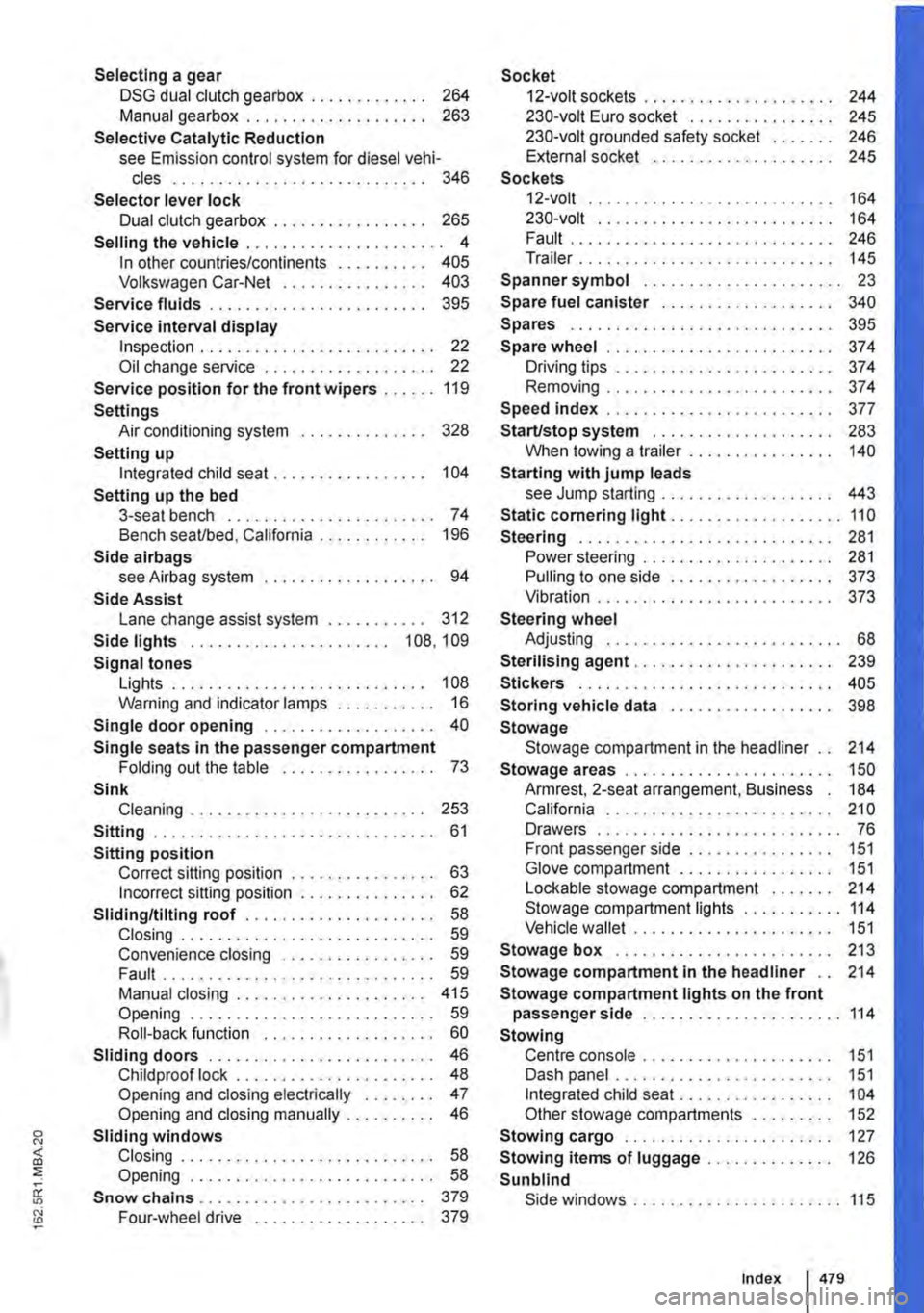

Selecting a gear DSG dual clutch gearbox . . . . . . . . . . . . . 264 Manual gearbox . . . . . . . . . . . . . . . . . . . . 263
Selective Catalytic Reduction see Emission control system for diesel vehi-cles . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Selector lever lock Dual clutch gearbox . . . . . . . . . . . . . . . . . 265
Selling the vehicle . . . . . . . . . . . . . . . . . . . . . . 4 In other countries/continents . . . . . . . • . . 405 Volkswagen Car-Net . . . . . . . . . . . . . . . . 403 Service fluids . . . . . . . . . . . . . . . . . . . . . . . . 395
Service interval display Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Oil change service . . . . . . . . . . . . . . . . . . . 22 Service position for the front wipers ...... 119
Settings Air conditioning system . . . . . . . . . . . . . . 328
Setting up Integrated child seat . . . . . . . . . . . . . . . . . 104
Setting up the bed 3-seat bench . . . . . . . . . . . . . . . . . . . . . . . 74 Bench seaVbed, California . . . . . . . . . . . . 196
Side airbags see Airbag system . . . . . . . . . . . . . . . . . . . 94
Side Assist Lane change assist system . . . . . . . . . . . 312 Side lights . . . . . . . . . . . . . . . . . . . . 108, 109
Signal tones Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 Warning and indicator lamps . . . . . . . . . . . 16
Single door opening . . . . . . . . . . . . . . . . . . . 40 Single seats in the passenger compartment Folding out the table . . . . . . . . . . . . . . . . . 73
Sink Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 253
Sitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Sitting position Correct sitting position . . . . . . . . . . . . . . . 63 Incorrect sitting position . . . . . . . . . . . . . . . 62 Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . 58 Closing . . . . . . . . . . . . . . . . . . . . . 59 Convenience closing . . . . . . . . . . . . . . . . . 59 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Manual closing . . . . . . . . . . . . . . . . . . . . . 415 Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Roll-back function . . . . . . . . . . . . . . . . . . . 60 Sliding doors . . . . . . . . . . . . . . . . . . . . . . . . . 46 Childproof lock . . . . . . . . . . . . . . . . . . . • . . 48 Opening and closing electrically 47 Opening and closing manually . . 46 Sliding windows Closing ............................ 58 Opening . . . ...................... 58
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 379 Four-wheel drive . . . . . . . . . . . . . . . . . . . 379
Socket 12-volt sockets . . . . . . . . . . . . . 244 230-volt Euro socket . . . . . . . . . . . . . 245 230-volt grounded safety socket 246 External socket . . . . . . . . . . . . . . . . 245
Sockets 12-volt . . . . . . . . . . . . . . . . . 164 230-volt . . . . . . . . . . . . . . . . . . . . . . . . . . 164 Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246 Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Spanner symbol . . . . . . . . . . . . . . . . . . . . . . 23 Spare fuel canister . . . . . . . . . . . . . . . . . . . 340
Spares . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . 374 Driving tips . . . . . . . . . . . . . . . . . . . . . . . . 37 4 Removing . . . . . . . . . . . . . . . . . . . . . . . . . 374 Speed index . . . . . . . . . . . . . . . . . . . . . . • . . 377
Start/stop system . . . . . . . . . . . . . . . . . 283 When towing a trailer . . . . . . . . . . . . . . . . 140
Starting with jump leads see Jump starting . . . . . . . . . . . • . . . . . . . 443 Static cornering light ..........•........ 110
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281 Power steering . . . . . . . . . . . . . • . . . . . . . 281 Pulling to one side . . . . . . . . . . . 373 Vibration . . . . . . . . . . . . . . . • . . . . . . . . . . 373
Steering wheel Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Sterilising agent . . . . . • . . . . . . . . • . . . . . . . 239
Stickers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 405
Storing vehicle data . . . . . . . . . . . . . . . . . . 398
Stowage Stowage compartment in the headliner . . 214 Stowage areas . . . . . . . . . . . . . . . . . . . . . . . 150 Armrest, 2-seat arrangement, Business . 184 California . . . . . . . . . . . . . . . . . . . . . . . . . 210 Drawers ........................... 76 Front passenger side . . . . . . . . . . . . . . . . 151 Glove compartment . . . . . . . . . . . . . . . . . 151 Lockable stowage compartment . . . . . . . 214 Stowage compartment lights ........... 114 Vehicle wallet . . . . . . . . . . . . . . . . . . . . . . 151
Stowage box . . . . . . . . . . . . . . . . . . . . . . . . 213
Stowage compartment in the headliner . . 214 Stowage compartment lights on the front passenger side ...................... 114 Stowing Centre console . . . . . . . . . . • . . . . . . . . . . 151 Dash panel . . . . . . . . . . . . . . . . . . . . . . . . 151 Integrated child seat . . . . . . . . . . . . . . . . . 104 Other stowage compartments . . . . . . . . . 152 Stowing cargo . . . . . . . . . . . . . . . . . . . . . . . 127 Stowing items of luggage . . . • . . . . . . . . . . 126
Sunbllnd Side windows . . . . . . . . . . . . . . . . . . . . . . . 115
Index I 479

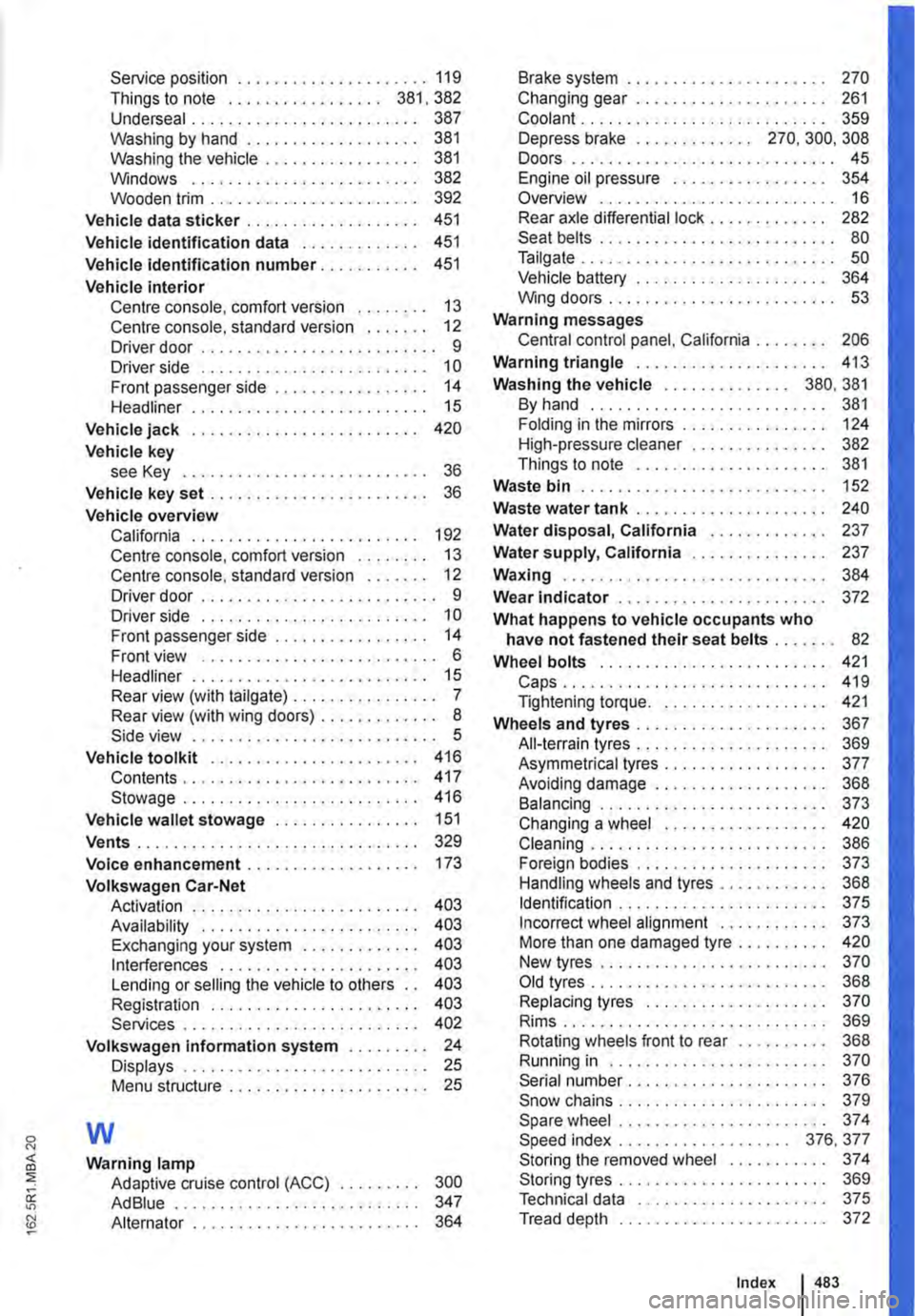

Service position . . . . . . . . . . • . . . . . . . . . . 119 Things to note . . . . . . . . . . . . . . . . . 381. 382 Undersea! . . . . . . . . . . . . • . . . . . . . . . . . . 387 Washing by hand . . . . . . . . . . . . . . . . . . . 381 Washing the vehicle . . . . . . . . . . . . . • . . . 381 Windows . . . . . . . . . . . . . . . . . . . . . . . . . 382 Wooden trim . . . . . . . . . . . . . . . . . . . • . . . 392
Vehicle data sticker . . . . . . . . . . . . . . . . . . . 451
Vehicle identification data . . . . . . . . . . . . . 451
Vehicle ldentiflcatlon number . . . . . . . . . . . 451
Vehicle Interior Centre console, comfort version . . . . . . . . 13 Centre console, standard version . . . . . . . 12 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Driver side . . . . . . . . . . . . . . . . . . . . • . . . . 10 Front passenger side . . . . . . . . . . . . . . . . . 14 Headliner . . . . . . . . . . . . . . . . . . . . . . . . . 15
Vehicle jack . . . . . . . . . . . . . . . . . . . . . . . . . 420
Vehicle key see Key . . . . . . . . • . . • . . . . . . . . . . . . . . . 36
Vehicle key set . . . . . . . . • . . . . . . . . • . . . . . . 36
Vehicle overview California . . . . . . . . . . . . . . . . . . . . . . . . . 192 Centre console, comfort version . . . . . . . . 13 Centre console, standard version . . . . . . . 12 Driver door . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Driver side . . . . . . . . . . . . • . . . . . . . . . . . . 1 0 Front passenger side . . . . . . . . . . . . . . . . . 14 Front view . . . . . . . . . . . . . . . . . . • . . . . . . . 6 Headliner . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Rear view (with tailgate) . . . . . . . . . . . . . . . . 7 Rear view (with wing doors) . . . . . . . . . . . . . 8 Side view ...................•....... 5
Vehicle toolkit . . . . . . . . . . . . . . . . . . . . . . . 416 Contents . . . . . . . . . . . • . . . . . . . . . . . . . . 417 Stowage . . . . . . . . . . . . . . . . . . . . . . . . . . 416
Vehicle wallet stowage . . . . . . . . . . • . . • . . 151
Vents . . . . . . . . . . . . . . . . . . . . . . . . . • . . . . . 329
Voice enhancement................... 173
Volkswagen Car-Net Activation . . . . . . . . . . . . . . . . . . . . . . . . . 403 Availability . . . . . . . . . . . . . . . . . . . . . . . . 403 Exchanging your system . . . . . . . . . . . . . 403 Interferences . . . . . . . . . . . . . . . . . . . . . . 403 Lending or selling the vehicle to others . . 403 Registration . . . . . . . . . . . . . . . . . . . . . . . 403 Services . . . . . . . . . . . . . . . . . . . . . . . . . . 402
Volkswagen Information system . . . . . . . . . 24 Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Menu structure . . . . . . . . . . . . . . . . . . . . . . 25
w
Warning lamp Adaptive cruise control (ACC) . . . . . . . . . 300 AdBiue ........................... 347 Alternator . . . . . . . . . . . . . . . . . . . . . . . . . 364
Brake system . . . . . . . . . . . . . . . . . . . . . . 270 Changing gear . . . . . . . . . . . . . . . . . . . . . 261 Coolant . . . . . . . . . • . . . . . . . . . . . . . . . . . 359 Depress brake . . . . . . . . . . . . . 270, 300, 308 Doors ............................. 45 Engine oil pressure . . . . . . . . . . . . . . . . . 354 Overview . . . . . . . . . . . . . . . . • . . • . . . . . . 16 Rear axle differential lock . . . . . . . . . . . . . 282 Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Tailgate . . . . . . . . . . . . • . . . . . . . . . . . . . . . 50 Vehicle battery . . . . . . . . . . . . . . . . . . . . . 364 Wing doors . . . . . . . . . . . . . . . . . . . . . . . . . 53
Warning messages Central control panel, California . . . . . . . . 206
Warning triangle . . . . . . . . . . . . . . . . . . . . . 413
Washing the vehicle . . . . . . . . . . . . . . 380, 381 By hand . . . . . . . . . . . . . . . . . . . . . . . . . . 381 Folding in the mirrors . . . . . . . . . . . . . . . . 124 High-pressure cleaner . . . . . . . . . . . . . . . 382 Things to note . . . . . . . . . • . . . . . . . . . . . 381
Waste bin . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Waste water tank . . . . . . . . . . . . . . . . . . . . . 240
Water disposal, California . . . . . . . . . . . . 237
Water supply, California . . . . . . . . . . . . . . . 237
Waxing ............................. 384
Wear Indicator . . . . . . . . . . . . . . . . . . . . . . . 372
What happens to vehicle occupants who have not fastened their seat belts . . . . . . . 82
Wheel bolts . . . . . . . . . . . . . . . . . . . . . . . . . 421 Caps............................. 419 Tightening torque. . . . . . . . . . . • . . • . . . . 421
Wheels and tyres . . . . . . . . . . . . . . . . . . . . . 367 All-terrain tyres . . . . . . . . . . . . . . . . . . . . . 369 Asymmetrical tyres . . . . . . . . . . . . . . . . . . 377 Avoiding damage . . . . . . . . . . . . . . . . . . . 368 Balancing . . . . . . . . . . . . . . . . . • . . . . . . . 373 Changing a wheel . . . . . . . . . . . . . . . . . . 420 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 386 Foreign bodies . . . . . . . . . . . . . . . . . . . . . 373 Handling wheels and tyres . . . . . . . • . . . . 368 Identification . . . . . . . . . . . . . . . . . . . . . . . 375 Incorrect wheel alignment . . . . . . . . . . . . 373 More than one damaged tyre . . . . . • . . . . 420 New tyres . . . . . . . . . . . . . . . . . . . . . . . . . 370 Old tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 368 Replacing tyres . . . . . . . . . . . . . . . . . . . . 370 Rims ............................. 369 Rotating wheels front to rear . . . • . . . . . . 368 Running in . . . . . . . . . . . . . . . . . . . . . . . . 370 Serial number . . . • . . . . • . . . . . . . . . . . . . 376 Snow chains . . . . . . . . . . . . . . . . . . . . . . . 379 Spare wheel . . . . . . . . . . . . . . . • . . . . . . . 374 Speed index ...............•... 376,377 Storing the removed wheel . . . . . . . . . . . 374 Storing tyres . . . . . . . . . . . . . . . . . . . . . . . 369 Technical data . . . . . . . . . . . . . • . . . . . . . 375 Tread depth . . . . . . . . . . . . . . . • . . • . . . . 372
Index 483

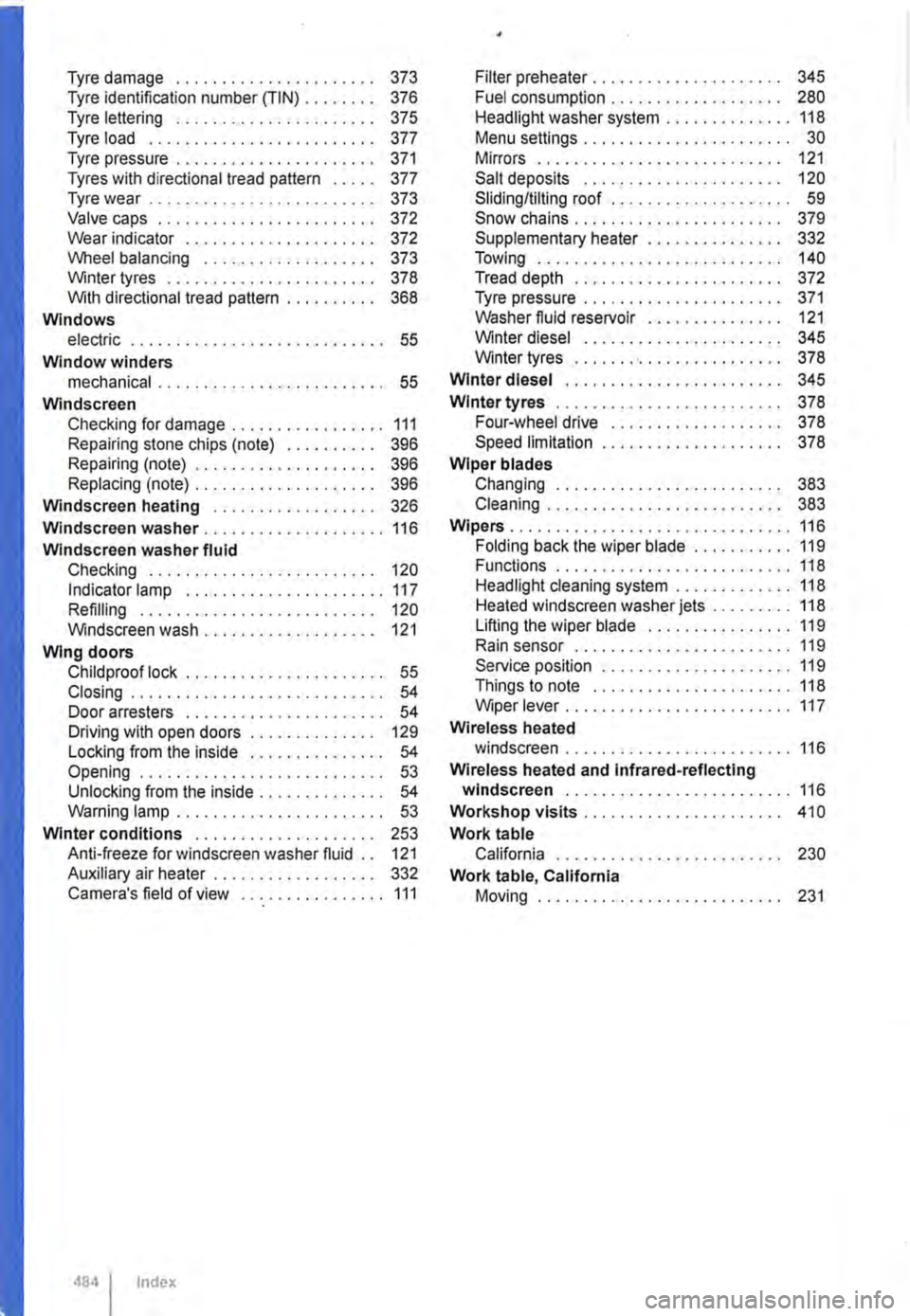

Tyre damage . . . . . . . . . . . . . . . . . . . . . . 373 Tyre identification number (TIN) . . . . . . . . 376 Tyre lettering . . . . . . . . . . . . . . . . . . . . . . 375 Tyre load . . . . . . . . . . . . . . . . . . . . . . . . . 377 Tyre pressure . . . . . . . . . . . . . . . . . . . . . . 371 Tyres with directional tread pattern . . . . . 377 Tyre wear . . . . . . . . . . . . . . . . . . . . . . . . . 373 Valve caps . . . . . . . . . . . . . • . . . . . . . . . . 372 Wear indicator . . . . . . . . . . . . . . . . . . . . . 372 Wheel balancing . . . . . . . . . . . . . . . . • . . 373 Winter tyres . . . . . . . . . . . . . . . . . • . . • . . 378 With directional tread pattern . . . . . . . . . . 368 Windows electric . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Window winders mechanical . . . . . . . . . . . . . . . . . . . . . . . . . 55 Windscreen Checking for damage . . . . . . . . . . . . . . . . . 111 Repairing stone chips (note) . . . . . . . . . . 396 Repairing (note) . . . . . . . . . . . . . . • . . . . . 396 Replacing (note) . . . . . . . . . . . . . . . . . . . . 396
Windscreen heating . . . . . . . . . . . . • . . . . . 326 Windscreen washer .............•...... 116
Windscreen washer fluid Checking . . . . . . . . . . . . . . . . . . . . . . . . . 120 Indicator lamp ...................... 117 Refilling . . . . . . . . . . . . . . . . . . . . . . . . . . 120 Windscreen wash . . . . • . . . . . • . . . . . . . . 121
Wing doors Child proof lock . . . . . . . . . . . . • . . • . . . . . . 55 Closing ............................ 54 Door arresters . . . . . . . . . . . . • . . . . . . . . . 54 Driving with open doors . . . . . . . . . . . . . . 129 Locking from the inside . . . . . . . . . . . . . . . 54 Opening .................•......... 53 Unlocking from the inside . . . . . . . . . . . . . . 54 Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 53
Winter conditions . . . . . . . . . . . . . . . . . . . 253 Anti-freeze for windscreen washer fluid . . 121 Auxiliary air heater . . . . . . . . . . . . . . . . . . 332 Camera's field of view ................ 111
484 I Index
Filter preheater . . . . . . . . . . . . . . . . . . . . . 345 Fuel consumption . . . . . . . . . . . . . . . . . . . 280 Headlight washer system . . . . . . . . . . . . . . 118 Menu settings . . . . . . . . . . . . . . . . . . . . . . . 30 Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 121 Salt deposits . . . . . . . . . . . . . . . . . . . . . . 120 Sliding/tilting roof . . . . . . . . . . . . . . . . . . . . 59 Snow chains . . . . . . . . . . . . . . . . . . . . . . . 379 Supplementary heater . . . . . . . . . . . . . . . 332 Towing ........................... 140 Tread depth . . . . . . . . . . . . . . . . . . • . . . . 372 Tyre pressure . . . . . . . . . . . . . . . . . . . . . . 371 Washer fluid reservoir . . . . . . . . . . . . . . . 121 Winter diesel . . . . . . . . . . . . . . . . . . . . . . 345 Winter tyres ......• ·. . . . . . . . . . . . . . . . 378
Winter diesel . . . . . . . . . . . . . . . . . . . . . . . . 345
Winter tyres . . . . . . . . • . . . . . . . . . . . . . . . . 378 Four-wheel drive . . . . . . . . . . . . . . . . . . . 378 Speed limitation . . . . . . . . . . . . . . . . . . . . 378
Wiper blades Changing . . . . . . . . . . . . . . . . . . . . . . . . . 383 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 383
Wipers ............................... 116 Folding back the wiper blade ........... 119 Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 118 Headlight cleaning system ............. 118 Heated windscreen washer jets ......... 118 Lifting the wiper blade . . . . . . . . . . . . . . . . 119 Rain sensor . . . . . . . . . . . . . . . . . . . . . . . . 119 Service position . . . • . . . . . . . . . . . . . . . . . 119 Things to note ...................... 118 Wiper lever . . . . . . . • . . . . . . . . . . . . . . . . . 117
Wireless heated windscreen . . . . . . . . . . . . . . . . . . . . . . . . . 116 Wireless heated and Infrared-reflecting windscreen ......................... 116
Workshop visits...................... 410 Work table California . . . . . . . . . . . . . . . . . . . . . . . . . 230
Work table, California Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
