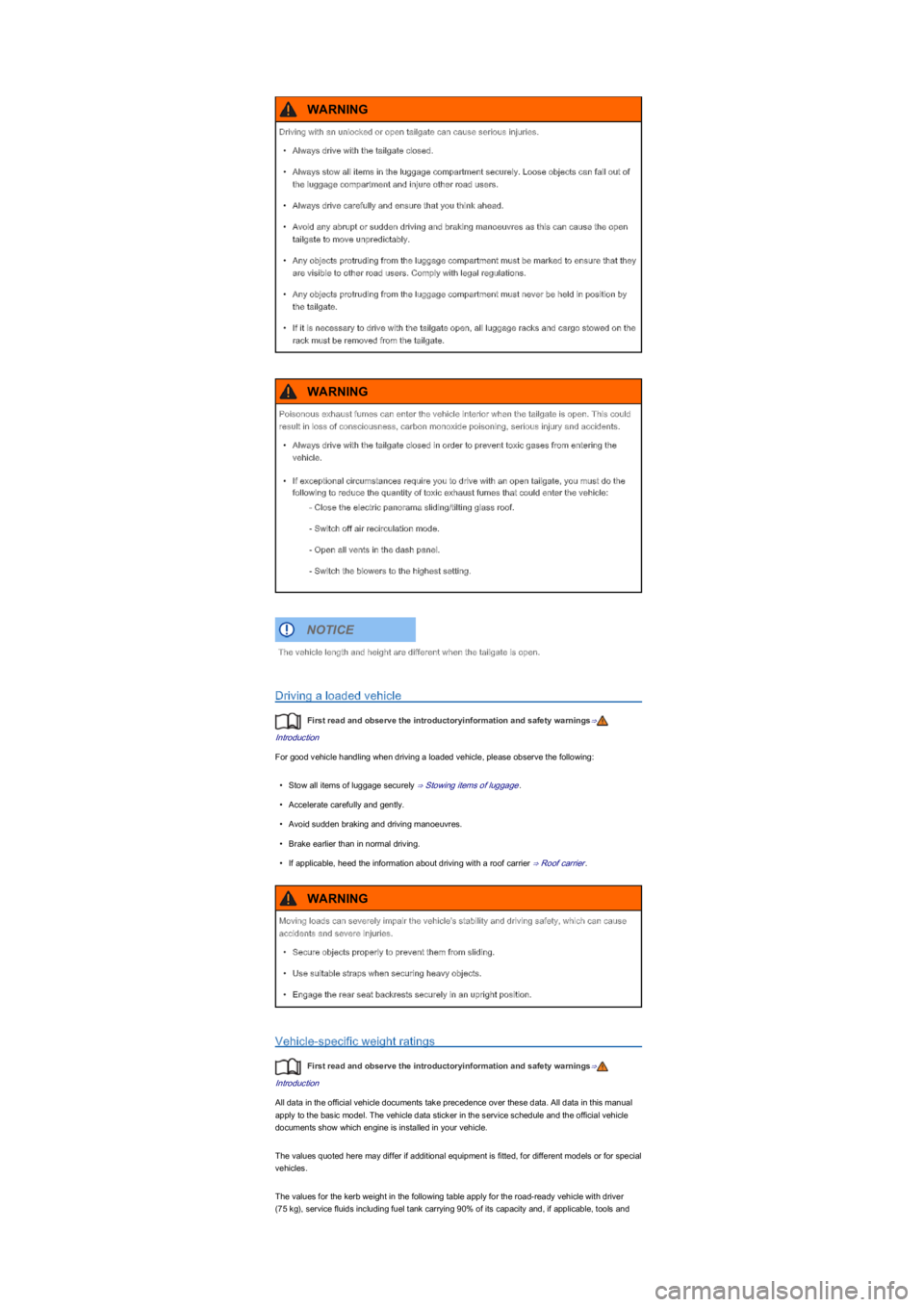

Driving a loaded vehicle
First read and observe the introductoryinformation and safety warnings⇒
Introduction
For good vehicle handling when driving a loaded vehicle, please observe the following:
\f

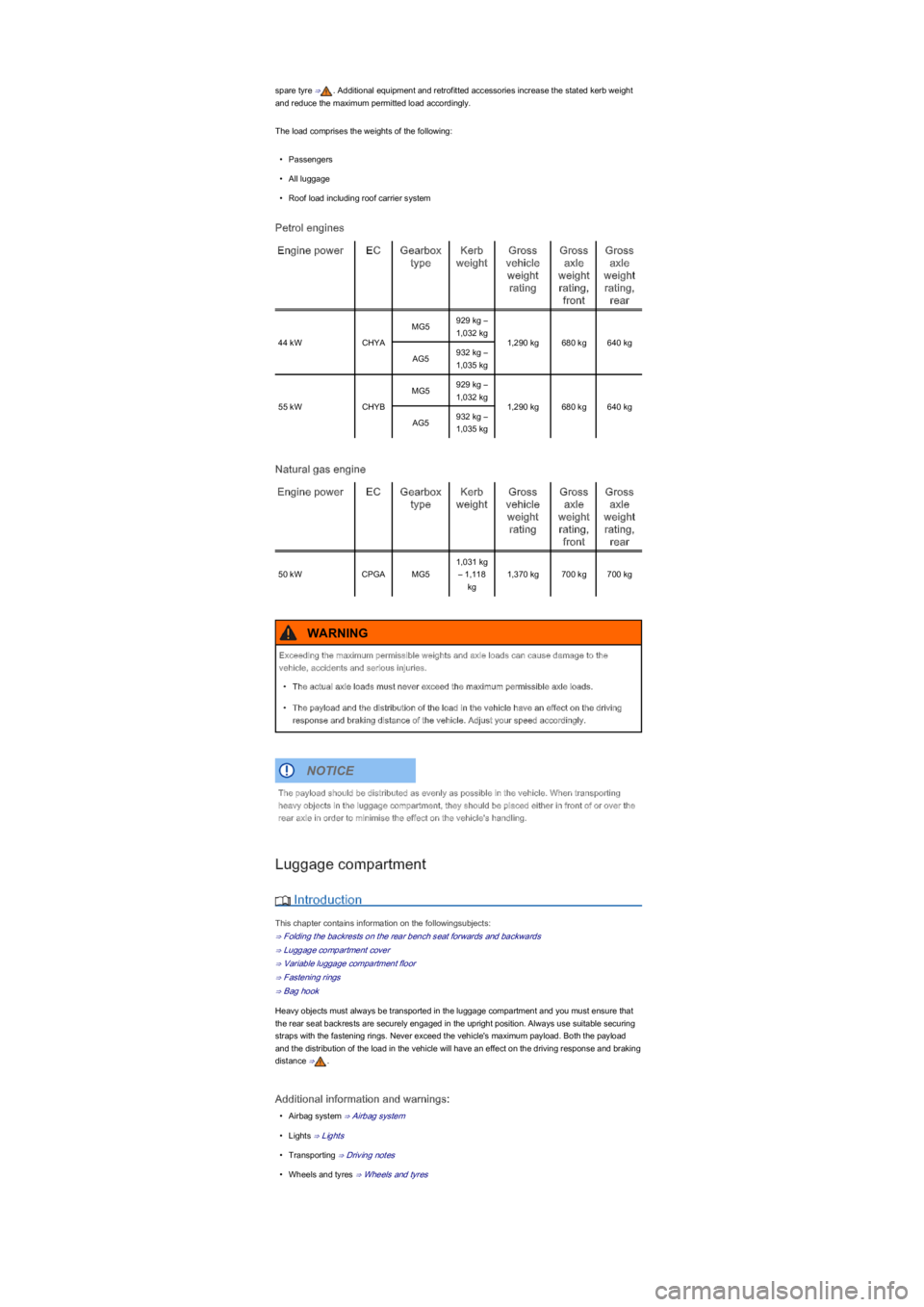

spare tyre ⇒. Additional equipment and retrofitted accessories increase the stated kerb weight
and reduce the maximum permitted load accordingly.
The load comprises the weights of the following:
\f

The ventilation openings between the rear window and the luggage compartment cover must
not be covered as this would prevent stale air escaping from the vehicle.

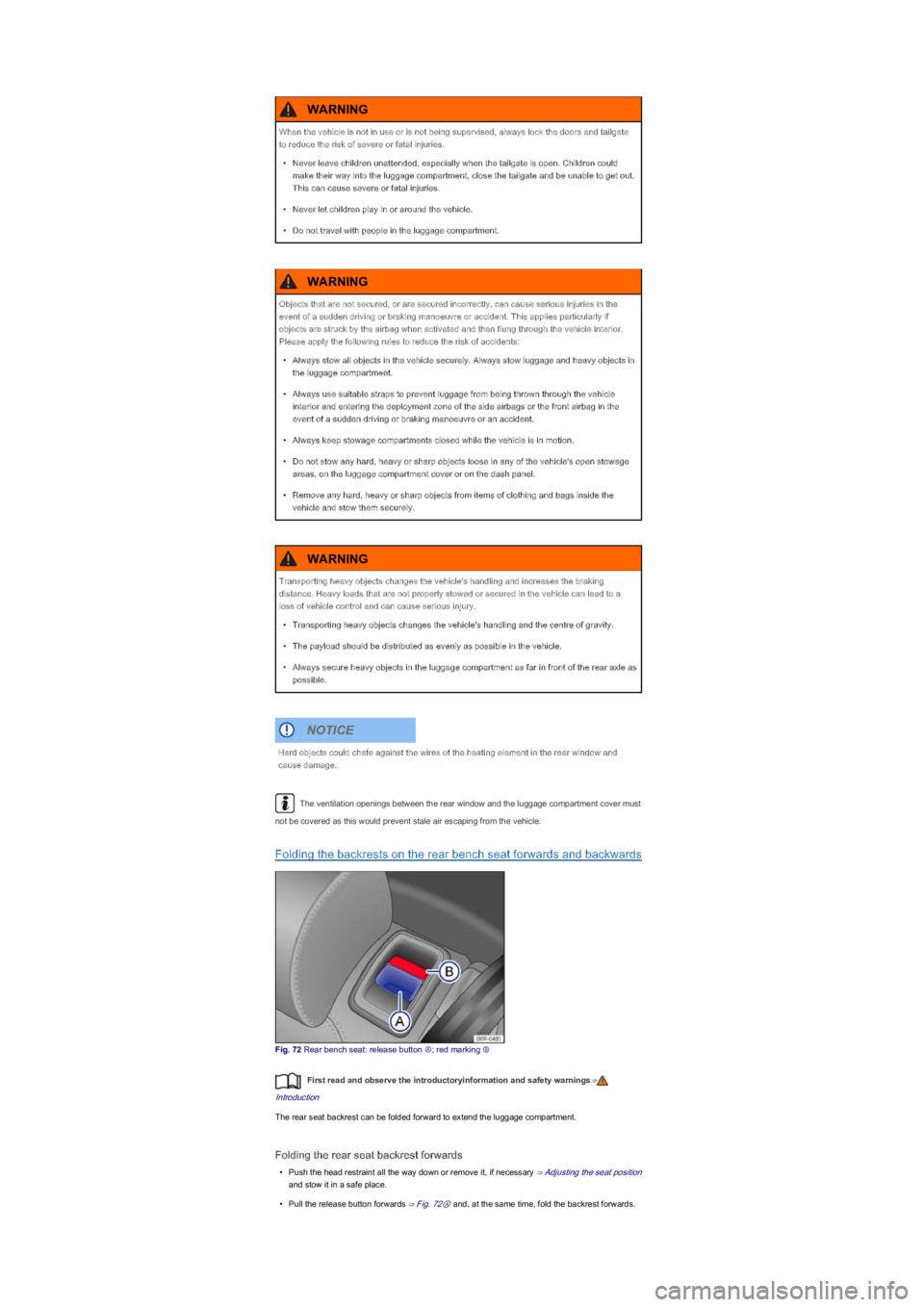

Folding the backrests on the rear bench seat forwards and backwards
Fig. 72 Rear bench seat: release button Ⓐ; red marking Ⓑ
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The rear seat backrest can be folded forward to extend the luggage compartment.
Folding the rear seat backrest forwards
\f

\f

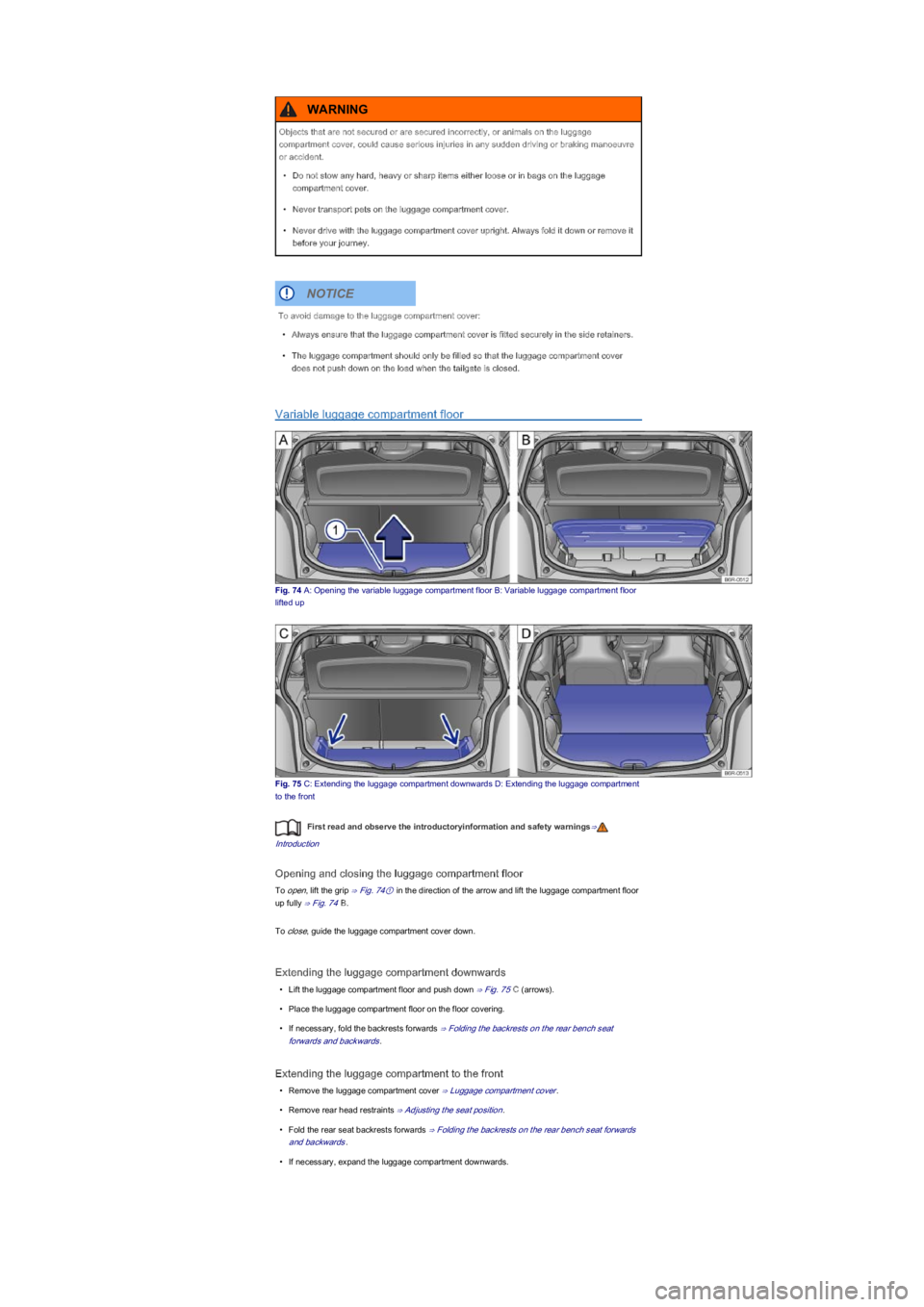

Variable luggage compartment floor
Fig. 74 A: Opening the variable luggage compartment floor B: Variable luggage compartment floor
lifted up
Fig. 75 C: Extending the luggage compartment downwards D: Extending the luggage compartment
to the front
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Opening and closing the luggage compartment floor
To open, lift the grip ⇒ Fig. 74① in the direction of the arrow and lift the luggage compartment floor
up fully ⇒ Fig. 74B.
To close, guide the luggage compartment cover down.
Extending the luggage compartment downwards
\f

Fastening rings
Fig. 76 In the luggage compartment: fastening rings
First read and observe the introductoryinformation and safety warnings⇒
Introduction
At the front of the luggage compartment are fastening rings for securing luggage ⇒ Fig. 76.
The fastening rings have to be folded out before they can be used.
The maximum load rating of the fastening rings is approximately 3.5 kN.
Suitable fastening belts and luggage stowage systems are available from a qualified
workshop. Volkswagen recommends using a Volkswagen dealership for this purpose.
Bag hook
Fig. 77 In the luggage compartment: bag hook
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Bag hooks are located on the upper left and right-hand side of the luggage compartment.
Never drop the luggage compartment floor, but rather guide it back down. The trims or the
luggage compartment floor could be damaged.
NOTICE
Unsuitable or damaged securing straps could rip in the event of a braking manoeuvre or
accident. This could cause objects to be flung through the interior and lead to severe or fatal
injuries.
\f

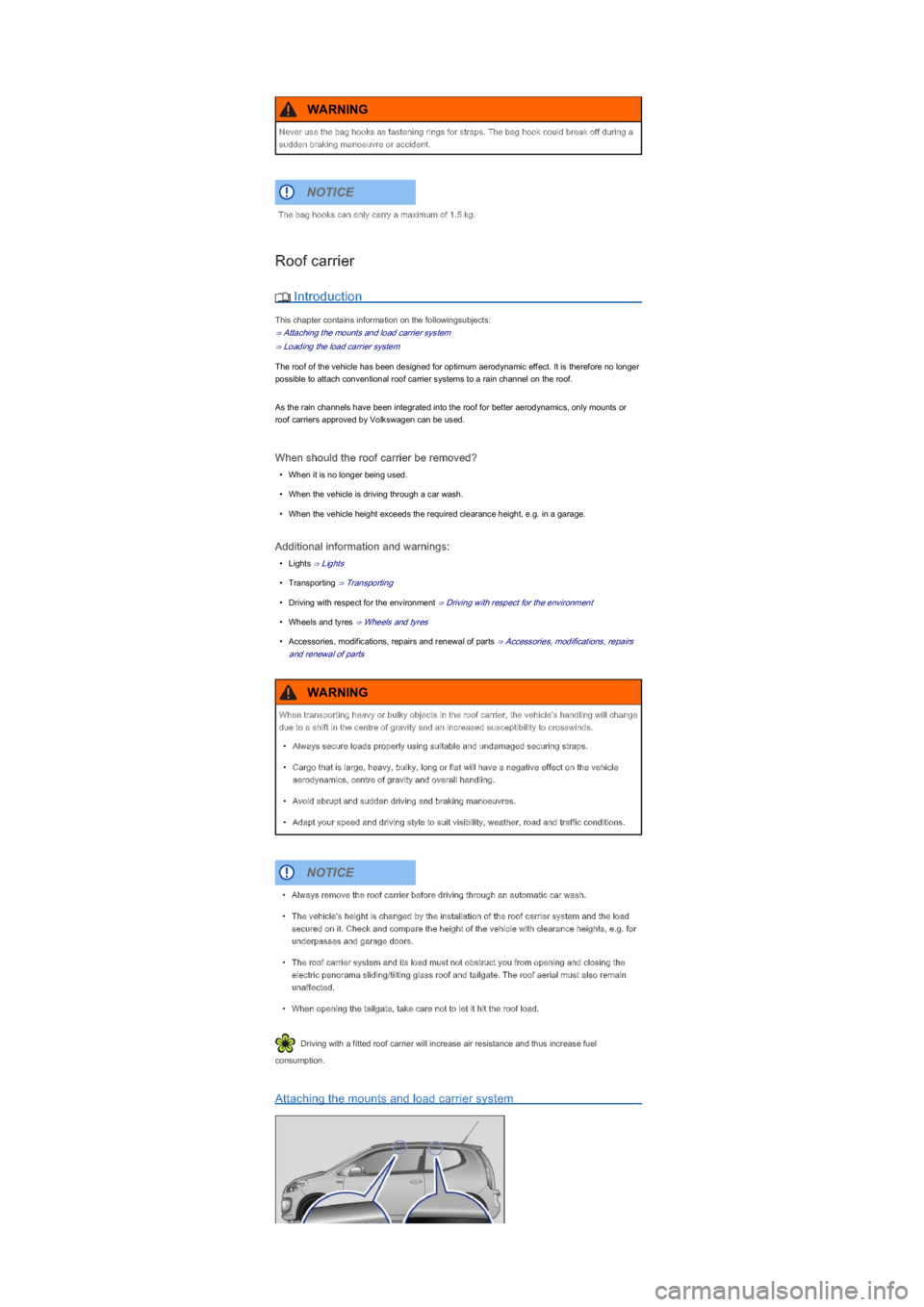

Roof carrier
 Introduction
This chapter contains information on the followingsubjects:
⇒ Attaching the mounts and load carrier system
⇒ Loading the load carrier system
The roof of the vehicle has been designed for optimum aerodynamic effect. It is therefore no longer
possible to attach conventional roof carrier systems to a rain channel on the roof.
As the rain channels have been integrated into the roof for better aerodynamics, only mounts or
roof carriers approved by Volkswagen can be used.
When should the roof carrier be removed?
\f

Fig. 78 Attachment points for the mounts on 2-door vehicles (both sidesyf
Fig. 79 Attachment points for the mounts on 4-door vehicles (both sidesyf
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Mounts serve as a basis for special load carrier systems. Special load carriers must then be added
to transport luggage, bicycles, skis, surfboards or boats safely. Suitable accessories are available
from your Volkswagen dealership.
Mounts and load carriers must always be attached correctly. You must observe the fitting
instructions that were delivered with the roof carrier system.
Attaching the mounts and load carrier system
2-door vehicles: the holes or markings for the front mount securing points are located on the
underside of the roof side members ⇒ Fig. 78A (left-hand magnificationyf7KHKROHVRUPDUNLQJVIRU
the securing points are only visible when the door is open. The markings for attaching at the rear
are at the top on the side windows ⇒ Fig. 78 (right magnificationyf.
4-door vehicles: the holes or markings for the mount securing points are located on the underside
of the roof side member and are visible only when the doors are open ⇒ Fig. 79.
The roof carrier must only be attached at the markings shown in the illustration ⇒.
After fitting the mounts properly as per the instructions provided, attach the load carrier to the
mount.
Read and note the fitting instructions for the mounts and the load carrier system provided
and always carry the instructions in the vehicle.
Loading the load carrier system
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Loads can only be attached securely when the roof carrier system is fitted correctly ⇒.
Maximum permissible roof load
The maximum permitted roof load is 50 kg. The roof load limit refers to the combined weight of the
load carrier, the mounts and the load carried on the roof ⇒.
Incorrectly attaching and using the mounts and load carrier could cause the whole system to
fall off the roof. This could cause accidents and injuries.
\f

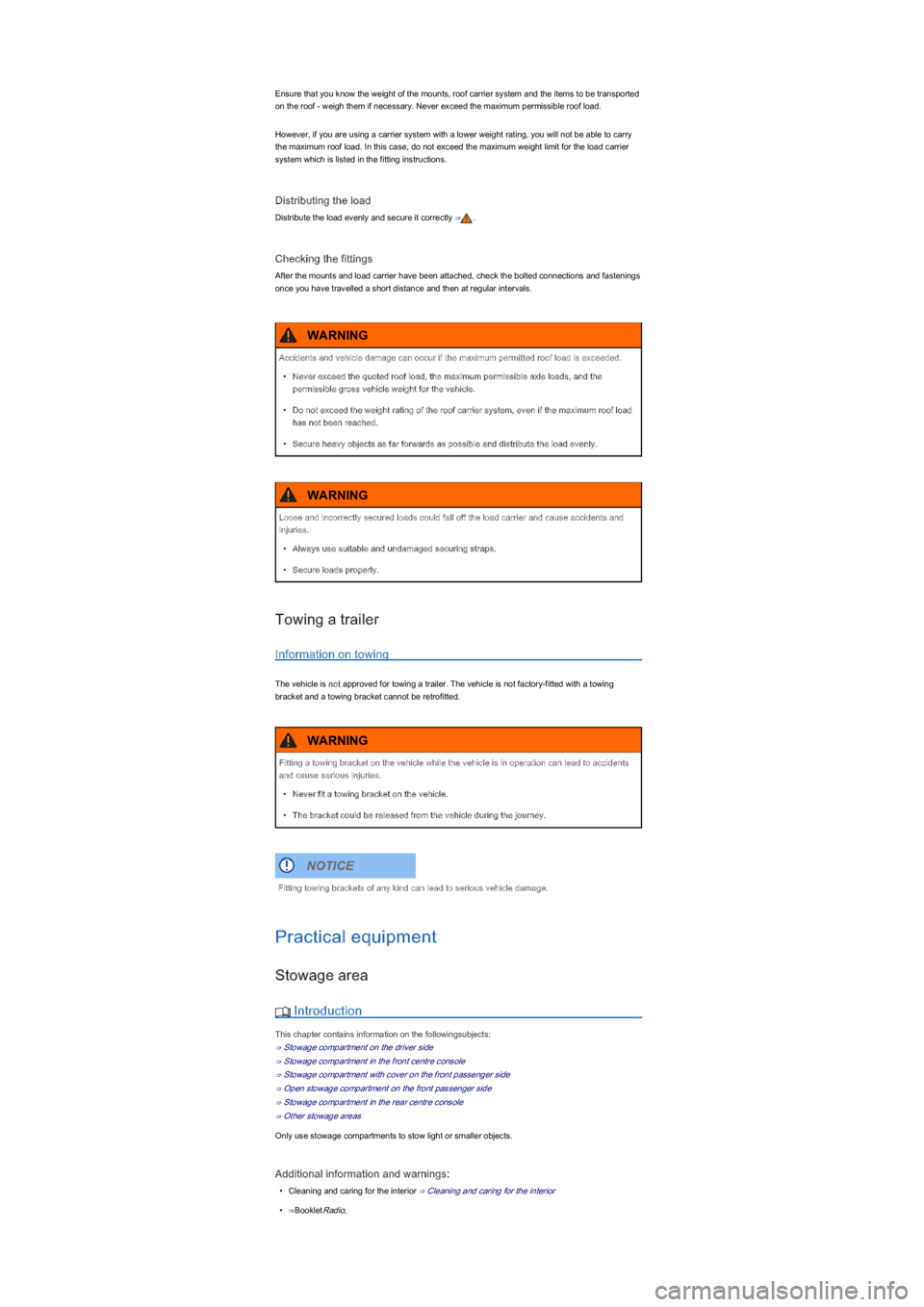

Ensure that you know the weight of the mounts, roof carrier system and the items to be transported
on the roof - weigh them if necessary. Never exceed the maximum permissible roof load.
However, if you are using a carrier system with a lower weight rating, you will not be able to carry
the maximum roof load. In this case, do not exceed the maximum weight limit for the load carrier
system which is listed in the fitting instructions.
Distributing the load
Distribute the load evenly and secure it correctly ⇒.
Checking the fittings
After the mounts and load carrier have been attached, check the bolted connections and fastenings
once you have travelled a short distance and then at regular intervals.
Towing a trailer
Information on towing
The vehicle is not approved for towing a trailer. The vehicle is not factory-fitted with a towing
bracket and a towing bracket cannot be retrofitted.
Practical equipment
Stowage area
 Introduction
This chapter contains information on the followingsubjects:
⇒ Stowage compartment on the driver side
⇒ Stowage compartment in the front centre console
⇒ Stowage compartment with cover on the front passenger side
⇒ Open stowage compartment on the front passenger side
⇒ Stowage compartment in the rear centre console
⇒ Other stowage areas
Only use stowage compartments to stow light or smaller objects.
Additional information and warnings:
\f

The ventilation openings between the rear window and the luggage compartment cover must
not be covered as this would prevent stale air escaping from the vehicle.

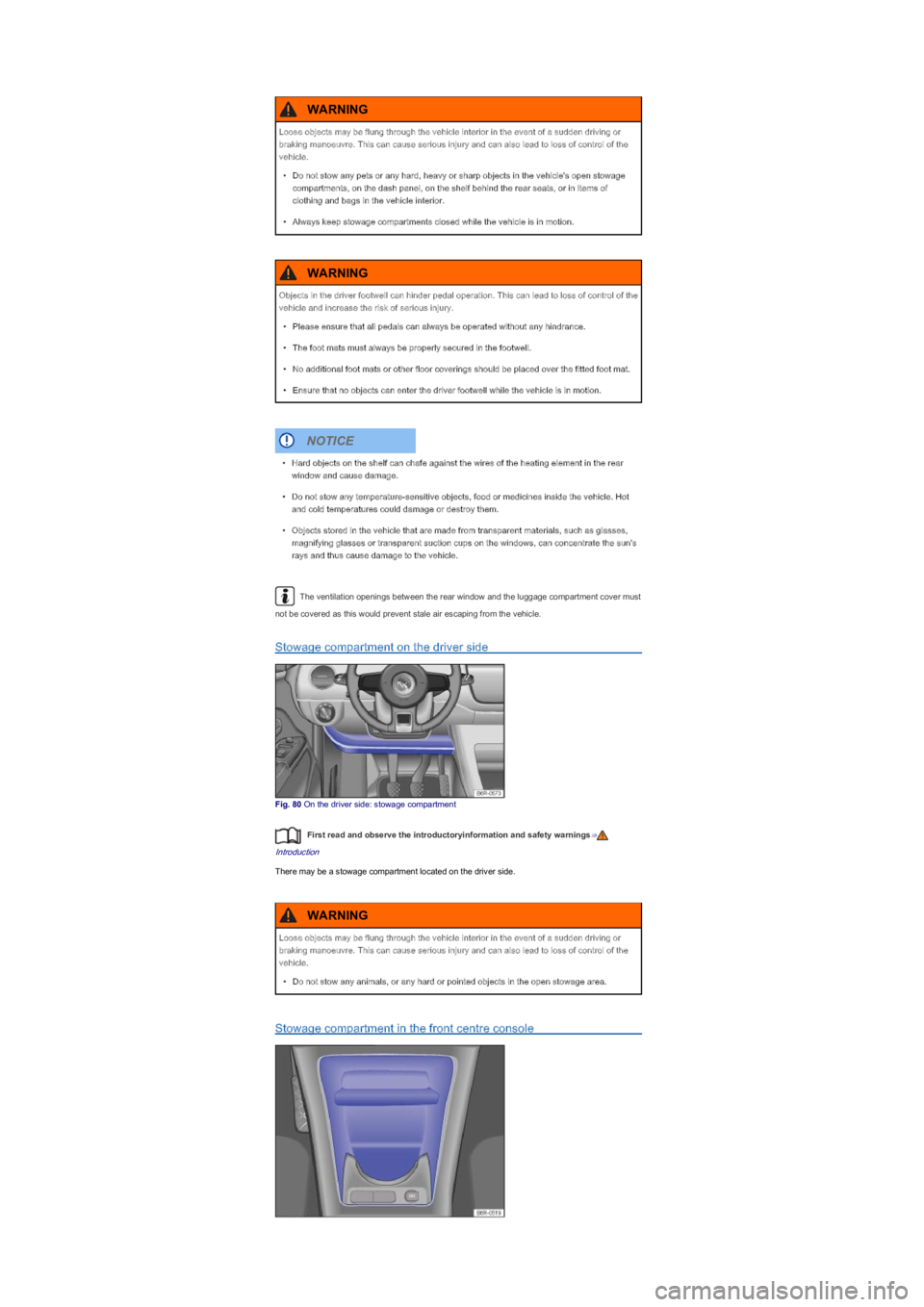

Stowage compartment on the driver side
Fig. 80 On the driver side: stowage compartment
First read and observe the introductoryinformation and safety warnings⇒
Introduction
There may be a stowage compartment located on the driver side.
Stowage compartment in the front centre console
Loose objects may be flung through the vehicle interior in the event of a sudden driving or
braking manoeuvre. This can cause serious injury and can also lead to loss of control of the
vehicle.
\f
