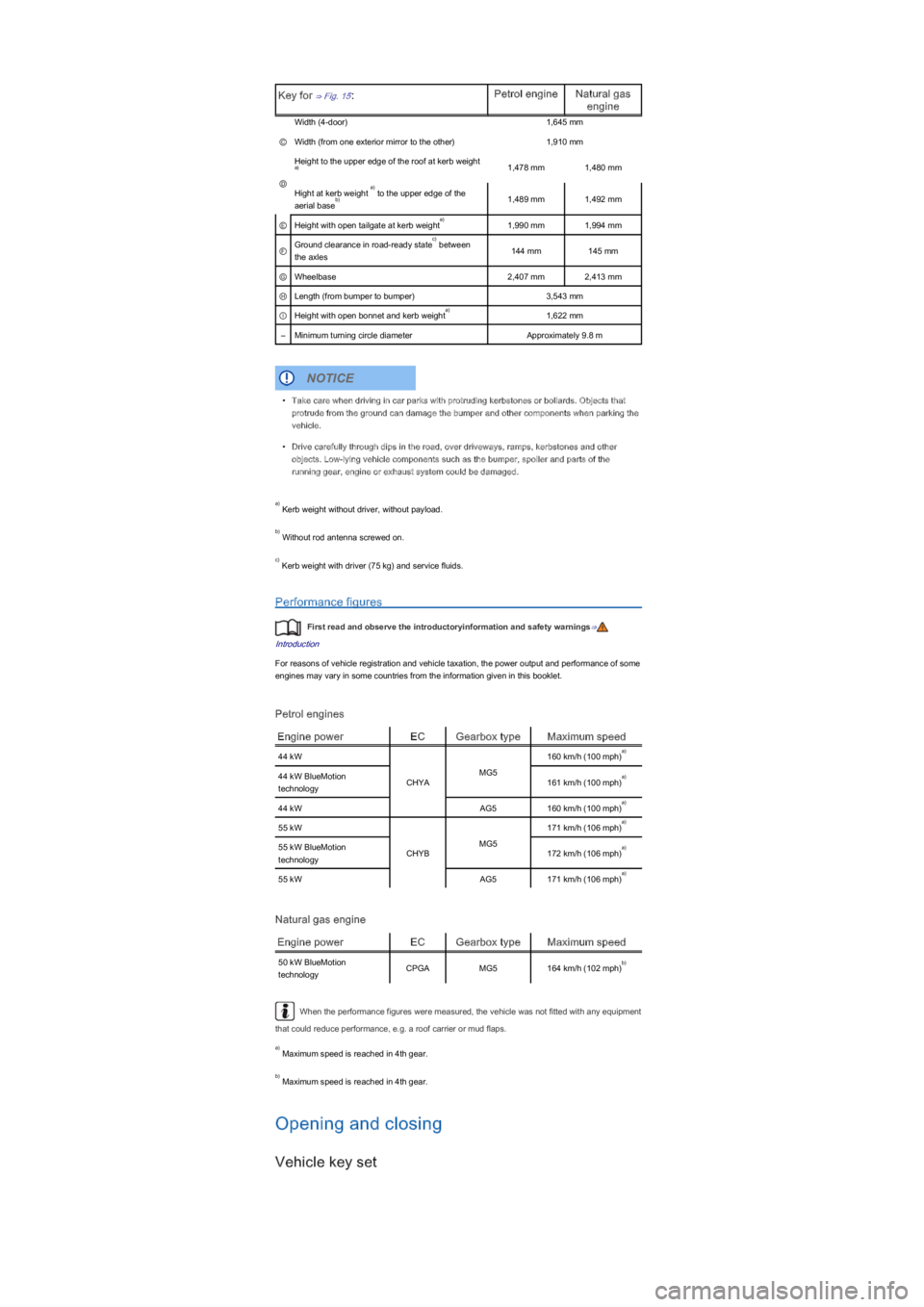

wheelbase VOLKSWAGEN UP! 2017 Owners Manual

Key for ⇒ Fig. 15:Petrol engineNatural gas
engine
Width (4-dooryf1,645 mm
ⒸWidth (from one exterior mirror to the otheryf1,910 mm
Ⓓ
Height to the upper edge of the roof at kerb weight 1,478 mm1,480 mm
Hight at kerb weight to the upper edge of the
aerial base1,489 mm1,492 mm
ⒺHeight with open tailgate at kerb weight1,990 mm1,994 mm
ⒻGround clearance in road-ready state between
the axles144 mm145 mm
ⒼWheelbase2,407 mm2,413 mm
ⒽLength (from bumper to bumperyf3,543 mm
ⒾHeight with open bonnet and kerb weight1,622 mm
