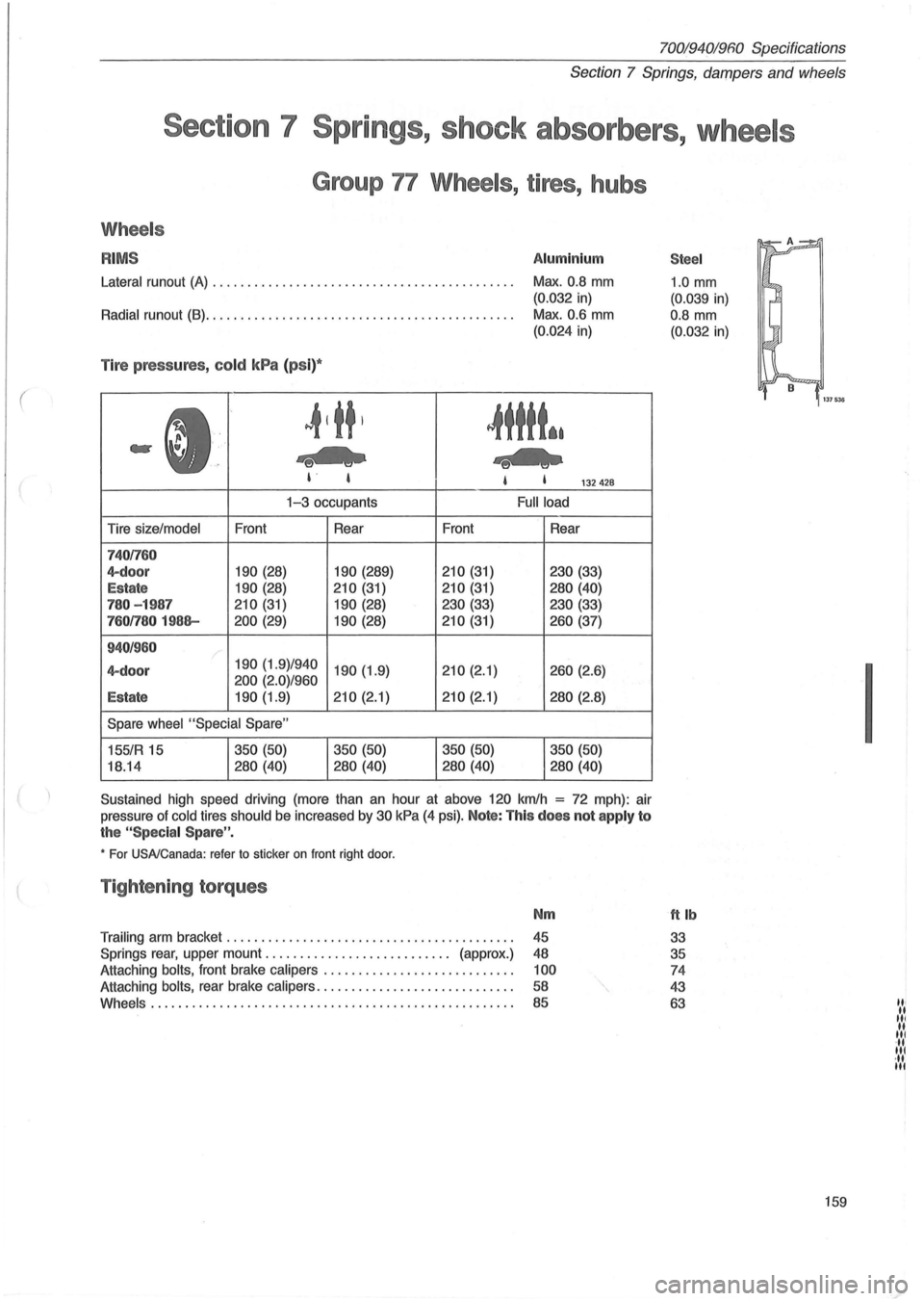

700194019fiO Specifications
Section
7 Springs, dampers and wheels
Section 7 Springs, shock absorbers, wheels
Group 77 Wheels, tires, hubs
Wheels
RIMS Aluminium
Lateral runout (A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Max. 0.8 mm
(0.032 in)
Radial runout (8). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Max. 0.6 mm
(0.024 in)
Tire pressures , cold kPa (ps i)*
~tttt*.
-e-US , I 132428
Tire size/model
7401760
4-door
Estate
780 - 1987
7601780 1988-
940/960
4-doo r
Estate
Front
190 (28)
190 (28)
210 (31)
200 (29)
1-3 occupants
Rear
190 (289)
210 (31)
190 (28)
190 (28)
190 (1.9)/940 190 (1.9)
200 (2.0)/960
190 (1.9) 210 (2.1)
Spare wheel "Special Spare"
155/R 15
18.14 350
(50)
280 (40) 350
(50)
280 (40) Front
210 (31)
210 (31)
230 (33)
210 (31)
210 (2.1)
210 (2.1)
350 (50)
280 (40)
Full load
Rear
230 (33)
280 (40)
230 (33)
260 (37)
260 (2.6)
280 (2.8)
350 (50)
280 (40)
Sustained high speed driving (more than an hour at above 120 kmlh
= 72 mph) : air
pressure of
cold tires should be increased by 30 kPa (4 psi). Note: This does not apply to
the "Spec ia l Spare " .
• For USA/Canada: refer to sticker on front right door.
Tightening torques
Nm
Trailing arm bracket ......................................... .
45
Springs
rear, upper mount. . . . . . . . . . . . . . . . . . . . . . . . . .. (approx.) 48
Attaching
bolts, front brake calipers ............. .............. . 100
Attaching bolts, rear brake calipers ............................ . 58
Whe e
ls .................................................... .
85
Stee l
1.0 mm
(0.039 in)
0.8
mm
(0.032 in)
ttlb
33
35
74
43
63
159
