1996 Volvo 850
CAUTION: Take care not to spill gasoline during refueling. Gasolines con\
taining alcohol can cause
damage to painted surfaces, which may not be covered under the New Vehic\
le Limited Warranty.
Do not use gasoline containing methanol (methyl alcohol, wood alcohol)\
. This practice can result in
vehicle performance deterioration and can damage critical parts in the f\
uel system. Such damage may
not be covered under the New Vehicle Limited Warranty.
pg. 4:4 Driving economy
Economical driving does not necessarily mean driving slowly

Better driving economy may be obtained by thinking ahead, avoiding rapid\
starts and stops and
adjusting the speed of your vehicle to immediate traffic conditions. Obs\
erve the following rules:
l Bring the engine to normal operating temperature as soon as possible by \
driving with a light foot on
the accelerator pedal for the first minutes of operation. A cold engine \
uses more fuel and is subject to
increased wear.
l Whenever possible, avoid using the car for driving short distances. This\
does not allow the engine to
reach normal operating temperature.
l Drive carefully and avoid rapid acceleration and hard braking.
l Do not exceed speed limit.
l Avoid carrying unnecessary items (extra load) in the car.
l Check tire pressure regularly (check when tires are cold).
l Remove snow tires when threat of snow or ice has ended.
l Note that roof racks, ski racks, etc., increase air resistance and there\
by fuel consumption.
l Avoid using automatic transmission kick-down feature unless necessary.
l Avoid using the air conditioning when it is not required. When engaged, \
the air conditioner's
compressor places places an additional load on the engine.
l If your car is equipped with the optional Trip Computer, utilizing the f\
uel consumption modes can
help you "learn" how to drive more economically.

Other factors which decrease gas mileage are:
l Low tire pressure
l Worn or dirty spark plugs
l Incorrect spark plug gap
l Dirty air cleaner
l Dirty engine oil and clogged oil filter
l Dragging brakes
l Incorrect front end alignment
file:///K|/ownersdocs/1996/1996_850/96850_401.htm (5 of 8)12/30/2006 9\
:59:32 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
Maintenance Operation thousand miles
(thousand km) 10
(16) 20
(32) 30
(48) 40
(64) 50
(80) 60
(96)
ENGINE SYSTEM MAINTENANCE
ENGINE
Fuel (Line) Filter¹
PCV Nipple (orifice)/hoses,clean I
Battery I I I I I I
BRAKES
Inspect brakes, replace components as necessary I I I I I I
Brake Fluid²
STEERING/SUSPENSION
Rotate tires/check wear (align front end if
needed.) I
I I I I I
Check power steering fluid level. I I I I I I
Grease front link arm stops L L L L L L
BODY
Power antenna (clean) I I I I I I
Trunk/hood, hinges and latches L L L L L L
1) Replace at 100,000 miles (160,000 km)
2) Brake fluid should be changed at owner request every second year (o\
nce a year if the car is driven in
mountainous areas or in areas with high humidity).

The following items should be checked weekly by the driver (it takes on\
ly a few minutes).
Engine oil level Horns
Brake fluid level Windshield wipers
Radiator coolant level Tire pressure (all five tires)
Operation of all lights Level of windshield washer fluid

The following should also be carried out at regular intervals:
Washing
Polishing
Cleaning
Rust protection
file:///K|/ownersdocs/1996/1996_850/96850_801.htm (5 of 6)12/30/2006 9\
:59:50 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
support frame and under the reinforced plate in the spare wheel well. Ta\
ke care not to damage the splash
guard under the engine. Ensure that the jack is positioned so that the c\
ar cannot slide off it. Always use
axle stands or similar structures.

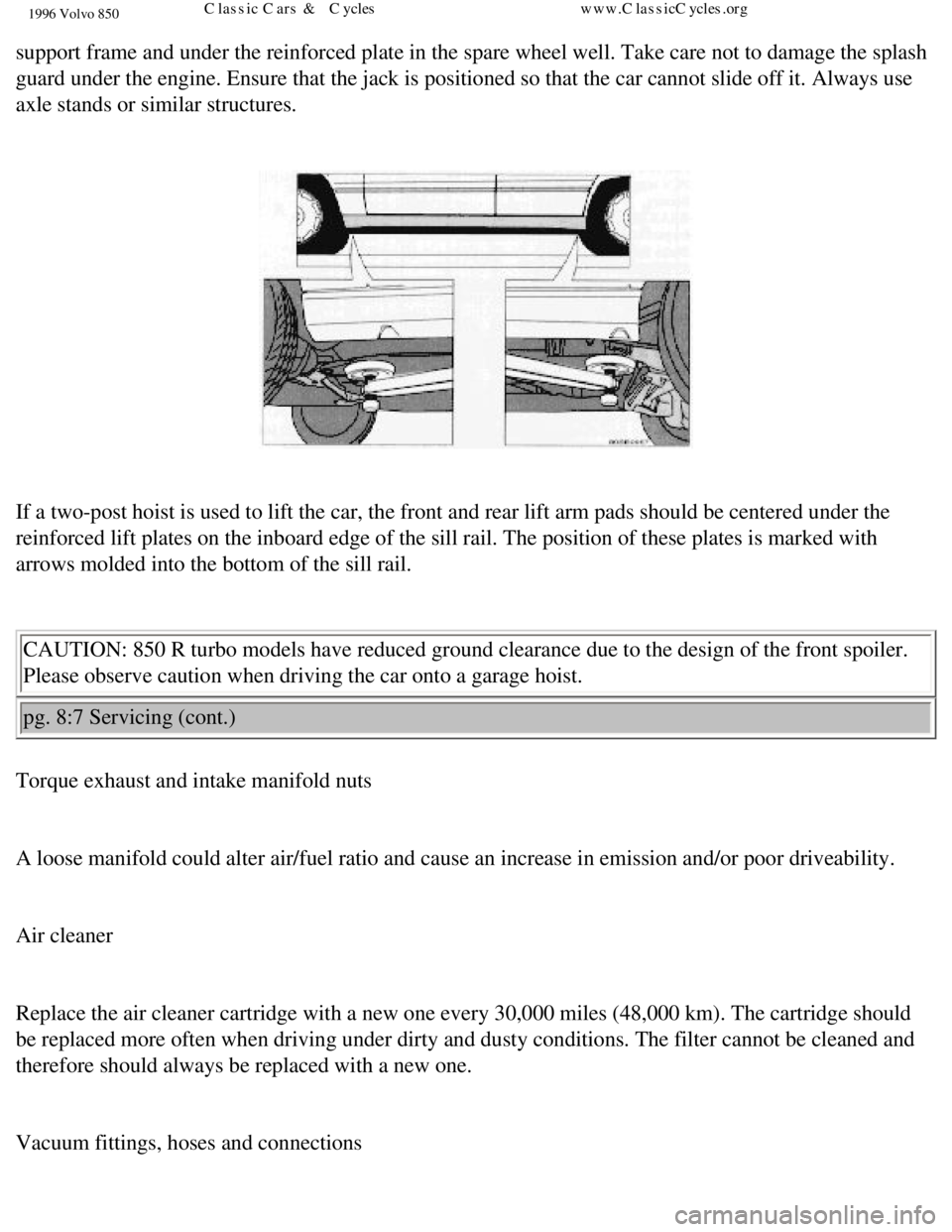

If a two-post hoist is used to lift the car, the front and rear lift arm\
pads should be centered under the
reinforced lift plates on the inboard edge of the sill rail. The positio\
n of these plates is marked with
arrows molded into the bottom of the sill rail.
CAUTION: 850 R turbo models have reduced ground clearance due to the des\
ign of the front spoiler.
Please observe caution when driving the car onto a garage hoist.
pg. 8:7 Servicing (cont.)
Torque exhaust and intake manifold nuts

A loose manifold could alter air/fuel ratio and cause an increase in emi\
ssion and/or poor driveability.

Air cleaner

Replace the air cleaner cartridge with a new one every 30,000 miles (48\
,000 km). The cartridge should
be replaced more often when driving under dirty and dusty conditions. Th\
e filter cannot be cleaned and
therefore should always be replaced with a new one.

Vacuum fittings, hoses and connections
file:///K|/ownersdocs/1996/1996_850/96850_806.htm (2 of 11)12/30/2006 \
9:59:52 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

Unstable idle, misfiring, or poor emission control is often caused by le\
aking vacuum hoses or
connections. Check all vacuum hoses and connections.

Checking and adjusting idle air control system

Your Volvo is equipped with an electronically controlled idle air contro\
l system that requires no
checking or adjustment.

Timing belt

For proper functioning of the vehicle and its emission control systems, \
Volvo recommends that the
timing belt be replaced every 70,000 miles (112,000 km).

Fuel system cap, tank and lines and connections

The effectiveness of the fuel system to contain hydrocarbons is dependen\
t largely on a leak-free system.
Check for proper sealing of the gasoline filler cap which contains "O" r\
ing type seals.

Fuel (line) filter

The fuel line filter is located next to the fuel pump. For proper functi\
oning of the vehicle and its
emission control systems, the fuel line filter should be replaced at 100\
,000 miles (160,000 km). The
filter is replaced as one complete unit. Replace more frequently if cont\
aminated fuel is introduced into
the tank (or if there is reason to suspect that this has occurred).

Charge air cooler (Intercooler)

The B 5234 Turbo engine employs a turbo-compressor to force air into the\
engine inlet manifold and a
charge air cooler to cool the compressed inlet air. The resulting increa\
se in air flow raises pressure in the
intake manifold by approx. 8.7 psi (over atmospheric pressure) and eng\
ine power output by approx. 50
horsepower over that developed by the normally-aspirated engine. The cha\
rge air cooler (which
resembles a radiator) is located between the turbo-compressor and inlet\
manifold.
file:///K|/ownersdocs/1996/1996_850/96850_806.htm (3 of 11)12/30/2006 \
9:59:52 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
Evaporative control system

The car is equipped with a gas evaporative control system, which prevent\
s gasoline fumes from being
released into the atmosphere. The system is comprised of an expansion ch\
amber in the fuel tank, a roll-
over valve on the cross member in front of the fuel tank and a charcoal \
canister with a built-in vacuum
valve under the left-front wheel housing. The components are interconnec\
ted by hoses which channel
fuel vapor from the gas tank to the charcoal filter, where it is stored \
until the engine is started and then
drawn into the engine's air intake system.


Crankcase ventilation

The engine is provided with positive crankcase ventilation which prevent\
s crankcase gases from being
released into the atmosphere. Instead, the crankcase gases are admitted \
to the intake manifold and
cylinders.

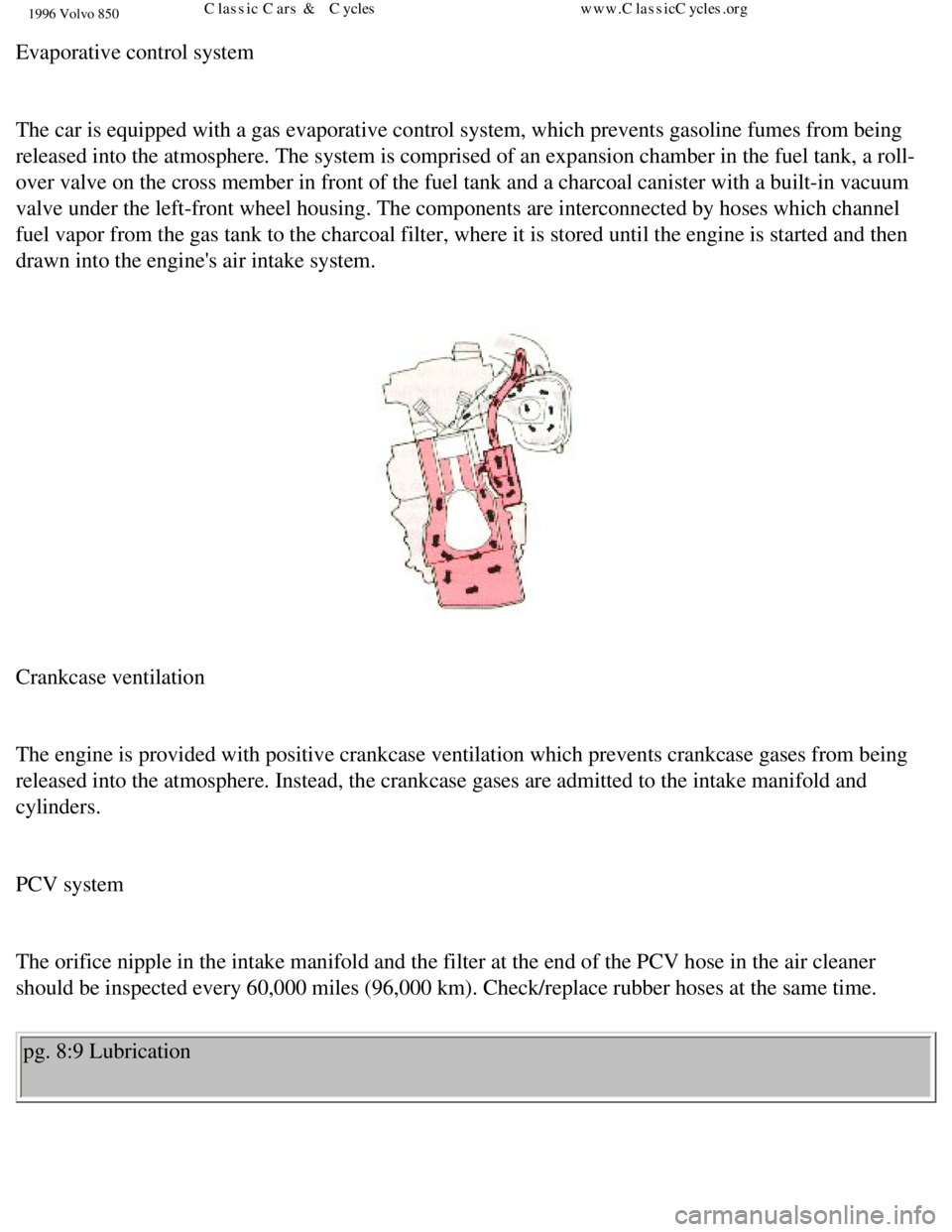

PCV system

The orifice nipple in the intake manifold and the filter at the end of t\
he PCV hose in the air cleaner
should be inspected every 60,000 miles (96,000 km). Check/replace rubb\
er hoses at the same time. pg. 8:9 Lubrication
file:///K|/ownersdocs/1996/1996_850/96850_806.htm (5 of 11)12/30/2006 \
9:59:52 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850

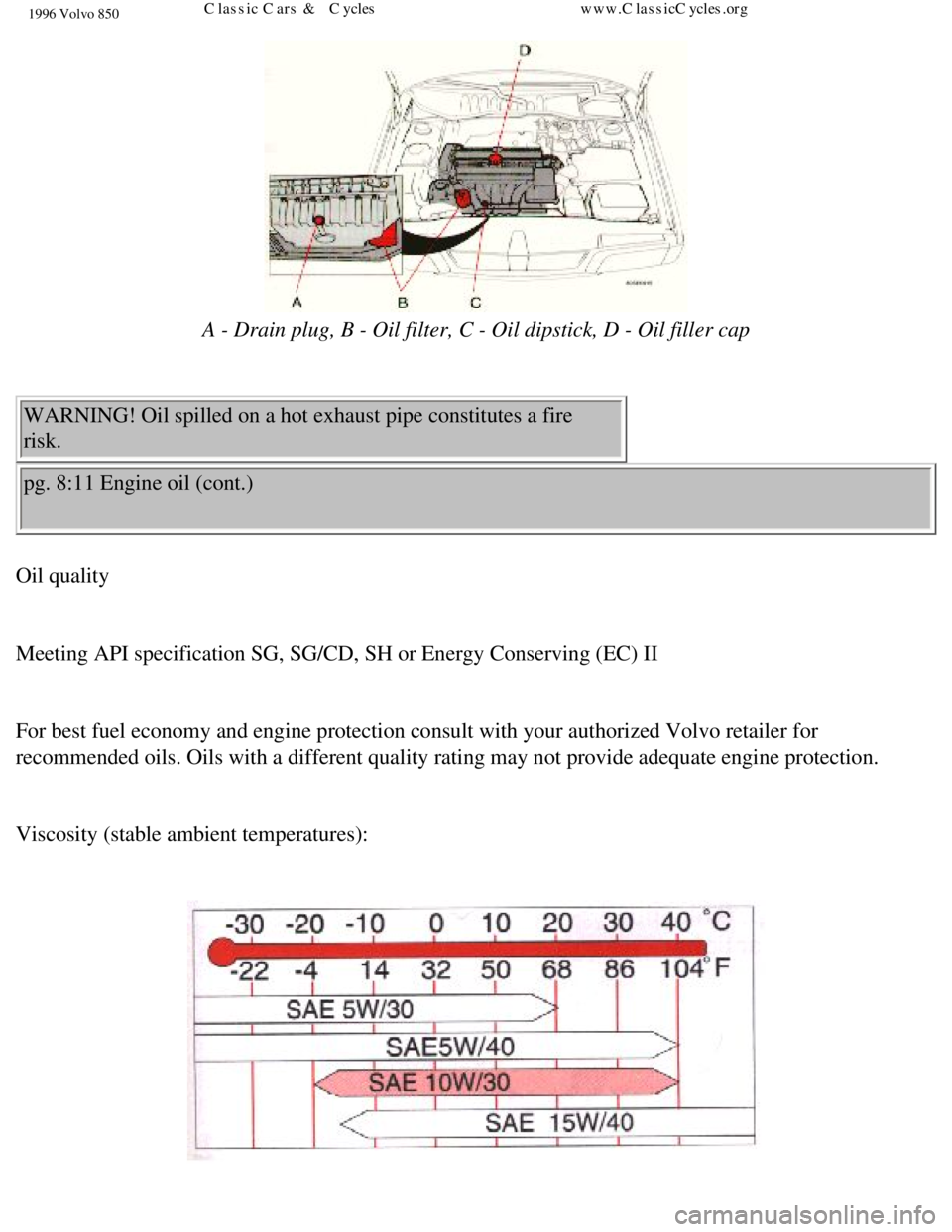

A - Drain plug, B - Oil filter, C - Oil dipstick, D - Oil filler cap
WARNING! Oil spilled on a hot exhaust pipe constitutes a fire
risk.
pg. 8:11 Engine oil (cont.)
Oil quality

Meeting API specification SG, SG/CD, SH or Energy Conserving (EC) II

For best fuel economy and engine protection consult with your authorized\
Volvo retailer for
recommended oils. Oils with a different quality rating may not provide a\
dequate engine protection.

Viscosity (stable ambient temperatures):

file:///K|/ownersdocs/1996/1996_850/96850_806.htm (8 of 11)12/30/2006 \
9:59:52 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
Engine

Liquid-cooled gasoline, 5-cylinder, in-line engine. Aluminum alloy cylin\
der block with cast-iron
cylinder liners cast directly into block. Aluminum alloy cylinder head w\
ith double overhead camshafts
and separate intake and outlet channels.
Engine lubrication is provided by an eccentric pump driven from the cran\
kshaft. Full-flow type oil filter.
Exhaust emission control accomplished by fuel injection, heated oxygen s\
ensor(s) and three-way
catalytic converter
Designation Volvo B 5252 S Volvo B 5234
850 R Turbo Volvo B 5254 S Volvo B 5234 T
Turbo
Output 142 hp at 5400
rpm (106 kw/90
rps) 222 hp at 5280
rpm* (166 km/88
rps)* 168 hp at 6200
rpm (125 kw 103
rps) 222 hp at 5280
rpm (166 km/88
rps)
Max torque 152 lbs. at 3600
rpm (206 Nm/60
rps) 221 ft. lbs. at 2000-
5280 rpm (300
Nm/33-88 rps)* 162.3 ft. lbs. at
4700 rpm (220
Nm/55 rps) 221 ft. lbs. at 2000-
5280 rpm (300
Nm/33-88 rps)
Number of
cylinders 5
5 5 5
Bore 3.27" (83 mm) 3.19" (81 mm) 3.27" (83 mm) 3.19" (81 mm)
Stroke 3.54" (90 mm) 3.54" (90 mm) 3.54" (90 mm) 3.54" (90 mm)
Displacement 2.4 liters 2.3 liters 2.4 liters 2.3 liters
Compression ratio 10.0:1 8.5:1 10.5:1 8.5:1
Number of valves 10 20 20 20
Valve clearance Self-adjusting Self-adjusting Self-adjusting Self-adjusting

* The 850 R turbo engine generates increased power on cars equipped with\
an automatic transmission
file:///K|/ownersdocs/1996/1996_850/96850_901.htm (3 of 7)12/30/2006 9\
:59:55 AMClassic Cars & Cycles www.ClassicCycles.org

1996 Volvo 850
1st gear 3.07:1
2nd gear 1.77:1
3rd gear 1.19:1
4th gear 0.87:1
5th gear 0.70:1
Reverse 2.99:1

Automatic transmission: AW 50-42 LE
4-speed automatic electronically controlled gearbox comprising a hydraul\
ic torque converter with a lock-
up function; planetary gear, integrated final drive.
Operation via a floor mounted gear selector lever. Drive shafts with sym\
metrical joint location.

Final drive ratio 2.74:1 (Turbo: 2.54:1)
Reduction ratios
1st gear 3.61:1
2nd gear 2.06:1
3rd gear 1.37:1
4th gear 0.98:1
Reverse 3.95:1

Capacities

Fuel tank 19.3 US gals (73 liters)
Cooling System 7.4 US qts. (7.0 liters)
Engine oil (incl. filter) 5.6 US qts. (5.3 liters)*
Automatic transmission 2 US gals (7.6 liters)
Manual transmission 2.2 US qts. (2.1 liters)
Power steering fluid 0.8 US qts. (0.8 liter)
Washer fluid reservoir 3.2 US qts. (3.0 liters)
Brake/clutch system 0.6 US qts (0.6 liters)

* Certain models: 6.1 US qts. (5.8 liters)
Turbo: Add 0.95 US qt. (0.9 liters) if the oil cooler has been drained\
.
