09 Maintenance and servicing
Engine compartment
09
205
G026456
Cooling system expansion tankPower steering fluid reservoir (concealed
behind the headlight)Dipstick – engine oilRadiatorCooling fanWasher fluid reservoirEngine oil filler capBrake/clutch fluid reservoirBattery
Relay/fuse boxAir cleanerWARNING
The cooling fan may start or continue to
operate (for up to 6 minutes) after the engine
has been switched off.

09 Maintenance and servicing
Fuses
09``221 Replacing fuses
There are relay/fuse boxes located in the
engine compartment and the passenger com-
partment.
If an electrical component fails to function, this
may be due to a blown fuse. The easiest way
to see if a fuse is blown is to remove it.
To do so:
1. Pull the fuse straight out. If a fuse is difficult
to remove, special fuse removal tools are
located on the inside of the fuse box cov-
ers.
2. From the side, examine the curved metal
wire in the fuse to see if it is intact.
3. If the wire is broken, insert a new fuse of
thesame color and amperage (written on
the fuse).
If fuses burn out repeatedly, have the electrical
system inspected by a trained and qualified
Volvo service technician.
WARNING
Never use metal objects or fuses with higher
amperage than those stated on the follow-
ing pages. Doing so could seriously damage
or overload the vehicle's electrical system.

09 Maintenance and servicingFuses
09222
Fuse box in the engine compartment
G007446
The fuse box in the engine compartment has
positions for 36 fuses.•
Fuses 1–18 are relays/circuit breakers and
should only be removed or replaced by an
authorized Volvo service technician.
•
Fuses 19–36 may be changed at any time
when necessary.
Several extra fuses and a fuse removal tool to
assist in removing/replacing fuses can be
found on the underside of the fuse box cover
in the engine compartment.

09 Maintenance and servicing
Fuses
09``223
Fuses in the engine compartment
G020250
1.
Coolant fan (radiator)
50A
2.
Power steering
80A
3.
Feed to passenger com-
partment fuse box
60A
4.
Feed to passenger com-
partment fuse box
60A
5.
Element, climate unit
80A
6.
Not in use
7.
ABS pump
30A
8.
ABS valves
20A
9.
Engine functions
30A
10.
Climate system blower
40A
11.
Headlight washers
20A
12.
Feed to heated rear window
30A
13.
Starter motor relay
30A
14.
Trailer connector (acces-
sory)
40A
15.
Not in use
16.
Feed to audio system
30A
17.
Windshield wipers
30A
18.
Feed to passenger com-
partment fuse box
40A
19.
Not in use
20.
Horn
15A
21.
Not in use
22.
Not in use
23.
Engine control module
(ECM)/transmission control
module (TCM)
10A

09 Maintenance and servicing
Fuses

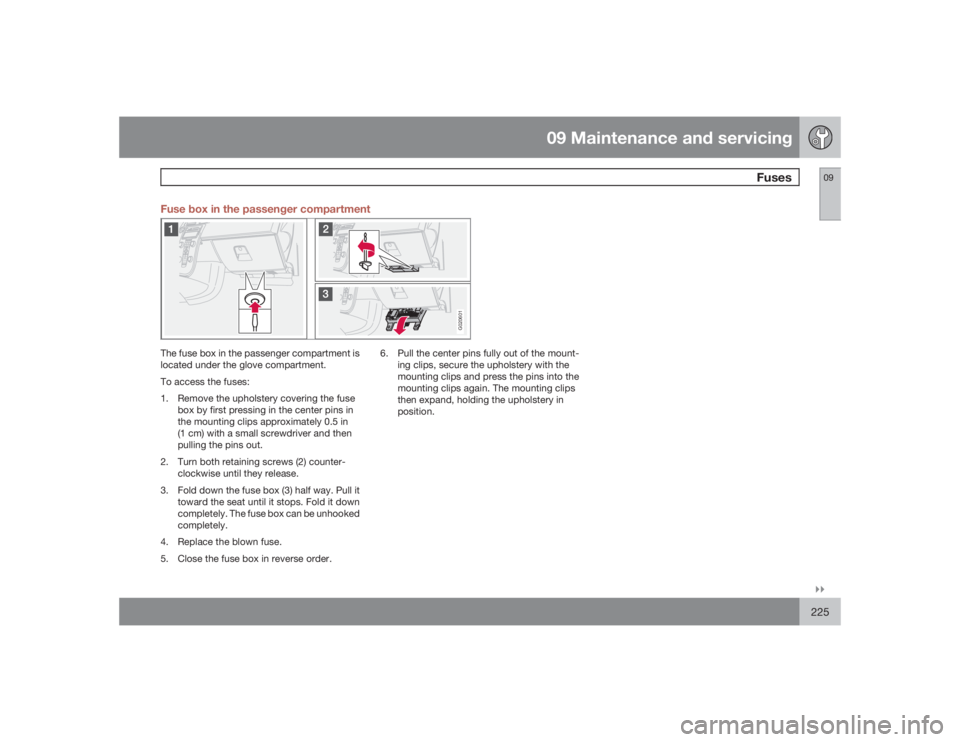

09``225 Fuse box in the passenger compartment
G020601
The fuse box in the passenger compartment is
located under the glove compartment.
To access the fuses:
1. Remove the upholstery covering the fuse
box by first pressing in the center pins in
the mounting clips approximately 0.5 in
(1 cm) with a small screwdriver and then
pulling the pins out.
2. Turn both retaining screws (2) counter-
clockwise until they release.
3. Fold down the fuse box (3) half way. Pull it
toward the seat until it stops. Fold it down
completely. The fuse box can be unhooked
completely.
4. Replace the blown fuse.
5. Close the fuse box in reverse order.6. Pull the center pins fully out of the mount-
ing clips, secure the upholstery with the
mounting clips and press the pins into the
mounting clips again. The mounting clips
then expand, holding the upholstery in
position.
