light VOLVO C30 2009 Owner´s Manual

Contents
4
00
00 IntroductionGeneral information.................................. 10
Volvo and the environment....................... 12
Important warnings................................... 13
01
01 SafetyOccupant safety........................................ 16
Seat belts.................................................. 18
Supplemental Restraint System............... 21
Occupant Weight Sensor (OWS).............. 26
Side impact protection airbags................. 29
Volvo Inflatable Curtain (VIC).................... 30
Whiplash Protection System..................... 32
Crash mode.............................................. 34
Child safety............................................... 35
Child restraint systems............................. 37
Infant seats............................................... 39
Convertible seats...................................... 41
Booster cushions...................................... 43
ISOFIX lower anchors............................... 44
Top tether anchors.................................... 45
Child restraint registration and recalls...... 46
02
02 Instruments and controlsInstrument overview.................................. 50
Instrument panel....................................... 53
Indicator and warning symbols................. 55
Symbols – instrument panel..................... 57
Information display................................... 60
12-volt sockets......................................... 62
Lighting panel........................................... 63
Left-side steering wheel lever................... 65
Trip computer........................................... 67
Cruise control (option)............................... 69
Right-side steering wheel lever................. 71
Steering wheel adjustment, Hazard warn-
ing flashers................................................ 74
Parking brake............................................ 75
Power windows......................................... 76
Mirrors....................................................... 77
Power moonroof (option).......................... 80
Personal settings...................................... 82
HomeLink® Wireless Control System
(option)...................................................... 85

Contents
5
03
03 ClimateGeneral information.................................. 90
Air vents.................................................... 92
Manual climate control.............................. 93
Electronic Climate Control (ECC) –
option........................................................ 96
Air distribution........................................... 99
04
04 InteriorFront seats.............................................. 102
Interior lighting........................................ 106
Storage compartments........................... 107
Rear seat................................................. 111
Cargo area.............................................. 113
05
05 Locks and alarmRemote control and key blade................118
Keyless drive (option as available).......... 123
Locking and unlocking............................ 127
Alarm (option).......................................... 129

IntroductionGeneral information
10
Shiftlock (automatic transmission)When your car is parked, the gear selector is
locked in the Park (P) position. To release the
selector from this position, turn the ignition key
to position II (or start the engine), depress the
brake pedal, press the button on the front side
of the gear selector and move the selector from
Park (P).Keylock (automatic transmission)When the ignition is switched off, the gear
selector must be in the Park (P) position before
the key can be removed from the ignition
switch.Anti-lock Brake System (ABS)The ABS system in your car performs a self-
diagnostic test when the vehicle first reaches
the speed of approximately 12 mph
(20 km/h). The brake pedal will pulsate several
times and a sound may be audible from the
ABS control module. This is normal.Fuel filler doorPress the button on the light switch panel when
the car is at a standstill to open the fuel filler
door.Fuel filler capAfter refueling, close the fuel filler cap by turn-
ing it clockwise until it clicks into place. If this
cap is not closed tightly or if the engine is run-
ning when the car is refueled, the MalfunctionIndicator Lamp ("Check Engine" light) may
indicate a fault.
About this manual•
Before you operate your vehicle for the first
time, please familiarize yourself with the
new-engine oil consumption information,
see page 206. You should also be familiar
with the information found in the chapters
"Instruments and controls", and "Starting
and driving".
•
Information contained in the balance of the
manual is extremely useful and should be
read after operating the vehicle for the first
time.
•
The manual is structured so that it can be
used for reference. For this reason, it
should be kept in the vehicle for ready
access.
NOTE
•
Optional or accessory equipment
described in this manual may not be
available in all countries or markets.
Please note that some vehicles may be
equipped differently, depending on
special legal requirements.
•
All information, illustrations and specifi-
cations contained in this manual are
based on the latest product information
available at the time of publication.
•
Volvo reserves the right to make model
changes at any time, or to change spec-
ifications or design without notice and
without incurring obligation.
•
Do not export your Volvo to another
country before investigating that coun-
try's applicable safety and emission
control requirements. In some cases it
may be difficult or impossible to comply
with these requirements. Modifications
to the emission control system(s) may
render your Volvo not certifiable for
legal operation in the U.S., Canada and
other countries.

IntroductionVolvo and the environment
12
Volvo is committed to the well being of its cus-
tomers. As a natural part of this commitment,
we care about the environment in which we all
live. Caring for the environment means an
everyday involvement in reducing our environ-
mental impact. Volvo's environmental activities
are based on a holistic view, which means we
consider the overall environmental impact of a
product throughout its complete life cycle. In
this context, design, production, product use,
and recycling are all important considerations.
In production, Volvo has partly or completely
phased out several chemicals including CFCs,
lead chromates, asbestos, and cadmium; and
reduced the number of chemicals used in our
plants 50% since 1991.
Volvo was the first in the world to introduce into
production a three-way catalytic converter with
a Lambda sond, now called the heated oxygen
sensor, in 1976. The current version of this
highly efficient system reduces emissions of
harmful substances (CO, HC, NOx) from the
exhaust pipe by approximately 95 – 99% and
the search to eliminate the remaining emis-
sions continues. Volvo is the only automobile
manufacturer to offer CFC-free retrofit kits for
the air conditioning system of all models as far
back as the 1975 model 240. Advanced elec-
tronic engine controls and cleaner fuels are
bringing us closer to our goal. After Volvo vehi-
cles and parts have fulfilled their use, recyclingis the next critical step in completing the life
cycle. The metal content is about 75% of the
total weight of a vehicle, which makes the vehi-
cle among the most recycled industrial prod-
ucts. In order to have efficient and well-
controlled recycling, dismantling information is
available for all Volvo models. For Volvo, all
homogeneous plastic parts weighing more
than 3.4 oz. (100 grams) are marked with inter-
national symbols that indicate how the com-
ponent is to be sorted for recycling. In addition
to continuous environmental refinement of
conventional gasoline-powered internal com-
bustion engines, Volvo is actively looking at
advanced technology alternative-fuel vehicles.
When you drive a Volvo, you become our part-
ner in the work to lessen the car's impact on
the environment. To reduce your vehicle's
environmental impact, you can:
•
Maintain proper air pressure in your tires.
Tests have shown decreased fuel econ-
omy with improperly inflated tires.
•
Follow the recommended maintenance
schedule in your Warranty and Service
Records Information booklet.
•
Drive at a constant speed whenever pos-
sible.
•
See a trained and qualified Volvo service
technician as soon as possible for inspec-
tion if the check engine (malfunction indi-cator) light illuminates, or stays on after the
vehicle has started.
•
Properly dispose of any vehicle-related
waste such as used motor oil, used batter-
ies, brake pads, etc.
•
When cleaning your vehicle, please use
genuine Volvo car care products. All Volvo
car care products are formulated to be
environmentally friendly.
For additional information regarding the envi-
ronmental activities in which Volvo Cars of
North America, LLC and Volvo Car Corporation
are involved, visit our Internet home page at:
http://www.volvocars.us.WARNING
Certain components of this vehicle such as
air bag modules, seat belt pretensioners,
adaptive steering columns, and button cell
batteries may contain Perchlorate material.
Special handling may apply for service or
vehicle end of life disposal.
See www.dtsc.ca.gov/hazardouswaste/
perchlorate.

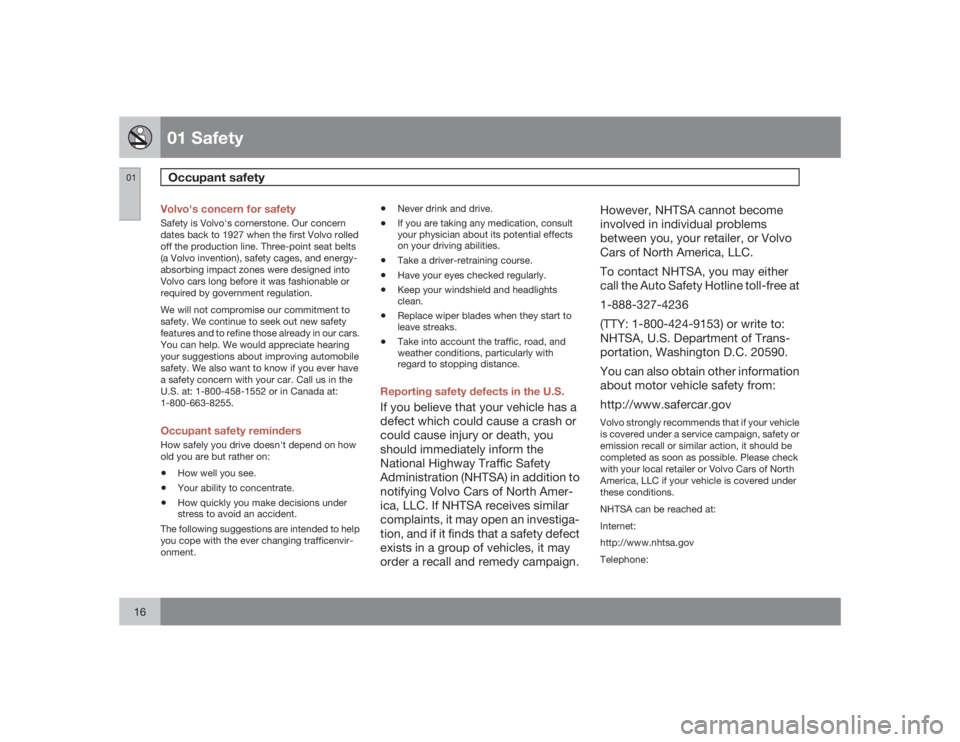

01 SafetyOccupant safety
0116
Volvo's concern for safetySafety is Volvo's cornerstone. Our concern
dates back to 1927 when the first Volvo rolled
off the production line. Three-point seat belts
(a Volvo invention), safety cages, and energy-
absorbing impact zones were designed into
Volvo cars long before it was fashionable or
required by government regulation.
We will not compromise our commitment to
safety. We continue to seek out new safety
features and to refine those already in our cars.
You can help. We would appreciate hearing
your suggestions about improving automobile
safety. We also want to know if you ever have
a safety concern with your car. Call us in the
U.S. at: 1-800-458-1552 or in Canada at:
1-800-663-8255.Occupant safety remindersHow safely you drive doesn't depend on how
old you are but rather on:•
How well you see.
•
Your ability to concentrate.
•
How quickly you make decisions under
stress to avoid an accident.
The following suggestions are intended to help
you cope with the ever changing trafficenvir-
onment.
•
Never drink and drive.
•
If you are taking any medication, consult
your physician about its potential effects
on your driving abilities.
•
Take a driver-retraining course.
•
Have your eyes checked regularly.
•
Keep your windshield and headlights
clean.
•
Replace wiper blades when they start to
leave streaks.
•
Take into account the traffic, road, and
weather conditions, particularly with
regard to stopping distance.
Reporting safety defects in the U.S.If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you
should immediately inform the
National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying Volvo Cars of North Amer-
ica, LLC. If NHTSA receives similar
complaints, it may open an investiga-
tion, and if it finds that a safety defect
exists in a group of vehicles, it may
order a recall and remedy campaign.However, NHTSA cannot become
involved in individual problems
between you, your retailer, or Volvo
Cars of North America, LLC.
To contact NHTSA, you may either
call the Auto Safety Hotline toll-free at
1-888-327-4236
(TTY: 1-800-424-9153) or write to:
NHTSA, U.S. Department of Trans-
portation, Washington D.C. 20590.
You can also obtain other information
about motor vehicle safety from:
http://www.safercar.gov
Volvo strongly recommends that if your vehicle
is covered under a service campaign, safety or
emission recall or similar action, it should be
completed as soon as possible. Please check
with your local retailer or Volvo Cars of North
America, LLC if your vehicle is covered under
these conditions.
NHTSA can be reached at:
Internet:
http://www.nhtsa.gov
Telephone:

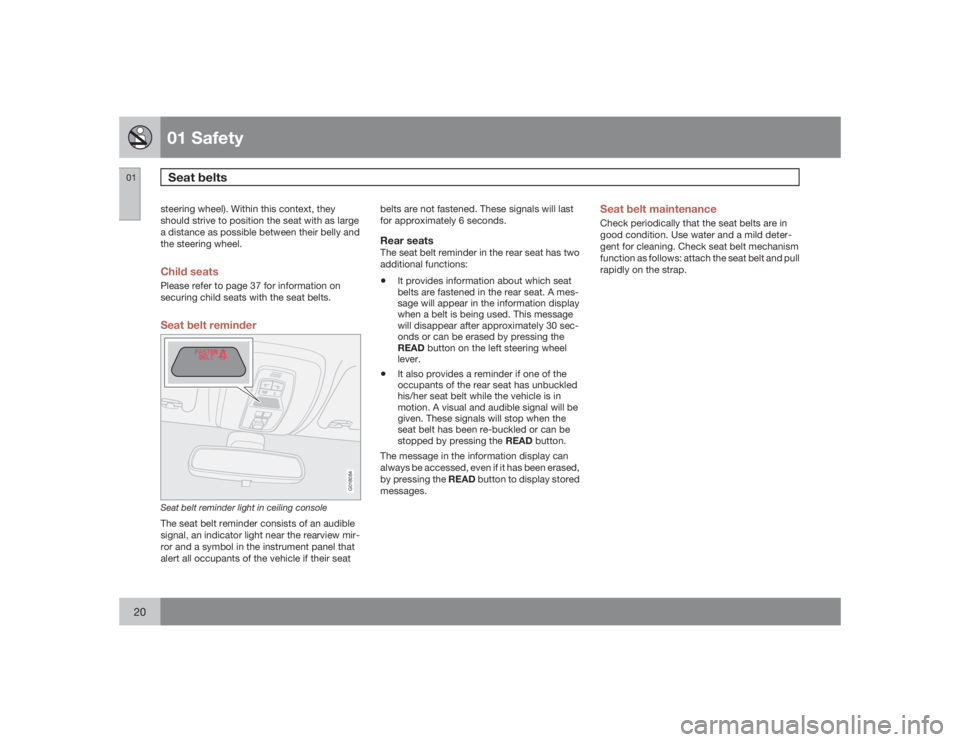

01 SafetySeat belts
0120
steering wheel). Within this context, they
should strive to position the seat with as large
a distance as possible between their belly and
the steering wheel.Child seatsPlease refer to page 37 for information on
securing child seats with the seat belts.Seat belt reminder
G018084
Seat belt reminder light in ceiling consoleThe seat belt reminder consists of an audible
signal, an indicator light near the rearview mir-
ror and a symbol in the instrument panel that
alert all occupants of the vehicle if their seatbelts are not fastened. These signals will last
for approximately 6 seconds.
Rear seatsThe seat belt reminder in the rear seat has two
additional functions:•
It provides information about which seat
belts are fastened in the rear seat. A mes-
sage will appear in the information display
when a belt is being used. This message
will disappear after approximately 30 sec-
onds or can be erased by pressing the
READ button on the left steering wheel
lever.
•
It also provides a reminder if one of the
occupants of the rear seat has unbuckled
his/her seat belt while the vehicle is in
motion. A visual and audible signal will be
given. These signals will stop when the
seat belt has been re-buckled or can be
stopped by pressing the READ button.
The message in the information display can
always be accessed, even if it has been erased,
by pressing the READ button to display stored
messages.
Seat belt maintenanceCheck periodically that the seat belts are in
good condition. Use water and a mild deter-
gent for cleaning. Check seat belt mechanism
function as follows: attach the seat belt and pull
rapidly on the strap.

01 Safety
Supplemental Restraint System
01``21 Supplemental Restraint System (SRS)
G026330
SRS warning lightAs an enhancement to the three-point seat
belts, your Volvo is equipped with a Supple-
mental Restraint System (SRS). Volvo's SRS
consists of seat belt pretensioners, front air-
bags, side impact airbags, the occupant
weight sensor, and inflatable curtains. All of
these systems are monitored by the SRS con-
trol module. An SRS warning light in the instru-
ment panel (see the illustration) illuminates
when the ignition key is turned to position I,II,
orIII, and will normally go out after approxi-
mately 7 seconds if no faults are detected in
the system.Where applicable, a text message will also be
displayed when the SRS warning light illumi-
nates. If this warning symbol is not functioning
properly, the general warning symbol
illuminates and either
SRS AIRBAG
SERVICE URGENT
or
SRS AIRBAG
SERVICE REQUIRED will be displayed.
WARNING
•
If the SRS warning light stays on after
the engine has started or if it illuminates
while you are driving, have the vehicle
inspected by a trained and qualified
Volvo service technician as soon as
possible.
•
Never try to repair any component or
part of the SRS yourself. Any interfer-
ence in the system could cause mal-
function and serious injury. All work on
these systems should be performed by
a trained and qualified Volvo service
technician.
WARNING
If your vehicle has been subjected to flood
conditions (e.g. soaked carpeting/standing
water on the floor of the vehicle) or if your
vehicle has become flood-damaged in any
way, do not attempt to start the vehicle or
put the key in the ignition before discon-
necting the battery (see below). This may
cause airbag deployment which could result
in personal injury. Have the vehicle towed to
a trained and qualified Volvo service tech-
nician for repairs.
Automatic transmission
Before attempting to tow the vehicle, use
the following procedure to override the
shiftlock system to move the gear selector
to the neutral position:
1. Switch off the ignition for at least
10 minutes and disconnect the battery.
2. Wait at least one minute.
3. Insert the key in the ignition and turn it
to position II.
4. Press firmly on the brake pedal.
5.
Move the gear selector from Park (P) to
the Neutral (N) position, see page 148,
for information on manually overriding
the shiftlock system.

01 SafetyOccupant Weight Sensor (OWS)
0126
Disabling the passenger's side front
airbag
2
G018082
Occupant Weight Sensor (OWS) indicator lightVolvo recommends that ALL occupants (adults
and children) shorter than 4 feet 7 inches
(140 cm) be seated in the rear seat of any vehi-
cle with a passenger's side front airbag, and be
properly restrained. Children should always be
seated in child restraints appropriate for their
size and weight. See also the child safety rec-
ommendations on page 35.
The Occupant Weight Sensor (OWS) is
designed to meet the regulatory requirements
of Federal Motor Vehicle Safety Standard
(FMVSS) 208 and is designed to disable (willnot inflate) the passenger's side front airbag
under certain conditions.
The OWS works with sensors that are part of
the front passenger's seat and seat belt. The
sensors are designed to detect the presence of
a properly seated occupant and determine if
the passenger's side front airbag should be
enabled (may inflate) or disabled (will not
inflate).
The OWS will disable (will not inflate) the pas-
senger's side front airbag when:
•
the front passenger's seat is unoccupied,
or has small/medium objects in the front
seat,
•
the system determines that an infant is
present in a rear-facing infant seat that is
installed according to the manufacturer's
instructions,
•
the system determines that a small child is
present in a forward-facing child restraint
that is installed according to the manufac-
turer's instructions,
•
the system determines that a small child is
present in a booster seat,
•
a front passenger takes his/her weight off
of the seat for a period of time,
•
a child or a small person occupies the front
passenger's seat.The OWS uses a PASSENGER AIRBAG OFF
indicator lamp which will illuminate and stay on
to remind you that the passenger's side front
airbag is disabled. The PASSENGER AIRBAG
OFF indicator lamp is located in the overhead
console, near the base of the rearview mirror.
NOTE
When the ignition is switched on, the OWS
indicator light will go on for up to 10 seconds
while the system performs a self-diagnostic
test.However, if a fault is detected in the system:•
The OWS indicator light will stay on
•
The SRS warning light (see page 21) will
come on and stay on
The message
PASS. AIRBAG OFF SERVICE
URGENT
will be displayed in the information
display.

01 Safety
Occupant Weight Sensor (OWS)
01``27
WARNING
If a fault in the system is detected and indi-
cated as explained on the preceding page,
be aware that the passenger's side front air-
bag will not deploy in the event of a collision.
In this case, the SRS system and Occupant
Weight Sensor should be inspected by a
trained and qualified Volvo service techni-
cian as soon as possible.
WARNING
•
Never try to open, remove, or repair any
components in the OWS system. This
could result in system malfunction.
Maintenance or repairs should only be
carried out by an a trained and qualified
Volvo service technician.
•
The front passenger's seat should not
be modified in any way. This could
reduce pressure on the seat cushion,
which might interfere with the OWS sys-
tem's function.
The OWS is designed to disable (will not inflate)
the passenger's side front airbag when a rear
facing infant seat, a forward-facing child
restraint, or a booster seat is detected. The
PASSENGER AIRBAG OFF indicator lamp will
illuminate and stay on to remind you that thepassenger's side front airbag is disabled (see
the following table).
Passenger's
seat occu-
pancy status
OWS indica-
tor light sta-
tus
Passenger's
side front
airbag sta-
tus
Seat unoc-
cupied
OWS indica-
tor lightlights up
Passenger's
side front
airbag disa-
bled
Seat occu-
pied by low
weight
occupant/
object
A
OWS indica-
tor lightlights up
Passenger's
side front
airbag disa-
bled
Seat occu-
pied by
heavy occu-
pant/object
OWS indica-
tor light
is
not lit
Passenger's
side front
airbag ena-
bled
AVolvo recommends that children always be properly
restrained in appropriate child restraints in the rear seats. Do
not assume that the passenger's side front airbag is disabled
unless the PASSENGER AIRBAG OFF indicator lamp is lit.
Make sure the child restraint is properly installed. If there is
any doubt as to the status of the passenger's side front air-
bag, move the child restraint to the rear seat.The OWS is designed to enable (may inflate)
the passenger's side front airbag anytime thesystem senses that a person of adult size is
sitting properly in the front passenger's seat.
ThePASSENGER AIRBAG OFF indicator
lamp will be off and remain off.
If a person of adult size is sitting in the front
passenger's seat, but the PASSENGER
AIRBAG OFF indicator lamp is on, it is possible
that the person isn't sitting properly in the seat.
If this happens:
1. Turn the vehicle off and ask the person to
place the seatback in an upright position.
2. Have the person sit upright in the seat,
centered on the seat cushion, with the per-
son's legs comfortably extended.
3. Restart the vehicle and have the person
remain in this position for about two
minutes. This will allow the system to
detect that person and enable the pas-
senger's frontal airbag.
4.
If the PASSENGER AIRBAG OFF indicator
lamp remains on even after this, the person
should be advised to ride in the rear seat.
This condition reflects limitations of the OWS
classification capability. It does not indicate
OWS malfunction.
ModificationsIf you are considering modifying your vehicle in
any way to accommodate a disability, for

01 SafetyWhiplash Protection System
0132
Whiplash Protection System (WHIPS) – front seats only
G020347
The WHIPS system consists of specially
designed hinges and brackets on the front seat
backrests designed to help absorb some of the
energy generated in a collision from the rear
(when the vehicle is "rearended").
In the event of a collision of this type, the hinges
and brackets of the front seat backrests are
designed to change position slightly to allow
the backrest/head restraint to help support the
occupant's head before moving slightly rear-
ward. This movement helps absorb some of
the forces that could result in whiplash.
WARNING
•
The WHIPS system is designed to sup-
plement the other safety systems in
your car. For this system to function
properly, the three-point seat belt must
be worn. Please be aware that no sys-
tem can prevent all possible injuries that
may occur in an accident.
•
The WHIPS system is designed to func-
tion in certain collisions from the rear,
depending on the crash severity, angle
and speed.
WARNING
•
Occupants in the front seats must never
sit out of position. The occupant's back
must be as upright as comfort allows
and be against the seat back with the
seat belt properly fastened.
•
If your car has been involved in a rear-
end collision, the front seat backrests
must be inspected by a trained and
qualified Volvo service technician, even
if the seats appear to be undamaged.
