02 Instruments and controlsPersonal settings
0282
Control panelAD
BC
E
G026307
DisplayMenu buttonExit buttonEnter buttonMenu navigation controlsPersonal settings can be made for some of the
car's functions, such as the central locking
system, climate control, and the audio system.
Please refer to page 231 for more information
on the audio functions that can be adjusted.
The settings are presented in the display (A).
To access the menu and adjust settings1.
PressMENU (B).
2.
Scroll to
Car Settings
using the menu nav-
igation control (E).
3.
PressENTER (D).
4. Select an alternative using the menu navi-
gation control (E).
5. Confirm your selection by pressing
ENTER.
To exit the menuPressEXIT (C).Available settingsClock adjustTo set the time:
1. Use the number keys or the up/down arrow
keys on the navigation control (E) to
change the hour or minute.2. Select hour(s) or minute(s) to be changed
with the left/right arrow keys.
3.
PressENTER to start the clock.
NOTE
If you are currently using the 12-hour time
setting, use the up/down arrow keys to
selectAM/PM after the minute-setting has
been adjusted.Lock confirmation lightWhen the car is locked/unlocked with the
remote control, the direction indicators can be
selected to flash to confirm the action. The
alternatives On/Off are available for both lock-
ing and unlocking.AutolockWhen the car starts to move, the doors and
liftgate can be locked automatically. The alter-
natives On/Off are available.
NOTE
Pulling the handle twice on a door unlocks
and opens that door.UnlockThere are two alternatives for unlocking:

04 InteriorInterior lighting
04106

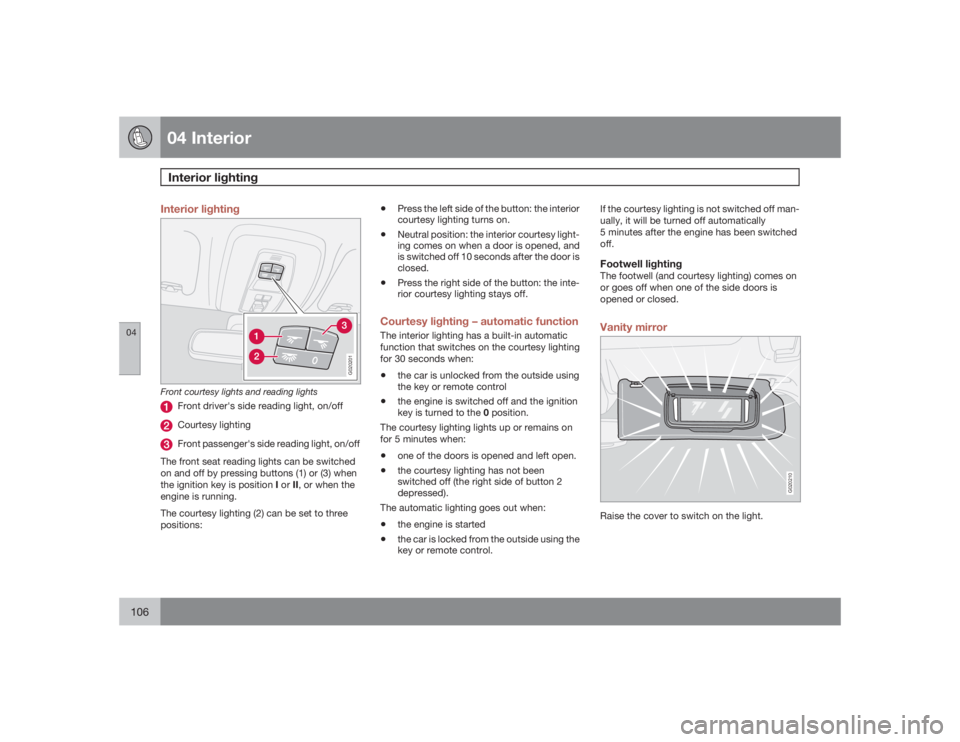

Interior lighting
G020201
Front courtesy lights and reading lights
Front driver's side reading light, on/offCourtesy lightingFront passenger's side reading light, on/off
The front seat reading lights can be switched
on and off by pressing buttons (1) or (3) when
the ignition key is position I or II, or when the
engine is running.
The courtesy lighting (2) can be set to three
positions:
•
Press the left side of the button: the interior
courtesy lighting turns on.
•
Neutral position: the interior courtesy light-
ing comes on when a door is opened, and
is switched off 10 seconds after the door is
closed.
•
Press the right side of the button: the inte-
rior courtesy lighting stays off.
Courtesy lighting – automatic functionThe interior lighting has a built-in automatic
function that switches on the courtesy lighting
for 30 seconds when:•
the car is unlocked from the outside using
the key or remote control
•
the engine is switched off and the ignition
key is turned to the 0 position.
The courtesy lighting lights up or remains on
for 5 minutes when:
•
one of the doors is opened and left open.
•
the courtesy lighting has not been
switched off (the right side of button 2
depressed).
The automatic lighting goes out when:
•
the engine is started
•
the car is locked from the outside using the
key or remote control.If the courtesy lighting is not switched off man-
ually, it will be turned off automatically
5 minutes after the engine has been switched
off.
Footwell lightingThe footwell (and courtesy lighting) comes on
or goes off when one of the side doors is
opened or closed.Vanity mirror
G020210
Raise the cover to switch on the light.

05 Locks and alarmRemote control and key blade
05118

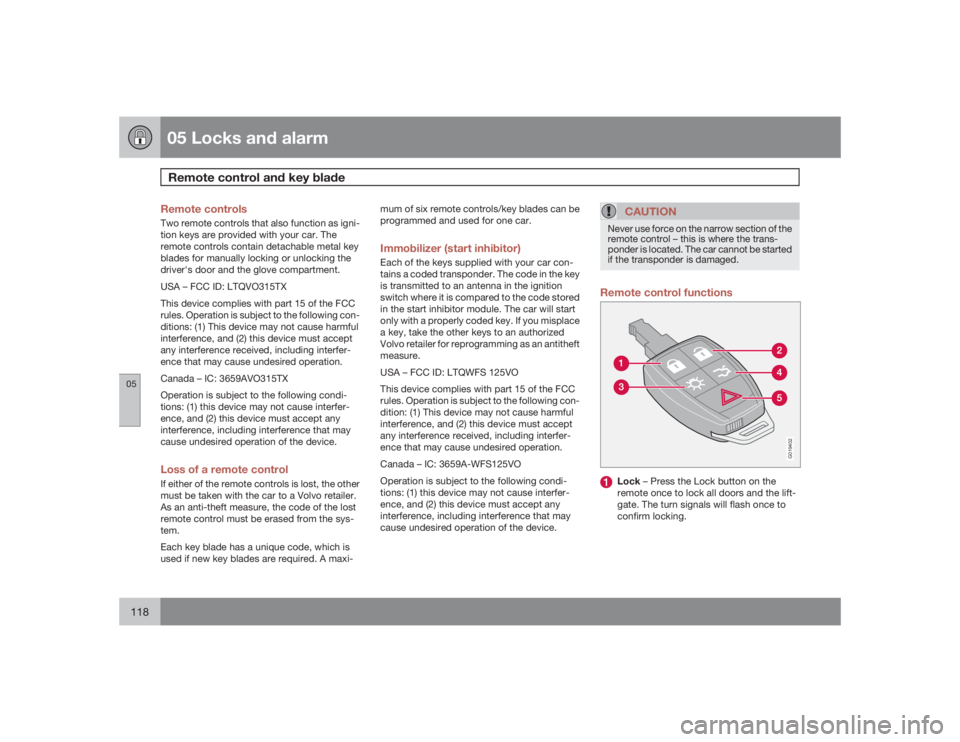

Remote controlsTwo remote controls that also function as igni-
tion keys are provided with your car. The
remote controls contain detachable metal key
blades for manually locking or unlocking the
driver's door and the glove compartment.
USA – FCC ID: LTQVO315TX
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
ditions: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659AVO315TX
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.Loss of a remote controlIf either of the remote controls is lost, the other
must be taken with the car to a Volvo retailer.
As an anti-theft measure, the code of the lost
remote control must be erased from the sys-
tem.
Each key blade has a unique code, which is
used if new key blades are required. A maxi-mum of six remote controls/key blades can be
programmed and used for one car.
Immobilizer (start inhibitor)Each of the keys supplied with your car con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition
switch where it is compared to the code stored
in the start inhibitor module. The car will start
only with a properly coded key. If you misplace
a key, take the other keys to an authorized
Volvo retailer for reprogramming as an antitheft
measure.
USA – FCC ID: LTQWFS 125VO
This device complies with part 15 of the FCC
rules. Operation is subject to the following con-
dition: (1) This device may not cause harmful
interference, and (2) this device must accept
any interference received, including interfer-
ence that may cause undesired operation.
Canada – IC: 3659A-WFS125VO
Operation is subject to the following condi-
tions: (1) this device may not cause interfer-
ence, and (2) this device must accept any
interference, including interference that may
cause undesired operation of the device.
CAUTION
Never use force on the narrow section of the
remote control – this is where the trans-
ponder is located. The car cannot be started
if the transponder is damaged.Remote control functions
G019402
Lock – Press the Lock button on the
remote once to lock all doors and the lift-
gate. The turn signals will flash once to
confirm locking.

05 Locks and alarm
Remote control and key blade
05``119
NOTE
The car can also be locked if a door is open
(does not apply to vehicles with the optional
keyless drive).Unlock – Press the Unlock button on the
remote once to unlock the driver's door.
After a short pause, press the Unlock but-
ton a second time within 10 seconds to
unlock the other doors and the liftgate. A
long press (at least several seconds) opens
all side windows.
NOTE
•
The turn signals flash to confirm that the
vehicle has been correctly locked/
unlocked with the remote control or the
optional keyless drive. When locking the
vehicle, the turn signals will flash a con-
firmation only if all the doors are
securely closed and locked. Flashing
confirmation for locking and unlocking
may be customized in the vehicle's Per-
sonal settings menu, see page 82 for
more information.
•
The two-step unlocking function can be
changed so that one press of the
Unlock button unlocks all of the doors
and the liftgate. See Personal settings
page 82 for more information.
•
Automatic relocking: If the doors are
unlocked, the locks will automatically reen-
gage (re-lock) and the alarm will rearm after
2 minutes unless a door or the liftgate has
been opened.
•
Automatic locking: When the car starts to
move, the doors and liftgate can be locked
automatically. This feature can be turned
on or off, see Personal settings on page
82 for more information.
•
Airbag deployment will automatically
attempt to unlock the doors.
Approach lighting – As you approach the
car: Press the button on the remote control
to illuminate the area around the car in dark
conditions. Pressing the button once lights
up the interior lighting, parking lights, and
license plate lighting. These lights will
switch off automatically after 30, 60 or
90 seconds. See the Personal settings pa
ge 82 for information about adjusting the
time setting.Unlock liftgate – Press the button once to
disarm the alarm system and unlock only
the liftgate. After closing, the liftgate will
not automatically relock. Press Lock to
relock it and rearm the alarm.NOTE
This function will not open the liftgate.Panic alarm – This button can be used to
attract attention during emergency situa-
tions. To activate the panic alarm, press
and hold the red button for at least 3 sec-
onds or press it twice within 3 seconds.
The turn signals and horn will be activated.
The panic alarm will stop automatically
after 30 seconds. To deactivate, wait
approximately 5 seconds and press the red
button again.

05 Locks and alarm
Keyless drive (option as available)
05``123 Keyless locking and unlocking
G007577
Range of the keyless drive remote control–5 ft
(1.5 meters)This system makes it possible to unlock and
lock the vehicle without having to use the
remote control. It is only necessary to have a
keyless drive remote control in your posses-
sion to operate the central locking system.
NOTE
The buttons on the keyless drive remote
control can also be used to lock and unlock
the vehicle, see page 118 for more informa-
tion.
Both of the remote controls provided with the
vehicle have the keyless function, and addi-
tional remotes can be ordered. The system can
accommodate up to six keyless drive remote
controls.
NOTE
The number of doors that are unlocked at
the same time can be set in the Personal
settings menu, see page 82 for additional
information.Unlocking the vehicle•
A keyless drive remote control must be on
the same side of the vehicle as the door to
be opened, and be within 5 feet
(1.5 meters) of the lock or the liftgate open-
ing control (see the shaded areas in the
illustration).
•
Pull a door handle to unlock and open the
door or press the liftgate opening control
on the liftgate.
•
See page 144 for information on starting a
vehicle equipped with keyless drive.
Locking the vehicle
G020033
Keyless drive lock buttonThe doors and the liftgate can be locked by
pressing the lock button in any of the outside
door handles.
NOTE
•
If one or more doors and/or the liftgate
is not fully closed when the lock button
is pressed, the door(s) or liftgate will not
be locked.
•
On keyless drive vehicles with an auto-
matic transmission, the gear selector
must be in the Park (P) position and the
ignition must be switched off before the
doors/liftgate can be locked.

05 Locks and alarmKeyless drive (option as available)
05124
Locking or unlocking the vehicle with the
key blade
G020225
Keyless drive keyhole coverThe driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote control's detachable key blade if
necessary, see page 120 for information on
removing the key blade from the remote con-
trol. To access the keyhole in the driver's door:•
Pry off the keyhole cover by inserting the
key blade or a small screwdriver in the hole
on the underside of the cover (indicated by
the arrow in the inset illustration).
•
Insert the key blade as far as possible in the
driver's door lock. Turn the key blade
clockwise approximately one-quarter turnto unlock the driver's door only. This will
trigger the alarm.
•
To disable the alarm: Press the Unlock
button on the keyless drive remote control.
If the batteries in the remote are weak,
remove the keyless drive start control from
the ignition switch by pressing the catch
(see the illustration on page 144) and pull-
ing the control out of the ignition switch.
Insert the ignition key section of a keyless
drive remote control in the ignition switch.
Keyless drive remote control and driver's
seat memoryThis function is only available on vehicles
equipped with the optional power driver's seat.•
When you leave the car with a keyless drive
remote control in your possession and lock
any door, the position of the driver's seat
will be stored in the seat's memory.
•
The next time a door is opened by a person
with the same remote control in his/her
possession, the driver's seat will automat-
ically move to the position that it was in
when the door was most recently locked.
NOTE
If several people carrying keyless drive
remote controls approach the vehicle at the
same time, the driver's seat will assume the
position it was in for the person who opens
a door first.Keyless drive information messagesIf anyone leaves the vehicle with the only key-
less drive remote control in his or her posses-
sion while the ignition is switched on, a
message will be shown in the information dis-
play and an audible signal will sound.
NOTE
This message will only be displayed if the
start control is in position I or II.The message will be erased from the display
and the audible signal will stop when the
remote control has been returned to the vehicle
and one of the following has occurred:•
A door has been opened and closed
•
The start control has been turned to posi-
tion0
•
TheREAD button (see page 60 for the
location of this button) has been pressed.

05 Locks and alarm
Keyless drive (option as available)
05``125

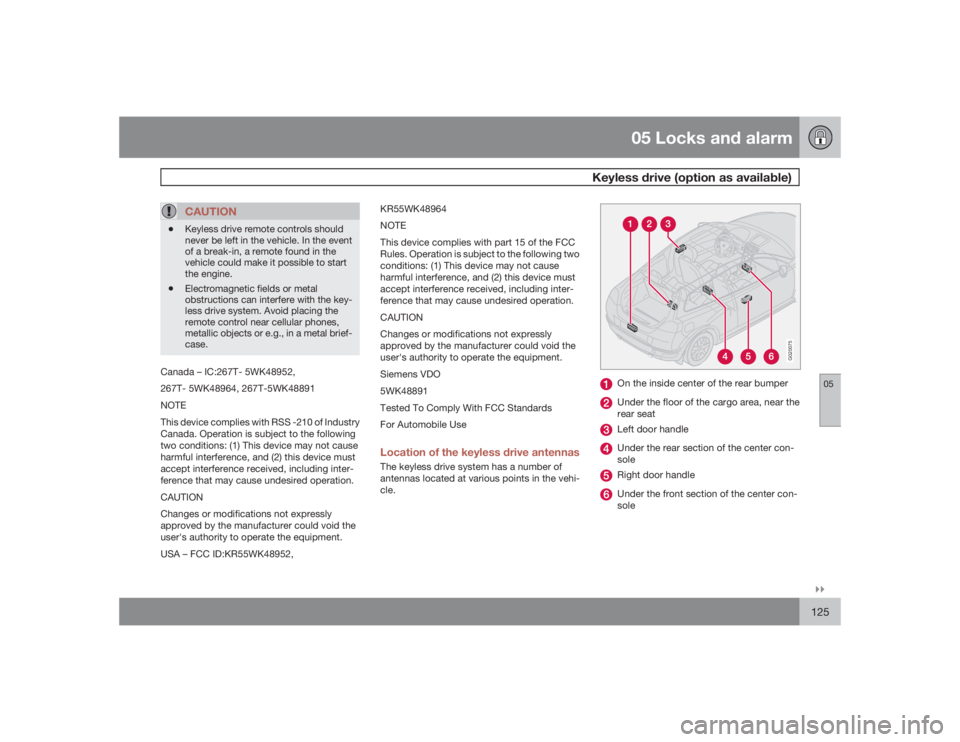

CAUTION
•
Keyless drive remote controls should
never be left in the vehicle. In the event
of a break-in, a remote found in the
vehicle could make it possible to start
the engine.
•
Electromagnetic fields or metal
obstructions can interfere with the key-
less drive system. Avoid placing the
remote control near cellular phones,
metallic objects or e.g., in a metal brief-
case.
Canada – IC:267T- 5WK48952,
267T- 5WK48964, 267T-5WK48891
NOTE
This device complies with RSS -210 of Industry
Canada. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
USA – FCC ID:KR55WK48952,KR55WK48964
NOTE
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept interference received, including inter-
ference that may cause undesired operation.
CAUTION
Changes or modifications not expressly
approved by the manufacturer could void the
user's authority to operate the equipment.
Siemens VDO
5WK48891
Tested To Comply With FCC Standards
For Automobile Use
Location of the keyless drive antennasThe keyless drive system has a number of
antennas located at various points in the vehi-
cle.
G020075
On the inside center of the rear bumperUnder the floor of the cargo area, near the
rear seatLeft door handleUnder the rear section of the center con-
soleRight door handleUnder the front section of the center con-
sole

05 Locks and alarm
Alarm (option)
05``129 The alarm system
The alarm is automatically armed whenever the
car is locked with the remote control, or if a
front lock button is depressed.
When armed, the alarm continuously monitors
a number of points on the car. The following
conditions will trigger the alarm:•
The hood is forced open.
•
The liftgate is forced open.
•
A door is forced open.
•
The ignition switch is tampered with
•
An attempt is made to start the car with a
non-approved key (a key not coded to the
car's ignition).
•
If there is movement in the passenger com-
partment (if the car is equipped with the
optional movement sensor).
•
The car is lifted or towed (if the car is equip-
ped with the optional inclination sensor)
•
The battery is disconnected (while the
alarm is armed).
•
The siren is disconnected when the alarm
is disarmed.
•
The liftgate window is broken.
The alarm indicator light
G020227
Alarm indicator lightThe status of the alarm system is indicated by
the indicator light on at the top of the dash-
board (see the illustration):•
Indicator light off – the alarm is not armed
•
The indicator light flashes every two sec-
onds – the alarm is armed
•
The indicator light flashes rapidly before
the ignition is switched on – the alarm has
been triggered. The message "
ALARM
TRIGGERED
,CHECK CAR
" will also be
displayed.
•
Fault in the alarm system: If a fault has
been detected in the alarm system, a mes-
sage will be shown in the information dis-
play. Contact your Volvo retailer to have
the alarm system inspected and repaired if
necessary.
Arming the alarmPress the LOCK button on the remote control,
or press the central lock button on one of the
front doors with the door open. One long flash
of the turn signals will confirm that the alarm is
armed.Disarming the alarmPress the UNLOCK button on the remote con-
trol or insert the key in the ignition
1 to disarm
the alarm. Two short flashes from the car's
direction indicators confirm that the alarm has
been deactivated and that all doors are
unlocked.
1On vehicles with the optional keyless drive, press in the start control in the ignition switch.

05 Locks and alarmAlarm (option)
05130
Turning off (stopping) the alarmIf the alarm is sounding, it can be stopped by
pressing the UNLOCK button on the remote
control or by inserting the key in the ignition
switch. The driver's door must first be
unlocked with the key blade.
NOTE
On vehicles equipped with the optional key-
less drive, the start control must be
removed from the ignition switch before the
key can be inserted, see page 144 for
instructions.Audible/visual alarm signalAn audible alarm signal is given by a battery
powered siren. The alarm cycle lasts for
30 seconds.
NOTE
The visual alarm signal is given by flashing
all turn signals and turning on the interior
lighting for approximately 5 minutes.
Temporarily turning off the accessory
alarm sensor(s)
G026313
DisplayMENUEXITENTERMenu navigation controlsIn certain situations it may be desirable to turn
off the accessory inclination and movement
alarm sensors if, for example, you drive your
vehicle onto a ferry where the rocking of the
boat could trigger the alarm or if a pet is left in
the vehicle with the doors locked.
To do so:
1.
PressMENU to enter the menu system and
scroll to
Car settings
(for a more detailed
description of the menus, see page 82.
2.
Select
Reduced guard
.
3.
Select
Activate once
and the message
Reduced guard – See manual
will
appear in the information display. The
alarm sensors will be turned off when the
vehicle is locked.
or
Select
Ask on exit
. Each time the ignition
key is turned to position 0, the message
Press ENTER to reduce guard until
engine is started. Press EXIT to
cancel
will be displayed. Select one of the
alternatives:
•
if the alarm sensors are to be deactivated,
pressENTER and then lock the vehicle.
The next time the ignition key is turned to posi-
tionII, the sensors will be reactivated and
Full
guard
will displayed.

06 Starting and drivingStarting the vehicle with keyless drive (option as available)
06144
Starting a vehicle with keyless drive
G019410
Starting a vehicle with keyless drive
Keyless drive makes it possible to unlock, start
and lock the vehicle without using a remote
control.
A start control is fitted in the ignition switch on
vehicles equipped with the optional keyless
drive. This control is used in the same way as
the ignition key to start the engine. See also
page 142 for general information on starting
the engine.
NOTE
A keyless drive remote control must be
inside the vehicle in order to start the
engine.1. Press the brake pedal (the clutch pedal
must also be fully depressed on models
with a manual transmission).
2. Press in the keyless drive start control and
turn it to position III.
NOTE
The vehicle is equipped with an autostart
function that makes it possible to start the
engine without holding the start control in
position III. Turn the start control to position
III and release it. The starter motor will then
operate automatically (for up to ten sec-
onds) until the engine starts.Starting the vehicle with the ignition key
(remote control)A vehicle with keyless drive can also be started
with the ignition key (if, for example, the battery
in the keyless drive remote control is weak). To
do so:
G019420
Removing the keyless drive start control1. Press the catch on the side of the start
control (see the illustration).
2. Pull the keyless drive start control out of
the ignition switch.
3. Insert the remote control into the ignition
switch and turn it to position III to start the
engine. See also page 142 for complete
starting information.
