dashboard VOLVO C30 2011 Owner´s Manual

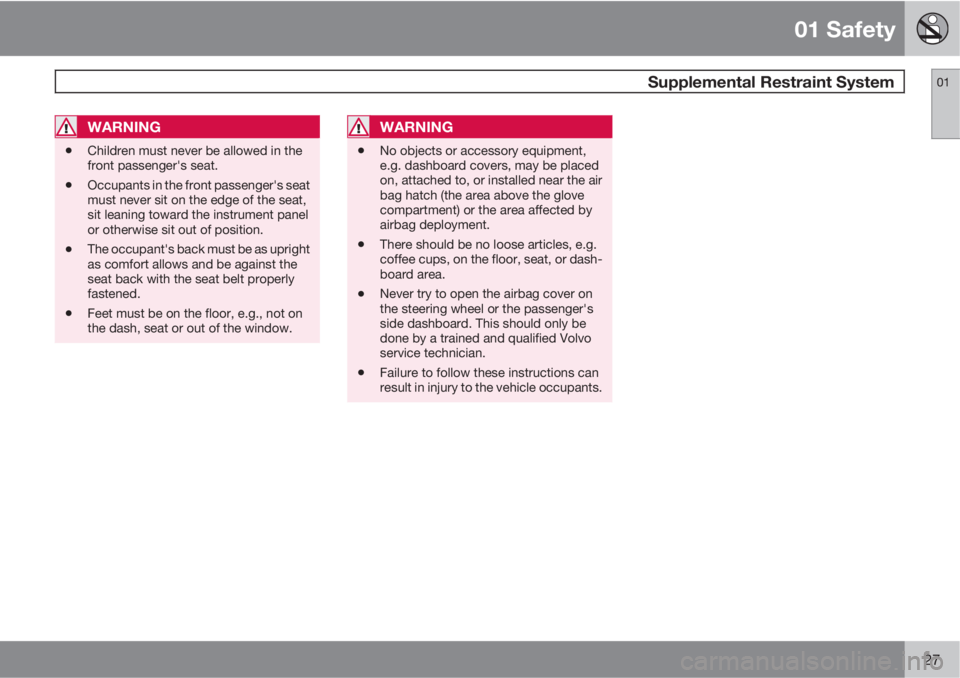

01 Safety
Supplemental Restraint System01
27
WARNING
•Children must never be allowed in the
front passenger's seat.
•Occupants in the front passenger's seat
must never sit on the edge of the seat,
sit leaning toward the instrument panel
or otherwise sit out of position.
•The occupant's back must be as upright
as comfort allows and be against the
seat back with the seat belt properly
fastened.
•Feet must be on the floor, e.g., not on
the dash, seat or out of the window.
WARNING
•No objects or accessory equipment,
e.g. dashboard covers, may be placed
on, attached to, or installed near the air
bag hatch (the area above the glove
compartment) or the area affected by
airbag deployment.
•There should be no loose articles, e.g.
coffee cups, on the floor, seat, or dash-
board area.
•Never try to open the airbag cover on
the steering wheel or the passenger's
side dashboard. This should only be
done by a trained and qualified Volvo
service technician.
•Failure to follow these instructions can
result in injury to the vehicle occupants.

03 Climate
General information
03
* Option/accessory, for more information, see Introduction.93
For information about how to make these set-
tings, see the Personal settings section on
page 83.
Models equipped with ECC*
Sensors
•The sunlight sensor is on the upper side of
the dashboard
•The passenger compartment temperature
sensor is located behind the climate sys-
tem control panel.
•The ambient temperature sensor is in the
driver's side door mirror.
•The humidity sensor is in the rearview mir-
ror.
These sensors should never be obstructed.
NOTE
The sunlight sensor monitors the side of the
vehicle from which the sun shines into the
passenger compartment. This means that
the temperature may differ slightly between
the left and right air vents, even if the climate
system temperature is set to be the same
for both sides of the passenger compart-
ment.
Side windows and optional moonroofThe electronic climate control system will func-
tion best if the windows and moonroof areclosed. If you drive with the windows or moon-
roof open, it may be preferable to manually
adjust the temperature and blower control (the
LED in the AUTO switch should be off).
AccelerationThe air conditioning system is temporarily
switched off during full throttle acceleration.

03 Climate
Air vents
03
94
Air vents in the dashboard
G019942
Open
Closed
Horizontal air flow
Vertical air flow
Direct the outer air vents toward the side win-
dows to defrost.

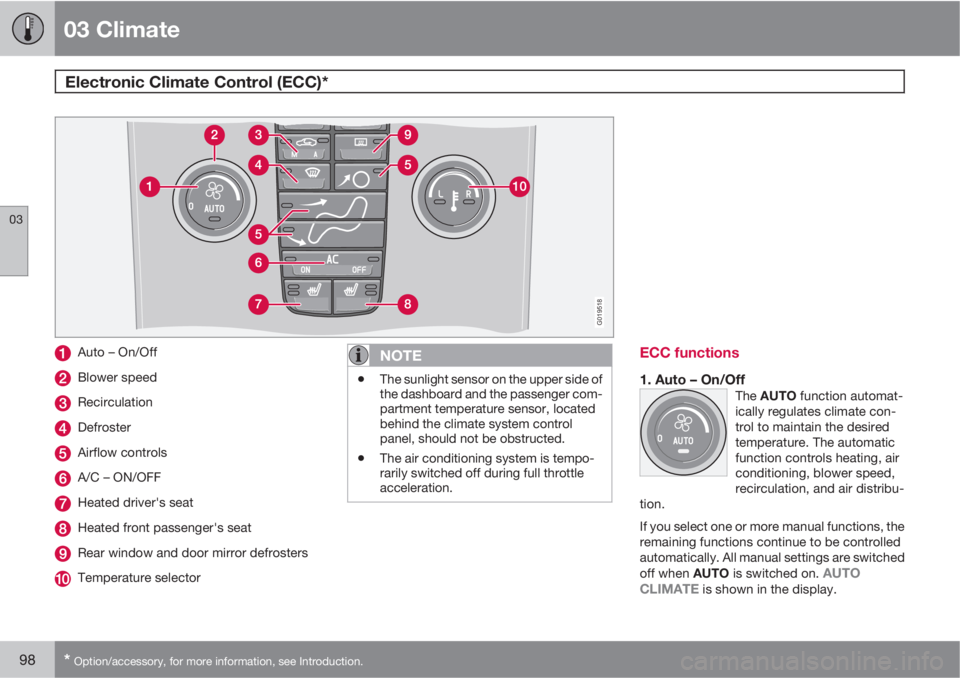

03 Climate
Electronic Climate Control (ECC)*
03
98* Option/accessory, for more information, see Introduction.
G019518
Auto – On/Off
Blower speed
Recirculation
Defroster
Airflow controls
A/C – ON/OFF
Heated driver's seat
Heated front passenger's seat
Rear window and door mirror defrosters
Temperature selector
NOTE
•The sunlight sensor on the upper side of
the dashboard and the passenger com-
partment temperature sensor, located
behind the climate system control
panel, should not be obstructed.
•The air conditioning system is tempo-
rarily switched off during full throttle
acceleration.
ECC functions
1. Auto – On/OffThe AUTO function automat-
ically regulates climate con-
trol to maintain the desired
temperature. The automatic
function controls heating, air
conditioning, blower speed,
recirculation, and air distribu-
tion.
If you select one or more manual functions, the
remaining functions continue to be controlled
automatically. All manual settings are switched
off when AUTO is switched on.
AUTO
CLIMATE is shown in the display.

03 Climate

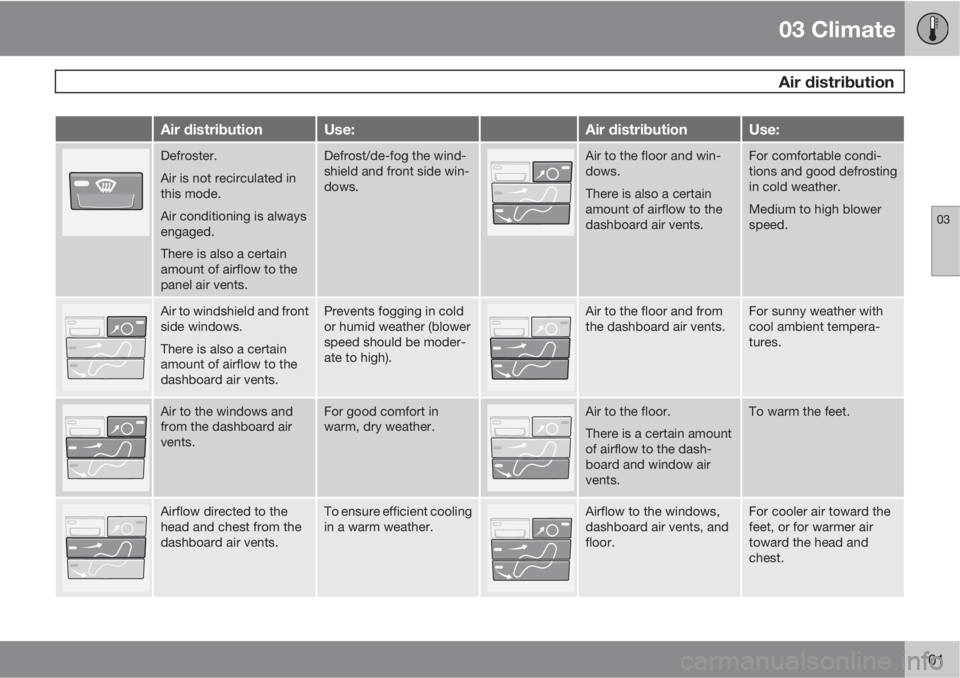

Air distribution
03
101
Air distributionUse:Air distributionUse:
Defroster.
Air is not recirculated in
this mode.
Air conditioning is always
engaged.
There is also a certain
amount of airflow to the
panel air vents.Defrost/de-fog the wind-
shield and front side win-
dows.Air to the floor and win-
dows.
There is also a certain
amount of airflow to the
dashboard air vents.For comfortable condi-
tions and good defrosting
in cold weather.
Medium to high blower
speed.
Air to windshield and front
side windows.
There is also a certain
amount of airflow to the
dashboard air vents.Prevents fogging in cold
or humid weather (blower
speed should be moder-
ate to high).Air to the floor and from
the dashboard air vents.For sunny weather with
cool ambient tempera-
tures.
Air to the windows and
from the dashboard air
vents.For good comfort in
warm, dry weather.Air to the floor.
There is a certain amount
of airflow to the dash-
board and window air
vents.To warm the feet.
Airflow directed to the
head and chest from the
dashboard air vents.To ensure efficient cooling
in a warm weather.Airflow to the windows,
dashboard air vents, and
floor.For cooler air toward the
feet, or for warmer air
toward the head and
chest.

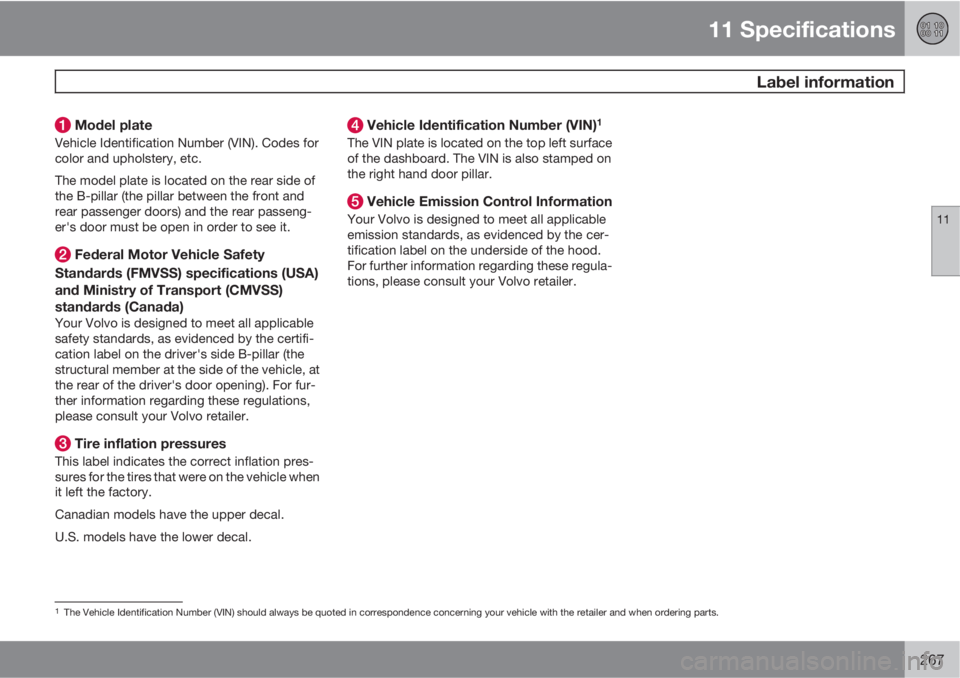

11 Specifications
Label information
11
267
Model plate
Vehicle Identification Number (VIN). Codes for
color and upholstery, etc.
The model plate is located on the rear side of
the B-pillar (the pillar between the front and
rear passenger doors) and the rear passeng-
er's door must be open in order to see it.
Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA)
and Ministry of Transport (CMVSS)
standards (Canada)
Your Volvo is designed to meet all applicable
safety standards, as evidenced by the certifi-
cation label on the driver's side B-pillar (the
structural member at the side of the vehicle, at
the rear of the driver's door opening). For fur-
ther information regarding these regulations,
please consult your Volvo retailer.
Tire inflation pressures
This label indicates the correct inflation pres-
sures for the tires that were on the vehicle when
it left the factory.
Canadian models have the upper decal.
U.S. models have the lower decal.
Vehicle Identification Number (VIN)1
The VIN plate is located on the top left surface
of the dashboard. The VIN is also stamped on
the right hand door pillar.
Vehicle Emission Control Information
Your Volvo is designed to meet all applicable
emission standards, as evidenced by the cer-
tification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.
1The Vehicle Identification Number (VIN) should always be quoted in correspondence concerning your vehicle with the retailer and when ordering parts.
