dimensions VOLVO C30 2011 Owner´s Manual

Contents
7
09
09 Maintenance and servicing
Volvo maintenance.................................. 212
Maintaining your car............................... 213
Hood.......................................................215
Engine compartment............................... 216
Engine oil................................................ 217
Fluids...................................................... 219
Wiper blades........................................... 221
Battery..................................................... 222
Replacing bulbs...................................... 224
Fuses...................................................... 231
10
10 Audio
Introduction ............................................ 240
Audio functions....................................... 241
Radio functions....................................... 246
CD player................................................ 254
Audio menu............................................. 257
Bluetooth
® hands-free connection......... 258
11
11 Specifications
Label information.................................... 266
Dimensions and weights......................... 268
Fuel, oils, and fluids................................ 270
Engine oil................................................ 272
Engine specifications.............................. 273
Electrical system..................................... 275
Three-way catalytic converter................. 277
Overview of information and warning sym-
bols......................................................... 278
Volvo programs....................................... 280

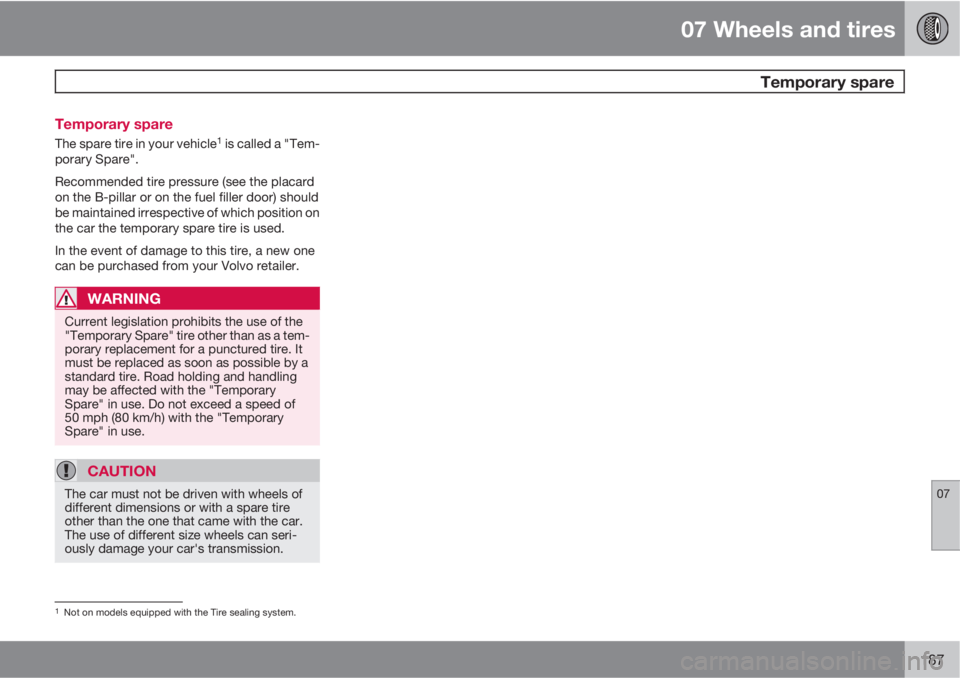

07 Wheels and tires
Temporary spare
07
187 Temporary spare
The spare tire in your vehicle1 is called a "Tem-
porary Spare".
Recommended tire pressure (see the placard
on the B-pillar or on the fuel filler door) should
be maintained irrespective of which position on
the car the temporary spare tire is used.
In the event of damage to this tire, a new one
can be purchased from your Volvo retailer.
WARNING
Current legislation prohibits the use of the
"Temporary Spare" tire other than as a tem-
porary replacement for a punctured tire. It
must be replaced as soon as possible by a
standard tire. Road holding and handling
may be affected with the "Temporary
Spare" in use. Do not exceed a speed of
50 mph (80 km/h) with the "Temporary
Spare" in use.
CAUTION
The car must not be driven with wheels of
different dimensions or with a spare tire
other than the one that came with the car.
The use of different size wheels can seri-
ously damage your car's transmission.
1Not on models equipped with the Tire sealing system.

264
Label information.................................................................................. 266
Dimensions and weights....................................................................... 268
Fuel, oils, and fluids..............................................................................270
Engine oil............................................................................................... 272
Engine specifications............................................................................ 273
Electrical system................................................................................... 275
Three-way catalytic converter............................................................... 277
Overview of information and warning symbols..................................... 278
Volvo programs..................................................................................... 280

11 Specifications

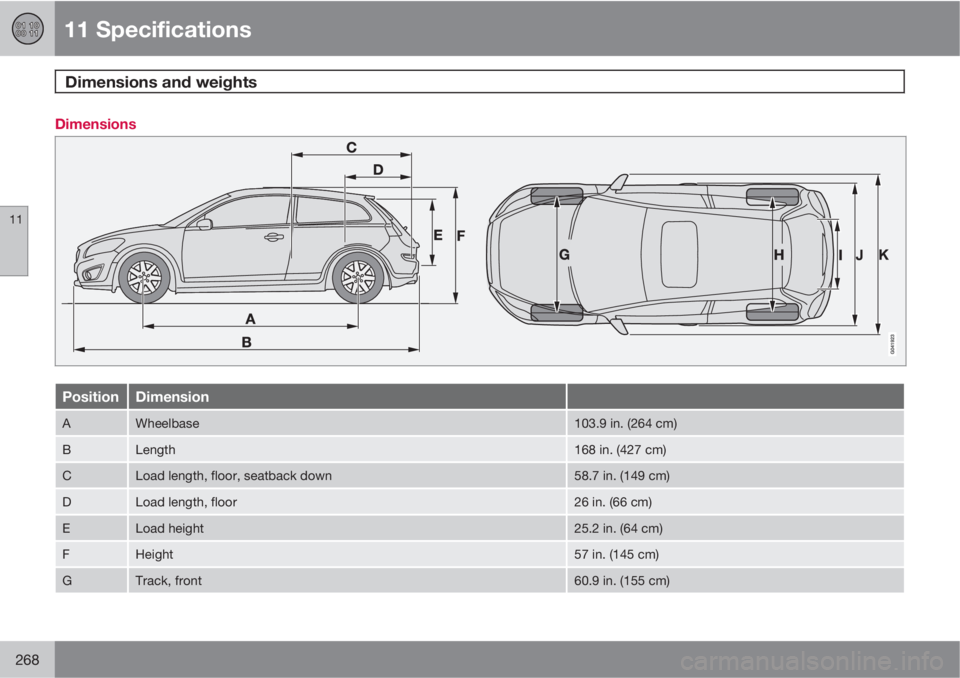

Dimensions and weights
11
268
Dimensions
PositionDimension
AWheelbase103.9 in. (264 cm)
BLength168 in. (427 cm)
CLoad length, floor, seatback down58.7 in. (149 cm)
DLoad length, floor26 in. (66 cm)
ELoad height25.2 in. (64 cm)
FHeight57 in. (145 cm)
GTrack, front60.9 in. (155 cm)

11 Specifications
Dimensions and weights
11
269

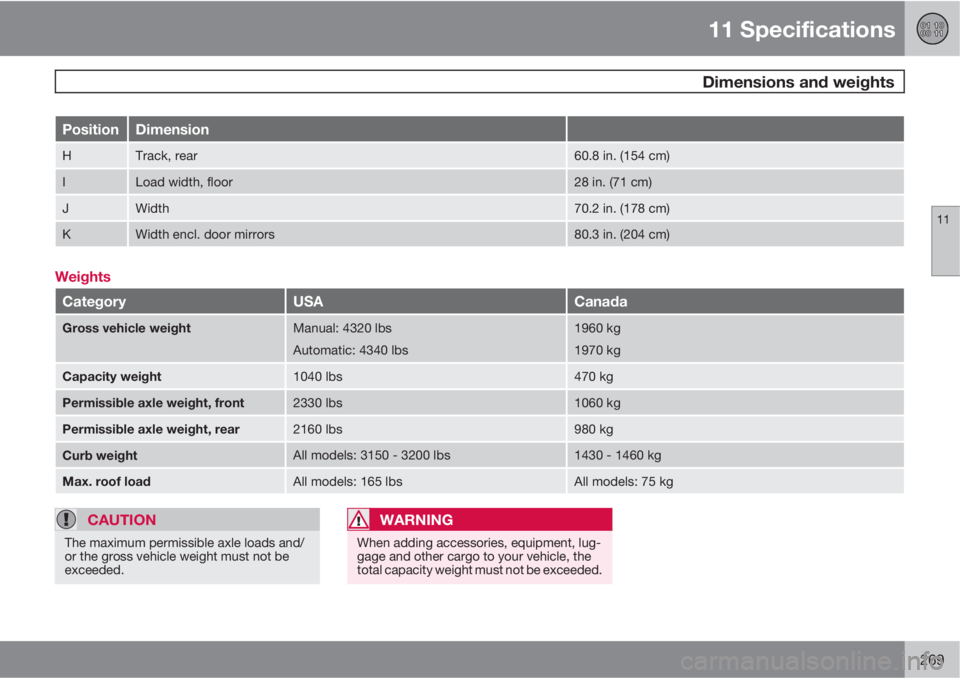

PositionDimension
HTrack, rear60.8 in. (154 cm)
ILoad width, floor28 in. (71 cm)
JWidth70.2 in. (178 cm)
KWidth encl. door mirrors80.3 in. (204 cm)
Weights
CategoryUSACanada
Gross vehicle weightManual: 4320 lbs
Automatic: 4340 lbs1960 kg
1970 kg
Capacity weight1040 lbs470 kg
Permissible axle weight, front2330 lbs1060 kg
Permissible axle weight, rear2160 lbs980 kg
Curb weightAll models: 3150 - 3200 lbs1430 - 1460 kg
Max. roof loadAll models: 165 lbsAll models: 75 kg
CAUTION
The maximum permissible axle loads and/
or the gross vehicle weight must not be
exceeded.
WARNING
When adding accessories, equipment, lug-
gage and other cargo to your vehicle, the
total capacity weight must not be exceeded.

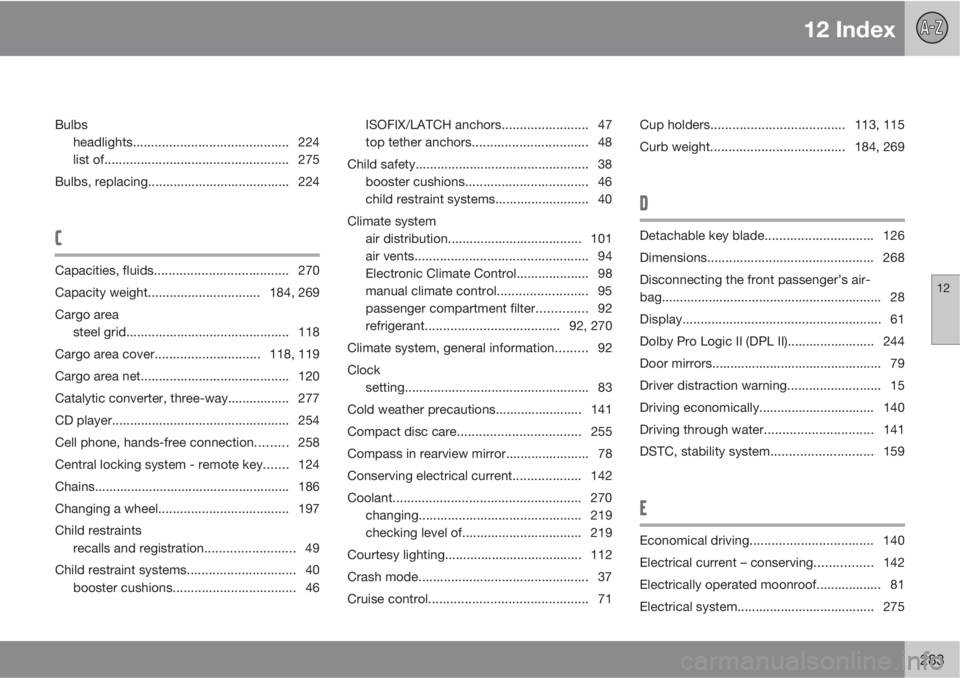

12 Index
12
283
Bulbs
headlights........................................... 224
list of................................................... 275
Bulbs, replacing....................................... 224
C
Capacities, fluids..................................... 270
Capacity weight............................... 184, 269
Cargo area
steel grid............................................. 118
Cargo area cover.............................118, 119
Cargo area net......................................... 120
Catalytic converter, three-way................. 277
CD player................................................. 254
Cell phone, hands-free connection......... 258
Central locking system - remote key....... 124
Chains...................................................... 186
Changing a wheel.................................... 197
Child restraints
recalls and registration......................... 49
Child restraint systems.............................. 40
booster cushions.................................. 46ISOFIX/LATCH anchors........................ 47
top tether anchors................................ 48
Child safety................................................ 38
booster cushions.................................. 46
child restraint systems.......................... 40
Climate system
air distribution..................................... 101
air vents................................................ 94
Electronic Climate Control.................... 98
manual climate control......................... 95
passenger compartment filter.............. 92
refrigerant.....................................92, 270
Climate system, general information......... 92
Clock
setting................................................... 83
Cold weather precautions........................ 141
Compact disc care..................................255
Compass in rearview mirror....................... 78
Conserving electrical current................... 142
Coolant.................................................... 270
changing............................................. 219
checking level of................................. 219
Courtesy lighting...................................... 112
Crash mode............................................... 37
Cruise control............................................ 71Cup holders.....................................113, 115
Curb weight.....................................184, 269
D
Detachable key blade.............................. 126
Dimensions.............................................. 268
Disconnecting the front passenger’s air-
bag............................................................. 28
Display.......................................................61
Dolby Pro Logic II (DPL II)........................ 244
Door mirrors............................................... 79
Driver distraction warning.......................... 15
Driving economically................................ 140
Driving through water..............................141
DSTC, stability system............................ 159
E
Economical driving.................................. 140
Electrical current – conserving................ 142
Electrically operated moonroof.................. 81
Electrical system...................................... 275

12 Index
12
288
inflation pressure table, US models.... 179
load ratings......................................... 178
rotation............................................... 175
snow...................................................186
spare................................................... 187
spare tire (location)............................. 189
speed ratings...................................... 178
storing................................................. 175
studded............................................... 186
tire pressure monitoring system......... 199
tire sealing system.............................. 191
tread wear indicator............................ 176
uniform tire quality grading................. 185
winter driving...................................... 186
Tire sealing system.................................. 191
Top tether anchors (child restraint sys-
tems).......................................................... 48
Towing the vehicle................................... 161
Transmission
Geartronic........................................... 153
manual................................................151
shiftlock override................................ 154
Tread wear indicator................................ 176
Treble....................................................... 244
Trip computer............................................ 69
Trips, long distance................................. 142Turn signals............................................... 67
indicator lights...................................... 54
U
Uniform Tire Quality Grading...................185
V
Vehicle dimensions.................................. 268
Vehicle Event Data..................................... 13
Vehicle loading........................................ 184
roof loads............................................ 165
Vehicle maintenance................................ 212
performed by the owner.....................213
Vehicle towing.........................................161
Vehicle weights........................................ 269
VIN (Vehicle Identification Number)......... 267
Volvo and the environment........................ 14
Volvo maintenance.................................. 212
Volvo On Call Roadside Assistance........ 280
W
Warning flashers, hazard........................... 76
Warning symbol......................................... 56
Warranties................................................ 212
Washer fluid..................................... 219, 270
Washer fluid reservoir......................216, 219
Water, driving through............................. 141
Weights.................................................... 269
Wheel nuts............................................... 188
Wheels.....................................................174
changing............................................. 197
storing................................................. 175
Whiplash Protection System (WHIPS)....... 35
Windows
power.................................................... 77
Windshield washer fluid reservoir............216
Windshield wiper blades.......................... 221
Windshield wipers...................................... 73
rains sensor.......................................... 74
Winter tires............................................... 186
Wiper blades
replacing liftgate wiper....................... 221
replacing windshield wipers............... 221
