VOLVO C30 2012 Owner´s Manual

03 Climate
Electronic Climate Control (ECC)*
03
* Option/accessory, for more information, see Introduction.101
9. Rear window and door mirror
defrosters

Press to defrost the rear window and door
mirrors.
The rear window and door mirrors are defros-
ted simultaneously if the switch is pressed
once. The defrost function is active if the LED
in the switch is illuminated.
•The function can be switched off manually
by pressing the button.
•The defrost function switches off automat-
ically after 12–20 minutes, depending on
the outside temperature.
NOTE
•On certain markets, the defrost function
may remain on longer than 20 minutes
in cold weather to help keep the rear
window free from ice or condensation.
10. Temperature selectorThe temperatures on the driv-
er's and passenger's sides
can be set separately using
the knob (with the thermome-
ter in it). The temperature can
be set for both sides of the car
when the ignition is switched
on (both LEDs will be on), which means that a
temperature setting will apply to both sides of
the car.
To set the temperature on one side of the car:
1. Press the knob once. The LED for one side
of the car will light up. Turn the knob to
adjust the temperature.
2. Press the knob a second time to set the
temperature on the opposite side of the
car.
3. Press the knob a third time to set the tem-
perature on both sides of the car at the
same time.
NOTE
Selecting a temperature that is higher or
lower than necessary will not heat or cool
the passenger compartment faster.

03 Climate
Air distribution
03
102
Air distributionUse:Air distributionUse:
Defroster.
Air is not recirculated in
this mode.
Air conditioning is always
engaged.
There is also a certain
amount of airflow to the
panel air vents.Defrost/de-fog the wind-
shield and front side win-
dows.Air to the floor and win-
dows.
There is also a certain
amount of airflow to the
dashboard air vents.For comfortable condi-
tions and good defrosting
in cold weather.
Medium to high blower
speed.
Air to windshield and front
side windows.
There is also a certain
amount of airflow to the
dashboard air vents.Prevents fogging in cold
or humid weather (blower
speed should be moder-
ate to high).Air to the floor and from
the dashboard air vents.For sunny weather with
cool ambient tempera-
tures.
Air to the windows and
from the dashboard air
vents.For good comfort in
warm, dry weather.Air to the floor.
There is a certain amount
of airflow to the dash-
board and window air
vents.To warm the feet.
Airflow directed to the
head and chest from the
dashboard air vents.To ensure efficient cooling
in a warm weather.Airflow to the windows,
dashboard air vents, and
floor.For cooler air toward the
feet, or for warmer air
toward the head and
chest.

03 Climate

03
103

104
Front seats............................................................................................ 106
Interior lighting...................................................................................... 114
Storage compartments......................................................................... 115
Rear seat............................................................................................... 118
Cargo area............................................................................................ 121

INTERIOR

04 Interior
Front seats
04
106

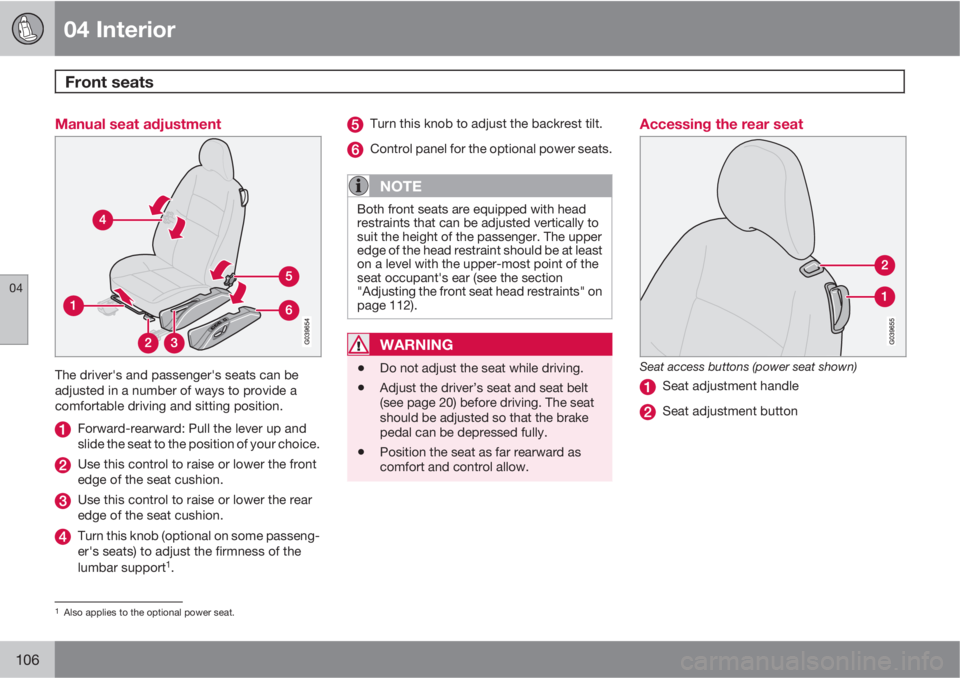

Manual seat adjustment
The driver's and passenger's seats can be
adjusted in a number of ways to provide a
comfortable driving and sitting position.
Forward-rearward: Pull the lever up and
slide the seat to the position of your choice.
Use this control to raise or lower the front
edge of the seat cushion.
Use this control to raise or lower the rear
edge of the seat cushion.
Turn this knob (optional on some passeng-
er's seats) to adjust the firmness of the
lumbar support
1.
Turn this knob to adjust the backrest tilt.
Control panel for the optional power seats.
NOTE
Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 112).
WARNING
•Do not adjust the seat while driving.
•Adjust the driver’s seat and seat belt
(see page 20) before driving. The seat
should be adjusted so that the brake
pedal can be depressed fully.
•Position the seat as far rearward as
comfort and control allow.
Accessing the rear seat
Seat access buttons (power seat shown)
Seat adjustment handle
Seat adjustment button
1Also applies to the optional power seat.

04 Interior
Front seats
04

107

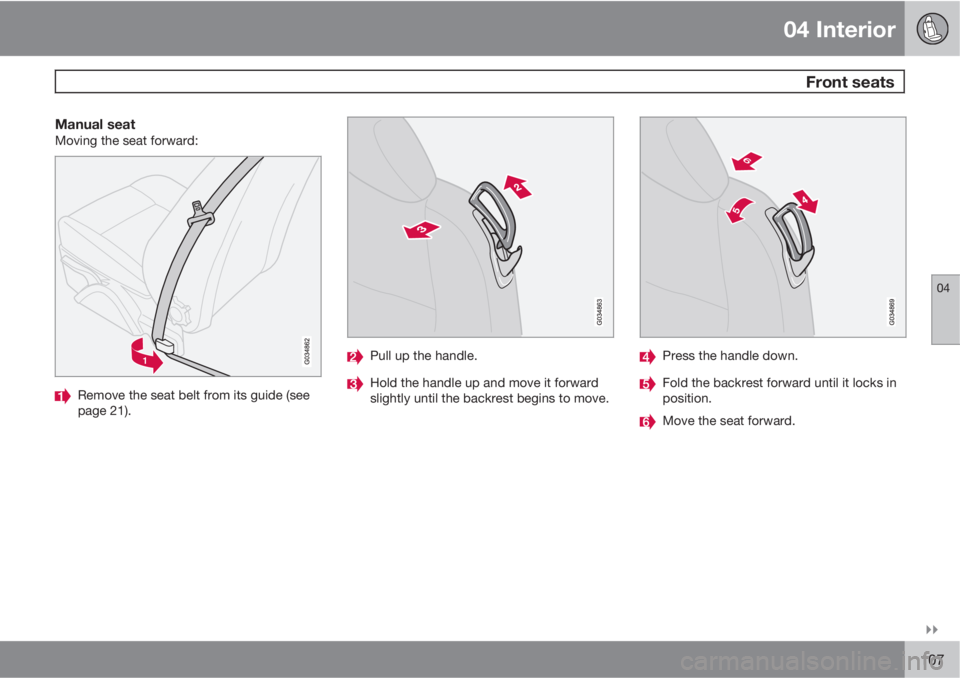

Manual seatMoving the seat forward:
Remove the seat belt from its guide (see
page 21).
Pull up the handle.
Hold the handle up and move it forward
slightly until the backrest begins to move.
Press the handle down.
Fold the backrest forward until it locks in
position.
Move the seat forward.

04 Interior
Front seats
04
108

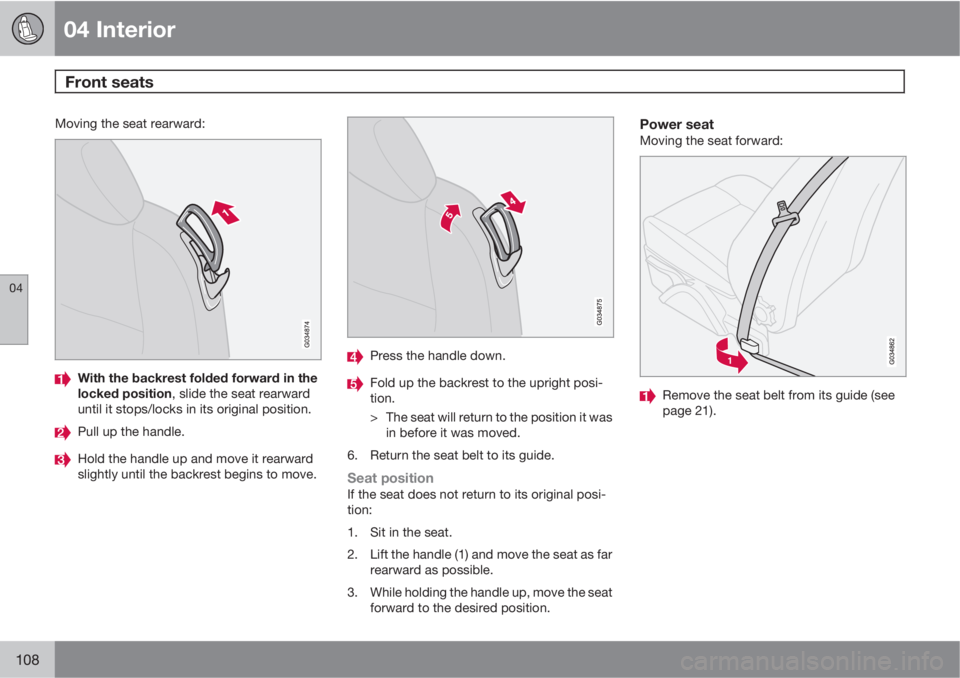

Moving the seat rearward:
With the backrest folded forward in the
locked position, slide the seat rearward
until it stops/locks in its original position.
Pull up the handle.
Hold the handle up and move it rearward
slightly until the backrest begins to move.
Press the handle down.
Fold up the backrest to the upright posi-
tion.
> The seat will return to the position it was
in before it was moved.
6. Return the seat belt to its guide.
Seat positionIf the seat does not return to its original posi-
tion:
1. Sit in the seat.
2. Lift the handle (1) and move the seat as far
rearward as possible.
3. While holding the handle up, move the seat
forward to the desired position.
Power seatMoving the seat forward:
Remove the seat belt from its guide (see
page 21).

04 Interior
Front seats
04

109

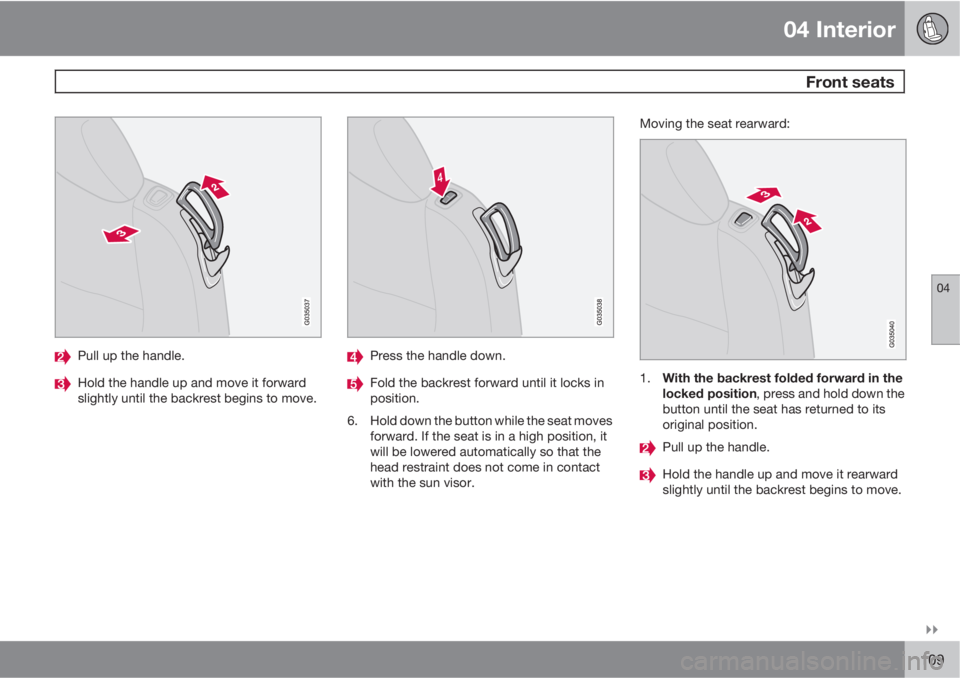

Pull up the handle.
Hold the handle up and move it forward
slightly until the backrest begins to move.
Press the handle down.
Fold the backrest forward until it locks in
position.
6. Hold down the button while the seat moves
forward. If the seat is in a high position, it
will be lowered automatically so that the
head restraint does not come in contact
with the sun visor.Moving the seat rearward:1.
With the backrest folded forward in the
locked position, press and hold down the
button until the seat has returned to its
original position.
Pull up the handle.
Hold the handle up and move it rearward
slightly until the backrest begins to move.

04 Interior
Front seats
04
110* Option/accessory, for more information, see Introduction.

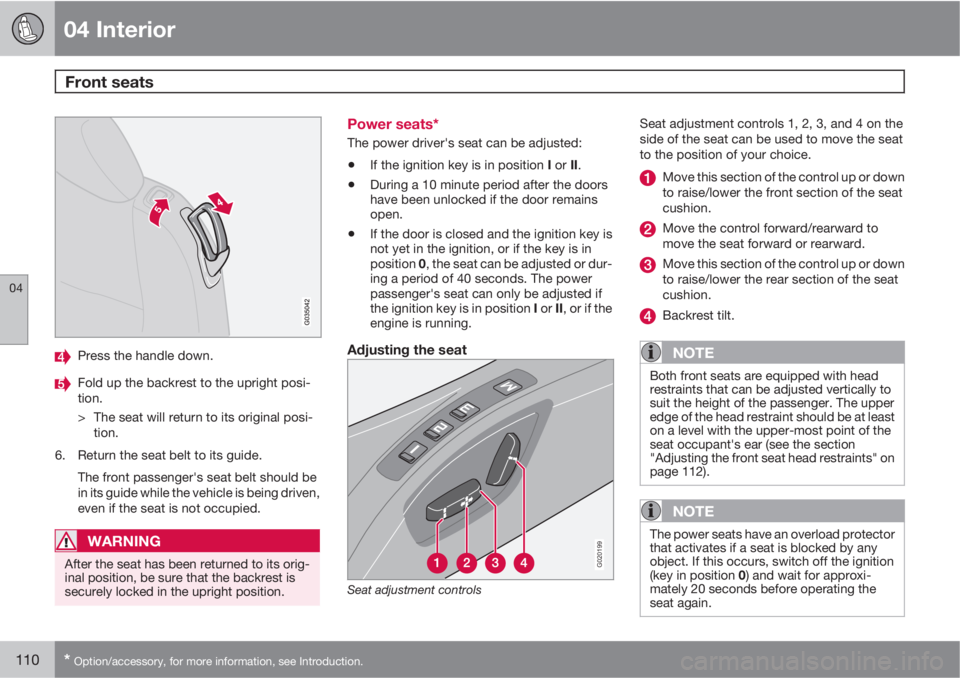

Press the handle down.
Fold up the backrest to the upright posi-
tion.
> The seat will return to its original posi-
tion.
6. Return the seat belt to its guide.
The front passenger's seat belt should be
in its guide while the vehicle is being driven,
even if the seat is not occupied.
WARNING
After the seat has been returned to its orig-
inal position, be sure that the backrest is
securely locked in the upright position.
Power seats*
The power driver's seat can be adjusted:
•If the ignition key is in position I or II.
•During a 10 minute period after the doors
have been unlocked if the door remains
open.
•If the door is closed and the ignition key is
not yet in the ignition, or if the key is in
position 0, the seat can be adjusted or dur-
ing a period of 40 seconds. The power
passenger's seat can only be adjusted if
the ignition key is in position I or II, or if the
engine is running.
Adjusting the seat
G020199
Seat adjustment controls
Seat adjustment controls 1, 2, 3, and 4 on the
side of the seat can be used to move the seat
to the position of your choice.
Move this section of the control up or down
to raise/lower the front section of the seat
cushion.
Move the control forward/rearward to
move the seat forward or rearward.
Move this section of the control up or down
to raise/lower the rear section of the seat
cushion.
Backrest tilt.
NOTE
Both front seats are equipped with head
restraints that can be adjusted vertically to
suit the height of the passenger. The upper
edge of the head restraint should be at least
on a level with the upper-most point of the
seat occupant's ear (see the section
"Adjusting the front seat head restraints" on
page 112).
NOTE
The power seats have an overload protector
that activates if a seat is blocked by any
object. If this occurs, switch off the ignition
(key in position 0) and wait for approxi-
mately 20 seconds before operating the
seat again.
