VOLVO C30 2012 Owner´s Manual

06 Starting and driving
Blind Spot Information System (BLIS)*
06

* Option/accessory, for more information, see Introduction.171
G018177
The vehicle's own shadow against a large, light,
smooth surface such as barriers between lanes on
a highway
Sunlight directly in the camera when the sun is low
on the horizon
Cleaning the BLIS camera lensesIn order to function optimally, the BLIS camera
lenses must be kept clean. They can be wiped
clean with a soft cloth or wet sponge.
CAUTION
•Clean the lenses carefully to avoid
scratching.
•The lenses are electrically heated to
help melt ice or snow. If necessary, gen-
tly brush away snow from the lenses.
Switching BLIS on and off
G018270
BLIS button (left button in the illustration)
BLIS is automatically activated when the igni-
tion is switched on. The indicator lights will
provide confirmation by flashing 3 times.
•The system can be switched off by press-
ing the BLIS button in the center console.
The indicator light in the button goes outwhen the system is switched off, and a text
message is displayed.
•BLIS can be switched on again by pressing
the button. The indicator light in the button
will illuminate and a new text message will
be displayed. Press the READ button, see
page 61, to erase the message.
BLIS system messages
Text in the
displaySystem status
BLIS SERVICE
REQUIREDBLIS not functioning
properly. Contact an
authorized Volvo serv-
ice technician.
BLIS CAMERA
BLOCKEDBLIS camera obscured.
Clean the lenses.
BLIS ONBLIS system on

06 Starting and driving
Blind Spot Information System (BLIS)*
06
172* Option/accessory, for more information, see Introduction.

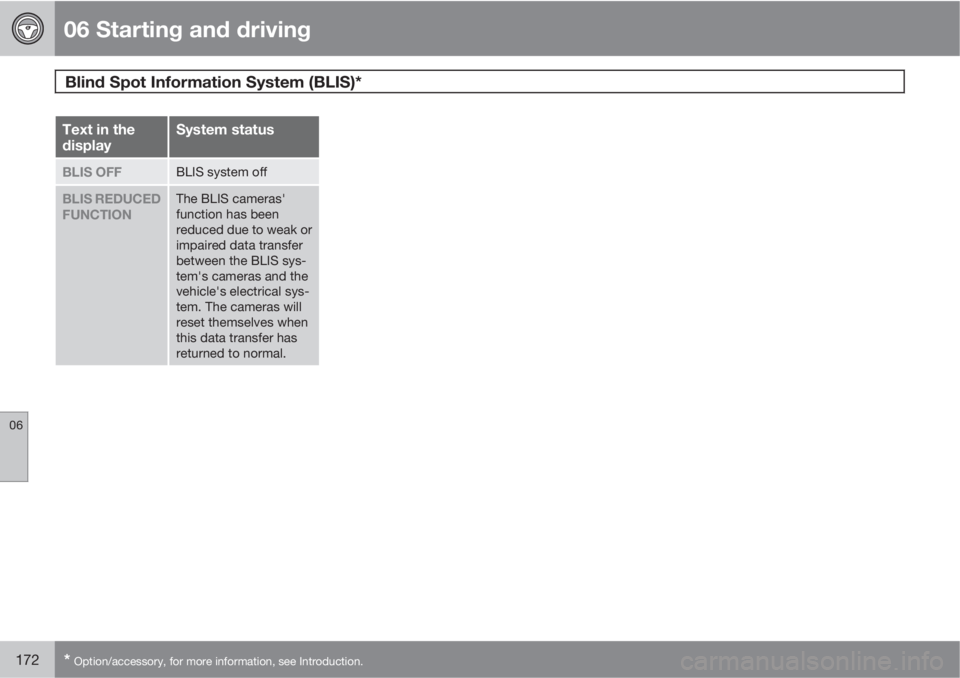

Text in the
displaySystem status
BLIS OFFBLIS system off
BLIS REDUCED
FUNCTIONThe BLIS cameras'
function has been
reduced due to weak or
impaired data transfer
between the BLIS sys-
tem's cameras and the
vehicle's electrical sys-
tem. The cameras will
reset themselves when
this data transfer has
returned to normal.

06 Starting and driving
Rear park assist*
06

* Option/accessory, for more information, see Introduction.173 Introduction
Rear park assist
The park assist system is designed to assist
you when driving into parking spaces, garages,
etc. It utilizes four ultrasound sensors located
in the rear bumper to measure the distance to
a vehicle, object or a person who may be close
to the rear of your vehicle.
WARNING
Park Assist is an information system, NOT a
safety system. This system is designed to
be a supplementary aid when parking the
vehicle. It is not, however, intended to
replace the driver's attention and judge-
ment.
Function
The system is activated automatically when the
vehicle is started. The indicator light in the but-
ton in the center console illuminates. Park
assist monitors the area behind the vehicle
when the engine is running and reverse gear
has been selected.
The distance monitored behind the vehicle is
approximately 5 ft (1.5 m). The signal comes
from the rear speakers.
The system must be deactivated when towing
a trailer, carrying bicycles in a rear-mounted
carrier, etc., which could trigger the rear park
assist system's sensors.
NOTE
Rear park assist is deactivated automati-
cally when towing a trailer if Volvo genuine
trailer wiring is used.
Activating/deactivating park assist
G021267
Park Assist button (right button in the illustration)
The system is activated automatically when the
vehicle is started.

Press the Park assist button on the center
console to temporarily deactivate the sys-
tem. The indicator light in the button will go
out when the system has been deacti-
vated.

Park assist will be automatically reactiva-
ted the next time the engine is started, or if
the button is pressed (the indicator light in
the button will illuminate).

06 Starting and driving
Rear park assist*
06
174* Option/accessory, for more information, see Introduction.
Audible signals from the park assist
system
The Park Assist system uses an intermittent
tone that pulses faster as you come close to an
object, and becomes constant when you are
within approximately 1 ft (30 cm) of an object
behind the vehicle. If the volume of another
source from the audio system is high, this will
be automatically lowered.
Faults in the system
If the information symbol illumi-
nates and PARK ASSIST
SERVICE REQUIRED is shown
on the information display, this
indicates that the system is not
functioning properly and has been disengaged.
Consult a Volvo retailer or authorized Volvo
service technician.
CAUTION
In certain circumstances, the park assist
system may give unexpected warning sig-
nals that can be caused by external sound
sources that use the same ultrasound fre-
quencies as the system. This may include
such things as the horns of other vehicles,
wet tires on asphalt, pneumatic brakes,
motorcycle exhaust pipes, etc. This does
not indicate a fault in the system.
Cleaning the sensors
Park assist sensors
The sensors must be cleaned regularly to
ensure that they work properly. Clean them
with water and a suitable car washing deter-
gent.
Ice and snow covering the sensors may cause
incorrect warning signals.
NOTE
If the sensors are obstructed by e.g., dirt,
snow, or ice, this could result in false warn-
ing signals from the park assist system.

06 Starting and driving

06
175

176* Option/accessory, for more information, see Introduction.
General information............................................................................... 178
Tire inflation........................................................................................... 181
Inflation pressure ................................................................................. 183
Tire designations................................................................................... 184
Glossary of tire terminology..................................................................186
Vehicle loading...................................................................................... 187
Uniform tire quality gradings................................................................. 188
Snow chains, snow tires, studded tires................................................ 189
Tire Sealing System* ............................................................................ 190
Temporary spare................................................................................... 196
Spare tire and jack ............................................................................... 197
Wheel nuts............................................................................................ 199
Changing a wheel................................................................................. 200
Tire Pressure Monitoring System (TPMS).............................................202

WHEELS AND TIRES

07 Wheels and tires
General information
07
178
Introduction
Your vehicle is equipped with tires according
to the vehicle's tire information placard on the
B-pillar (the structural member at the side of
the vehicle, at the rear of the driver's door
opening).
CAUTION
Some Volvo models are equipped with an
Ultra High Performance tire and wheel com-
bination designed to provide maximum dry
pavement performance with consideration
for hydroplaning resistance. They may be
more susceptible to road hazard damage
and, depending on driving conditions, may
achieve a tread life of less than 20,000 miles
(30,000 km). Even if this vehicle is equipped
with Volvo’s advanced DSTC system, these
tires are not designed for winter driving, and
should be replaced with winter tires when
weather conditions dictate.
The tires have good road holding characteris-
tics and offer good handling on dry and wet
surfaces. It should be noted however that the
tires have been developed to give these fea-
tures on snow/ice-free surfaces.
Most models are equipped with "all-season"
tires, which provide a somewhat higher degree
of road holding on slippery surfaces than tireswithout the "all-season" rating. However, for
optimum road holding on icy or snow-covered
roads, we recommend suitable winter tires on
all four wheels.
When replacing tires, be sure that the new tires
are the same size designation, type (radial) and
preferably from the same manufacturer, on all
four wheels. Otherwise there is a risk of altering
the car's roadholding and handling characte-
ristics.
New Tires
Remember that tires are perishable goods. As
of 2000, the manufacturing week and year
(Department of Transportation (DOT) stamp)
will be indicated with 4 digits (e.g., 1510 means
that the tire illustrated was manufactured dur-
ing week 15 of 2010).
Tire ageTires degrade over time, even when they are
not being used. It is recommended that tires
generally be replaced after 6 years of normal
service. Heat caused by hot climates, frequent
high loading conditions or Ultra Violet (U.V)
exposure can accelerate the aging process.
The temporary spare
1 should also be replaced
at 6-year intervals, even if it has never been
used.
A tire's age can be determined by the DOT
stamp on the sidewall (see the illustration).
A tire with e.g., visible cracks or discoloration
should be replaced immediately.
Improving tire economy
•Maintain correct tire pressure. For the tire
pressure tables, see page 183.
•Drive smoothly: avoid fast starts, hard
braking and tire screeching.
•Tire wear increases with speed.
•Correct front wheel alignment is very
important.
•Unbalanced wheels impair tire economy
and driving comfort.
•Tires must maintain the same direction of
rotation throughout their lifetime.
1Option or accessory on some models

07 Wheels and tires
General information
07

179
•When replacing tires, the tires with the
most tread should be mounted on the rear
wheels to reduce the chance of oversteer
during hard braking.
•Hitting curbs or potholes can damage the
tires and/or wheels permanently.
Summer and winter tires
G020325
The arrows shows the direction of rotation of the
tire
•When switching between summer and
winter tires, mark the tires to indicate
where they were mounted on the car, e.g.,
LF = left front, RR = right rear
•Tires with tread designed to roll in only one
direction are marked with an arrow on the
sidewall.
•Incorrectly mounted tires impair the car's
braking properties and ability to force
aside rain, snow and slush.
•The tires with the most tread should always
be at the rear (to reduce the risk of skid-
ding).
•Contact a Volvo workshop if you are
unsure about the tread depth.
Storing wheels and tiresWhen storing complete wheels (tires mounted
on rims), they should be suspended off the
floor or placed on their sides on the floor.
Tires not mounted on rims should be stored on
their sides or standing upright, but should not
be suspended.
CAUTION
Tires should preferably be stored in a cool,
dry, dark place, and should never be stored
in close proximity to solvents, gasoline, oils,
etc.
WARNING
•The wheel and tire sizes for your Volvo
are specified to meet stringent stability
and handling requirements. Unap-
proved wheel/tire size combinations
can negatively affect your vehicle's sta-
bility and handling.
•Any damage caused by installation of
unapproved wheel/tire size combina-
tions will not be covered by your new
vehicle warranty. Volvo assumes no
responsibility for death, injury, or
expenses that may result from such
installations.
Tire wear
Tire rotationYour vehicle has no required tire rotation. Tire
wear is affected by a number of factors such
as tire inflation, ambient temperature, driving
style, etc.

07 Wheels and tires
General information
07
180
NOTE
•If the tires are rotated, they should only
be moved from front to rear or vice
versa. They should never be rotated left
to right/right to left.
•Ideally, tire rotation should be done the
first time after approximately 3,000
miles (5,000 km) and thereafter at
6,000-mile (10,000-km) intervals. Some
customers find that tire rotation may
help to get extra mileage from tire life.
•Tire rotation should only be performed
if front/rear tire wear is fairly even and
tread height is above 1/16" (1.6 mm).
Your Volvo retailer can also provide guidance
based on your particular driving circumstan-
ces.
Tread wear indicator
G020323
The tires have wear indicator strips running
across or parallel to the tread. The letters TWI
are printed on the side of the tire. When
approximately 1/16" (1.6 mm) is left on the
tread, these strips become visible and indicate
that the tire should be replaced. Tires with less
than 1/16" (1.6 mm) tread offer very poor trac-
tion.
When replacing worn tires, it is recommended
that the tire be identical in type (radial) and size
as the one being replaced. Using a tire of the
same make (manufacturer) will prevent altera-
tion of the driving characteristics of the vehicle.
