VOLVO C30 2012 Owner´s Manual

11 Specifications
Engine specifications
11
281 Fuel system
The engine is equipped with a multiport fuel
injection system.

11 Specifications
Electrical system
11
282
General information
12-volt system with voltage controlled gener-
ator. Single wire system in which the chassis
and engine block are used as conductors,
grounded on the chassis.
Battery
Voltage12 V
Cold start capacity (CCA)700 AA
Reserve capacity (RC)135 min
Capacity (Ah)80
AModels equipped with the Premium Sound audio system,
the Volvo Navigation System and/or keyless drive.
If the battery must be replaced, replace it with
one with the same cold start capacity and
reserve capacity as the original (see the decal
on the battery).
WARNING
PROPOSITION 65 WARNING!
Battery posts, terminals, and related acces-
sories contain lead and lead compounds,
chemicals known to the state of California
to cause cancer and reproductive harm.
Wash hands after handling.

11 Specifications
Three-way catalytic converter
11
283 Three-way catalytic converter –
general information
•Keep your engine properly tuned. Certain
engine malfunctions, particularly involving
the electrical, fuel or distributor ignition
systems, may cause unusually high three-
way catalytic converter temperatures. Do
not continue to operate your vehicle if you
detect engine misfire, noticeable loss of
power or other unusual operating condi-
tions, such as engine overheating or back-
firing. A properly tuned engine will help
avoid malfunctions that could damage the
three-way catalytic converter.
•Do not park your vehicle over combustible
materials, such as grass or leaves, which
can come into contact with the hot exhaust
system and cause such materials to ignite
under certain wind and weather condi-
tions.
•Excessive starter cranking (in excess of
one minute), or an intermittently firing or
flooded engine can cause three-way cata-
lytic converter or exhaust system over-
heating.
•Remember that tampering or unauthorized
modifications to the engine, the Electronic
Control Module, or the vehicle may be ille-
gal and can cause three-way catalytic con-
verter or exhaust system overheating. This
includes: altering fuel injection settings or
components, altering emission systemcomponents or location, or removing com-
ponents, and/the repeated use of leaded
fuel.
NOTE
Unleaded fuel is required for vehicles with
three-way catalytic converters.

11 Specifications

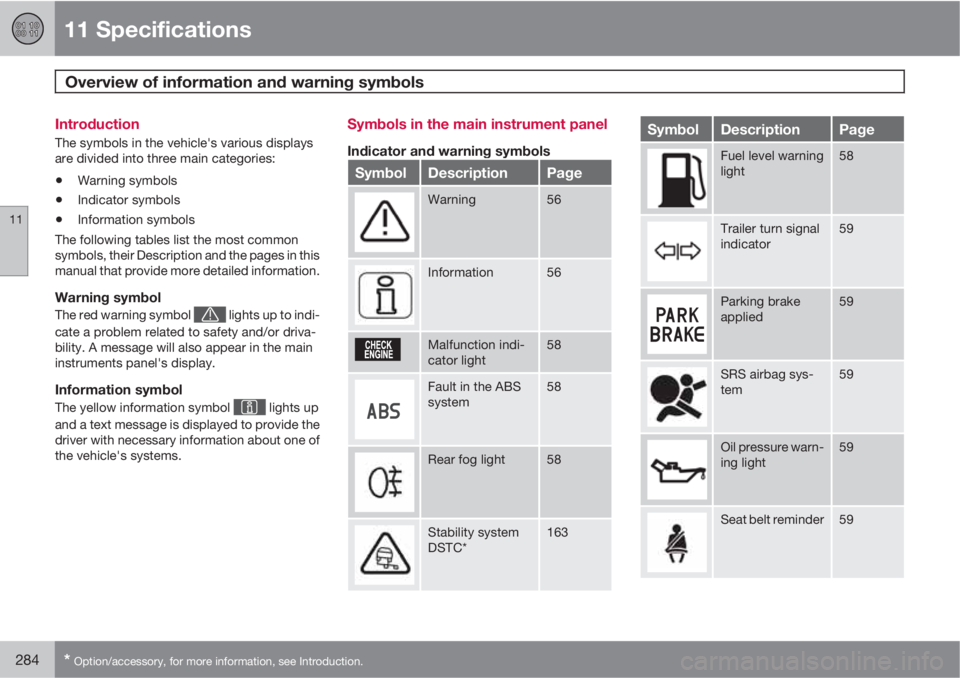

Overview of information and warning symbols
11
284* Option/accessory, for more information, see Introduction.
Introduction
The symbols in the vehicle's various displays
are divided into three main categories:
•Warning symbols
•Indicator symbols
•Information symbols
The following tables list the most common
symbols, their Description and the pages in this
manual that provide more detailed information.
Warning symbol
The red warning symbol lights up to indi-
cate a problem related to safety and/or driva-
bility. A message will also appear in the main
instruments panel's display.
Information symbol
The yellow information symbol lights up
and a text message is displayed to provide the
driver with necessary information about one of
the vehicle's systems.
Symbols in the main instrument panel
Indicator and warning symbols
SymbolDescriptionPage
Warning56
Information56
Malfunction indi-
cator light58
Fault in the ABS
system58
Rear fog light58
Stability system
DSTC*163
SymbolDescriptionPage
Fuel level warning
light58
Trailer turn signal
indicator59
Parking brake
applied59
SRS airbag sys-
tem59
Oil pressure warn-
ing light59
Seat belt reminder59

11 Specifications
Overview of information and warning symbols
11
* Option/accessory, for more information, see Introduction.285
SymbolDescriptionPage
Generator warn-
ing light59
Brake failure
warning light59
High beam indica-
tor54
Left turn signal54
Right turn signal54
Other information symbols
SymbolDescriptionPage
Rain sensor*74
Cruise control*71
Information symbols in the center
console display
SymbolDescriptionPage
G021216
Surround sound
(Premium Sound
only)250
HD radio254
Audio files260
CD folder260
Bluetooth-con-
nected cell phone264
BluetoothTM
hands-free
264
Information symbols in the ceiling
console
SymbolDescriptionPage
Seat belt reminder59
Occupant weight
sensor28

11 Specifications
Volvo programs
11
286
Volvo On Call Roadside Assistance
Your new Volvo comes with a four year ON
CALL roadside assistance. Additional informa-
tion, features, and benefits are described in a
separate information package in your glove
compartment.
If you require assistance, dial:
In the U.S. 1-800-638-6586 (1-800-63-
VOLVO)
In Canada 1-800-263-0475
Technician certification
In addition to Volvo factory training, Volvo sup-
ports certification by the National Institute for
Automotive Service Excellence (A.S.E.). Certi-
fied technicians have demonstrated a high
degree of competence in specific areas.
Besides passing exams, each technician must
also have worked in the field for two or more
years before a certificate is issued. These pro-
fessional technicians are best able to analyze
vehicle problems and perform the necessary
maintenance procedures to keep your Volvo at
peak operating condition.

11 Specifications

11
287

12 Index
12
288
1, 2, 3 ...
12-volt sockets.......................................... 63
A
A/C (air conditioning)................................. 92
ABS (anti-lock brake system).................. 159
Accessory installation warning.................. 15
Adaptive brake lights............................... 158
Airbags
front...................................................... 24
inflatable curtain................................... 33
side impact........................................... 31
Airbag system............................................ 24
Air conditioning.......................................... 92
Air distribution table................................. 102
Air vents..................................................... 94
Alarm system........................................... 137
turning off sensors.............................. 138
Anti-lock Brake System (ABS)................. 159
Approach lighting...................................... 84
Audio files................................................ 260Audio system
audio functions................................... 247
automatic sound control..................... 251
AUX port............................................. 248
Bluetooth streaming audio................. 249
compact disc care.............................. 261
Dolby Surround Pro Logic II............... 250
equalizer............................................. 251
HD digital radio................................... 254
menu settings..................................... 263
radio functions.................................... 252
selecting a sound source.................... 247
Sirius satellite radio............................256
sound settings.................................... 250
steering wheel keypad........................ 247
storing radio stations.......................... 252
USB/iPodŸ connector........................ 248
Auto-dim rearview mirror........................... 78
Autolock..................................................... 83
Automatic locking retractor....................... 39
Automatic sound control.........................251
Automatic transmission........................... 155
kickdown............................................ 156
oil........................................................ 277
shiftlock override................................ 157
Automatic transmission - Geartronic....... 156AUX port.................................................. 248
Axle weight......................................187, 275
B
Backrest, rear seat, folding...................... 118
Bass......................................................... 250
Battery
maintenance....................................... 226
remote key, replacing......................... 128
specifications...................................... 282
warning symbols................................. 226
Battery – replacing................................... 227
Black box................................................... 13
Blind Spot Information System (BLIS)..... 169
Bluetooth cell phone connection............. 264
Booster cushion
accessory............................................. 46
Brake fluid........................................ 224, 277
Brake lights........................................ 66, 158
Brake system
anti-lock brakes (ABS)........................ 159
Brake pad inspection.......................... 158
emergency brake assistance.............. 160

12 Index
12
289
fluid..................................................... 224
general information............................. 158
Bulbs
headlights........................................... 228
list of................................................... 234
Bulbs, replacing....................................... 228
C
Capacities, fluids..................................... 277
Capacity weight............................... 187, 275
Cargo area
steel grid............................................. 121
Cargo area cover.............................121, 122
Cargo area net......................................... 123
Catalytic converter, three-way................. 283
CD player................................................. 260
Cell phone, hands-free connection......... 264
Central locking system - remote key....... 126
Chains...................................................... 189
Changing a wheel.................................... 200
Child restraints
recalls and registration......................... 39Child restraint systems.............................. 40
booster cushions.................................. 46
ISOFIX/LATCH anchors........................ 47
top tether anchors................................ 48
Child safety................................................ 38
booster cushions.................................. 46
child restraint systems.......................... 40
Climate system
air distribution..................................... 102
air vents................................................ 94
Electronic Climate Control.................... 98
Interior Air Quality System.................... 99
manual climate control......................... 95
passenger compartment filter.............. 92
recirculation.......................................... 99
refrigerant.....................................92, 277
Climate system, general information......... 92
Clock
setting................................................... 83
Cold weather precautions........................ 143
Compact disc care..................................261
Compass in rearview mirror....................... 78
Conserving electrical current................... 144
Coolant.................................................... 277
changing............................................. 223
checking level of................................. 223Courtesy lighting...................................... 114
Crash mode............................................... 37
Cruise control............................................ 71
Cup holders.....................................115, 117
Curb weight.....................................187, 275
D
Daytime running lights.........................64, 65
Detachable key blade.............................. 128
Dimensions.............................................. 274
Disconnecting the front passenger’s air-
bag............................................................. 28
Display.......................................................61
Dolby Pro Logic II (DPL II)........................ 250
Door mirrors............................................... 79
Driver distraction warning.......................... 15
Driving economically................................ 142
Driving through water..............................143
DSTC, stability system............................ 162

12 Index
12
290
E
Economical driving.................................. 142
Electrical current – conserving................ 144
Electrically operated moonroof.................. 81
Electrical system...................................... 282
Electronic Brake Force Distribution
(EBD)........................................................ 159
Electronic Climate Control......................... 93
air distribution table............................ 102
Electronic Climate Control (ECC)............... 98
Emergency brake..................................... 161
Emergency locking retractor...................... 39
Emergency starting.................................. 167
Emergency towing................................... 164
Emission inspection readiness................ 217
Engine
specifications...................................... 280
starting................................................ 150
starting with keyless drive.................. 152
Engine compartment overview................220
Engine oil................................................. 221
changing............................................. 221
checking............................................. 221specifications...................................... 279
volumes.............................................. 277
Environment............................................... 14
Equalizer, audio system........................... 251
Eyelets for anchoring loads..................... 121
F
Federal Clean Air Act............................... 216
Flat tires
changing..................................... 197, 200
repairing with tire sealing system....... 190
Floor mats
cleaning.............................................. 211
placing correctly.........................150, 152
Fluids and oils.......................................... 277
FM1/FM2 menu....................................... 252
Fog lights
front...................................................... 66
rear........................................................ 66
Front airbags.............................................. 24
disconnecting passenger’s side airbag 28
Front fog lights........................................... 66Front seats............................................... 106
accessing the rear seat...................... 106
adjusting the head restraints.............. 112
manually operated.............................. 106
power.................................................. 110
Fuel filler door
unlocking.............................................. 66
Fuel gauge................................................. 54
Fuel requirements.................................... 146
Fuel tank volume.....................................277
Fuses, replacing......................................236
G
Garage door opener
HomeLink® Wireless Control System. . . 86
Gasoline requirements............................. 146
Geartronic................................................ 156
Glossary of tire terminology..................... 186
Glove compartment................................. 116
locking................................................ 136
Gross vehicle weight (GVW)............187, 275
